EclProfile FS

EclProfile FS

PROECLIPSEFS

Key Features:

RGB + Lime LED ellipsoidal with HD dimming and extensive colour palette

High definition optics for sharp focus and gobo projection

Accepts industry standard accessories

Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

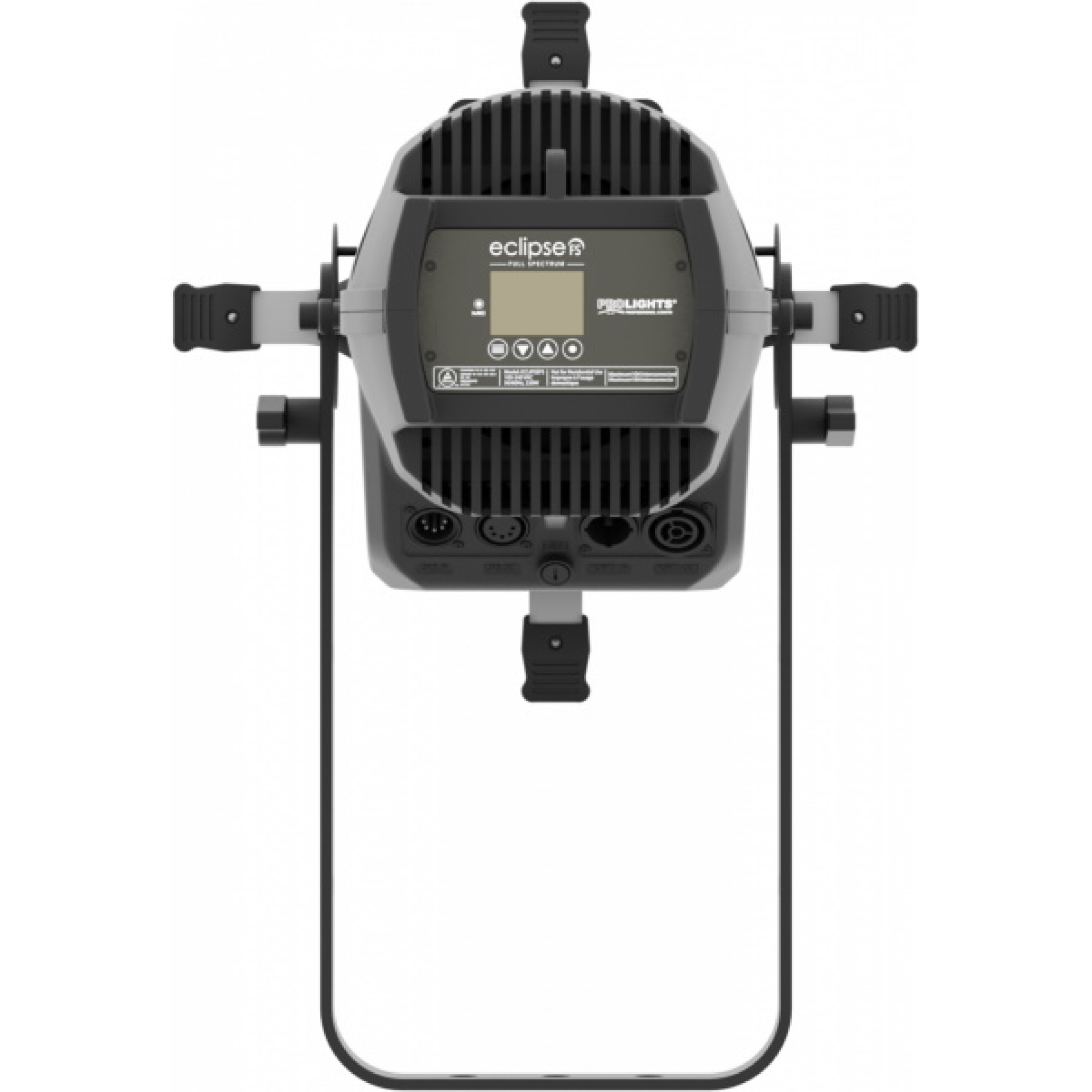

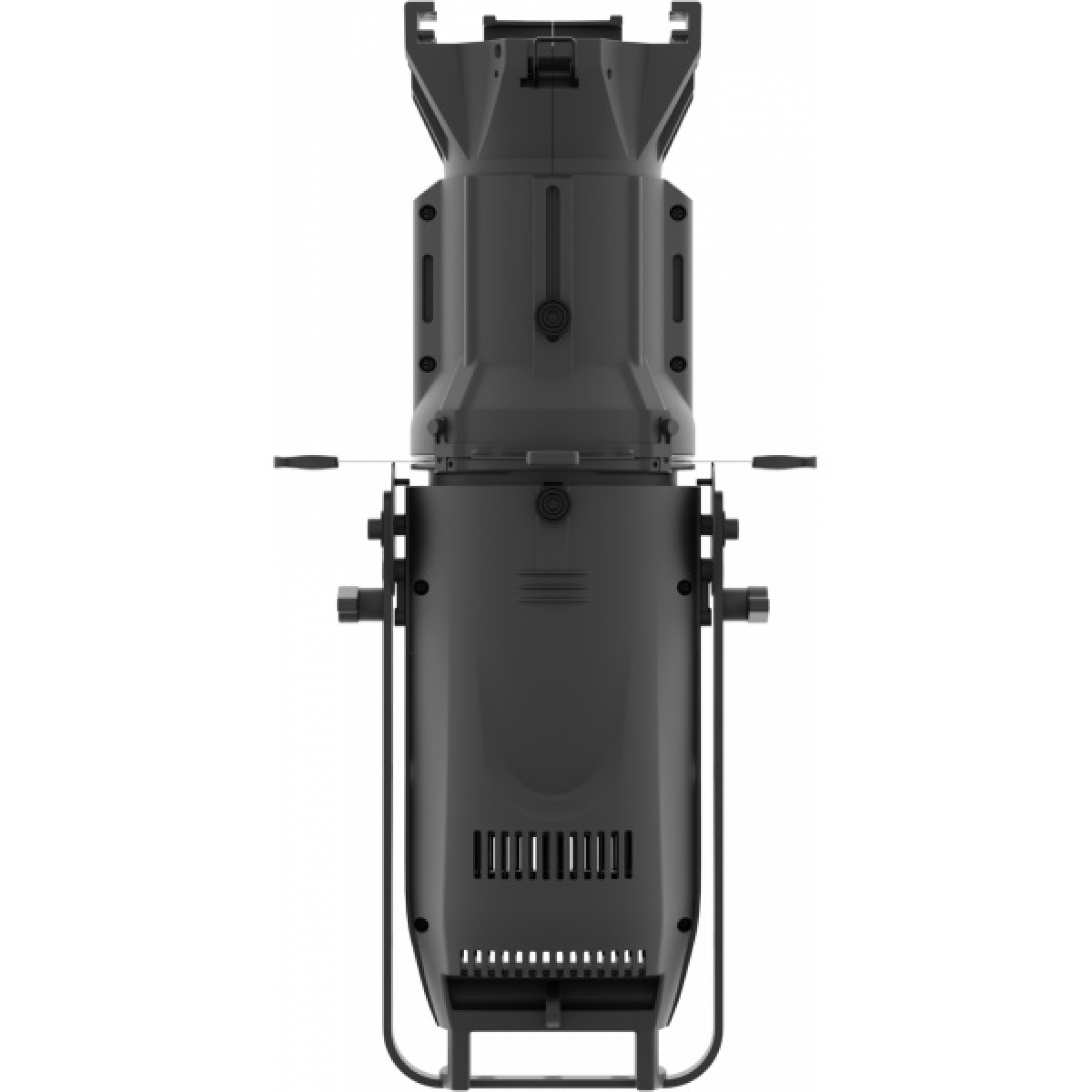

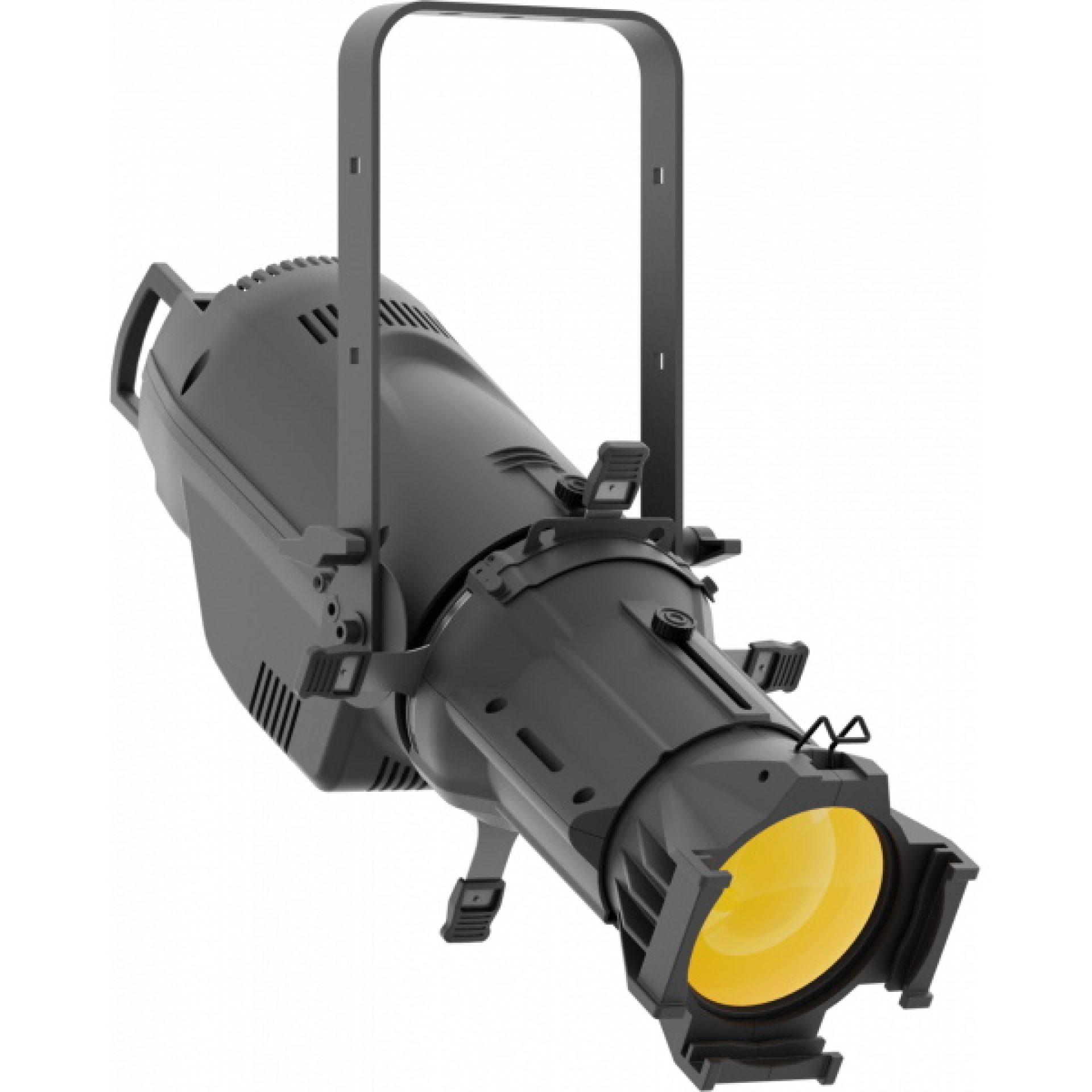

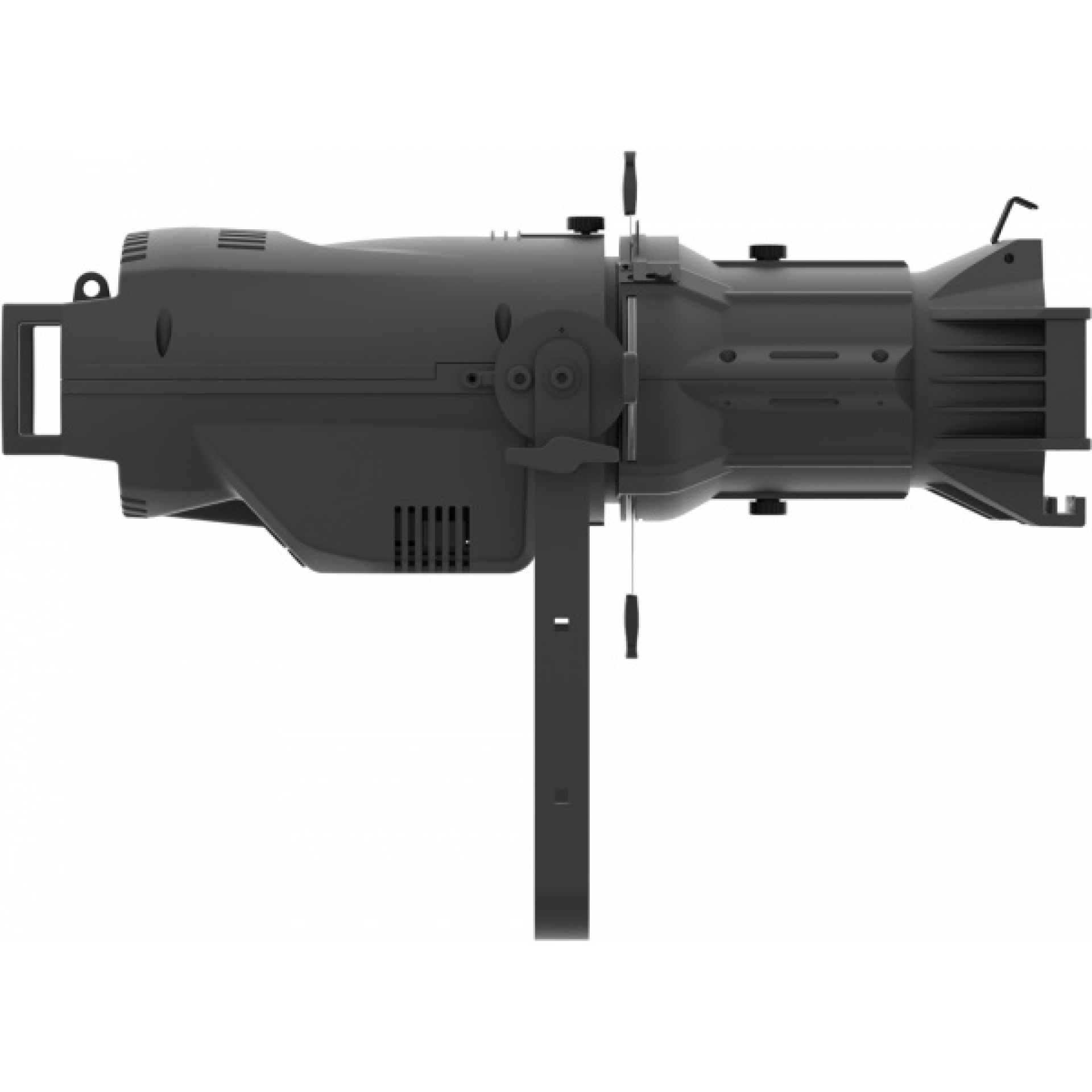

EclProfile FS

The PROLIGHTS EclProfile FS is a full colour LED ellipsoidal, designed to deliver a full range of pastels, saturates and whites, either with or without gobos.

- Source: 91x3W RGB + lime LEDs
- CCT: @ full 5,000K
- Luminous flux: (5°) TBD; (10°) TBD; (14°) 4,619lm; (19°) 5,133lm; (26°) 6,100lm; (36°) 5,970lm; (50°) 5,596lm; (70°) TBD @ full
- Lux: (5°) TBD; (10°) TBD; (14°) 4,321lx; (19°) 2,567lx; (26°) 1,711lx; (36°) 873lx; (50°) 462lx; (70°) TBD @ 5m full
- CRI: 86 @ 3,200K; 85 @ 5,600K
- Source life expectancy: > 50,000hr
- Optics
- Lens type: high-quality glass lens optics
- Additional optics: optional 5° / 10° / 14° / 19° / 26° / 36° / 50° / 70° / zoom 15°-30° / zoom 25°-50
- Focus: manual

- Colour mixing: RGB + lime / full colour
- CCT: CCT control through dedicated DMX channel
- White presets: 2,700K ~ 10,000K
- Colour wheel: virtual colour wheel with macros
- Macros: several pre-built pixel macros with adjustable speed
- Dynamic Effects
- Gobo size: B, outer: 86mm – image: 64.5mm – thickness: 1.1mm
- Static mode: selection of static colour
- Manual mode: manual adjustment of colour
- Auto mode: built-in programs with execution speed adjustment
- Special features: different presets for fan mode and output management

- Protocols: DMX512, RDM
- DMX channels: 1 / 2 / 3RGB / 4RGBL / 5RGBL / 3 / 4 / 5 / 8 / 13 ch – Tungsten / 3,200K / 5,400K / 6,500K channel
- RDM: RDM for remote monitoring and settings
- Display: graphic user interface
- Firmware upgrade: yes, via USB – DMX interface (UPBOX2) not included
- Master/slave: for synchronised operation of more units linked in a chain
