Theatrixx DisplayPort to Quad SDI Converter

Theatrixx DisplayPort to Quad SDI Converter

Theatrixx DisplayPort to Quad SDI Converter

Theatrixx DisplayPort to Quad SDI Converter

Theatrixx DisplayPort to Quad SDI Converter

Theatrixx DisplayPort to Quad SDI Converter

Theatrixx DisplayPort to Quad SDI Converter

£ 970.00

Ex-VAT

1 Available

Condition:

Brand New

Boxed

12 Month Warranty

Shipping is to UK only. Export customers, please call for more info.

Or call us today on

+44 (0)1494 446000

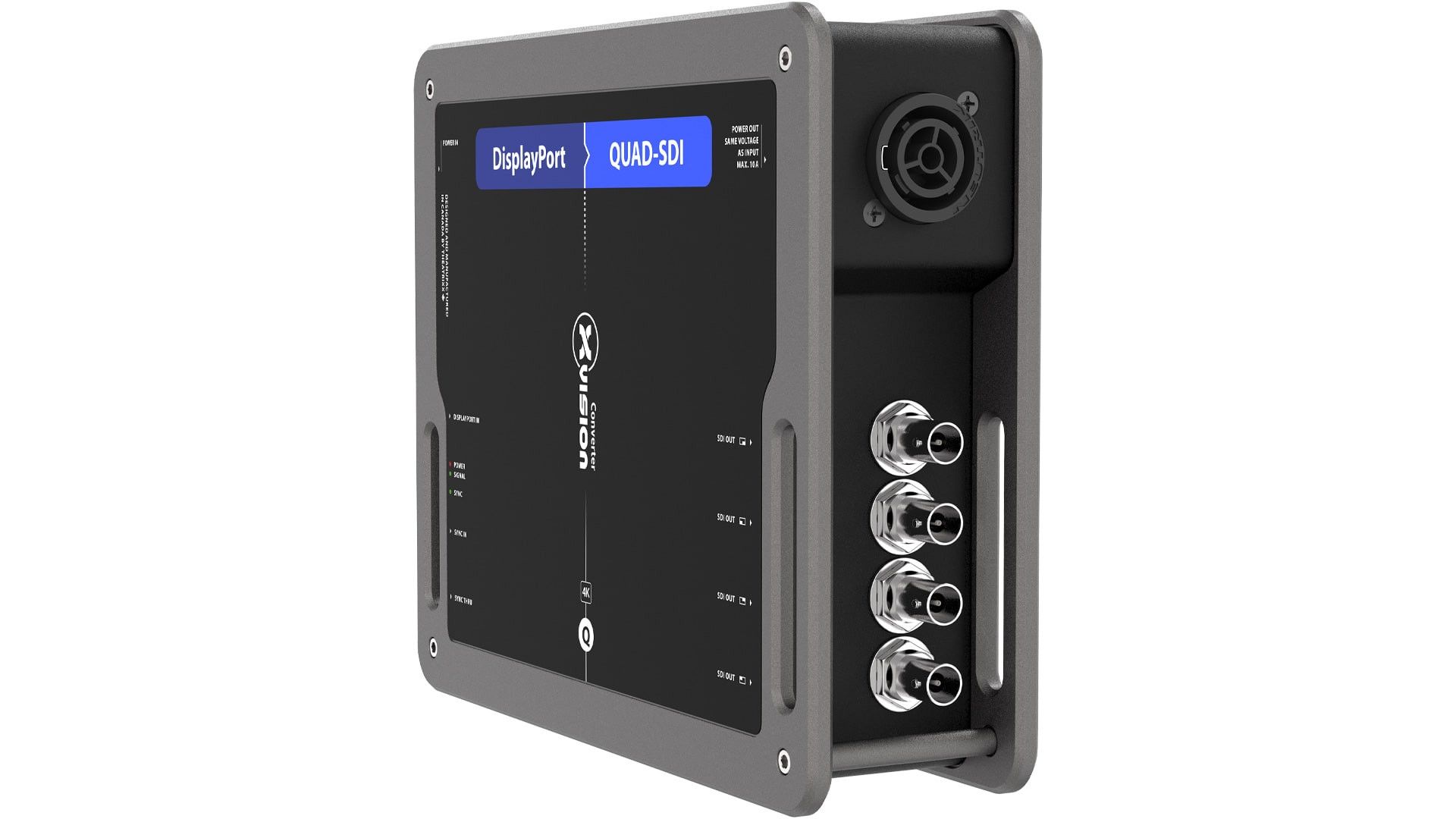

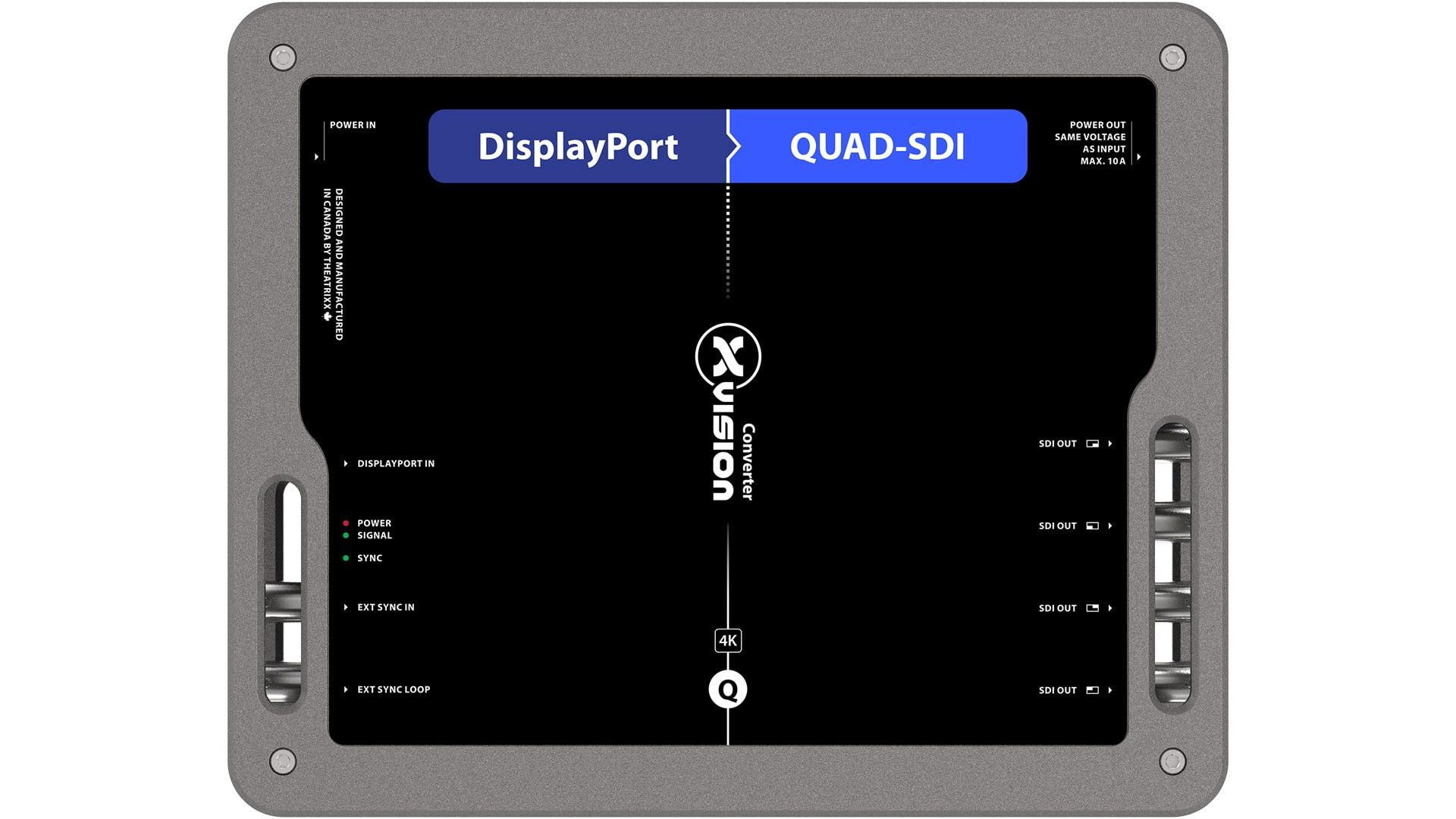

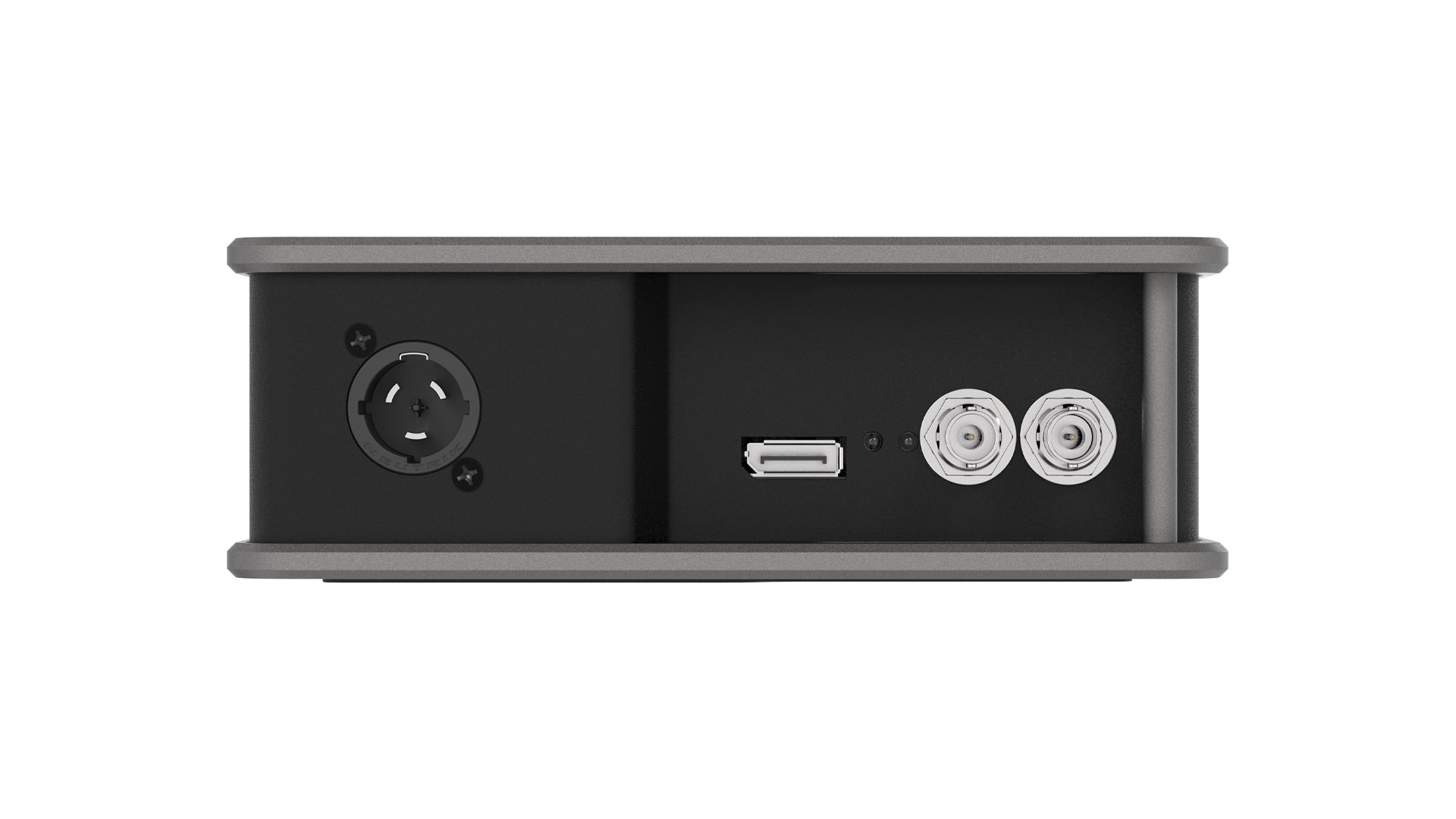

Theatrixx DisplayPort to Quad SDI Converter

Theatrixx DisplayPort to Quad SDI Converter. Rugged, Tour-ready and aesthetic enclosure: The sexiest widget in your tool box, that will keep looking good for years to come.

XVVDP2QSDI

Integrated power supply with locking PowerCON connector. Never rely on a cluster of wall-warts again.
Built-in convenience 120 V outlet to power nearby projector, TV, laptop, small video projector… Power bar to power both the converter and device not required anymore.
Magnetic stacking system and non-skid rubber pad. Saves at least 10 gaffer tape rolls a year.
Multiple mounting options: C-Clamp, wall-mount adapter, LCD mount adapter and belt adapter.
Rugged, Tour-ready and aesthetic enclosure: The sexiest widget in your tool box, that will keep looking good for years to come.

Plug-n-play operation; No dipswitches, buttons or menus to fumble with : It just works.
Clear and ample status LED indicators for quick troubleshooting.
Easy on-the-field identification with unique color and alphabetic coding system.
Locking HDMI port prevents accidental disconnection.
Reclocked and amplified SDI loop thru
Proudly designed and assembled in Canada.

Video Input 1 x DisplayPort 1.2

Sync (Gen-Lock) Input 1 x Tri-level sync (BNC)

Loop-thru 1 x Tri-level sync (BNC)

Video Output 4 x 3G/HD/SD SDI BNC (Quad-Link)

DisplayPort 1.2 / HDMI 2.0

4096x2160p @ 60/50 fps

4K60P 4:4:4 4096x2160p @ 30/25/24 fps,

3840x2160p @ 60/50/30/25/24 fps,

1920x1080p @ 60/50/30/25/24 fps,

1920x1080i @ 60/50 fps

Quad-Link 3G-SDI Output 4096x2160p @ 60/50/30/25/24 fps

4 x 1080P 4:2:2 3840x2160p @ 60/50/30/25/24 fps

Embedded Audio Up to 8 channels, 24 bit, 48kHz

Default EDID 3840x2160p @ 60 or 50 fps (selectable)

Height 62 mm (2.44 in)

Depth 180 mm (7.08 in)

Width 221 mm (8.7 in)

Weight 2 kg (4.4 lbs)

Alternate Form Factor Also available in Reversible Module
