Theatrixx Reversible Module - HDMI1.2 To 3G-SDI
Theatrixx Reversible Module - HDMI1.2 To 3G-SDI

Theatrixx Reversible Module - HDMI1.2 To 3G-SDI

£ 235.00

Ex-VAT

4 Available

Condition:

  • Brand New
  • Boxed
  • 12 Month Warranty

Shipping is to UK only. Export customers, please call for more info.

Or call us today on

+44 (0)1494 446000

Theatrixx Reversible Module - HDMI1.2 To 3G-SDI

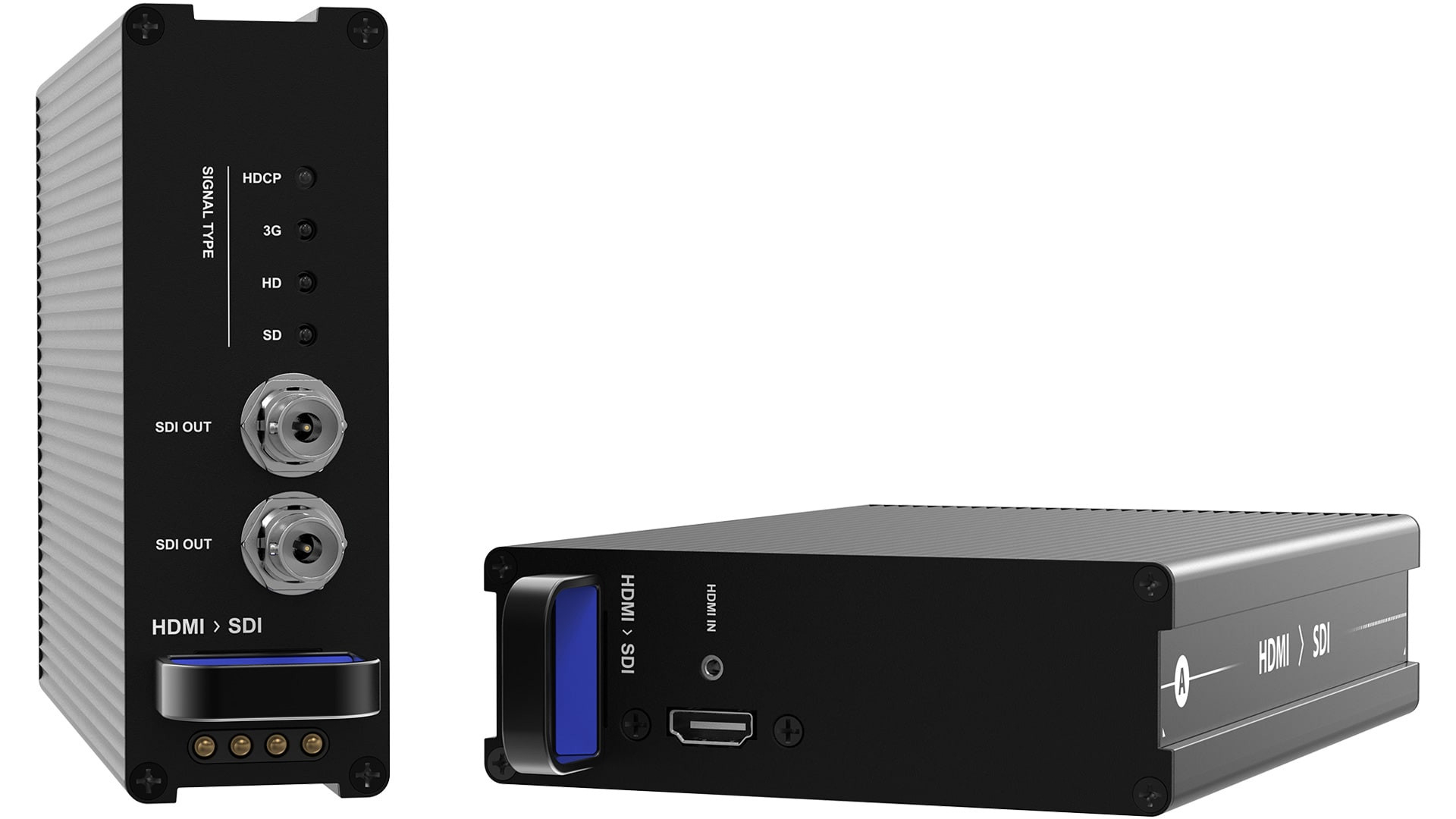

Theatrixx Reversible Module - HDMI1.2 To 3G-SDI. The HDMI to SDI Rack Module is a unit option for the 8-Bay Reversible Rackmount Converter system.

THXVVRM-HDMI2SDI

The module can be inserted in the 8-Bay Frame in either direction, allowing the inputs/outputs to be positioned either at the front or the back of the unit depending on the application. There are no exposed PCBs as all modules are enclosed, and therefore protected against static shock, dust and general wear and tear. Gold-plated, redundant spring pins with magnetic retention deliver DC power to the modules, meaning no messy cabling and external power bricks are needed.

  • Video Input 1 x HDMI 1.2 type A with locking system

    Video Output 2 x 3G/HD/SD SDI BNC

    3G Format Support 1080p50, 1080p59.94, 1080p60

    HD Format Support 720p50, 720p59.94, 720p60, 1080i50,

    1080i59.94, 1080i60, 1080p23.98,

    1080PsF23.98, 1080p24, 1080PsF24, 1080p25,

    1080PsF25, 1080p29.97, 1080PsF29.97,

    1080p30, 1080PsF30

    SD Format Support 525/23.98 NTSC, 525/29.97 NTSC.625/25 PAL

    SDI Video Sampling 4:2:2 and 4:4:4

    SDI Audio Sampling Sample rate of 48 kHz and 24 bit

    SDI Color Space YUV and RGB

    SDI Auto Switching Automatically detects incoming signal format

    SMPTE Standards 425M Level A & B, 424M Level A, 292M, 259M

    Height 121.5mm (4.78in)

    Depth 225mm (8.85in)
