Theatrixx xVision Converter - HDMI2.0 To 12G-SDI - PT1 In/Thru

Theatrixx xVision Converter - HDMI2.0 To 12G-SDI - PT1 In/Thru

Theatrixx xVision Converter - HDMI2.0 To 12G-SDI - PT1 In/Thru

Theatrixx xVision Converter - HDMI2.0 To 12G-SDI - PT1 In/Thru

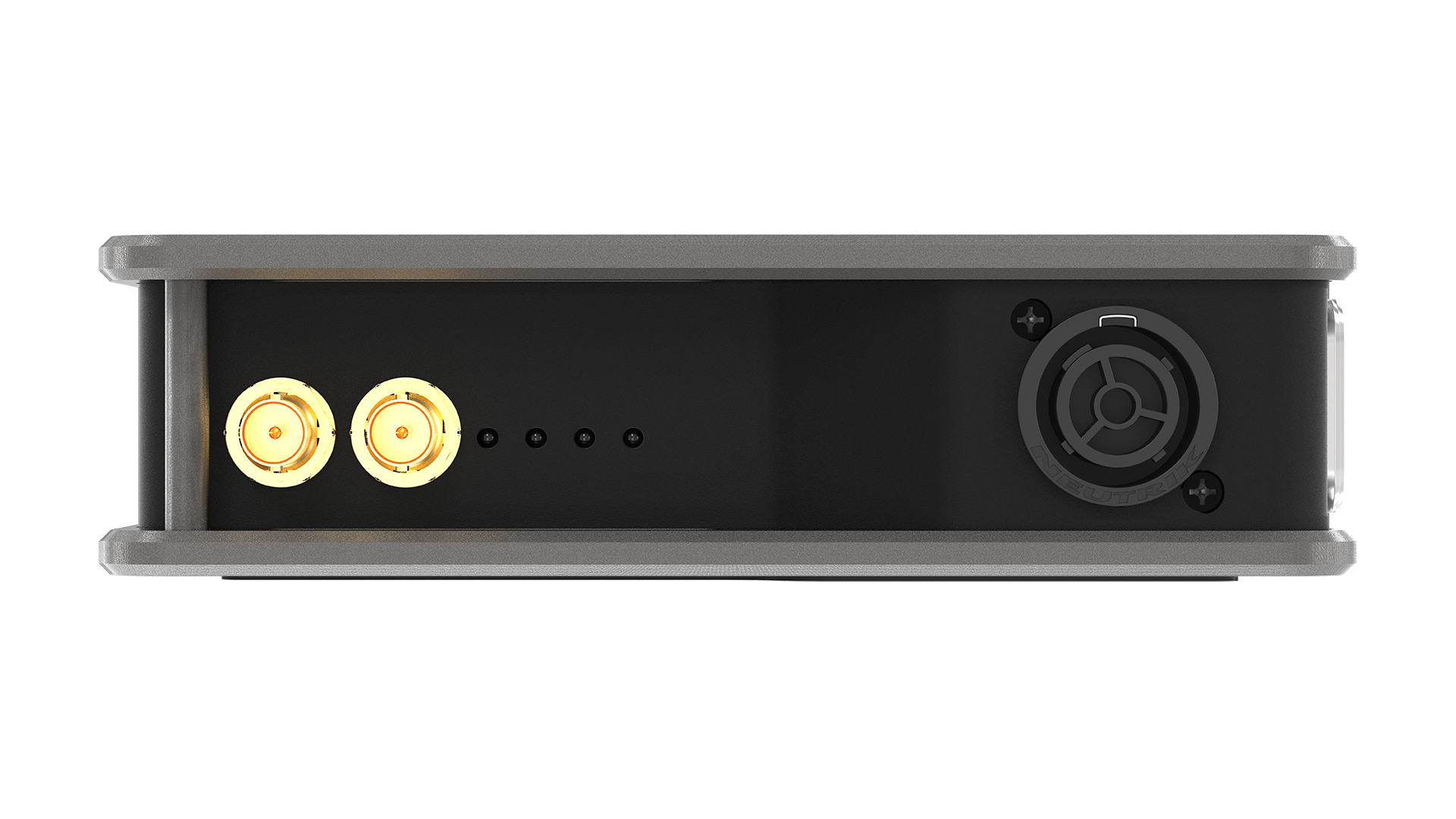

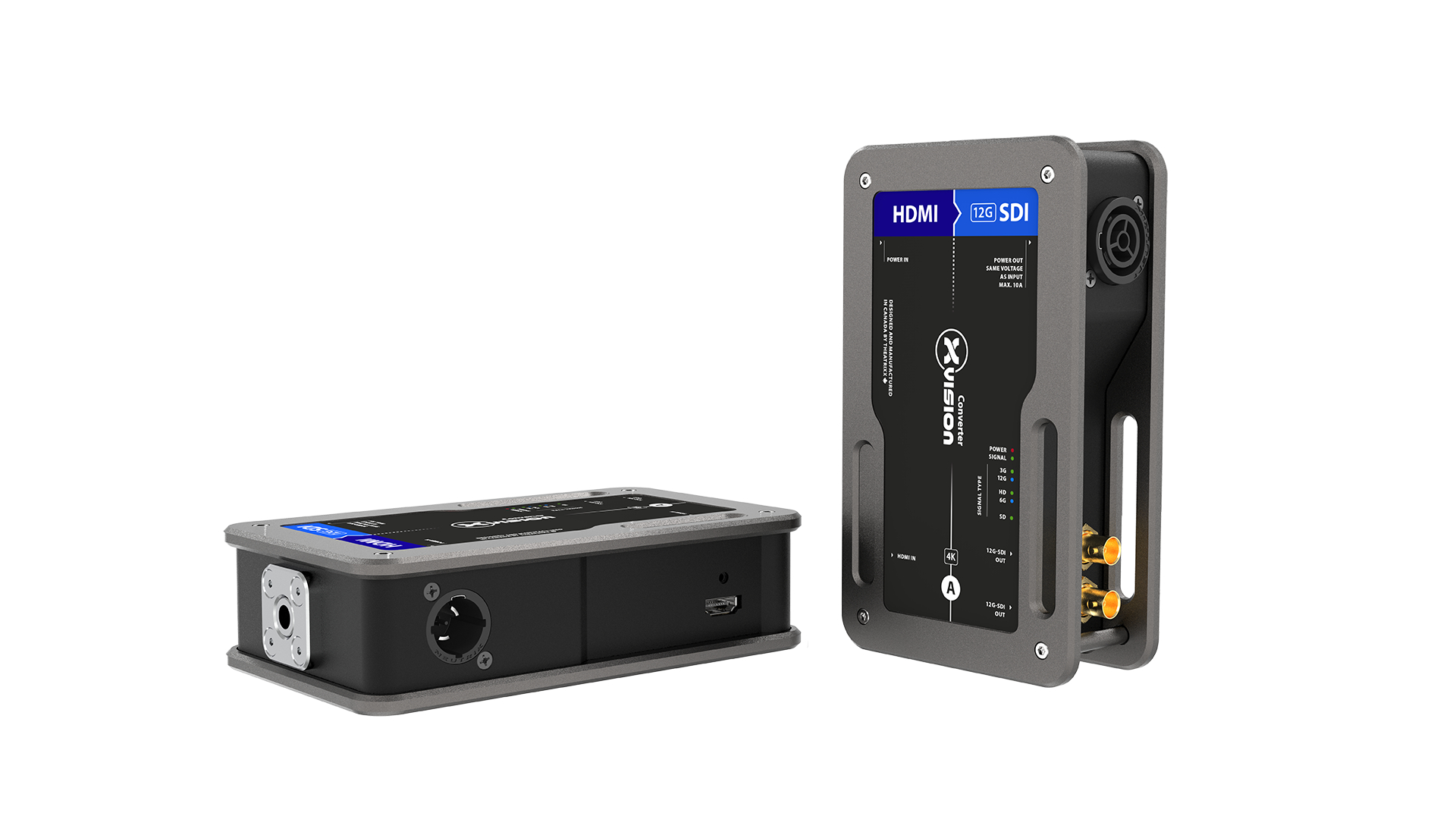

Theatrixx Converter HDMI2.0 To 12G-SDI - PT1 In/Thru

£ 500.00

Ex-VAT

4 Available

Condition:

Brand New

Boxed

12 Month Warranty

Shipping is to UK only. Export customers, please call for more info.

Or call us today on

+44 (0)1494 446000

Theatrixx Converter HDMI2.0 To 12G-SDI - PT1 In/Thru

Theatrixx xVision Converter - HDMI2.0 To 12G-SDI - PT1 In/Thru. Rugged, Tour-ready.

THXVVHDMI2SDIT1-12G

Integrated power supply with locking PowerCON Connector.
Never rely on a cluster of wall-warts again.
Built-in convenience AC outlet to power nearby projector, TV,
laptop, small video projector… Power bar to power both the converter and device not required anymore.
Magnetic stacking system and non-skid rubber pad for tabletop
application. Saves at least 10 gaffer tape rolls a year.
Multiple mounting options: C-Clamp, wall-mount adapter, LCD
mount adapter and belt adaptor.
Rugged, Tour-ready and aesthetic enclosure: The sexiest widget
in your tool box, that will keep looking good for years to come.

Plug-n-play operation; No dipswitches, buttons or menus to
fumble with: It just works.
Clear and ample status LED indicators for quick troubleshooting.
Easy on-the-field identification with unique color and alphabetic coding system.
Locking HDMI port prevents accidental disconnection.
HDMI input tested and compatible with Apple devices.
Integrated SDI splitter: Dual SDI outputs.
Proudly designed and assembled in Canada.

Video Input 1 x HDMI 2.0 type A with locking system

Video Output 2 x 12G/6G/3G/HD/SD SDI BNC

3G Format Support 4096x2160p60, 4096x2160p59.94,

4096x2160p50, 3840x2160p60,

3840x2160p59.94, 3840x2160p50

6G Format Support 4096x2160p30, 4096x2160p25,

4096x2160p24, 3840x2160p30,

3840x2160p25, 3840x2160p24

HD Format Support 720p50, 720p59.94, 720p60, 1080i50,

1080i59.94, 1080i60, 1080p23.98,

1080PsF23.98, 1080p24, 1080PsF24, 1080p25,

1080PsF25, 1080p29.97, 1080PsF29.97,

1080p30, 1080PsF30

SD Format Support 525/23.98 NTSC, 525/29.97 NTSC.625/25 PAL

SDI Video Sampling 4:2:2 and 4:4:4

SDI Audio Sampling Sample rate of 48 kHz and 24 bit

SDI Color Space YUV 4:4:4, YUV 4:2:2, RGB 4:4:4

SDI Auto Switching Automatically detects incoming signal format

SMPTE Standards ST 2082, ST 2081, 425M Level A & B, 424M

Level A, 292M, 259M

Height 50 mm (1.97 in)

Depth 180 mm (7.08 in)

Width 107 mm (4.21 in)

Weight 1 kg (2.2 lbs)

Alternate Form Factor Also available as a Reversible Module
