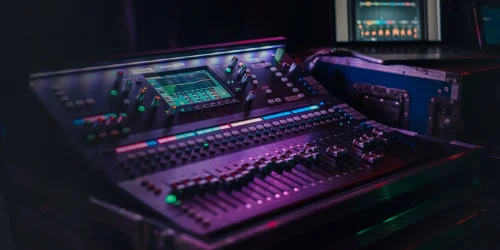

Allen & Heath SQ Connectivity

There are three versions of the Allen & Heath SQ Digital Mixer. All 48 channel desks but different frame sizes. The latest generation 96kHz FPGA XCVI core sets a new standard for compact digital mixers, delivering pristine, high resolution audio with a class-leading latency of <0.7ms. Here are your I/O options.

What is the FPGA XCVI core?

From DSP to FPGA: A signal processing revolution. Field Programmable Gate Arrays are a different sort of microprocessor and allow much more power per chip when used effectively. FPGAs are frequently used in computationally intensive applications such as AI accelerators, aerospace and defence avionics, high performance servers and super computers.

This bespoke FPGA processor brings about immediate audio processing benefits: more mixing power, enabling a 96kHz sampling rate, low latency (0.7ms) and easier management of phase coherency. The chip runs parallel internal virtual processing cores for channel processing and routing. These kernels basically appear as miniature DSPs, but with extra power and flexibility. Dedicated virtual cores are also provided for specialized advanced dynamic (Dyn8) engines within the chip. Since FPGA technology doesn’t set any bit-depth limitation, Allen & Heath engineers can pick the desired bit-depth for each processing block or algorithm (‘variable bit depth’), resulting in superior precision and noise performance.

Allen & Heath SQ Mixers
Allen & Heath DX168 – 96kHz | 16 Mic/ Line Ins | 8 Line Outs

Two units can be daisy chained and connected directly to an SQ SLink port, with the optional SLink card for SQ enabling more connections. For a more distributed system, a DX Hub can handle up to 8 DX168 units which can be freely patched to the SQ’s 48 input channels.

Allen & Heath DX168
Allen & Heath DT168 – 96kHz | 16 Mic/ Line Ins | 8 Line Outs | Dante

Up to 16 units can be added to an AHM-64, SQ, Avantis or dLive system when equipped with an SQ Dante or dLive 96kHz Dante card.

Allen & Heath DT168
Allen & Heath DX164-W/ DT164-W (Dante) – 96kHz | 16 Mic/ Line Ins | 4 Line Outs

Two units can be daisy chained and connected directly to an SQ SLink port, with the optional SLink card for SQ enabling more connections. For a more distributed system, a DX Hub can handle up to 8 DX164-W or DX168 units in any combination, which can be freely patched to the SQ’s 48 input channels.

Allen & Heath DX164-W
Allen & Heath AR2412 – 48kHz | 24 Mic/ Line Ins | 12 Line Outs

One AR2412 can be connected to the SQ via the SQ SLink Port. You can then daisy chain one AB168 from the AR2412 giving you 40 remote inputs.

Allen & Heath AR2412
Allen & Heath AB168 – 48kHz | 16 Mic/ Line Ins | 8 Line Outs

The unit connects over a single Cat5 cable to the mixer or AR2412 AudioRack via a secure dSNAKE EtherCon port. A second EtherCon port is provided for daisy-chaining to another AB168 box or connection of a ME personal mixing system.

Allen & Heath AB168
Allen & Heath AR84 – 48kHz | 8 Mic/ Line Ins | 4 Line Outs

Adding an AR84 to your system lets you position some of your I/O up to 75m from the mixer, connected over a single Cat5 cable running Allen & Heath’s dSNAKE protocol.

Allen & Heath AR84
DANTE, WAVES, MADI & MORE

SQ is the centrepiece of a growing ecosystem of apps, expanders, audio networking, personal mixers and more, allowing you to connect, adapt and expand to your heart’s content. It’s compatible with leading audio networking standards too – add an audio networking card such as Dante or Waves to SQ’s I/O port and you’re ready to integrate with installed systems, provide a digital FoH / Monitor split and more.

Allen & Heath Networking
SQ Dante 32x32 and 64x64

An SQ or AHM unit fitted with the Dante option card can seamlessly connect to DT expanders, wireless systems, amplifiers, preamps and any other devices on your Dante network, making full use of high-resolution 96kHz audio.

The SQ Dante card can be switched between 96kHz or 48kHz to accommodate Dante networks running at either sample rate. In addition to facilitating system integration, the card also enables digital splits and affordable multitrack recording direct to a computer.

  • Two options include 32x32 or 64×64 channel audio and control over a network

  • 96kHz or 48kHz operation

  • Multichannel recording/playback using Dante Virtual Soundcard (available separately)

  • Two ports with redundant and switch modes

  • Internal Control Network Bridge

  • Locking Ethercon connectors

  • Dante Domain Manager ready

  • AES67 compatible

  • V1 compatible with SQ

  • V2 compatible with SQ (V1.5+) and AHM-64

Allen & Heath SQ Dante 32x32
SQ Waves

SQ Waves provides any SQ or AHM with a 64×64, 96kHz or 48kHz interface to a Waves SoundGrid network using the I/O Port. Engineers or installers can now fit the Waves card to any SQ or AHM for Waves plugin processing, multitrack recording (at 96kHz or 48kHz), virtual soundcheck and audio distribution applications.

  • 64×64 channel digital audio over a network

  • 96kHz or 48kHz operation

  • Integration with a Waves plugin server or Waves Native

  • Multichannel recording / playback

  • Two ports with integrated switch

  • Internal Control Network Bridge

  • Locking Ethercon connectors

  • Compatible with AHM and SQ

Allen & Heath SQ Waves
SQ MADI

SQ MADI provides any SQ mixer or AHM matrix processor with a 64×64 MADI interface running at either 48kHz or 96kHz.

SQ MADI enables connection and synchronisation with broadcast or recording systems, OB vans, and third-party consoles for high-channel-count feeds over coaxial cables.

Two BNC inputs pair with two BNC outputs to allow for split or redundant setups while a dual function (in/out) BNC Wordclock connection enables the console to sync with other equipment.

  • 64×64 channel digital audio

  • 96kHz or 48kHz operation

  • Smux or HighSpeed 96kHz modes

  • Sync from inputs or separate wordclock

  • Console controlled error handling

  • 4x BNC connectors (2 links)

  • 1x BNC Wordclock I/O

Allen & Heath SQ MADI
SQ SLink

SQ SLink provides engineers with the option to add an intelligent SLink port to any SQ or AHM mixer. On SQ, the option card runs independently from the built-in SLink port, allowing two different Allen & Heath protocols to be used in one system, at the same time. With two SLink ports, it’s now possible to combine an SQ with any ME personal monitoring system, DX, GX or dSnake expander.

The SQ SLink card gives AHM-16 and AHM-32 processors access to the Everything I/O range of audio expanders, and adds further I/O capability to AHM-64.

On AHM-64, the option card runs independently from the built-in SLink port, allowing two different Allen & Heath protocols to be used in one system, at the same time.

Any SQ console fitted with an SLink card can also be directly connected to a Qu, SQ, Avantis or dLive system, enabling FOH / monitor splits, broadcast feeds and more.

  • 128 inputs and 128 outputs of audio and preamp control

  • 96kHz or 48kHz operation

  • gigaACE, GX, DX, or dSnake connectivity

  • Intelligent switching between modes

  • Independent SRC for use of two different protocols in one system

  • Plug’n’play installation

Allen & Heath SQ SLink
