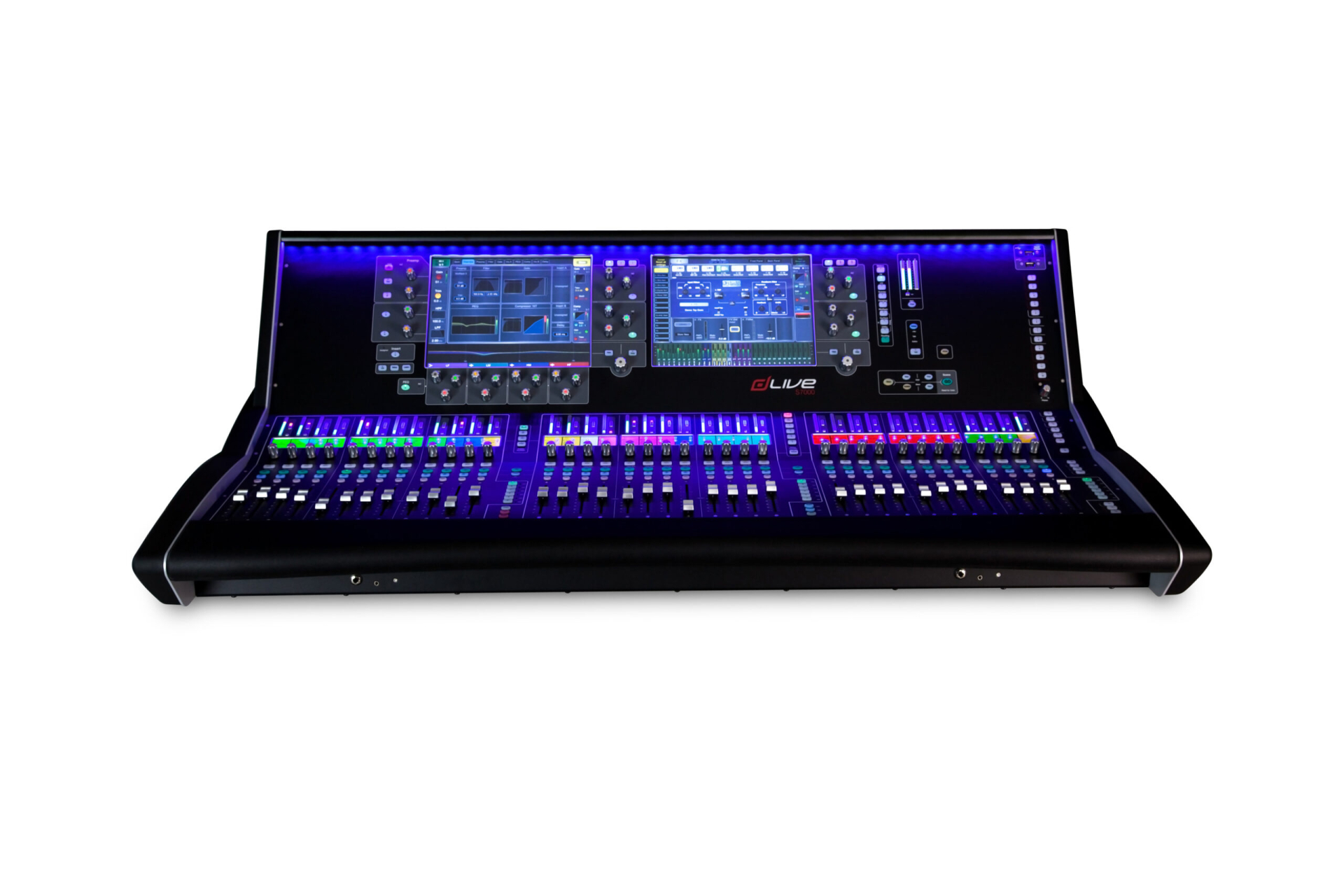

dLive S Class-Front-Purple1
Allen & Heath dLive S3000
Allen & Heath dLive S5000
Allen & Heath dLive S3000
Allen & Heath dLive S7000

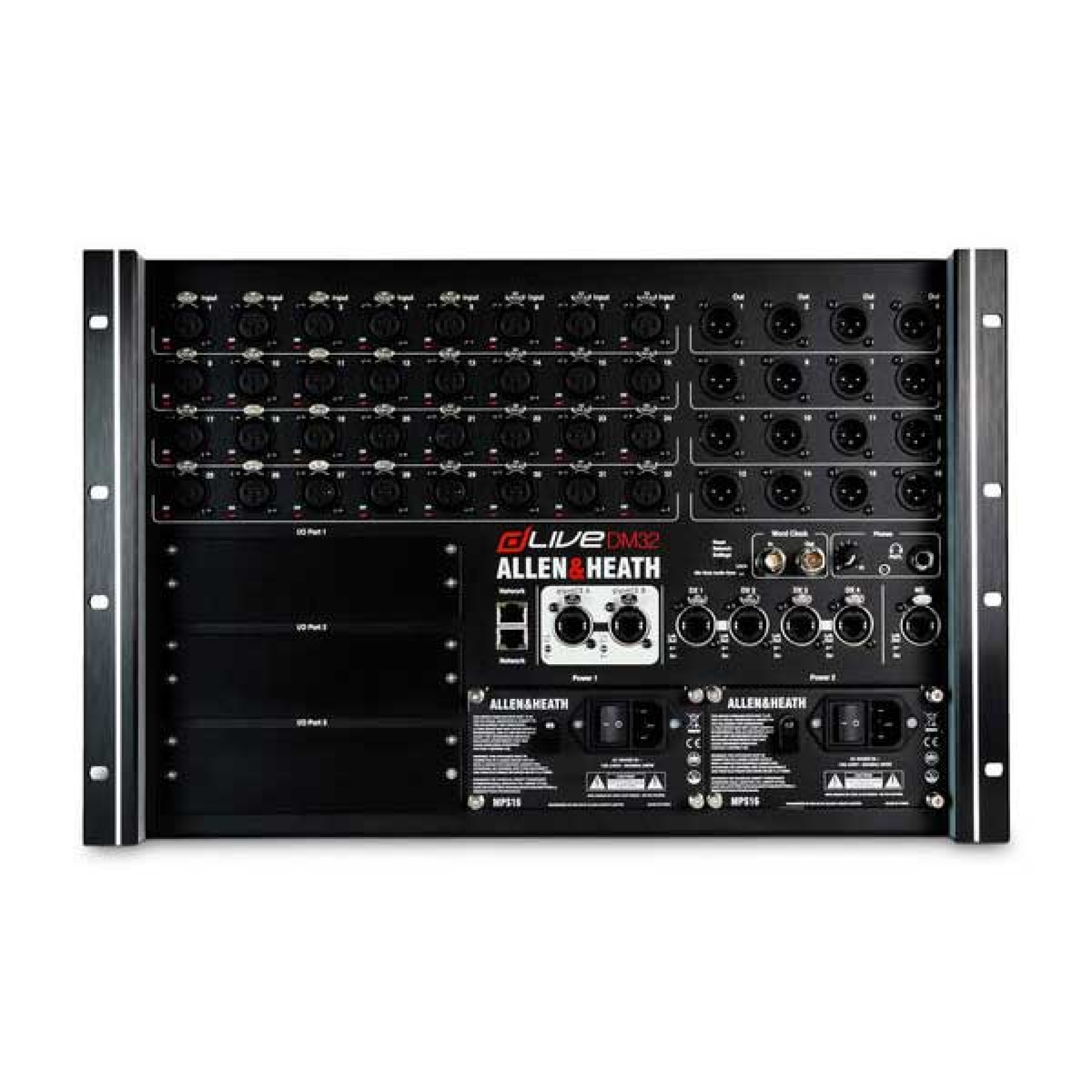

Allen & Heath dLive DM32 MixRack

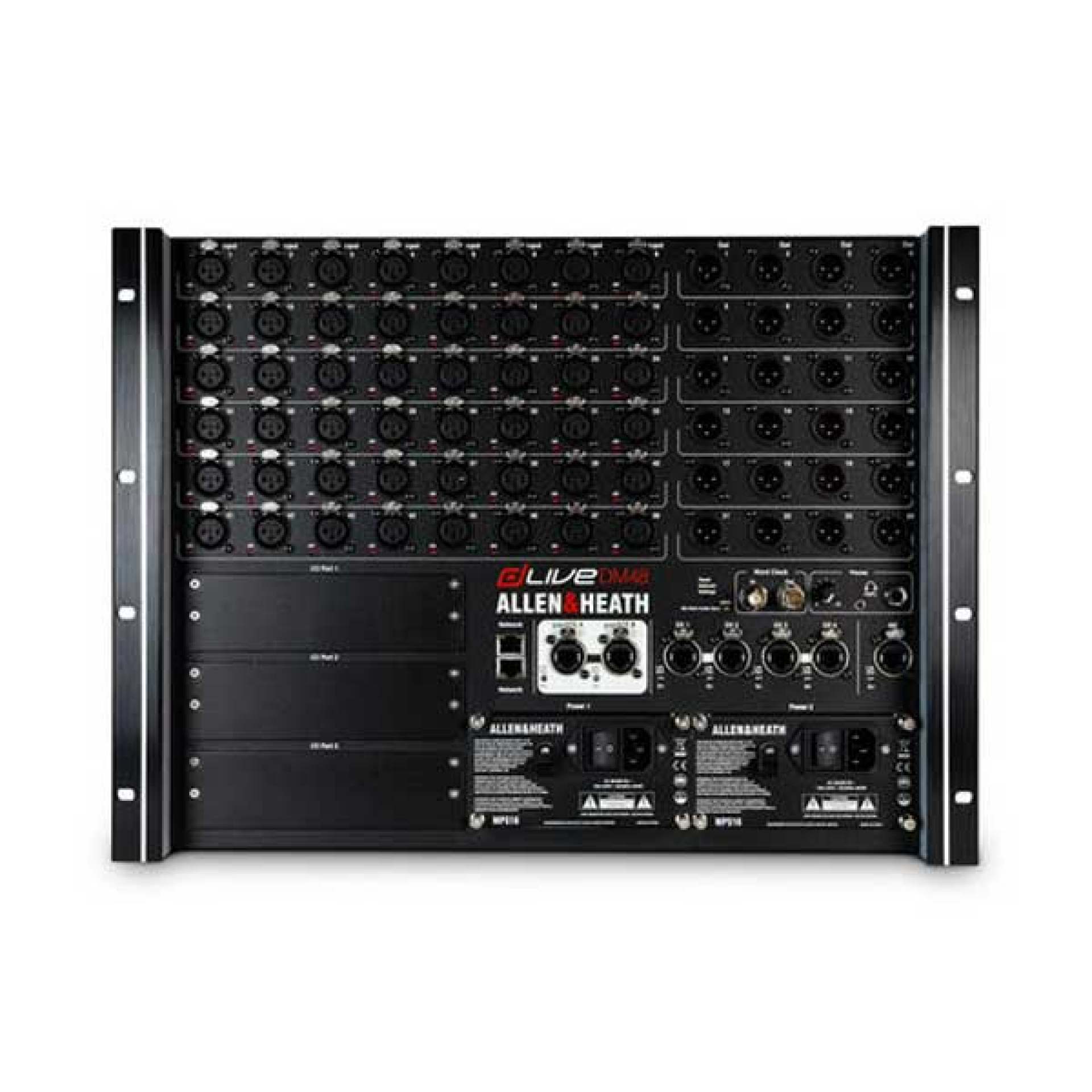

Allen & Heath dLive DM48 MixRack
Allen & Heath dLive S3000
Allen & Heath dLive S5000
Allen & Heath dLive S3000
Allen & Heath dLive S7000
Allen & Heath dLive DM32 MixRack
Allen & Heath dLive DM48 MixRack

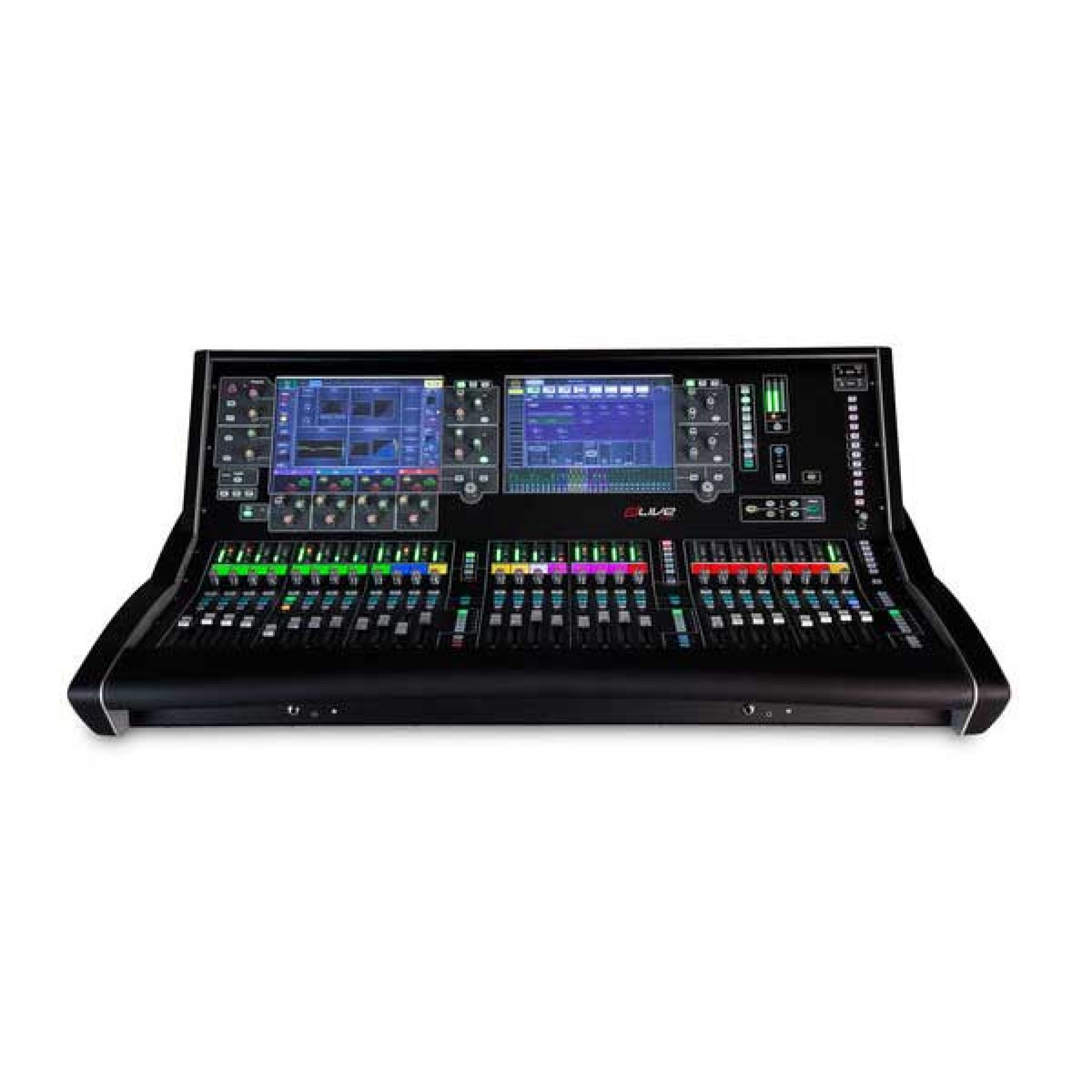

Allen & Heath dLive S Class Surfaces

Key Features:

  • Built to endure.
  • Transparent workflow.
  • Harmony user interface.
Enquire

Enquiry Form

Call us today on

+44 (0)113 255 7666

Allen & Heath dLive S Class Surfaces

The Allen & Heath dLive S Class was created for professional touring, broadcast and premium installations and has earned its reputation for audio quality and robustness in the most complex and high-profile applications. As an Allen & Heath S Class Partner we have access to its flagship dLive consoles with all the technical support needed for a system of its calibre.

Product Variants

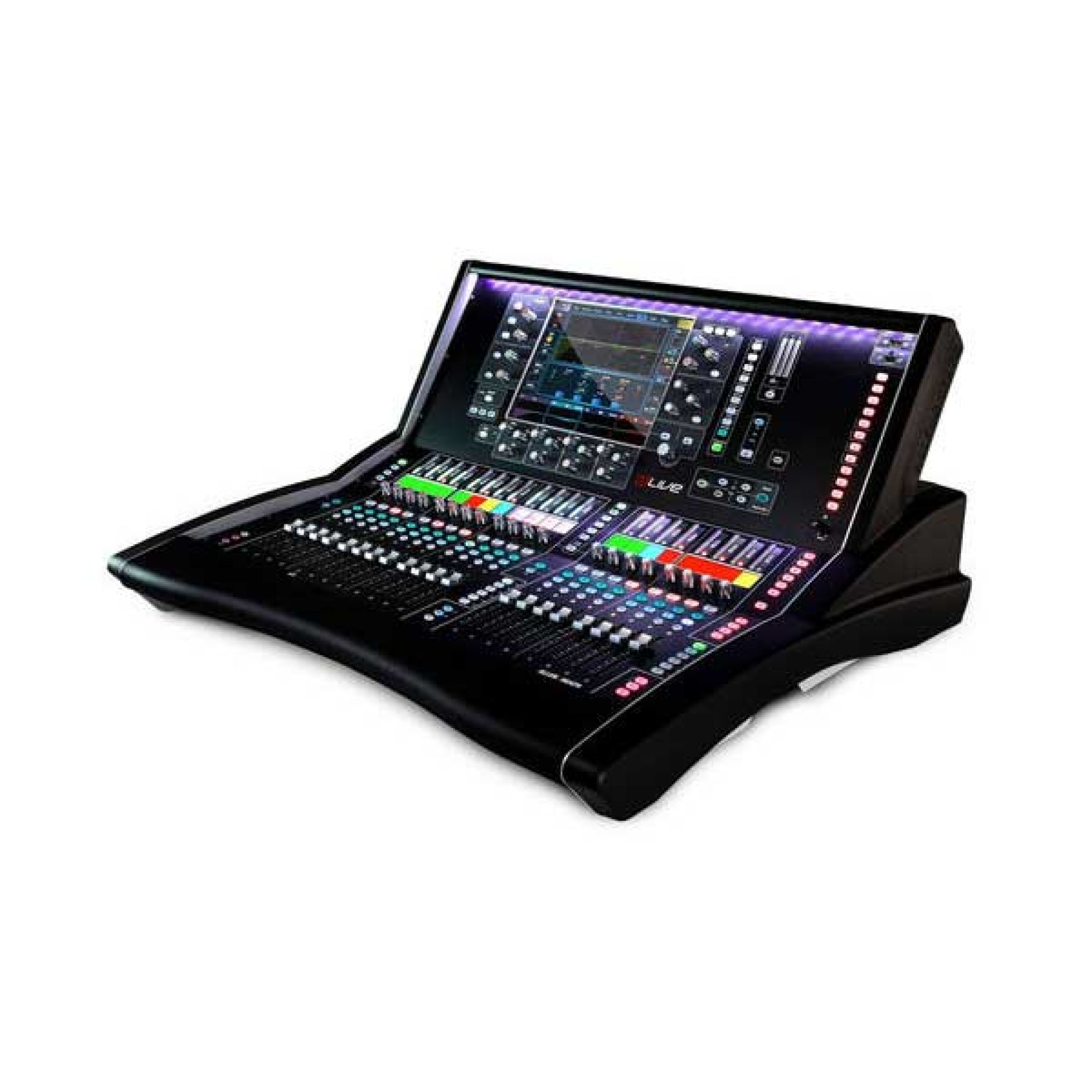

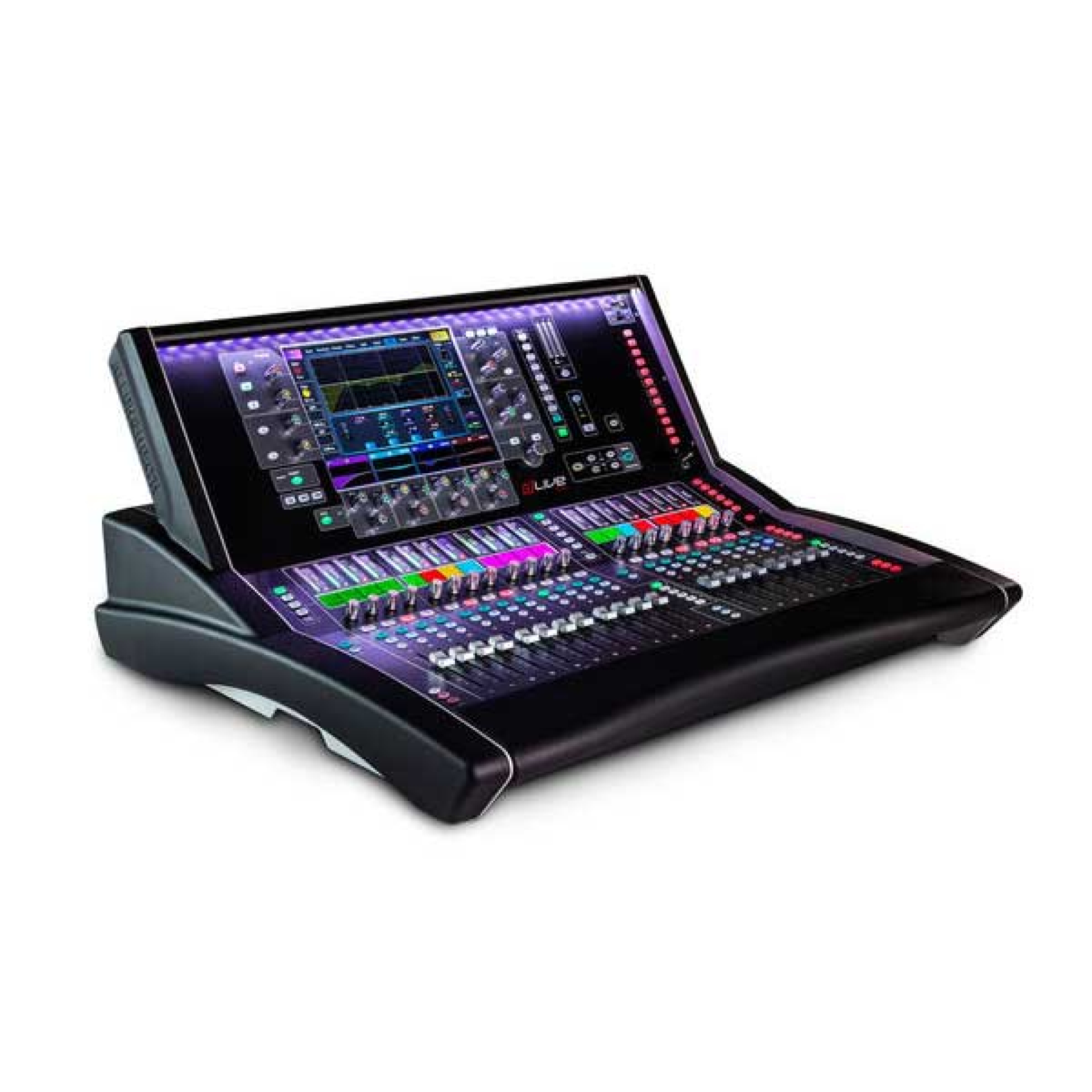

Allen & Heath dLive S3000
S3000
  • 20 faders
  • Fully assignable layout – 120 fader strips
  • Single 12” capacitive touchscreen
  • 8 XLR mic/line in, 8 XLR line out
  • 2 digital st AES3 in, 3 digital st AES3 out
  • Dual redundant GigaACE gigabit link to MixRack
  • 1x redundant DX link for I/O expansion
  • 2x I/O Ports – 128 ch 96 kHz each
  • 2x Network ports
  • Dual redundant, hot swappable power supply

Enquiry Form

Allen & Heath dLive S5000
S5000
  • 28 faders
  • Fully assignable layout – 168 fader strips
  • Dual 12” capacitive touchscreen
  • 8 XLR mic/line in, 8 XLR line out
  • 2 digital st AES3 in, 3 digital st AES3 out
  • Dual redundant GigaACE gigabit link to MixRack
  • 1x redundant DX link for I/O expansion
  • 2x I/O Ports – 128 ch 96 kHz each
  • 2x Network ports
  • Dual redundant, hot swappable power supply

Enquiry Form

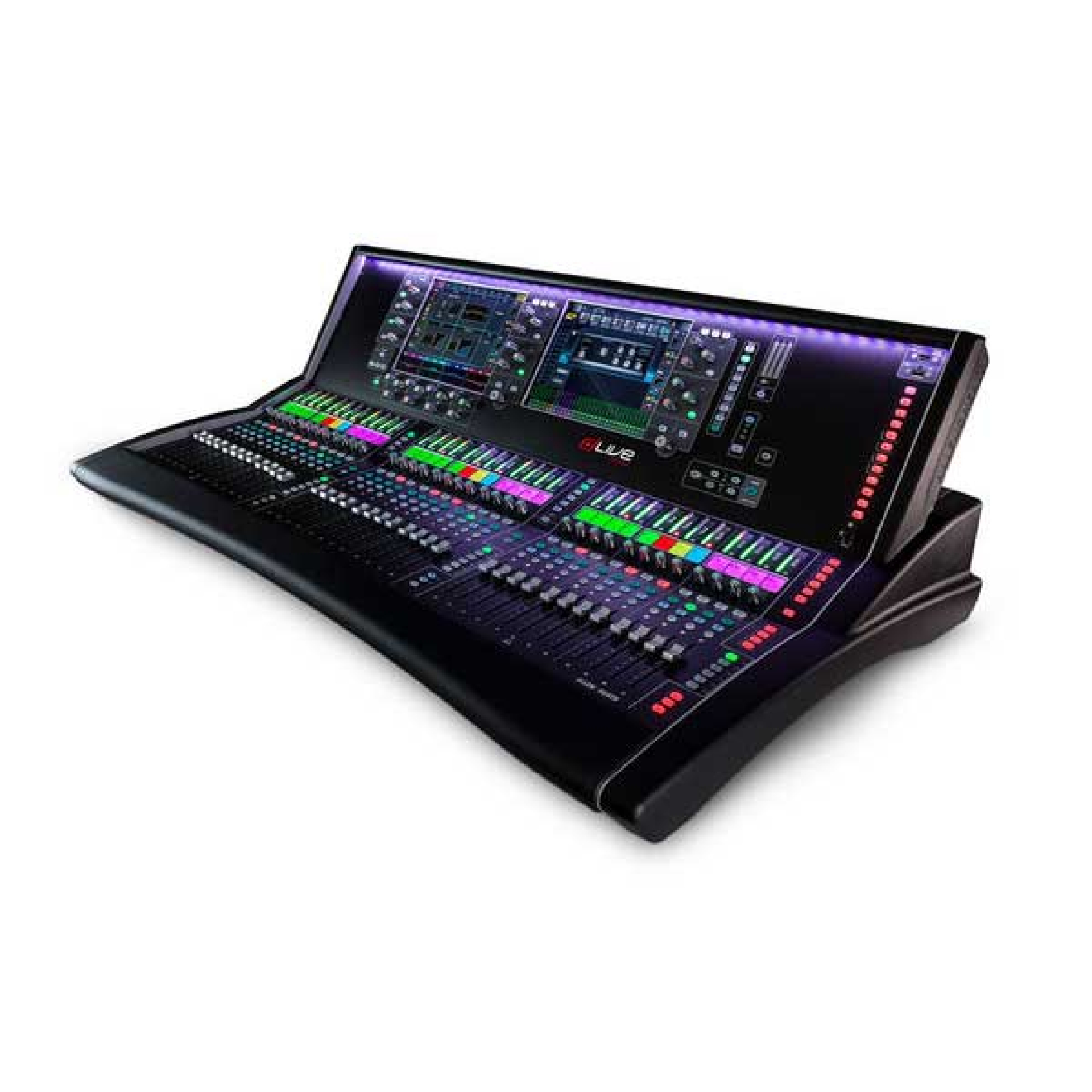

Allen & Heath dLive S7000
S7000
  • 36 faders
  • Fully assignable layout – 216 fader strips
  • Dual 12” capacitive touchscreen
  • 8 XLR mic/line in, 8 XLR line out
  • 2 digital st AES3 in, 3 digital st AES3 out
  • Dual redundant GigaACE gigabit link to MixRack
  • 1x redundant DX link for I/O expansion
  • 2x I/O Ports – 128 ch 96 kHz each
  • 2x Network ports
  • Dual redundant, hot swappable power supply

Enquiry Form

dLive is Allen & Heath’s flagship digital mixing system.

There is something inherently thrilling about live sound. The immediacy of the direct interaction between the performers and the audience, the potential for anything to happen, the need to get it right first time – this is what makes live mixing so addictive. As the demands for more and more I/O and increasingly complex systems grow, there’s a danger of concentrating on the technology rather than the performance. The design goal for dLive S Class was to create the ultimate mixing system, with plenty of processing and flexibility to handle the most demanding live scenarios, while at the same time giving the engineer intuitive tools to comfortably keep all that power at their fingertips, freeing them to focus on the live mixing experience.

dLive’s phenomenally powerful XCVI Core, DEEP processing suite and Harmony UI make the most sophisticated mixing challenges feel elegantly simple. From seasoned audio professionals to new recruits, dLive has been crafted to allow the operator to keep their focus on the live mixing experience, not on the mixer.

The power of dLive emanates from the XCVI Core – pioneered by the Allen & Heath R&D team using next generation FPGA technology, with 36 parallel virtual processing cores generating enough power for 160×64 channels of processing at 96kHz sampling rate. Six parallel mixing engines within the Core calculate over 10,000 cross points per sample, while the FPGA router has capacity for 3,000 x 3,000 audio paths. The massive power of XCVI (25 billion operations per second) allows dLive to deliver 128 full processing inputs and 16 stereo FX returns, a configurable 64 bus architecture, variable bit depth for ultimate precision and noise performance, a virtually infinite mix headroom thanks to a 96bit accumulator, and class-leading latency at an ultra-low 0.7ms.

Allen & Heath dLive S Class Surfaces - Variant Downloads

You might like...

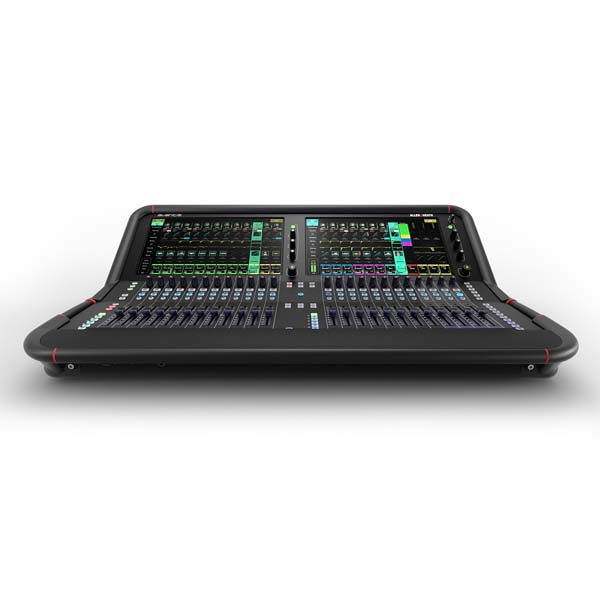

Allen & Heath Avantis 64 Channel Digital Mixing Console - front view Allen&Heath Logo
Product - AUDIO
Allen & Heath Avantis Digital Mixers
    • 96khz / 64 channel / 42 bus digital mixer.
    • Fully configurable mix architecture.
    • XCVI core - 0.7ms latency / phase coherent.
Find out more

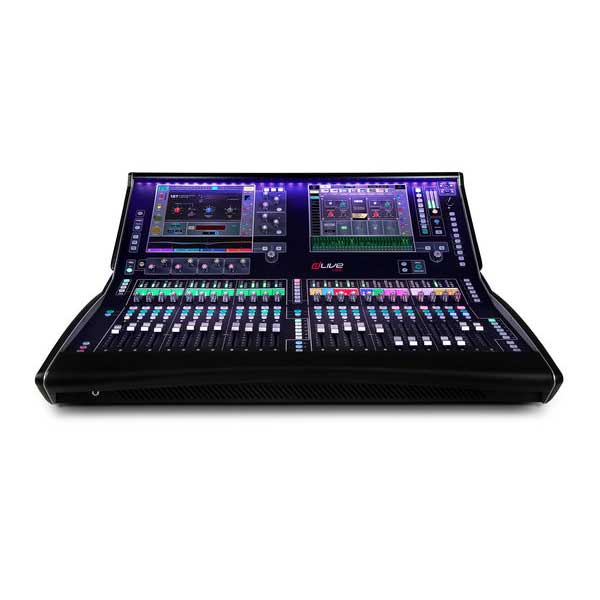

Allen & Heath dLive C3500 control console - front Allen&Heath Logo
Product - AUDIO
Allen & Heath dLive C Class Surfaces
    • Harmony user interface.
    • Transparent workflow.
    • Harmony UI integrates screen and wrap-around controls.
Find out more
dLive_DM64_Front Allen&Heath Logo
Product - AUDIO
Allen & Heath dLive S Class MixRacks
    • XCVI processing core.
    • Can be controlled without a Surface.
    • All feature the same mix engine.
Find out more

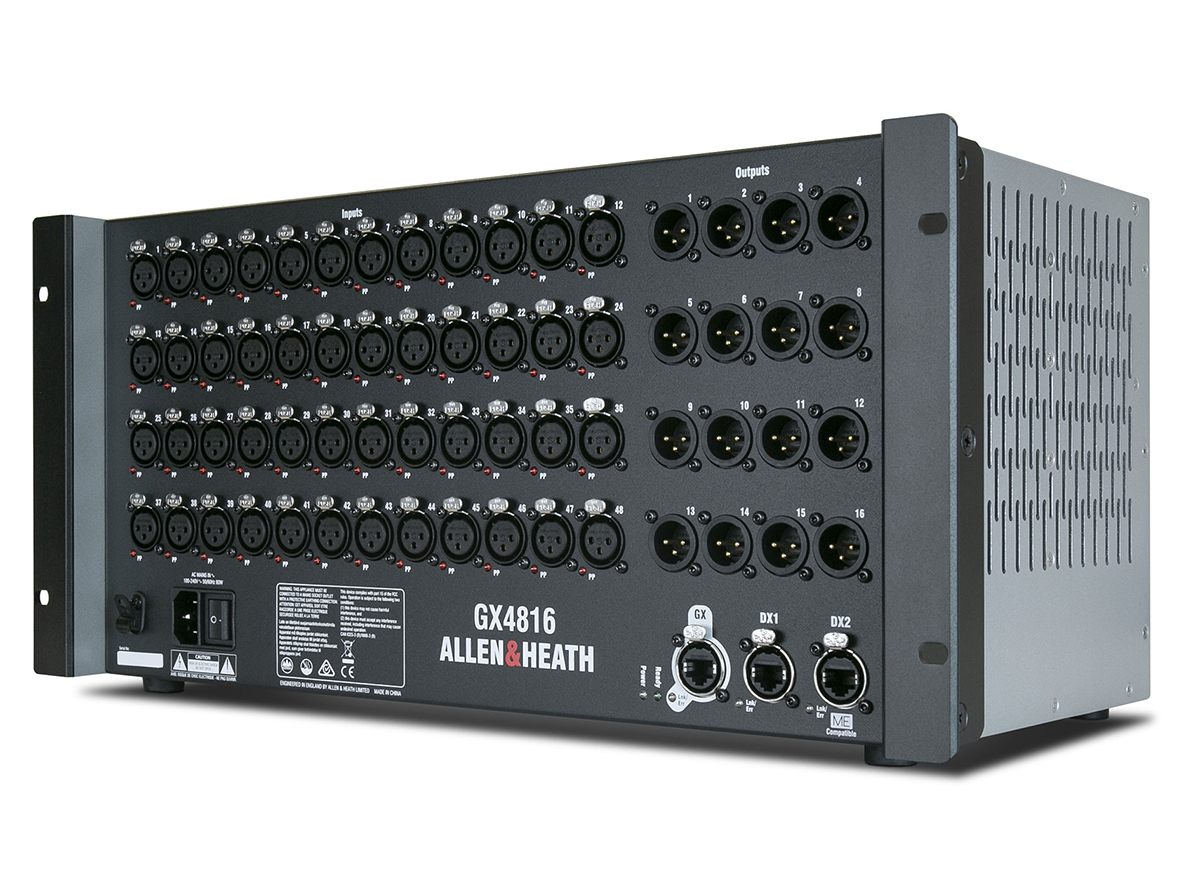

Allen & Heath GX4816 I/O Stage Box Allen&Heath Logo
