Avolites Arena
Avolites Arena professional lighting controller - Front View | AC-ET

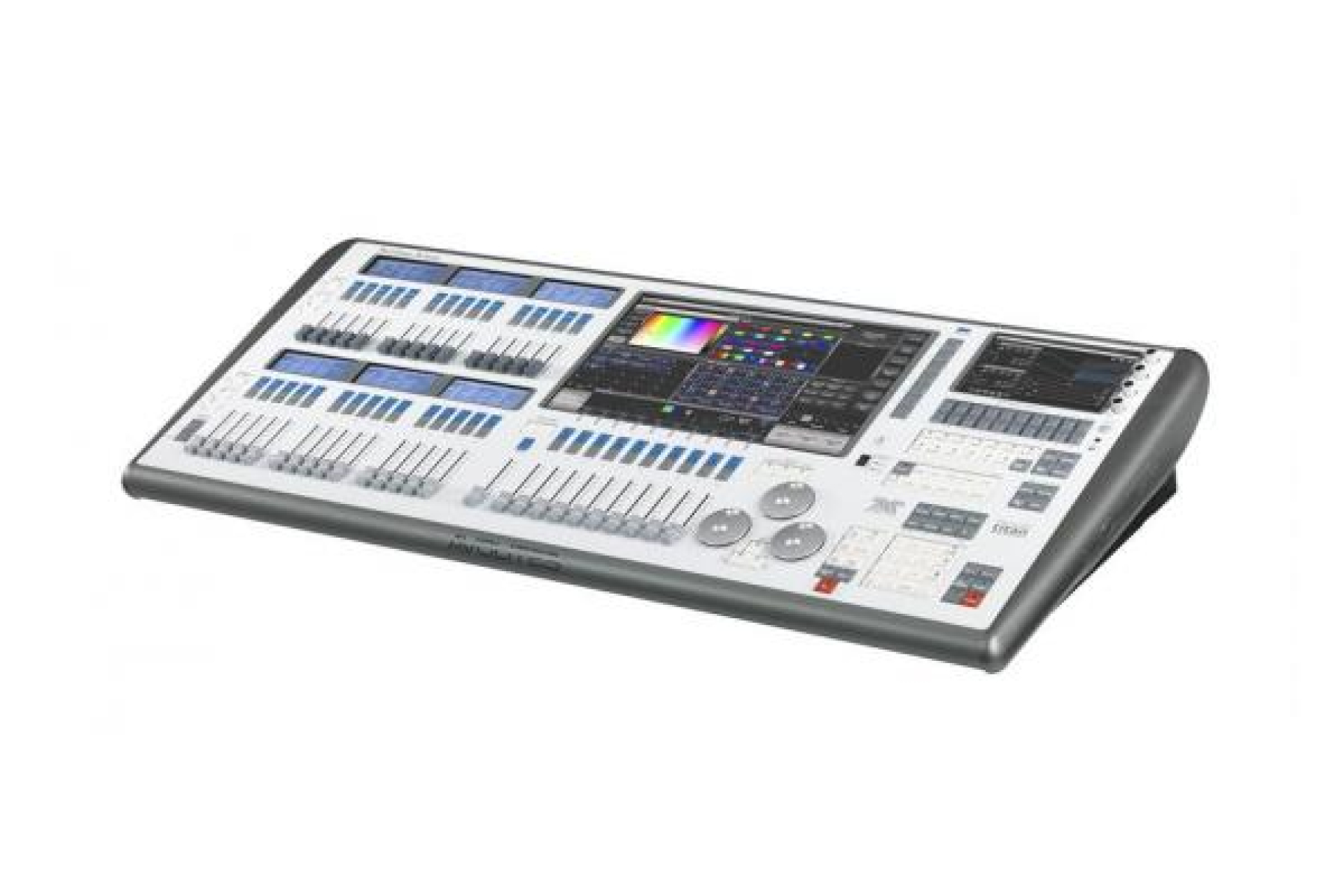

Avolites Arena professional lighting controller - Front View Angle | AC-ET

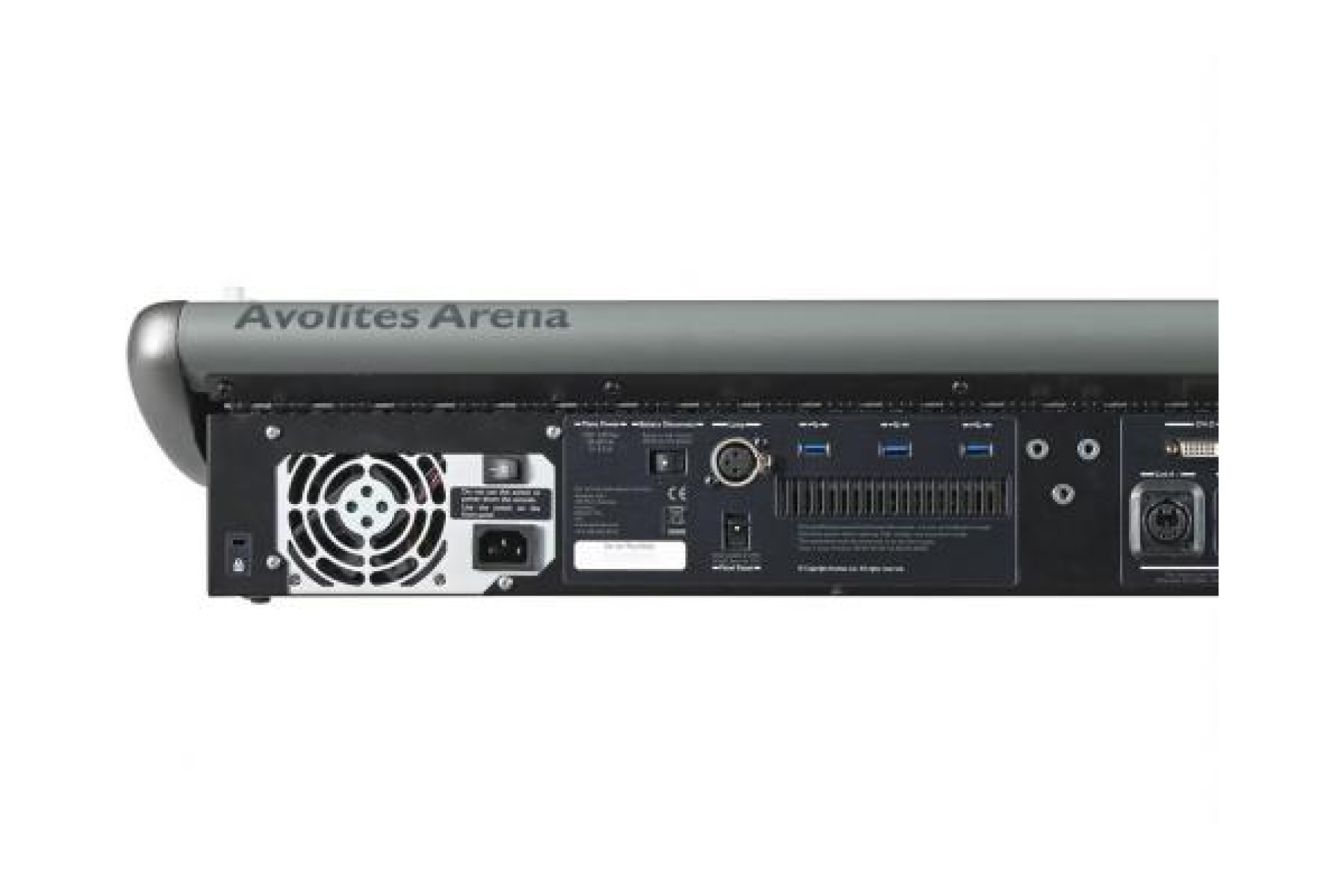

Avolites Arena professional lighting controller - back left side | AC-ET

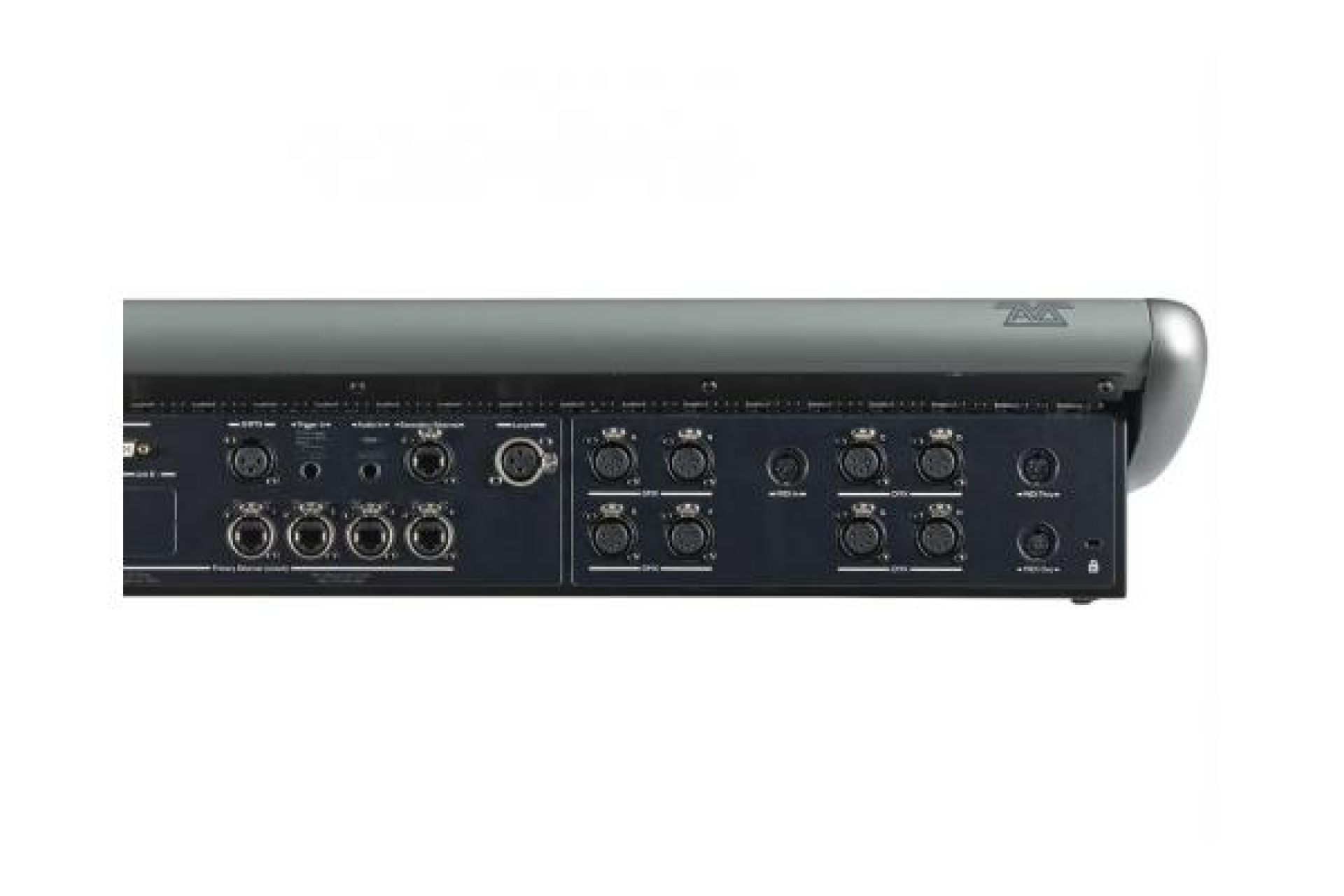

Avolites Arena professional lighting controller - back right side | AC-ET
Avolites Arena professional lighting controller - Front View Angle | AC-ET
Avolites Arena professional lighting controller - back left side | AC-ET
Avolites Arena professional lighting controller - back right side | AC-ET

Avolites Arena

AV30013040

Key Features:

  • Supports one additional touchscreen
  • 40 Playback faders
  • 1 x 15.6” high-brightness touchscreen
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

Avolites Arena

The Avolites Arena is a professional lighting controller, ideal for larger events. The fixture offers more live control than ever before, with an additional workspace window.

Avolites Arena Lighting Controller

The Avolites Arena was created with large venues in mind; perfect for festivals, theatres and anywhere that a larger control surface is needed. It combines the popular interface of the Tiger Touch II with more live control than ever before.

It not only has a vibrant main display, it also has a second touch screen which provides an additional workspace window. The new optical output allows the Avolites Arena to be suitable for fibre connections, without signal loss over long distances.

The multiuser compatibility feature means the Arena can be used as master, back-up or extra programming surface. This cuts your programming time down considerably by allowing multiple Titan programmers to work simultaneously.

  • Combines Titan’s visual interface with a large control surface

    Built-in network switch for ultimate connectivity

    Super bright 15.6″ main display, plus a second smaller touch screen provides additional workspace

    6 LCD screens ensure all playbacks are electronically labelled

    Generative, animation-based pixel mapping

    Quicksketch labelling for ultimate personalisation

    Feature-packed cue lists supporting macros, tracking, autoloads, timecode and more

    8 Physical DMX outputs on 5-pin XLR

    Ethercon for all ethernet connections

    4 optical playback pots

    16 universes of ArtNet or S-ACN, expandable with Titan Net Processors

    Built-in 4-port managed gigabit network switch

    3 optical attribute encoders

    OpticalCon stage link output

    UPS battery backup

    20 macro / executor buttons

    40 electronically-labelled playback faders

Avolites Arena - Downloads
Avolites Arena Spec Sheet
Download
