Wireless Wind Speed Sensor

Wireless Wind Speed Sensor

MABW-WSSX2

Key Features:

  • Range of 800m (2600 ft)
  • Range of measurement 5 to 125 mph
  • Units: mph, fps, km/h and m/sec
Enquire

Enquiry Form

Call us today on

+44 (0)113 255 7666

Wireless Wind Speed Sensor

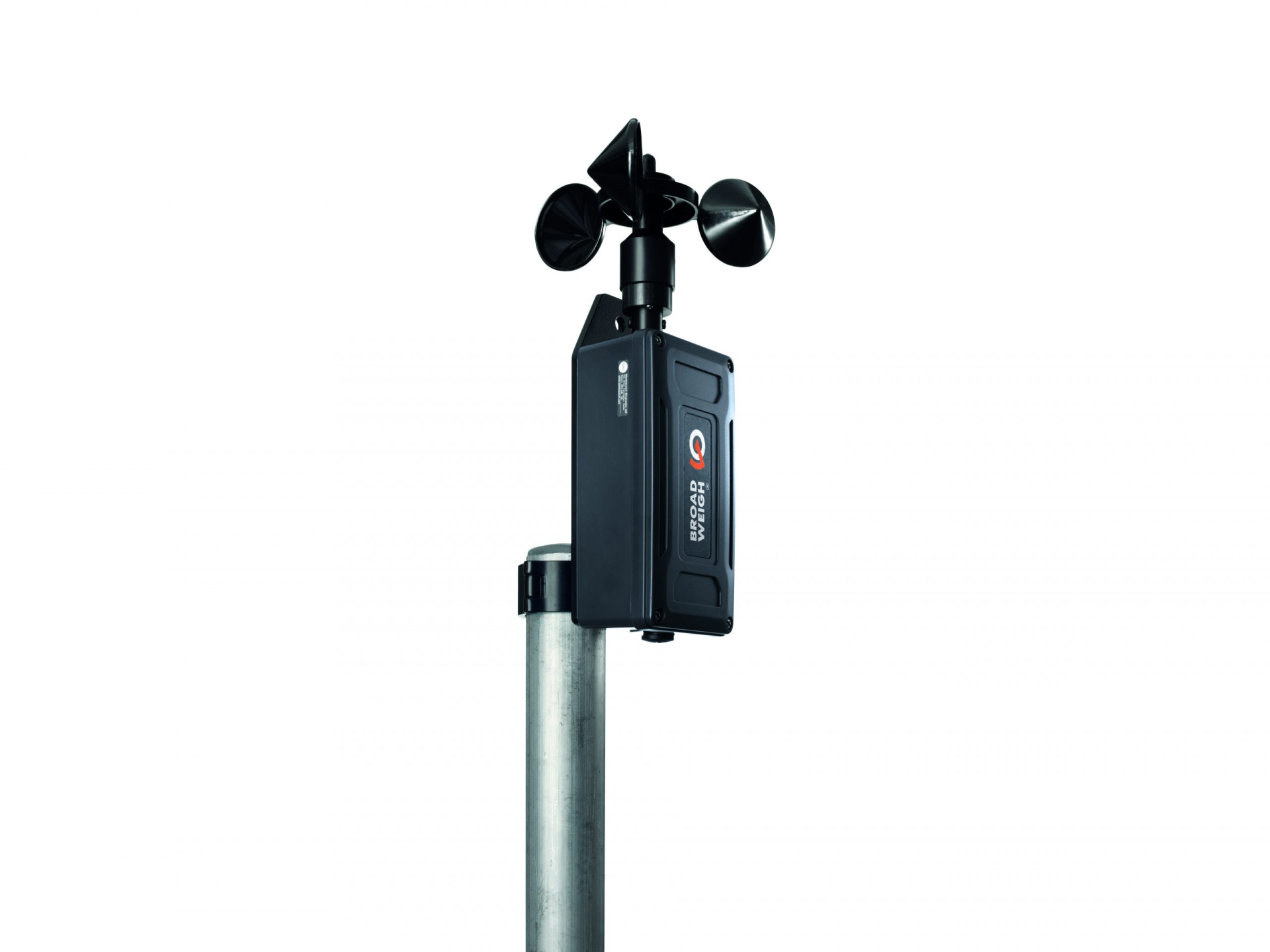

The pre-calibrated Broadweigh wireless wind speed sensor (BW-WSS) anemometer provides both real-time display and full logging of wind speeds.

The Broadweigh wind speed sensor offers data processing and recording via the Log100 software which enables the user to develop reports, trending and trigger peak speed alarms. When used in conjunction with Broadweigh load monitoring shackles, the combined system can provide directly correlated data of guywire and storm-brace tensions in relation to wind speed conditions. This means that wind speed ratings and rigging components within a tent or staging structure can be closely monitored and action can be taken prior to failures occurring. This is especially useful in conjunction with LED video wall rigging, PA towers, roof canopies, marquee tents and other temporary demountable structures.

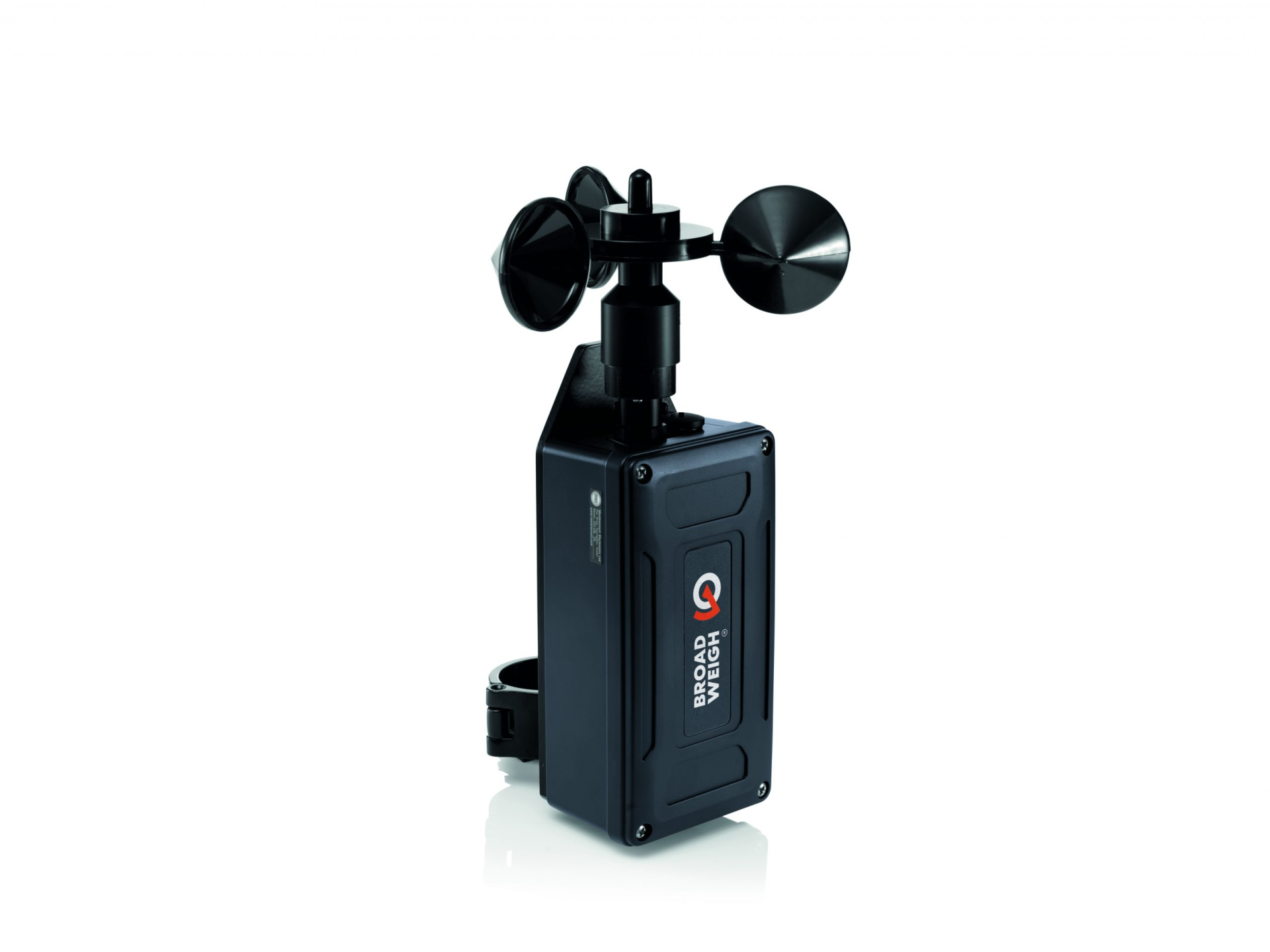

The wind speed anemometer is housed in an IP67 case & supplied with robust fixing bracket. It features a high quality 3-cup rotor for measuring wind speeds between the ranges of 5 to 125 mph and can be configured to provide readings in a number of standard units including mph, fps, km/h and m/sec. To extend battery life, the wind speed sensor can automatically ‘sleep’ between transmissions and has user definable sampling rates.

The wind speed sensor (BW-WSS) operates alongside the whole range of T24 devices such as base stations, handheld displays, analogue output, relay modules, GPRS data loggers and is designed and built on Broadweighs 2.4 Ghz wireless technology.

  • Easy to use

    Powered by 2 x D Cell batteries or external power

    Power saving mode

    One year warranty

    IP67 / NEMA 4 rated enclosure dimensions 163 x 84 x 50 mm (excluding glands)
