CM Prostar Low Voltage
CM Prostar Electric Chain Hoist
CM-ET Prostar direct control
CM-ET Prostar direct control

CM Prostar Low Voltage

CMPS250LV415BPS24-18

Key Features:

  • Low maintenance, compact design
  • Available with a range of features to your own specifications
  • Our in-house department can assemble, inspect and repair Prostar hoists
Enquire

Enquiry Form

Call us today on

+44 (0)113 255 7666

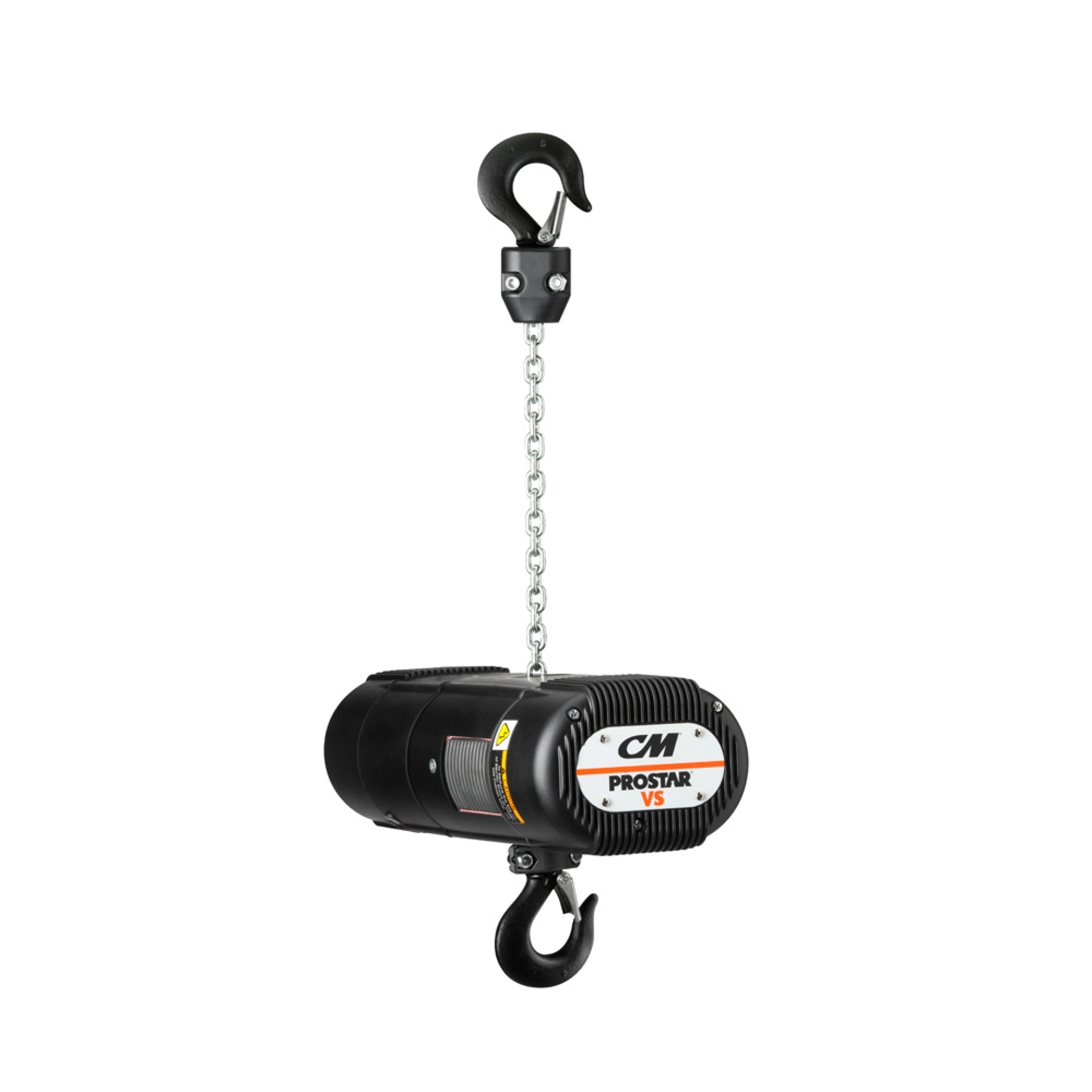

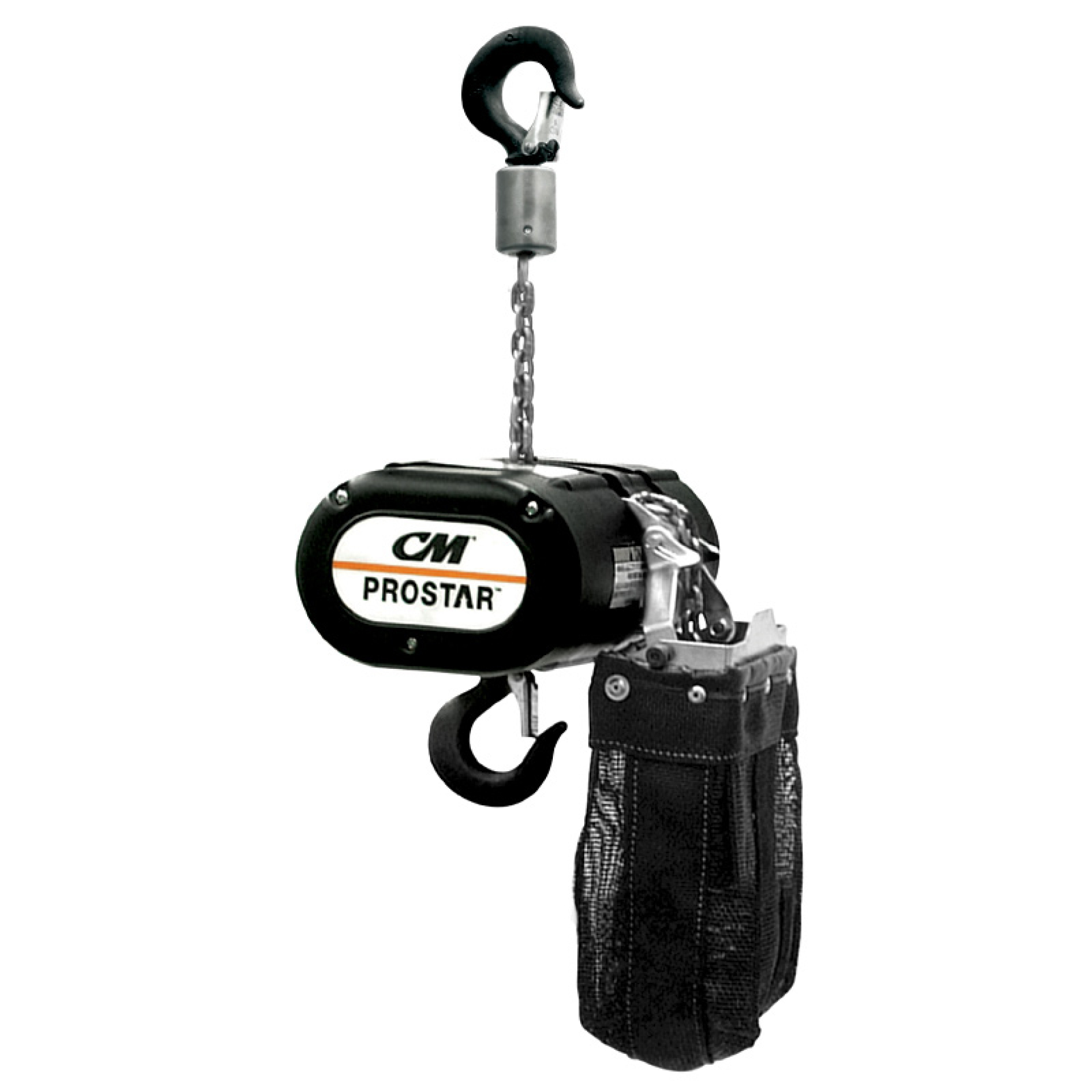

CM Prostar Low Voltage

The CM-ET Prostar low voltage control electric chain hoist is a compact, electric chain hoist specifically designed for light weight lifting applications, incorporating a low voltage contactor drive system for ease of rigging prep by pickle.

The Columbus McKinnon (CM-ET) Prostar low voltage range is a compact, electric chain hoist specifically designed for light weight lifting applications. The CM Prostar is the ideal choice when equipment weight and size are key factors and this makes it ideal for use in theatres, hotels, exhibitions and conferences.

  • Zinc plated load chain designed and manufactured by Columbus McKinnon

    Extremely low self-weight of 13kg excluding chain

    Quiet operation, less than 55dB at 1 metre

    H-4 duty rated for heavy duty application. 1Am FEM class

    4m/min – 250kg version; 2m/min – 500kg version

    CM patented 10 pocket oblique lift wheel for quiet smooth running

    Capacities: 113kg to 500kg

    110V low voltage control – long cable runs

    Lifetime warranty – the industry’s best

    DC electromechanical brake – long service life with low maintenance & quiet operation

    Grease lubricated, precision machined gears heat treated for strength and durability

    Durable & lightweight housing – cast aluminium with matt black coated finish

    One piece chain guide for jam free smooth operation

    Chain mounted adjustable chain stops

    Chain bags: cloth type bags easy-to-mount

    Tourmate Ceeform red 4pin plug and yellow 4pin socket

    Suitable for body up and body down operation

    Road ready – ease of handling and to stow and travel

  • Single phase 226kg 3m/min

    Alloy Latchlok hooks: remains locked until released by the operator, even if chain goes slack

    Double DC brake – special unit with longer body
