CM StageStar D8+

CM-ET StageStar D8+ Entertainment Hoist

CM StageStar D8+ Entertainment Hoist

CM StageStar D8+ Entertainment Hoist

CM StageStar D8+ Entertainment Hoist

CM StageStar D8+ Entertainment Hoist

CM StageStar D8+ Entertainment Hoist

CM StageStar D8+ Entertainment Hoist

CM StageStar D8+

Key Features:

Easy to service

Our in-house department can assemble, inspect and repair StageStar hoists

250kg load capacity

Enquire

Enquiry Form

Call us today on

+44 (0)113 255 7666

CM StageStar D8+

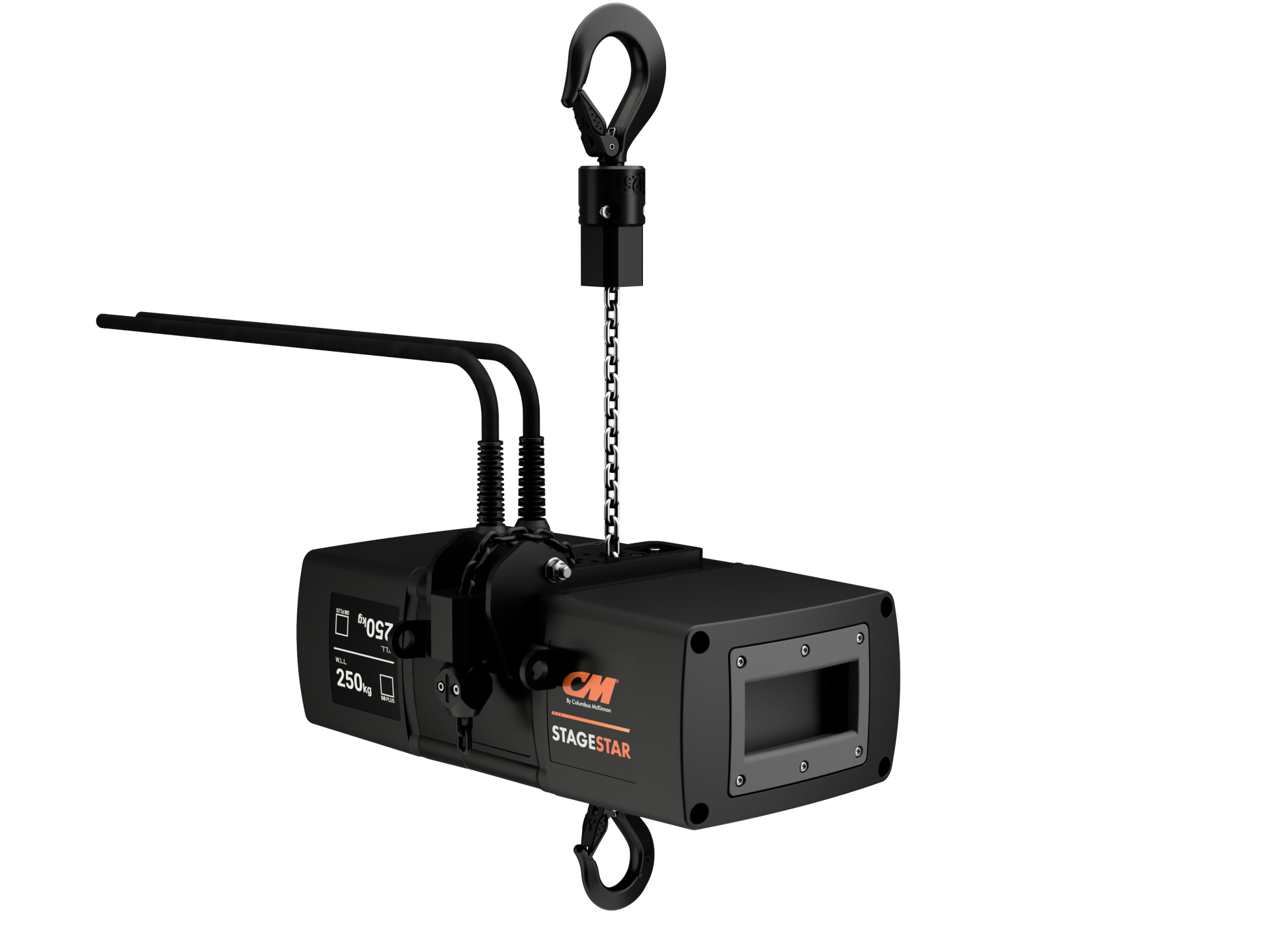

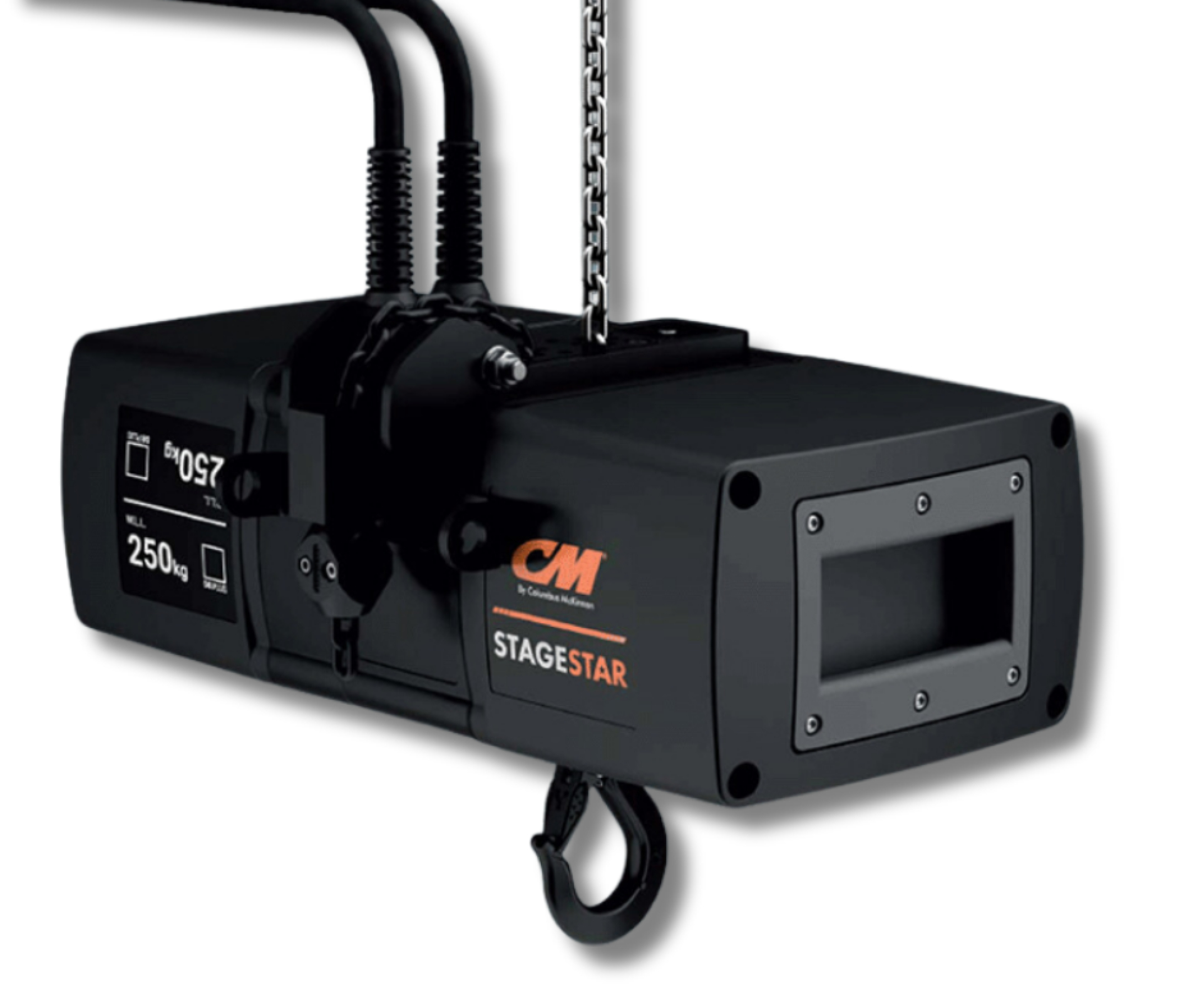

Lightweight and easy to transport, the Columbus McKinnon StageStar D8+ electric chain hoist is built for safety and reliability in any entertainment application.

CM StageStar D8+ Entertainment Hoist

Suitable for a wide range of applications, the StageStar's versatility makes it the ideal hoist for when a lightweight body is key. Built on decades of entertainment lifting expertise, the StageStar is built to last and is easy to maintain if needed.

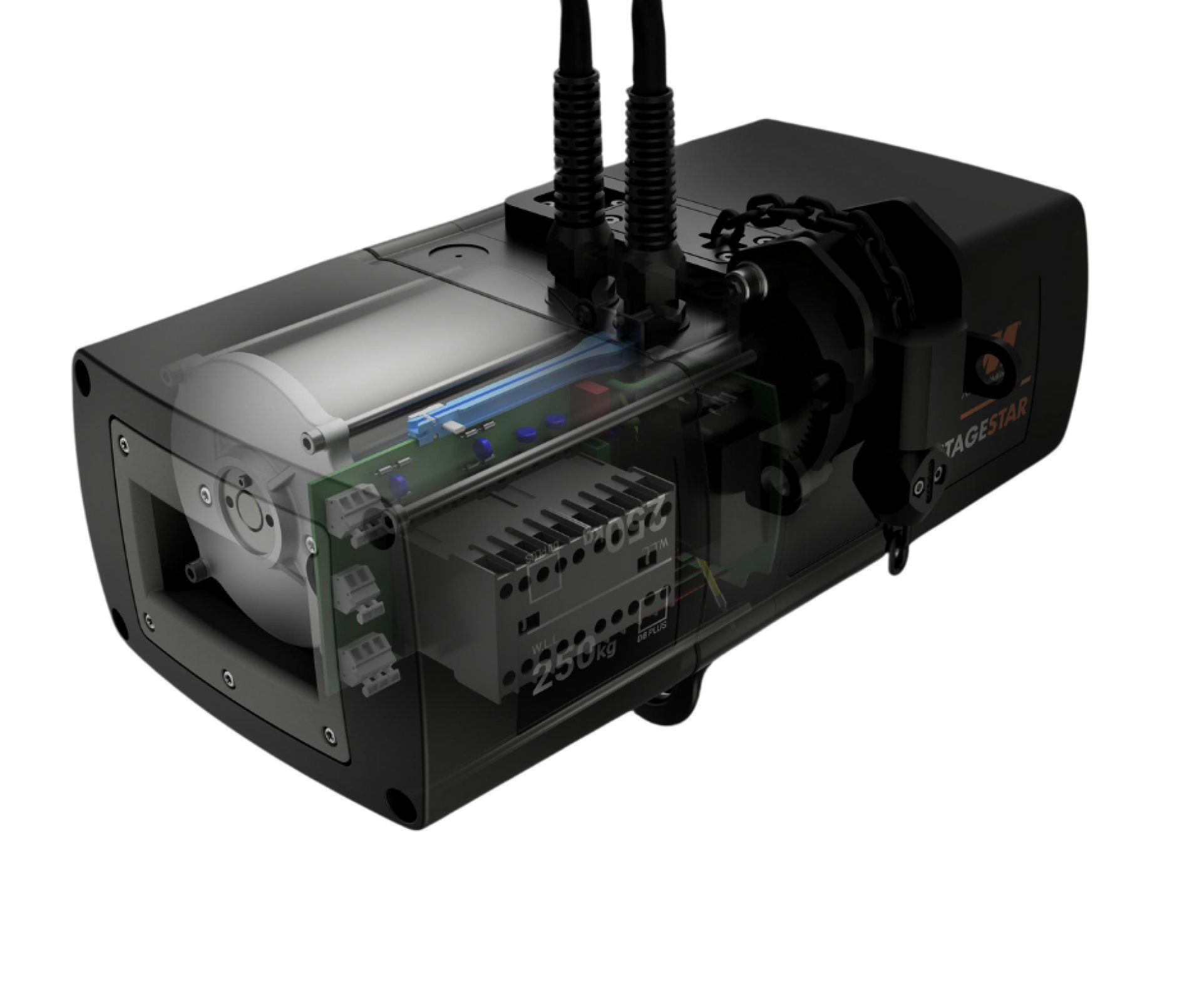

Engineered for the demanding needs of the entertainment industry, CM StageStar hoists feature a robust body and durable fibre reinforced composite covers that can withstand the most rigorous applications. This hoist is an easy-to-maintain, modular-designed device. The gear box is maintenance-free for the whole lifetime of the hoist. All critical parts like the chain guide and load wheel, electronic board, the brake, and motor, are easily accessible with standard tools.

In standard configuration, the motors are rated D8 plus in accordance with SQ P2 (2018). Double brake is standard with CM StageStar D8 Plus electric chain hoists.

Please note: All UK stock will be sold with a zinc-plated, silver-coloured chain

Direct control or low-voltage (24V) control available.

Swivel hook

Operating voltage 230/400 V, 3 ph, 50 Hz

Robust chain guide inlet to prevent chain jams

Robust covers with ergonomic carry handles

Protection IP55

Engineered for the demanding needs of the entertainment industry, CM StageStar hoists feature a robust body and durable fiber reinforced composite covers that can withstand the most rigorous applications.

This hoist is an easy-to-maintain, modular-designed device. The gear box is maintenance-free for the whole lifetime of the hoist. All critical parts like the chain guide and load wheel, electronic board, the brake, and motor, are easily accessible with standard tools.

In standard configuration, the motors are rated D8 plus in accordance with SQ P2 (2018). Double brake is standard with CM StageStar D8 Plus electric chain hoists.
Lifetime lubricated gearbox means no oil change is required.

Slip clutch protects all load-bearing components from overload. Designed to guarantee a safe, permanent connection between the load and the brake to meet higher safety requirements.
• Limit switches
• Gear shaft for back-up limit switches or encoders

Resetting the slip clutch and inspecting the brake is simple and time-saving. Direct control or low-voltage (24v) control available. The electronic board is easily accessible.
Other features:
• Swivel hook
• Operating voltage 230/400 V, 3 ph, 50 Hz
• Robust chain guide inlet to prevent chain jams
• Robust covers with ergonomic carry handles

Model: CM StageStar

Direct Control Product Code: 192105358*

Low Voltage Control Product Code: 192105359*

Capacity: 250 kg (D8 Plus)

Lifting Speed at 50Hz: 4 m/min

Chain Pitch: 4.0 x 12.2 mm

Power at 50Hz: 0.25kW

Current at Full Load 230V, 50Hz: 1.30 A

Current at Full Load 400V, 50Hz: 0.75 A

Weight Without Chain: 17 kg

CM StageStar D8+ - Downloads

CM-ET StageStar D8+ Entertainment Hoist
