DVI-HBT Video Extender

DVI-HBT Video Extender

Key Features:

  • Converts DVI to HDBaseT, increasing transmission distance and ensuring image quality.
  • Supports input and output resolutions up to 1920×1080@60Hz.
  • Supports up to 4:4:4 input.
Enquire

Enquiry Form

Call us today on

+44 (0)113 255 7666

DVI-HBT Video Extender

The DVI-HBT video extender adopts HDBaseT technology for long-distance transmission of DVI signal.

Product Variants

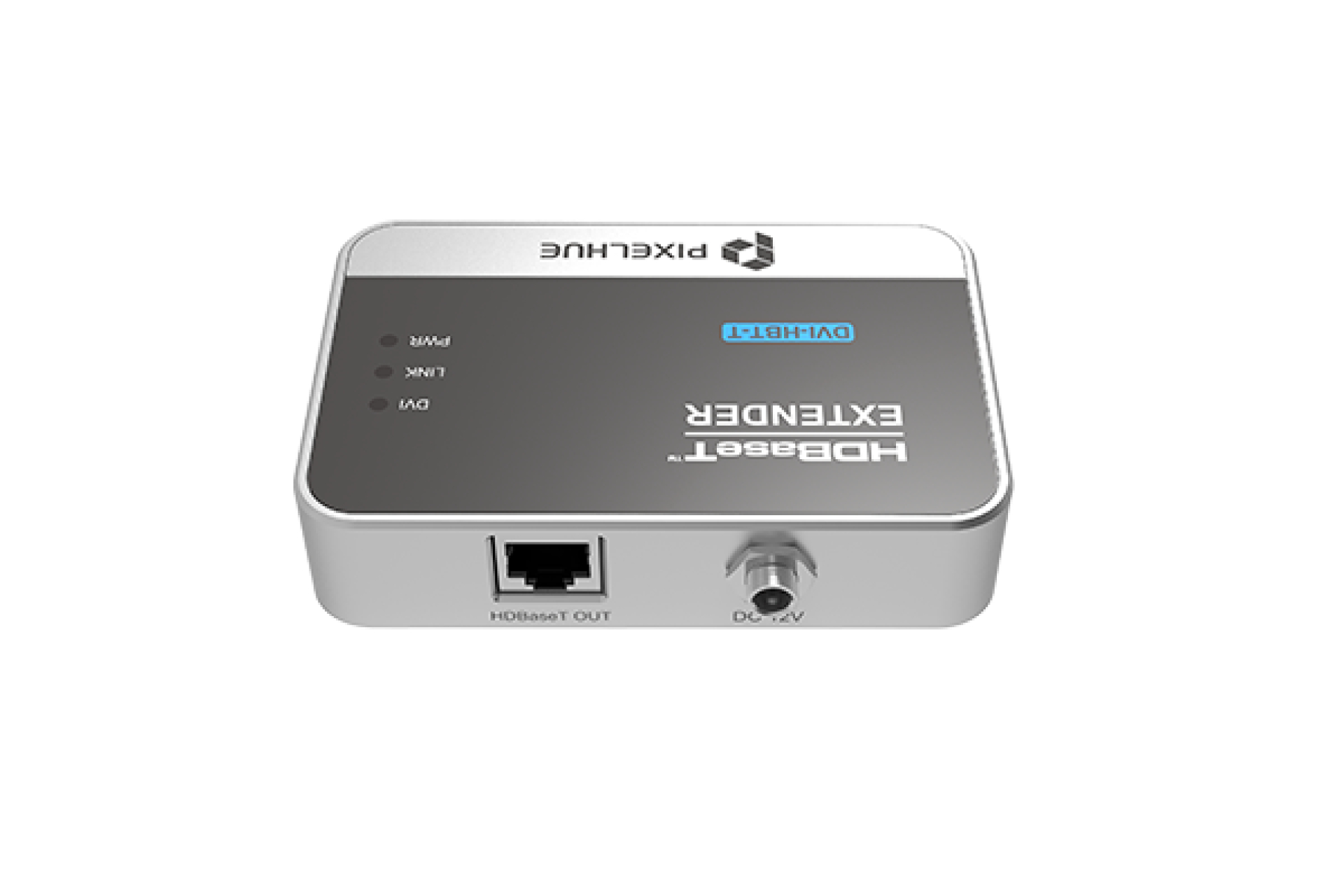

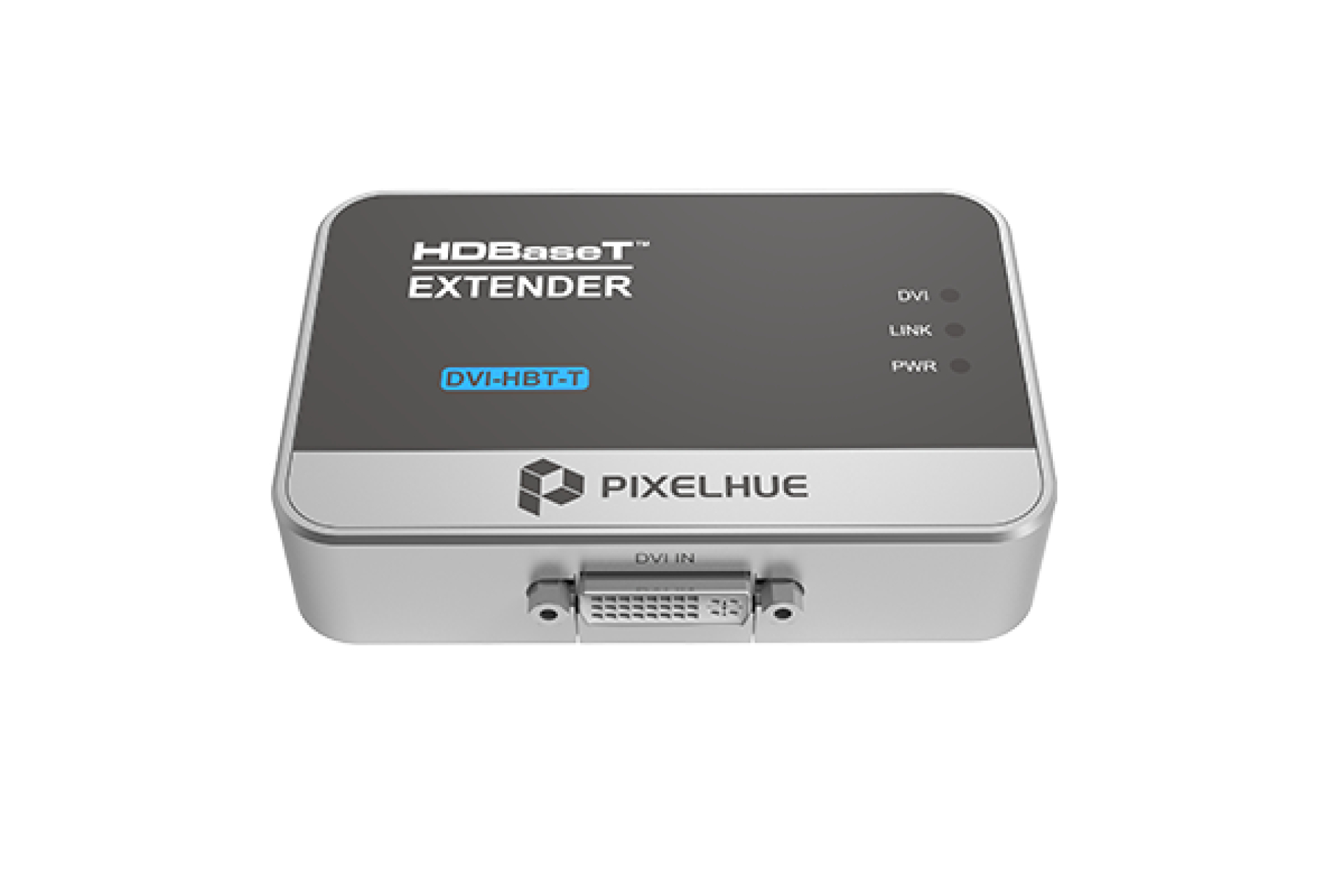

DVI-HBT-T
  • Input: DVI-D Single Link 18+1 input connector
  • Output: HDBaseT

Enquiry Form

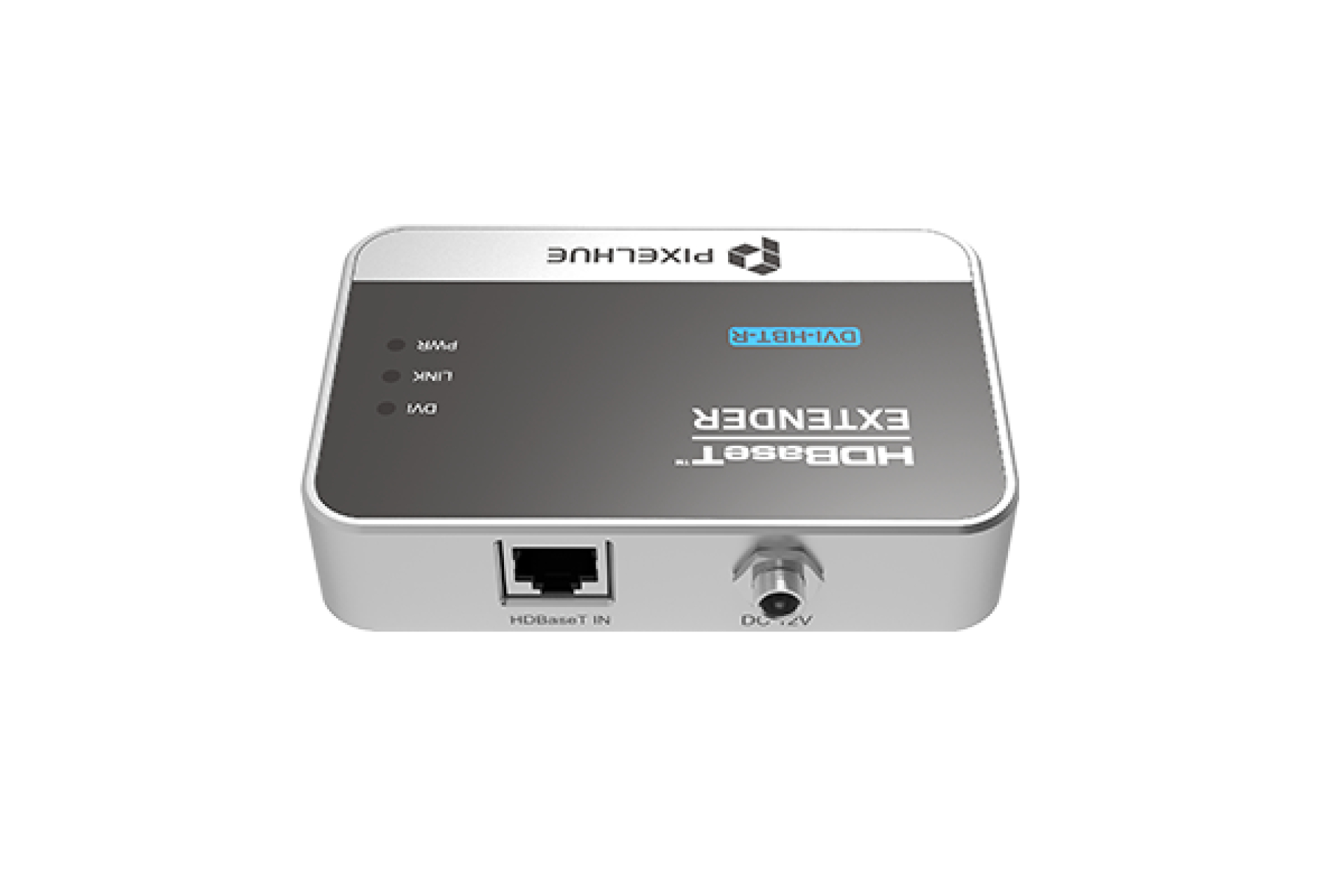

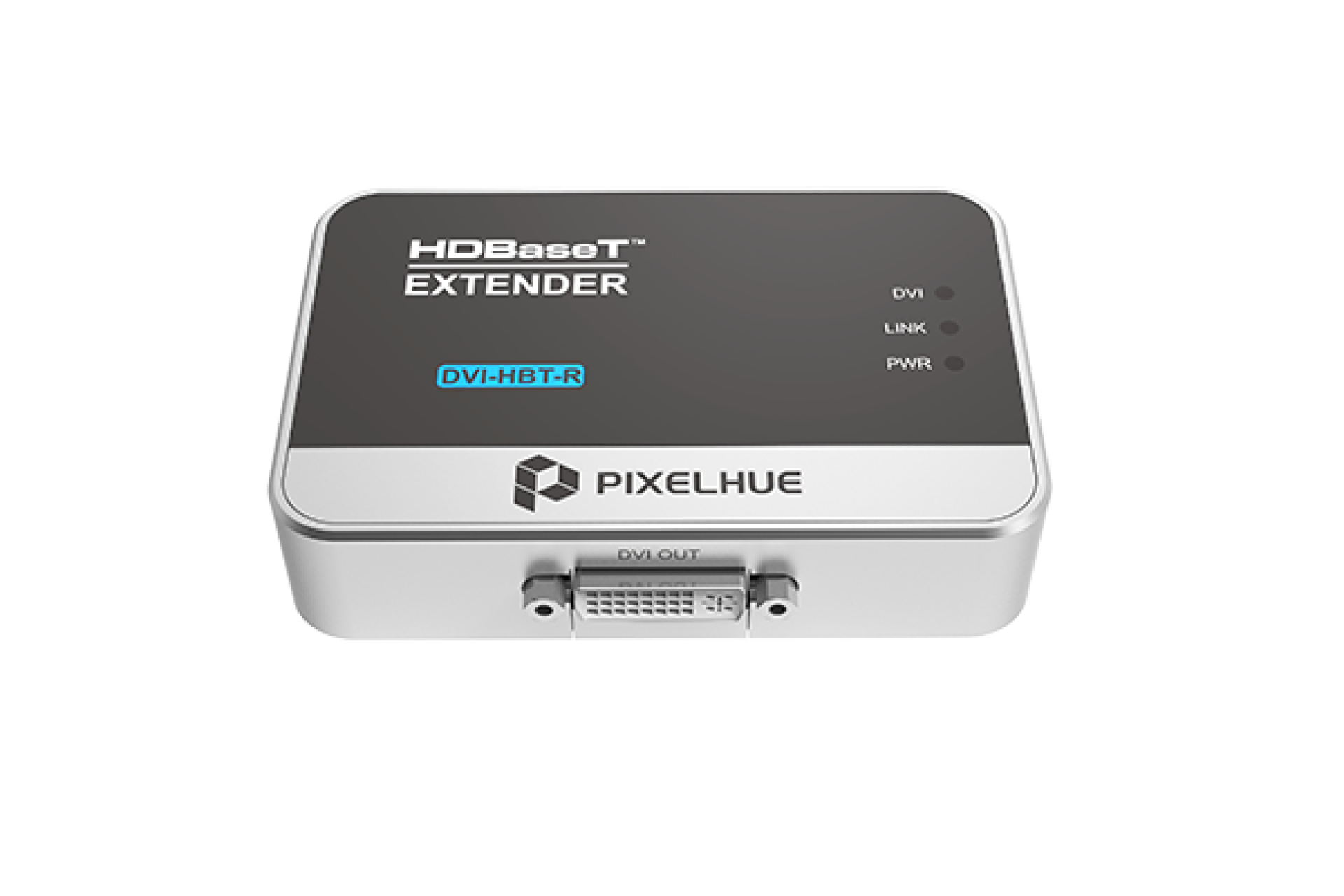

DVI-HBT-R
  • Input: HDBaseT
  • Output: DVI-D Single Link 18+1 input connector

Enquiry Form

With both DVI-HBT-T and DVI-HBT-R, HDBaseT connector supports 100-meter transmission distance by using only one CAT 6 Ethernet cable. This solves the problems of bad transmission and image interference, and improves the DVI signal transmission distance and image quality.

  • HDBaseT output uses standard Ethernet cable for easier on-site production and less transmission cost.

    Provides DVI, LINK and PWR indicators for easy control of the device status.

    Supports plug and play of both input and output, with no drivers required.

    Supports 7-pair device units connected to increase the transmission distance.

    Supports EDID transparent transmission function for various display devices.

    Supports various certifications, such as RoHS.

DVI-HBT Video Extender - Downloads
Download
DVI-HBT Video Extender - Variant Downloads
