Dynacord DSA Series Amplifiers

Key Features:

  • Innovative Dynacord technology
  • Exemplary flexibility & very high output
  • Integration into iris-net networks
Enquire

Enquiry Form

Call us today on

+44 (0)113 255 7666

Dynacord DSA Series Amplifiers

Innovative Dynacord technology, exemplary flexibility, very high output with an extremely good efficiency and integration into iris-net networks. Introducing you to the Dynacord DSA Series...

Product Variants

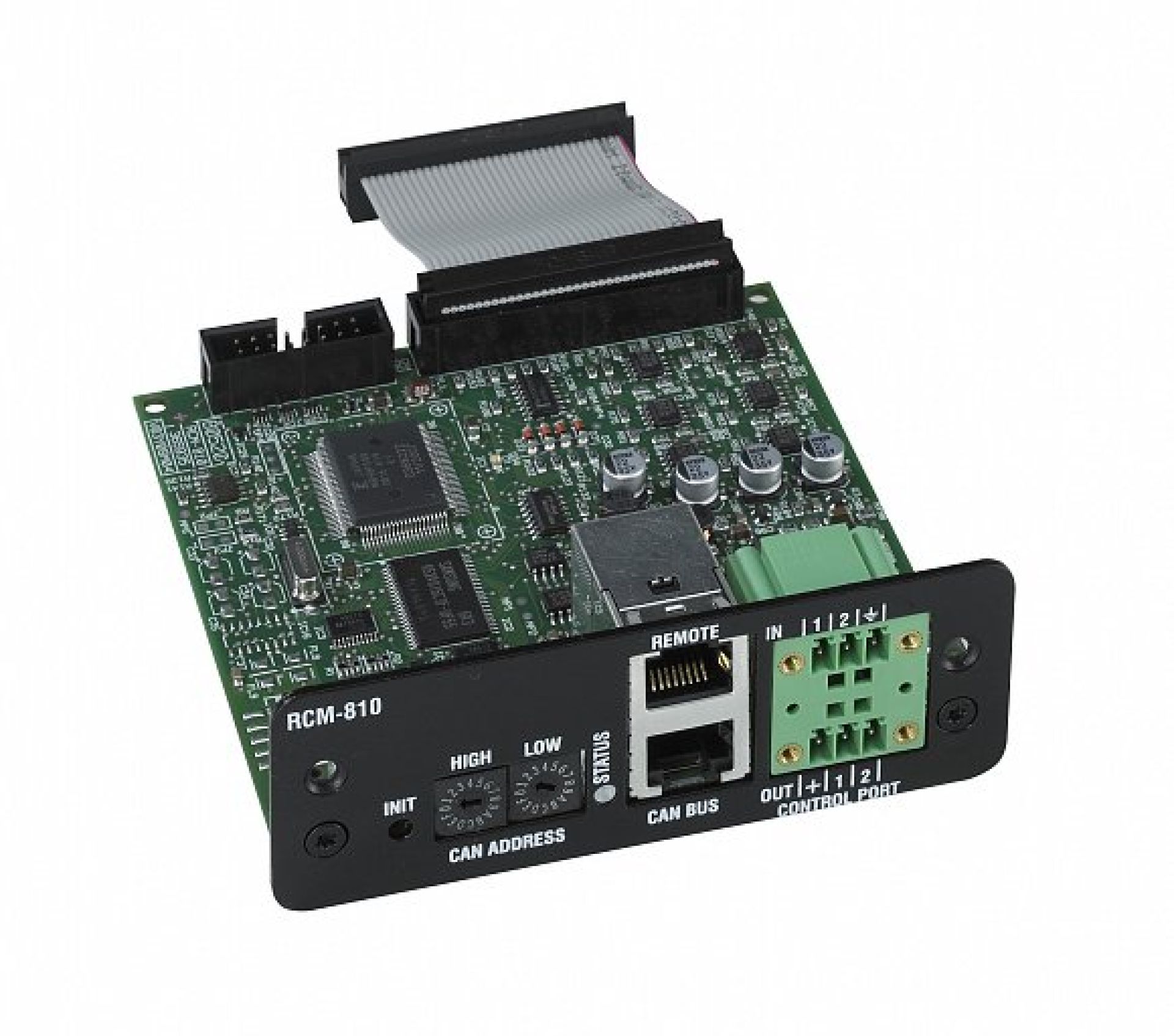

RCM-810
RCM-810
  • Iris-net module for DSA Series Power Amplifiers
  • Configuration, Power ON/OFF, Power On Delay, Mute, Variable Load Drive
  • A GPIO block allows for 2 Control Inputs, 2 Control Outputs, 2 Reference Outputs

Enquiry Form

DSA 8204
DSA 8204
  • 2 x 450w power amplifier
  • Highest Audio Performance for all ProSound applications
  • Optimized for 24/7
  • Highest Reliability due to DYNACORD Protection Scheme
  • Remote Control with optional Control Module (RCM-810)

Enquiry Form

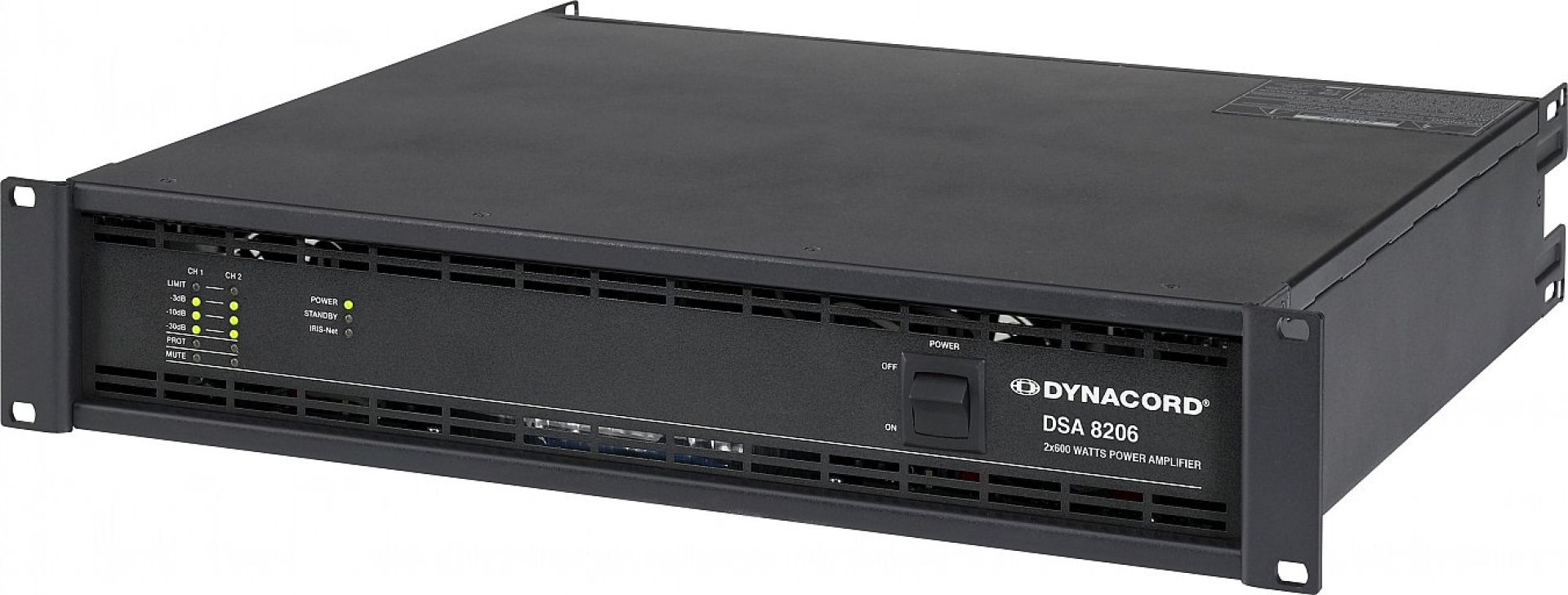

DSA 8206
DSA 8206
  • 2 x 600w power amplifier
  • Highest Audio Performance for all ProSound applications
  • Optimized for 24/7
  • Highest Reliability due to DYNACORD Protection Scheme
  • Remote Control with optional Control Module (RCM-810)

Enquiry Form

DSA 8209
DSA 8209
  • 2 x 900w power amplifier
  • Highest Audio Performance for all ProSound applications
  • Optimized for 24/7
  • Highest Reliability due to DYNACORD Protection Scheme
  • Remote Control with optional Control Module (RCM-810)

Enquiry Form

DSA 8212
DSA 8212
  • 2 x 1200w power amplifier
  • Highest Audio Performance for all ProSound applications
  • Optimized for 24/7
  • Highest Reliability due to DYNACORD Protection Scheme
  • Remote Control with optional Control Module (RCM-810)

Enquiry Form

DSA 8405
DSA 8405
  • 4 x 500w multichannel power amplifier
  • 4 x 500w into LZ and HZ (70 V / 100 V)
  • Variable Load Drive (VLD)
  • Optimized for 24/7
  • High efficient Class D design
  • Remote Control with optional Control Module (RCM-810)

Enquiry Form

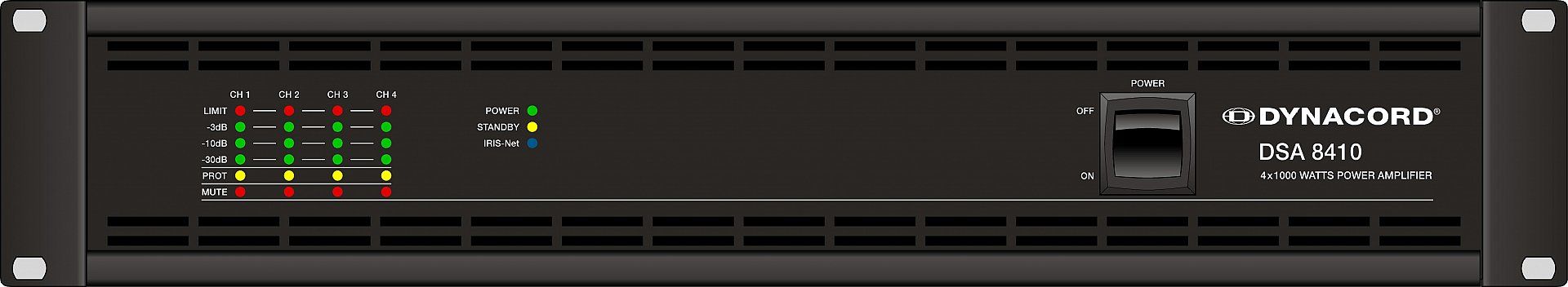

DSA 8410
DSA 8410
  • 4x 1000w multichannel power amplifier
  • 4 x 1000w into LZ and HZ (70 V / 100 V)
  • Variable Load Drive (VLD)
  • Optimized for 24/7
  • High efficient Class D design
  • Remote Control with optional Control Module (RCM-810)

Enquiry Form

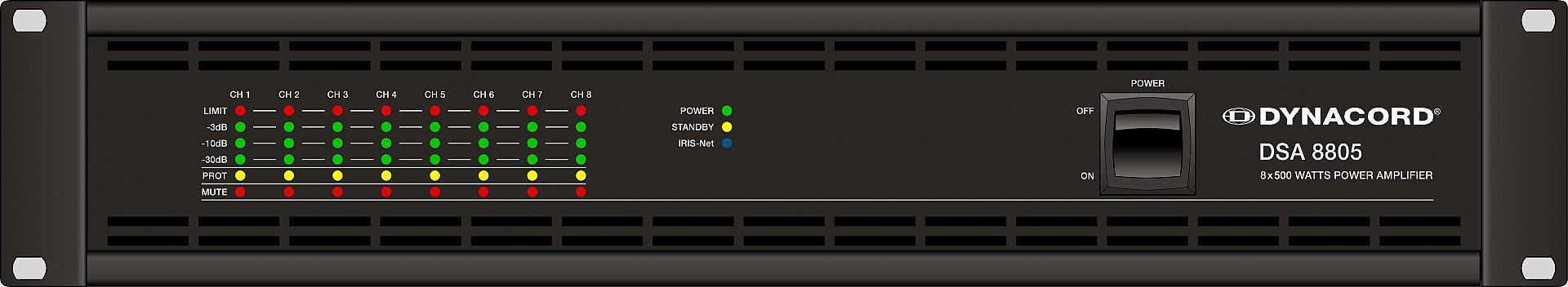

DSA 8805
DSA 8805
  • 8 x 500w multichannel power amplifier
  • 8 x 500w into LZ and HZ (70 V / 100 V)
  • Variable Load Drive (VLD)
  • Optimized for 24/7
  • High efficient Class D design
  • Remote Control with optional Control Module (RCM-810)

Enquiry Form

The multi-channel DSA 8405 / 8410 / 8805 power amplifiers are a milestone in the design and production of high-powered installation power amplifiers. Unique flexibility through VLD Each channel can be switched individually to provide 500W resp. 1000W at either 2Ohms, 4 Ohms or to drive 70 Vrms or 100 Vrms loudspeaker lines directly without an output transformer.

In combination with the RCM-810 module the user can configure these amplifiers under IRIS-Net using the Variable Load Drive (VLD) to provide any output power in the range of 100W to 500/1000W per channel (1W increments) at any load in the range of 2 Ohms - 10 Ohms (0,1 Ohms increments). The Phoenix input connectors are electronically balanced.

Phoenix connectors are also provided for the power outputs. The power remote connector makes the task of remote controlling the power amplifier as well as switching it on and off simple. For further remote-supervision and –control possibilities and integration into IRIS-Net networks, an optional remote control module (RCM-810) is available.

Dynacord DSA Series Amplifiers - Downloads
Dynacord DSA Series Amplifiers Spec Sheet
Download
