The Esdlumen SP Series is a hybrid, versatile Black Face LED panel that meets the requirements for indoor corporate events, outdoor festival stages and live TV studios.
The perfect solution for an all-in-one LED Screen
The Esdlumen SP3.9 is the first in a new generation of LED video panels that allow rental partners to stock one product that meets the requirements for indoor corporate events, outdoor festival stages and live TV studios.

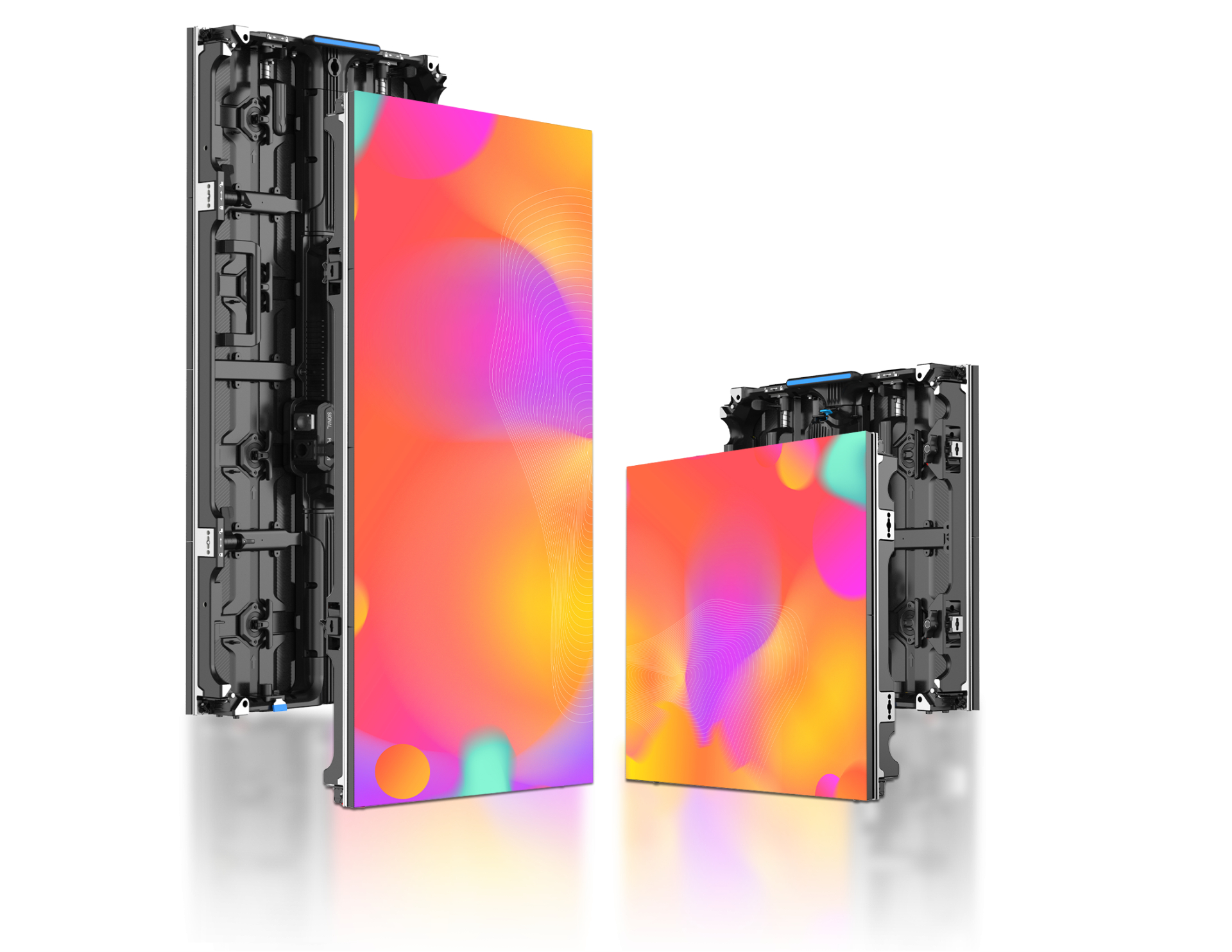

The SP3.9 is available in 500x500 and 500x1000mm panel sizes and comes packed in rugged flight cases ready for any indoor corporate event, but it doesn’t stop there...
Thanks to the high bright black face LED you can also take the SP3.9 outdoors on the next local or worldwide festival tour. To help achieve this, the SP Series accessories, including touring dollies, help build large screens quickly and the included wind frames allow the screen to be used in wind speeds up to 20m/sec.
The components used within the SP3.9 are typically found on high-end products and those features are unlocked with the addition of the NovaStar A10s Pro receiver cards.
When paired with the New NovaStar COEX series processors you’ll be able to optimise the SP3.9 with the following new features:
Dynamic Booster, which can significantly improve the display's contrast.
Full Greyscale Calibration can make the display brightness and chroma more uniform at different greyscale levels.
Image Booster, which can precisely calibrate the display colour gamut and greyscale, dramatically improves greyscale by 64 times.
Hybrid panel for indoor or outdoor use
Pixel Pitch: 3.9mm
LED: Black Face SMD
Panel Size: 500x500mm / 500x1000mm
Panel Resolution: 128x128 / 128x256 pixels
Brightness: 4,450 nits
Greyscale: 16 bit
Scan Rate: 1/8
Processing: NovaStar A10s Pro
Power Connections: Neutrik True1
Data Connections: Neutrik etherCON
Curvability: +/-5˚
IP rating: IP65 (front & rear)

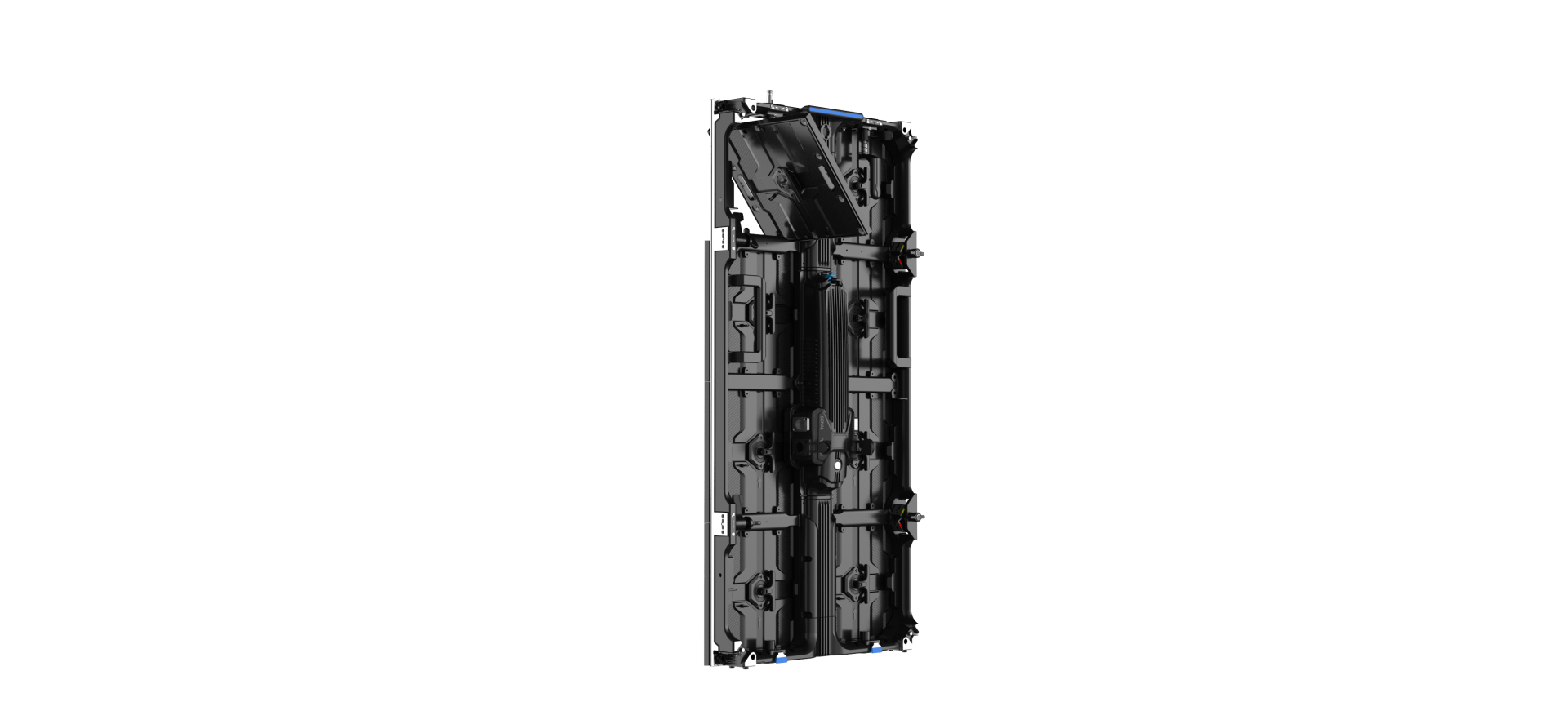

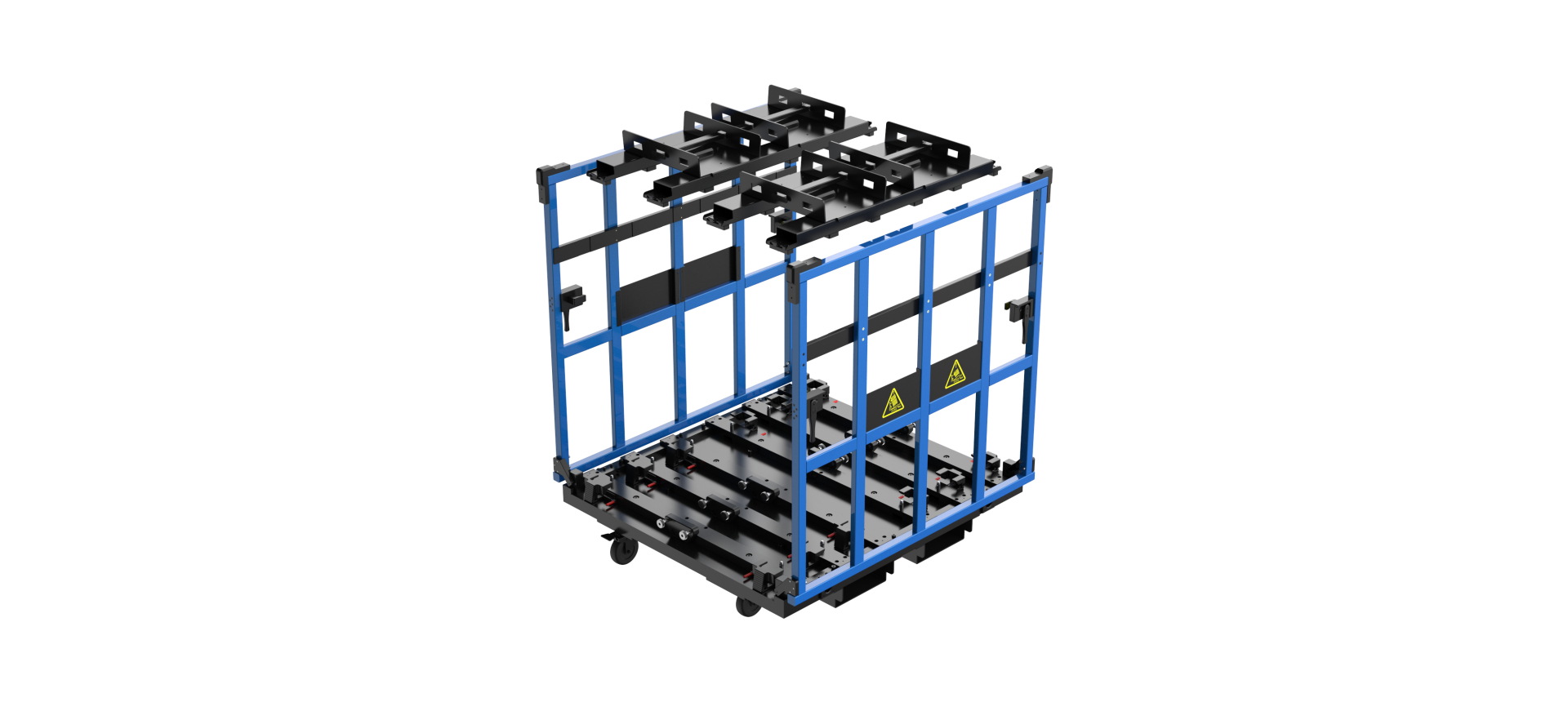

Equipped with 2-in-1 hanging and stacking bars for high flexibility, dollies for convenient transport and other accessories, the SP Series is very versatile for a wide range of events.

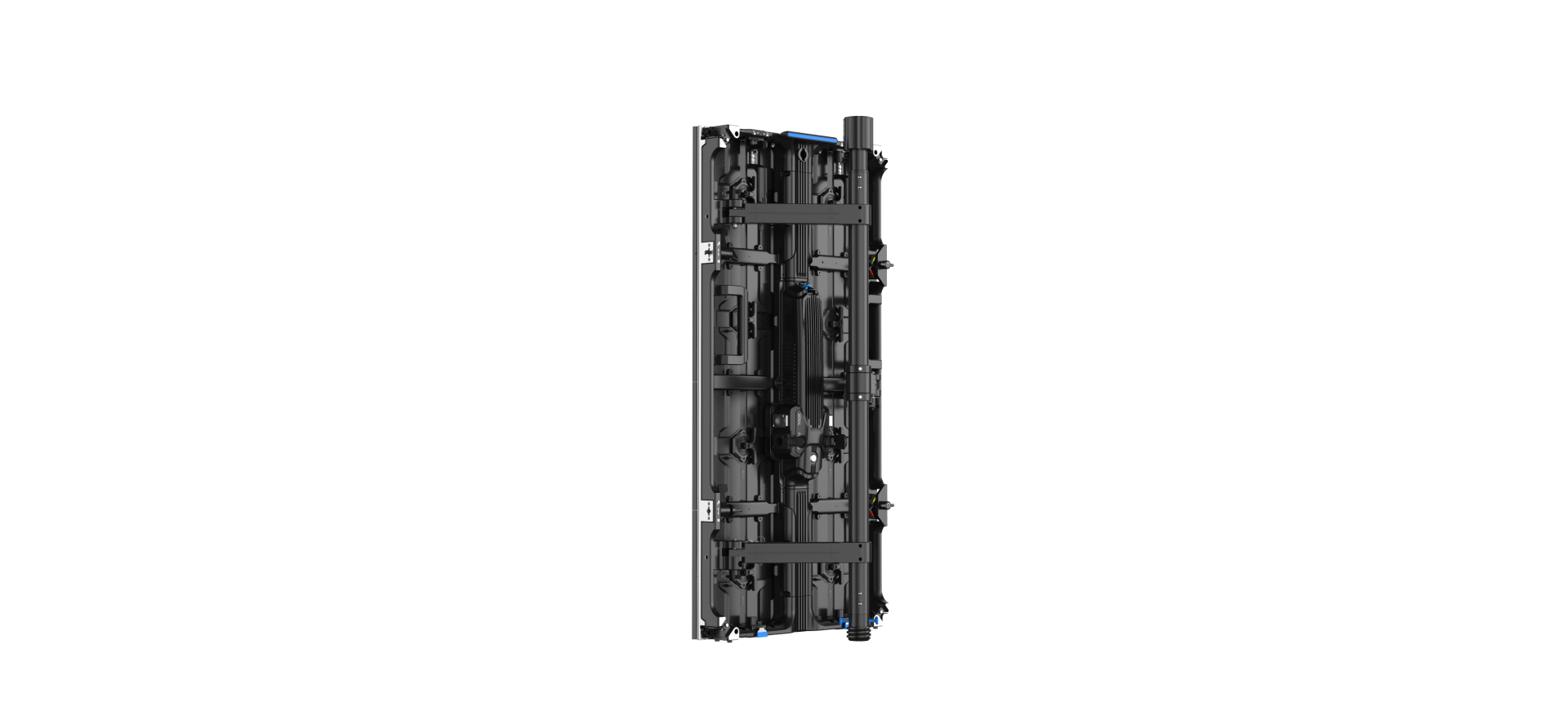

As standard the SP Series features automatic arc locks allowing both convex and concave curving +/-5˚. Custom arc locks can be created upon request and retrofitted to the SP Series to meet different project needs.

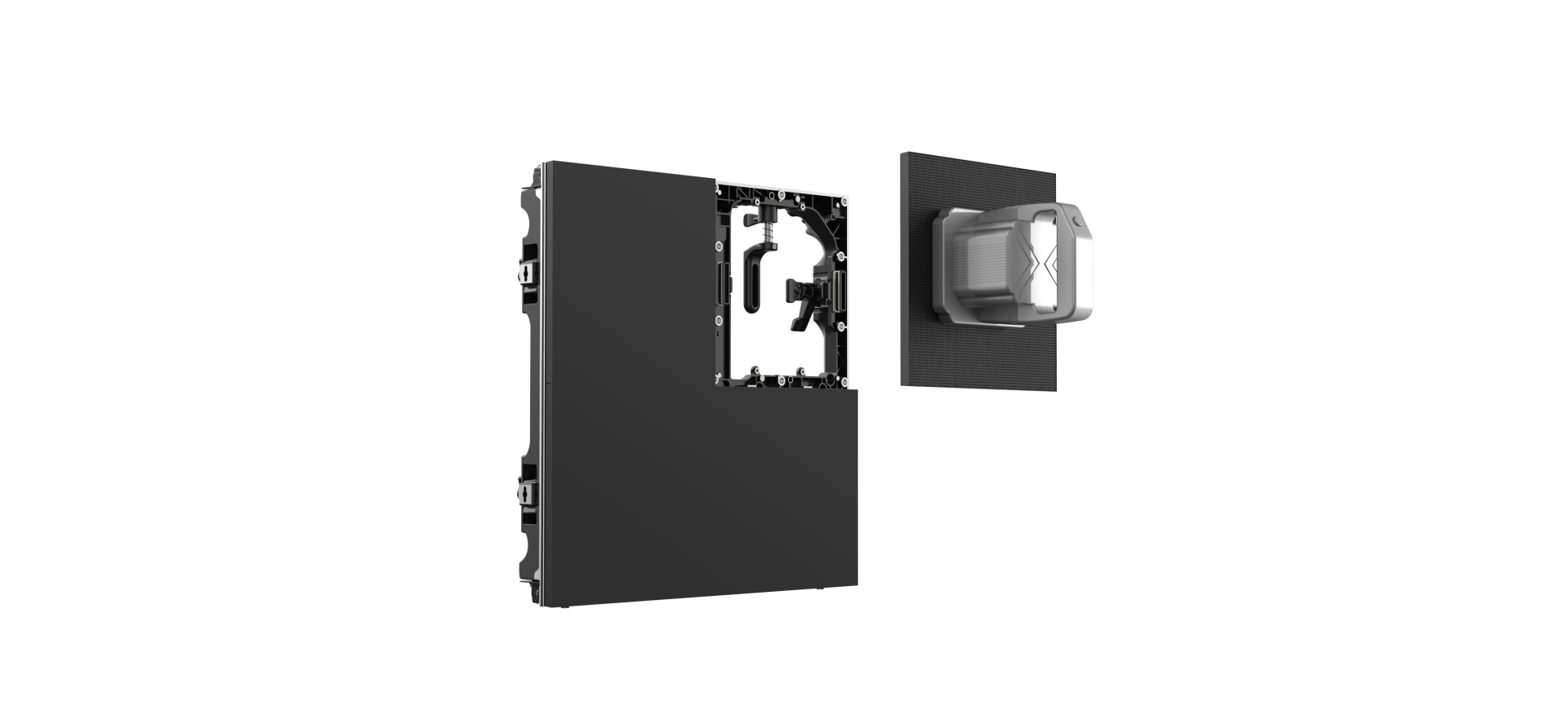

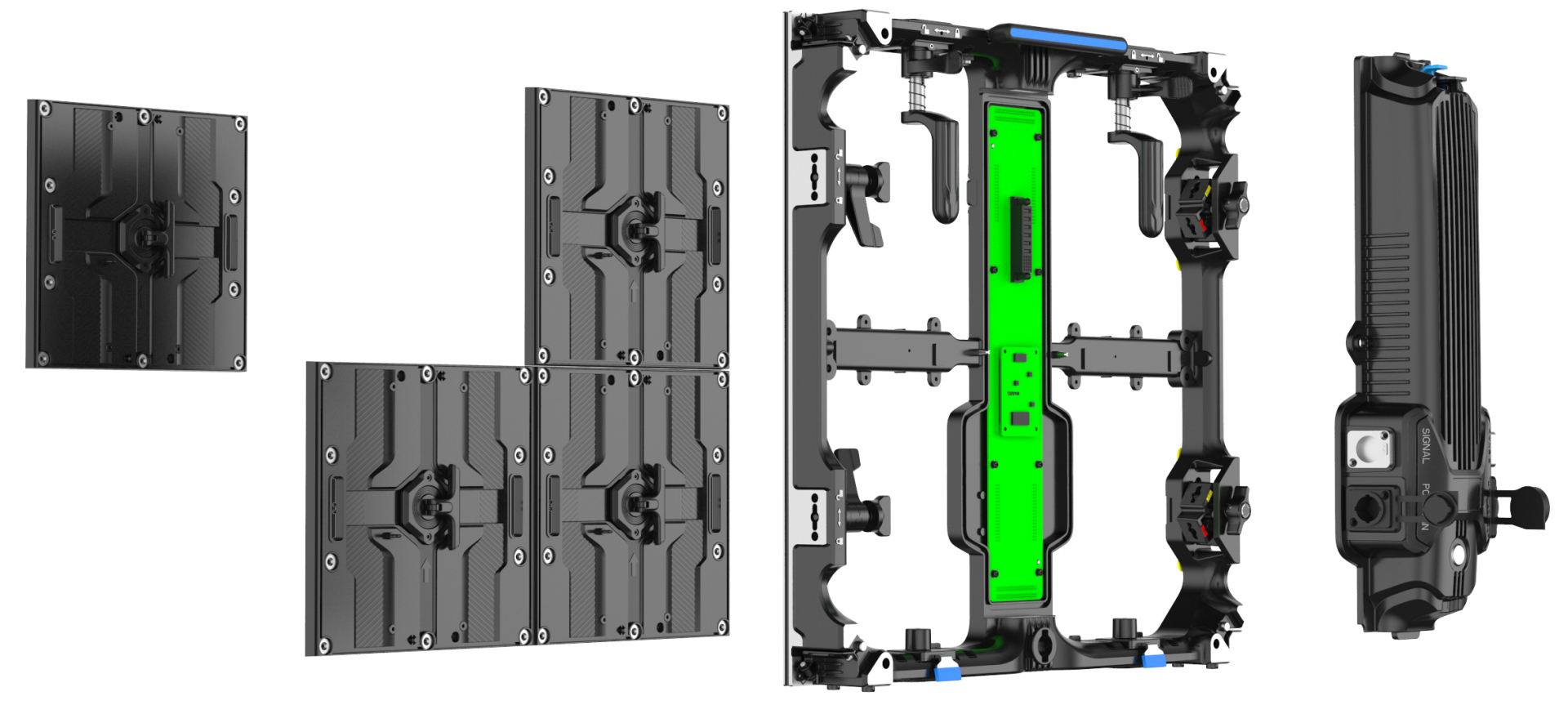

The module supports front and rear maintenance through the integrated central box and the magnetic panel feature. The patented corner protectors reduce corner pixel damages and fast lock enables easy in-situ servicing.

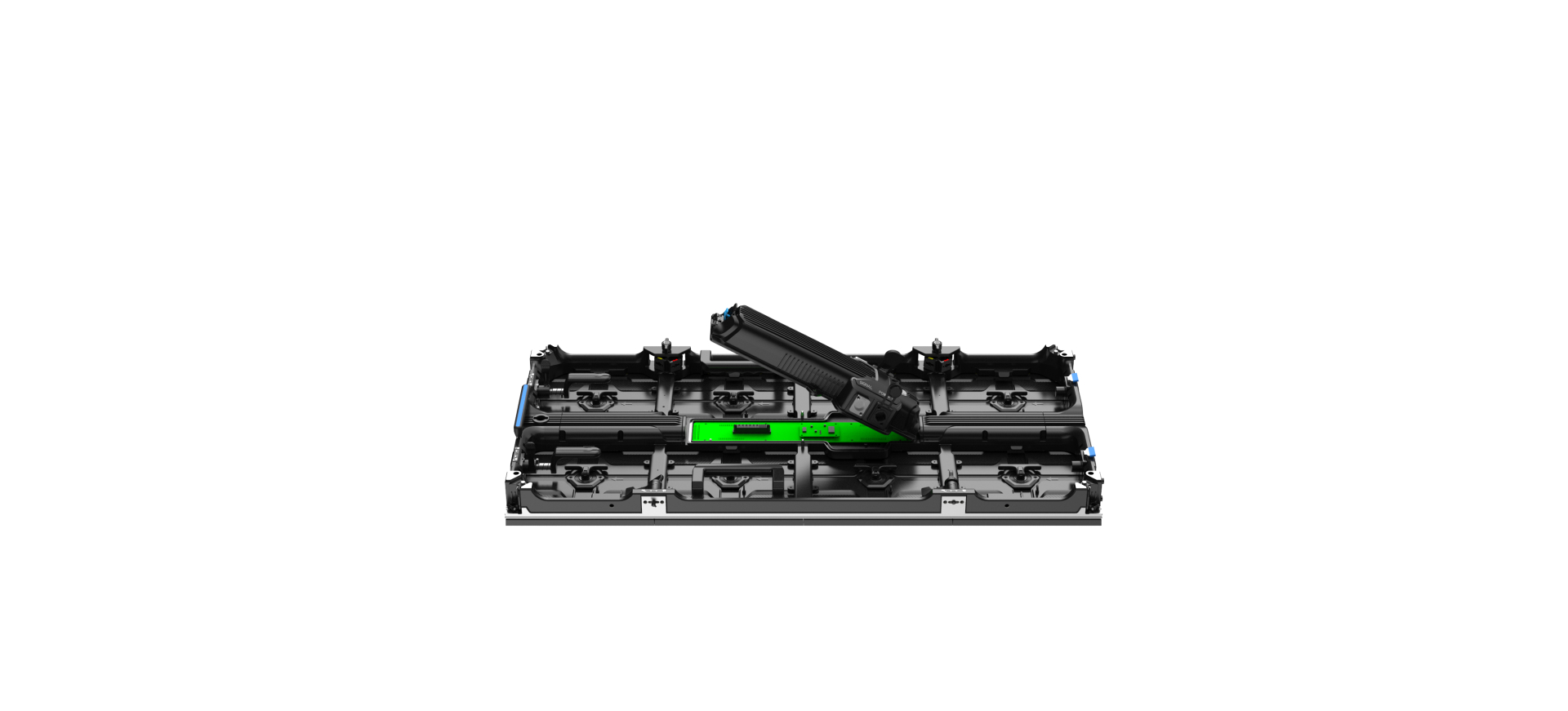

Ultra-thin & lightweight, the SP Series features patented interlocks and magnet-assisted assembly for easier handling & installation even by single person.

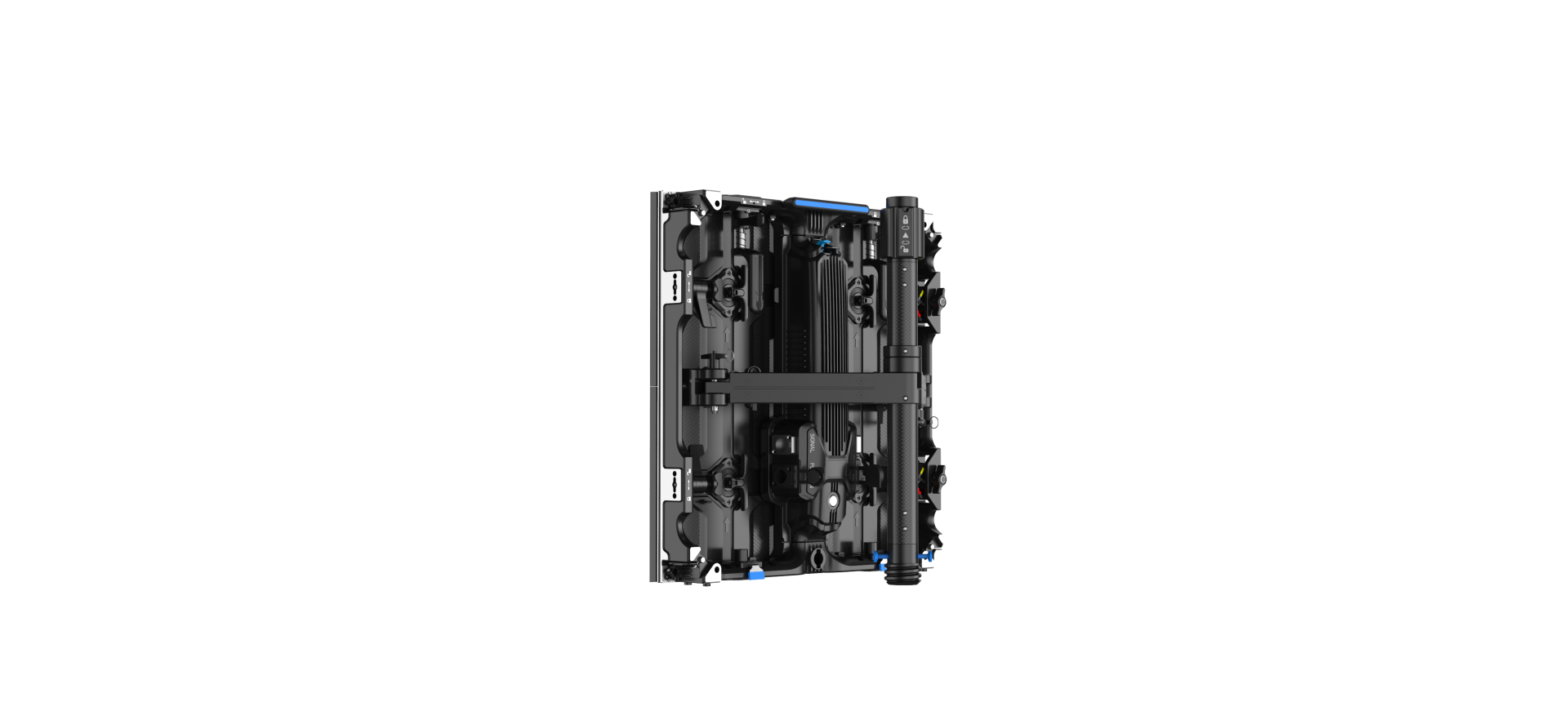

500x1000mm and 500x500mm cabinets allow up-down mixed splicing, sharing the universal modules and power boxes to save spare parts and costs.

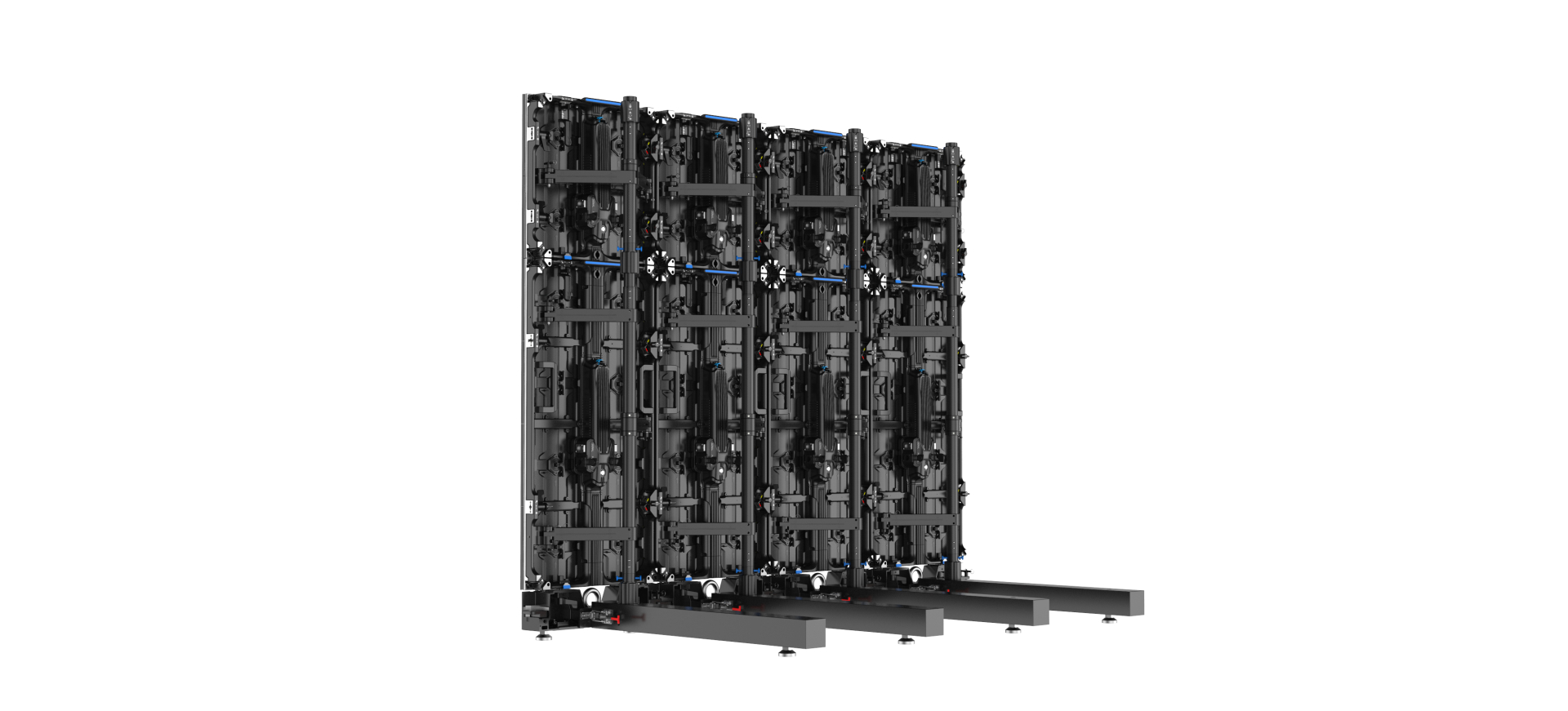

By using a lightweight and carbon fibre wind resistant frame means the screen can be lifted 10m and be reliable in wind speeds of up to 20m/s. It can also be used as a part of the back frame structure to speed up stacking installation.
