Electro-Voice EVID Ceiling Speakers
EVID C4.2
EVID C8.2HC
EVID Speakers
EVID-PC6.2
EVID-PC8.2
EVID ceiling mount speakers
EVID ceiling mount speakers
EVID ceiling mount speakers
EVID ceiling mount speakers
EVID C8.2HC
EVID Speakers
EVID-PC6.2
EVID-PC8.2
EVID ceiling mount speakers
EVID ceiling mount speakers
EVID ceiling mount speakers
EVID ceiling mount speakers

Electro-Voice EVID Ceiling Speakers

Key Features:

  • High-performance problem solvers.
  • Wide coverage and high SPL capability.
  • Easy to install and provide lasting value.
Enquire

Enquiry Form

Call us today on

+44 (0)113 255 7666

Electro-Voice EVID Ceiling Speakers

Designed with both the contractor and listener in mind, EVID ceiling speakers are high-performance problem solvers that deliver exceptional audio in even the most challenging architectural environments.

Product Variants

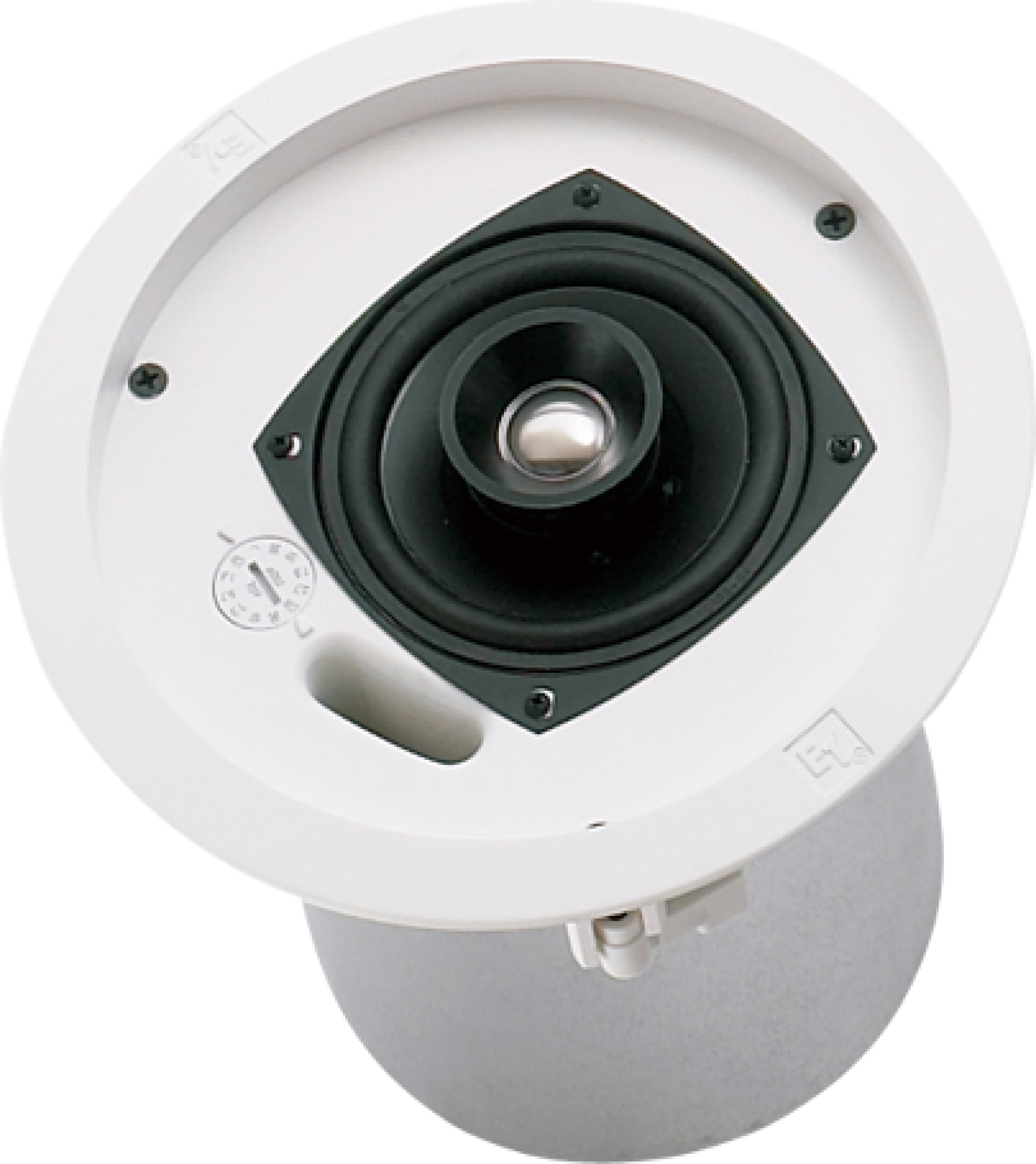

EVID C4.2
EVID C4.2
  • 4" 2‑way coaxial ceiling loudspeaker
  • Designed for air-handling spaces
  • Ported enclosure for extended bass response
  • Waveguide-coupled 0.75-inch titanium-coated tweeter
  • Full-bandwidth overload protection
  • Integrated transformer for 70 V, 100 V, or 8 Ω use
  • Front-panel mode/wattage selector
  • Safe, easy installation with included tile bridge and mounting ring
  • White semi-gloss perforated grille
  • Complete package, requires no additional accessories

Enquiry Form

EVID ceiling mount speakers
EVID-C4.2LP
  • Ceiling speaker 4" low profile white
  • Low profile 4” coaxial two-way (3.7” deep)
  • Full bandwidth overload protection
  • Front baffle wattage tap adjustment
  • Includes tile bridge and mounting ring for easy installation
  • UL1480A and CSA 22.2 205 certified

Enquiry Form

EVID-PC6.2
EVID-C6.2
  • Ceiling speaker 6.5" white
  • Full bandwidth overload protection
  • Front baffle wattage tap adjustment
  • Includes tile bridge and mounting ring for easy installation
  • UL1480A and CSA 22.2 205 certified

Enquiry Form

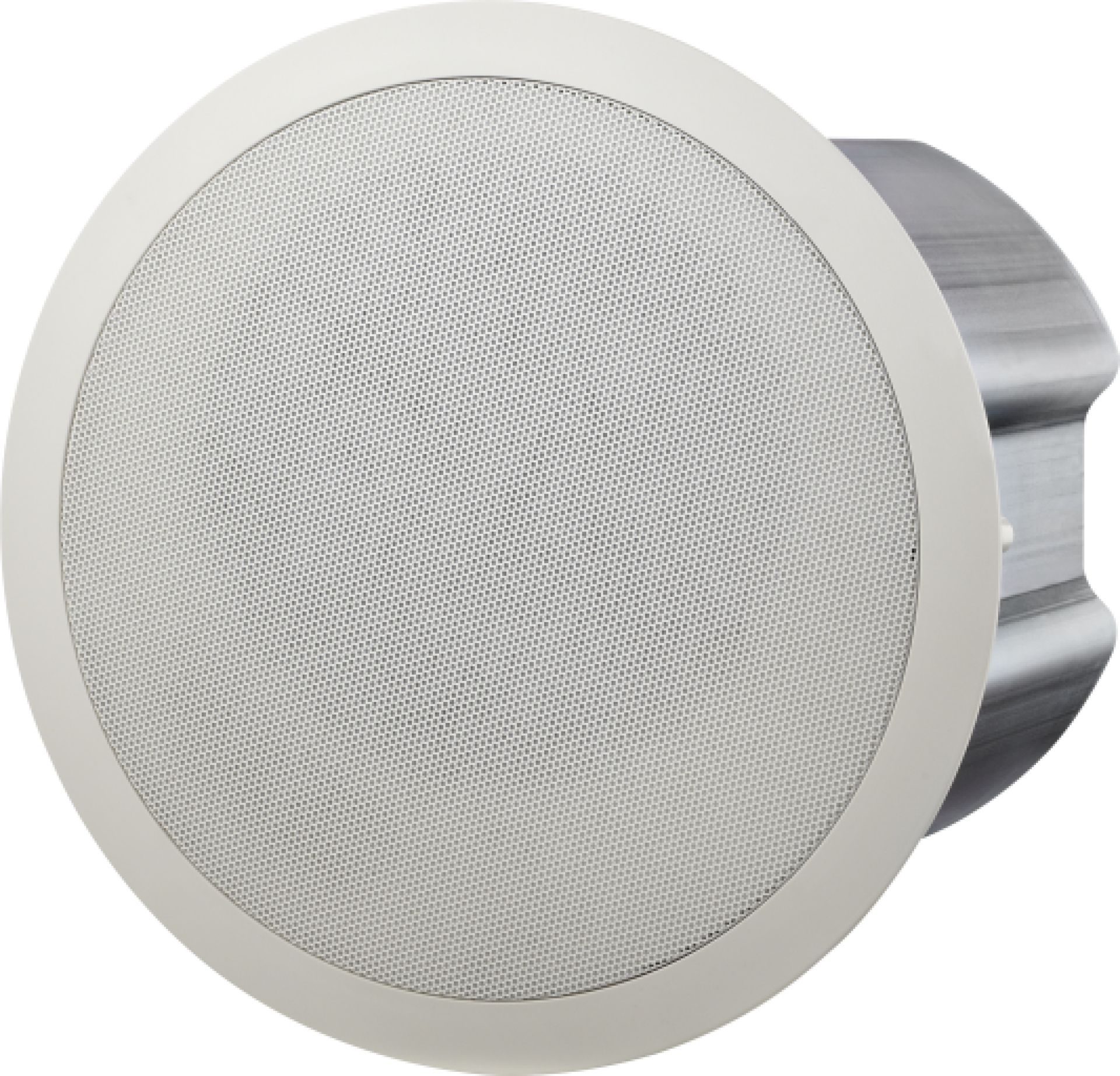

EVID-PC6.2
EVID-PC6.2
  • 6½" 2-way ceiling speaker
  • High-performance EV-engineered compression driver. Ultra-wide HF dispersion provides extremely even coverage through room.
  • High-excursion woofer provides dramatic low-end frequency extension. Reinforced steel back can provides rigid enclosure to minimize acoustic loss.
  • Four-point clamp mechanism and integrated mounting legs enable quick ceiling installation.
  • Detachable pass-thru Phoenix-style signal connections simplify installation wiring. Tap selector with 8Ω / 70 V / 100 V operation.
  • Fully reinforced ABS UL-rated baffle ensures long life. Fully compliant with EN 54 (pending), UL 1480, and 2043 standards.

Enquiry Form

EVID ceiling mount speakers
EVID C8.2
  • 8" 2‑way coaxial ceiling loudspeaker
  • Ported enclosure for extended bass response
  • Waveguide-coupled 1-inch titanium-coated tweeter
  • Full-bandwidth overload protection
  • Integrated transformer for 70 V, 100 V, or 8 Ω use
  • Front-panel mode/wattage selector
  • Safe, easy installation with included tile bridge and mounting ring
  • White semi-gloss perforated grille
  • Complete package, requires no additional accessories

Enquiry Form

EVID-PC8.2
EVID-PC8.2
  • 8" 2-way ceiling speaker
  • High-performance EV-engineered compression driver. Ultra-wide HF dispersion provides extremely even coverage through room.
  • High-excursion woofer provides dramatic low-end frequency extension. Reinforced steel back can provides rigid enclosure to minimize acoustic loss.
  • Four-point clamp mechanism and integrated mounting legs enable quick ceiling installation.
  • Detachable pass-thru Phoenix-style signal connections simplify installation wiring. Tap selector with 8Ω / 70 V / 100 V operation.
  • Fully reinforced ABS UL-rated baffle ensures long life. Fully compliant with UL 1480, and 2043 standards.

Enquiry Form

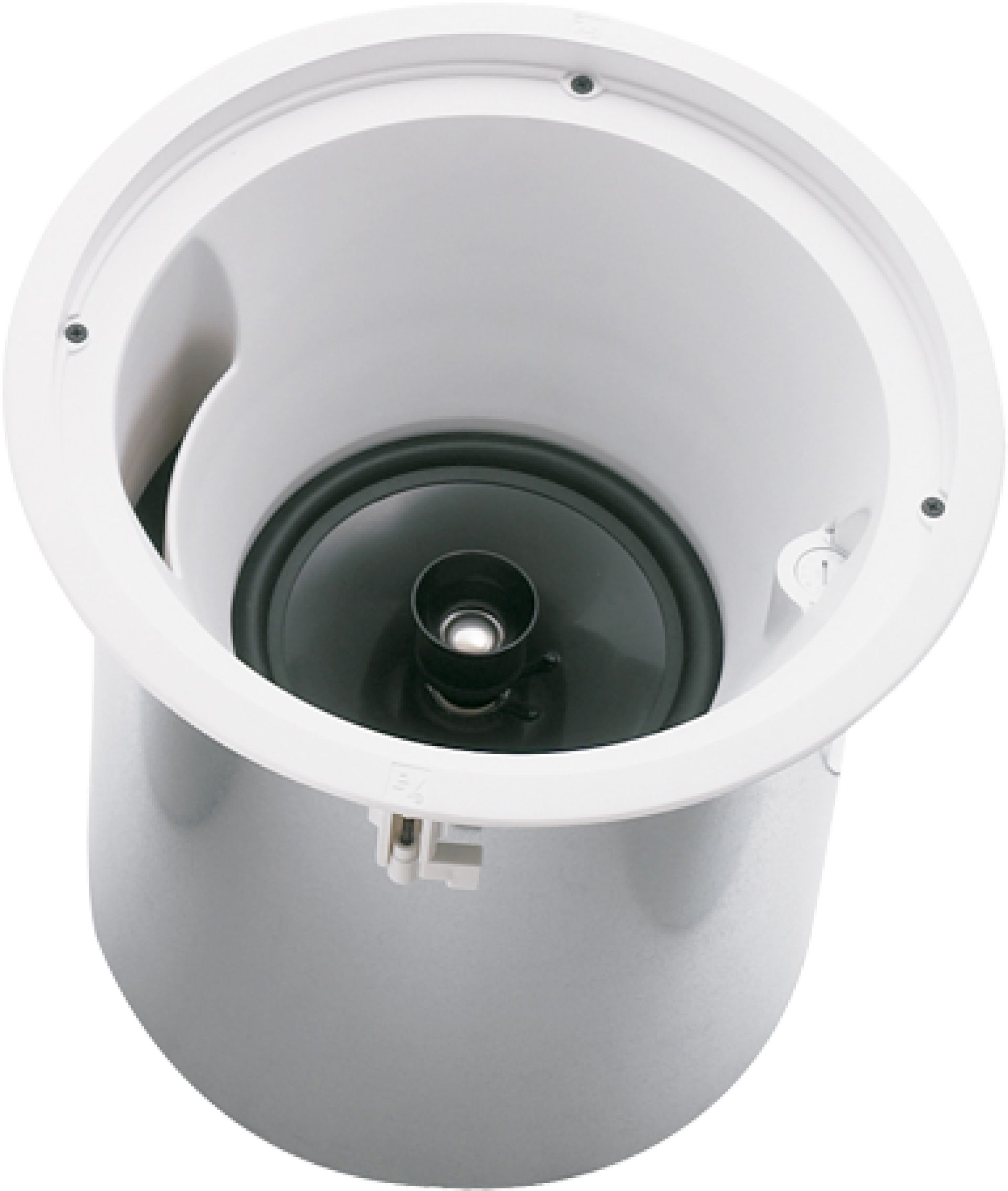

EVID C8.2HC
EVID C8.2HC
  • 8" enhanced pattern‑control 2‑way coaxial ceiling loudspeaker
  • Maximum fidelity and intelligibility for high ceilings
  • Ported enclosure for extended bass response
  • Waveguide-coupled 1-inch titanium-coated tweeter
  • Full-bandwidth overload protection
  • Integrated transformer for 70 V, 100 V, or 8 Ω use
  • Front-panel mode/wattage selector
  • Safe, easy installation with included tile bridge and mounting ring
  • White semi-gloss perforated grille
  • Complete package, requires no additional accessories

Enquiry Form

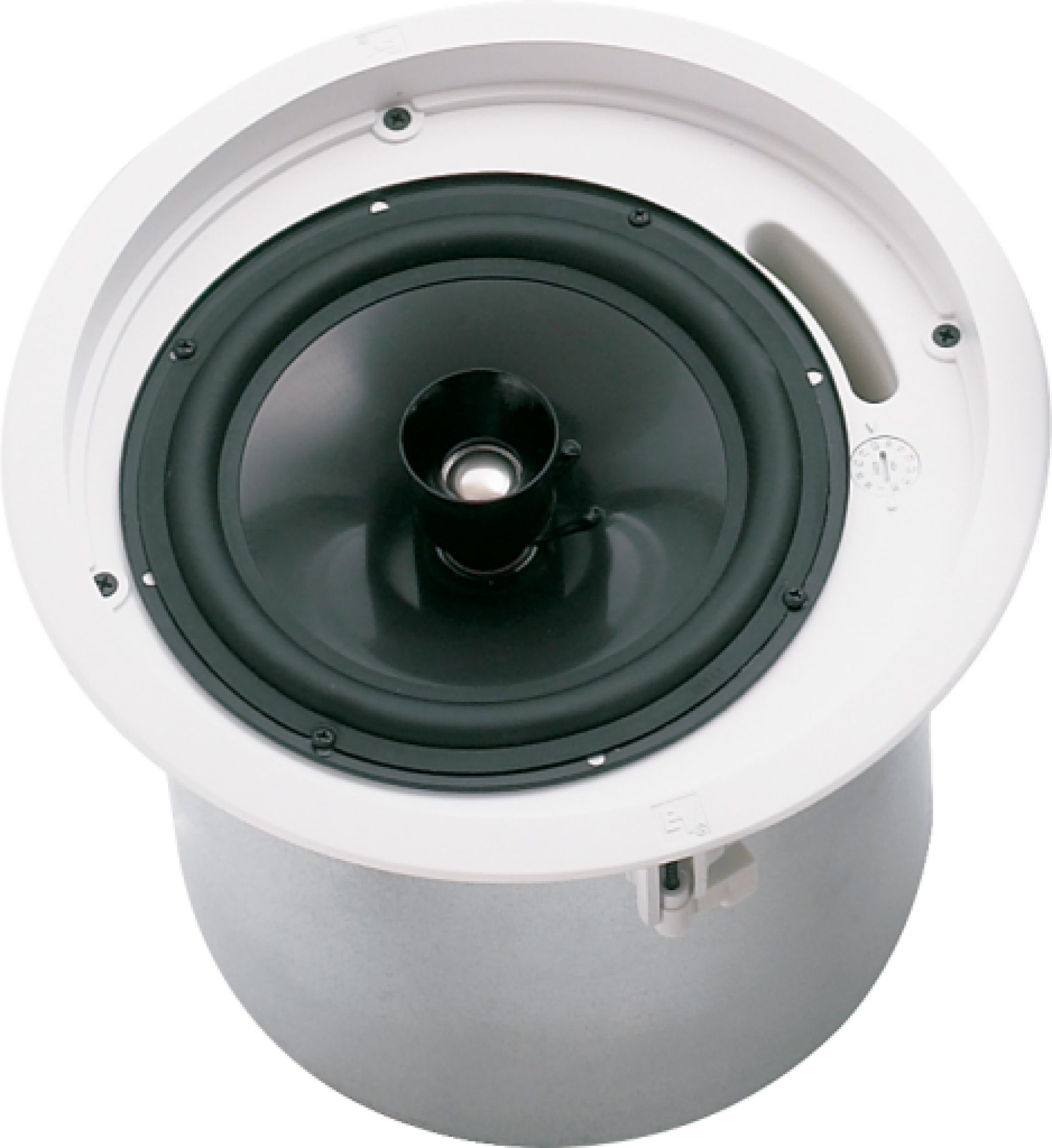

EVID Speakers
EVID C8.2LP
  • 8” two-way coaxial ceiling loudspeaker
  • Low Profile 8" coaxial two-way
  • Waveguide coupled Ti Tweeter
  • Full bandwidth overload protection
  • Front baffle wattage tap adjustment
  • Integrated low loss matching transformer allows for either 70v/100v or 8-ohm operation
  • Includes tile bridge and mounting ring for easy installation
  • Integrated ported enclosure for extended bass response
  • Ideal for ceiling spaces with tight clearance UL and CE listed

Enquiry Form

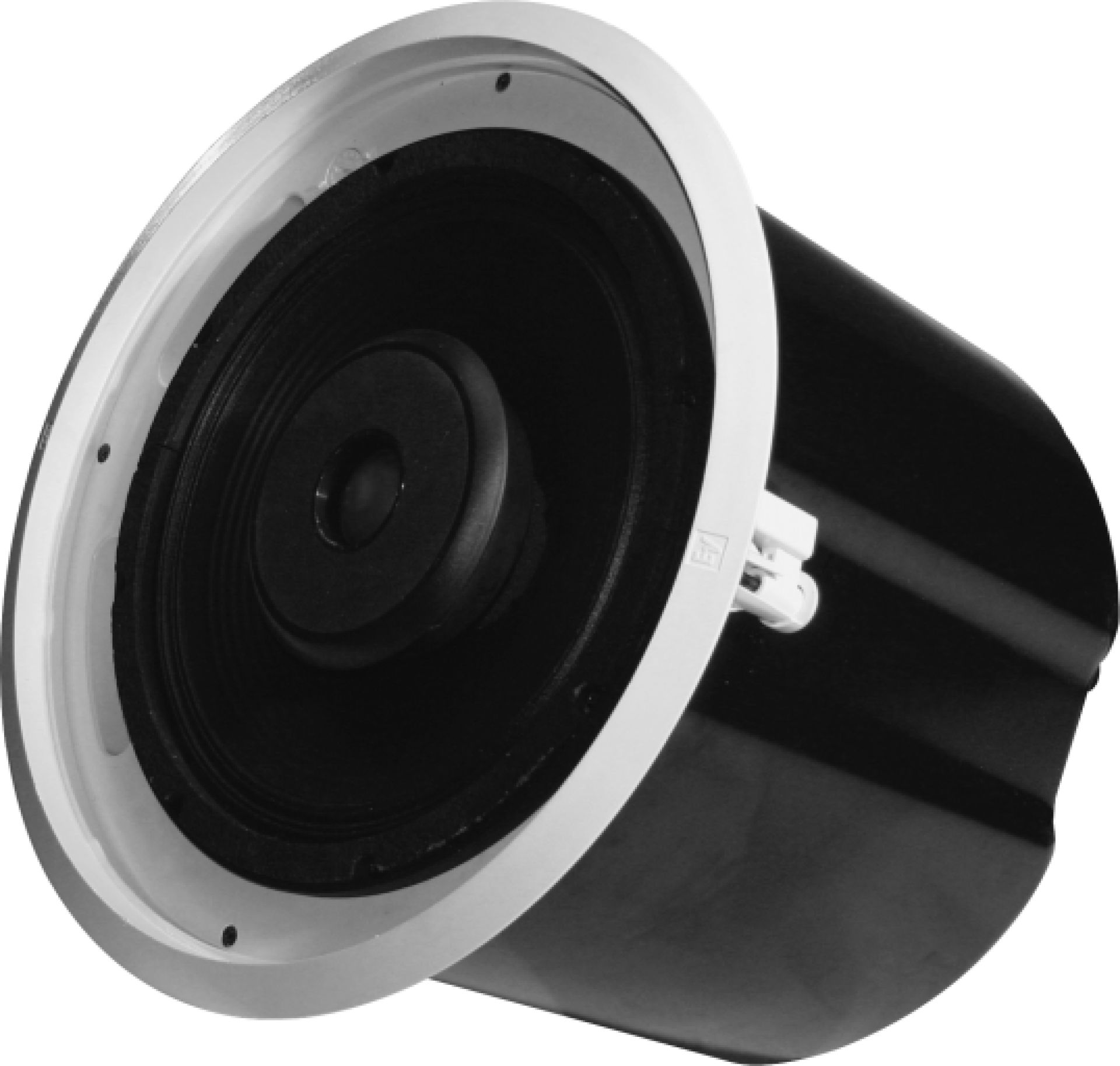

EVID C12.2
EVID C12.2
  • 12" 2‑way coaxial ceiling loudspeaker
  • Full-range power for high ceilings, large spaces
  • High sensitivity, high power-handling
  • Integrated transformer with automatic saturation compensation for distortion free 70 V, 100 V, or 8 Ω use
  • Front-panel mode/wattage selector
  • White semi-gloss perforated grille
  • Heavy-gauge steel enclosure in black
  • 3/8-inch threaded-rod mount points for open ceilings
  • Safe, easy installation with included tile bridge and mounting ring
  • Complete package, requires no additional accessories

Enquiry Form

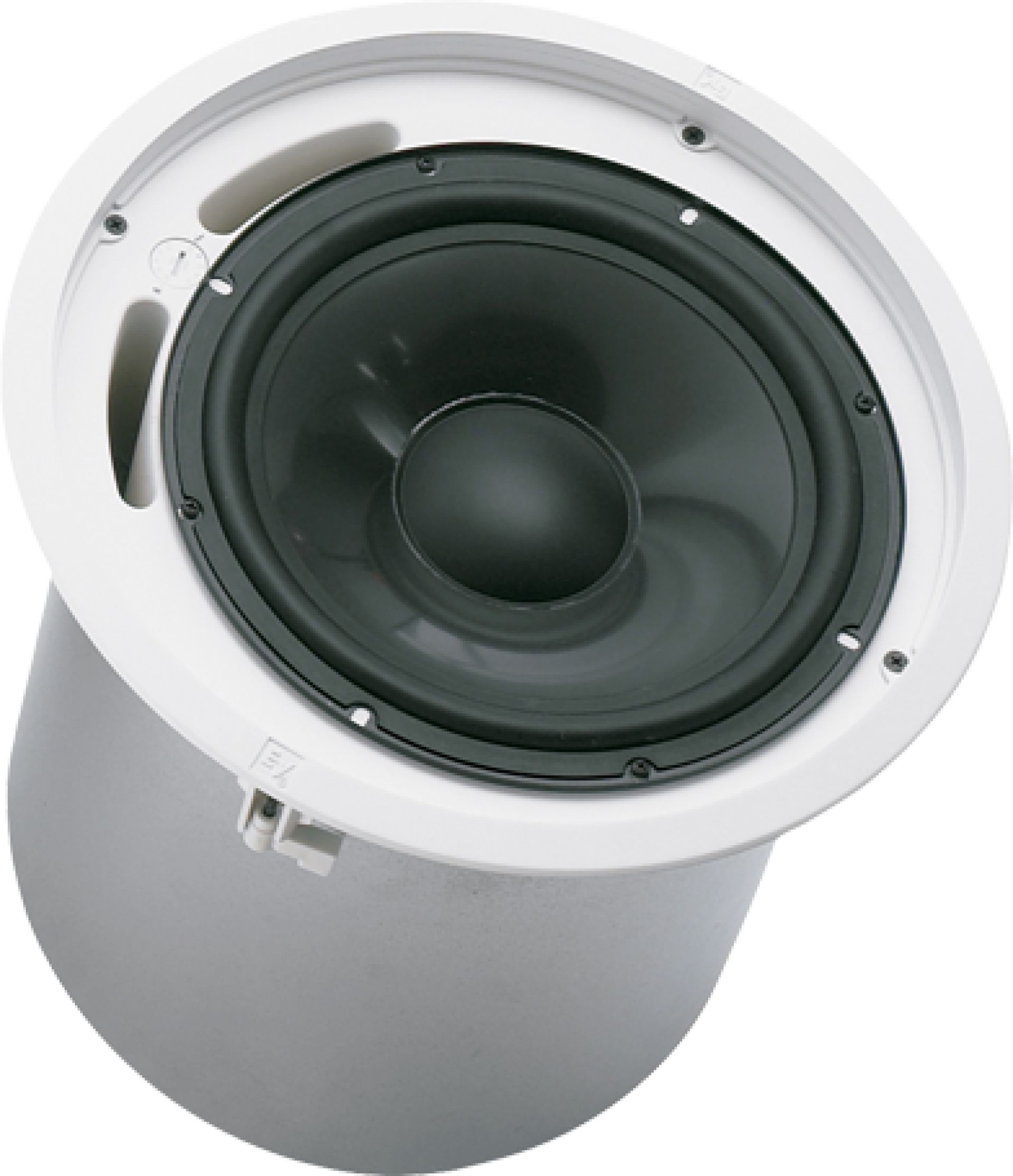

EVID C10.1
EVID C10.1
  • 10" high‑power ceiling subwoofer
  • Supplemental LF for ceiling systems
  • High-excursion woofer in ported enclosure for extended lows
  • Low pass network with overload protection
  • Integrated transformer for 70 V, 100 V, or 8 Ω use
  • Front-panel mode/wattage selector
  • Internally damped heavy-gauge steel enclosure
  • Safe, easy installation with included tile bridge and mounting ring
  • White semi-gloss perforated grille
  • Complete package, requires no additional accessories

Enquiry Form

From the compact power of the C4.2 to the exclusive waveguide‑coupled design of the C8.2HC, each great-sounding EVID solution is uniquely suited to handle installer needs across a specific range of intended applications. Sonically superior and aesthetically pleasing, every EVID ceiling model installs with ease and provides lasting value. For commercial sound across all venue types, EVID has the ceiling covered.

  • Dynacord C Series

    Dynacord V Series

    Electro-Voice CPS Series

    Electro-Voice PA Series

Electro-Voice EVID Ceiling Speakers - Downloads
Electro-Voice EVID Ceiling Speaker Application Guide
Download
