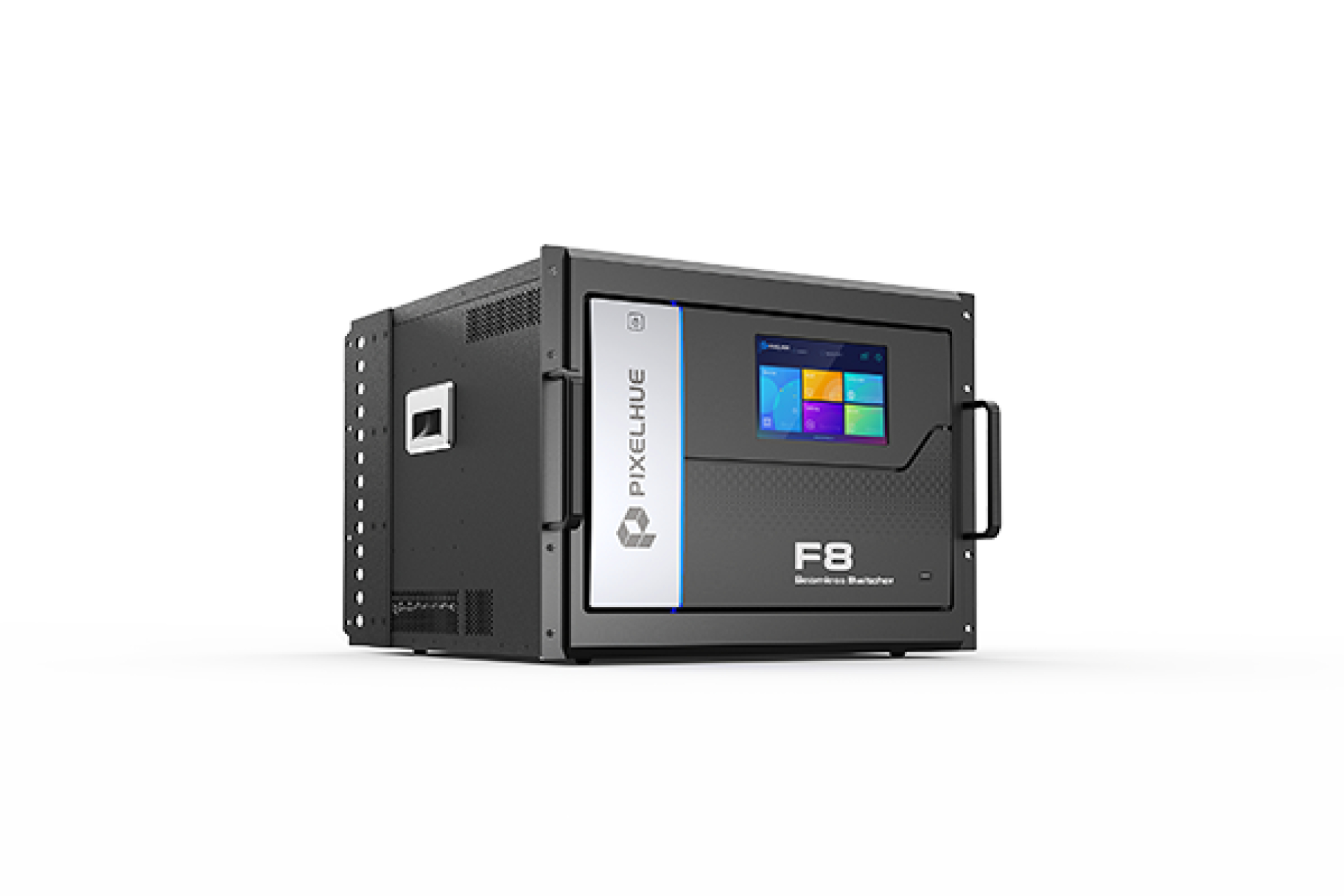

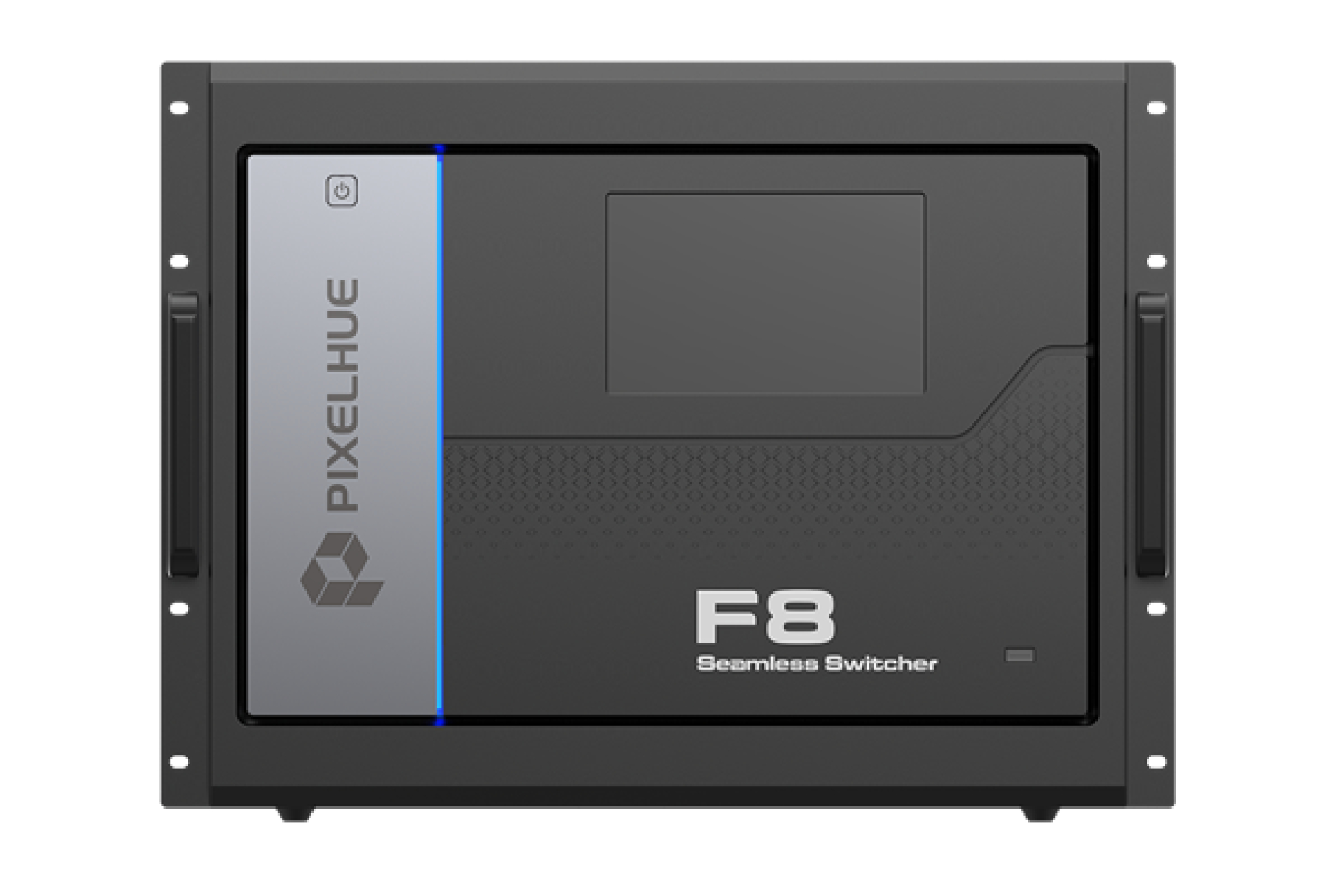

F8 Multi-screen Management System

Pixelhue F8 is a high-performance presentation switcher designed for easy management of multiple displays for shows or visual management systems.

Pixelhue F Series 2K/4K Multi-screen Management System

Pixelhue Flexi View series- F8, designed for easy management of multiple displays for shows or visual management systems. The F8 is designed with 8 input slots and 8 output slots, allowing you to easily select I/O modules with different input-output connectors to match the visual systems requirements.

Designed with the latest high-performance FPGA Chipset, the F8 delivers reliable, stable, faster, and better image performance, and outputs non-compressed 4k@60hz 4:4:4 10bits video. The F8 supports at most 64 SL mix layers, or 32 DL mix layers or 16 4K mix layers. It also supports a variety of input and output connectors, including DVI, DP, HDMI, and 3G SDI connectors, allowing easy customization for any project or show.

The F8 can be controlled via its dedicated video processing software TRITON or via a U3 Live Event Controller or via Stream Deck.

  • F Series chassis can be populated with I/O cards to help give rental partners/operators the greatest flexibility when configuring the system to meet their projects requirements. The I/O cards available are:

    Inputs:

    - Quad HDMI 1.4

    - Dual 4K HDMI 2.0/DisplayPort 1.2

    - Quad 12G-SDI

    - Quad Single-Link DVI

    - Quad 3G-SDI

    - Quad HDMI 1.3

    - Quad DisplayPort 1.1

    Outputs:

    - Quad 3G-SDI

    - Dual 4K HDMI 2.0/Quad 10G OPT

    - Quad Single-Link DVI

    - Quad HDMI 1.3

    - Quad Dual-Link DVI

    - Dual Dual-Link DVI/Quad 10G OPT

    - Quad HDMI 1.4
