MX2 Matrix Range

Key Features:

  • 4K60 Video signals over HDMI 2.0 & DisplayPort
  • Zero Latency For Critical Operations
  • Wide Selection of Crosspoint Sizes & Variants
Enquire

Enquiry Form

Call us today on

+44 (0)113 255 7666

MX2 Matrix Range

The MX2 standalone matrix switcher family is Lightware’s widely acclaimed, most versatile product line offering uncompromising 4K60 signal management through HDMI 2.0 and DisplayPort 1.2 connectivity.

These feature-rich devices can be deployed for a wide range of applications and operation environments, making them a favourite choice for AV industry professionals around the world. The MX2 matrix switchers come in all shapes and sizes, ranging from 4×4 to a whopping 48×48 crosspoint size and also in dedicated variants to ensure they can fit any specific AV system requirement and budget. The extensive selection of available variants, compatibility and connectivity features make the MX2 matrix switchers a perfect fit for any AV operation, whether it is a corporate meeting room, auditorium, live event or even a state-of-the-art XR video screen application in a high-end production.

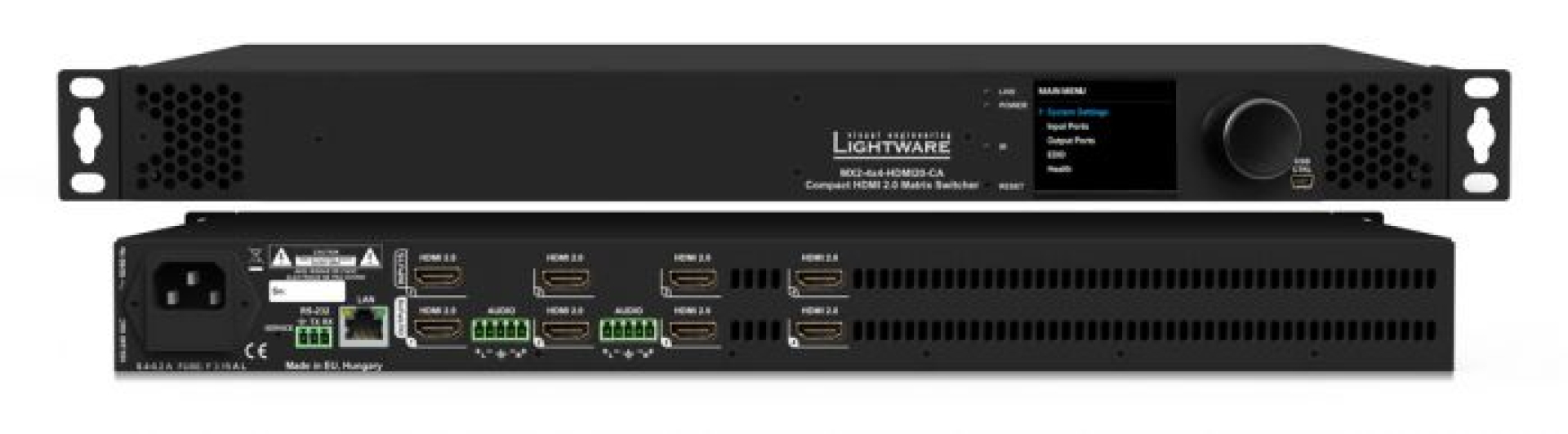

  • The MX2-4×4-HDMI20-CA is a HDMI 2.0 compatible, standalone matrix switcher that supports uncompromised 4K UHD resolution at 60Hz 4:4:4.

    - HDCP 2.2 and HDCP 1.4 compliant with cross conversion capabilities

    - Supports HDMI 4K signal formats (4K UHD @60Hz RGB 4:4:4, up to 18 Gbps)

    - HDMI 2.0, HDMI 1.4 and DVI 1.0 compliant

    - HDR and Low Latency Dolby Vision support

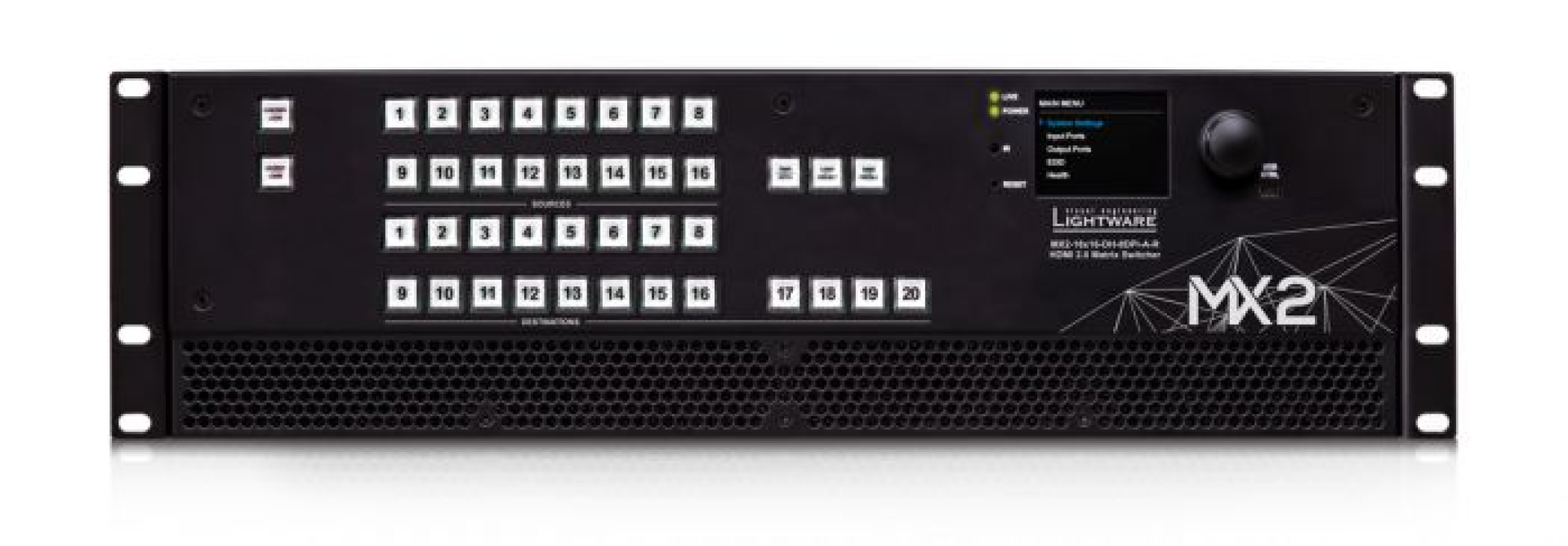

  • MX2-16×16-DH-8DPi-A-R is a member of the MX2 DH standalone matrix switcher series, supporting uncompromised 4K UHD resolution at 60Hz with RGB 4:4:4 colorspace and with down-conversion capabilities to 4:2:2. The DisplayPort inputs on the MX2 DH series routers allow connecting DisplayPort 1.2 video sources directly, without the need of adapters or dongles.

    - Audio embedding and de-embedding

    - HDCP 2.2 and HDCP 1.4 compliant with cross conversion capabilities

    - Device control via Ethernet (TCP/IP), RS-232 and USB

    - Supports HDMI 4K signal formats (4K UHD @60Hz RGB 4:4:4, up to 18 Gbps)

    - HDR and Low Latency Dolby Vision support

    - Uncompressed video up to 18 Gbps datarate (600 MHz pixel clock)

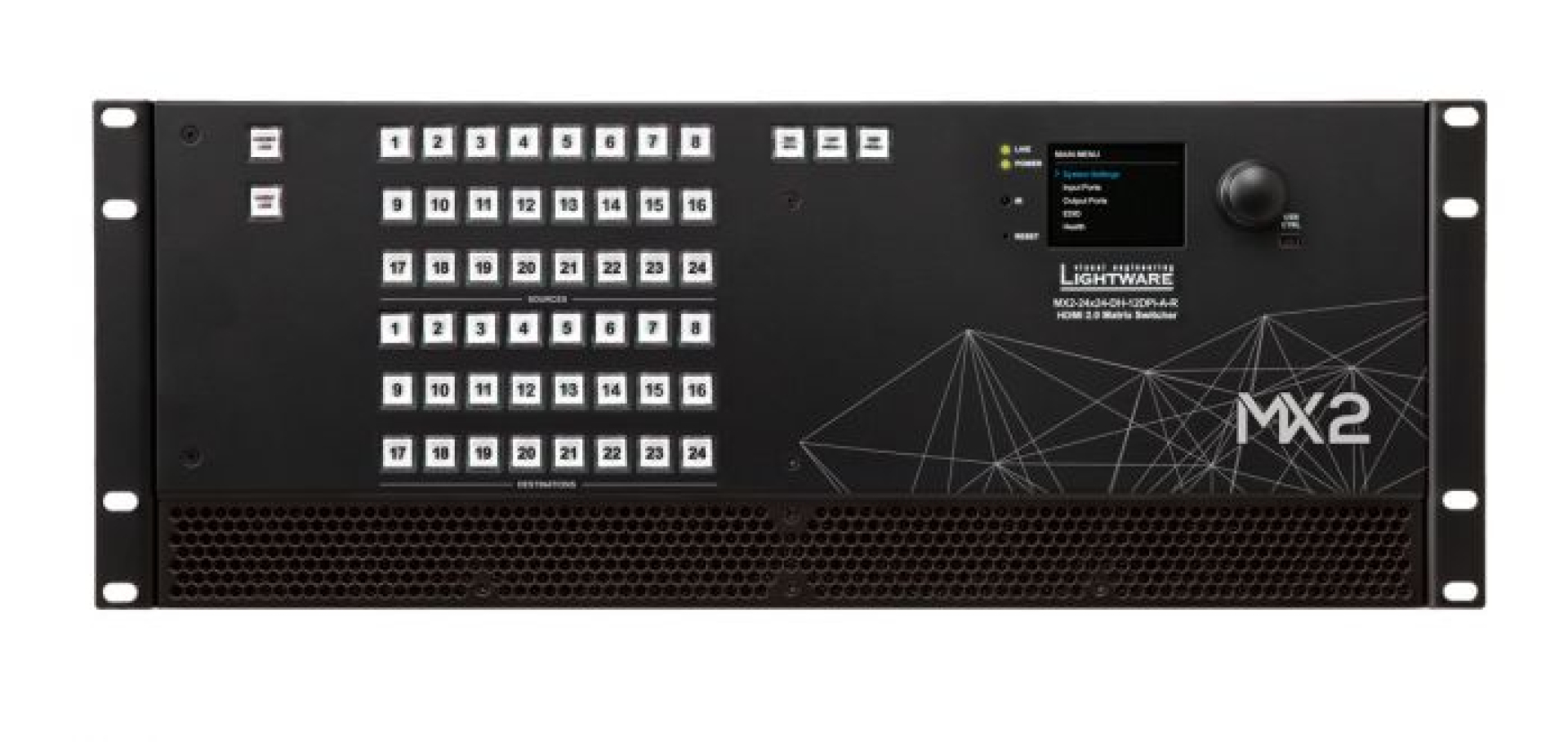

  • MX2-24×24-DH-12DPi-A-R is a member of the MX2 DH standalone matrix switcher series, supporting uncompromised 4K UHD resolution at 60Hz with RGB 4:4:4 colorspace and with down-conversion capabilities to 4:2:2. The DisplayPort inputs on the MX2 DH series routers allow connecting DisplayPort 1.2 video sources directly, without the need of adapters or dongles.

    - Audio embedding and de-embedding

    - HDCP 2.2 and HDCP 1.4 compliant with cross conversion capabilities

    - Supports HDMI 4K signal formats (4K UHD @60Hz RGB 4:4:4, up to 18 Gbps)

    - HDR and Low Latency Dolby Vision support

    - Redundant power supplies available

    - Uncompressed video up to 18 Gbps datarate (600 MHz pixel clock)

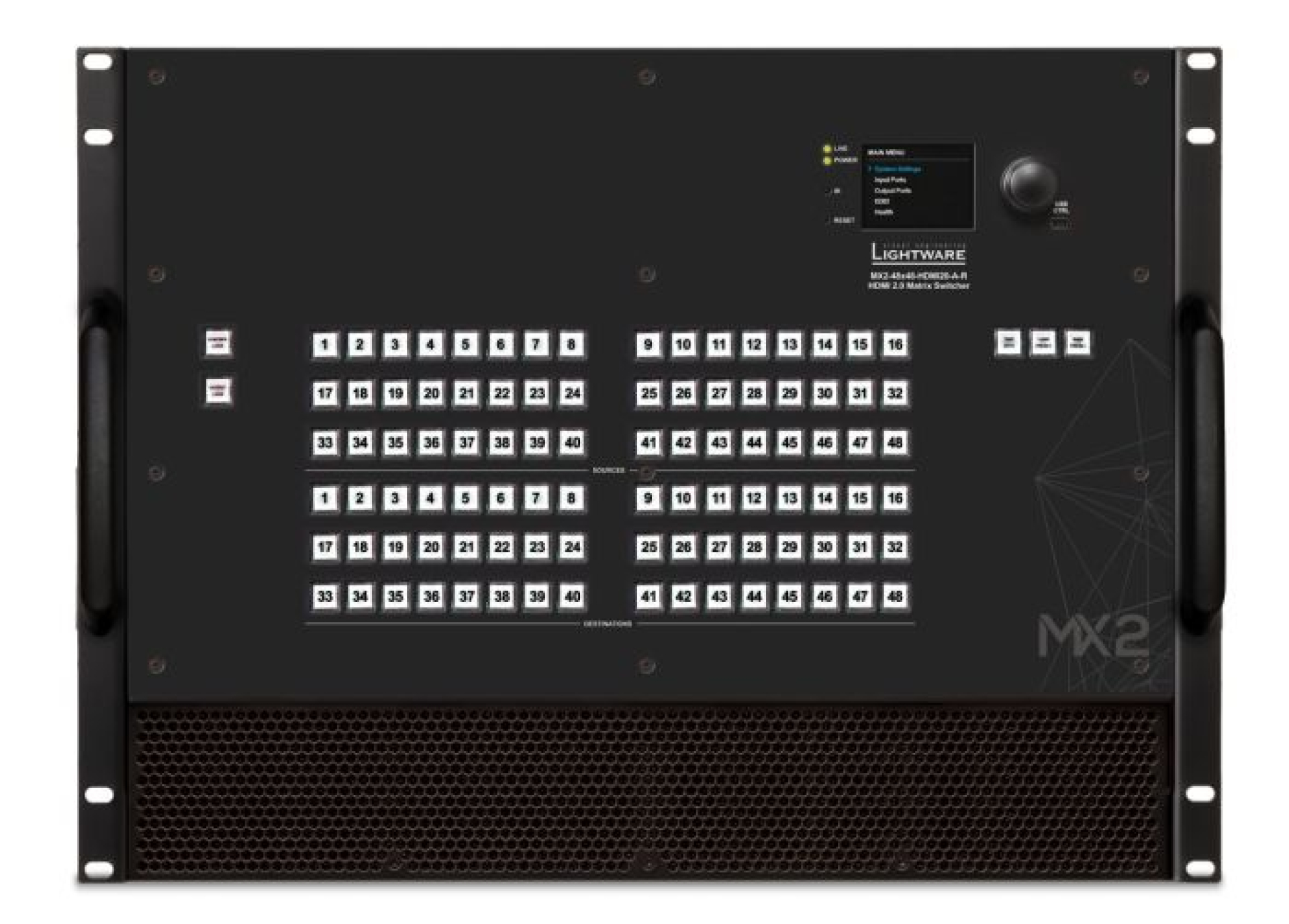

  • MX2-48×48-HDMI20-A-R is a member of the Lightware MX2 standalone matrix switcher series supporting uncompromised 4K UHD resolution at 60Hz with RGB 4:4:4 colorspace and with down-conversion capabilities to 4:2:0.

    - HDCP 2.2 and HDCP 1.4 compliant with cross conversion capabilities

    - Supports HDMI 4K signal formats (4K UHD @60Hz RGB 4:4:4, up to 18 Gbps)

    - HDMI 2.0, HDMI 1.4 and DVI 1.0 compliant

    - HDR and Low Latency Dolby Vision support

    - Uncompressed video up to 18 Gbps datarate (600 MHz pixel clock)

    - No signal latency, zero frame delay

You might like...

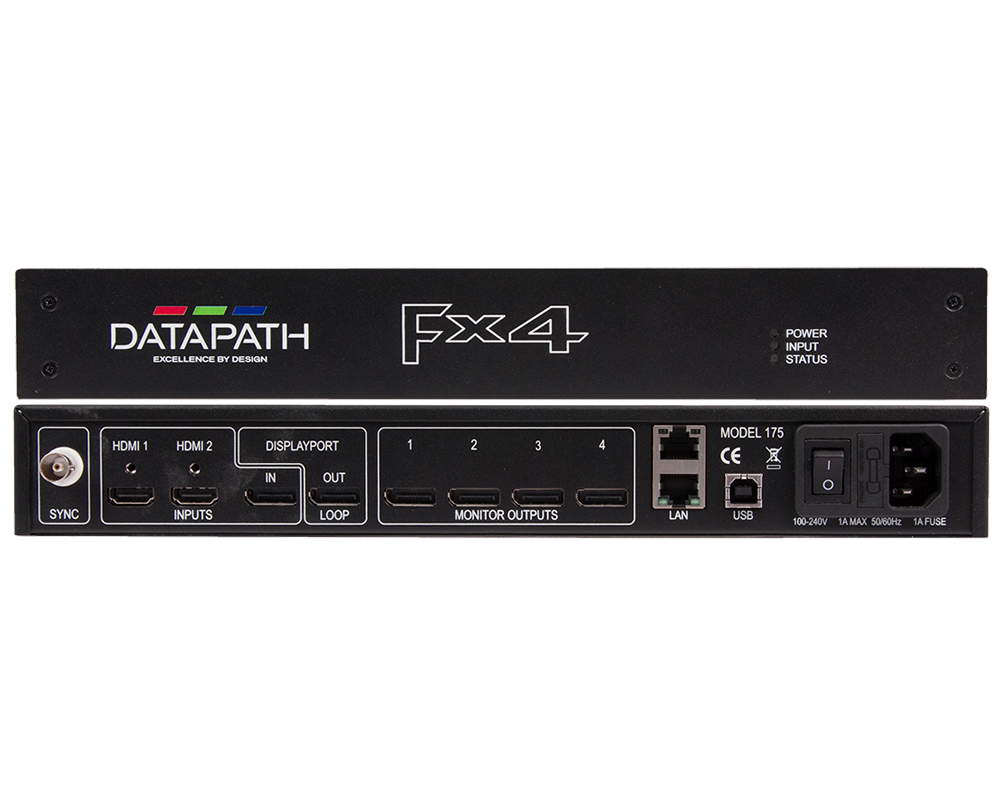

Datapath Fx4 front and back view
