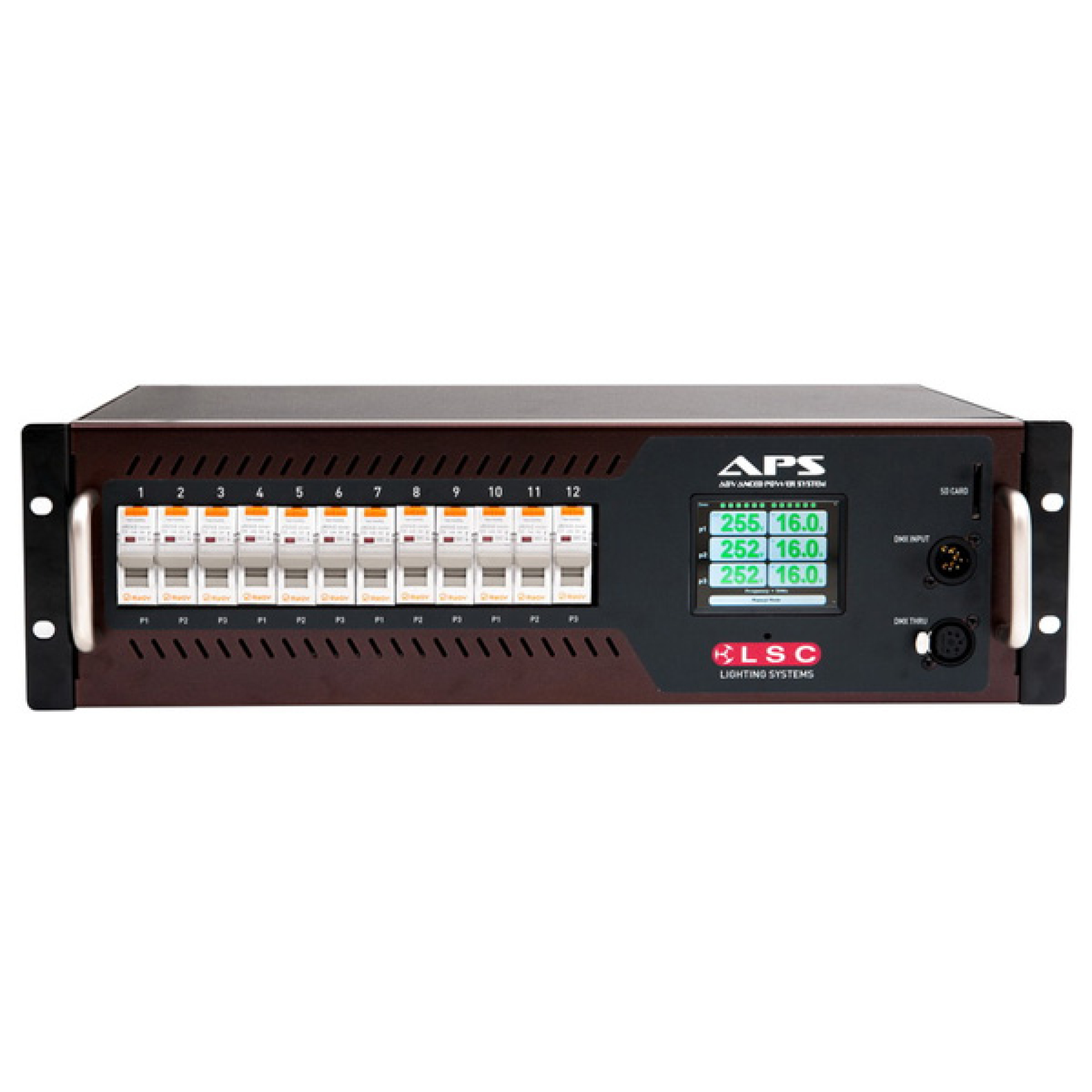

LSC Control Systems APS front-view

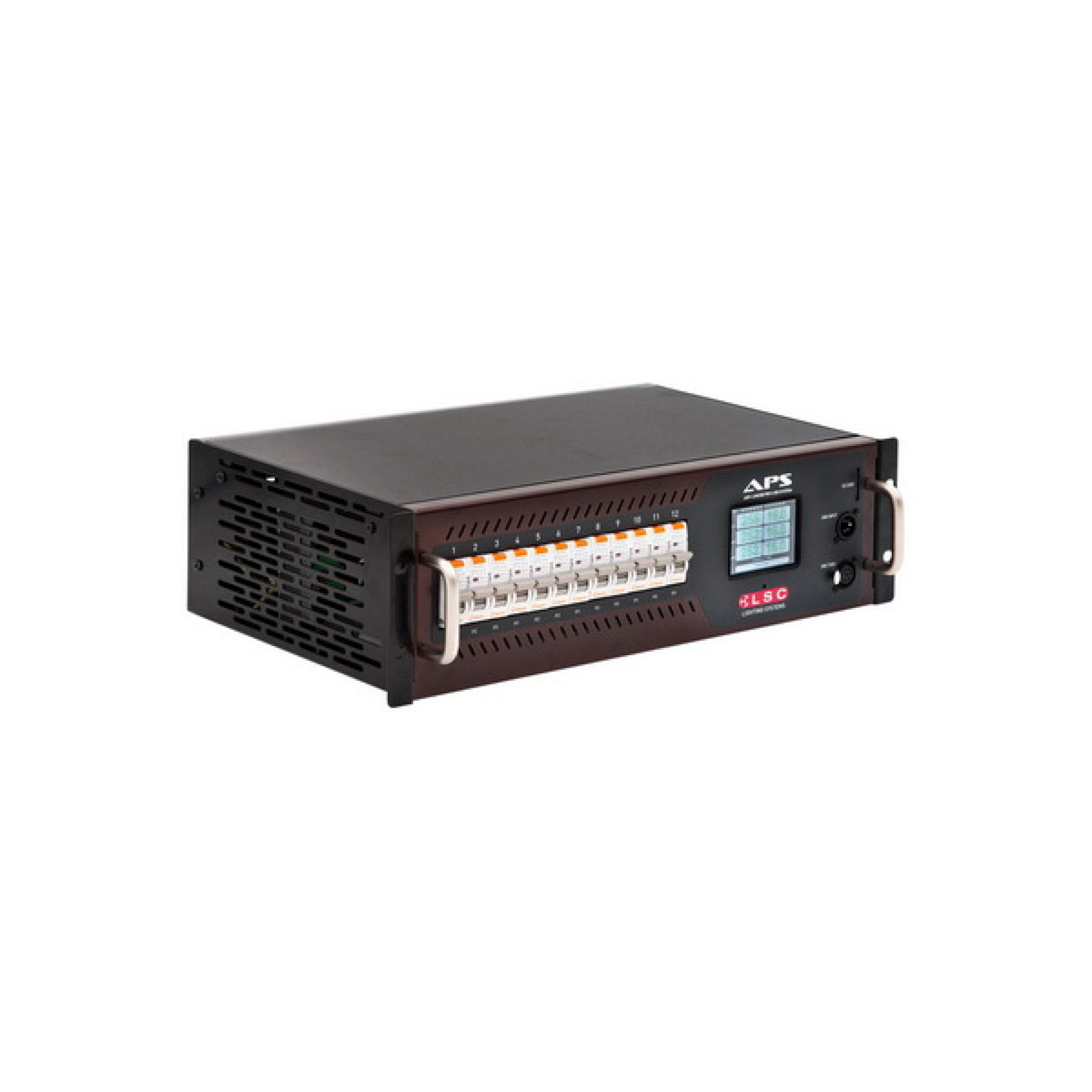

LSC Control Systems APS angled front view

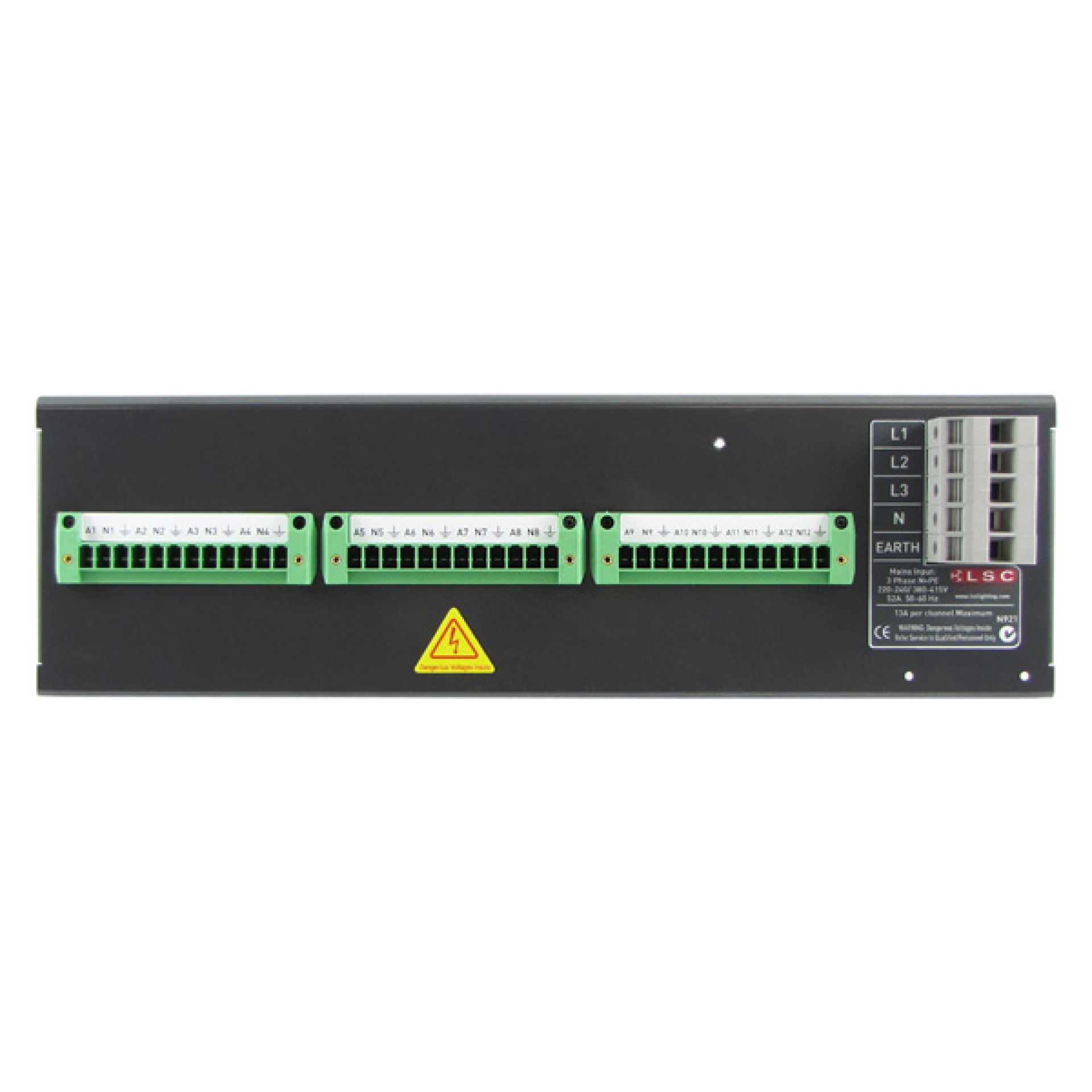

LSC Control Systems APS rear view terminal-strip

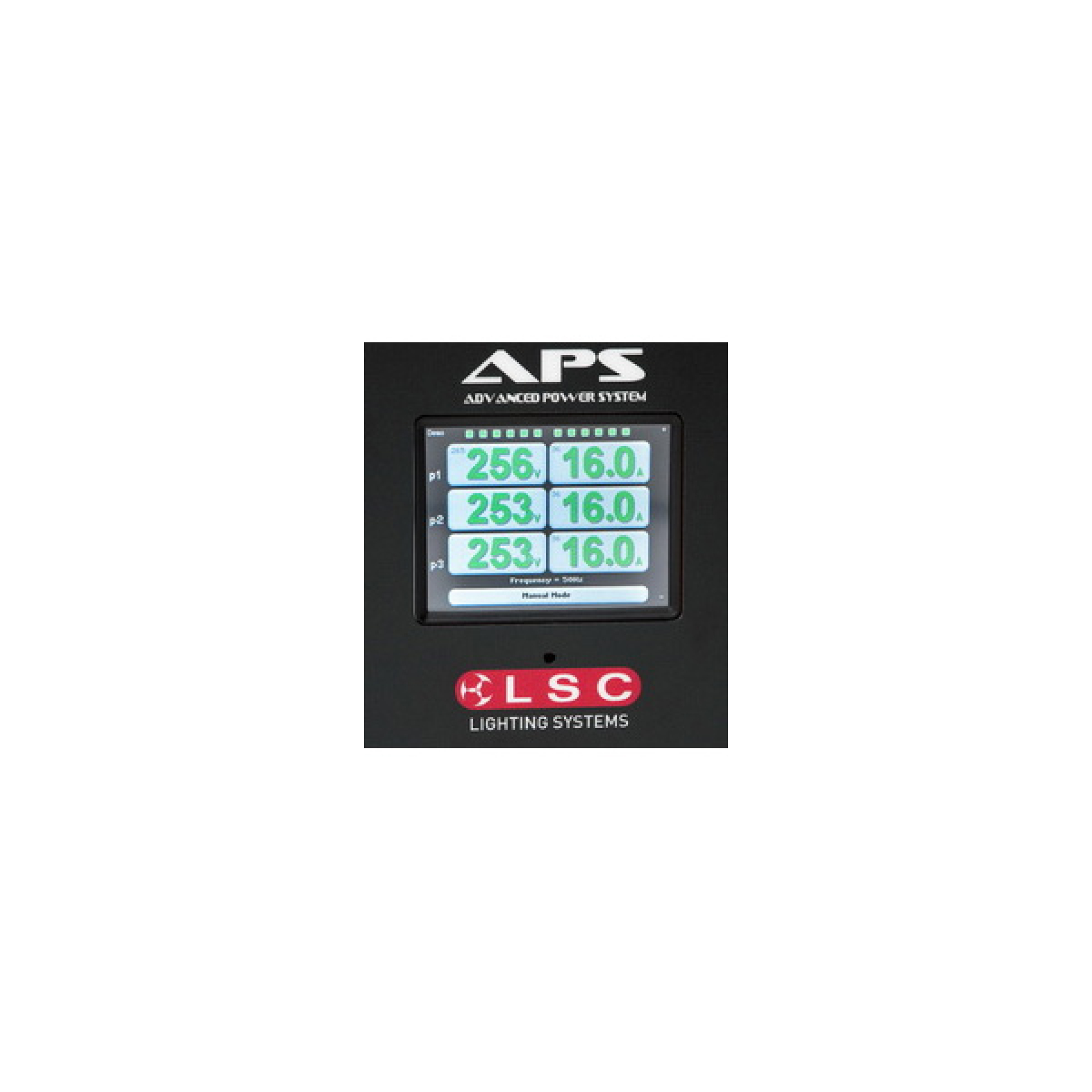

LSC Control Systems APS display close-up
LSC Control Systems APS angled front view
LSC Control Systems APS rear view terminal-strip
LSC Control Systems APS display close-up

Advanced Power System

Key Features:

  • RCBO per channel with true relay switching – not solid state
  • Staggered start of outputs to reduce main circuit breaker nuisance tripping
  • Cascading start-up for individual units via link cabling and/or based on unit number
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

Advanced Power System

The LSC Control Systems Advanced Power System (APS) delivers a versatile and energy-efficient solution to some of the industry’s unique power distribution problems.

Product Variants

Advanced Power System
LSAPS12/10P
  • 12 x 10A
  • Mounting: Rack
  • Load Connectors: PowerCON
  • Power Connector: 12 x PowerCON

Enquiry Form

Advanced Power System
LSAPS12/10PT1
  • 12 x 10A
  • Mounting: Rack
  • Load Connectors: PowerCON TRUE 1
  • Power Connector: 12 x PowerCON TRUE 1

Enquiry Form

Advanced Power System
LSAPS12/10S
  • 12 x 10A
  • Mounting: Rack
  • Load Connectors: Shucko
  • Power Connector: 10 x Shucko

Enquiry Form

Advanced Power System
LSAPS12/10T
  • 12 x 10A
  • Mounting: Rack
  • Load Connectors: Terminal
  • Power Connector: Screw Terminals

Enquiry Form

Advanced Power System
LSAPS12/10W
  • 12 x 10A
  • Mounting: Rack
  • Load Connectors: 2 x 16 Pin Wieland
  • Power Connector: 2 x Wieland

Enquiry Form

Advanced Power System
LSAPS12/10X
  • 12 x 10A
  • Mounting: Rack
  • Load Connectors: Socapex
  • Power Connector: 2 x Socapex

Enquiry Form

Advanced Power System
LSAPS12/16P
  • 12 x 16A
  • Mounting: Rack
  • Load Connectors: PowerCON
  • Power Connector: 2 x PowerCON

Enquiry Form

Advanced Power System
LSAPS12/16PT1
  • 12 x 16A
  • Mounting: Rack
  • Load Connectors: PowerCON TRUE 1
  • Power Connector: 2 x PowerCON TRUE 1

Enquiry Form

Advanced Power System
LSAPS12/16S
  • 12 x 16A
  • Mounting: Rack
  • Load Connectors: Shucko
  • Power Connector: 10 x Shucko

Enquiry Form

Advanced Power System
LSAPS12/16T
  • 12 x 16A
  • Mounting: Rack
  • Load Connectors: Terminal
  • Power Connector: Screw Terminals

Enquiry Form

Advanced Power System
LSAPS12/16W
  • 12 x 16A
  • Mounting: Rack
  • Load Connectors: 2 x 16 Pin Wieland
  • Power Connector: 2 x Wieland

Enquiry Form

Advanced Power System
LSAPS12/16X
  • 12 x 16A
  • Mounting: Rack
  • Load Connectors: Socapex
  • Power Connector: 2 x Socapex

Enquiry Form

Advanced Power System
LSAPS6/25T
  • 6 x 25A
  • Mounting: Rack
  • Load Connectors: Terminal
  • Power Connector: Screw Terminals

Enquiry Form

Advanced Power System
LSAPW12/10T
  • 12 x 16A
  • Mounting: Wallmount
  • Load Connectors: Terminal
  • Power Connector: Screw Terminals

Enquiry Form

Advanced Power System
LSAPW6/25T
  • 6 x 25A
  • Mounting: Wallmount
  • Load Connectors: Terminal
  • Power Connector: Screw Terminals

Enquiry Form

Each individual circuit of the Advanced Power System can be sequentially soft-started by a user-programmed delay, eliminating the large inrush and earth leakage currents associated with the sudden start-up of a large array of equipment.

Likewise, multiple APS units can be cascaded so that the next sequenced unit will not start its automatic start-up sequence until the previous unit has finished. As added insurance, the APS can detect “dropped” Neutrals and immediately shutdown all outputs, preventing possible large-scale damage to connected equipment.

Available in 12-channel or 6-channel variants with various output capacities and connector types, the APS is equally at home in a portable 19” rackmount configuration or a handy wall mount chassis for permanent installations.

The APS is ideal for powering moving lights, video screens or audio power amplifiers – in fact any situation where controlled power distribution is needed.

  • 3.2” colour graphical LCD touchscreen with intuitive menu control

    Control and remote monitoring via RDM or Houston-X

    Control via input and output contact closure (GPI) or DMX512

    Manual override via front-panel controls

    Four configurable channel modes – Always On, Always Off, DMX Relay and Standard APS Mode (sequential start-up)
