CRMX Outdoor Flex

LumenRadio CRMX Outdoor Flex

CRMX Outdoor Flex

LUMON-RFX1

Key Features:

Single universe

RDM transmissions

Ethernet protocols

IP67 & vandal proof

Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

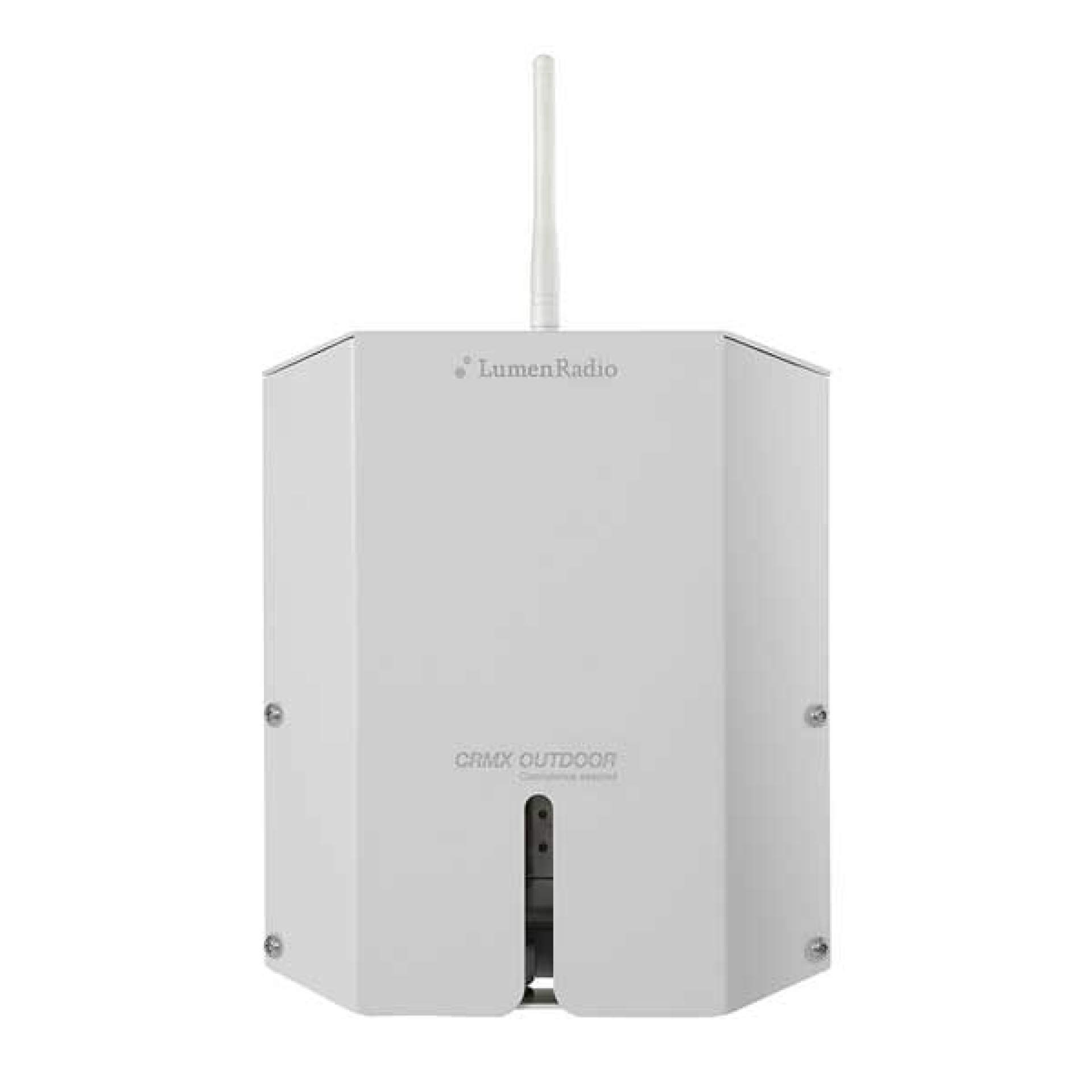

CRMX Outdoor Flex

The LumenRadio CRMX Outdoor™ Flex is a truly flexible, ultra-reliable, Wireless DMX/RDM product able to be used as a either a transmitter, repeater or receiver.

Featuring LumenRadio’s patented Cognitive Coexistence technology, its IP67 rating makes it suitable for even the most demanding environments.

LumenRadio’s CRMX Outdoor is an adaptation of the CRMX Nova™ product line for outdoor use and is compatible with other CRMX DMX/RDM products. CRMX Outdoor is the first RDM enabled wireless light control product both waterproof and vandal proof making it suitable for any outdoor installation.

LumenRadio’s CRMX Outdoor Flex is the world’s first wireless DMX and RDM receiver for outdoor use that is designed to withstand many years of weather forces thanks to its unique combination of an IP67 rated housing and the vandal proof mounting cover.
To fit in to old wireless systems with legacy equipment CRMX Outdoor Flex is compatible with W-DMX™ transmitters when configured in receiver mode. However when using it in this way you won’t get the benefits of the advanced CRMX technology.

DMX512-A and RDM support

Power over Ethernet support

Ethernet or wired DMX input/output

Up to 1000m link range

5m latency

Automated Cognitive Coexistence

Forward Error Correction

Transmitter mode: Ethernet enabled DMX/RDM transmitter with support for Streaming ACN, ArtNet, ETCNet 2 & 3, Pathport, etc.

Repeater mode: The CRMX Outdoor Flex will repeat the wireless DMX and RDM signal making it possible to extend the link range, and enabling more complex network structures.

Receiver mode: Use the CRMX Outdoor Flex together with any other CRMX wireless RDM and wireless DMX products.

CRMX Outdoor utilized the international license free ISM band (2.4GHz).

USITT DMX512, DMX512(1990) & DMX512-A

RDM ANSI E1.20

Streaming ACN (Draft and Final)

ArtNet I, II & 3

Pathport

Strand ShowNet

ETCNet 2 & 3

Operational frequency range: 2402-2480 MHz

Output power levels: 300mW (25dBm) (only allowed in North America), 100mW (20dBm), 50mW (17dBm), 10mW (10dBm)

Tested link range: 500m in urban area using 100mW output power mode

DMX: Pluggable terminal strip, Phoenix® MSTB 2,5

Antenna: N female

AC: 13AWG Pluggable terminal strip

Ethernet: standard RJ45

High voltage input: 85-264VAC / 47-70Hz / 3W

Overvoltage and ESD protected power input

PoE. Power over Ethernet

Enclosure: IP67 vandal proof housing

Dimensions (W x H x D): 201 x 244 x 78 mm (7.9″ x 9.6″ x 3.1″)

Weight: 1.6kg, 3.5lbs
