CRMX Outdoor RX

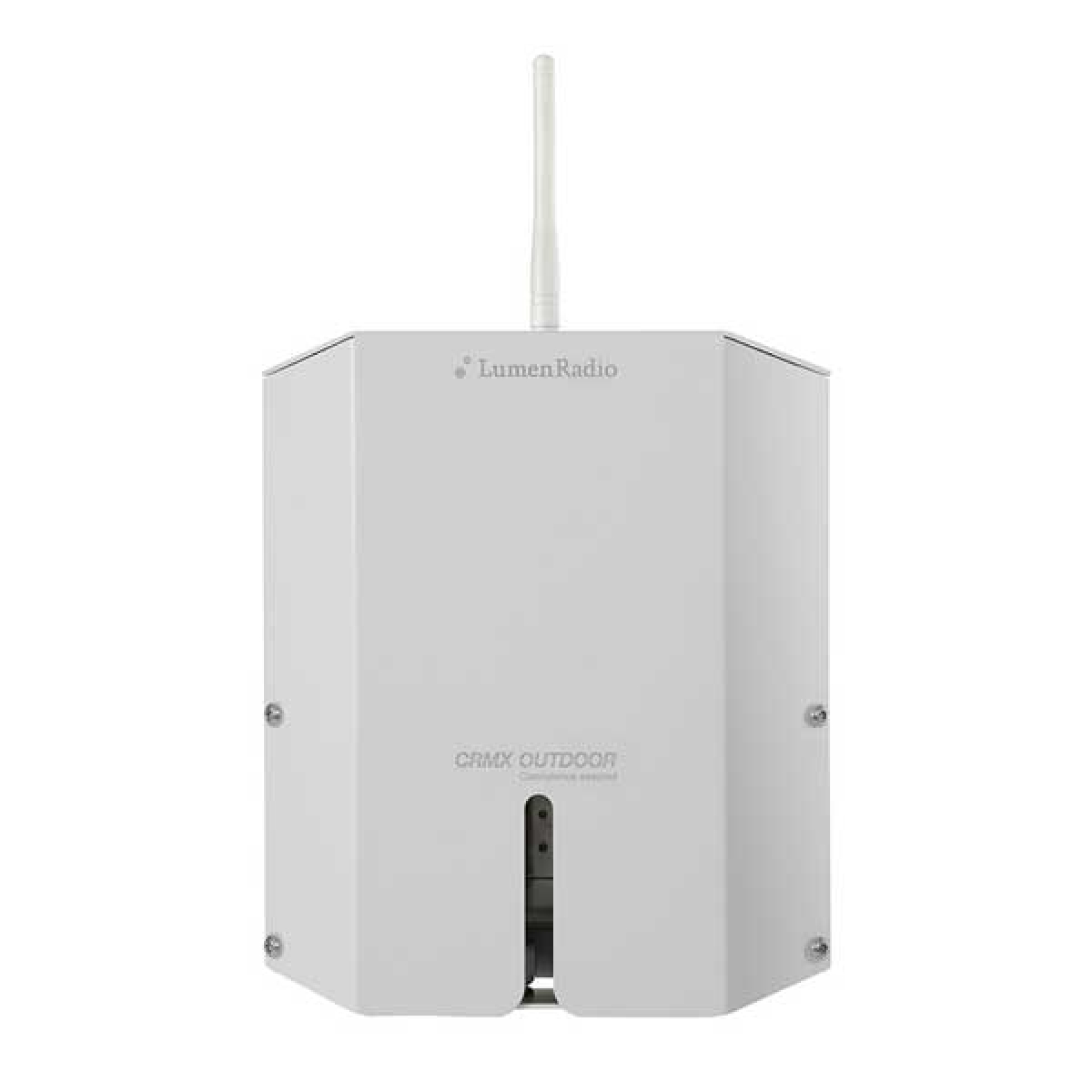

LumenRadio CRMX Outdoor RX

CRMX Outdoor RX

LUMON-RRX1

Key Features:

  • Single universe
  • RDM receiver
  • Permanent installation
  • IP67 and vandal proof
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

CRMX Outdoor RX

The LumenRadio CRMX Outdoor™ RX is an IP67 rated, ultra-reliable, wireless DMX/RDM receiver.

Featuring LumenRadio’s patented Cognitive Coexistence technology, its IP rating makes it suitable for even the most demanding environments.

LumenRadio’s CRMX Outdoor RX is an adaptation of the CRMX Nova™ product line for outdoor use and is compatible with other CRMX DMX/RDM products. CRMX Outdoor is the first RDM enabled wireless light control product both waterproof and vandal proof making it suitable for any outdoor installation.

  • LumenRadio’s CRMX Outdoor RX is the worlds first wireless DMX and RDM receiver for outdoor use that is designed to withstand many years of weather forces thanks to its unique combination of an IP67 rated housing and the vandal proof mounting cover.

    To fit in to old wireless systems with legacy equipment CRMX Outdoor Receiver is compatible with W-DMX™ transmitters. However when using it in this way you won’t get the benefits of the advanced CRMX technology.

    CRMX Outdoor RX Receiver supports DALI and DSI. The built-in DMX to DALI/DSI converter is easily configured over RDM.

    Use the CRMX Outdoor RX Receiver together with a CRMX Outdoor Flex, CRMX Nova TX, CRMX Nova TX2, CRMX Nova TX2 RDM or any other CRMX transmitter.

    CRMX Outdoor RX utilized the international license free ISM band (2.4GHz).

  • USITT DMX512, DMX512(1990) & DMX512-A

    RDM ANSI E1.20

    DALI (64 short addresses, 16 groups or broadcast)

    DSI

    Operational frequency range: 2402-2480 MHz

    Output power levels: 300mW (25dBm) (only allowed in North America), 100mW (20dBm), 50mW (17dBm), 10mW (10dBm)

    Tested link range: 500m in urban area using 100mW output power mode

  • DMX: Pluggable terminal strip, Phoenix® MSTB 2,5

    Antenna: N female

    AC: 13AWG Pluggable terminal block

    High voltage input: 85-264VAC / 47-70Hz / 3W

    Overvoltage and ESD protected power input

    Enclosure: IP67 vandal proof housing

    Dimensions (W x H x D): 201 x 244 x 78 mm (7.9″ x 9.6″ x 3″)

    Weight: 1.6kg, 3.5lbs
