MoonLite

LUM800-2201

Key Features:

  • Compact wireless DMX transceiver featuring CRMX technology
  • Built-in battery or mains powered
  • Bluetooth connectivity to LumenRadio app
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

MoonLite

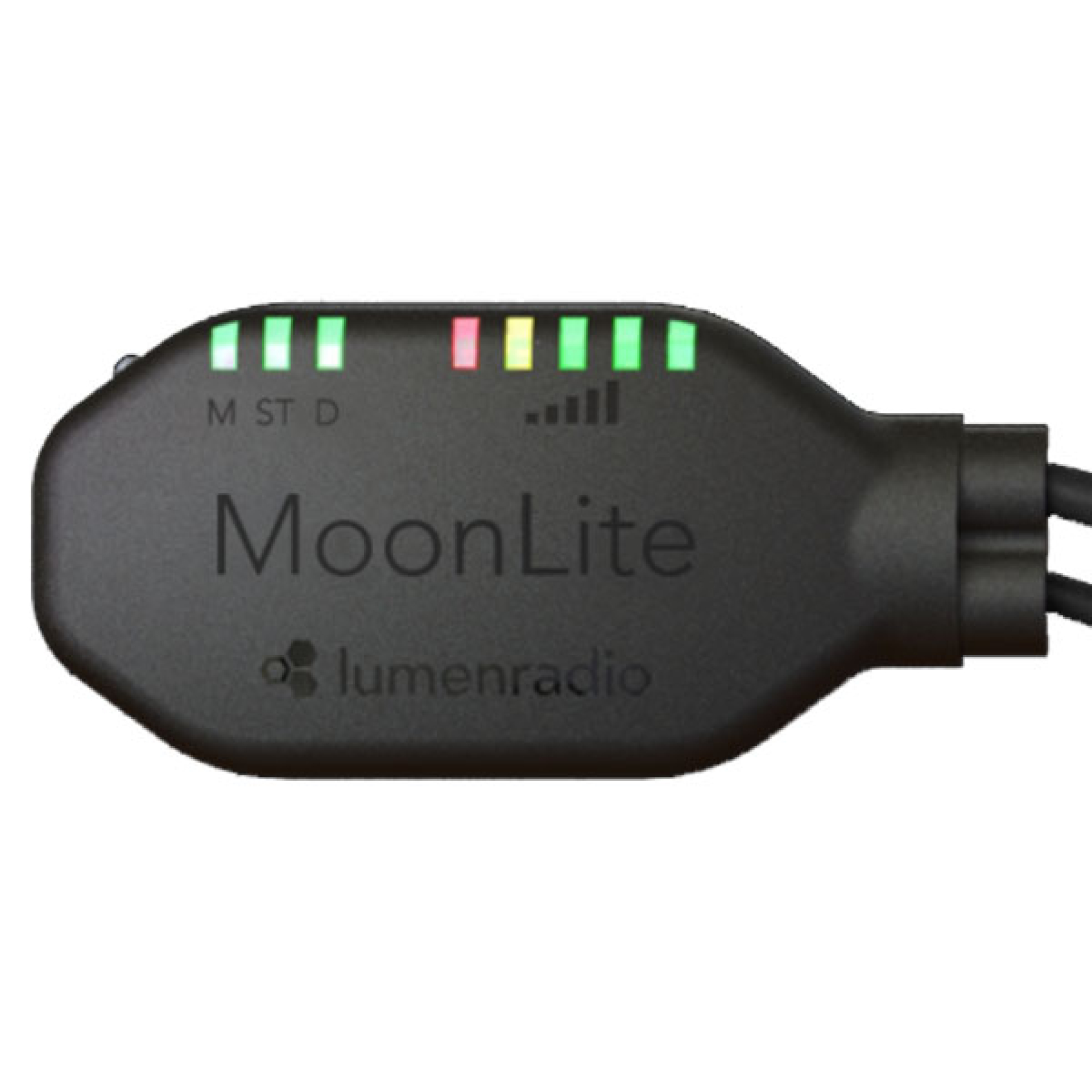

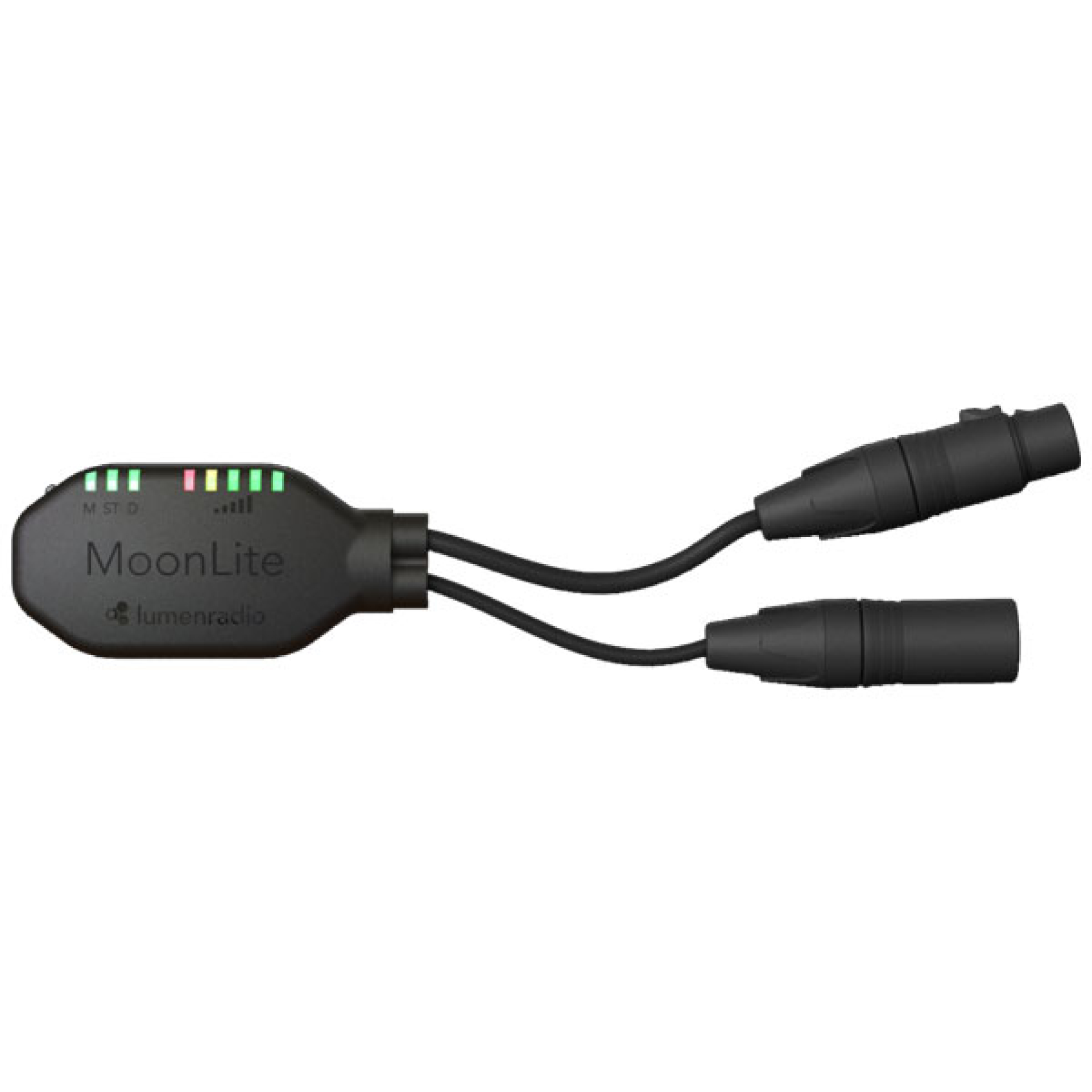

The LumenRadio MoonLite™ is a brand new patent-pending wireless lighting control product with LumenRadio’s updated award winning ultra-reliable CRMX technology combined with Bluetooth connectivity and a built-in battery.

By being a wireless DMX transmitter and receiver, MoonLite is truly the Swiss army knife of the wireless DMX world!

With built-in support for Bluetooth connectivity, MoonLite enables tablet and phone-based lighting control softwares to connect directly without the need for extra hardware. MoonLite is a state-of-the-art transceiver; thanks to its small size, built-in battery and dual XLR connectors it is ideal for use at clubs, small stage events, corporate events, in theatres and temporary events where wireless DMX connectivity is needed.

MoonLite has the same reliable functionalities as all LumenRadio’s CRMX products, but is updated with even smarter disturbance detection technology, allowing for even more stable connectivity – and it comes in a much smaller package.

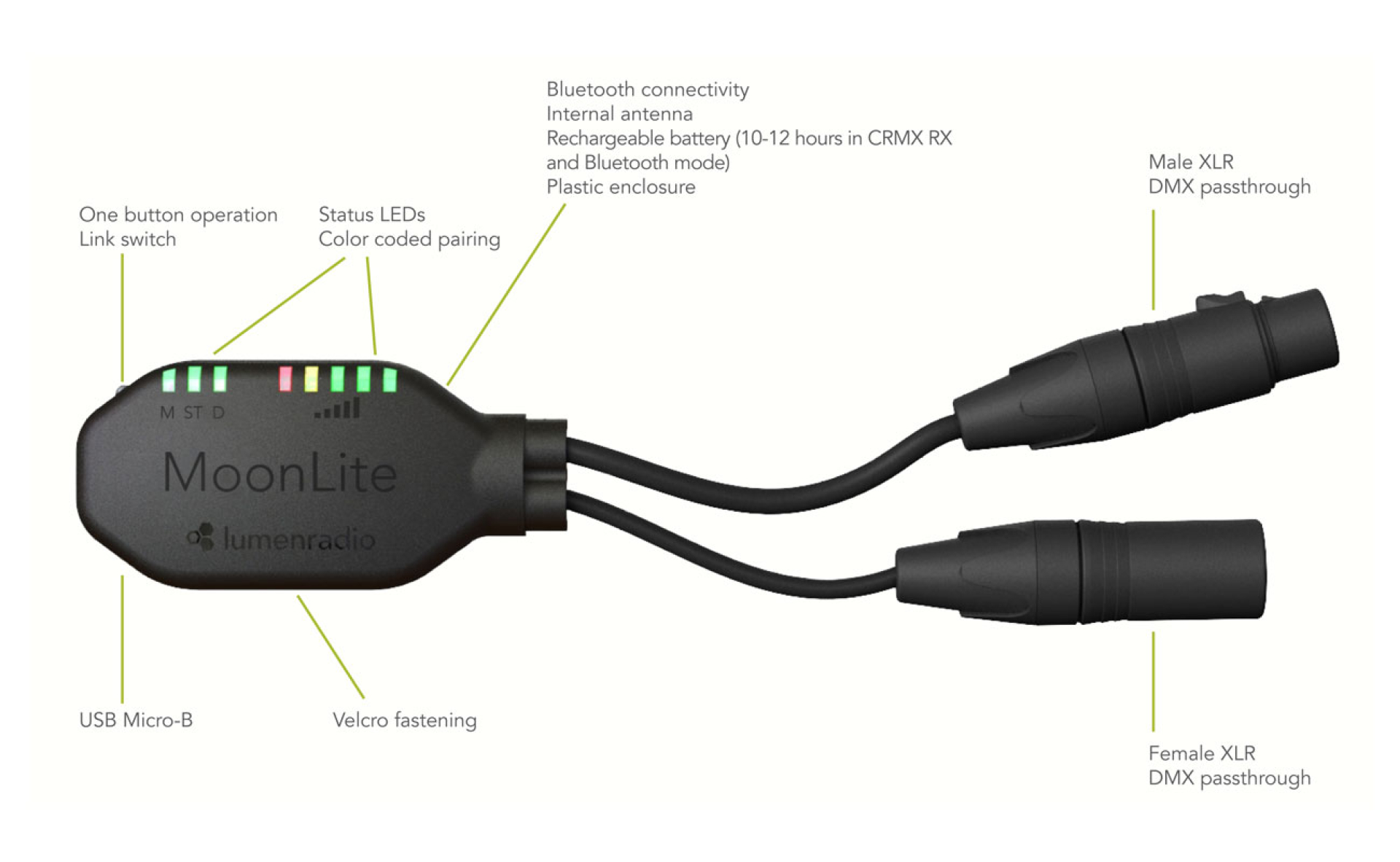

  • Bluetooth connectivity

    Significantly reduced RF footprint with dynamic transmissions

    Built on the latest CRMX technology

    DMX transceiver (TX and RX)

    DC power

    Rechargeable battery included (10-12 hours in CRMX RX and 20 hours in Bluetooth mode)

    Check battery status through app

    Colour coded pairing indication

    Velcro fastening

    Firmware updates available over Bluetooth, USB or XLR

  • What better way to control and configure your MoonLite than from the palm of your hand? Using our new CRMX Toolbox app you can quickly identify your MoonLite, check battery status, conduct firmware updates, toggle between receiver and transmitter mode, change output power and much more. The new era of wireless DMX is finally here!

  • USITT DMX512, DMX512(1990) & DMX512-A

    Bluetooth 5.0

    Operational frequency range: 2402-2480 MHz

    Output power levels: 10dBm, 14dBm; 18dBm, 20dBm; 22dBm (only in US); 24dBm (only in US)

  • DMX: 2 XLR, 5-pin gold plated, female and male

    Antenna: Internal

    DC: USB Micro-B

    Low voltage input: 5VDC

MoonLite - Downloads
MoonLite Brochure
Download
