Key Features:

  • Wireless DMX lighting control
  • Cable-free control over your lighting set-up
  • A simple to use, plug and play product
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

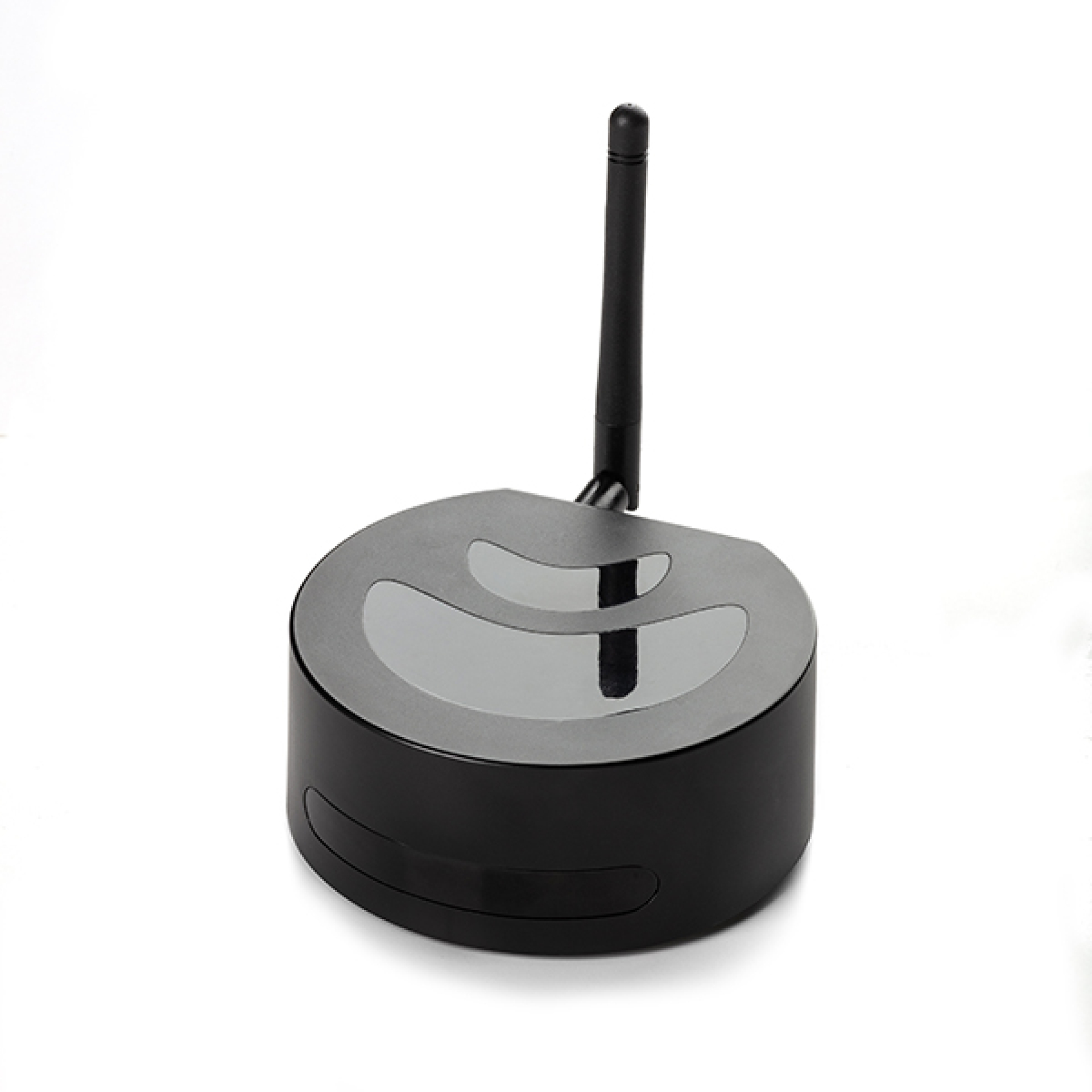

Wireless Solution Orb

Orb gives you cable-free control over your lighting set-up so no more running cables from your controller to your fixtures. Available as a transmitter or receiver – either way it’s plug and play.

Simply connect the transmitter to your controller and the receiver to your fixtures… and boom, instant wireless control! And you get the same rock-solid W-DMX performance which the lighting professionals love.

Orb uses W-DMX technology - an incredibly reliable wireless alternative to the DMX cable. It is also completely compatible with other W-DMX and LumenRadio CRMX products so as your business grows, you don’t have to replace everything all at once. Start with Orb and Stick and later use them together with more advanced products like Aurora or Stardust.

  • Power supply AC: 100-240 VAC +/- 10% 50/60 Hz (With external power supply only)

    Power supply DC: 5 VDC +/- 10%

    Max. power consumption: 1W

    Self-healing fuse: Yes

    IP rating: IP20

    Dimensions (W x H x D): 99 x 97 x 43mm

    Weight: 190g

    Antenna connector: RP-SMA

    Operating temp. range: -20 to +55 °C

    Storage temp. range: -30 to +80 °C

    Humidity: 0 – 90% non-condensing

    Frequency range: 2402 – 2480 MHz (ISM band)

    Max. RF output power: 35mW

    Supported protocols: DMX-512A

    Supported RF protocols (TX): W-DMX G3

    Supported RF protocols (RX): CRMX, CRMX² , W-DMX G3, G4, G4S & G5

You might like...

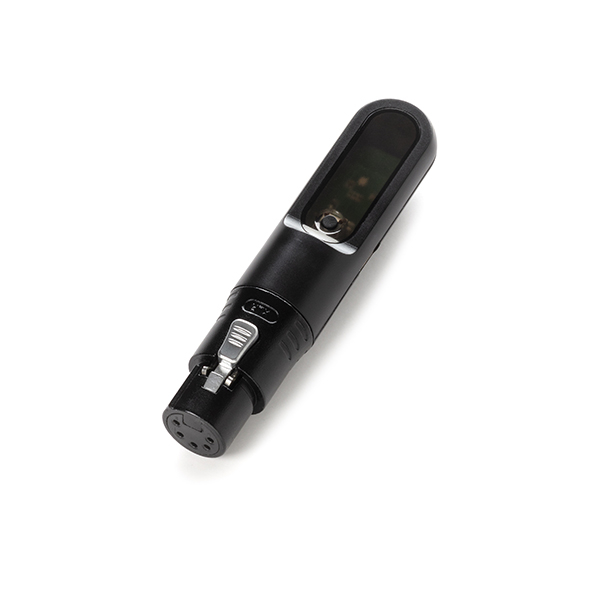

Wireless Solution by LumenRadio Stick Lumenradio logo
