GigaCore 12

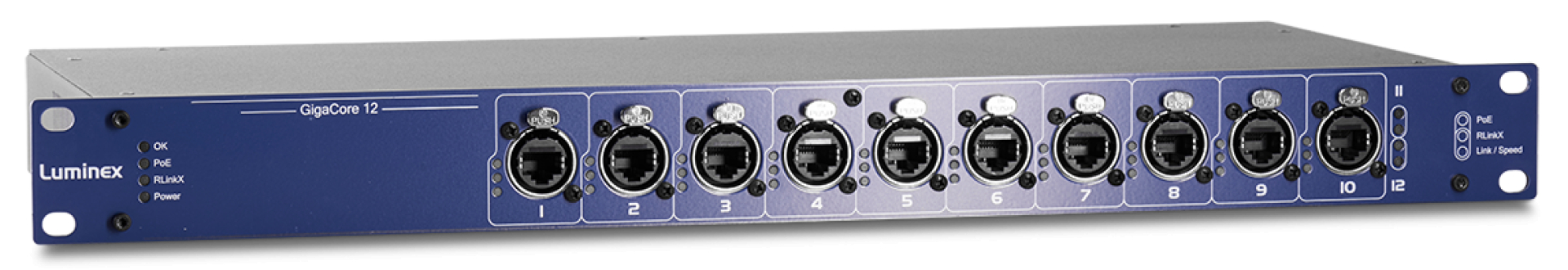

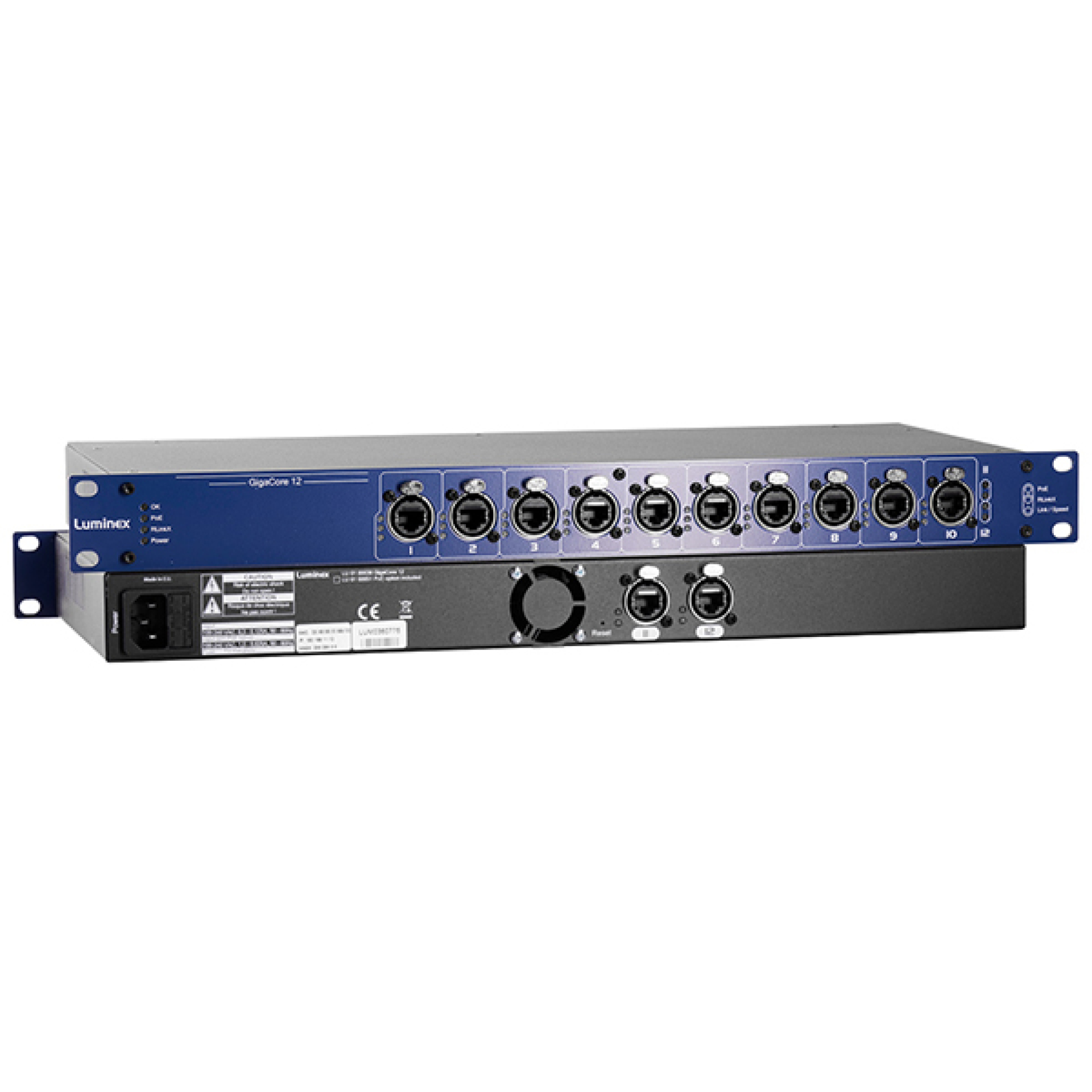

Luminex GigaCore 12 - front and back
Luminex GigaCore 12
Luminex GigaCore 12

GigaCore 12

Key Features:

  • Specifically designed for professional AV and live touring applications.
  • Redundant links for seamless transfer in case of cable fault.
  • Group configuration for simple management of multiple protocols
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

GigaCore 12

A pre-configured ethernet switch designed for professional AV solutions, perfect for touring and live events.

Product Variants

GigaCore 12 POE
LU0100036-POE
  • POE
  • Ethernet

Enquiry Form

GigaCore 12
LU0100036
  • Ethernet

Enquiry Form

The Luminex GigaCore 12 is tailor made for the AV industry, coming with pre-configured settings such as QoS and IGMP snooping. For a quick and easy set-up (without IT knowledge) it features easy group function with pre-configured VLAN.

  • Focus on being creative again and stop wasting time on programming your network or spending money on IT consultants to do it for you. With Luminex GigaCore switches and only some basic AV knowledge, you can do it all by yourself in just the blink of an eye. Now you can finally focus on your core business as an AV technician or designer: “being creative”!

    The GigaCore 12 is a managed Gigabit Ethernet switch designed to setup professional lighting and AV networks, but in a truly user-friendly way. The unit offers 12 Gigabit ports on shielded Neutrik Ethercon ports, making the product a hard environment friendly device. All configurations are done through the industry-oriented web interface.

  • Most suitable applications: Touring and live events

    RLinkX (Link redundancy): Yes

    Groups (VLAN segmentation): Yes

    MultiLinkX (Link aggregation): Yes

    Profile manager: Yes

    Memory: 4Mb

    MAC address table:

    Address learning / Aging: Self learning, Auto aging

    Switching throughput: 32Gbps

    IGMP support: Yes (V1/V2/V3)

    IGMP snooping: Yes, enabled by default

    Port sensing: Auto negotiation

    Auto crossover: MDI / MDIX

    Auto sensing: Full or Half Duplex (Gigabit is Full Duplex)

  • Ethernet connectivity: 12 x Shielded Neutrik Ethercon connectors

    Fiber connectivity: None

    Ethernet port speed: 1Gbps

    Serial: None

  • Power connectivity: 1 x IEC (14C) inlet with fuse holder

    Power input: 100-240VAC, 50-60Hz

    Power consumption: Maximum 30W Maximum 180W with PoE

    Fuse: 3.15A 250V Slow Blow

    Backup power input: None

    Backup PoE power input: None

    PoE: Optional on front ports only (up to 160W)

  • Supported protocols: Avnu AVB/MILAN, Dante©, RAVENNA/AES67©, Ethersound©, Q-SYS/Q-LAN, REAC©, sACN, ArtNet, MANet2, HogNet, RTTrPL (BlackTraX), IEEE 802.1p CoS (Class of Service), DiffServ (DSCP), PoE (802.3af) (optional), PoE+ (optional), IEEE 1588 PTP V2

    Sound protocol compliance: Yes (low jitter)

    Ethernet compliance: IEEE 802.3, IEEE 802.3u, IEEE 802.3x Flow Control, IEEE 802.3ab Gigabit Ethernet

  • Display and jog: None

    Configuration: Through the built-in web server

    Status LEDs:

    Global status LEDs: Device, power, PoE power, RLinkX

    Port status LEDs: PoE, RLinkX, link/activity and port speed

    Coloured RGB LEDs: No
