GigaCore 30i

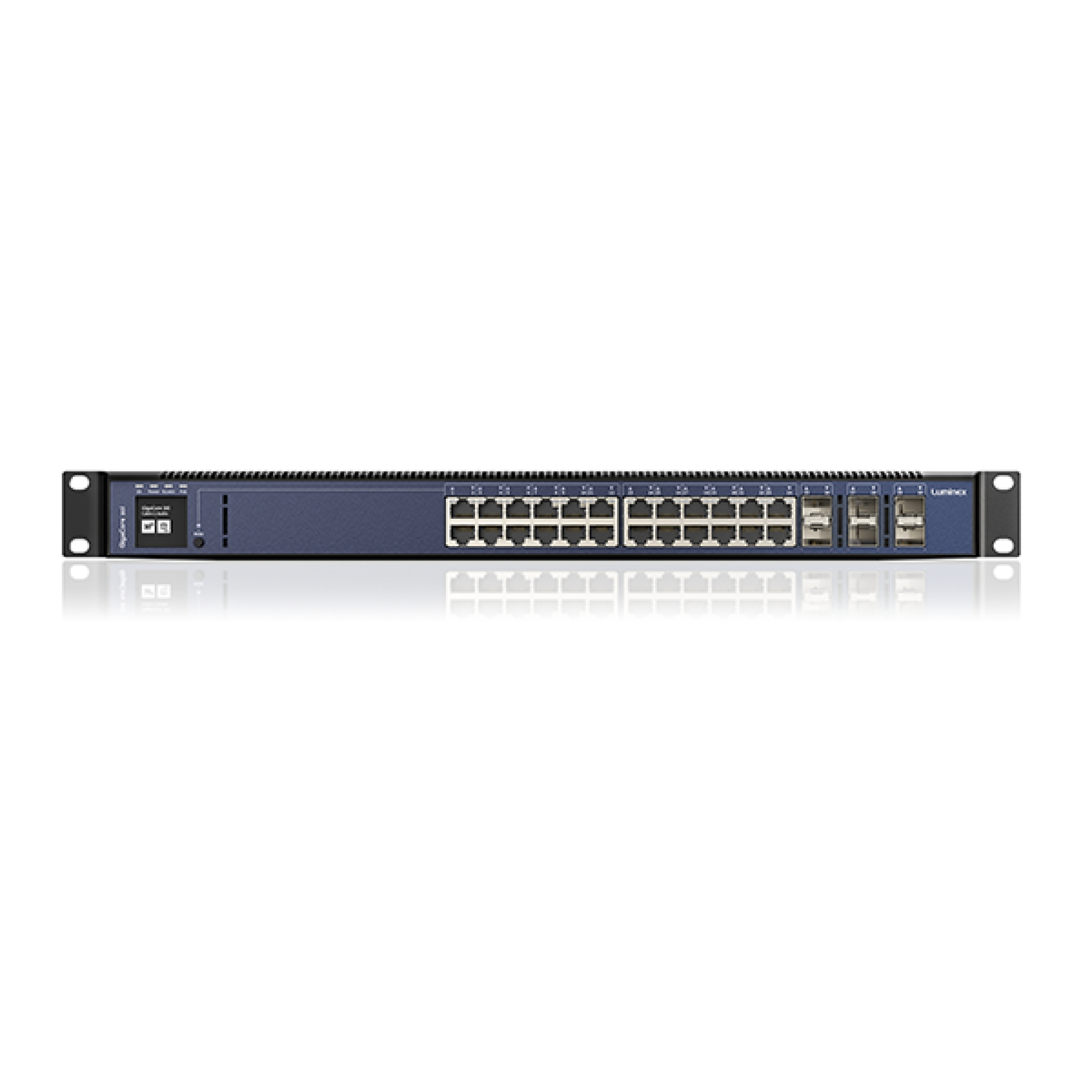

Luminex GigaCore 30i Front

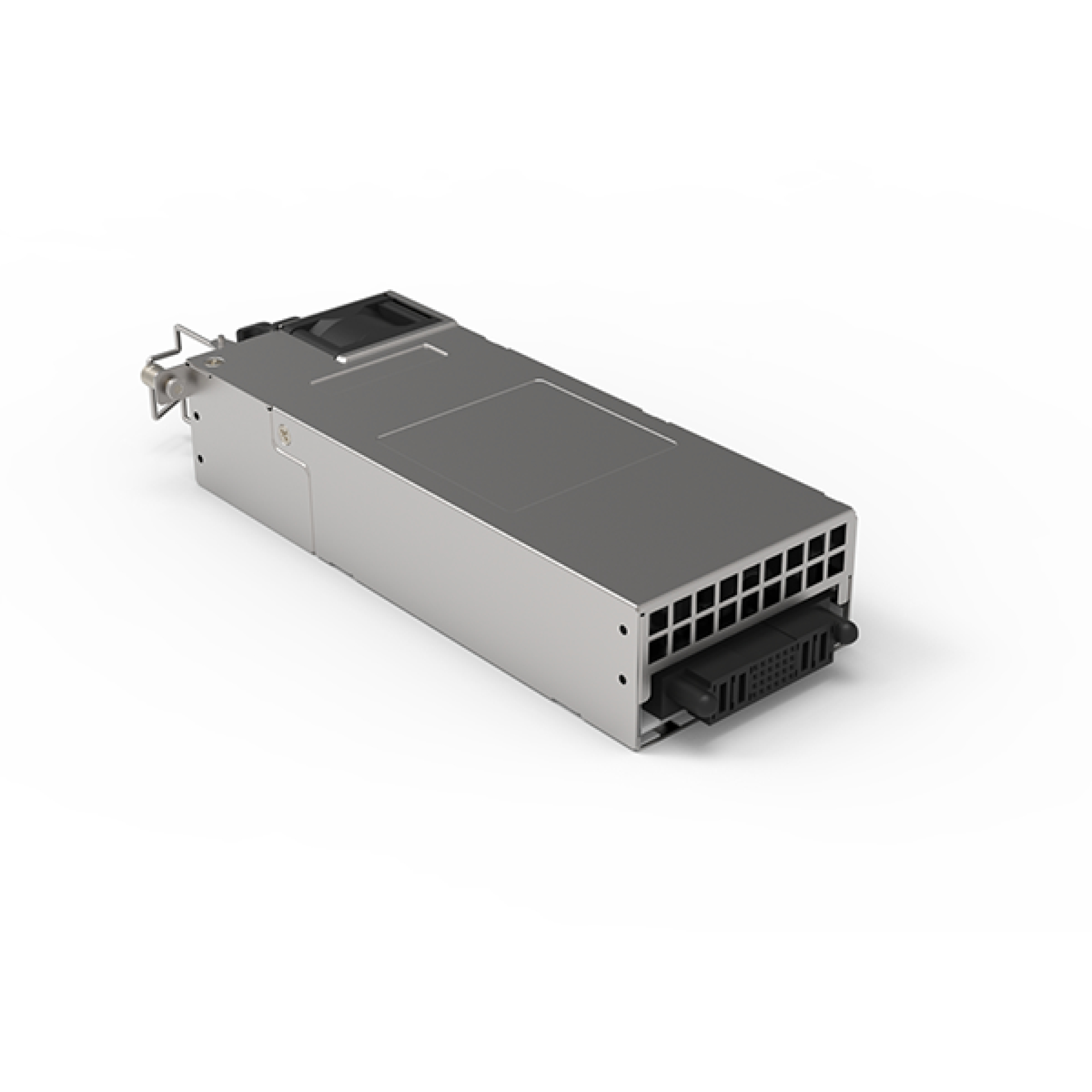

Luminex GigaCore 30i PSU

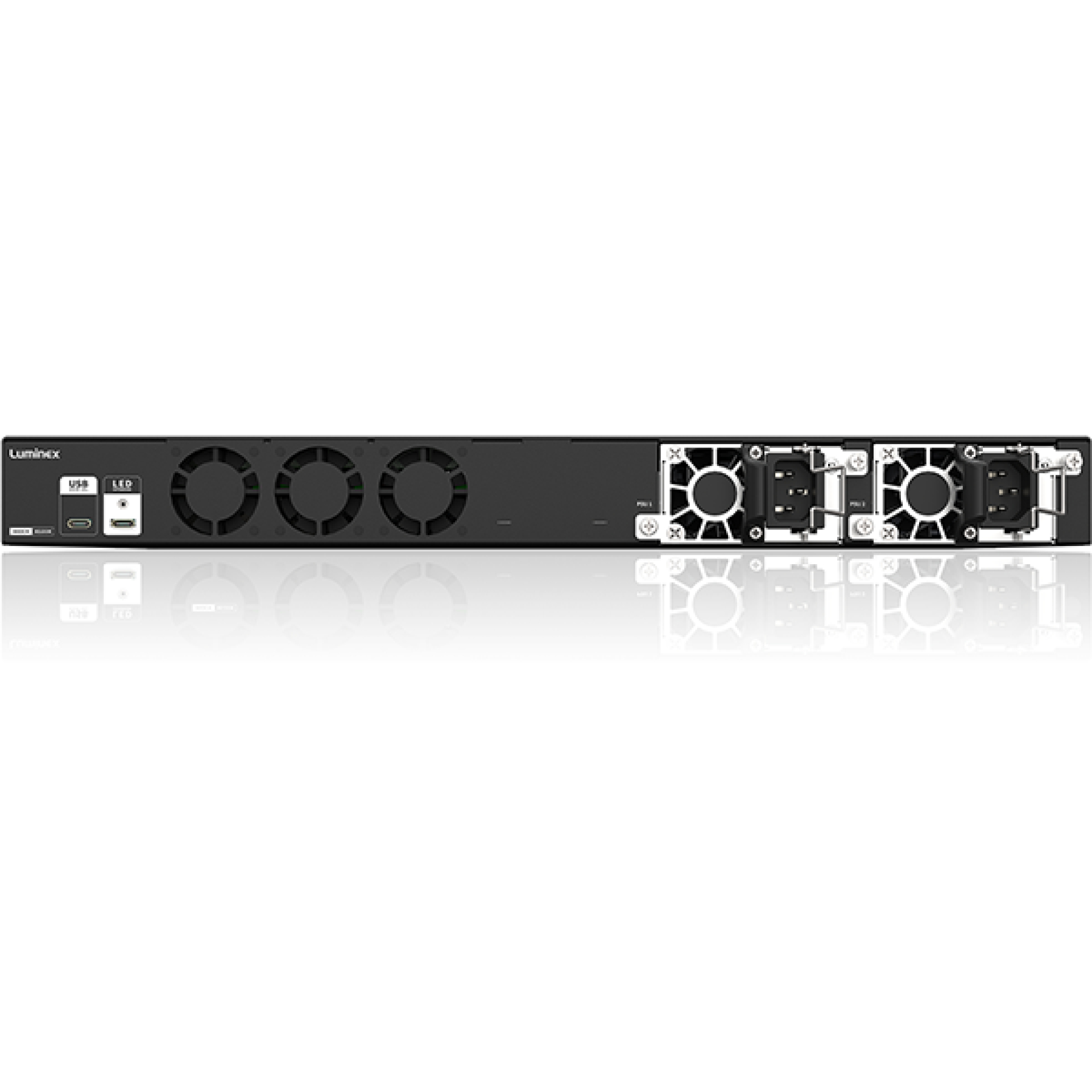

Luminex GigaCore 30i Back
Luminex GigaCore 30i PSU
Luminex GigaCore 30i Back

GigaCore 30i

Key Features:

  • 10Gb Connectivity
  • PoE++
  • AV validated for real applications
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

GigaCore 30i

The Luminex GigaCore 30i is a 10Gb Network switch for converged AV networks used for installation, integration and touring.

Product Variants

GigaCore 30i
LU0100077-10-1S1
  • 24x1G
  • 6x10G(SFP+)

Enquiry Form

GigaCore 30i
LU0100077-10-2S1
  • 24x1G
  • 6x10G(SFP+)
  • 2nd PSU 100W

Enquiry Form

GigaCore 30i
LU0100077-10P-1S5
  • 24x1G
  • 6x10G(SFP+)
  • PoE++

Enquiry Form

GigaCore 30i
LU0100077-10P-2S5
  • 24x1G
  • 6x10G(SFP+)
  • PoE++
  • 2nd PSU 550W

Enquiry Form

GigaCore Slide-in
LU7000639
  • PSU 100W

Enquiry Form

GigaCore Slide-in
LU7000640
  • PSU 550W

Enquiry Form

GigaCore 30i comes  fully optimized out of the box to be used with the most advanced AV protocols. Preconfigured Quality of Service (QoS), IGMP multicast, and PTPv2 settings will assure a responsive and extremely stable network environment for the most demanding time-critical audio protocols like Dante™, AES67, Q-SYS, and many more.

  • With up to 1000W of total PoE budget and PoE++ on every copper port, this GigaCore switch can drive any IP PTZ camera or loudspeaker on the market today.

    A robust yet silent design allows you to use GigaCore in any AV environment. The fans are speed controlled to have minimal noise impact and guarantee a long-life operation. This allows you to place the GigaCore in even the most quiet environments like theatres and studios.

    GigaCore 30i is the ideal solution for AV networks in fixed installations, integration and touring for lighting, audio, and video.

    AV validated for real applications

    GigaCore switches are fully validated in real-world applications with major brands in the AV industry for different protocols, including NDI™, Dante™, AVB/MILAN, AES67, ST-2110, IPMX, MA-Net, and many more.

    We don’t just approve against a protocol but actually test it. Because of real world application validation and interoperability testing, we understand the applications and make sure you can deploy our product with confidence.
    Luminex support team really speaks your language and has a vast amount of AV knowledge built up, not just from talking protocols but mainly from working with you and living through your real application network challenges.

  • Most suitable applications: Fixed installations

    RLinkX (Link redundancy): Yes

    Groups (VLAN segmentation): Yes

    MultiLinkX (Link aggregation): Yes

    Profile manager: Yes

    Memory: Flash 1Gb RAM – 8Mb NOR flash 4Gb EMMC storage

    MAC address table: 16384 entries

    Address learning / Aging: Self learning, Auto aging

    Switching throughput: 168Gbps

    Jumbo frames: MTU up to 12000

    IGMP support: Yes (V1/V2/V3)

    IGMP snooping: Yes, enabled by default

    Port sensing: Auto negotiation

    Auto crossover: MDI / MDIX

    Auto sensing: Full or Half Duplex (Gigabit is Full Duplex)

  • Ethernet connectivity: 24 x RJ45 connectors (1Gbps))

    Fiber connectivity: 6 x SFP+ cages (10Gbps/1Gbps) (independent from other ports)

    Ethernet port speed: 1Gbps

    Serial: 1 x USB C

  • Power connectivity: 1 x IEC (C14) inlet for each PSU

    Power input: 100-240VAC, 50-60Hz

    Power consumption: Maximum 50W - Maximum 1050W (Depending on PoE and PSU configuration)

    Fuse: NA

    Backup power input: 100-240VAC, 50-60Hz (through second hot swappable PSU)

    Backup PoE power input: 100-240VAC, 50-60Hz (through second hot swappable PSU)

    PoE: PoE ++ Optional (up to 1000W)

  • Supported protocols: Dante©, RAVENNA/AES67©, Ethersound©, Q-SYS/Q-LAN, sACN, ArtNet, MANet2, HogNet, RTTrPL (BlackTraX), IEEE 802.1p CoS (Class of Service), DiffServ (DSCP), PoE (802.3af) (optional), PoE+ (optional), PoE++ (802.3bt) (optional), IEEE 1588 PTP V2, AVB/MILAN, IEEE 802.1as (gPTP)

    Sound protocol compliance: Yes (low jitter)

    Ethernet compliance: IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3x Flow Control, IEEE 802.3ab Gigabit Ethernet, IEEE 802.3af PoE(optional), IEEE 802.3at PoE+(optional), IEEE 802.3bt PoE++ 90W(optional), IEEE 802.1p CoS, IEEE 802.1d Spanning Tree, IEEE 802.1w Rapid Spanning Tree, EEE 802.1s Multiple Spanning Tree, IEEE 802.1Q VLAN, IEEE 802.1ab LLDP, IEEE 1588-2008 PtPv2,IEEE 802.1 BA-2011 AVB, IEEE 802.1as (gPTP)

  • Display and jog: NA

    Configuration: Through the built-in web server, Network wide configuration through Araneo software

    Status LEDs:

    Global status LEDs: Device, power, PoE power and mode

    Port status LEDs: PoE, groups, link/activity and port speed

    Dark mode available

    Coloured RGB LEDs: Yes
