LumiNode

Key Features:

  • Next-generation Ethernet to DMX processor range.
  • Route, merge and process any input to any output.
  • POE powered.
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

LumiNode

The Luminex LumiNode product family is built for today’s connectivity needs. It can convert network protocols to DMX/RDM while merging and routing different sources together.

Product Variants

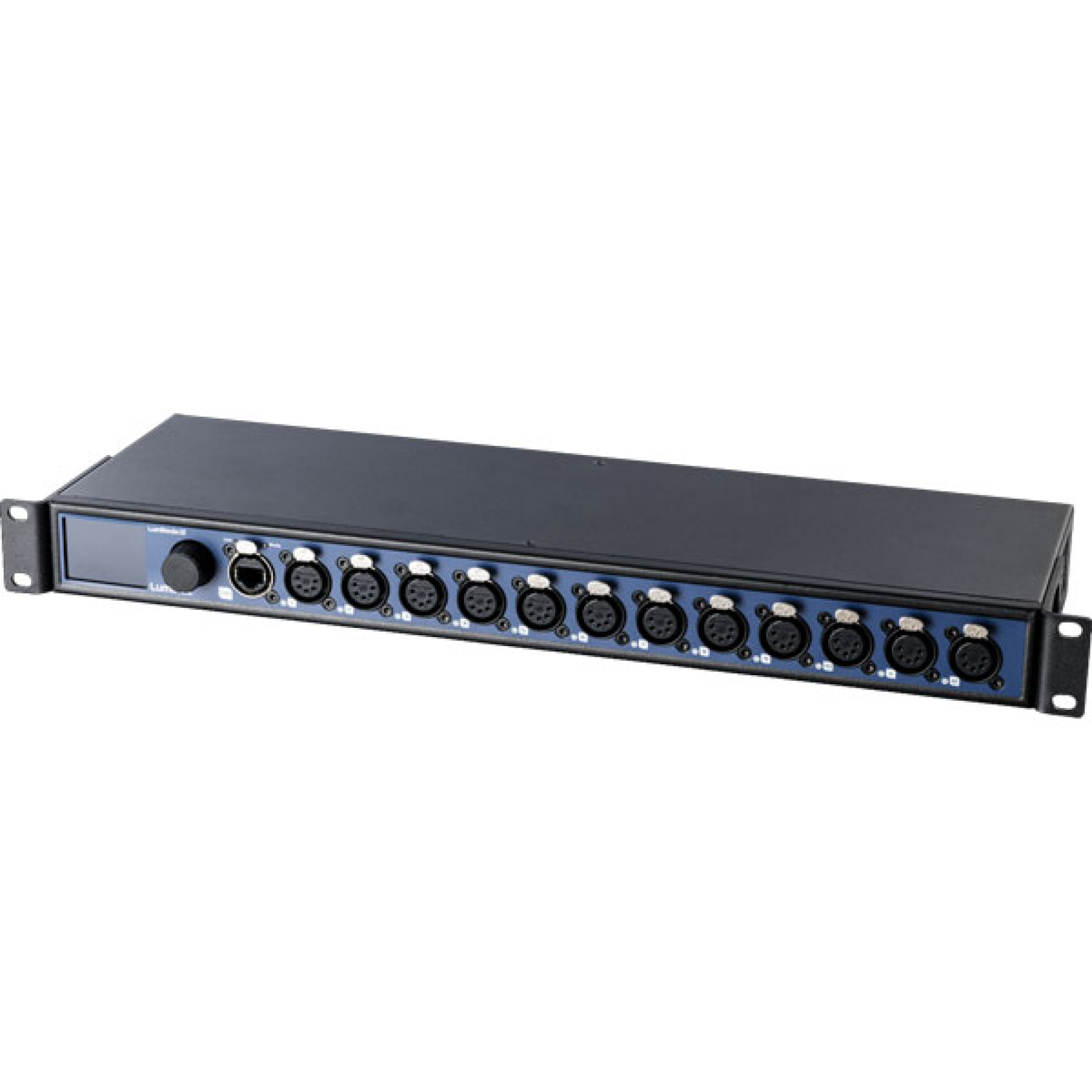

Luminex Luminode 12
LumiNode 12
  • DMX/RDM connectivity: 12x Neutrik 5 pin XLR (female) shielded & gold plated
  • Ethernet connectivity: 2x shielded Neutrik Ethercon connector
  • 1x Neutrik powerCON TRUE1 In/Out
  • Ethernet (PoE 802.3af class 0)
  • 16 input, 12 output

Enquiry Form

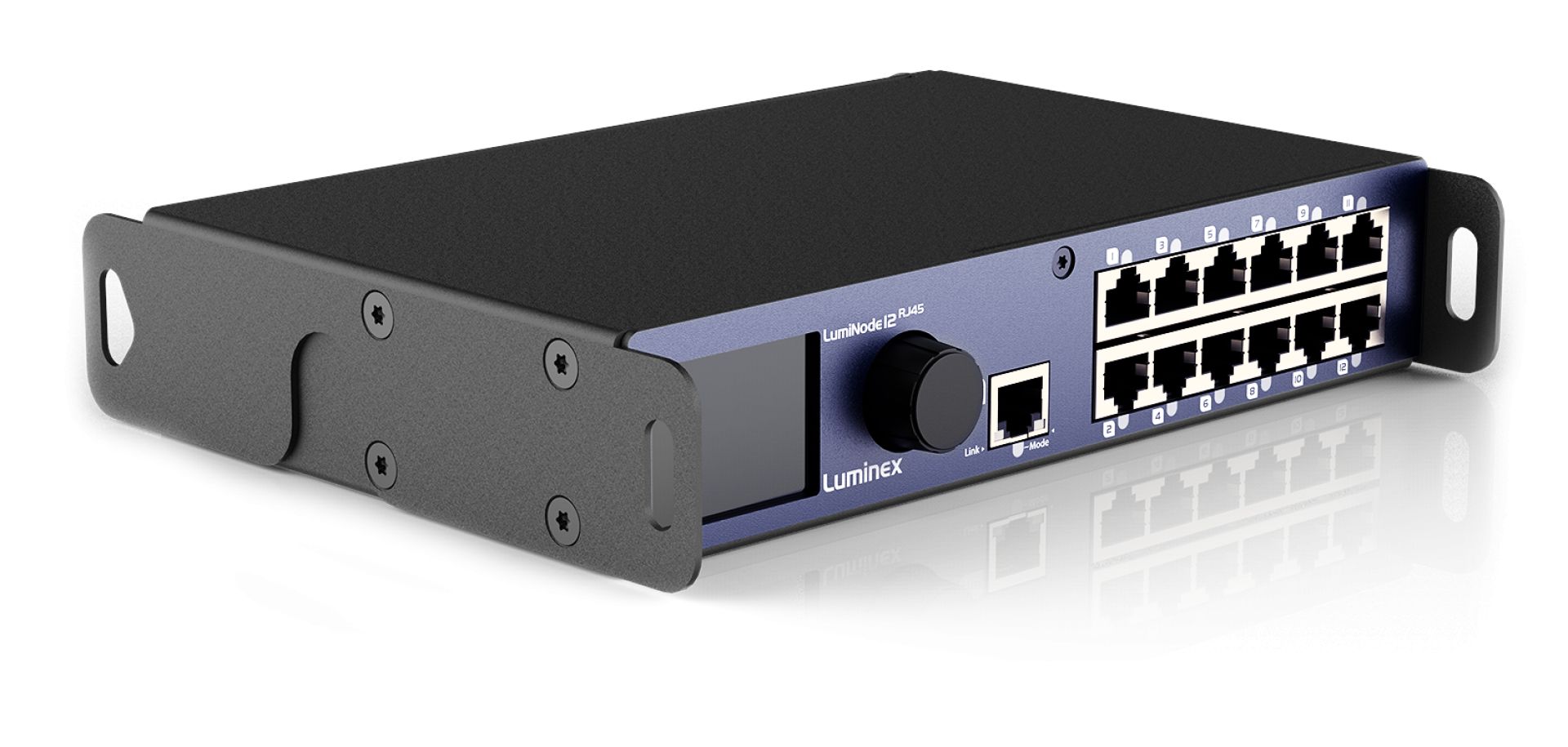

Luminex LumiNode 12 RJ45
LumiNode 12 RJ45
  • DMX/RDM connectivity: 12x RJ45-DMX (ANSI E1.11 – 2008 (R2018))
  • 1x gigaBit RJ45 PoE-802.3af rear
  • 1x gigabit RJ45 front
  • 1x Neutrik powerCON TRUE1 In/Out
  • Ethernet (PoE 802.3af class 0)
  • 16 input, 12 output

Enquiry Form

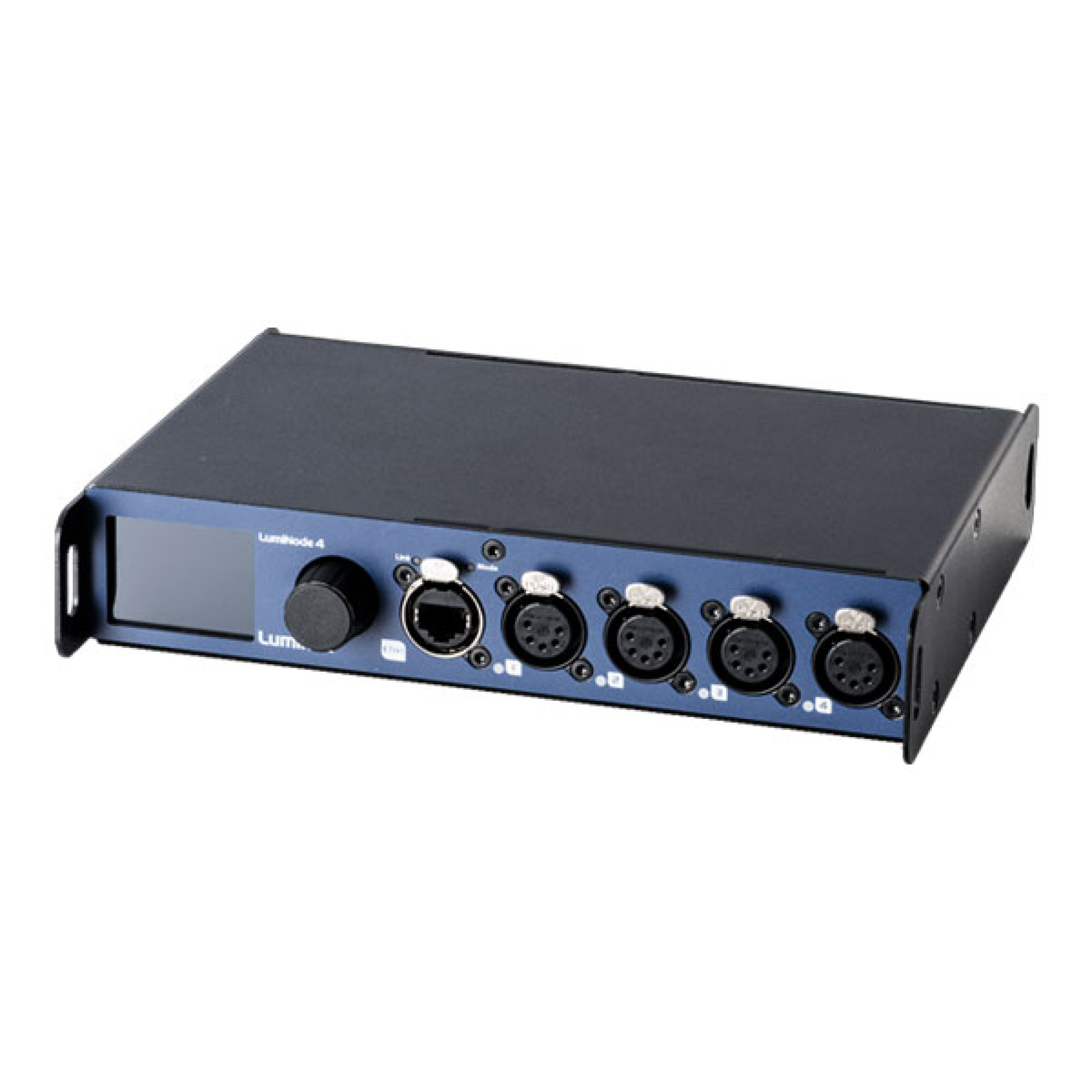

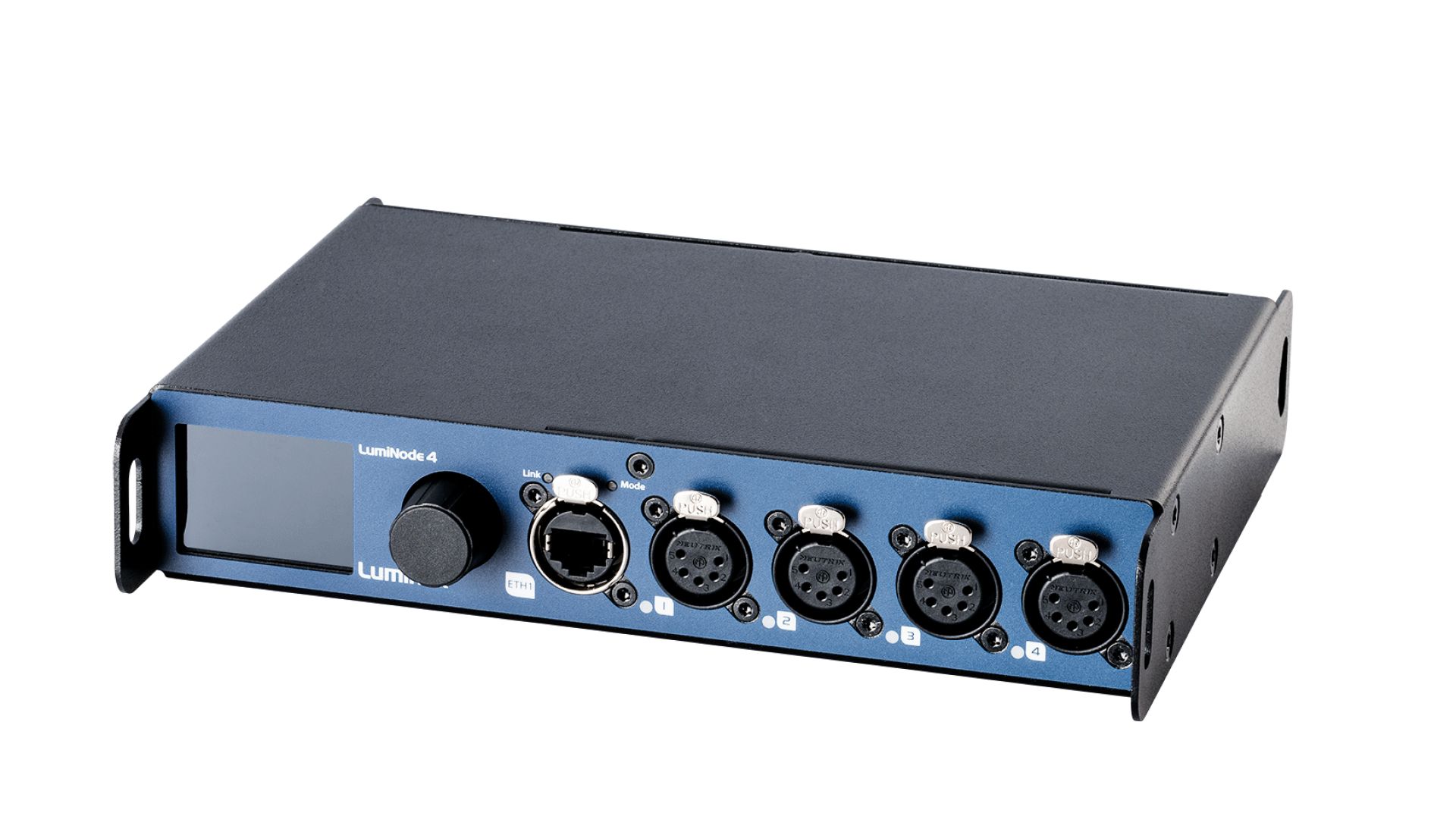

Luminex LumiNode 4 Ethernet to DMX Converter
LumiNode 4
  • 4x Neutrik 5 pin XLR (female) shielded & gold plated
  • 2x shielded Neutrik Ethercon connector
  • 1x Neutrik powerCON TRUE1
  • Ethernet (PoE 802.3af class 0)
  • Process engines: 6

Enquiry Form

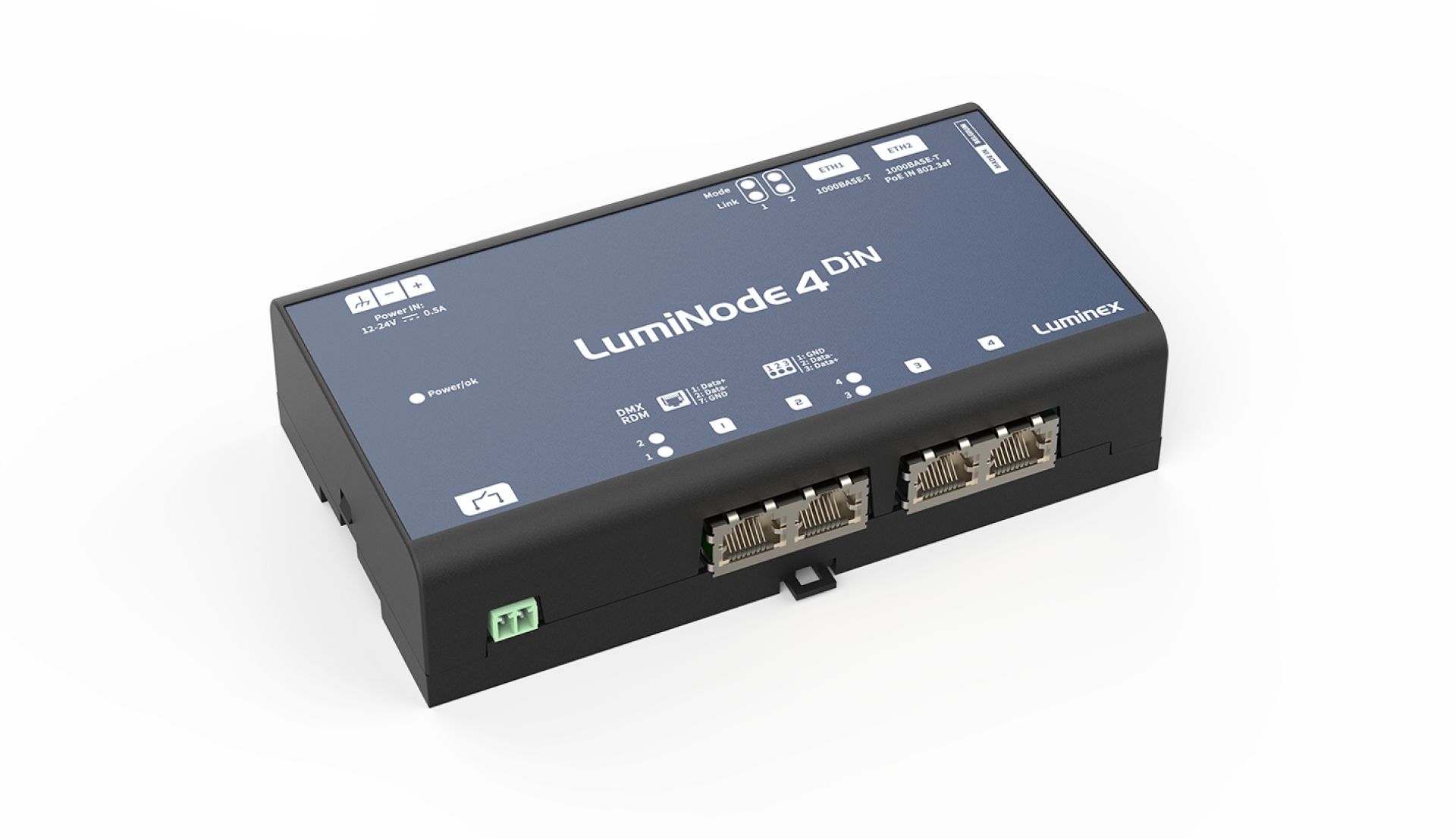

Luminex LumiNode 4DIN
LumiNode 4 DIN
  • 4 x RJ45-DMX (ANSI E1.11 – 2008 (R2018))
  • 4x 3-pin pluggable terminal block
  • 2 x gigabit RJ45
  • Process engines: 6

Enquiry Form

Luminex Luminode 4 Wall
LumiNode 4 Wall
  • Integrates flush into a wall or cabinet
  • 4x shielded & gold plated Neutrik 5-pin XLR (female)
  • 1 x gigabit shielded Neutrik etherCON connector Front panel 1 x gigabit RJ45 connector Rear panel PoE-802.3af
  • Process engines: 6

Enquiry Form

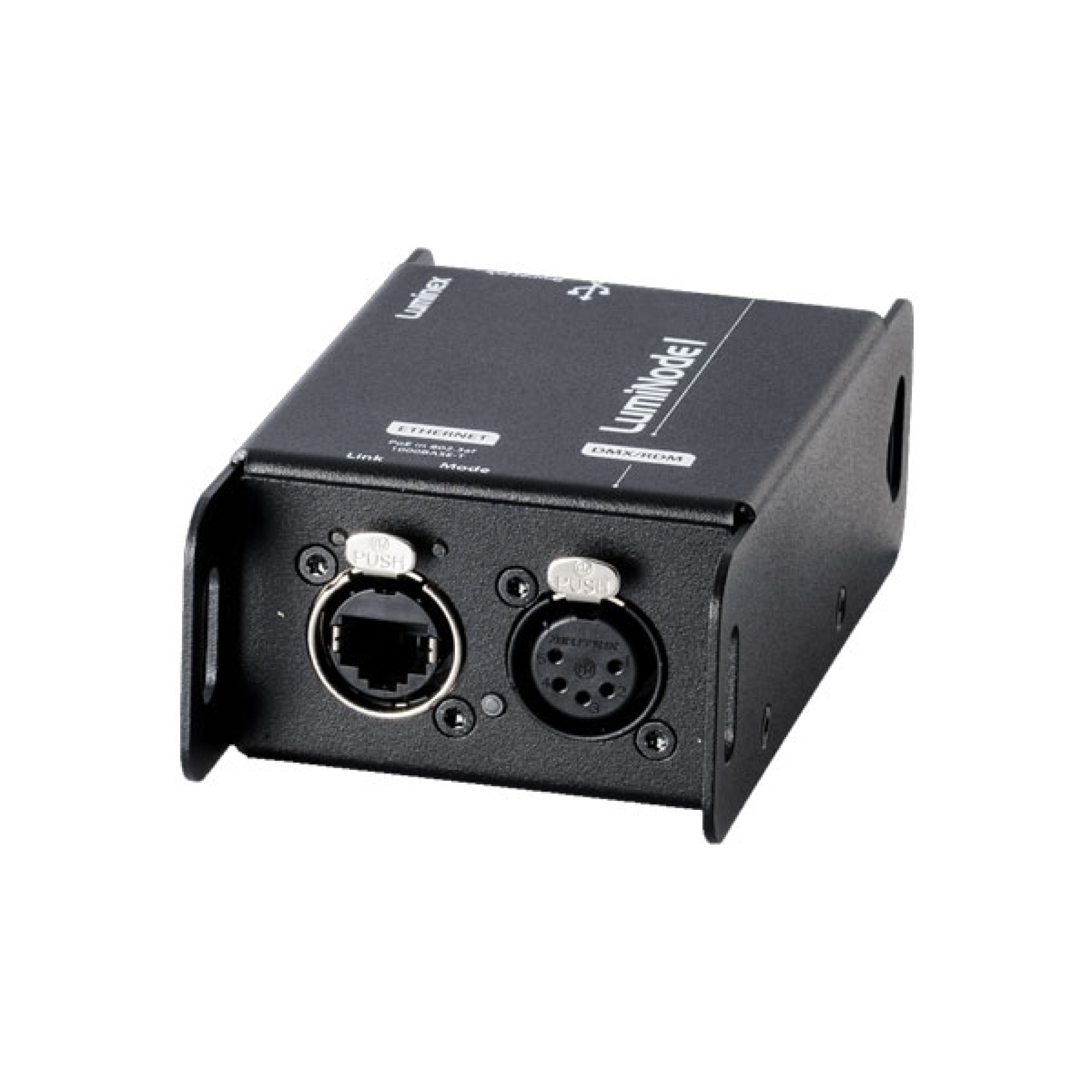

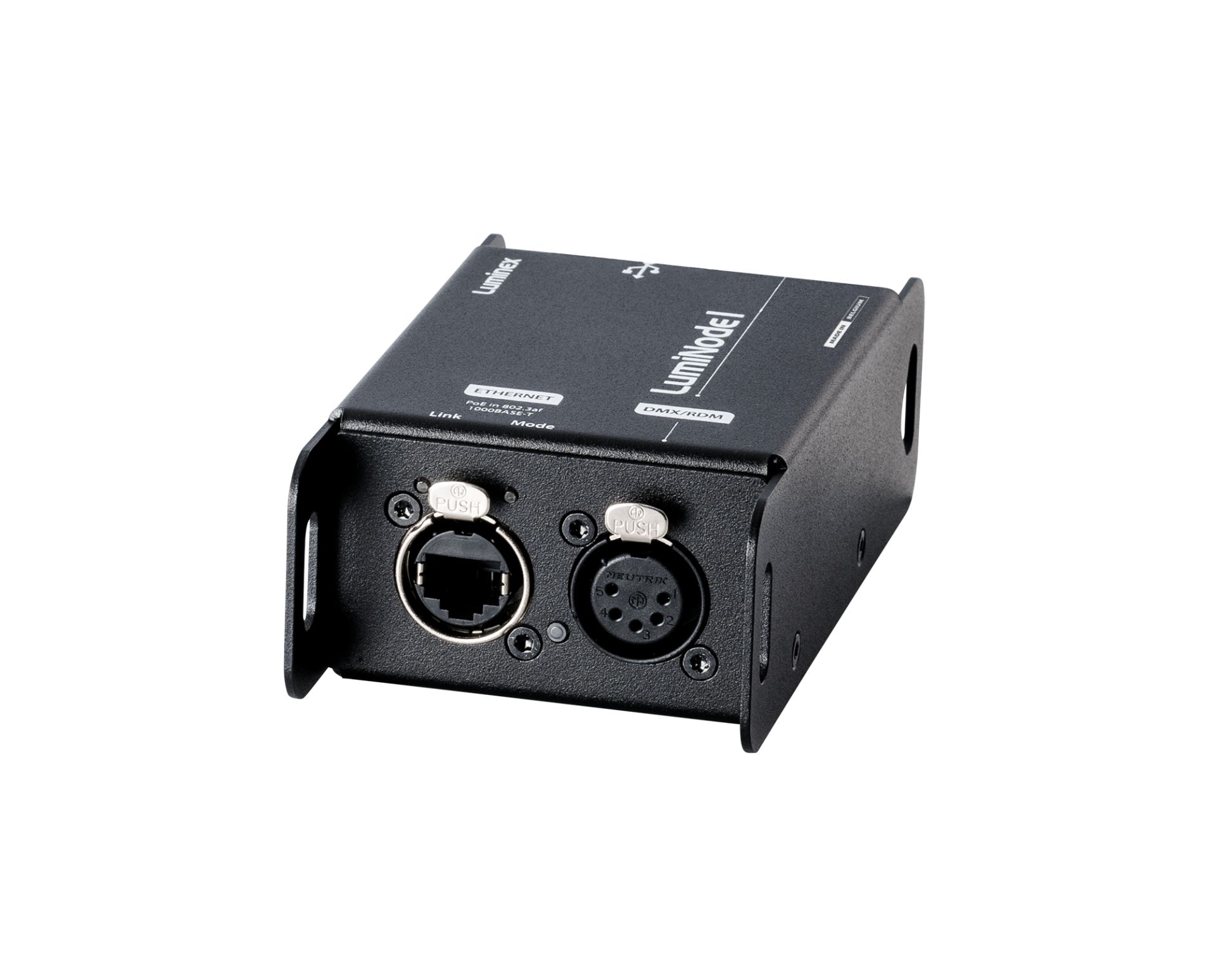

Luminex LumiNode1
LumiNode 1
  • 1x Neutrik 5 pin XLR (female) shielded & gold plated
  • 1x shielded Neutrik Ethercon connector
  • 1x USB to Ethernet (dongle function)
  • Process engines: 2
  • Ethernet (PoE 802.3af class 0)
  • USB

Enquiry Form

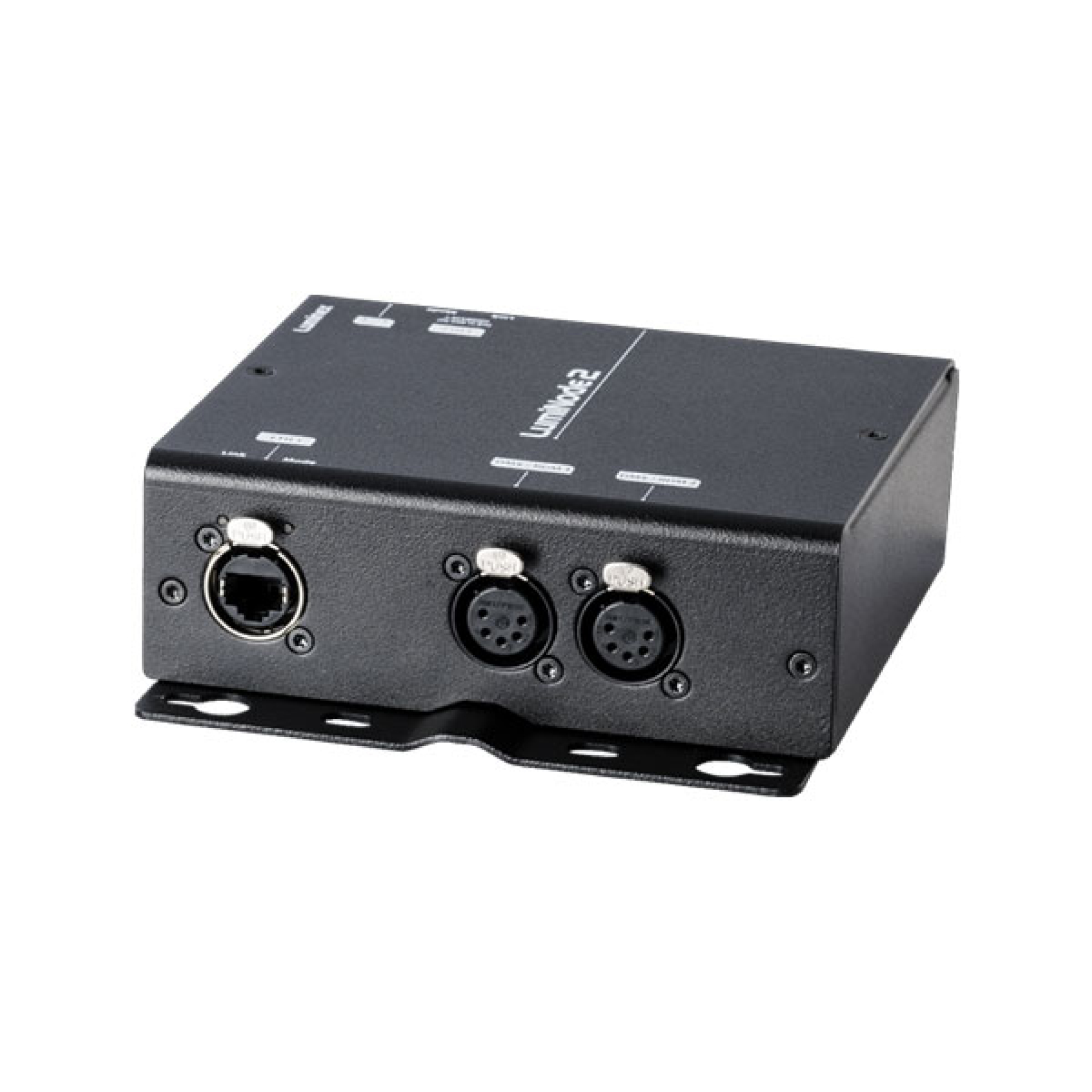

Luminex Luminode2
LumiNode 2
  • 2x Neutrik 5 pin XLR (female) shielded & gold plated
  • 2x shielded Neutrik Ethercon connector
  • Ethernet (PoE 802.3af class 0)
  • Process engines: 4

Enquiry Form

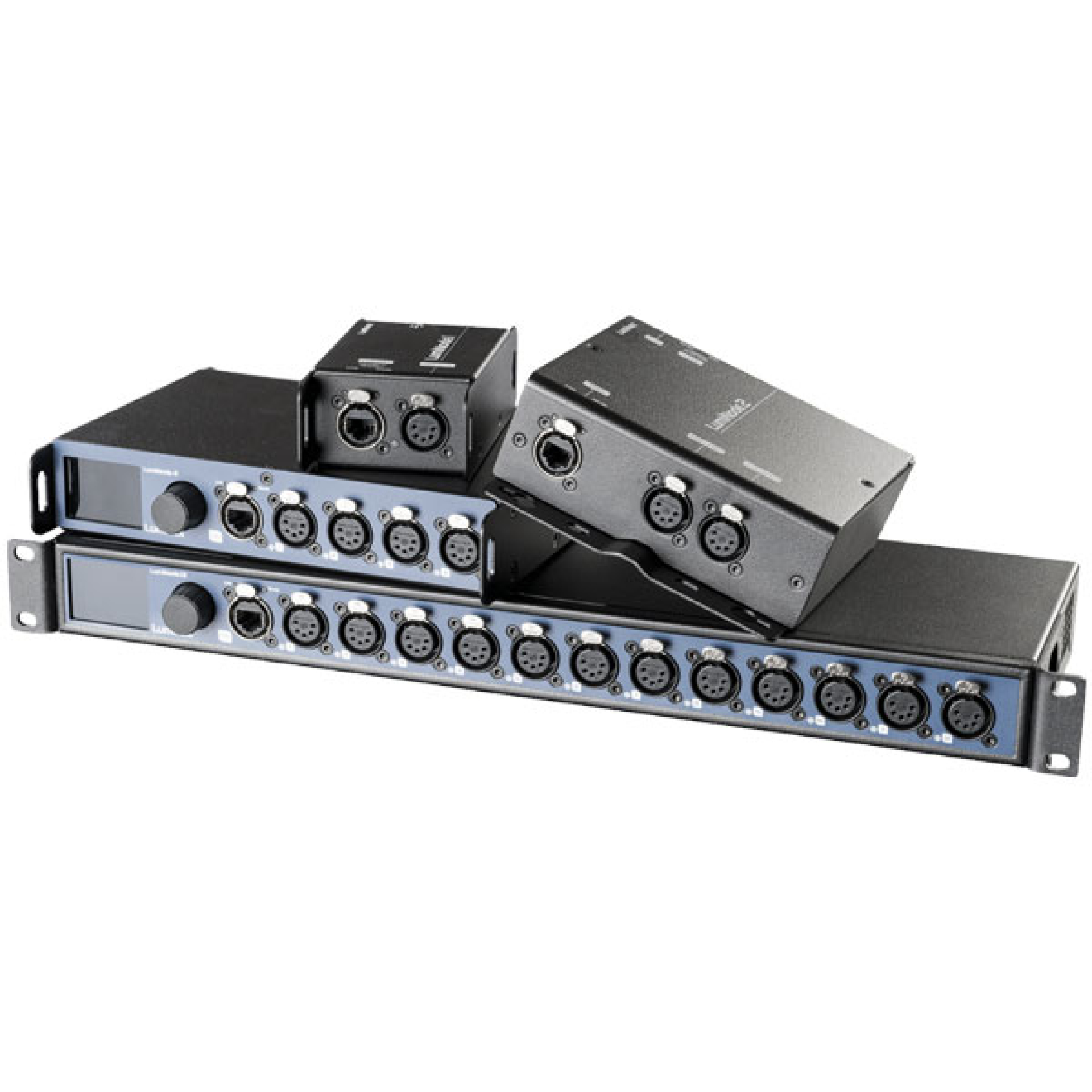

Luminex LumiNode

The LumiNode product family (1, 2, 4 & 12) offers more process engines than physical DMX connectors. This means your investment scales with the ever-growing need for more network-connected data and still being able to do what you need today.

Tomorrow’s lighting rigs are and will be ever more Ethernet connected and LumiNode will make sure that all different controls can talk with different fixtures. Built for today and designed for tomorrow.

  • The Luminex LuminNode product family is built for today's connectivity needs, like converting network protocols to DMX/RDM outputs meanwhile merging and routing different sources together.

    Today's converter's limitations are the amount of DMX connectors on the unit and what you like to do with these. LumiNode features a vast amount of merging and routing process engines beyond the amount of DMX ports, allowing you to decide what you like to achieve with the incoming data rather than what you are allowed to do with a DMX port only.

    Tomorrow's lighting rigs are and will be ever more Ethernet connected and LumiNode will make sure that all different controls can talk with different fixtures. For this reason, Luminex introduced the concept of process engines.


    Process engines let you define what you like or need to do with incoming data streams from different controls, protocols or even internal sources. And allows you to choose what output needs to be generated out of it. This can be a variety of different lighting control protocols and not necessarily a DMX/RDM output.

    The output of a process engine can even serve multiple DMX/RDM ports and network protocols at once.

    The range includes the LumiNode 1, 2, 4 & 12.

LumiNode - Downloads
Luminex LumiNode Advanced Networking Instructions
Download
Luminex LumiNode Spec Sheet
Download
LumiNode - Variant Downloads

You might like...

Luminex GigaCore 16t ethernet switch - front Luminex logo
Product - LIGHTING
GigaCore 16t
    • 1Gb connectivity
    • PoE++
    • AV validated for real applications
Find out more

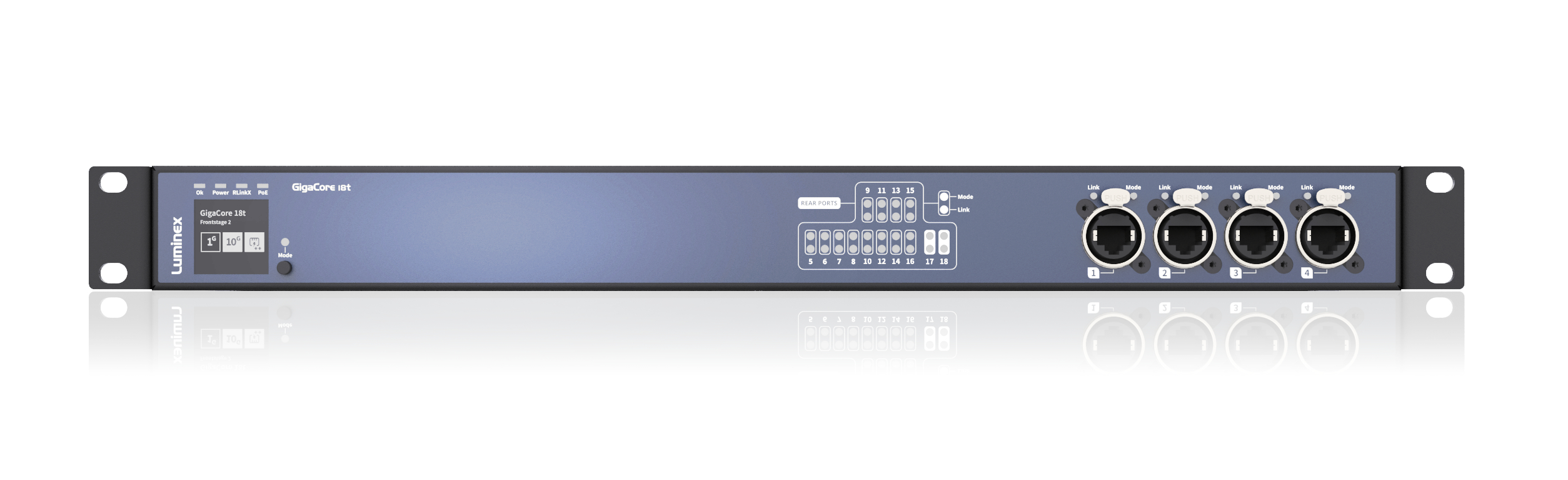

Luminex GigaCore 18t Front Luminex logo
Product - LIGHTING
GigaCore 18t
    • 10Gb Connectivity
    • PoE++
    • AV validated for real applications
Find out more

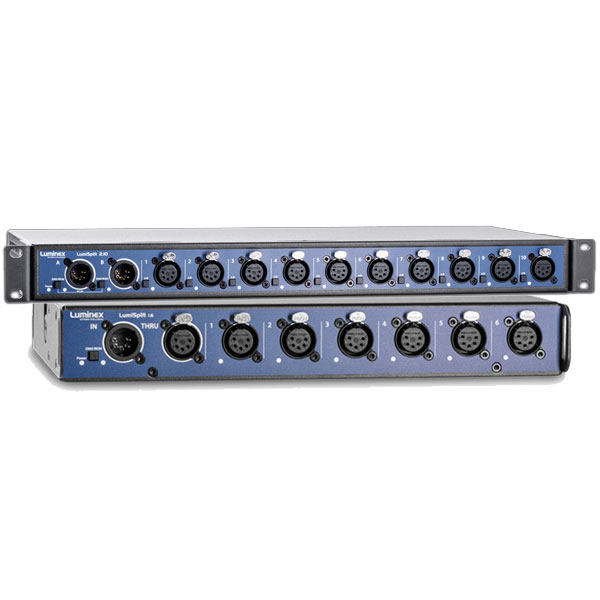

Luminex LumiSplit Splitters Luminex logo
