Nexo P+ Series Speakers

Key Features:

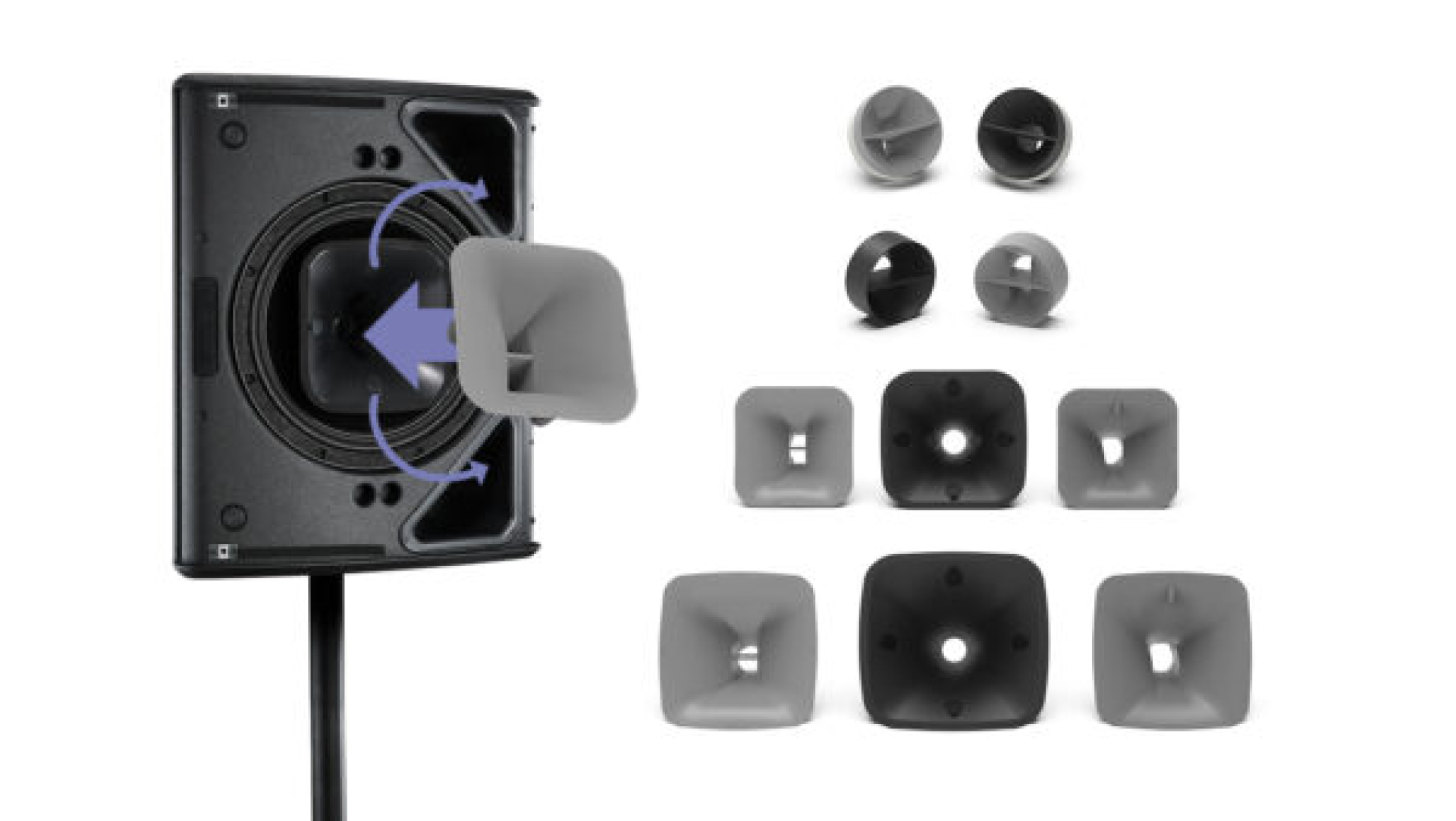

  • Optional Magnetic Horns and Flanges.
  • Advanced Cabinet Design with Quick Release Steel Grille.
  • Active/Passive Modes.
Enquire

Enquiry Form

Call us today on

+44 (0)113 255 7666

Nexo P+ Series Speakers

The P+ Series sets new performance standards for compact, point source loudspeakers, along with new levels of versatility – thanks to an ingenious system for varying HF coverage patterns.

Product Variants

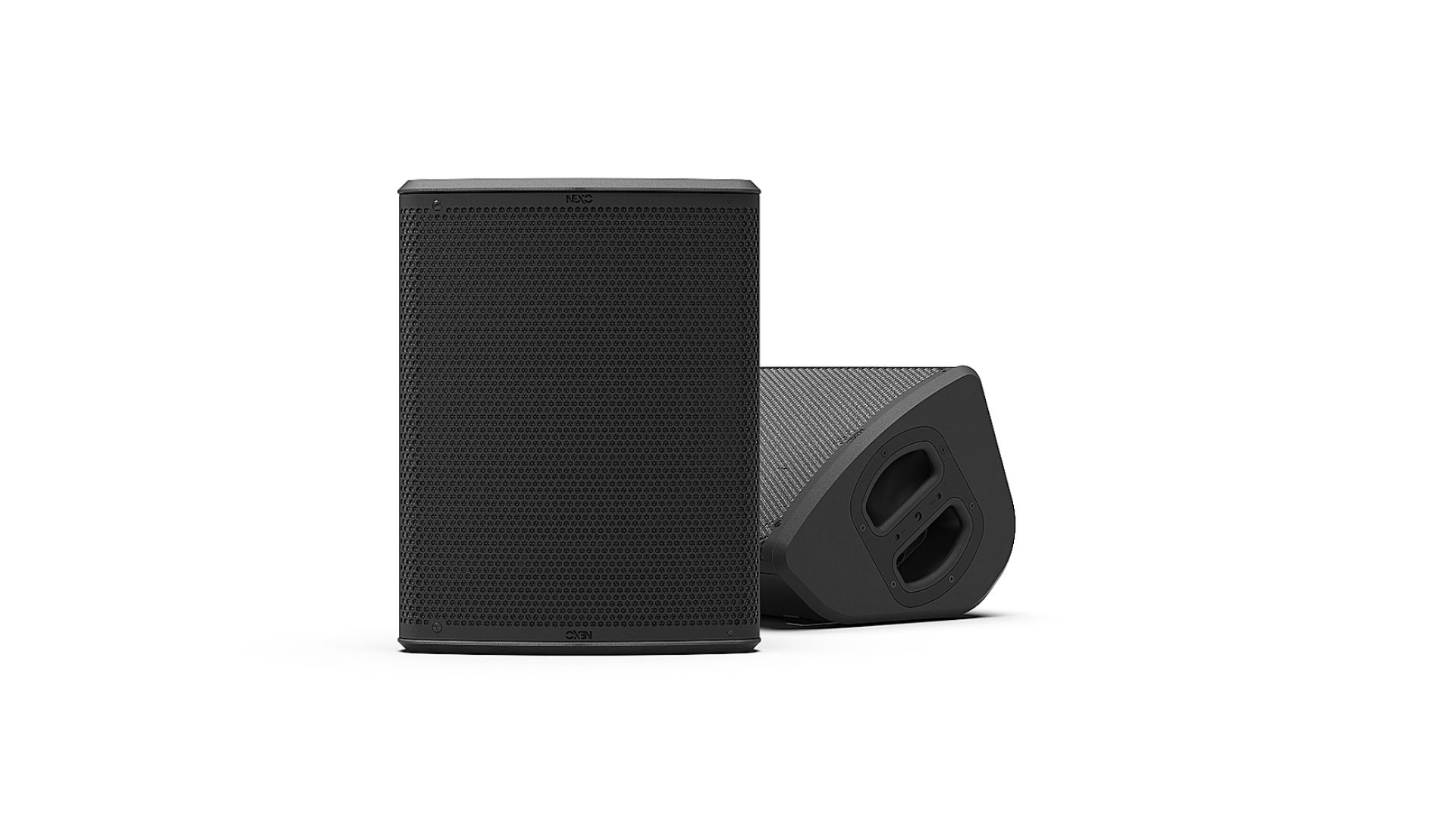

Nexo P8 Speaker
P8
  • Compact, low-profile, curvilinear enclosure
  • 8” LF Neodymium driver and 1.5” diaphragm HF driver in a coaxial configuration
  • Variable HF directivity
  • 129dB peak SPL
  • Threaded inserts on the back and on both sides for connection of mounting accessories
  • Stand fitting on both sides
  • 4x NL4, 4 poles connectors; 2 on the back and 1 on both sides
  • Touring, installation and TIS versions

Enquiry Form

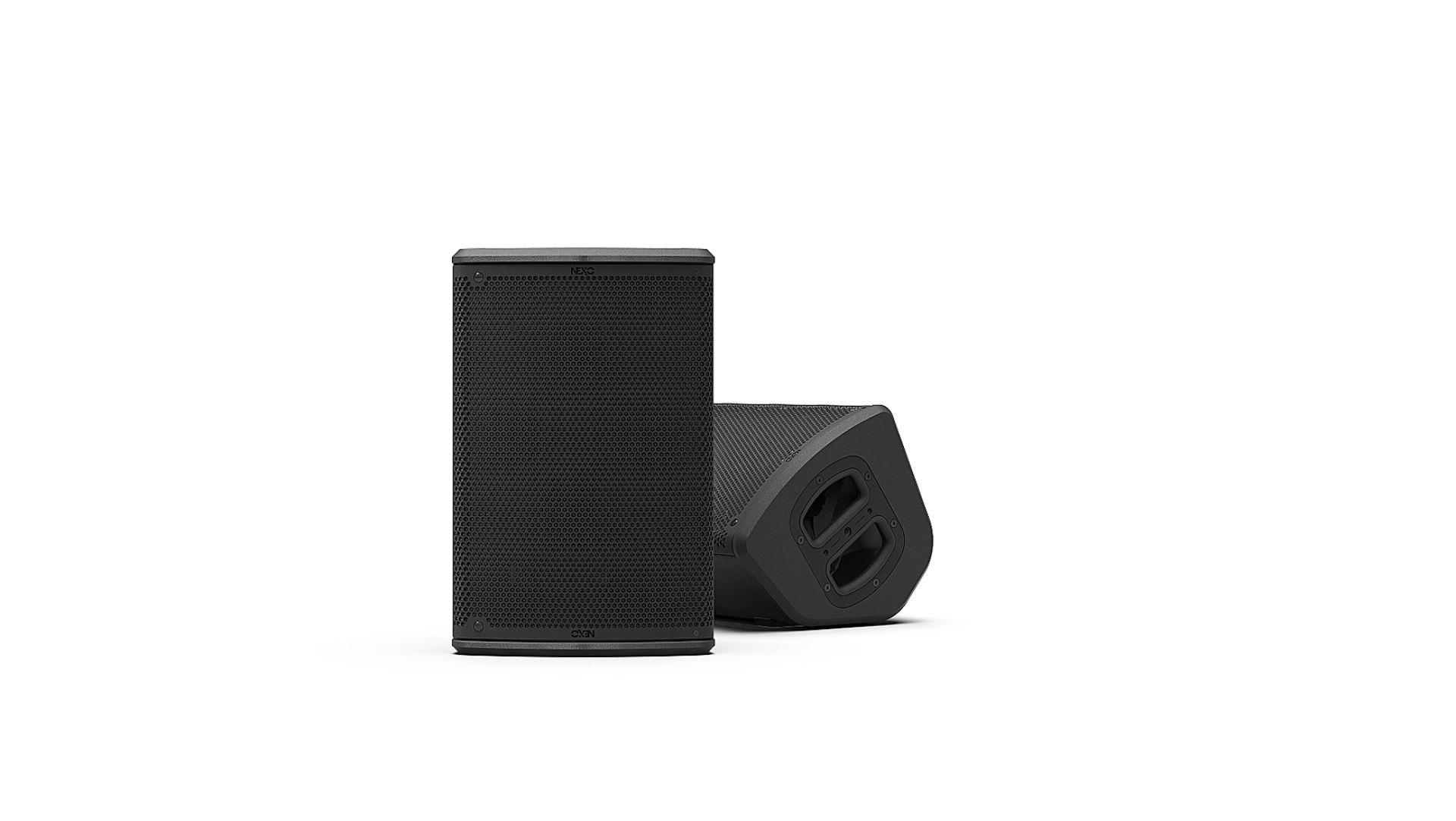

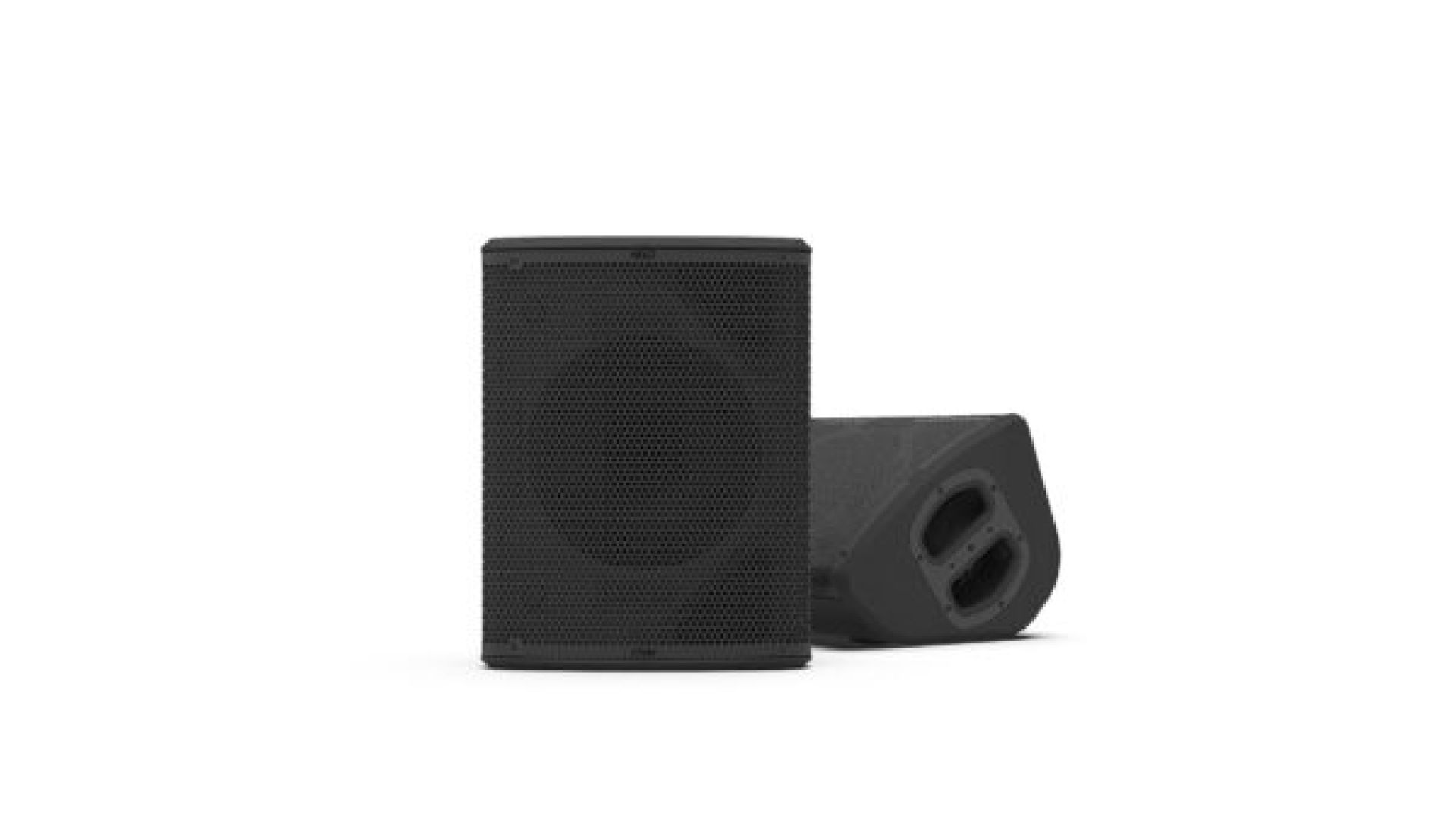

Nexo P10 Speaker
P10
  • Compact, low-profile, curvilinear enclosure
  • 10” LF Neodymium driver and 1.7” diaphragm HF driver in a coaxial configuration
  • Variable HF directivity
  • 136dB peak SPL
  • Threaded inserts on the back and on both sides for connection of mounting accessories
  • Stand fitting on both sides
  • 4x NL4, 4 poles connectors; 2 on the back and 1 on both sides
  • Touring, installation and TIS versions

Enquiry Form

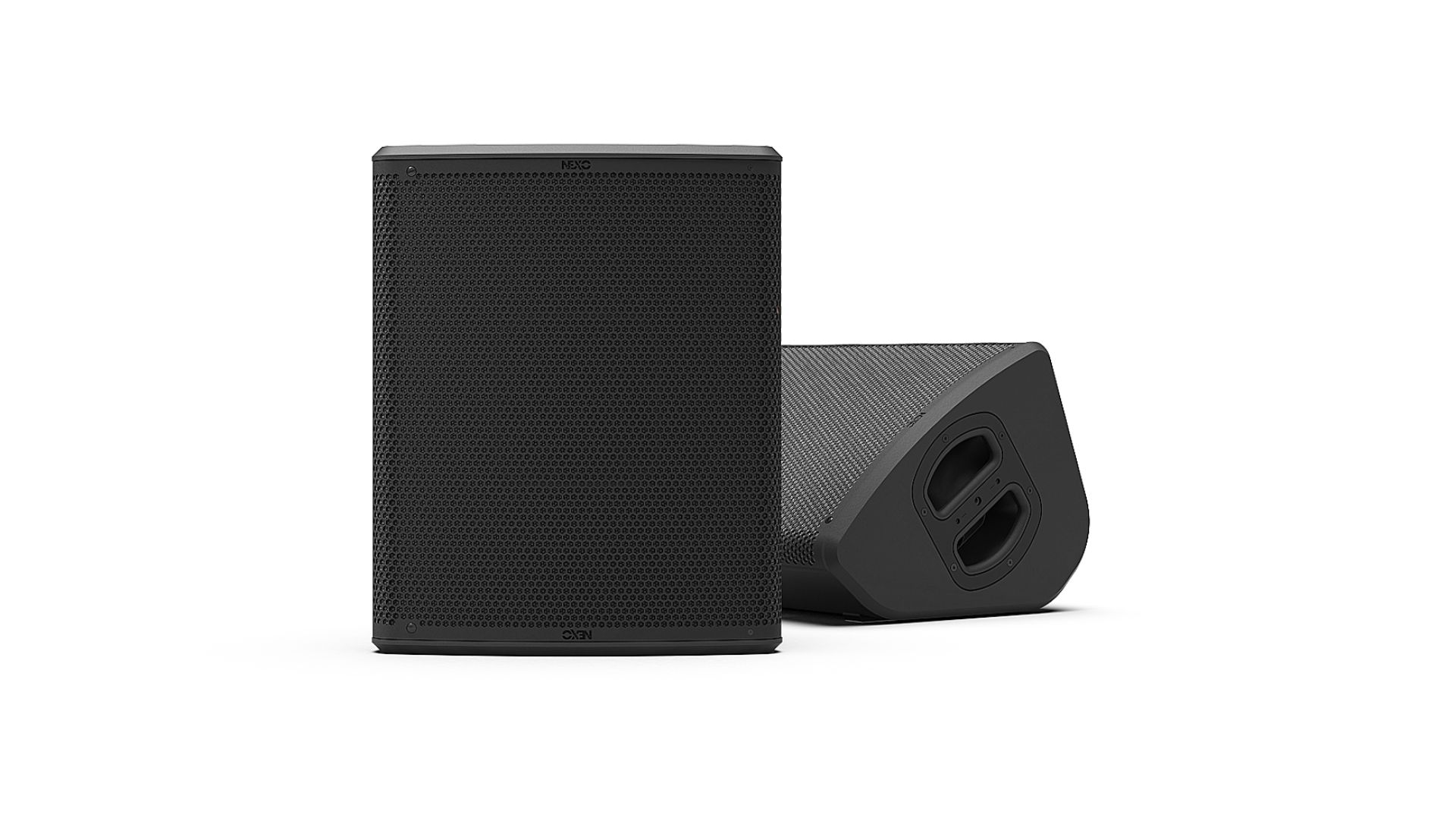

Nexo P12 Speaker
P12
  • Compact, low-profile, curvilinear enclosure
  • 12” LF Neodymium driver and 3” diaphragm HF driver in a coaxial configuration
  • Variable HF directivity
  • Switchable Active/Passive modes
  • 140dB peak SPL (Active Mode)
  • Threaded inserts on the back and on both sides for connection of mounting accessories
  • Stand fitting on both sides
  • 4x NL4, 4 poles connectors; 2 on the back and 1 on both sides
  • Touring, installation and TIS versions

Enquiry Form

Nexo P Plus Series Speakers
P15
  • Compact, low-profile, curvilinear enclosure
  • 15” LF Neodymium driver and 3” diaphragm HF driver in a coaxial configuration
  • Variable HF directivity
  • Switchable Active/Passive modes
  • 141dB peak SPL (Active Mode)
  • Threaded inserts on the back and on both sides for connection of mounting accessories
  • Stand fitting on both sides
  • 4x NL4, 4 poles connectors; 2 on the back and 1 on both sides
  • Touring, installation and TIS versions

Enquiry Form

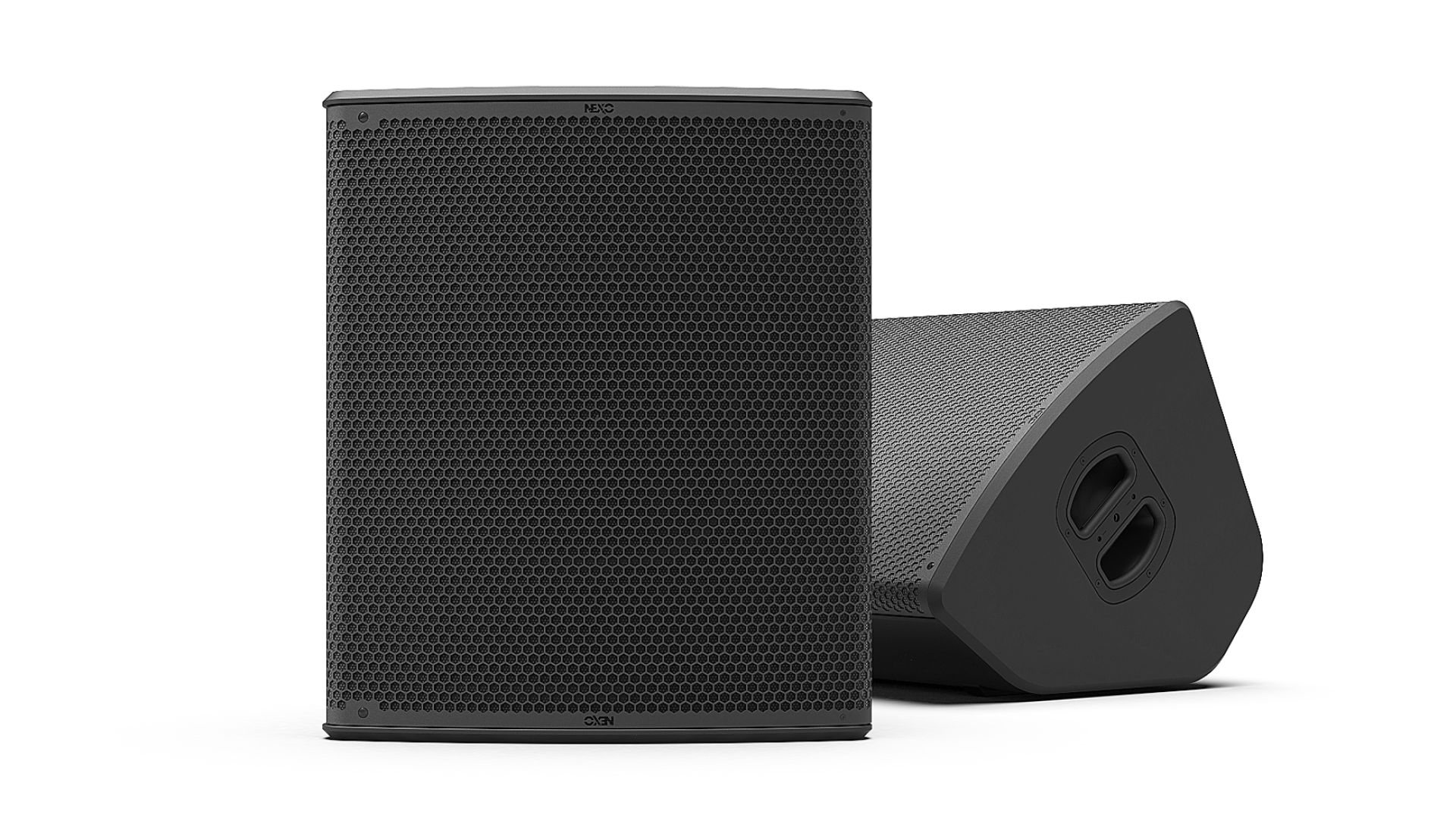

Nexo P18
P18
  • Compact, low-profile, curvilinear enclosure
  • 18” LF Neodymium driver and 4” diaphragm HF driver in a coaxial configuration
  • Variable HF directivity
  • Switchable Active/Passive modes (Touring and TIS versions)
  • 142dB peak SPL (Active Mode)
  • Threaded inserts on the back and on both sides for connection of mounting accessories
  • Stand fitting on both sides
  • 4x NL4, 4 poles connectors; 2 on the back and 1 on both sides
  • Touring, installation and TIS versions

Enquiry Form

Nexo P Plus Series Speakers

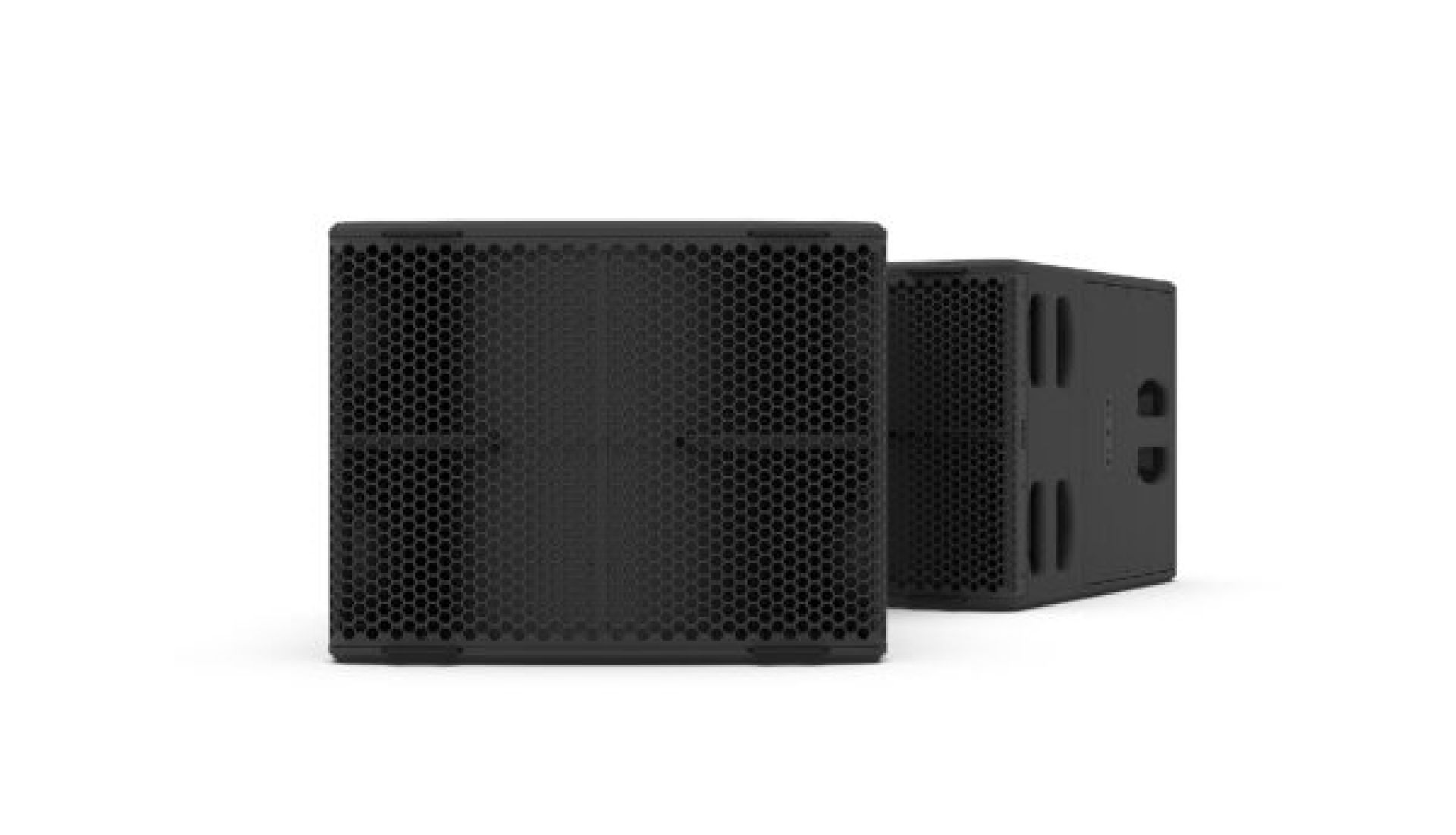

L15
  • Dedicated partner sub for P12 with matching footprint
  • Extends LF performance to 40Hz
  • 139dB peak SPL
  • 1 x 15" long-excusion Neodymium driver
  • Can be deployed in standard and cardioid modes
  • Threaded inserts on the back and on both sides for connection of mounting accessories
  • Standard fitting M20

Enquiry Form

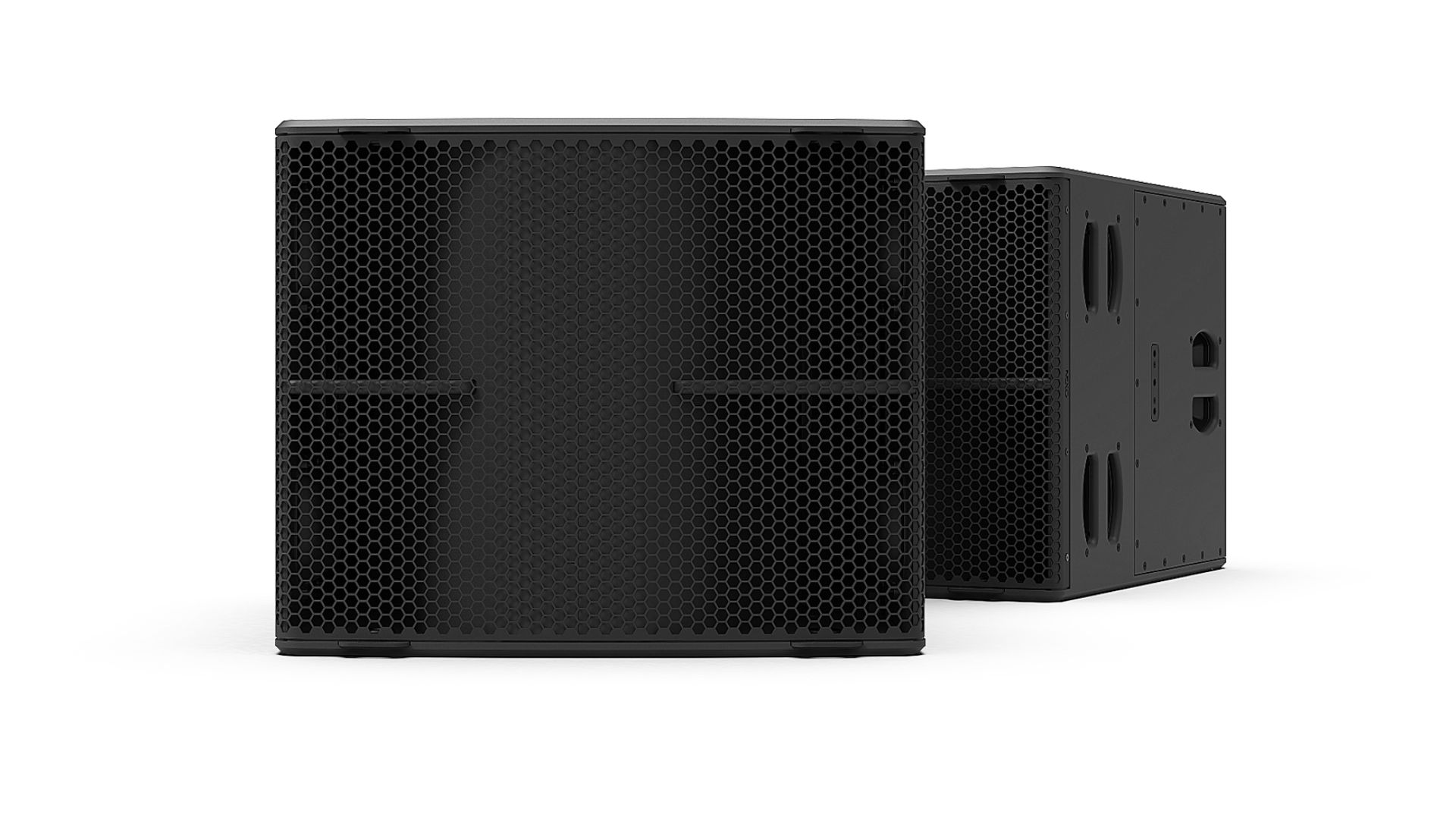

Nexo L18
L18
  • Dedicated partner sub for P15 with matching footprint
  • Extends LF performance to 32Hz
  • 140dB peak SPL
  • Can be deployed in standard and cardioid modes
  • Threaded inserts on the back and on both sides for connection of mounting accessories
  • Standard fitting M20

Enquiry Form

Nexo L18
L20
  • Dedicated partner sub for P18 with matching footprint
  • Extends LF performance to 28Hz
  • 141dB peak SPL
  • Can be deployed in standard and cardioid modes
  • Threaded inserts on the back and on both sides for connection of mounting accessories
  • Standard fitting M20

Enquiry Form

An exciting synergy of sleek good looks and stunning performance, P8, P10, P12, P15 and P18  cabinets employ custom HF/LF drivers in a coaxial configuration to deliver perfect phase alignment, exceptional clarity and a smooth response across the full frequency range.

  • DEDICATED L15, L18 AND L20 SUB BASS CABINETS

    Matching the footprint of the P12, P15 and P18, the L15, L18 and L20 are the perfect partner sub-bass cabinets for the P+ Series, extending LF performance down to 40Hz, 32Hz and 28Hz in a range of FOH and stage monitoring applications, and fixed installations.

    TOURING, INSTALL AND TIS VERSIONS

    P+ Series main cabinets are available in touring, installation or hybrid ‘TIS’ formats. The touring models feature steel grilles and integrated pole mounts on both sides / ends of the cabinet, with Speakon on the sides and rear to ensure tidy wiring in any application. Installation versions feature a fixed cloth-covered grille, universal rigging points on the sides and bottom of the cabinet and 2-core cable for audio input to ensure IP54 protection index. TIS versions feature touring handles and connectivity, with cloth-covered grilles. Install versions can be specified in any RAL colour.

    SMALL THEATRES

    P+ series cabinets are perfectly at home in 100 to 500 seats theaters and performing arts centres, for speech, classical, jazz and pop music styles, in left and right Front of House applications.

    MONITORS, IN-FILLS AND FRONT-FILLS

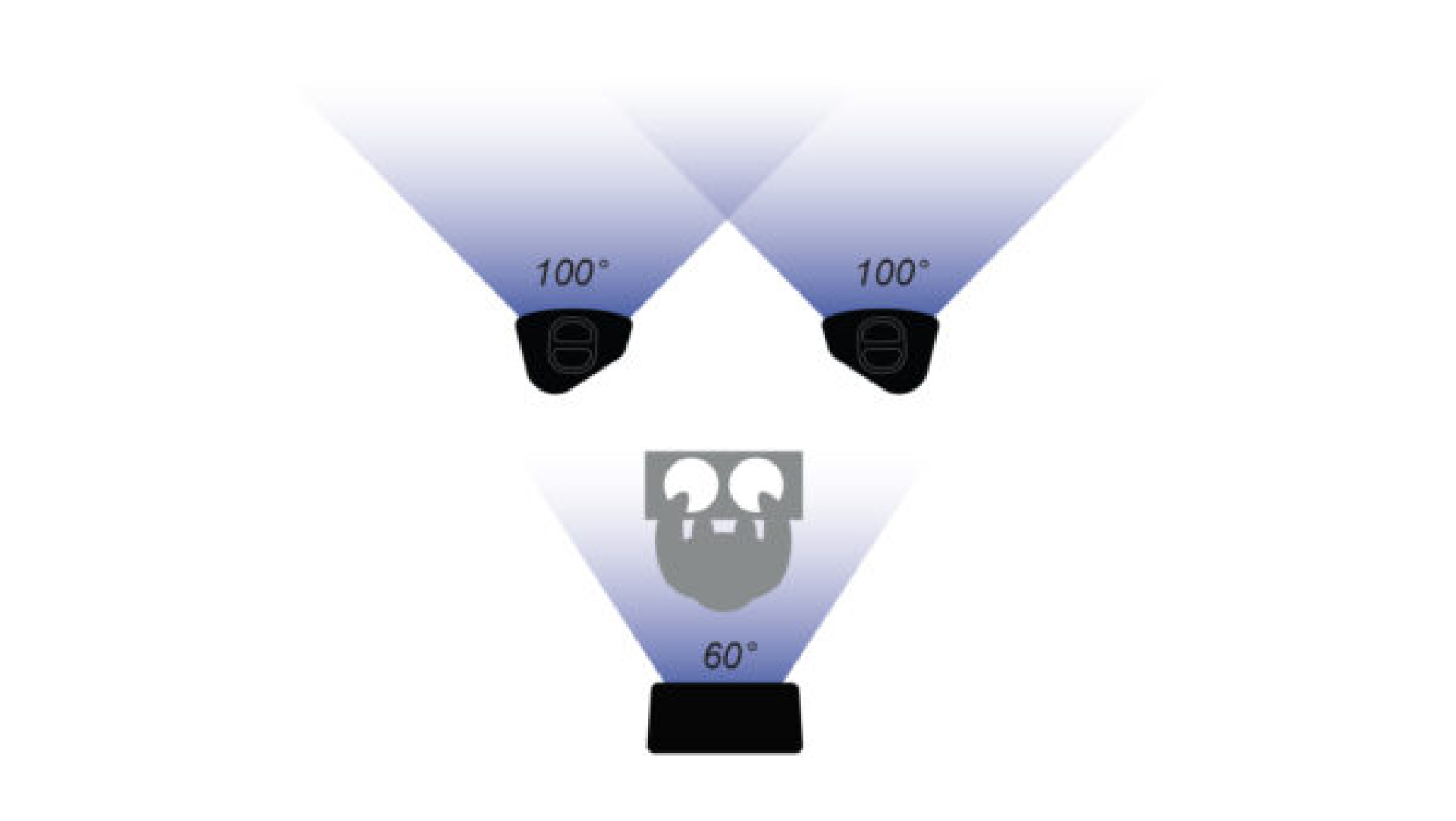

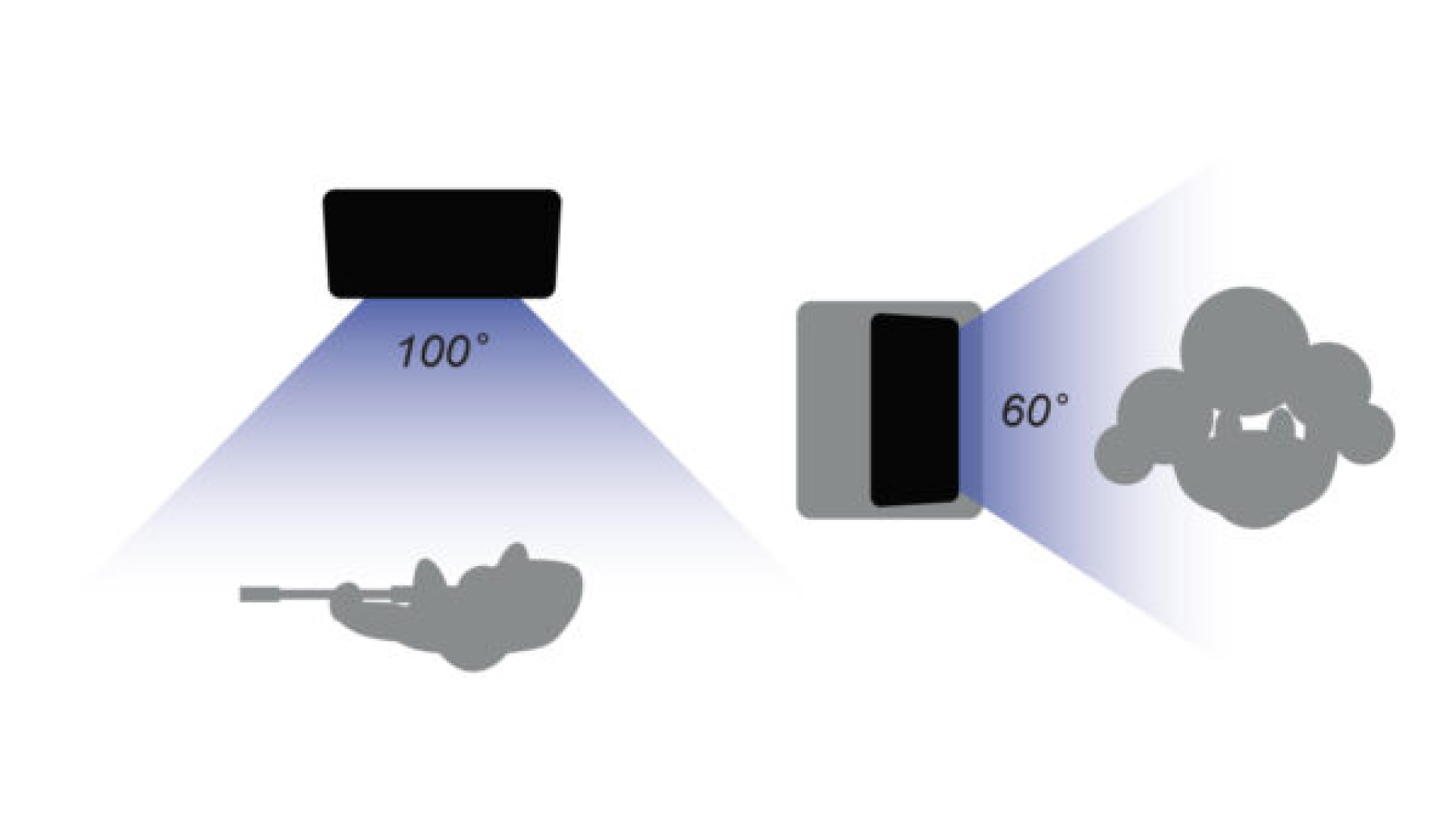

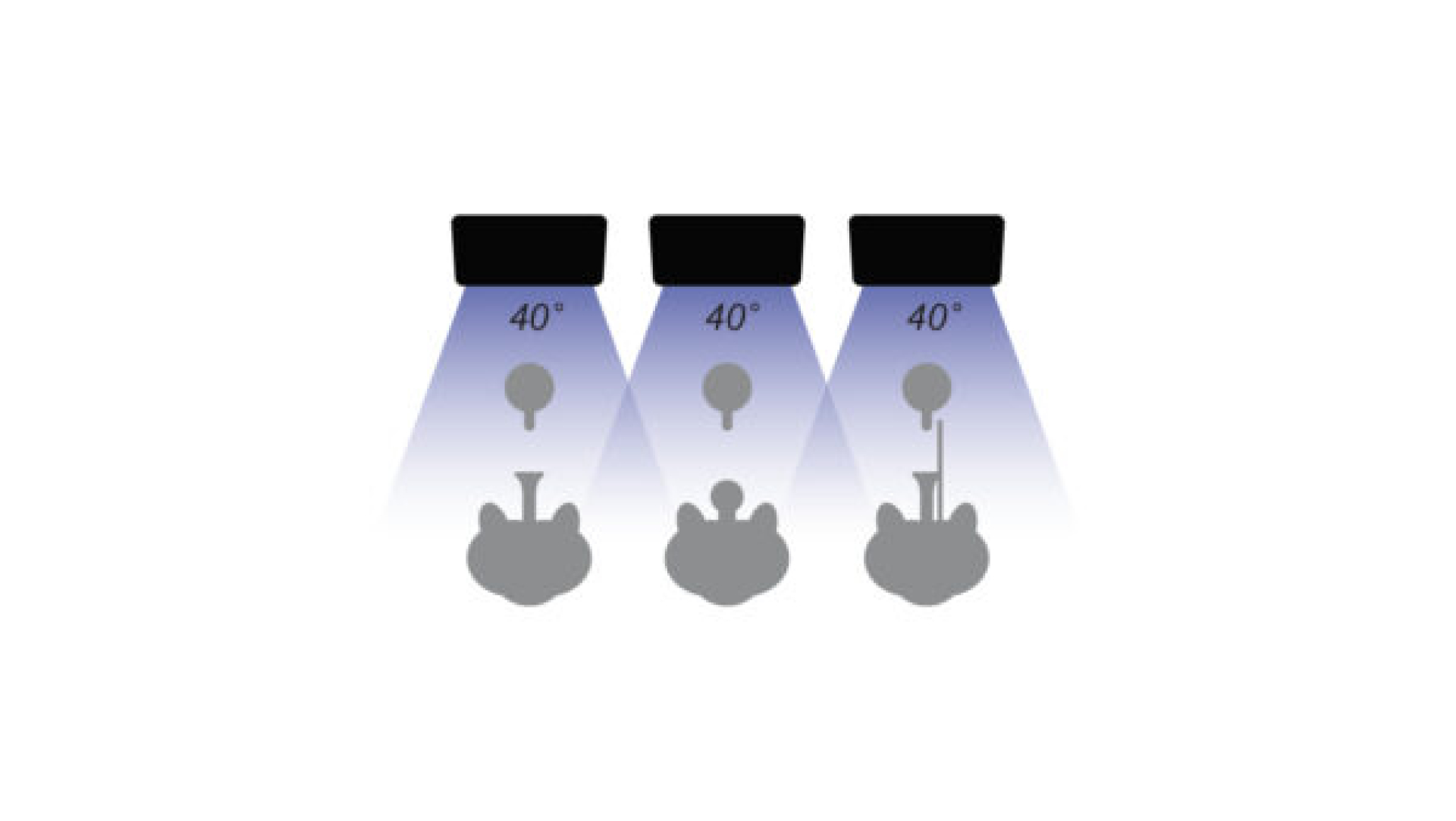

    In larger venues, the P+ Series is ideal for use as stage monitors, in-fills and front-fills with the ability to configure directivity from narrow, to wide H/ narrow V and asymmetrical for a short to mid throw even coverage.

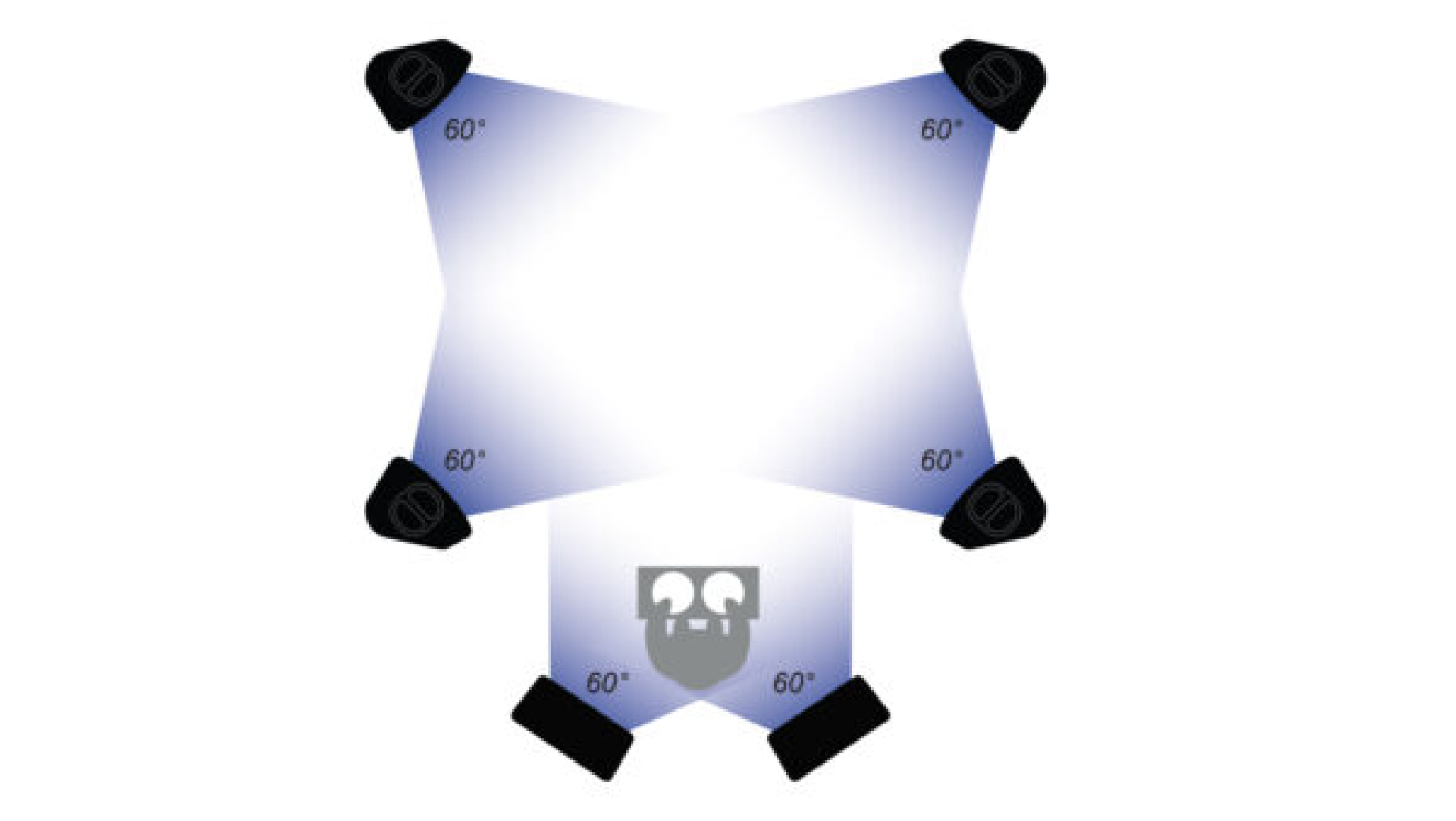

    IMMERSIVE

    When going immersive, P+ Series can be Front of House speakers, for example  L / LC / C / RC / R in a 5.1 system, or surround speakers for much larger Front of House systems such as STM.
