CX80 Pro / CX40 Pro
Novastar CX80 Pro
Novastar CX80 Pro
Novastar CX80 Pro
Novastar CX80 Pro
Novastar CX80 Pro

CX80 Pro / CX40 Pro

Key Features:

  • Cascading control via Ethernet
  • 14Ch Colour Correction
  • Real-time display
Enquire

Enquiry Form

Call us today on

+44 (0)113 255 7666

CX80 Pro / CX40 Pro

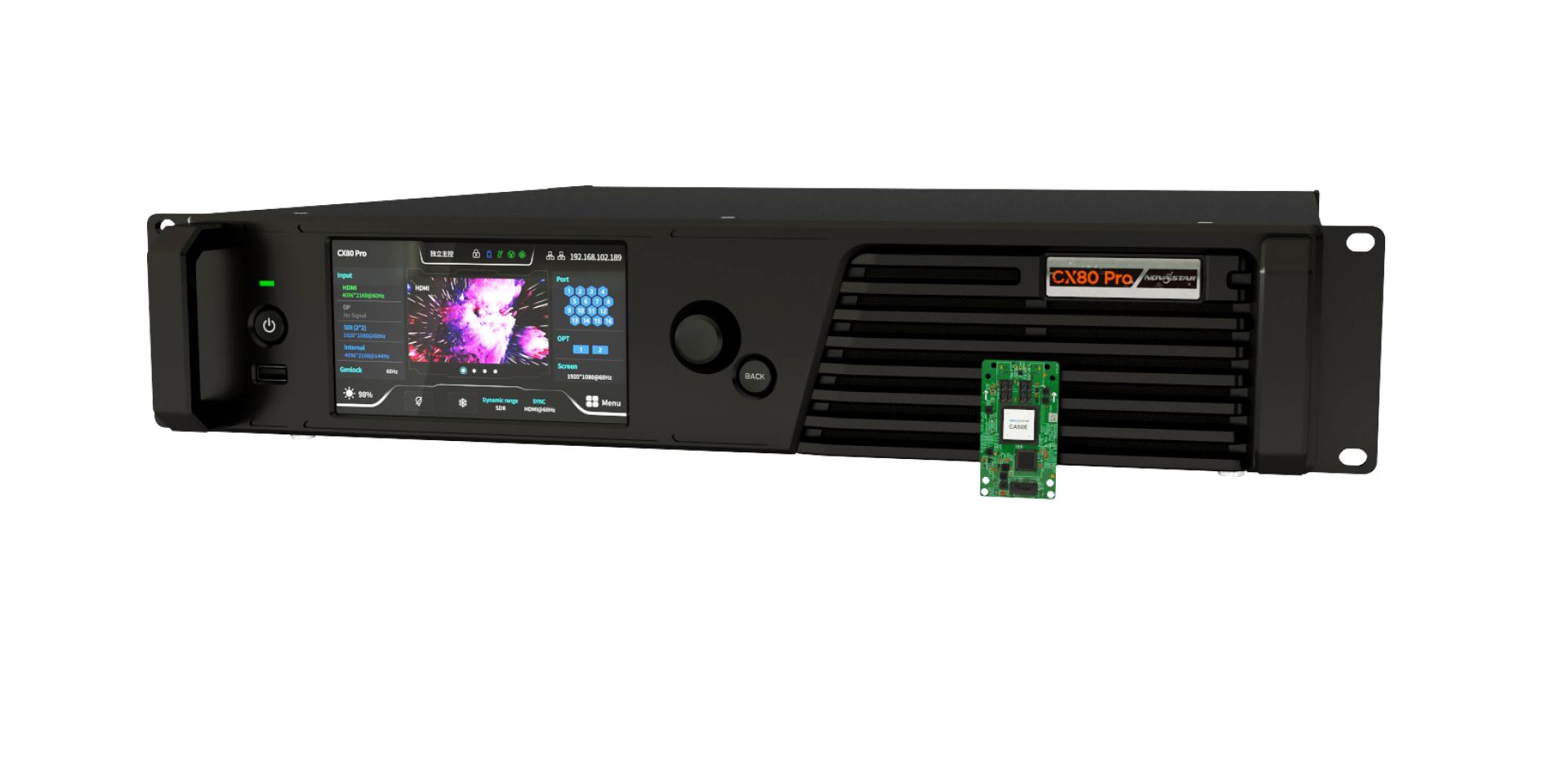

The NovaStar CX80 Pro/ CX40 Pro are 8K & 4K LED display controllers in the brand-new control system COEX series.

Product Variants

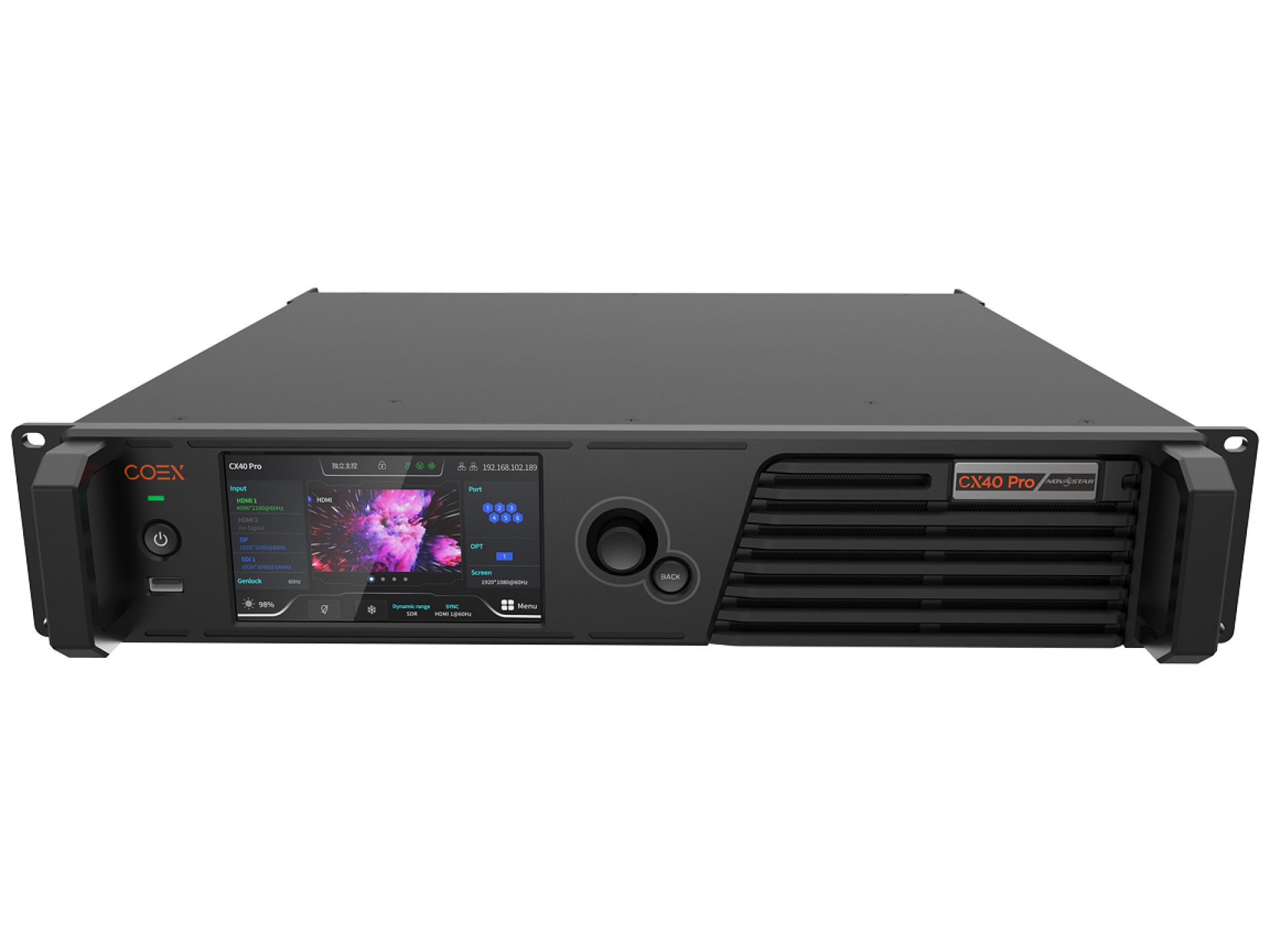

CX40 Pro
  • 4K LED display controller
  • 3 types of inputs: 2x HDMI 2.0 (with loop through)/1x DP 1.2/2x 12G-SDI (with loop through)
  • 3 types of outputs: 6x 5Gbps Ethernet ports/1x 40Gbps optical port/1x SPDIF digital audio port

Enquiry Form

Novastar CX80 Pro

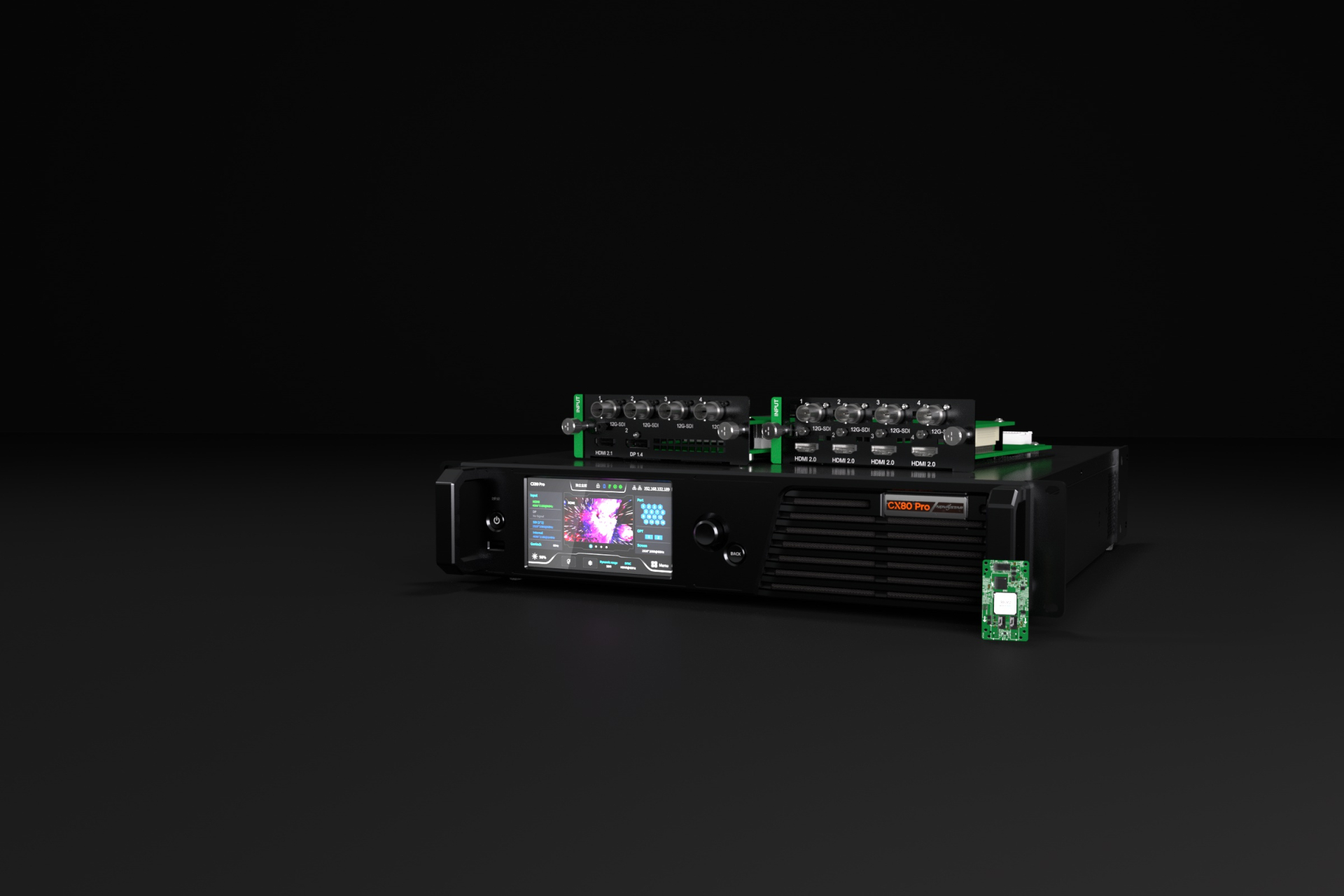

CX80 Pro
  • 8K LED display controller
  • 2 types of pluggable input cards, user configurable
  • − Input card 1 (Max connector capacity: 8K@60Hz) (4x 12G-SDI+1x HDMI 2.1+1x DP 1.4)
  • − Input card 2 (Max connector capacity: 4K@60Hz) (4x 12G-SDI+4x HDMI 2.0)
  • 12G-SDI and HDMI 2.0 support input mosaic.
  • 3 types of outputs: 16x 5Gbps Ethernet ports/2x 40Gbps optical ports/1x SPDIF digital audio port

Enquiry Form

Both controllers offer rich video input connectors and supports 5Gbps output via Ethernet port and 40Gbps remote transmission via optical port. They can also work with the brand-new software VMP (Vision Management Platform) to provide a better operation and control experience.

They both feature a 5.5-inch LCD touchscreen to make user operation and control much easier.

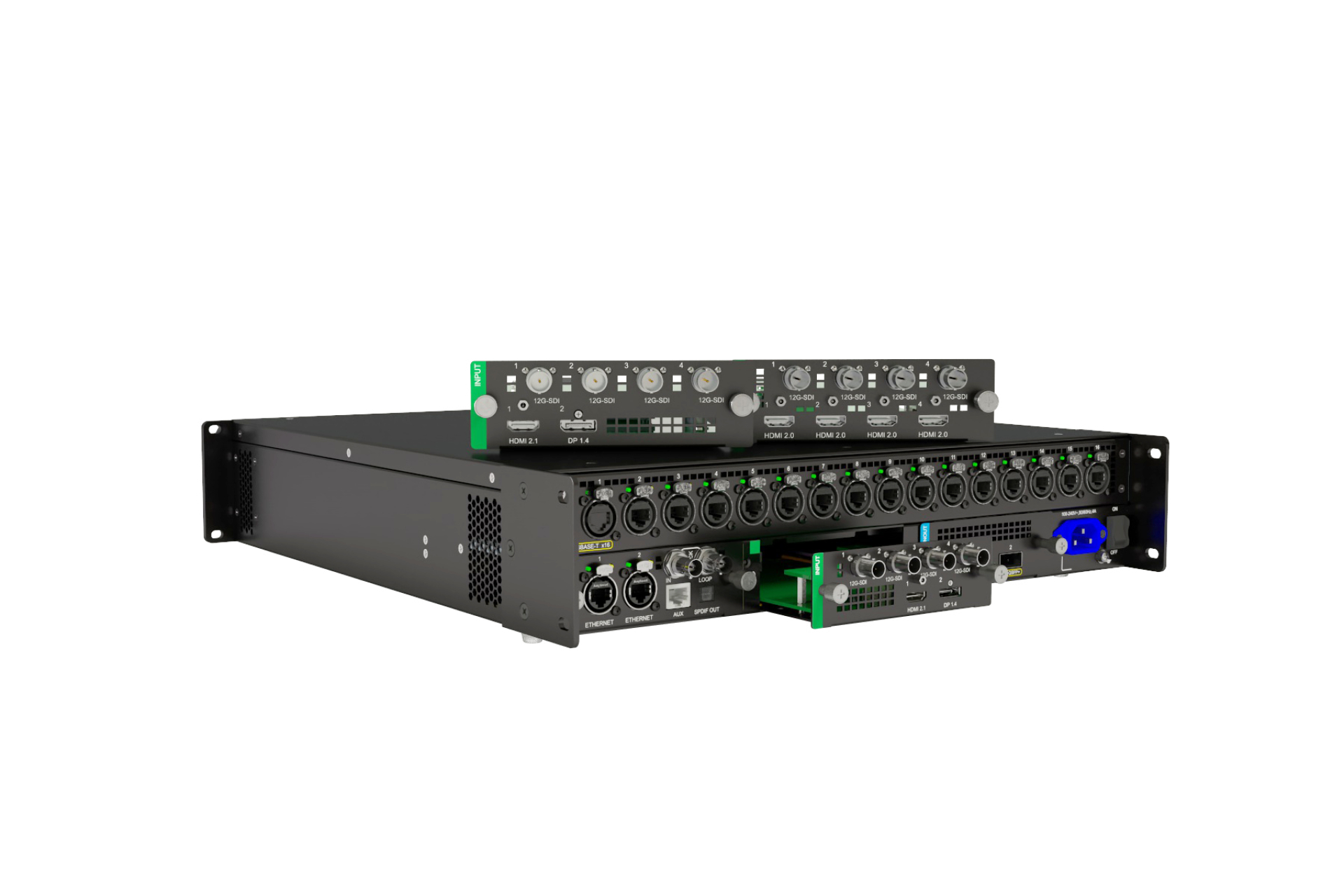

Based on modular design, the CX80 Pro also uses pluggable cards that can be easily replaced and maintained.

  • Image booster

    Dynamic booster

    Full grayscale calibration

    Thermal compensation

    Adaptive frame rate

    Low latency

    12-bit, 10-bit and 8-bit video inputs

    3 types of controls

    − 1x Genlock signal input (with loop through)

    − 2x Ethernet control ports

    − 1x Auxiliary port

CX80 Pro / CX40 Pro - Variant Downloads
CX40 Pro
4K LED display controller
Download
CX80 Pro
8K LED display controller
Download

You might like...

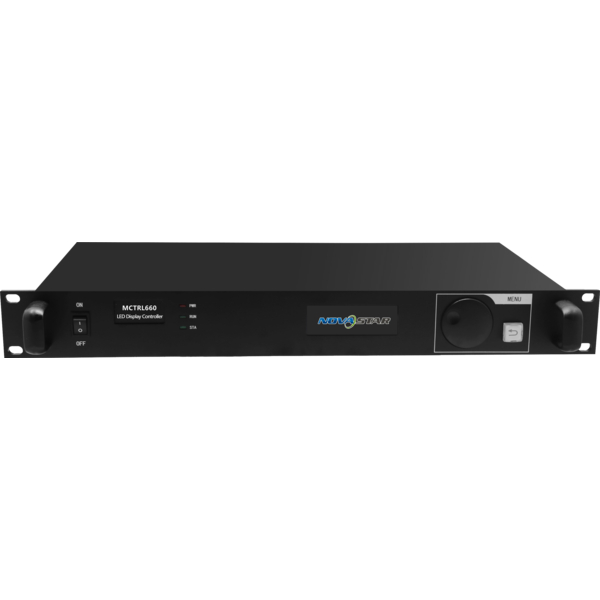

ProLights NovaStar MCTRL660
