H Series Video Splicing Processors

Key Features:

  • Fine grayscale
  • More realistic color
  • Higher contrast ratio
Enquire

Enquiry Form

Call us today on

+44 (0)113 255 7666

H Series Video Splicing Processors

H Series is NovaStar’s flagship all-in-one video splicing processor, designed specifically for fine-pitch LED applications.

Product Variants

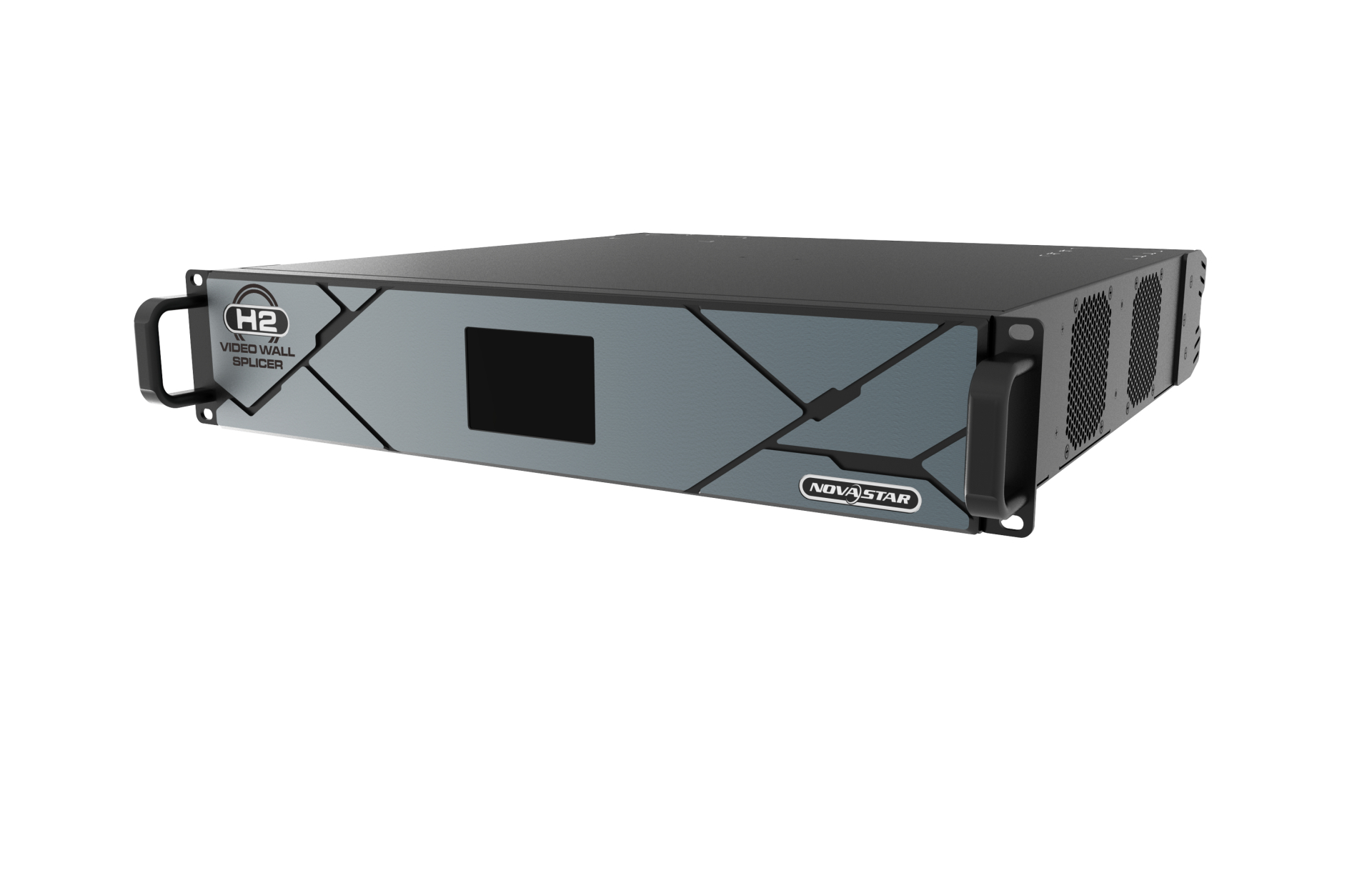

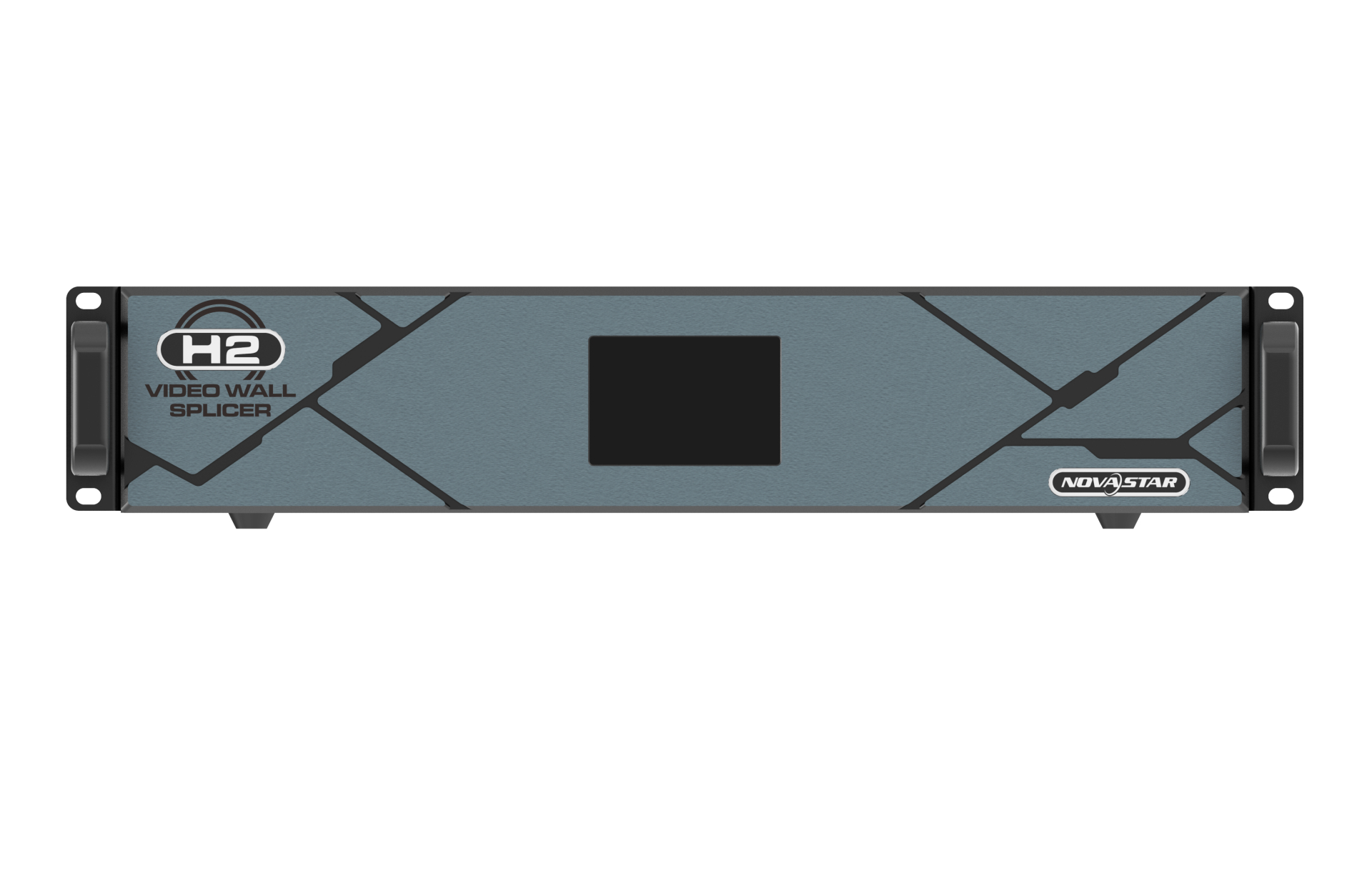

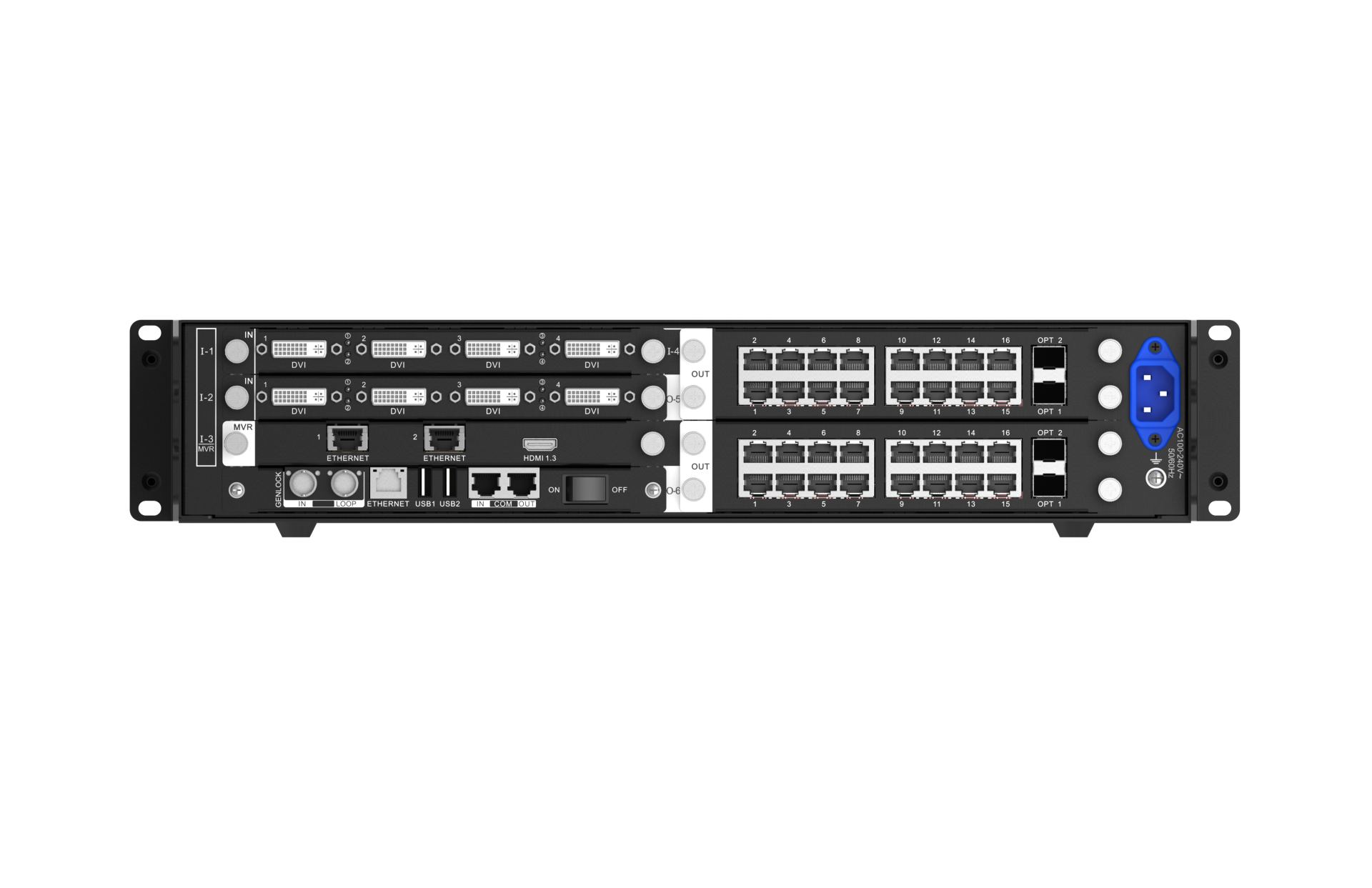

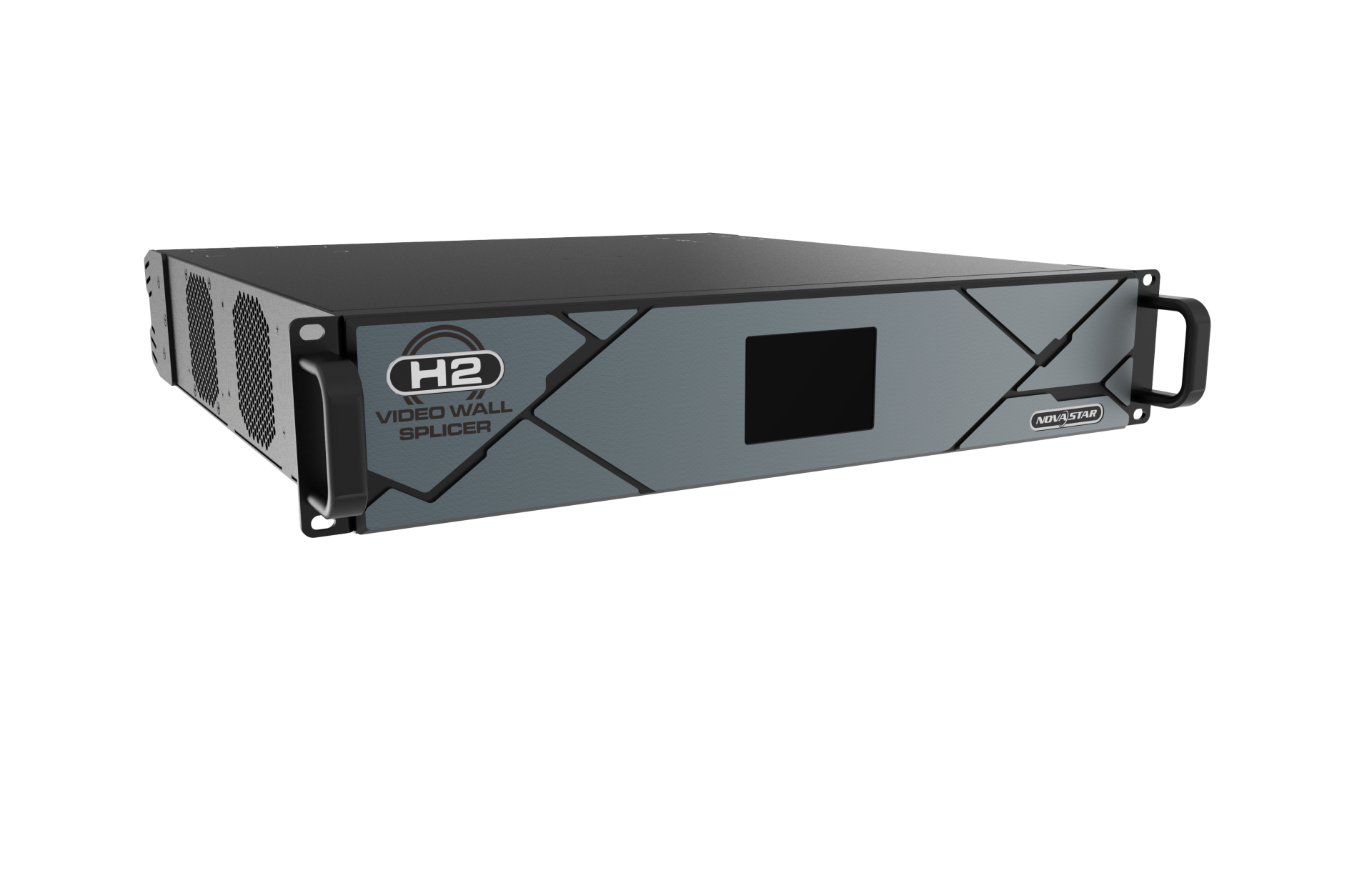

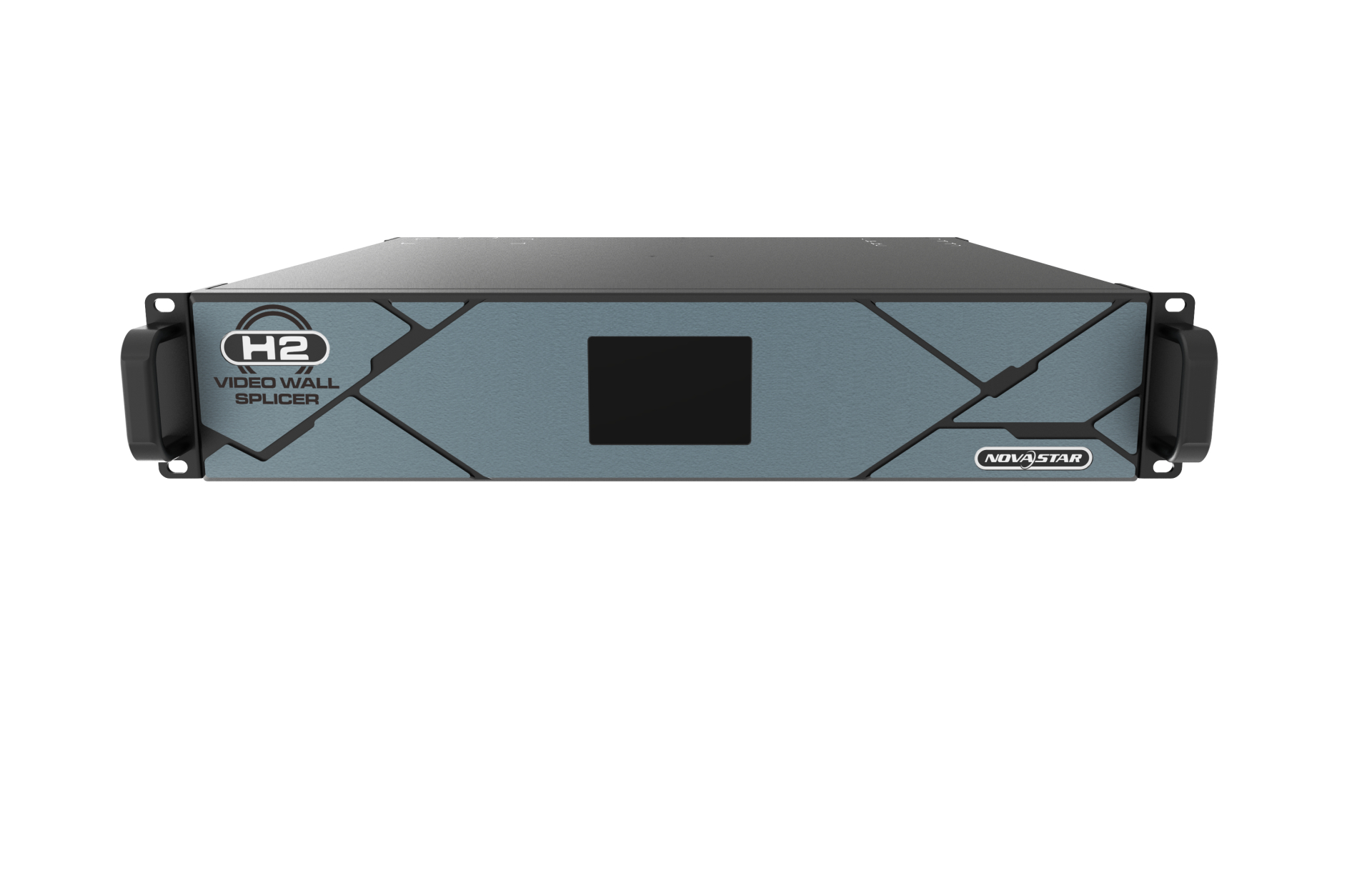

H2
  • Chassis - 2U
  • Max, Loading Capacity (LED 4K Sending Card) - 26 million pixels
  • Max Input Cards - 4
  • Max 4K Sending Cards - 2

Enquiry Form

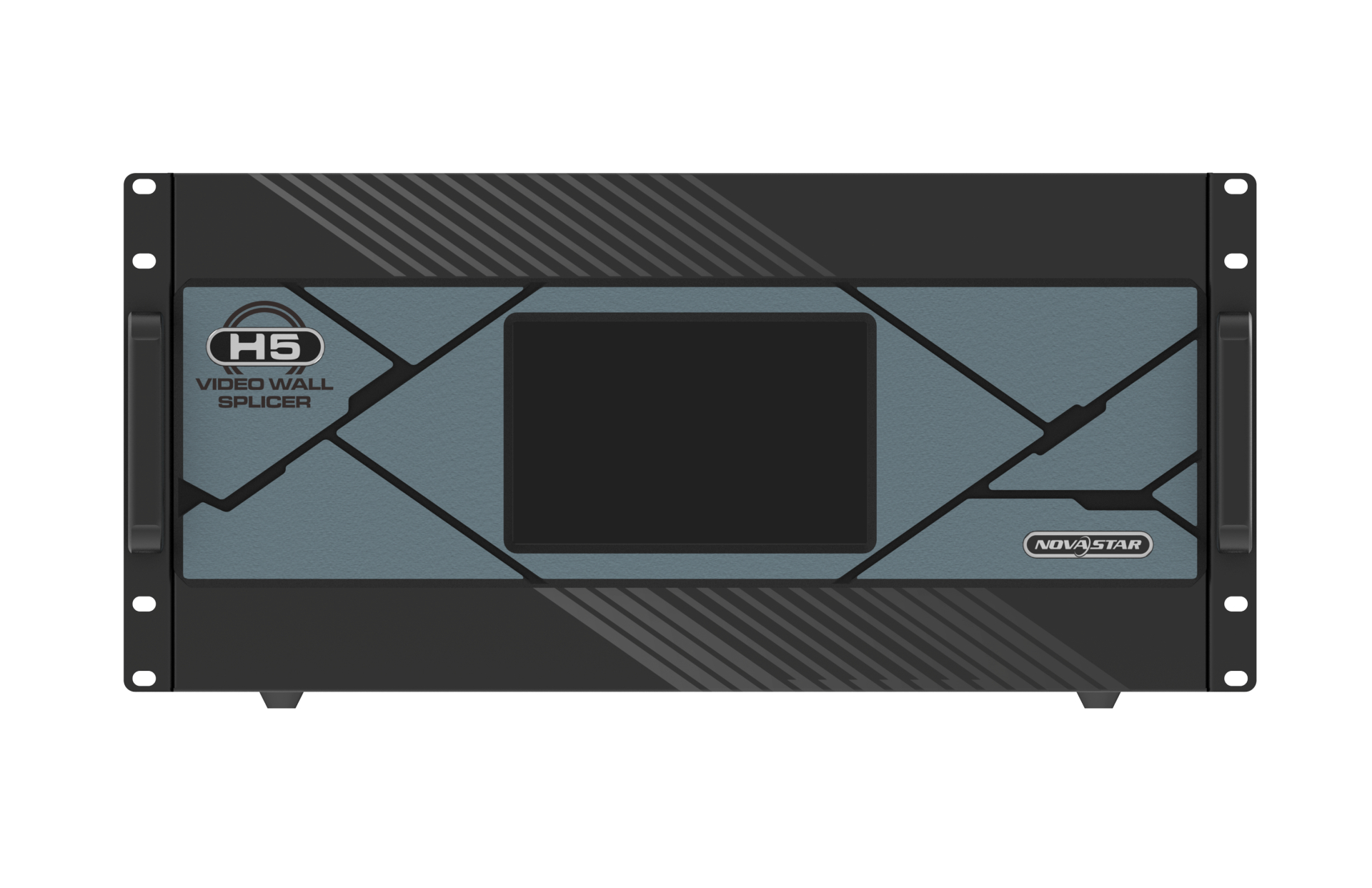

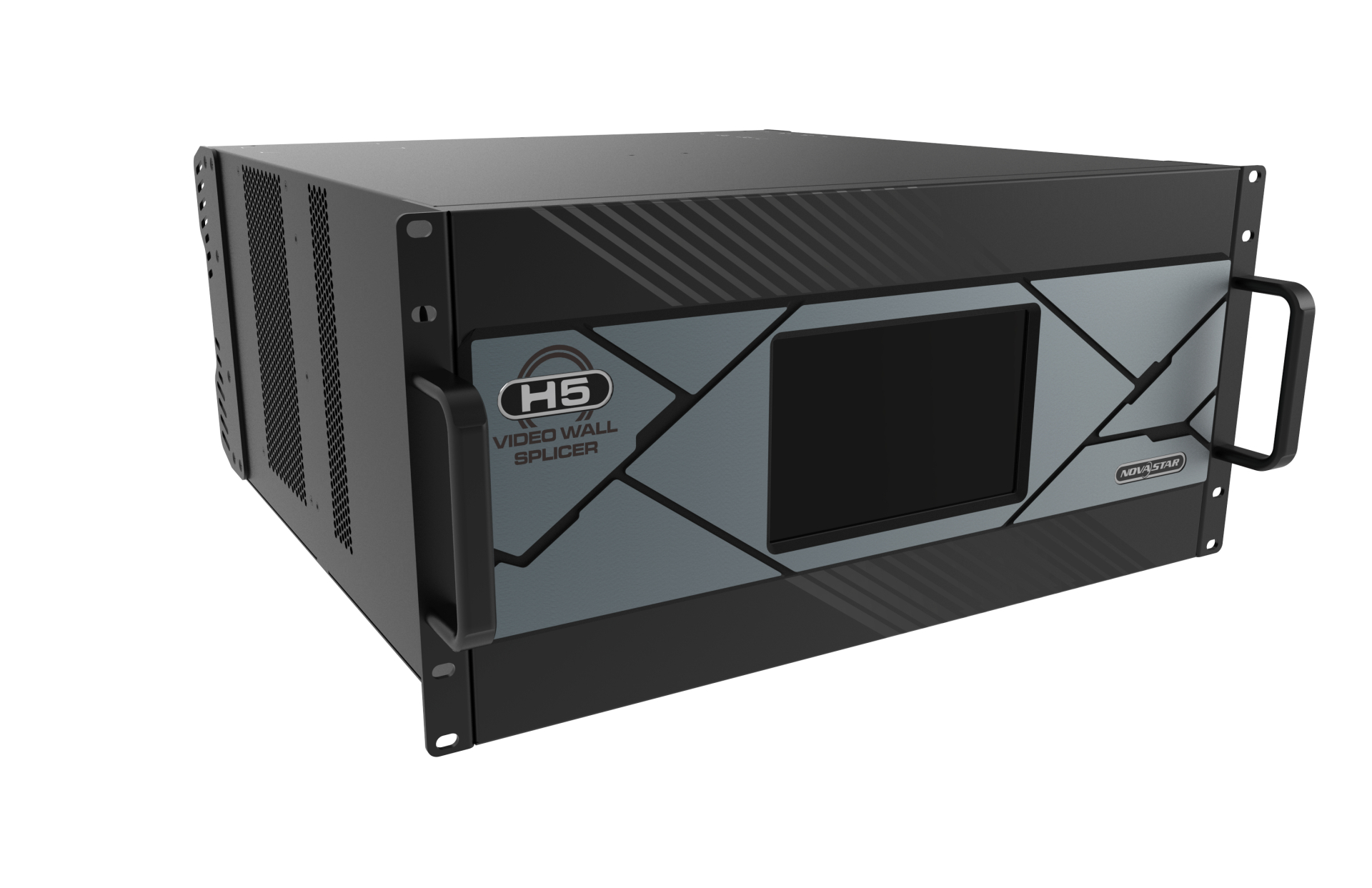

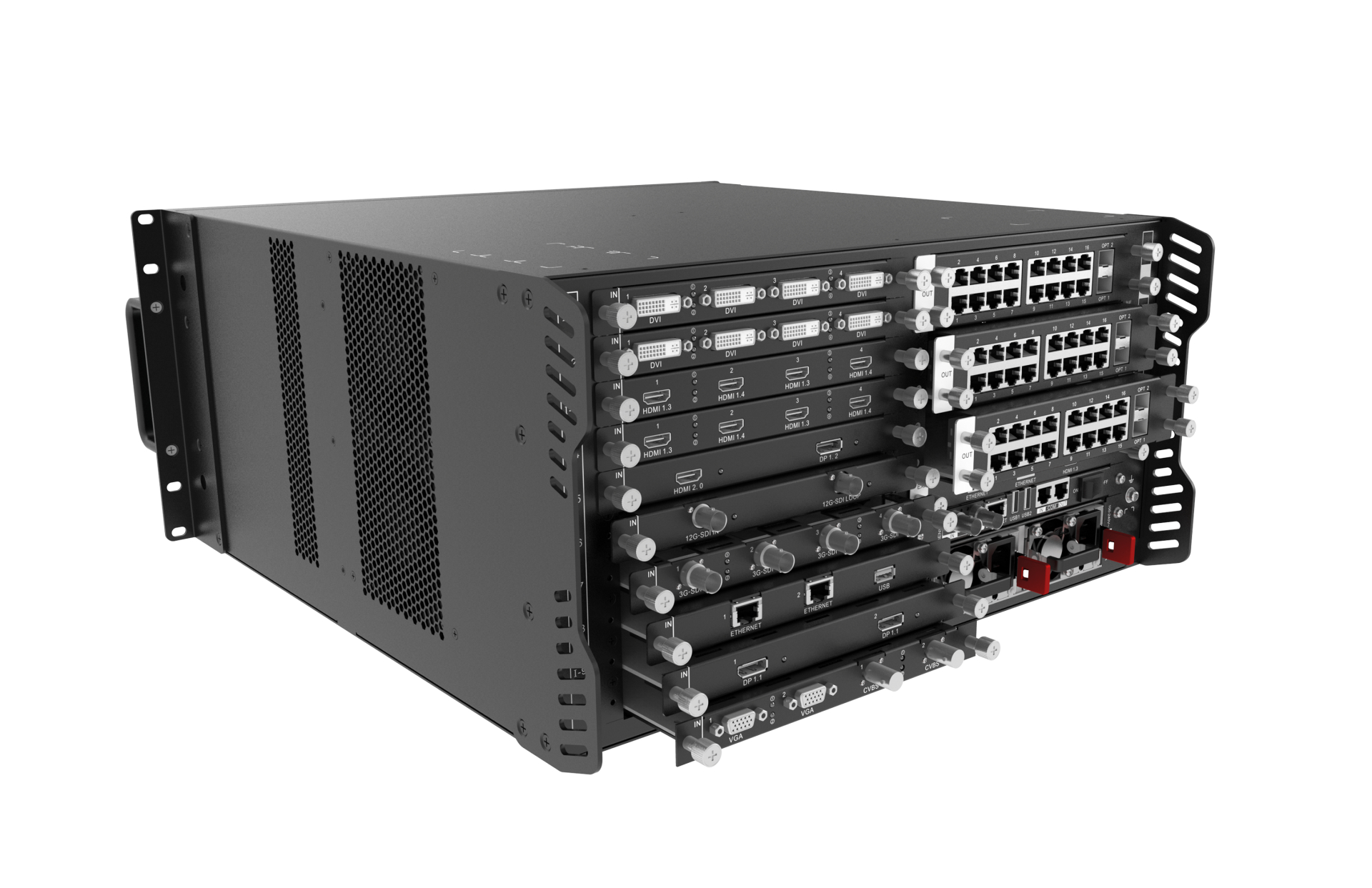

H5
  • Chassis - 5U
  • Max, Loading Capacity (LED 4K Sending Card) - 39 million pixels
  • Max Input Cards - 10
  • Max 4K Sending Cards - 3

Enquiry Form

H9
  • Chassis - 9U
  • Max, Loading Capacity (LED 4K Sending Card) - 65 million pixels
  • Max Input Cards - 15
  • Max 4K Sending Cards - 5

Enquiry Form

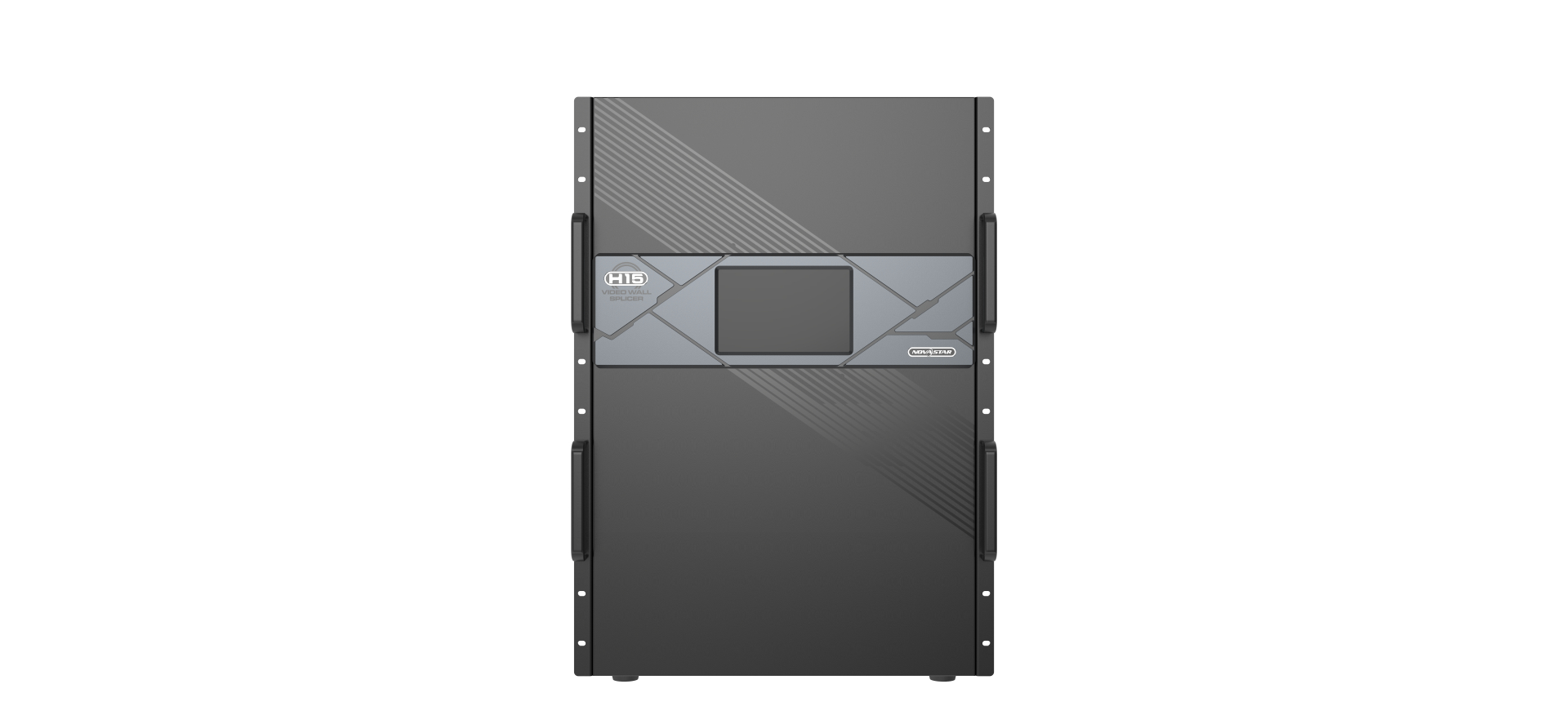

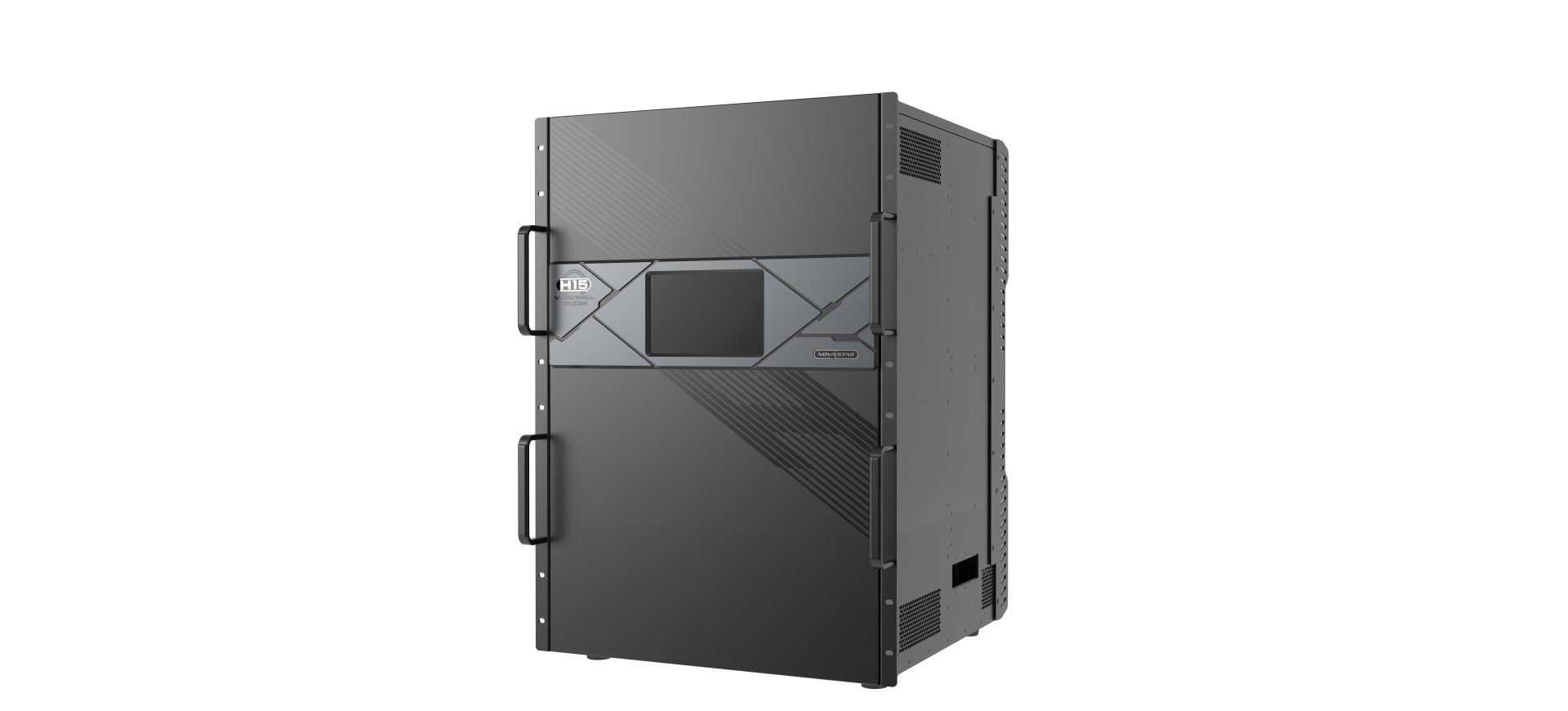

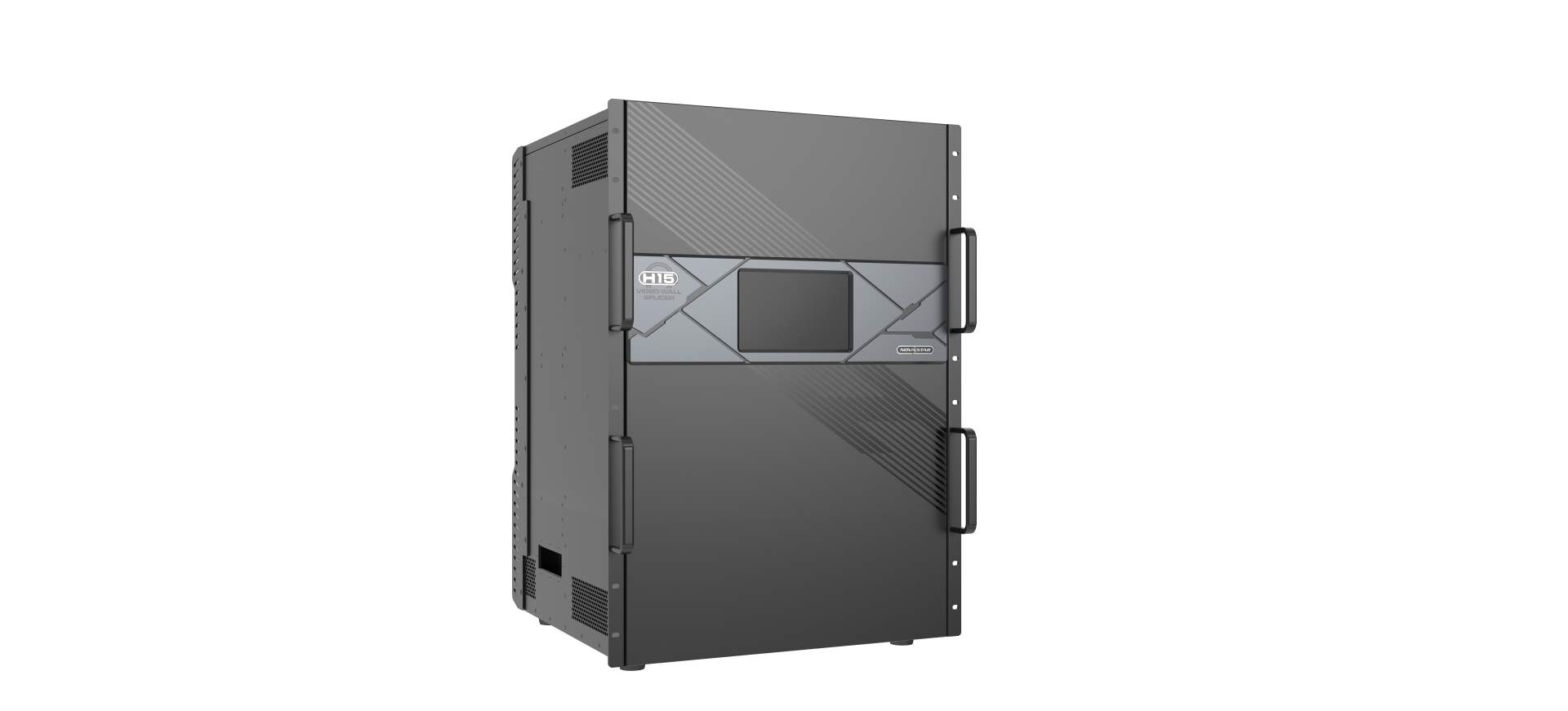

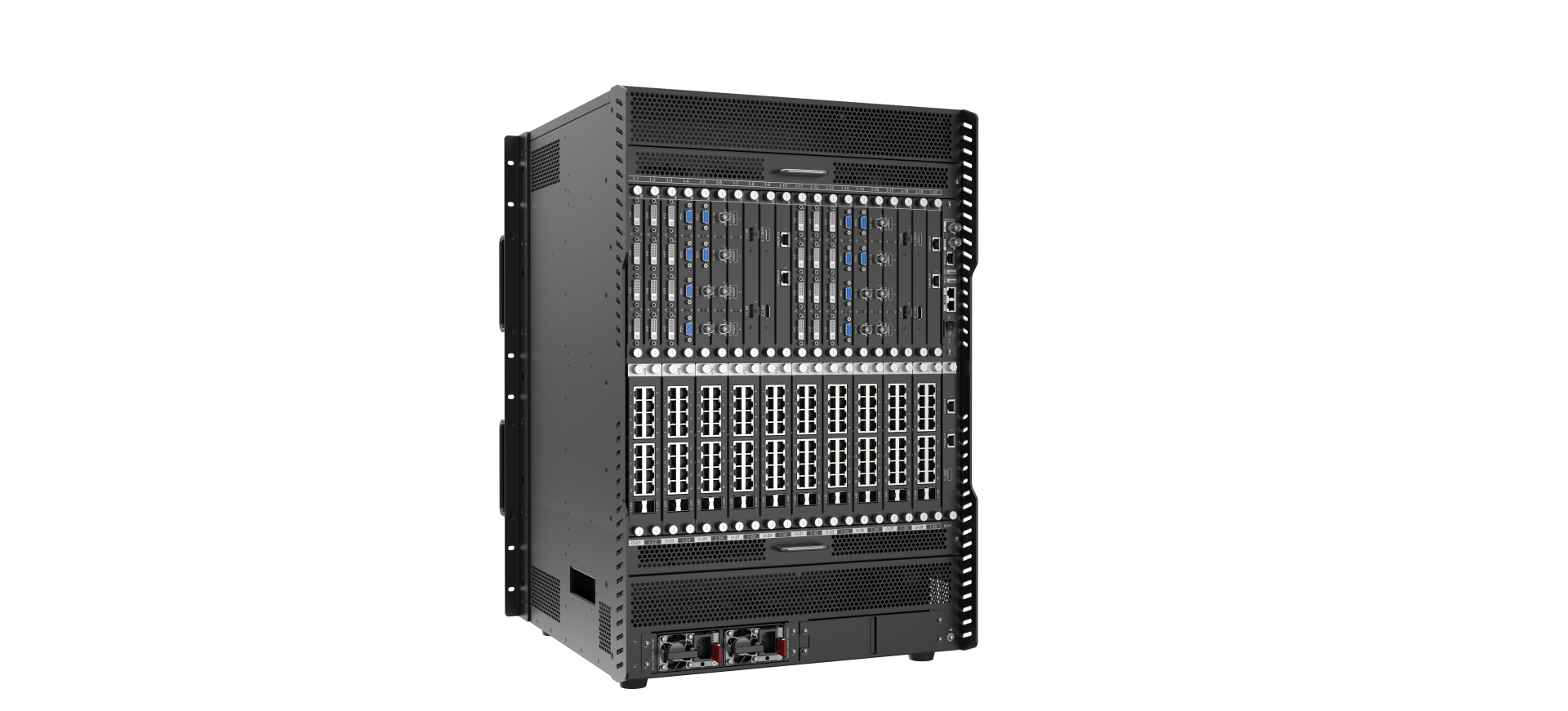

H15
  • Chassis - 15U
  • Max, Loading Capacity (LED 4K Sending Card) - 208 million pixels
  • Max Input Cards - 30
  • Max 4K Sending Cards - 10

Enquiry Form

It is the first All-in-One splicer and controller in the industry, which greatly simplifies system integration. Utilizing module mainframe connectivity, the H series integrates splice processing and display control to achieve true All-in-One, simplifying system interconnection structure for the user.

The H series supports numerous layers with an unrestricted arrangement, with each output daughterboard providing up to 16 layers per port. The layers can freely cross different output loading areas while keeping layer size the same. Layers can be in any position, overlapped, or unlimited scaled. It supports functions such as image capture, layer configuration, layer flip, and more.

H Series achieves true 4K (4K x 2K@60Hz, RGB 4:4:4, 10bit) signal collection, processing, and output. It can be configured with DP1.2, HDMI2.0, or other high-definition 4K daughterboards to realize ultra-high-resolution display. Input and output signal support full 60FPS smooth processing without lag or frame loss, fully showcasing the details of the image.

  • Hot plugs for inputs and outputs and smart data recovery functions provide safety, stability, and convenient operation.

    An industrial-grade redundant power module ensures stable operation for the course of your entire application.

    Super stability, multiple safeguards for peace of mind

    Supports 3D Display

    Supports EDID and sequence management

    Supports BKG and OSD layers

    Supports special shaped splicing

    Supports input monitoring and output display readback

    Supports web and mobile control

H Series Video Splicing Processors - Variant Downloads
H2
Chassis - 2U
Download
H5
Chassis - 5U
Download
H9
Chassis - 9U
Download
H15
Chassis - 15U
Download
