The ArcSpot FC series are IP66 full colour dynamic spot lights, designed for exterior lighting of landscapes, trees, architectural features and facades.
Product Variants

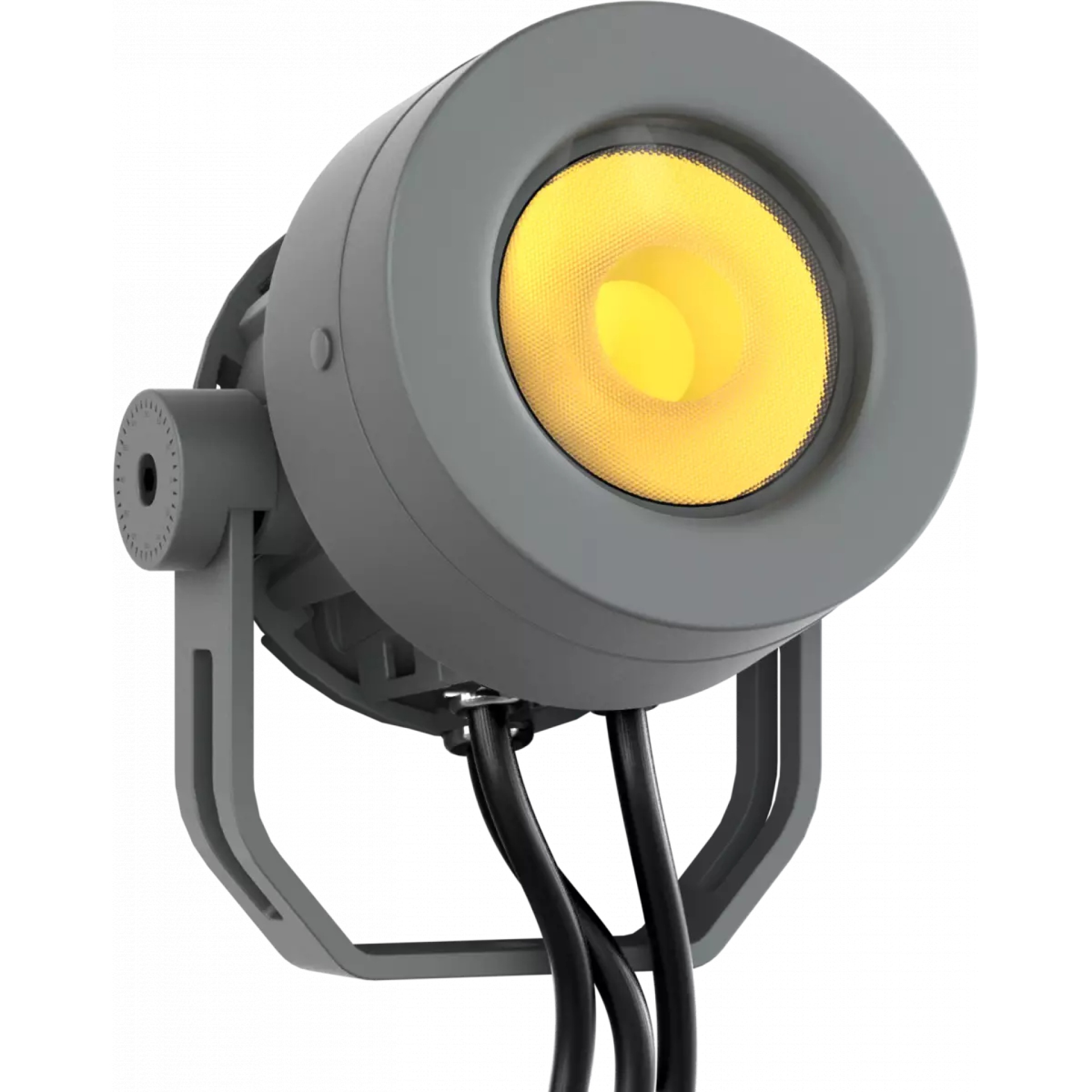

ArcSpot DOTFC
1 x 20W RGB + Warm White LED
Luminous flux: 592 @ full
Lux: 699lx @ 5m full
Enquiry Form

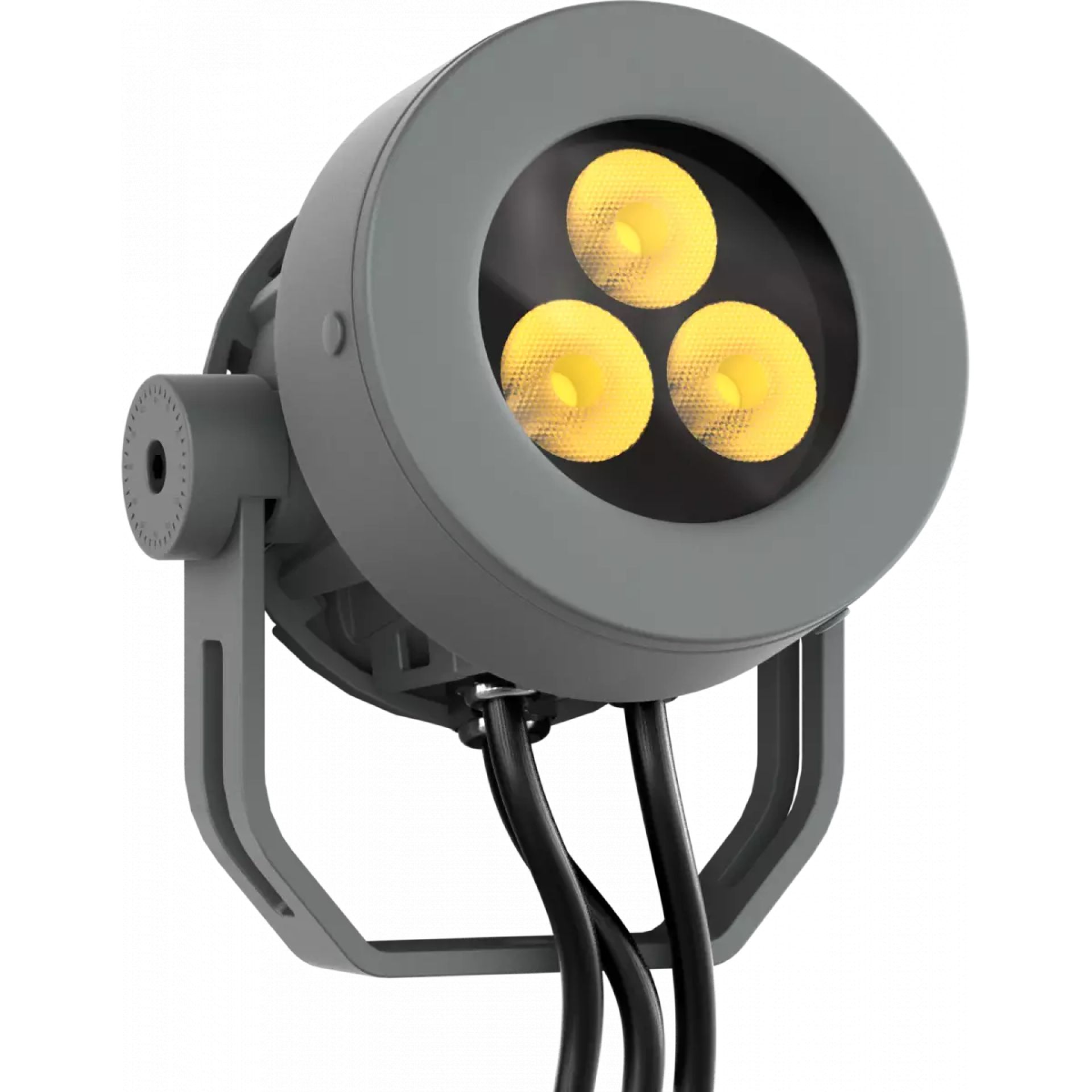

ArcSpot XSFC
3 x 4W RGB + Warm White LED
Luminous flux: 601 @ full
Lux: 458lx @ 5m full
Enquiry Form

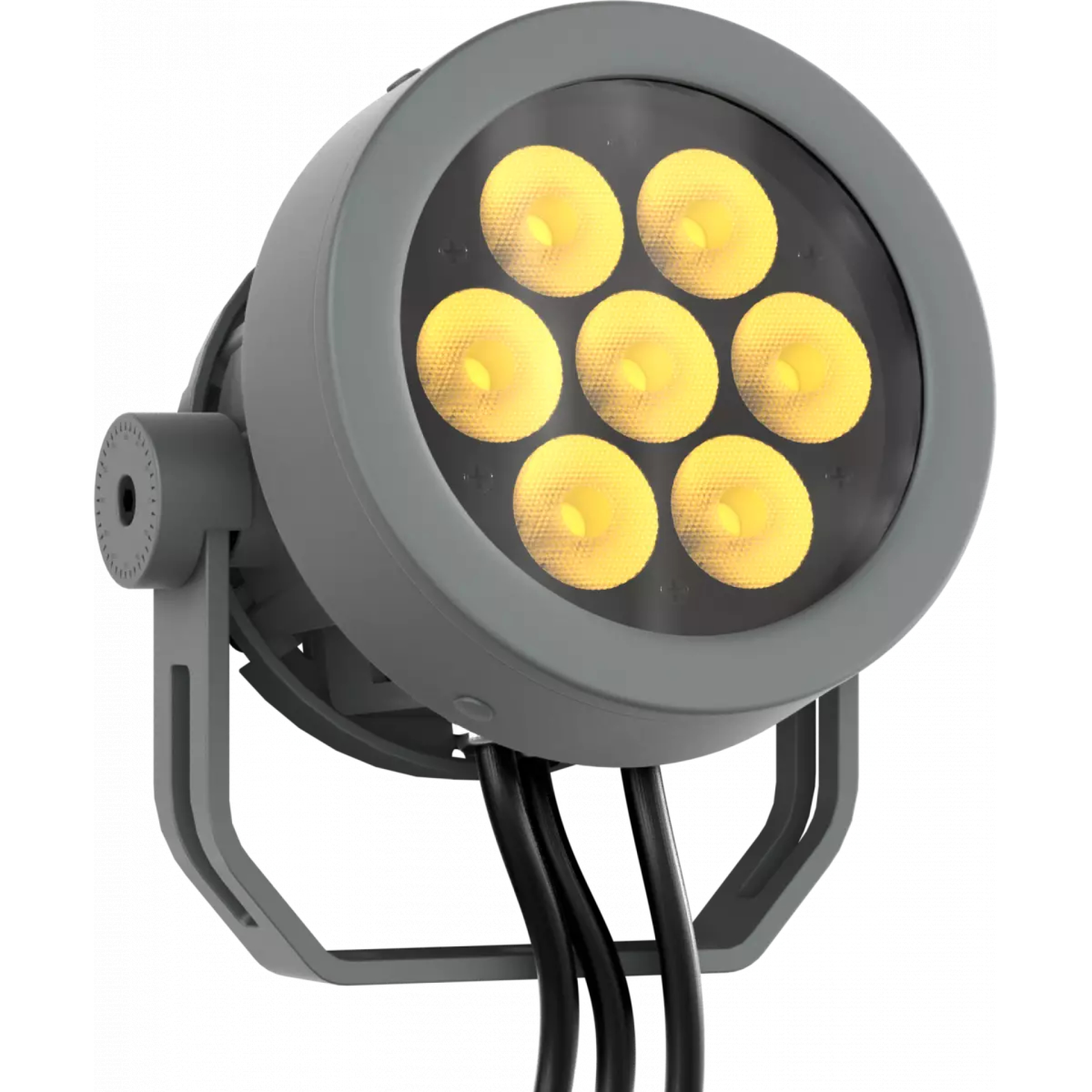

ArcSpot SFC
7 x 4W RGB + Warm White LED
Luminous flux: 1,304 @ full
Lux: 969lx @ 5m full
Enquiry Form

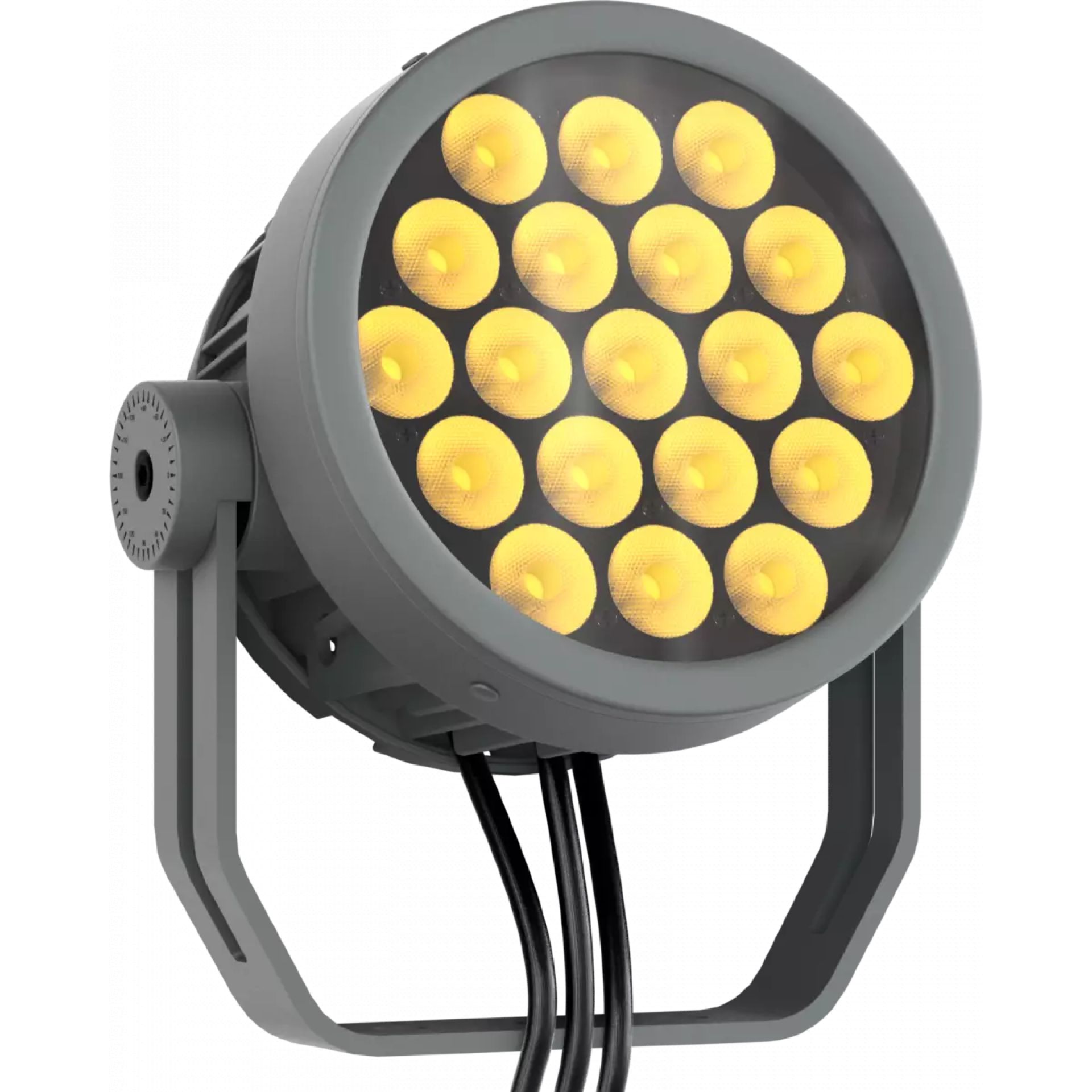

ArcSpot MFC
19 x 4W RGB + Warm White LED
Luminous flux: 4,624 @ full
Lux: 3,201lx @ 5m full
Enquiry Form

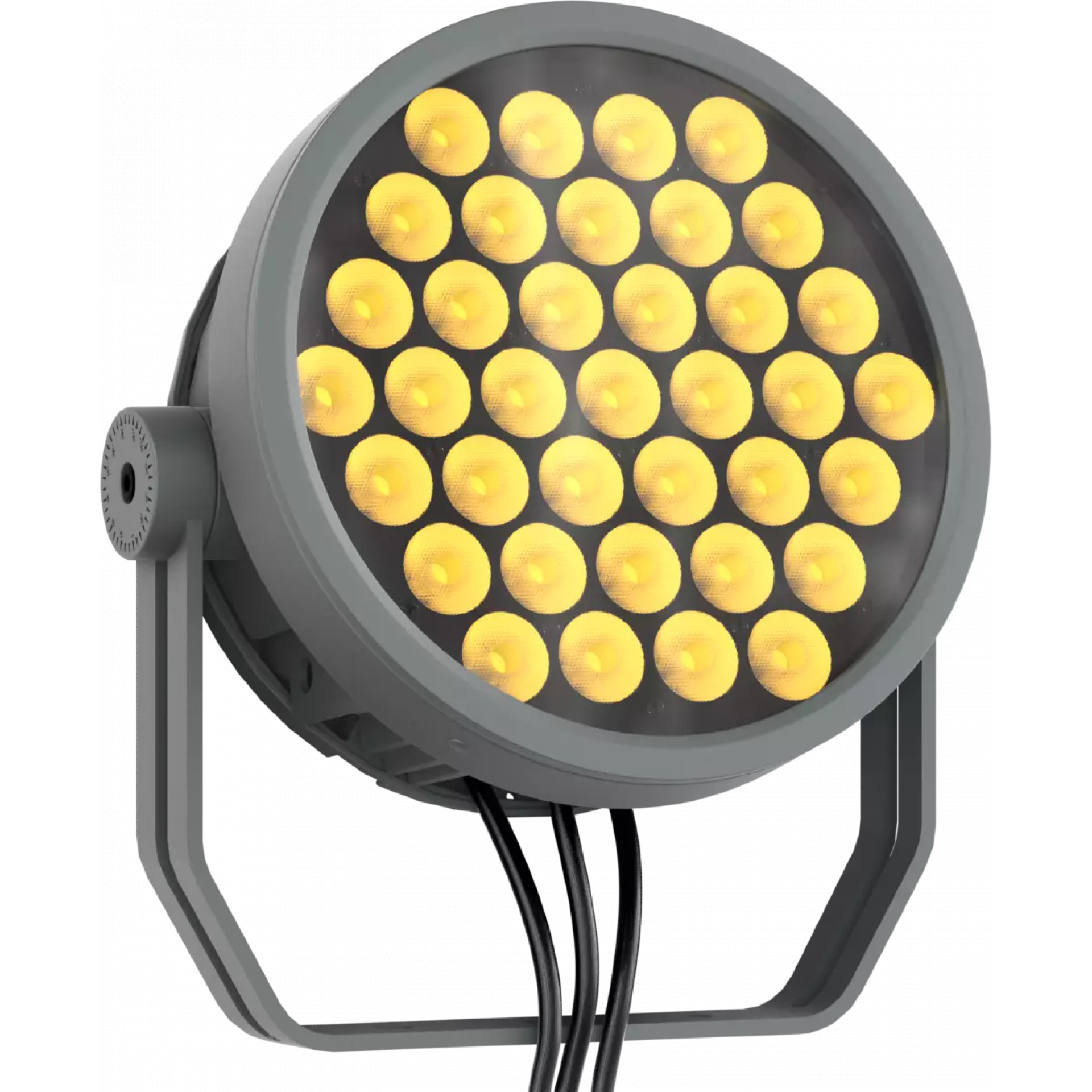

ArcSpot LFC
37 x 4W RGB + Warm White LED
Luminous flux: 7,008 @ full
Lux: 5,179lx @ 5m full
Enquiry Form

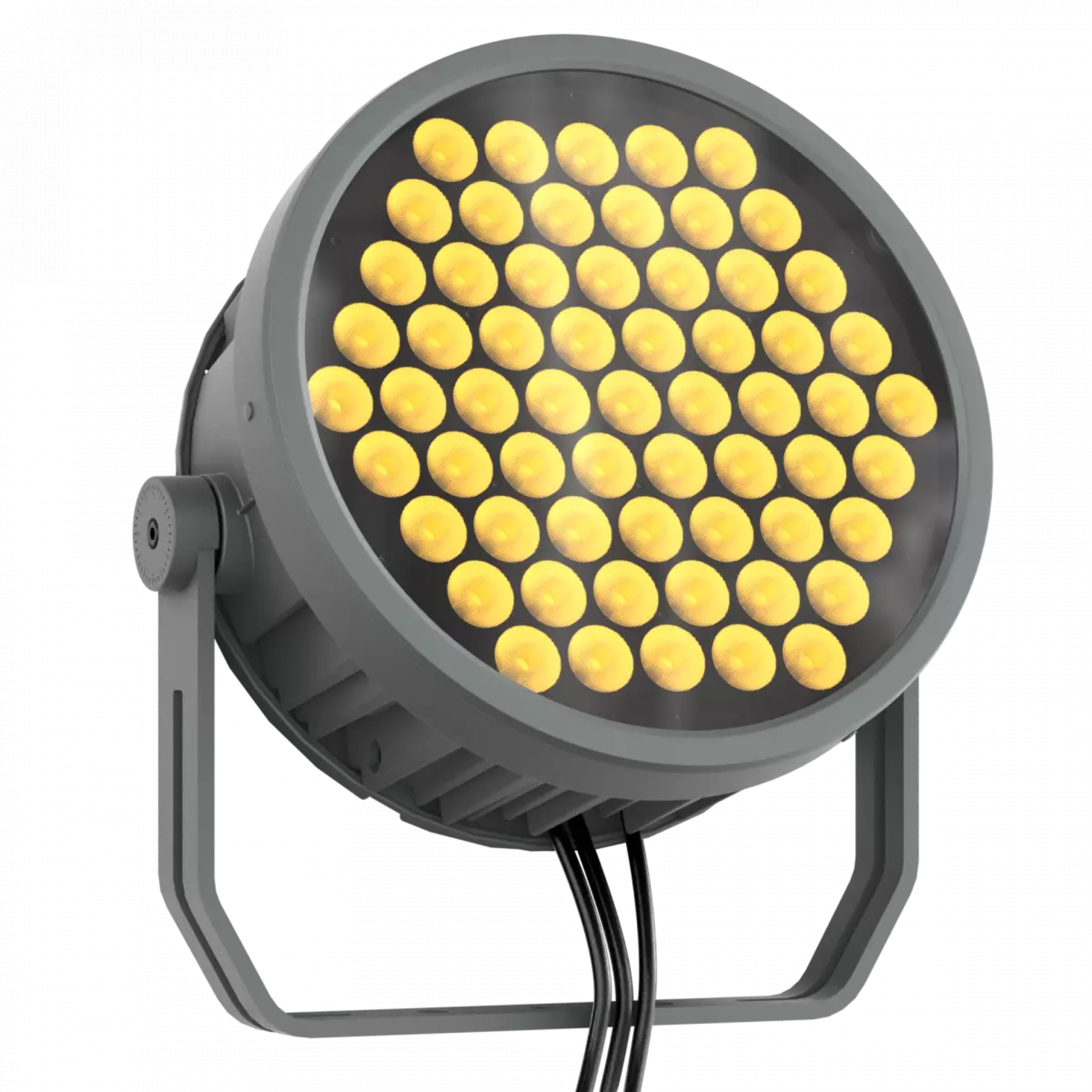

ArcSpot XLFC
61 x 4W RGB + Warm White LED
Luminous flux: 11,684 @ full
Lux: 8,990lx @ 5m full
Enquiry Form
This series provides a variety of fixture sizes and accessories, enabling precise targeting of the desired light intensity and quality for any application.
These fixtures are engineered with a dual chamber design, with the physical separation of light sources and power units. This not only facilitates individual component replacement but also enhances heat dissipation, contributing to more durable applications and extended product longevity. Enhanced with a C5M marine-grade treatment, they are ideal for outdoor use, even in challenging salty environments or near the sea.
The unit is DMX compatible, offering the convenience of remote management via RDM.
Completing the ArcSpot series is a comprehensive selection of optics, holographic filters and light modifiers, providing endless possibilities in light distribution to suit every occasion.
Colour mixing: RGB + Warm White
Colour wheel: gel filters included
Macros: built-in white presets
Static mode: selection of static dimmer, colors and color temperature
Manual mode: manual adjustment of colour
Auto mode: built-in programs with execution speed adjustment
Protocols: DMX512, RDM
DMX channels: 5 / 6 / 9 / 12 channel
RDM: RDM for remote monitoring and settings
Display: user interface through DATAMASTER external coder (not included)
Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
Master/Slave: for synchronised operation of more units linked in a chain
