EclNanoPanel TWC

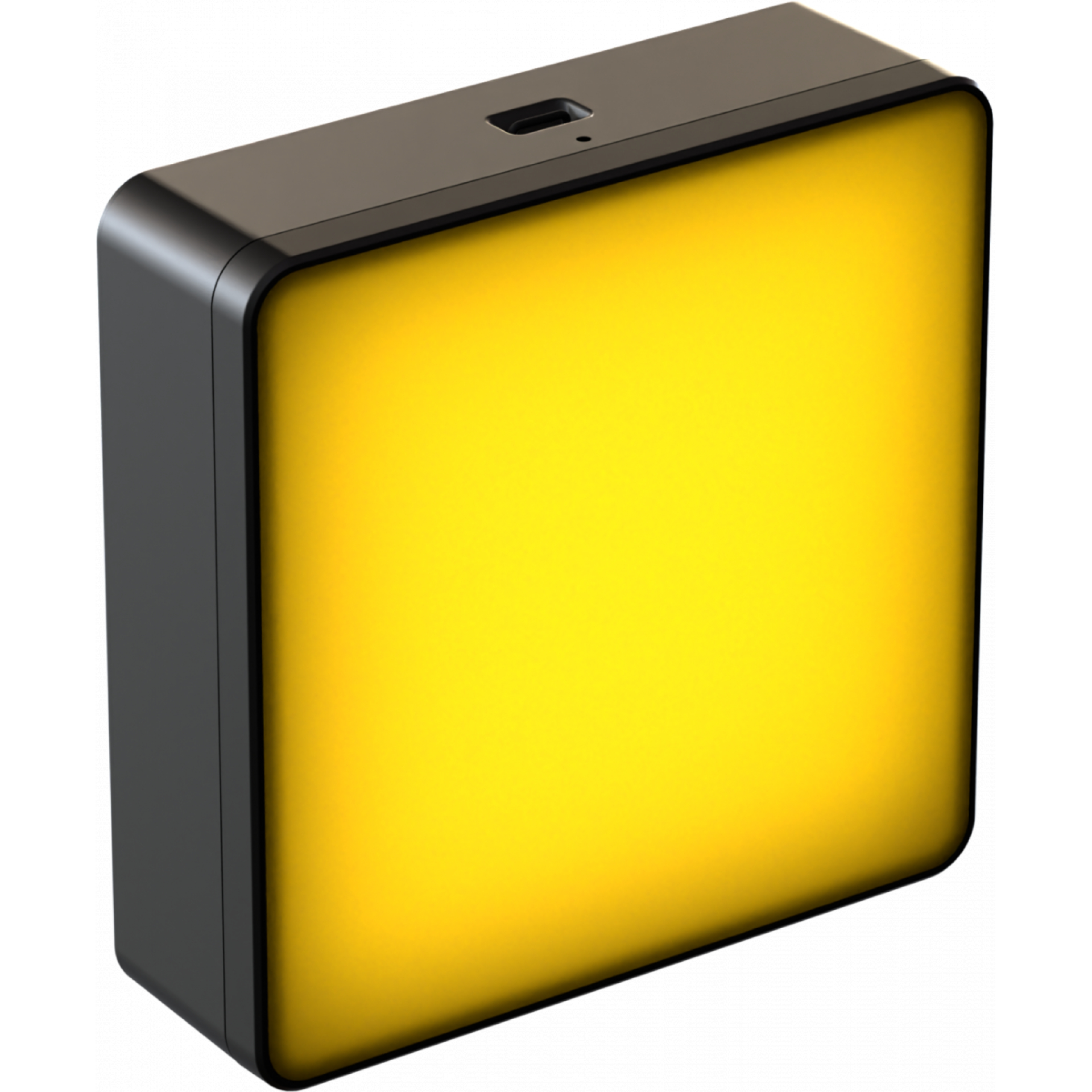

PROLIGHTS EclNanoPanel TWC - front

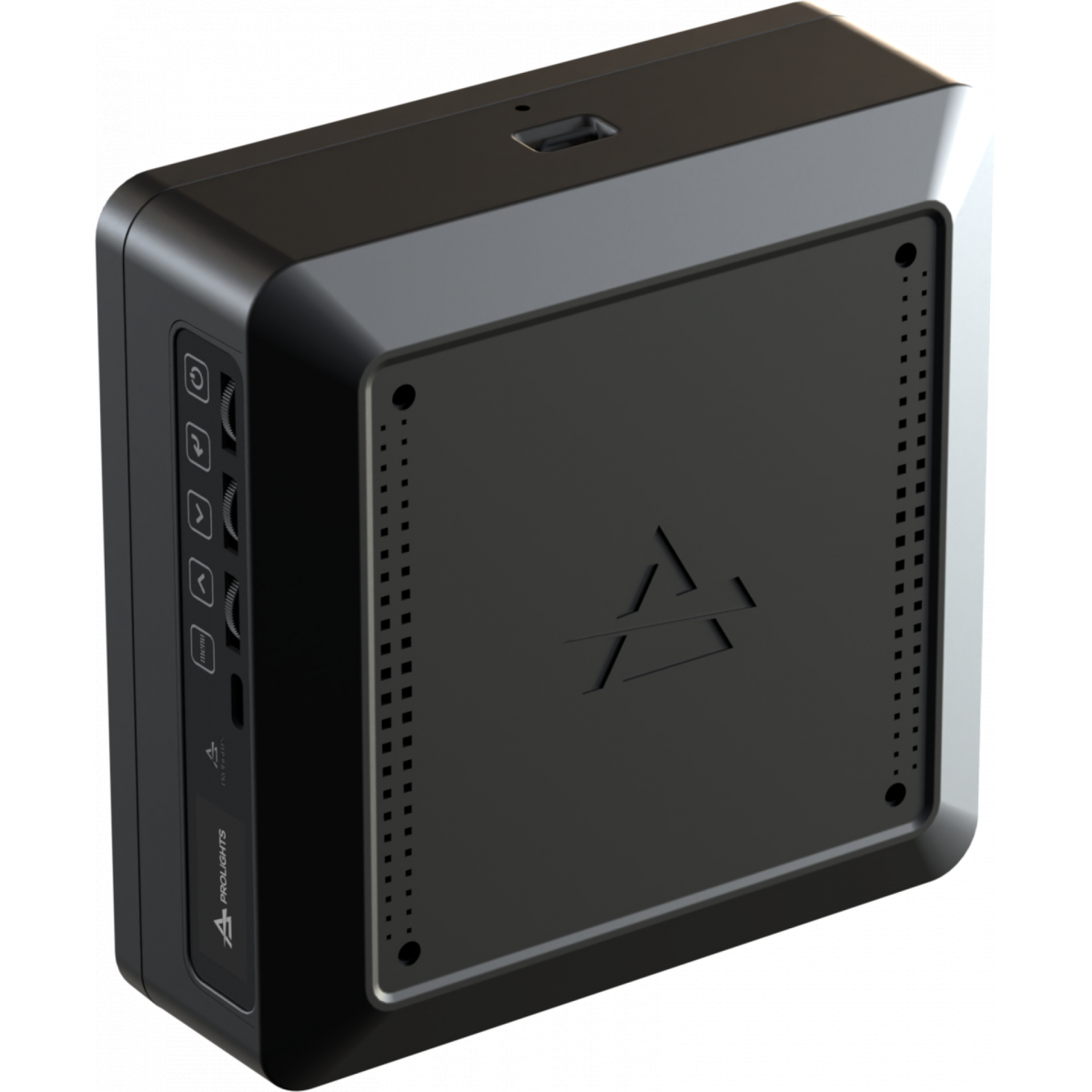

PROLIGHTS EclNanoPanel TWC - back
PROLIGHTS EclNanoPanel TWC - back

EclNanoPanel TWC

PROECLNANOPANELTWC

Key Features:

  • Pocket-sized soft light with wireless control (CRMX and W-DMX) and battery-powered.
  • 30W RGB + Warm White LED source, surprisingly powerful 1,800 lumen output.
  • Magnetized beam-shaping optical accessories are available.
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

EclNanoPanel TWC

The PROLIGHTS EclNanoPanel TWC is the smallest member of the EclPanel range, containing all the outstanding features of the larger format soft lights in a pocket-sized, battery-operated luminaire with a surprisingly powerful 1,800-lumen output.

This compact fixture has the same colour technology as the other soft lights, producing rich colours, high-quality white tones, colour gel matching, and onboard pixel cinema effects.

The EclNanoPanel TWC has three precision encoders with multiple stand-alone control modes: CCT with +/- green shift, CCT presets, HSI for total control of hue, saturation and intensity, RAW RGBW mode, XY and FX mode, allowing to scroll through the built-in cinema effects engine.

Each of the four sections has individual or simultaneous control, allowing to play customisable, cinematic effects through its FX engine or from a console.

Magnetized beam-shaping optical accessories are available, including eggcrates, barndoors, diffusers, and threads for easy mounting on stands or camera rigs.

The fixture is controlled from its user interface or via the built-in Wireless DMX/RDM transceiver (CRMX and W-DMX).

  • Source: 30W RGB + Warm White

    Luminous flux: 1,829lm @ 3,200K with LD filter

    Lux: 690lx @ 1m

    CRI: 94.6 @ 3,200K; 94.9 @ 5,600K

    R9: 97.1 @ 3,200K; 96 @ 5,600K

    Source life expectancy: > 50,000 hr

    Beam angle: 105°

    Field angle: 159°

    Lens type: magnetic light density diffusion panel (interchangeable)

    Additional optics: see available accessories

  • Colour control: XY, CCT, RGBW, Gel, HSI, Source Emulation, colour macros, CTO on colours

    Colour mixing: RGB + Warm White

    CCT: CCT control range from 2,200K to 15,000K, + / - green correction, tungsten emulation

    White presets: 2,800K - 10,000K

    Colour wheel: virtual colour wheel with macros

    Macros: several pre-built pixel macros with adjustable speed

    Control resolution: 16-bit dimmer, colours

    Pixel patterns: pre-programmed pixel macros and cinema lighting effects patterns

    FX generator: 4 controllable sections

    Static mode: selection of static colour

    Manual mode: manual adjustment of intensity, CT, colour correction from knob

    Auto mode: built-in programs with execution speed adjustment

    Special features: linear crossfade channel from any white to any colour; virtual CTO on colours

  • Protocols: CRMX+W-DMX, DMX512, RDM

    Stand alone: selectable mode through 3 rotatory knobs

    Wireless control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)

    RDM: RDM for remote monitoring and settings

    Display: Graphic User Interface

    Firmware upgrade: yes, via USB - DMX interface (UPBOX1+ENPTWCYCABLE) not included

    IR: infrared sensor controlled by remote (included in the pack, not included in single unit)

    Master/Slave: for synchronised operation of more units linked in a chain

EclNanoPanel TWC - Downloads
EclNanoPanel TWC Spec sheet
Download
Download
Download
