EclPanel TWCMini2x1

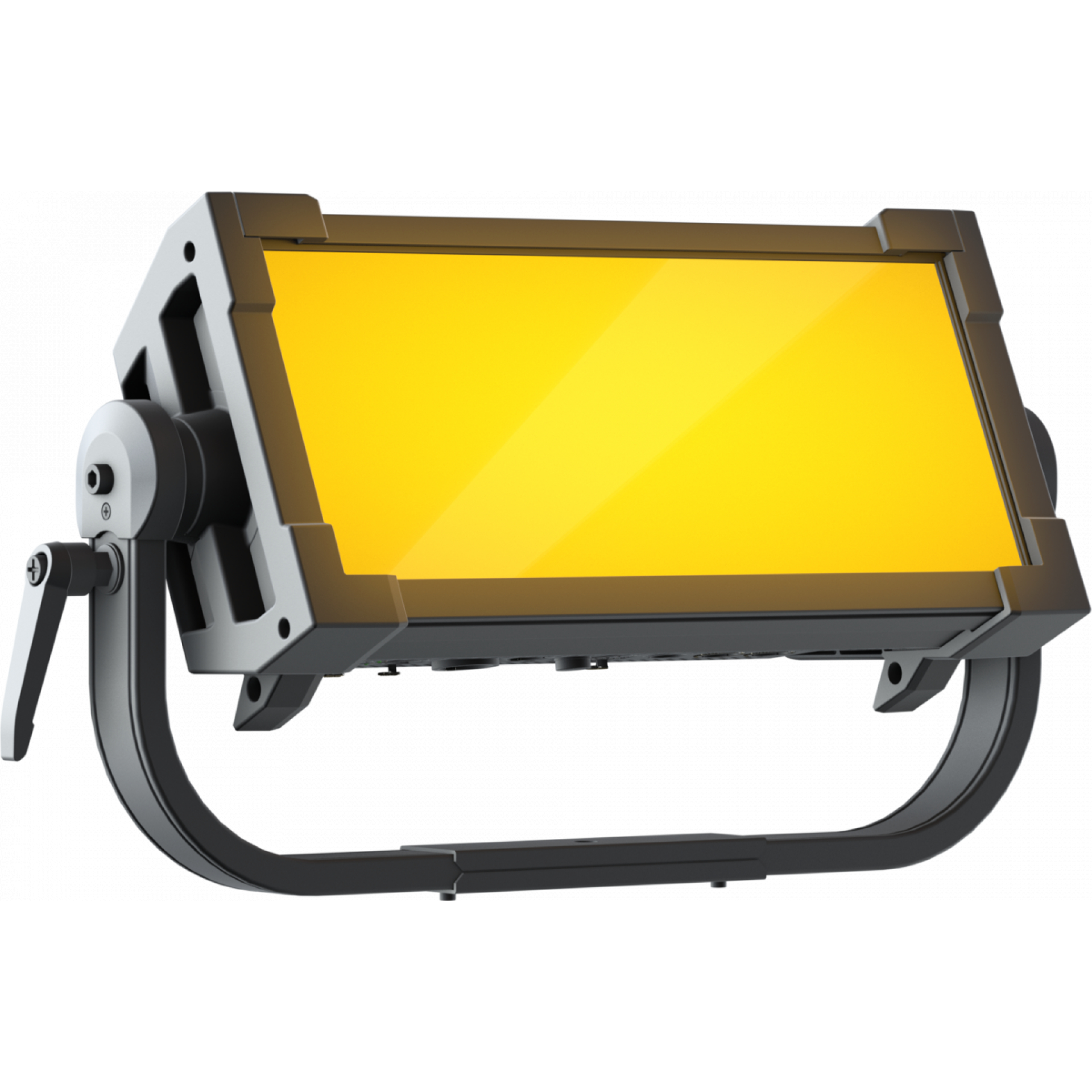

PROLIGHTS EclPanel TWCMini2x1 - front

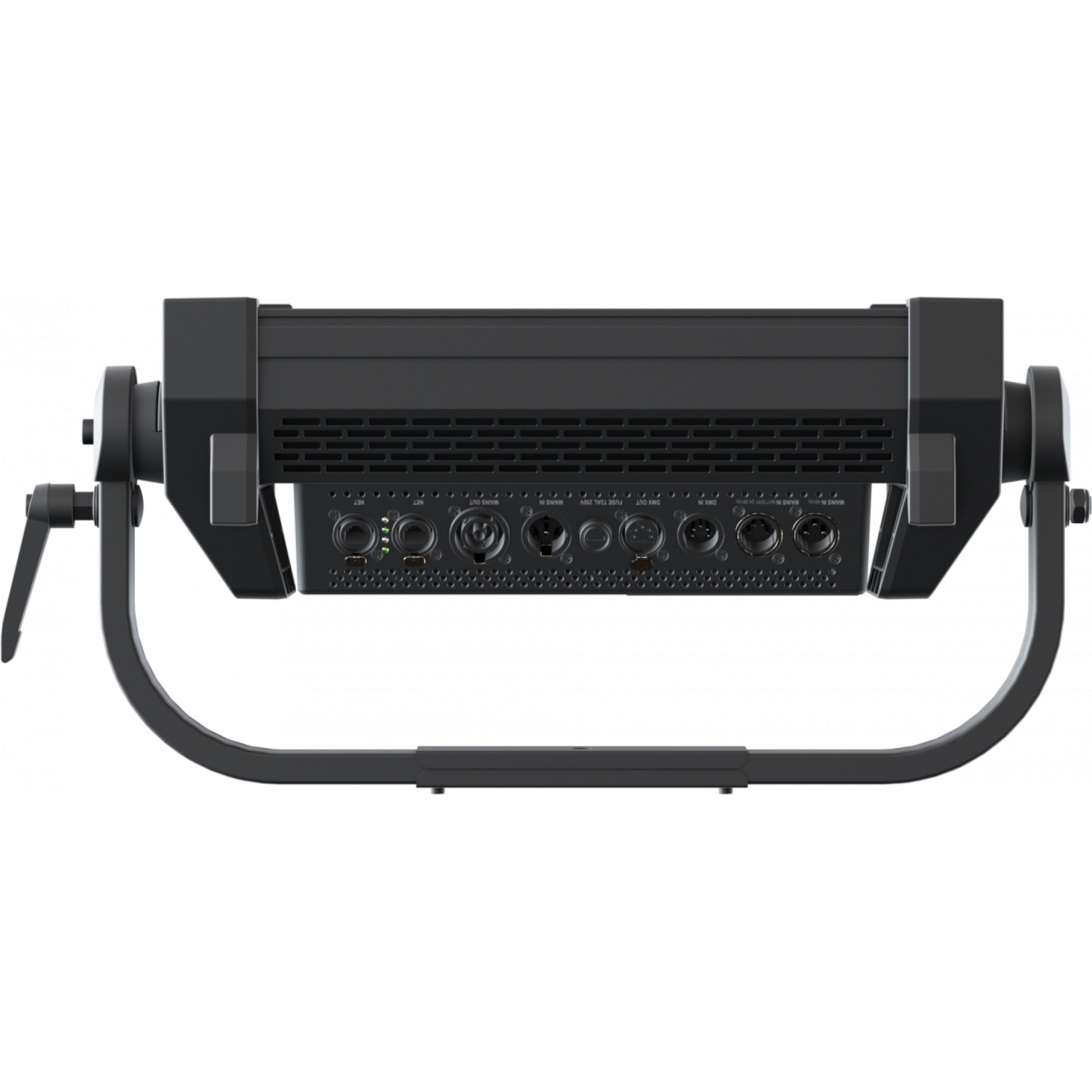

PROLIGHTS EclPanel TWCMini2x1 - pointing up

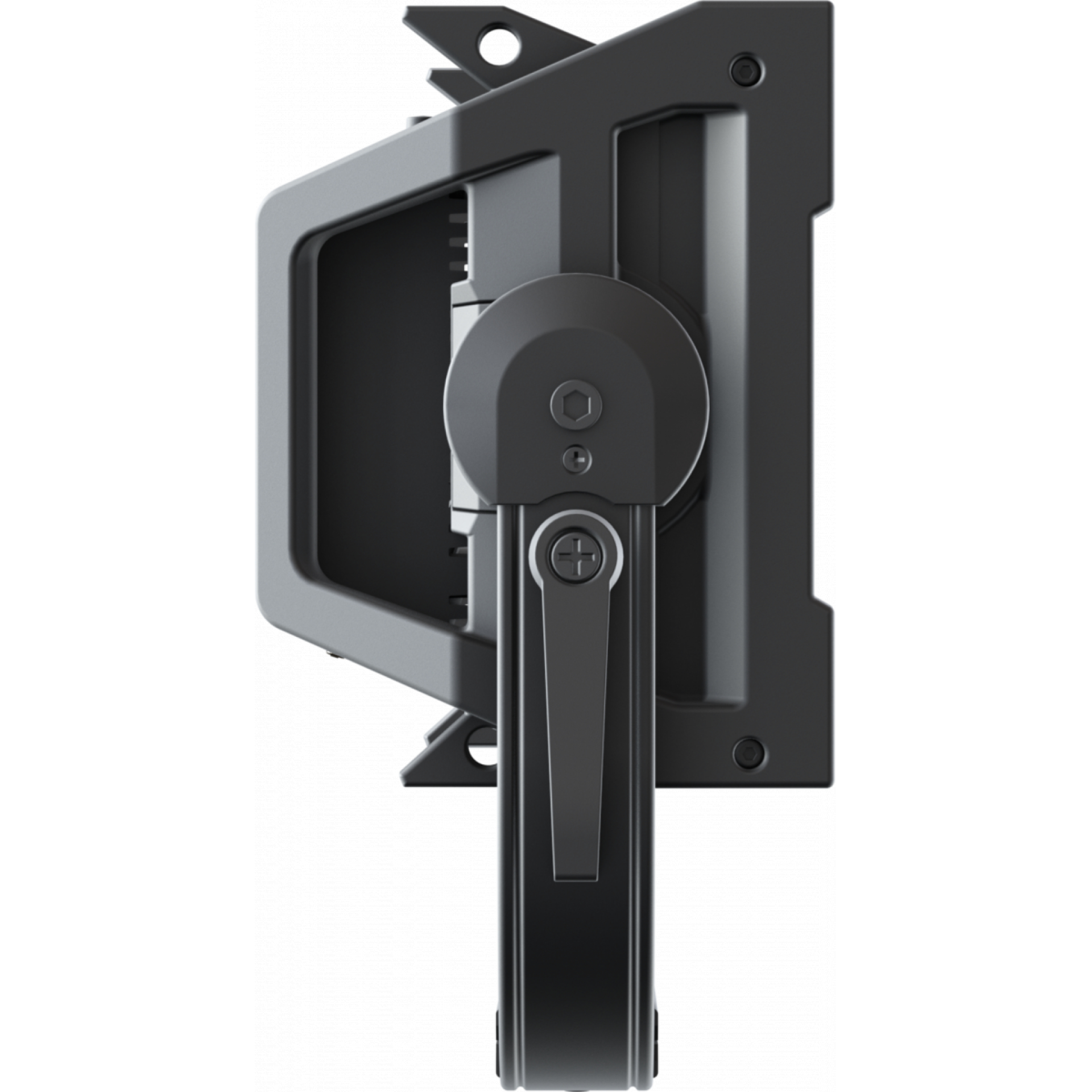

PROLIGHTS EclPanel TWCMini2x1 - side

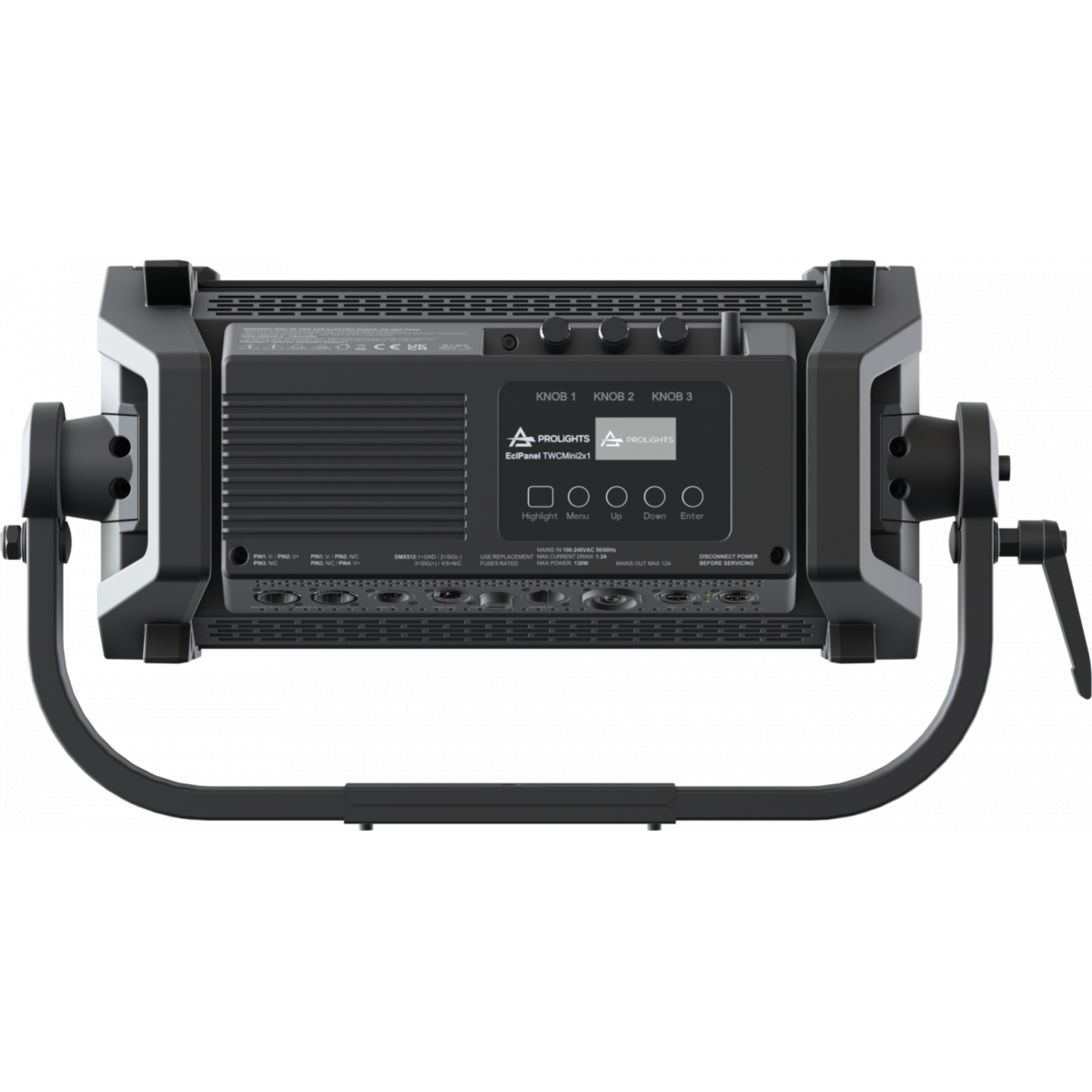

PROLIGHTS EclPanel TWCMini2x1 - back
PROLIGHTS EclPanel TWCMini2x1 - pointing up
PROLIGHTS EclPanel TWCMini2x1 - side
PROLIGHTS EclPanel TWCMini2x1 - back

EclPanel TWCMini2x1

PROECLPANELTWCM2X1

Key Features:

  • 115W RGB + Warm White LED source
  • CRI >94; R9 >88.8; TLCI >92
  • Silent operation with multiple fan modes
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

EclPanel TWCMini2x1

The PROLIGHTS EclPanel TWCMini2x1 is an ultra-compact LED soft light that provides a beautiful, wide source of soft and precise colours. In addition to this, the EclPanel TWCMini2x1 comes with a full range of white presets, from daylight to tungsten tones, and produces a tremendous output whilst keeping high CRI, TLCI and TM-30 values.

Each of the 2 sections is controlled individually or simultaneously, allowing customisable on-board, cinematic effects through its built-in engine or from a console.

  • Source: 115W RGB + Warm White LED

    Luminous flux: 7,642lm @ 3,200K with MD filter

    Lux: 124lx @ 5m full

    CRI: 93 @ 3,200K; 94 @ 5,600K

    Source life expectancy: > 50,000hr

    Beam angle: 98°

    Field angle: 153°

    Lens type: medium density diffusion panel (interchangeable)

    Additional optics: see available accessories

  • Colour control: XY, CCT, RGBW, gel, HSI, source emulation, colour macros, CTO on colours

    Colour mixing: RGB + Warm White

    CCT: CCT control range from 2,200K to 15,000K, + / – green correction, tungsten emulation

    White presets: 2,800K – 10,000K with 28K resolution

    Colour wheel: virtual colour wheel with macros

    Macros: gels library on-board

    Control resolution: 16-bit dimmer, colours

    Pixel patterns: pre-programmed pixel macros and cinema lighting effects patterns

    Special features: linear crossfade channel from any white to any colour; virtual CTO on colours

  • Protocols: DMX512, RDM, Art-Net, sACN, W-DMX

    Stand alone: selectable mode through 3 rotatory knobs

    Pixel control: 2 linear section control

    Wireless control: integrated, CRMX + WDMX TRX

    RDM: RDM for remote monitoring and settings

    Display: graphic user interface

    Firmware upgrade: yes, via USB – DMX interface (UPBOX1) not included

EclPanel TWCMini2x1 - Downloads
EclPanel TWCMini2x1 Spec sheet
Download
