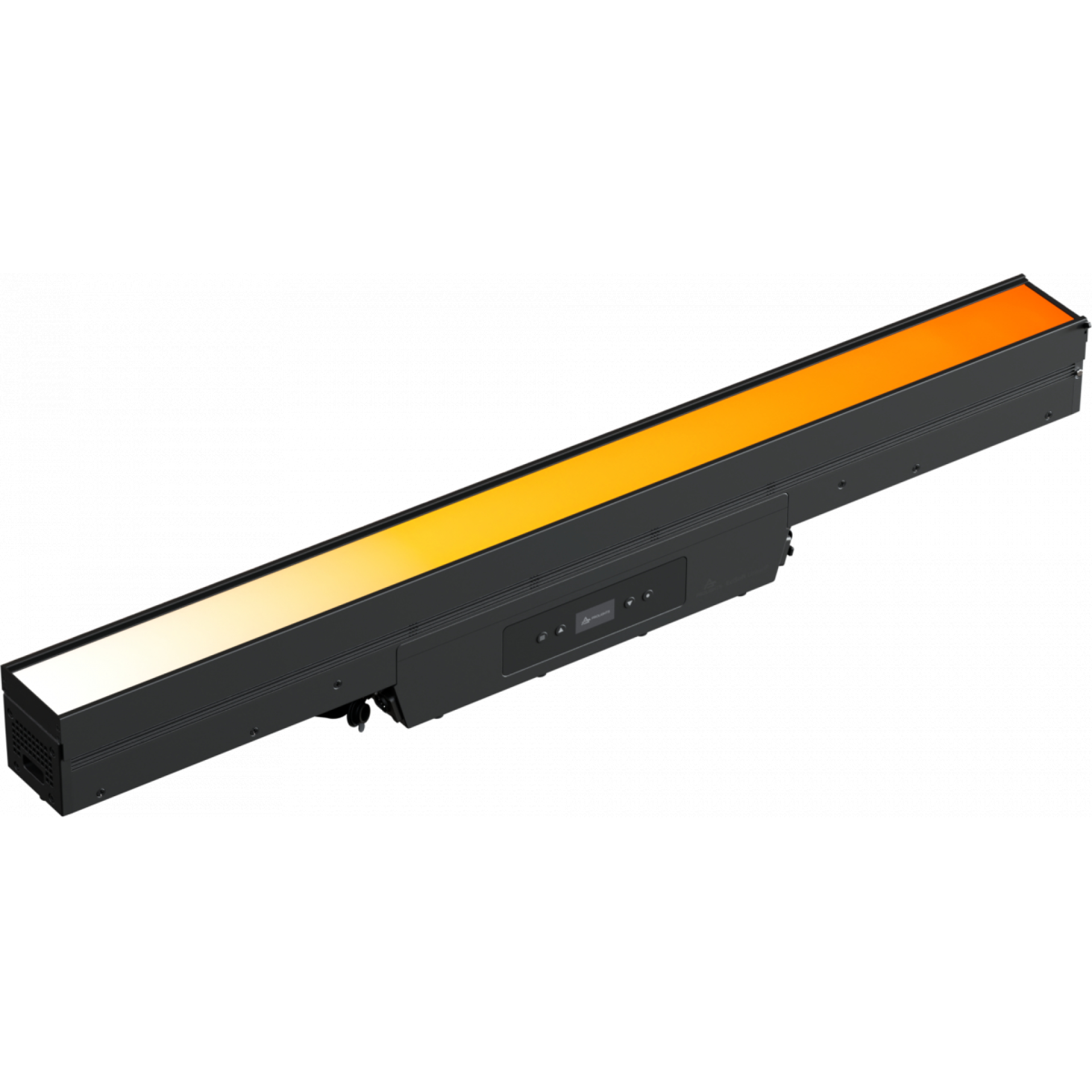

PROLIGHTS EclSoft LinearIP - on

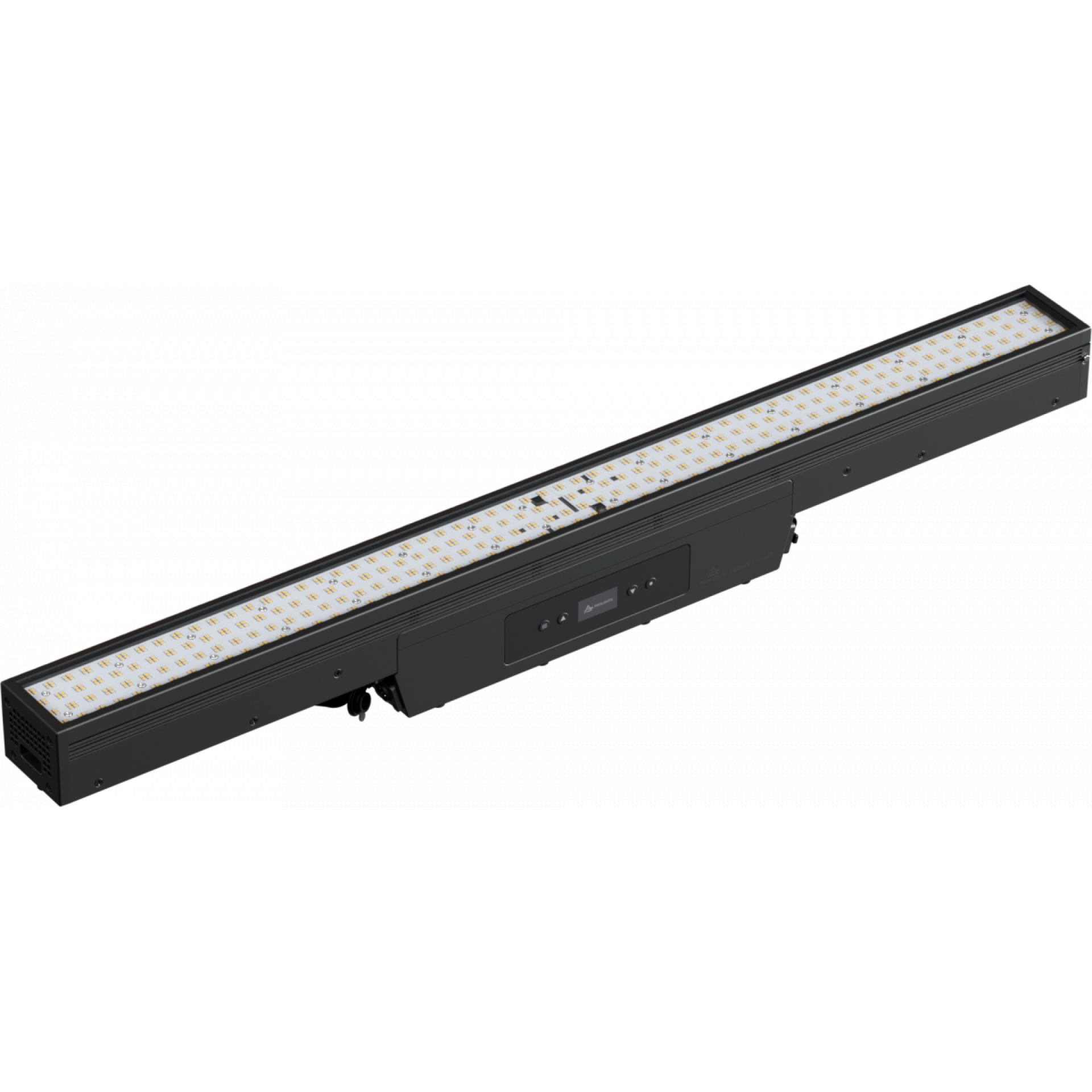

PROLIGHTS EclSoft LinearIP - off

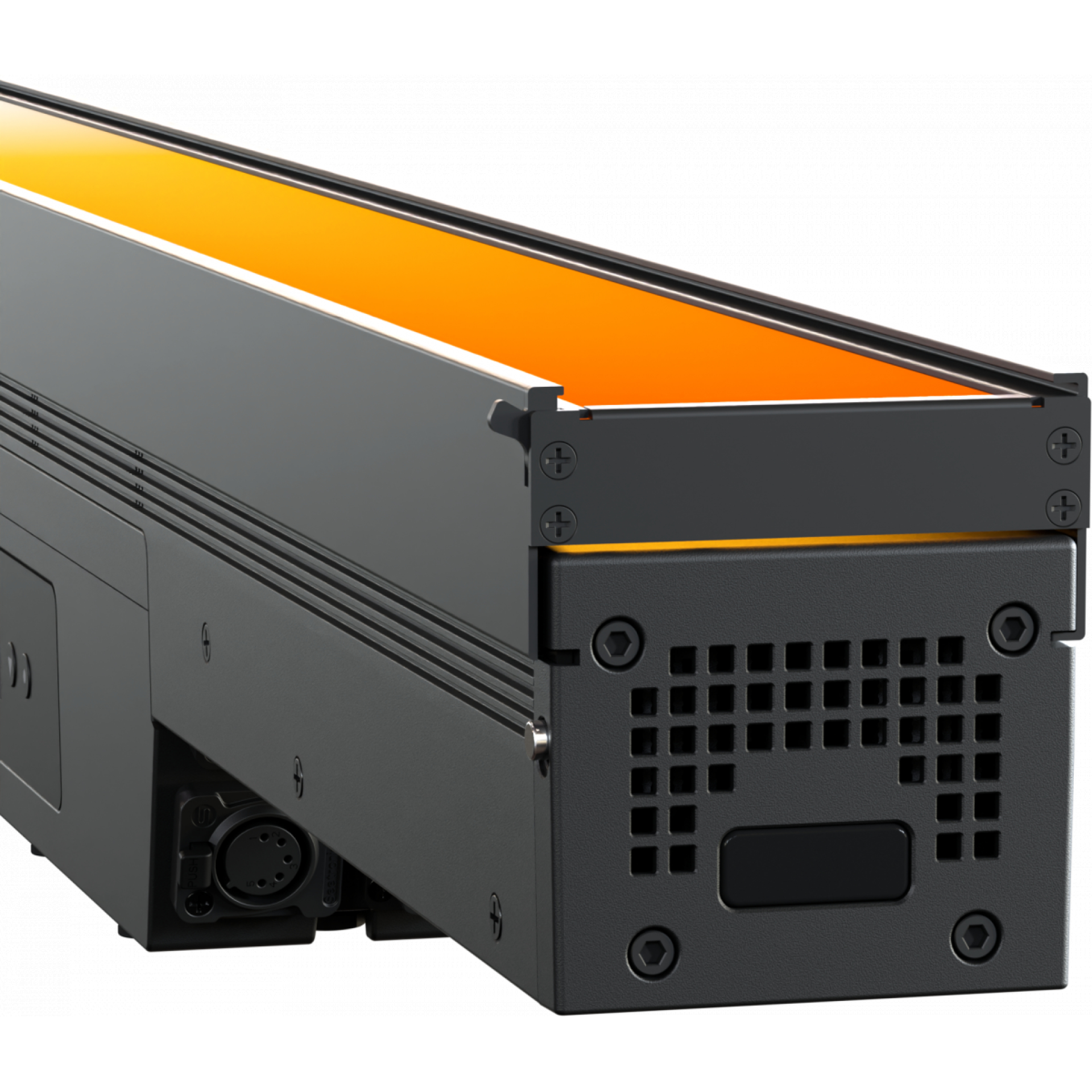

PROLIGHTS EclSoft LinearIP - Side view

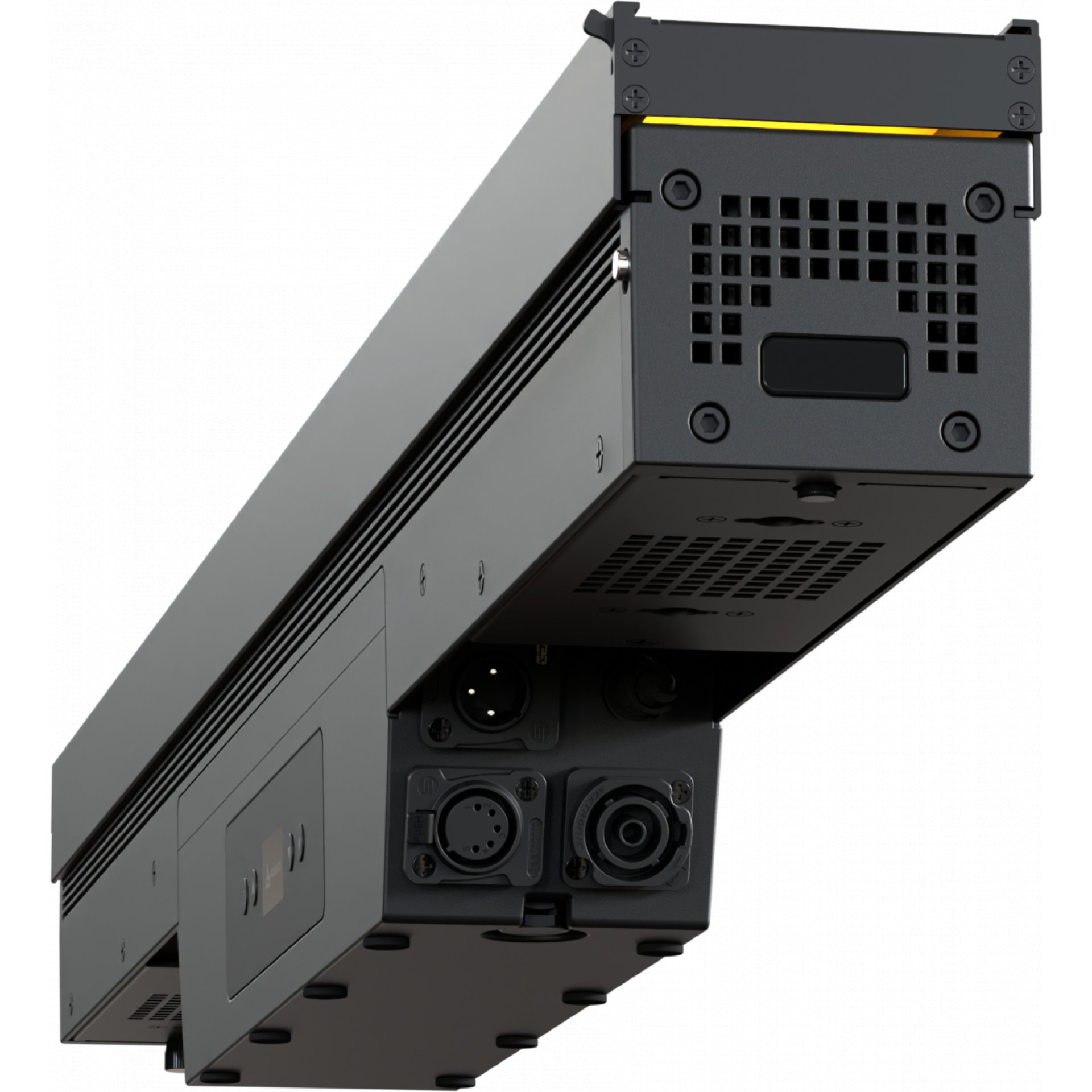

PROLIGHTS EclSoft LinearIP - underneath view

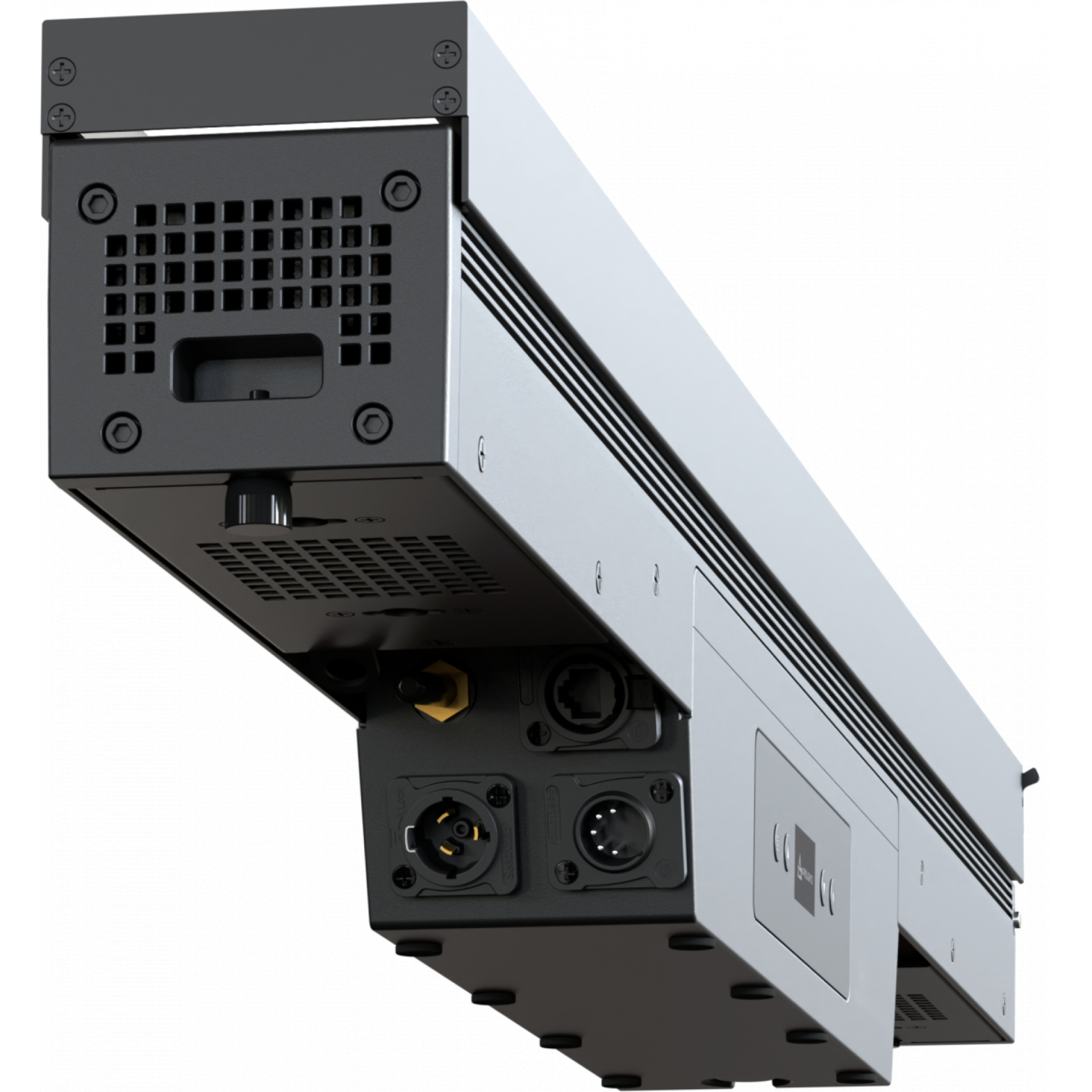

PROLIGHTS EclSoft LinearIP - underneath

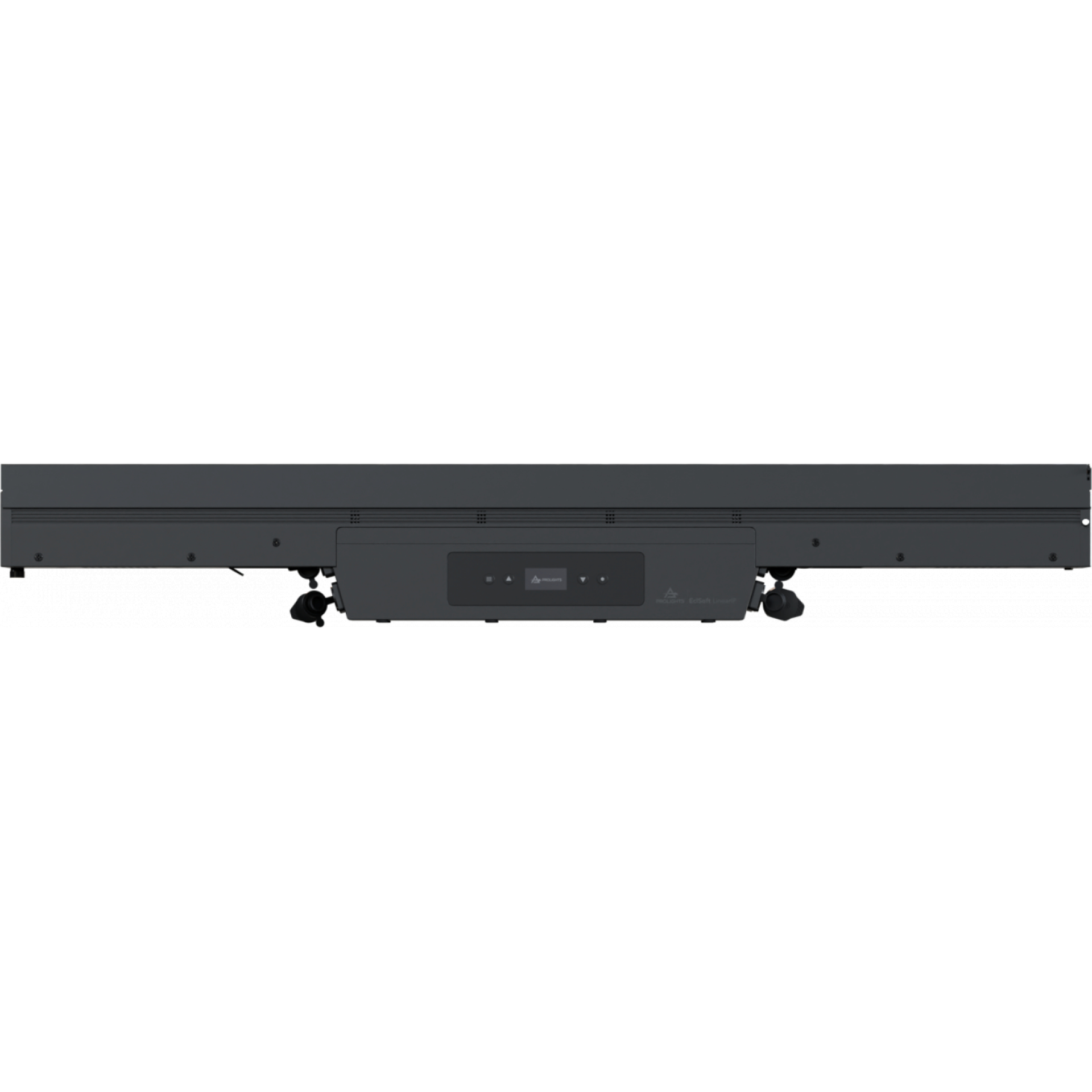

PROLIGHTS EclSoft LinearIP - control panel

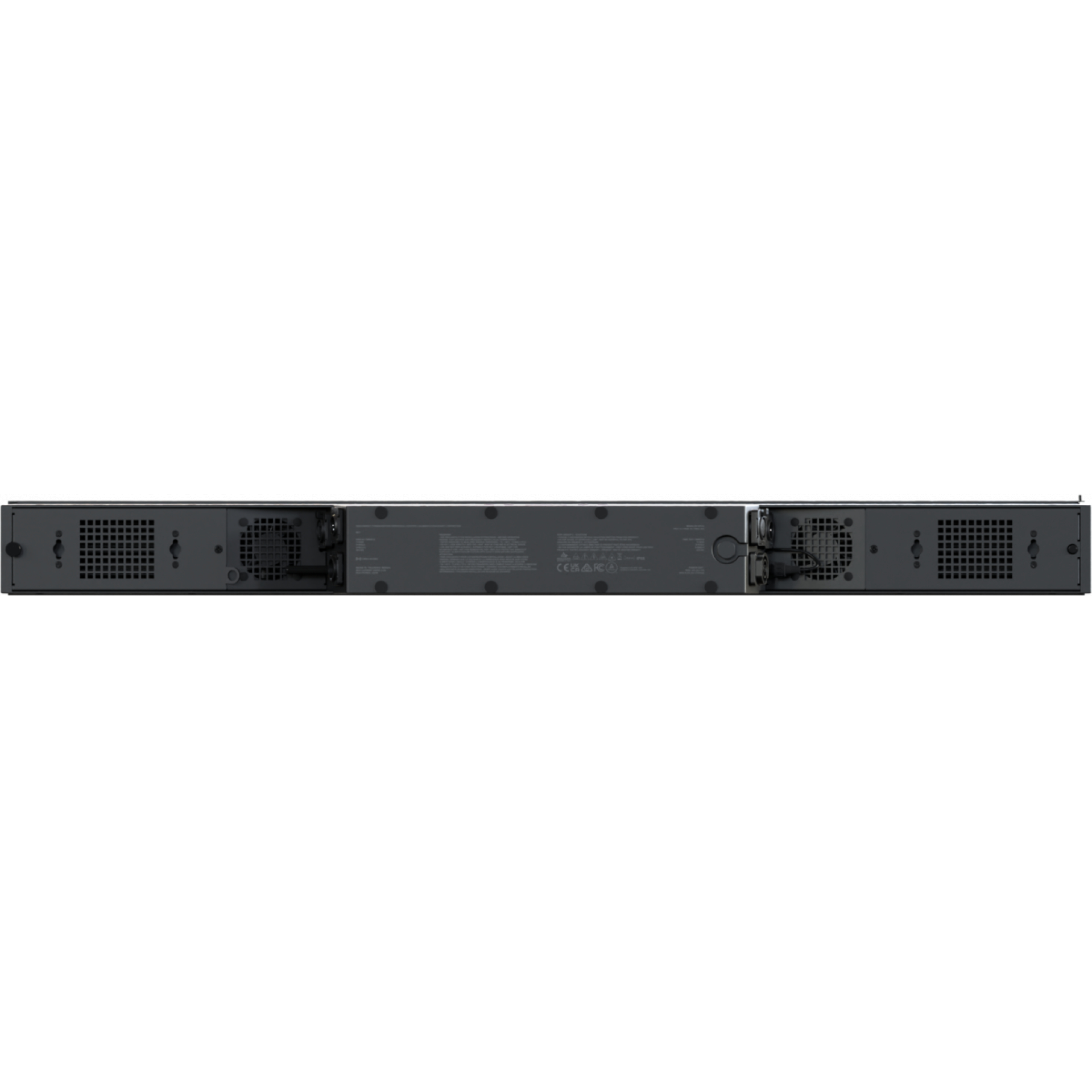

PROLIGHTS EclSoft LinearIP - back
PROLIGHTS EclSoft LinearIP - off
PROLIGHTS EclSoft LinearIP - Side view
PROLIGHTS EclSoft LinearIP - underneath view
PROLIGHTS EclSoft LinearIP - underneath
PROLIGHTS EclSoft LinearIP - control panel
PROLIGHTS EclSoft LinearIP - back

EclSoft LinearIP

PROECLSOFTLINEARIP

Key Features:

  • 230W RGB + Warm White engine, producing nearly a 13,000 lumen output
  • 15 individually controlled pixels with built-in cinema effects engine
  • IP65
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

EclSoft LinearIP

The PROLIGHTS EclSoft LinearIP LED Soft Light is a punchy 230W, tunable warm white and colourful linear LED soft light with pixels and stunning lighting effects, that also includes all the main features found in their successful EclPanel range, presented in a new form factor and IP65 design.

The PROLIGHTS EclSoft LinearIP can produce nearly 13,000 lumens whilst keeping perfectly mixed colours and precise white tones, from tungsten to daylight. It also features a IP65 rating that makes it suitable for all weather applications and 15 individually controlled pixels, its perfect for your next film shoot or live performance.

  • Source: 230W RGB + Warm White LED

    Luminous flux: 12,994lm @ 4,000K with LD filter

    Lux: 220lx @ 5m full

    CRI: 92 @ 3,200K; 93 @ 5.600K

    Source life expectancy: > 50,000hr

    Beam angle: 103°

    Field angle: 155°

    Lens type: high-quality glass lens optics

    Additional optics: Mountable Medium Density diffusion filter (included)

  • Colour mixing: RGB + Warm White

    CCT: CCT control, + / - green correction, tungsten emulation

    White presets: 2,800 K - 10,000K with 28K resolution

    Colour wheel: virtual colour wheel with macros

    Control Resolution: 16-bit dimmer, colours

    Pixel patterns: pre-programmed pixel macros and cinema lighting effects patterns

    Special features: linear crossfade channel from any white to any colour; virtual CTO on colours

  • Protocols: DMX512, RDM, ArtNet, sACN, W-DMX + CRMX

    Pixel control: 15 section control

    Wireless control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)

    RDM: RDM for remote monitoring and settings

    Display: Graphic User Interface

    Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included

    Master/Slave: for synchronised operation of more units linked in a chain

EclSoft LinearIP - Downloads
Eclsoftlinearip_A4_DATASHEET_EN.pdf
Download
