EclSoft Tube100

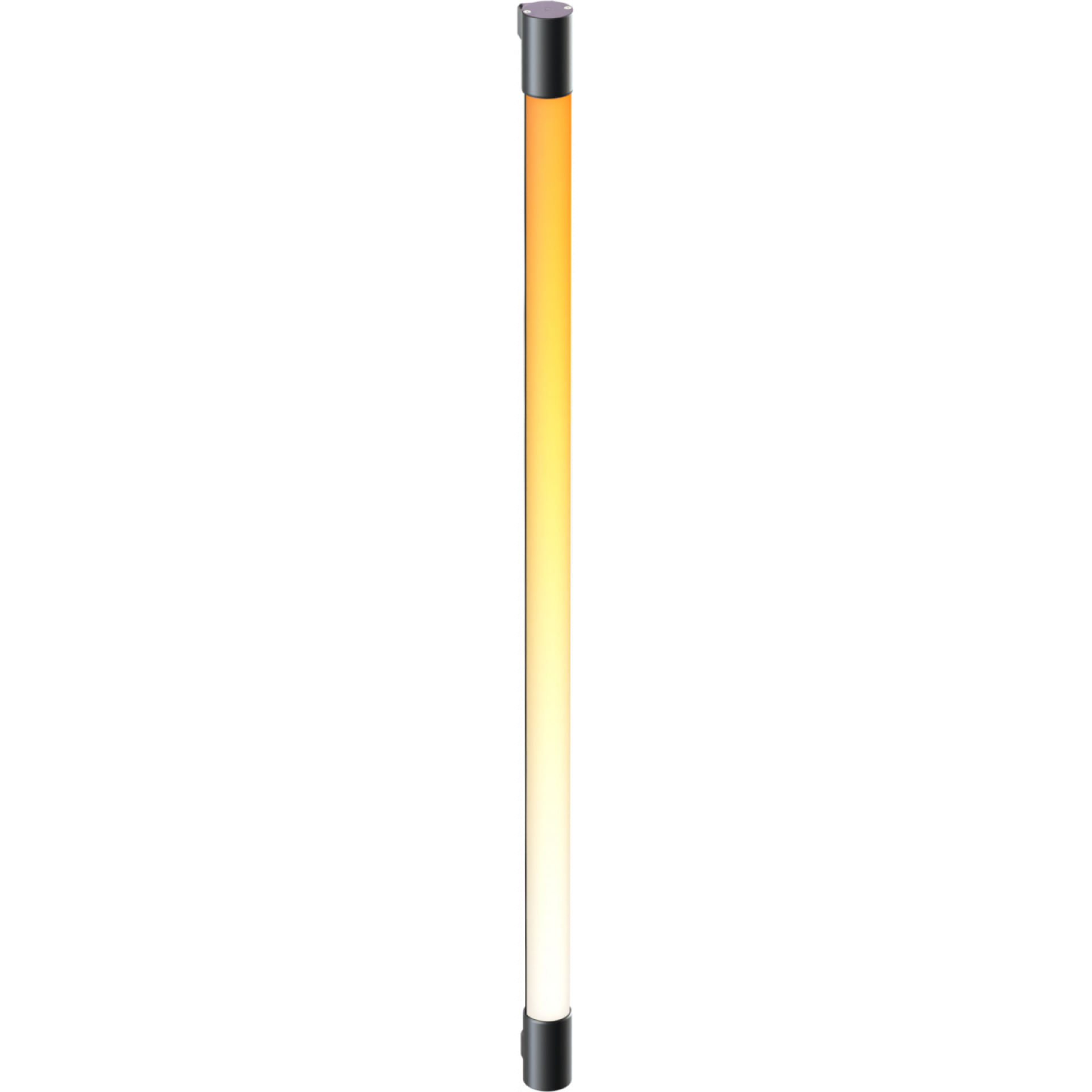

PROLIGHTS EclSoft Tube100 soft light - angle

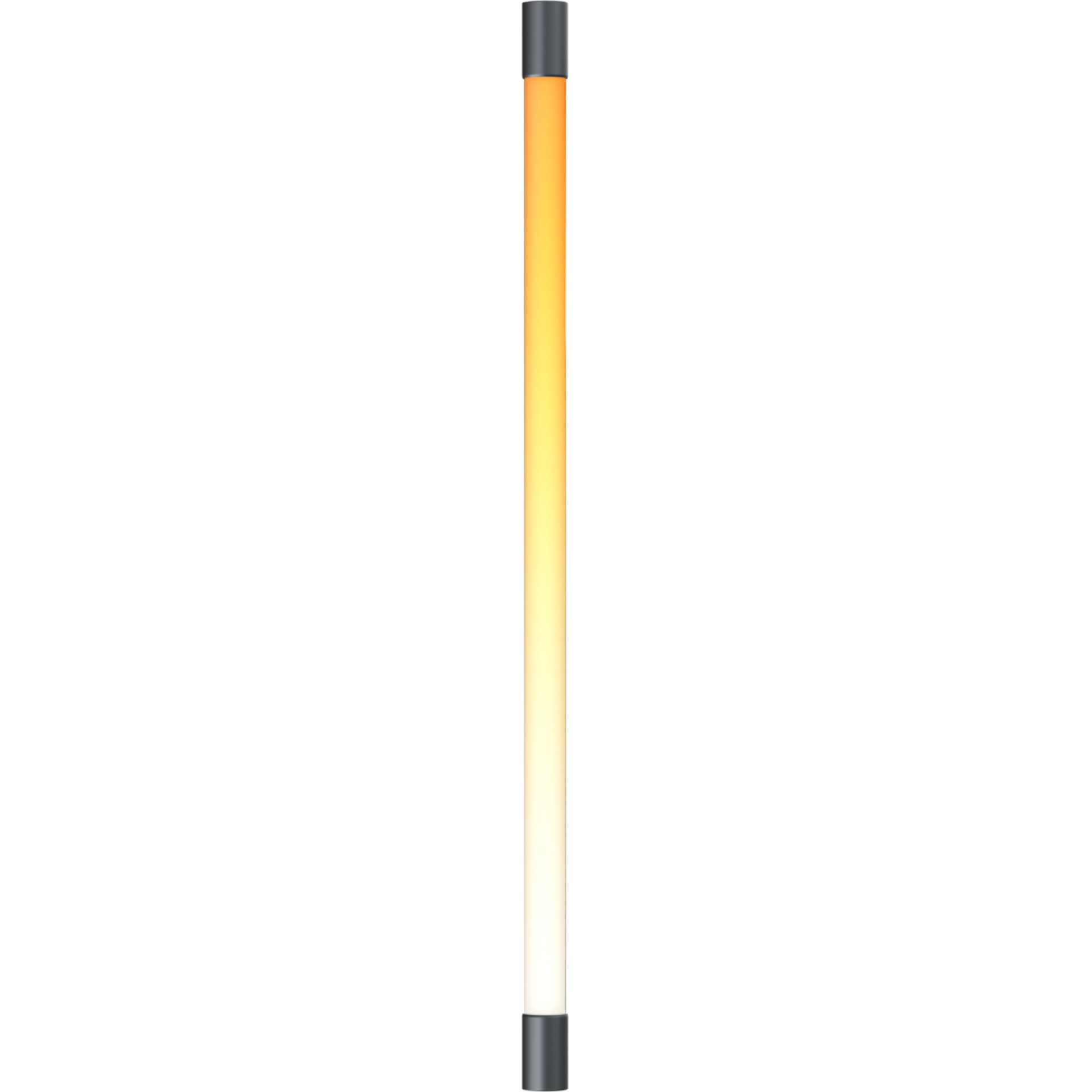

PROLIGHTS EclSoft Tube100 soft light - straight on

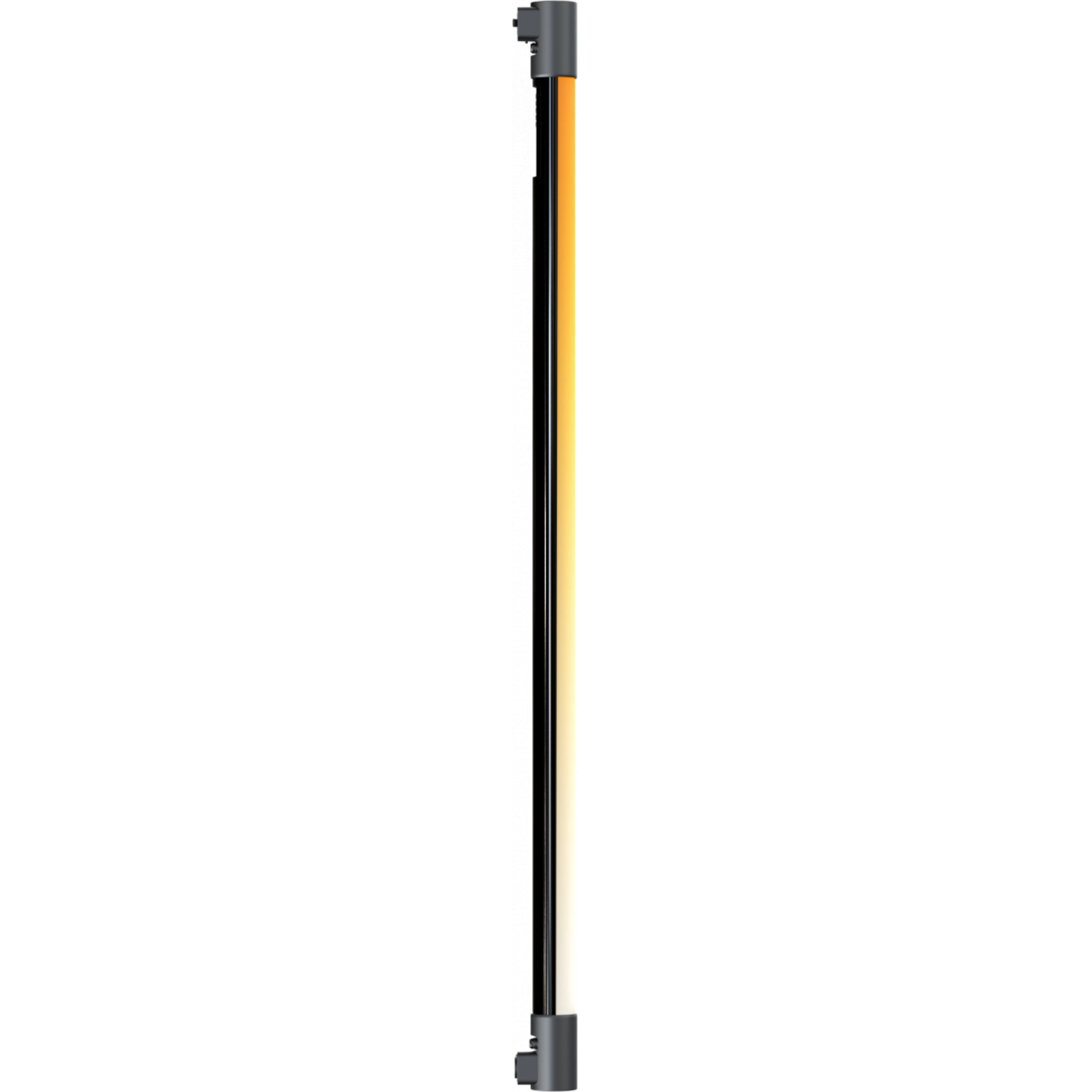

PROLIGHTS EclSoft Tube100 soft light - side angle

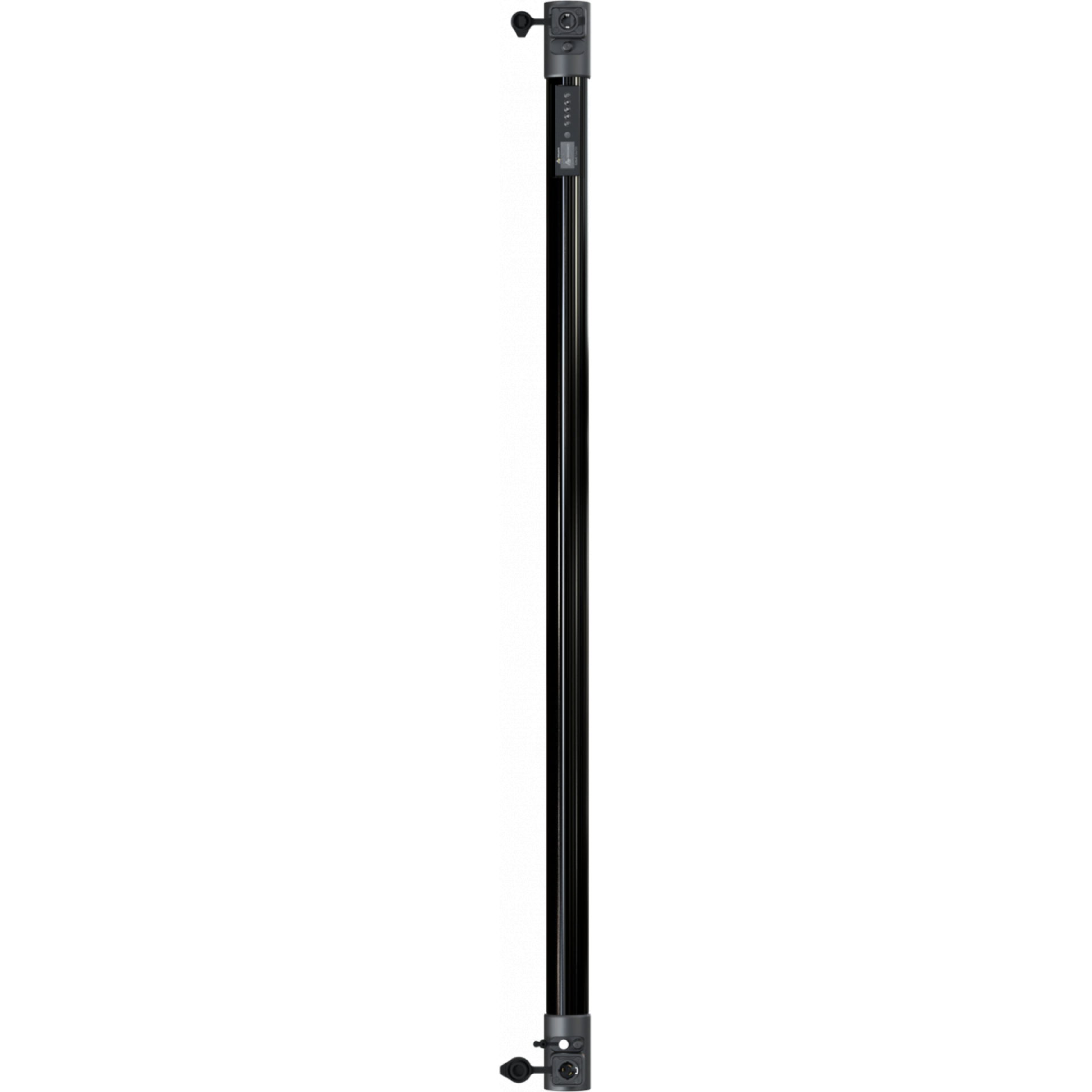

PROLIGHTS EclSoft Tube100 soft light - back

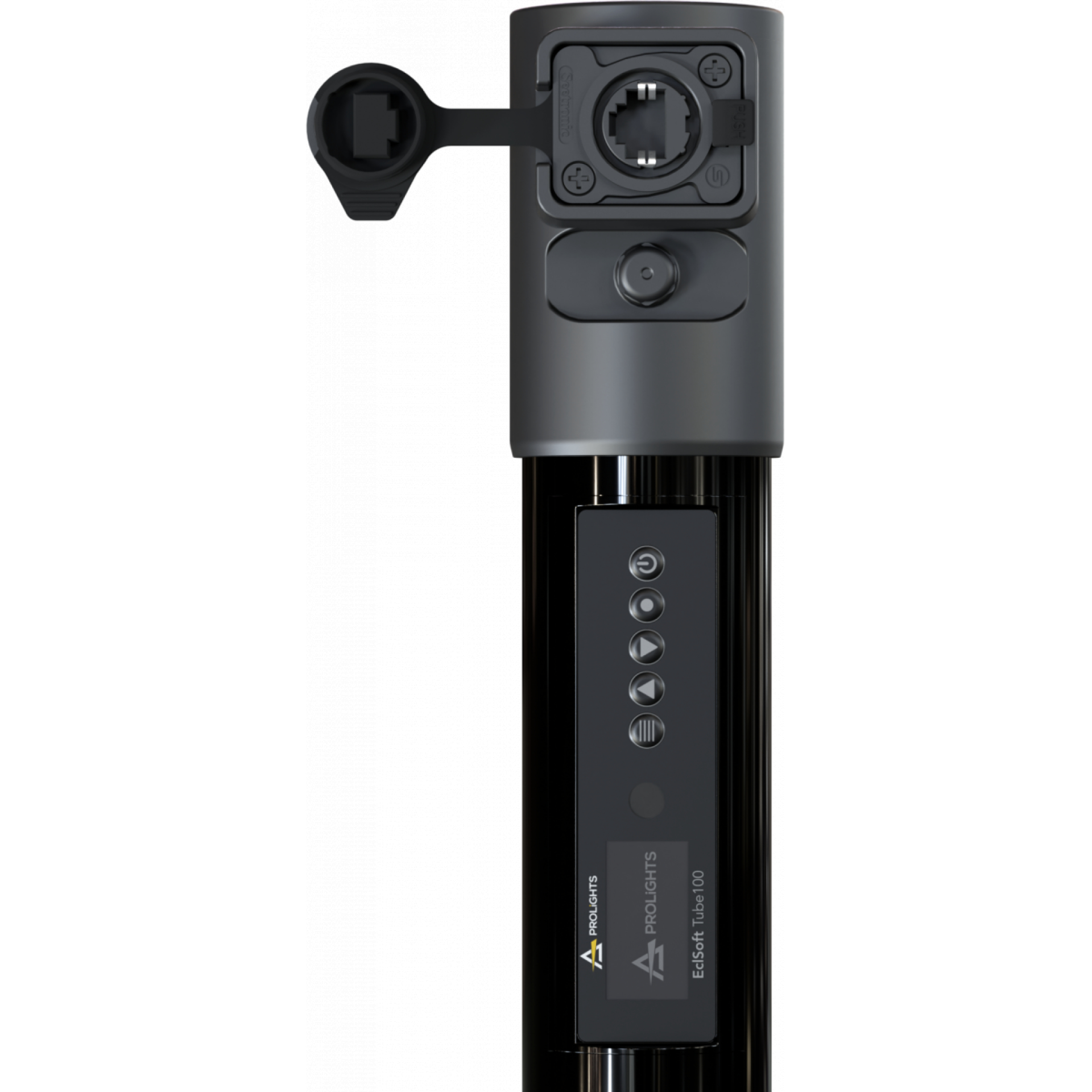

PROLIGHTS EclSoft Tube100 soft light - control panel

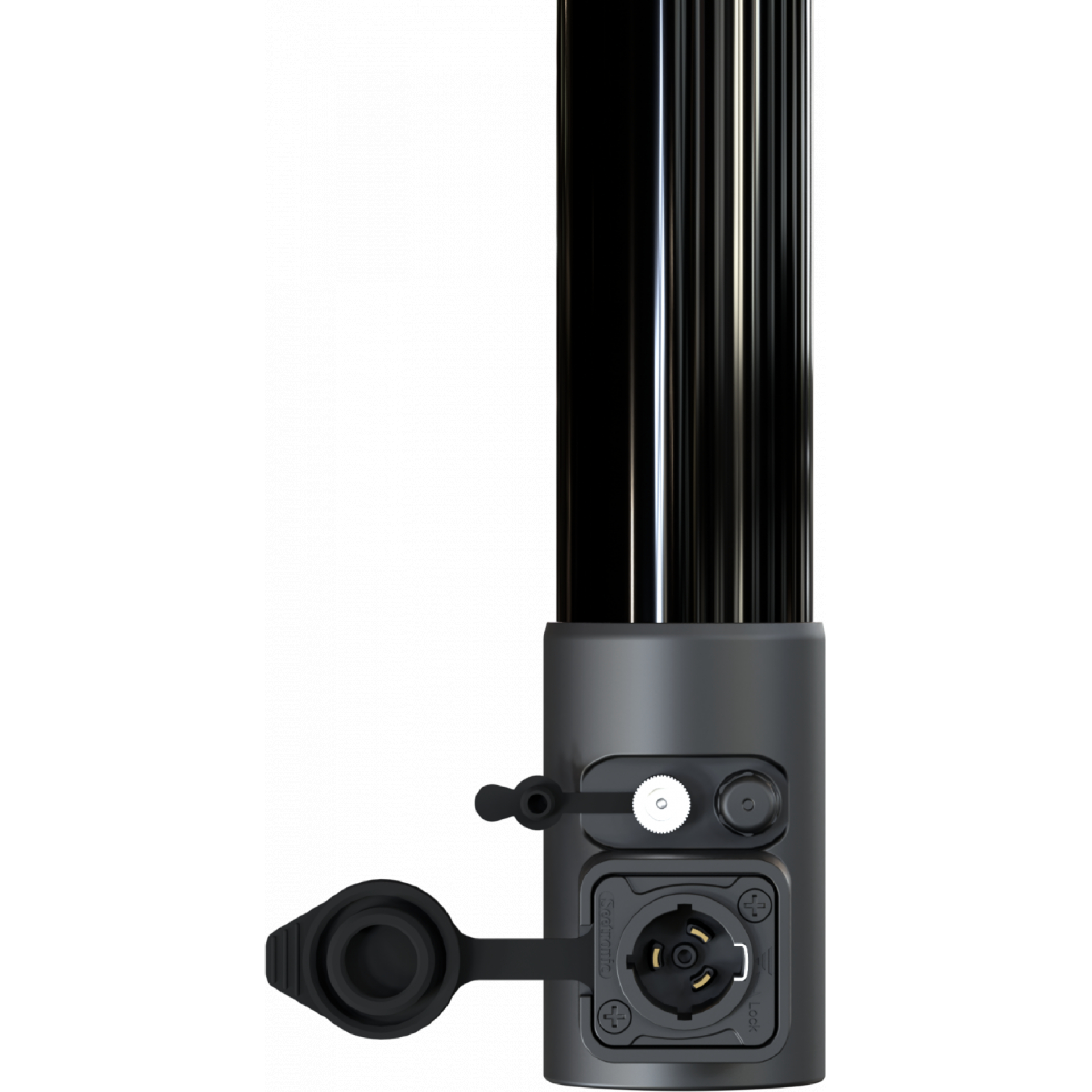

PROLIGHTS EclSoft Tube100 soft light - connections

PROLIGHTS EclSoft Tube100 soft light - straight on

PROLIGHTS EclSoft Tube100 soft light - side angle

PROLIGHTS EclSoft Tube100 soft light - back

PROLIGHTS EclSoft Tube100 soft light - control panel

PROLIGHTS EclSoft Tube100 soft light - connections

EclSoft Tube100

PROECLSOFTTUBE100

Key Features:

Hybrid fixture, Wireless DMX (CRMX+W-DMX) / ethernet control, battery/mains power

IP65 for outdoor applications

Pixel control, on-board cinema pixel engine, RGB + Warm White LED source with high CRI (up to 93) and TLCI

Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

EclSoft Tube100

The PROLIGHTS EclSoft Tube100 is a multipurpose, IP65 wireless linear pixel tube designed for Film & TV, indoor and outdoor environments.

The EclSoft Tube100 has a 48W RGB + Warm White LED source with 16 independently-controlled sections. This fixture has high-quality tunable white with ultra-high CRI, as well as on-board cinema effects and pixel effects.

This fixture is “Spektra™ Calibrated” and contains a wide variety of colour modes, including RGBW mode, RGB mode and CMY mode, as well as many others. It also includes CCT control presets with +/- green shift and industry standard gels. The EclSoft Tube100 can be used wired or wireless, due to its on-board battery, wireless DMX control, as well as its wired connection for mains power and an ethernet port.

Source: 48W RGB + Warm White

Luminous flux: 2,386lm @ full

Lux: 71lx @ 3m

Lux: 161lx @ 2m

CRI: 93

Source life expectancy: > 50,000hr

Beam angle: 128°

Field angle: 199°

Lens type: frosted acrylic tube

Colour control: XY, CCT, RGBW, Gel, HSI, Source Emulation, colour macros, CTO on colours

Colour mixing: RGB + Warm White

CCT: CCT control, + / - green correction, tungsten emulation

White presets: 2,800K - 10,000K with 28K resolution

Colour wheel: virtual colour wheel with macros

Macros: several pre-built pixel macros with adjustable speed

Control resolution: 16-bit dimmer, colours

Pixel patterns: pre-programmed pixel macros and cinema lighting effects patterns

FX generator: 16 sections with adjustable foreground/background colour, index, speed, direction

Static mode: selection of static colour

Manual mode: manual adjustment of colour

Auto mode: built-in programs with execution speed adjustment

Special features: linear crossfade channel from any white to any colour; virtual CTO on colours

Protocols: Art-Net, Kling-Net, sACN, CRMX+W-DMX

DMX channels: main personality 1 / 2 / 13 / 14 / 18 / 19 / 20 / 23 / 33 / 43 channel

Wireless xontrol: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (LumenRadio) and W-DMX (Wireless DMX)

RDM: RDM for remote monitoring and settings

Display: Graphic User Interface

Firmware upgrade: yes, via USB - DMX interface (UPBOX1+EST100UPBOXI) not included

IR: infrared sensor controlled by remote (included in the pack, not included in single unit)

Master/Slave: for synchronised operation of more units linked in a chain
