Pixie ZoomXB

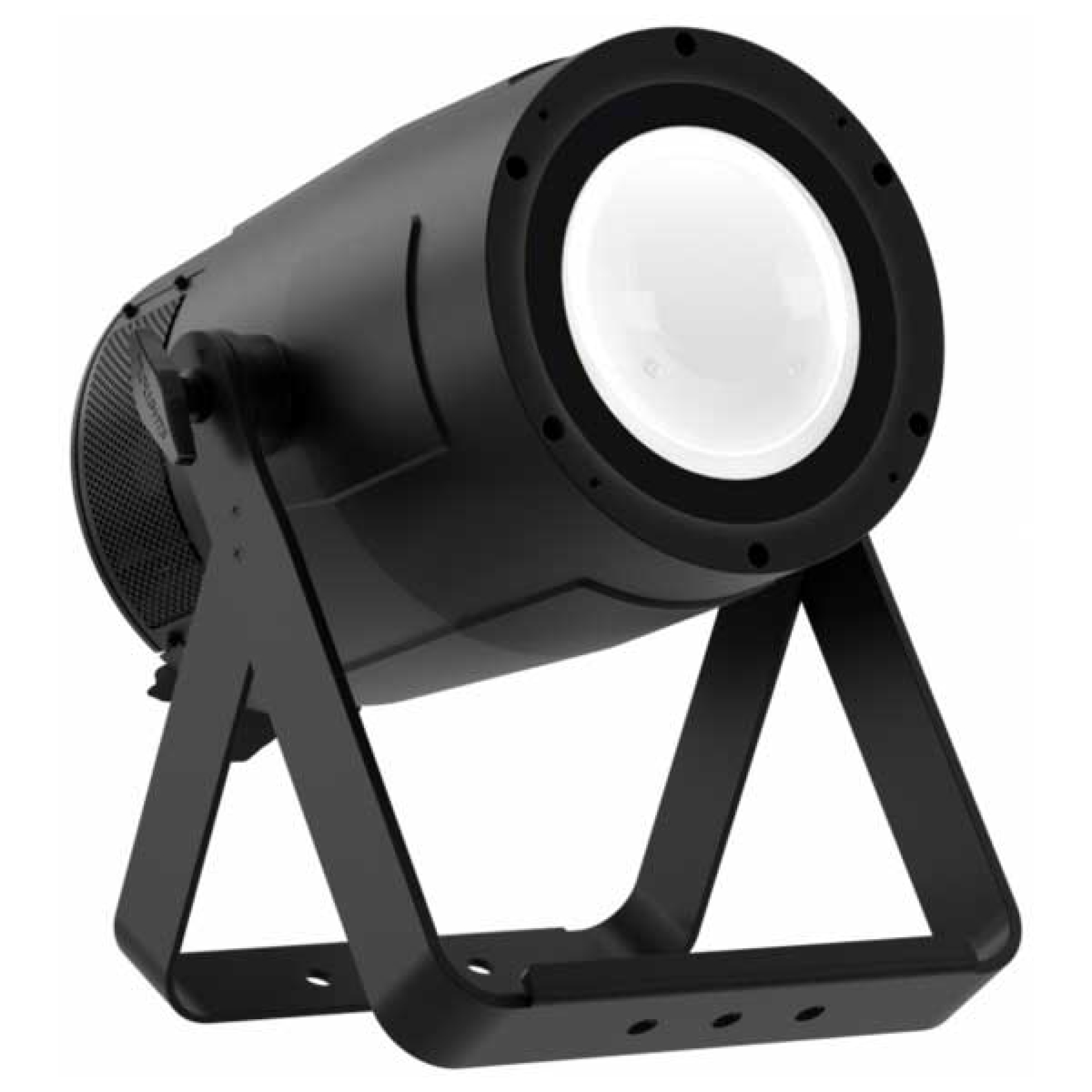

PROLIGHTS Pixie ZoomXB

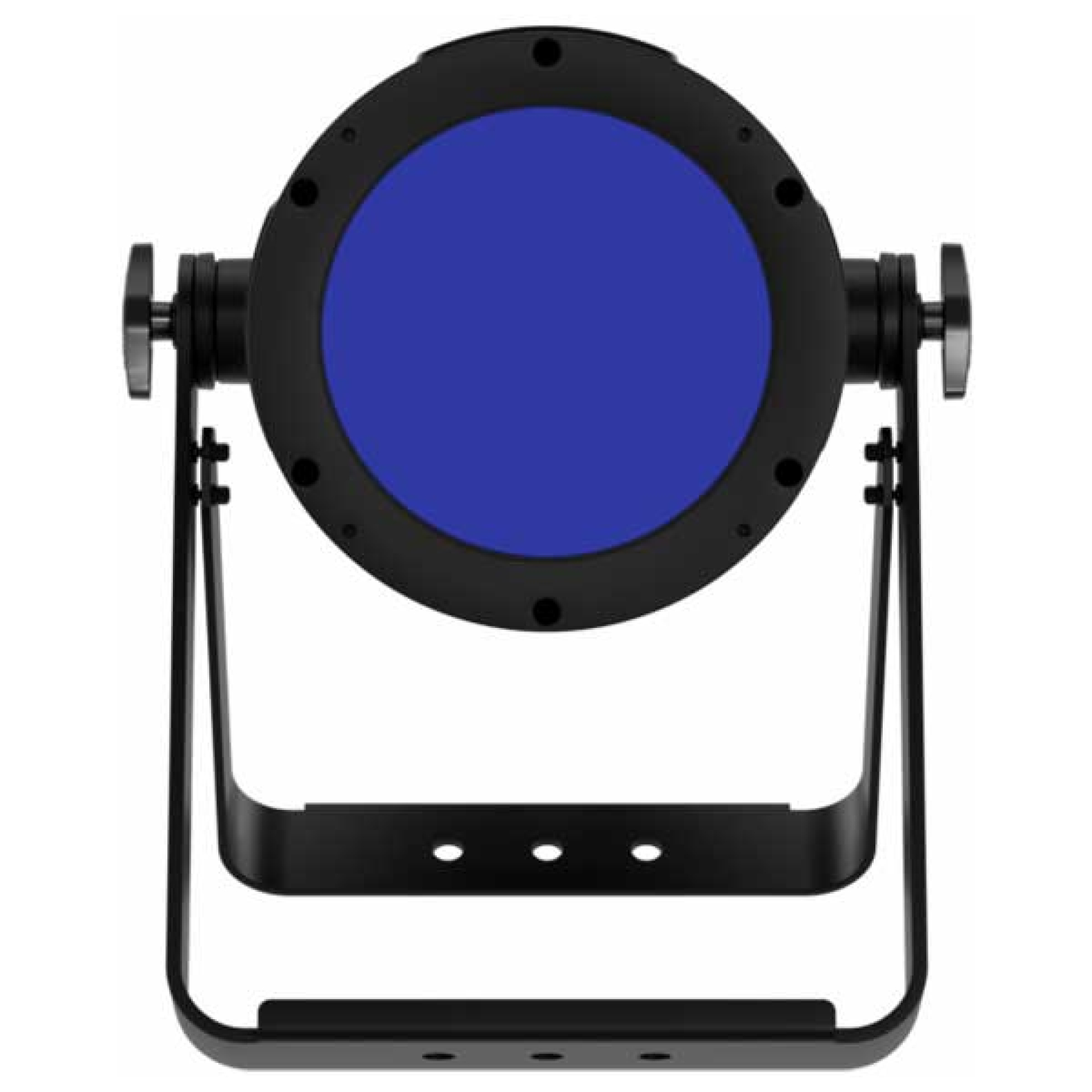

PROLIGHTS Pixie ZoomXB Front

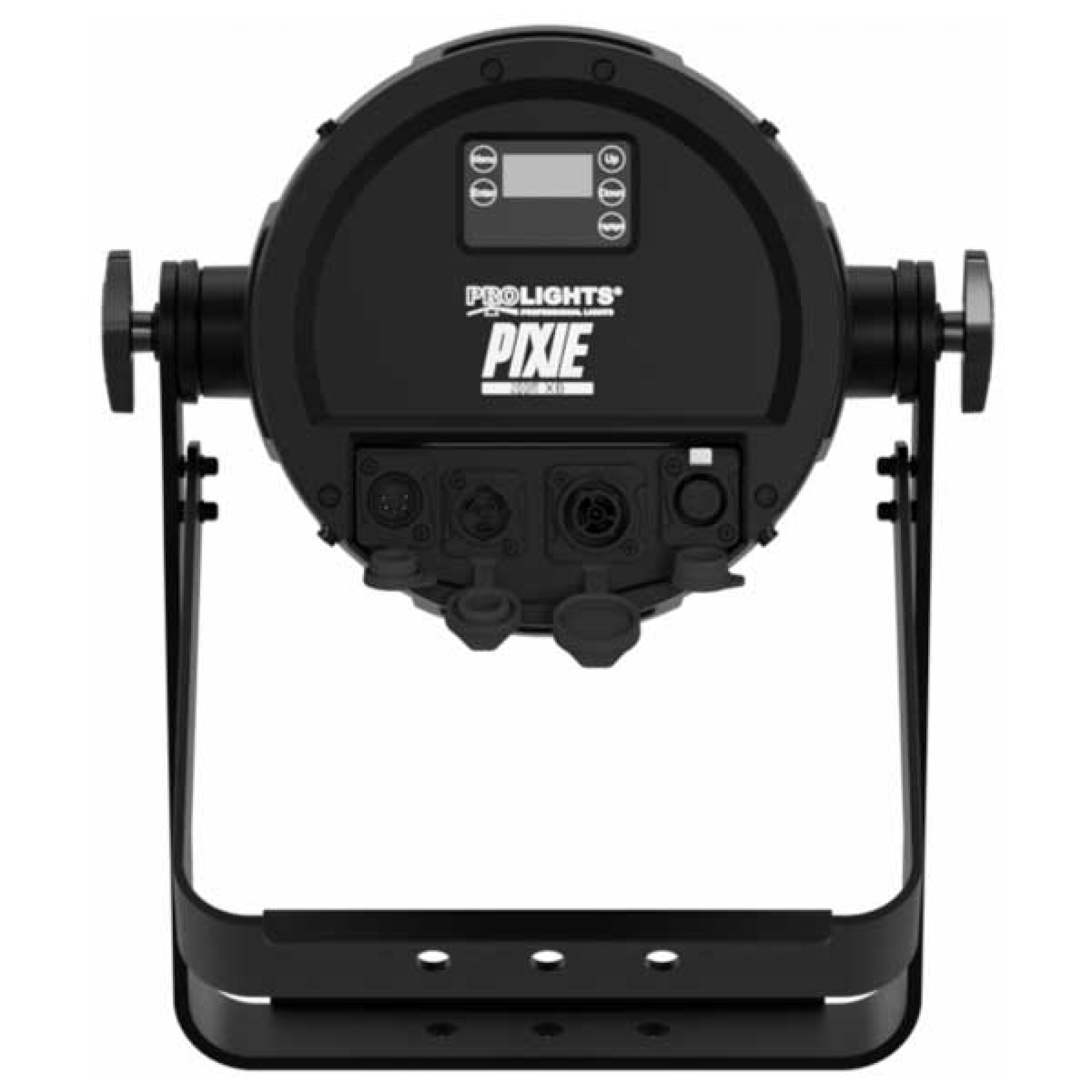

PROLIGHTS Pixie ZoomXB Back

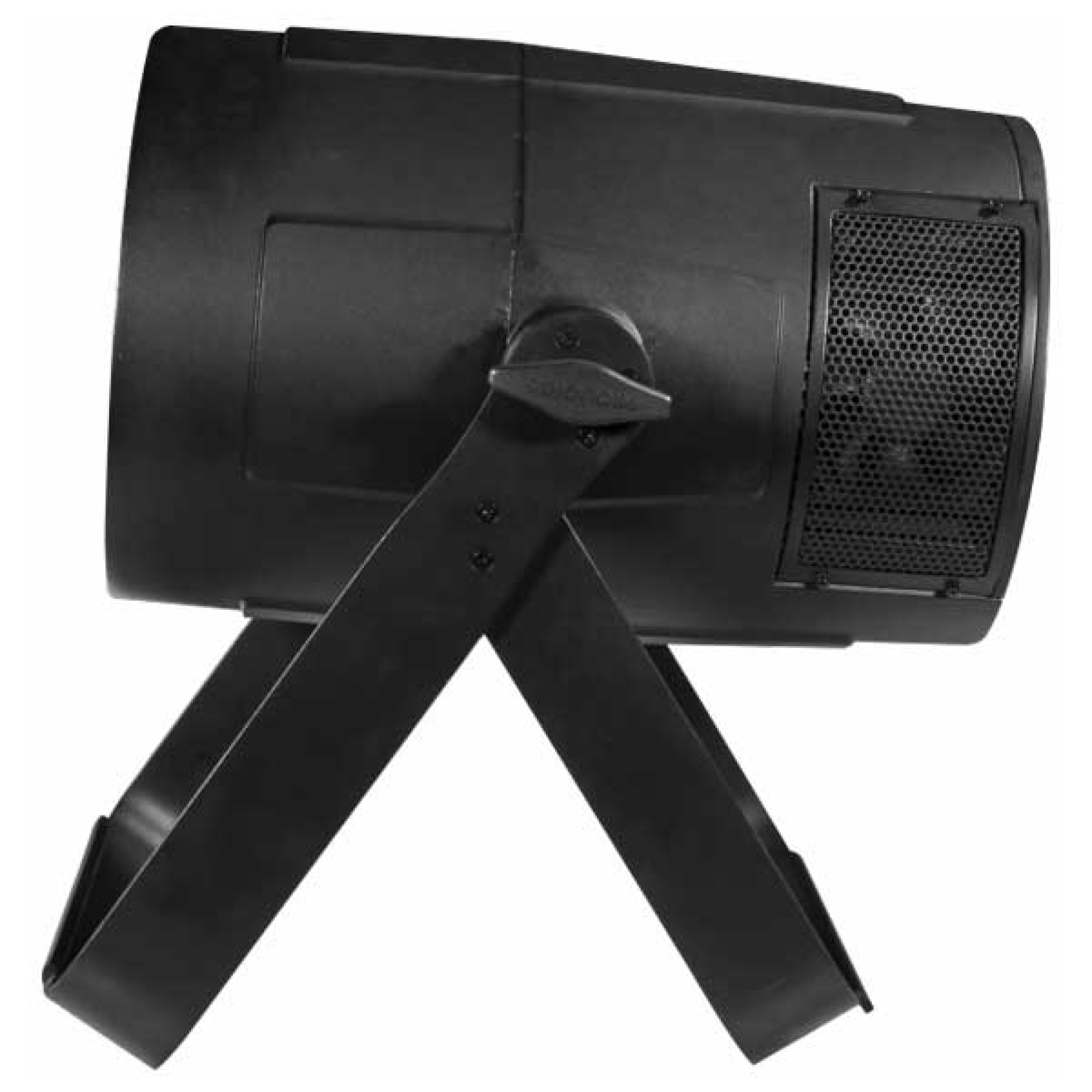

PROLIGHTS Pixie ZoomXB Side

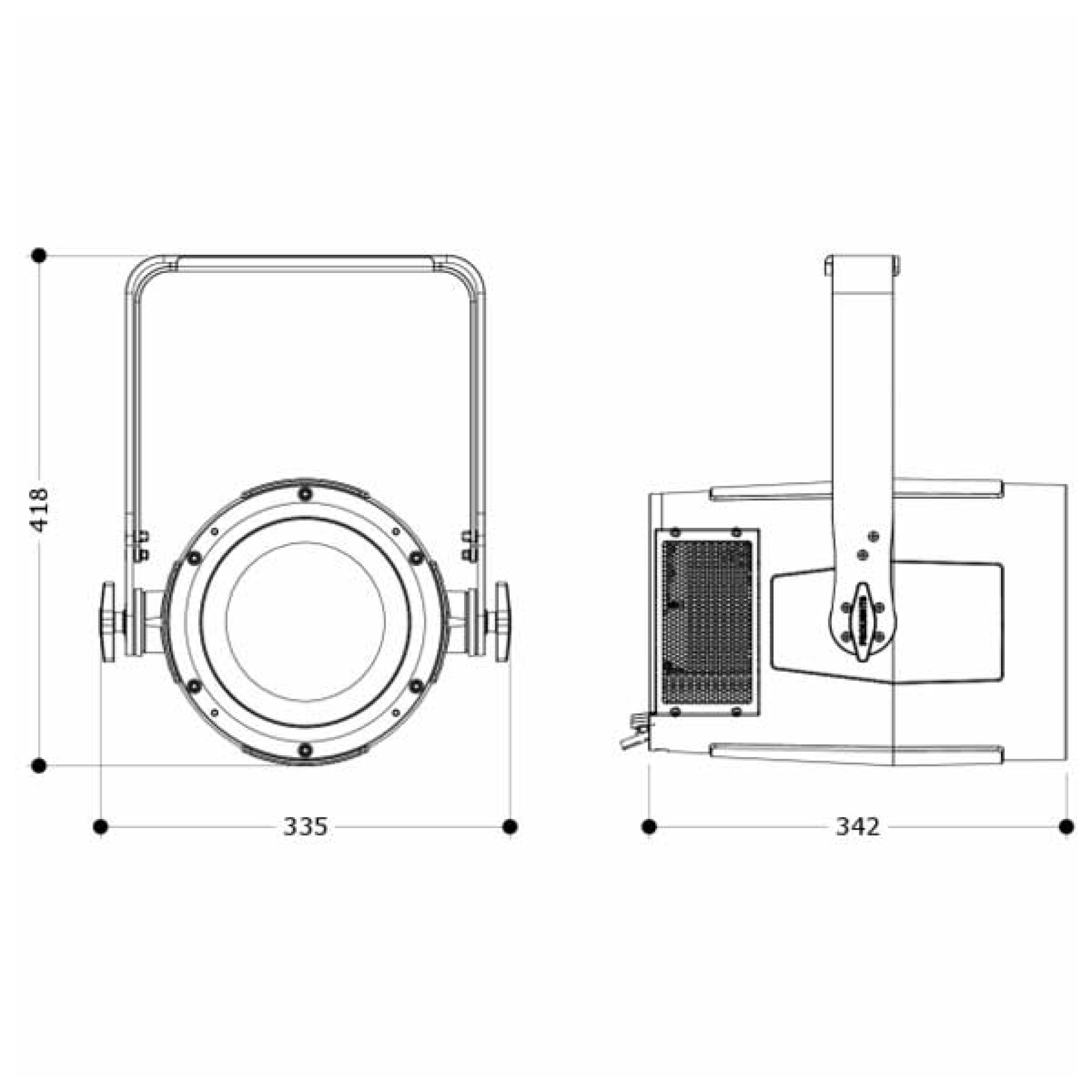

PROLIGHTS Pixie ZoomXB Dimensions
PROLIGHTS Pixie ZoomXB Front
PROLIGHTS Pixie ZoomXB Back
PROLIGHTS Pixie ZoomXB Side
PROLIGHTS Pixie ZoomXB Dimensions

Pixie ZoomXB

PROPIXIEZOOMXB

Key Features:

  • 280W proprietary RGB + warm white LED delivering high CRI, TLCI, TM30 values
  • 6° to 45° linear zoom with superior evenness
  • IP65 (events) and WDMX on-board
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

Pixie ZoomXB

The PROLIGHTS Pixie ZoomXB is an IP65 rated super bright, single-source LED PAR featuring a 6°- 45° linear zoom and a fully homogenised output.

The Pixie ZoomXB is equipped with a proprietary 280W RGB + warm white LED module which delivers a high-quality white with high CRI and TLCI parameters as well an extremely precise colour tuning. Pixie ZoomXB is an ideal solution for any application where users want a superior light quality but without the view of multi-cell fixtures. Being IP rated and offering a wide zoom range, the fixture offers unprecedented flexibility and is a truly indispensable unit for every rental house.

  • Source: 280W RGB + warm white

    CT: 6,500K

    CRI: > 92

    R9: > 94

    Luminous flux: (6°) 3670lm – (45°) 3795lm

    Lux: (6°) 29900 lux; (45°) 1590lux @ 3m full

    Lux: (6°) 10764 lux; (45°) 572lux @ 5m full

    Source life expectancy: 70,000hr

    Zoom: 6° – 45° motorised linear zoom

    Field angle: 11° – 58°

    Lens diameter: 125mm

    Lens type: high-quality glass lens optics

  • Colour mixing: RGB+warm white

    CTC: CTC control through independent DMX channel and amber shift activation by DMX

    White presets: 2,800 – 10,000K

    Colour wheel: virtual colour wheel with presets

    Macros: several pre-build macros with adjustable speed

    Manual colour mode: manual adjustment of colour

    Auto mode: built-in programs with execution speed adjustment

  • Protocols: DMX512, RDM, W-DMX

    DMX channels: 5 / 7 / 11 channel

    W-DMX: included, wireless solution receiver

    RDM: RDM ready for fixture remote monitor and settings

    Display: black OLED high resolution display

    Firmware upgrade: yes, via USB-DMX interface (UPBOX1) not included

    Master/slave: for synchronized operation of more units linked in a chain

Pixie ZoomXB - Downloads
Pixiezoomxb_A4_DATASHEET_EN.pdf
Download

You might like...

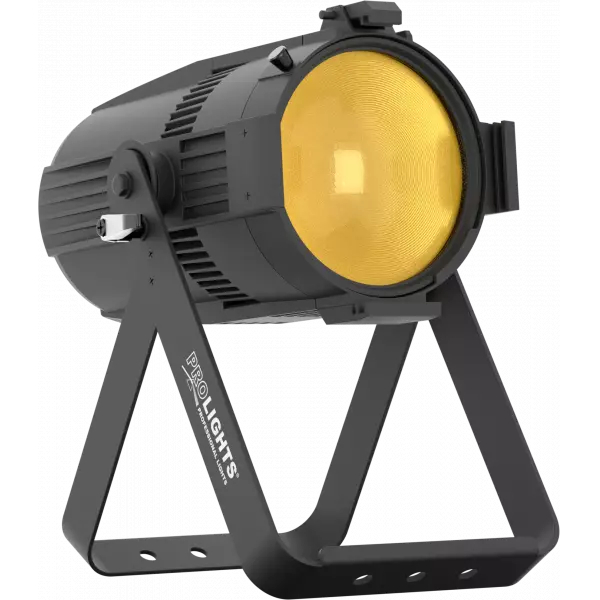

PROLIGHTS EclPar FC
