KappaPix 26B

KappaPix 26B

Key Features:

  • Single person installation, automatic edge & corner protection
  • Fast LED Module and PSU replacement
  • Up to 16bit grayscale and 251Hz Image frame rate
Enquire

Enquiry Form

Call us today on

+44 (0)113 255 7666

KappaPix 26B

The PROLIGHTS KappaPix 26B is a high-standard LED screen for XR & Virtual Production with a 2.6 mm pixel pitch, designed to meet requirements for motion picture and XR studios.

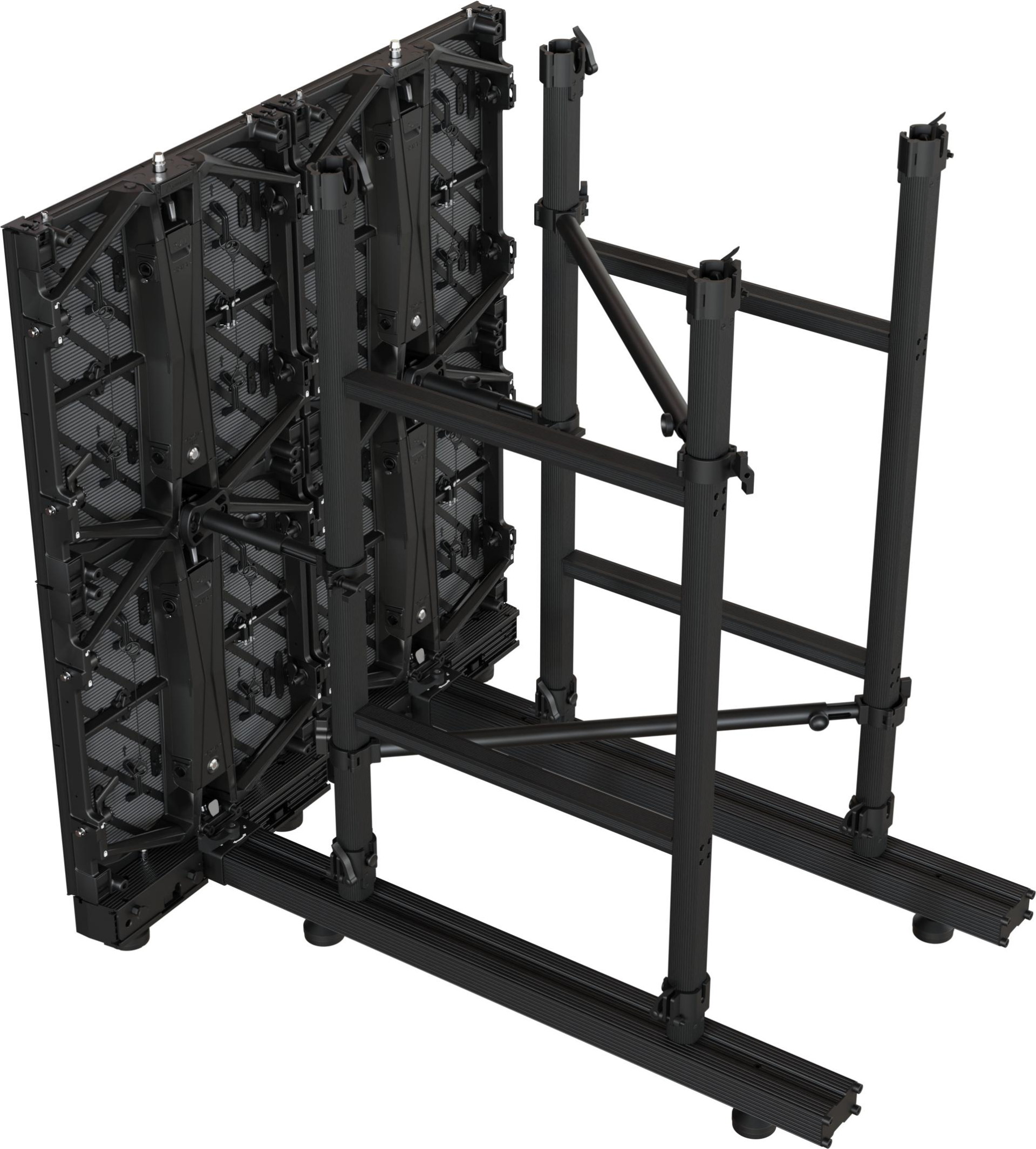

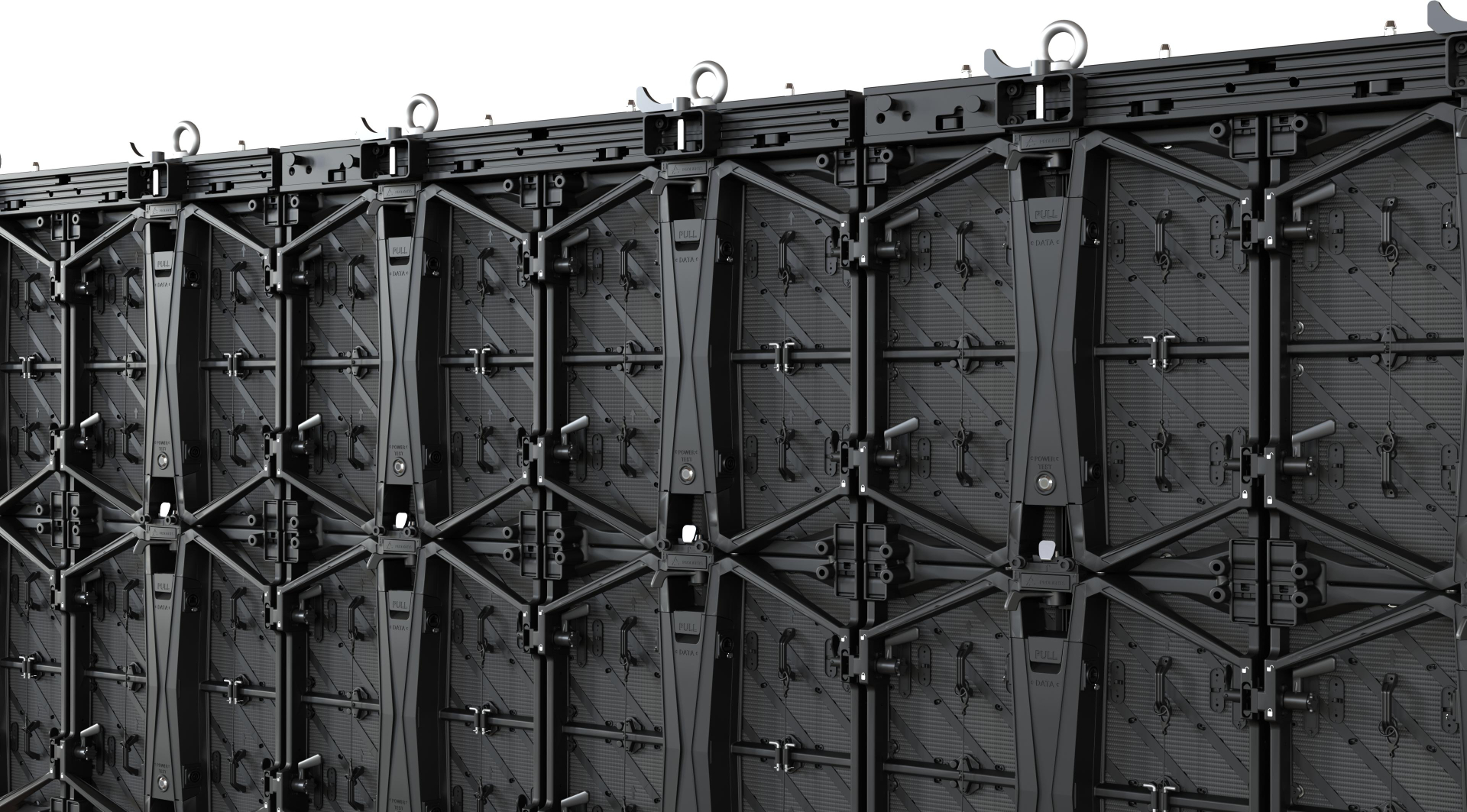

The PROLIGHTS KappaPix 26B (26B1X1BF) LED screen uses premium components and it is equipped with Brompton R2 receiver cards on board, achieving >7680Hz Refresh rate, >251Hz image frame rate and up to 16bit grey scale, optimising behaviour also in low light applications.  The mechanical design of the tiles has been conceived to allow fast single-person installation with extra safety & handling features such as automatic edge and corner protection, and LED module protection. Panel maintenance has been furtherly enhanced allowing modular and tool-free maintenance for LED modules and the PSU unit.

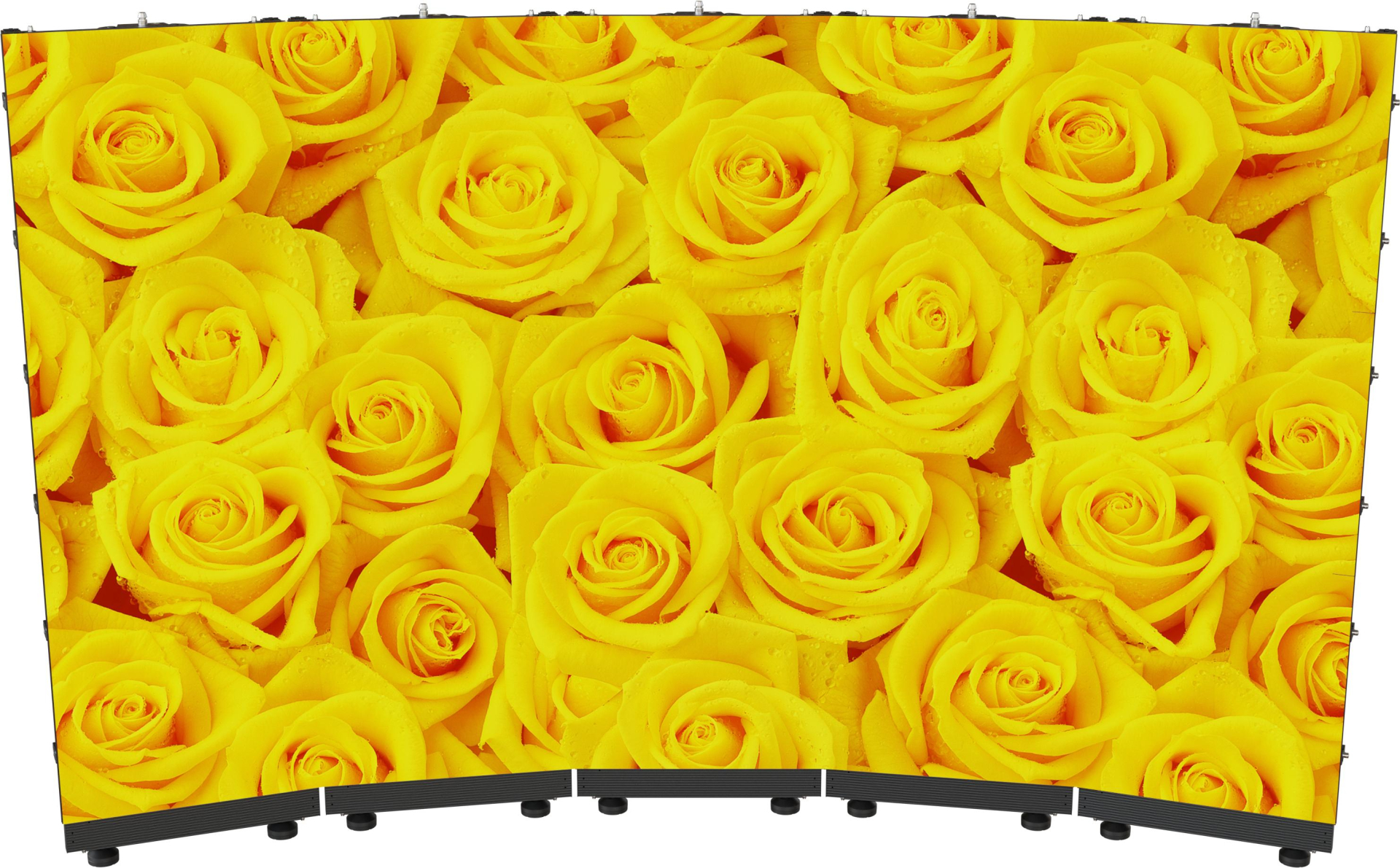

KappaPix 26B can be also curved concave and convex +10° / -5° through high-precision curving plates. The cabinet, built into magnesium alloy is exceptionally lightweight with 6.3 kg per panel and 25,2 kg per sqm.

  • XR/VP Led screen with R2 Control system and >7680Hz Refresh rate

    Single person installation, automatic edge & corner protection

    Fast LED Module and PSU replacement

    Curving plates concave and convex +10° / -5°

    Up to 16bit grayscale and 251Hz Image frame rate

    Driver chip type: MBI 5264

    LED source: Nationstar SMD 1515 full black

    Frame rate: 251 Hz

    LED density: 147.456LED/sqm
