SigmaPix 26B BF

SigmaPix 26B BF

Key Features:

  • Full black LEDs
  • Built in curve mechanics for +10° / -10° concave & convex
  • Special S (+/-40° flex tiles) and C (90° corner) cabinets for unprecedented design
Enquire

Enquiry Form

Call us today on

+44 (0)113 255 7666

SigmaPix 26B BF

SigmaPix 26B is a rental LED screen for indoor use with a 2,6 mm pixel pitch, designed to meet requirements for corporate, studio and install applications.

Product Variants

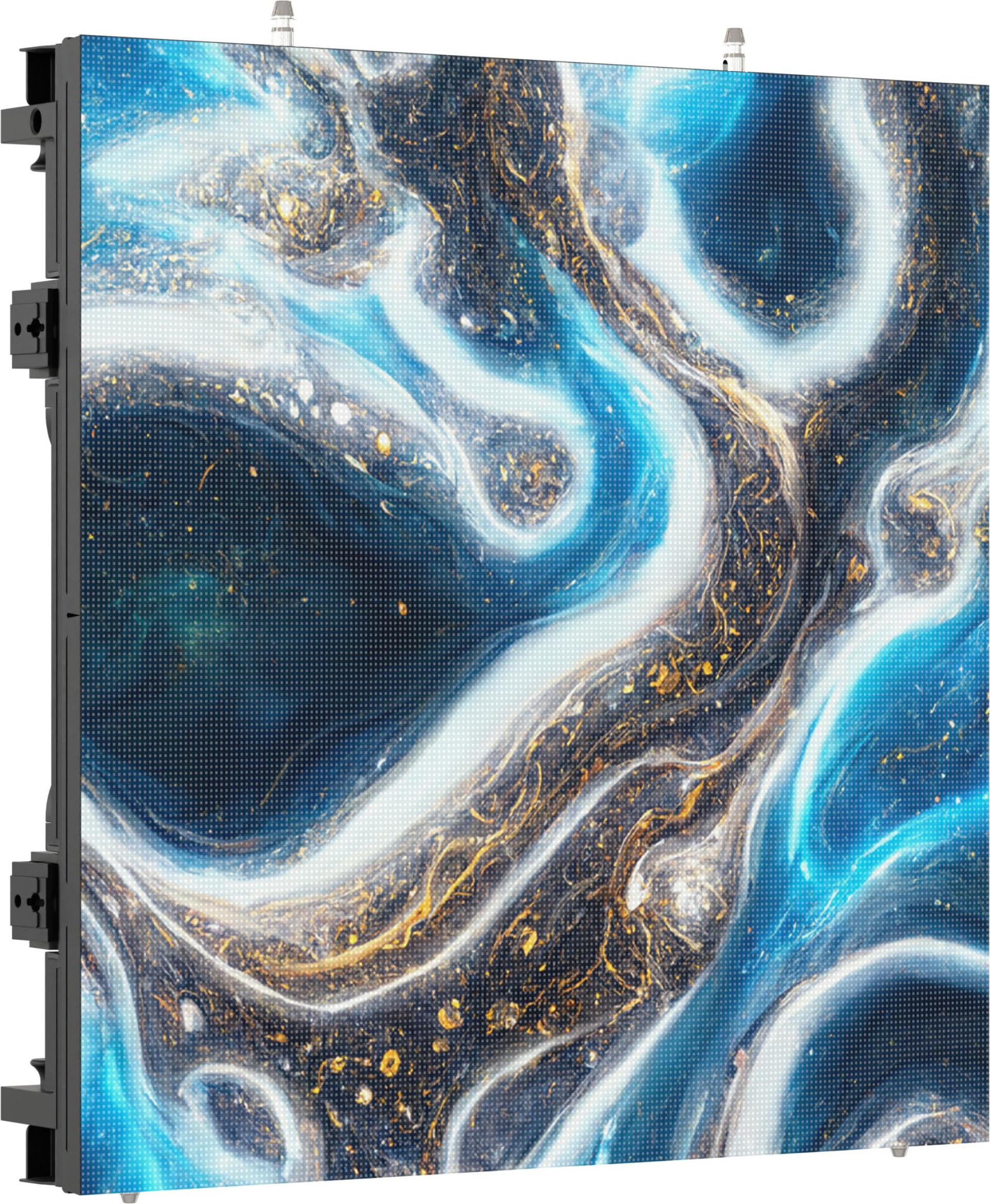

SigmaPix 26B1X1BF
  • 50x50cm tile
  • Built in curve mechanics for +10° / -10° concave & convex

Enquiry Form

SigmaPix 26BC1X1BF
  • 50x50cm tile
  • Built in curve mechanics for +10° / -10° concave & convex
  • Four sides 45° cut

Enquiry Form

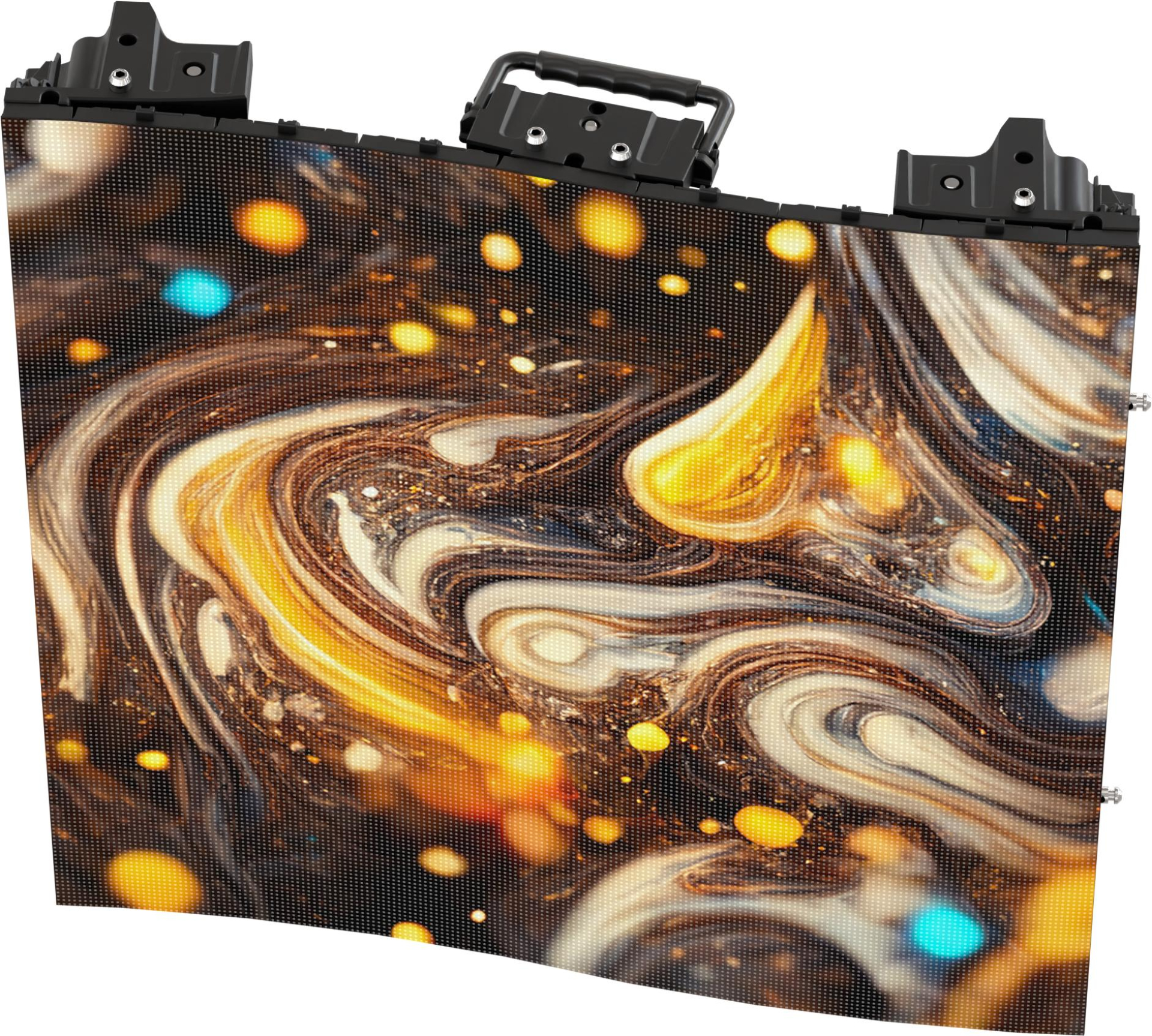

SigmaPix 26BS1X1BF
  • 50x50cm tile
  • Special S built in curve mechanics for +40° / -40° concave & convex

Enquiry Form

SigmaPix 26B is a rental LED screen for indoor use with a 2,6 mm pixel pitch, designed to meet requirements for corporate, studio and install applications.

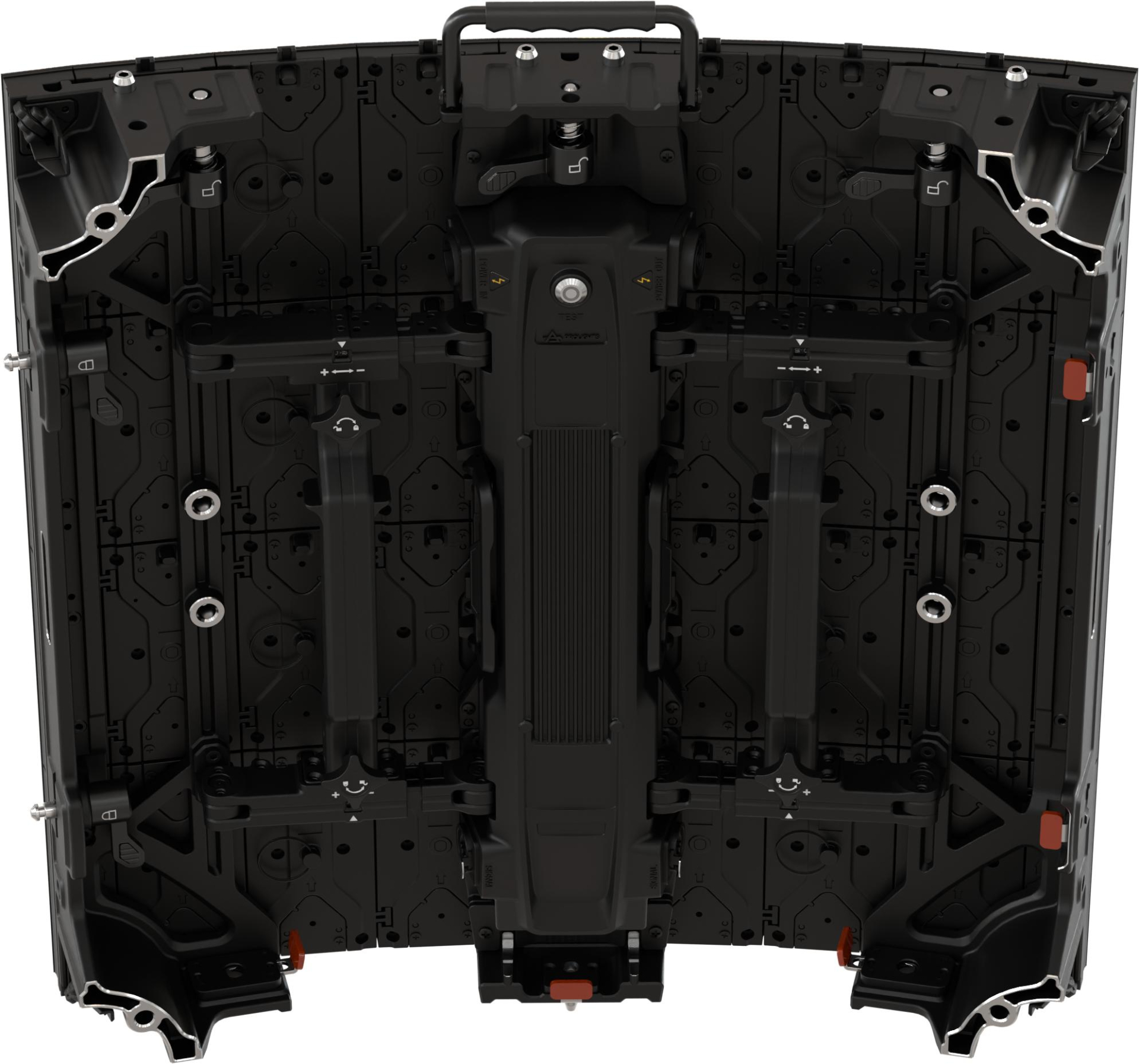

The mechanical design of the tiles has been conceived to allow fast single person installation with automatic lock design and extra safety & handling features such as flip corner shield and bottom protection.

Panel maintenance has been furtherly enhanced allowing quick replacement of LED modules and the PSU unit.
SigmaPix 26B tiles have on board curve mechanics allowing both concave and convex precise installation of  +10° / -10° each tile and the weight has been reduced down to 8 kg per panels (32 kg per sqm).

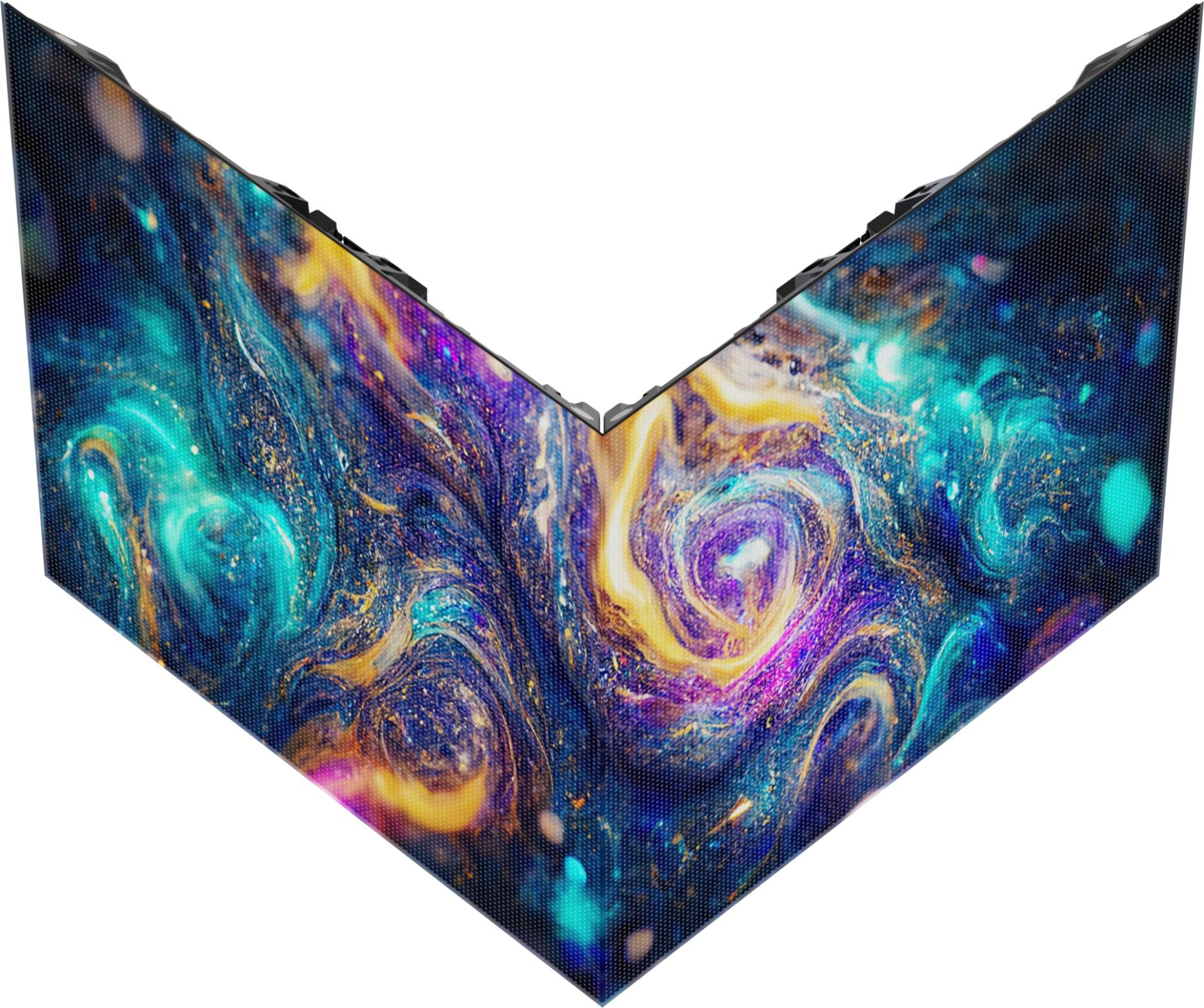

SigmaPix 26B is truly creative and it is enriched by the special S and C tiles to achieve unprecedented design. The S tile is a flexible panel, that it is designed with a flex PCB allowing to reach a curve angle of +40° and - 40° within one single cabinet. The C Tile is a special 90° cutted edge panel on every side allowing to create 90° seamless corner on every edge.

The on-board electronics include the latest generation of Novastar A8s receiver card and refresh rate up to 3.840 Hz.

  • Single person installation, auto lock design, scratch protection and flip corner shield

    LED source: Nationstar SMD 1515 full black

    Pixel pitch: 2.6mm / 0.1''

    Module resolution: 96x96pixels

    Luminous flux: 1000nit

    Vertical viewing angle: 160°

    Horizontal viewing angle: 160°

    LED density: 147.456LED/sqm

    LED avg life span: 100.000

    IP rating: IP30 (front and rear)

SigmaPix 26B BF - Variant Downloads
