SigmaPix 39T WF

SigmaPix 39T WF

Key Features:

  • Black frame & white face LEDs
  • Single person installation and auto lock design
  • Built in curve mechanics for +10° / -10° concave & convex
Enquire

Enquiry Form

Call us today on

+44 (0)113 255 7666

SigmaPix 39T WF

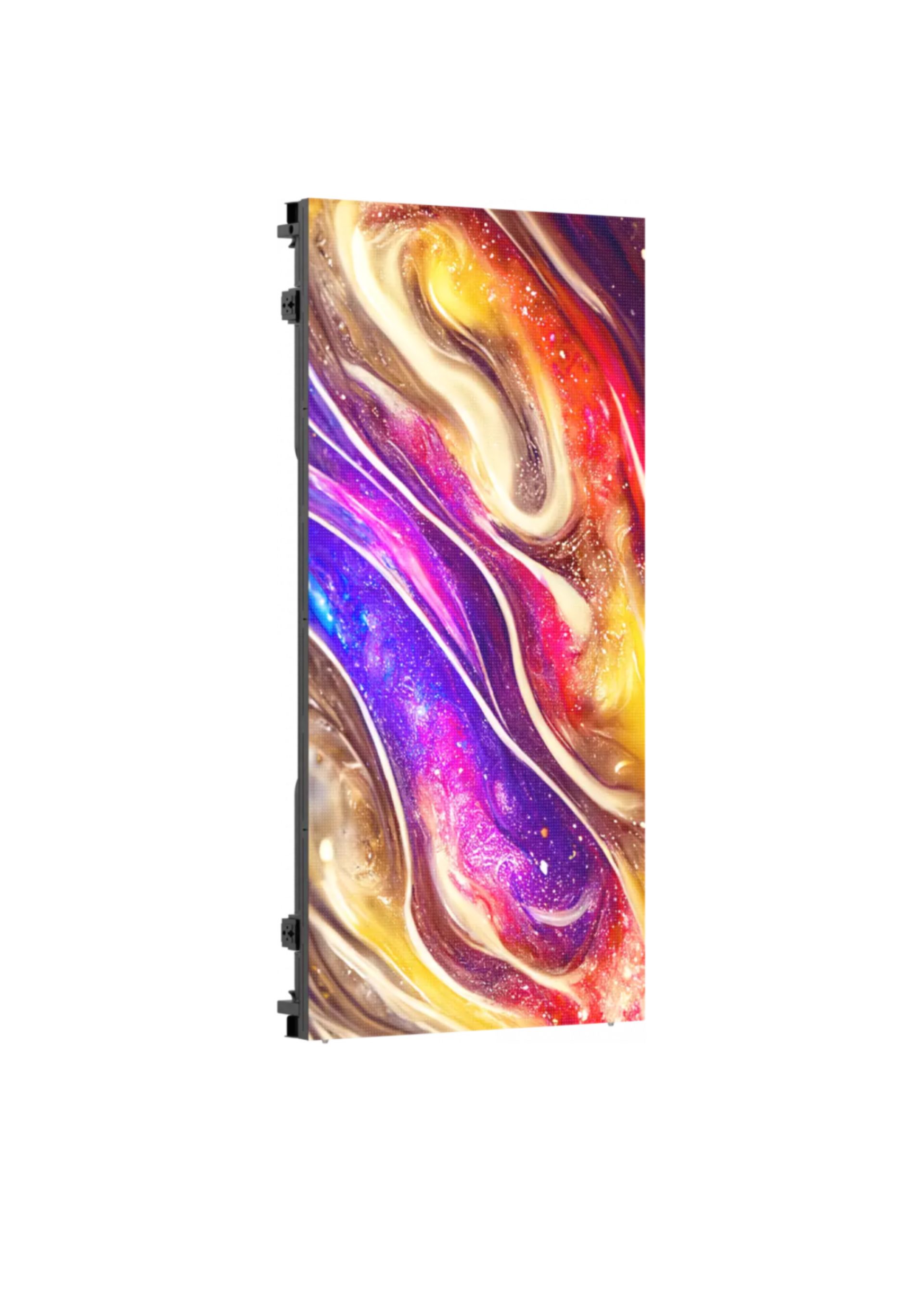

SigmaPix 39T is a rental LED screen for outdoor use with a 3,9 mm pixel pitch, designed to meet requirements for touring, events and install applications.

Product Variants

SigmaPix 39T1X1WF
  • 50x50cm tile

Enquiry Form

SigmaPix 39T1X2WF
  • 50x100cm tile

Enquiry Form

SigmaPix 39TC1X1WF
  • 50x50cm tile
  • Four sides 45° cut

Enquiry Form

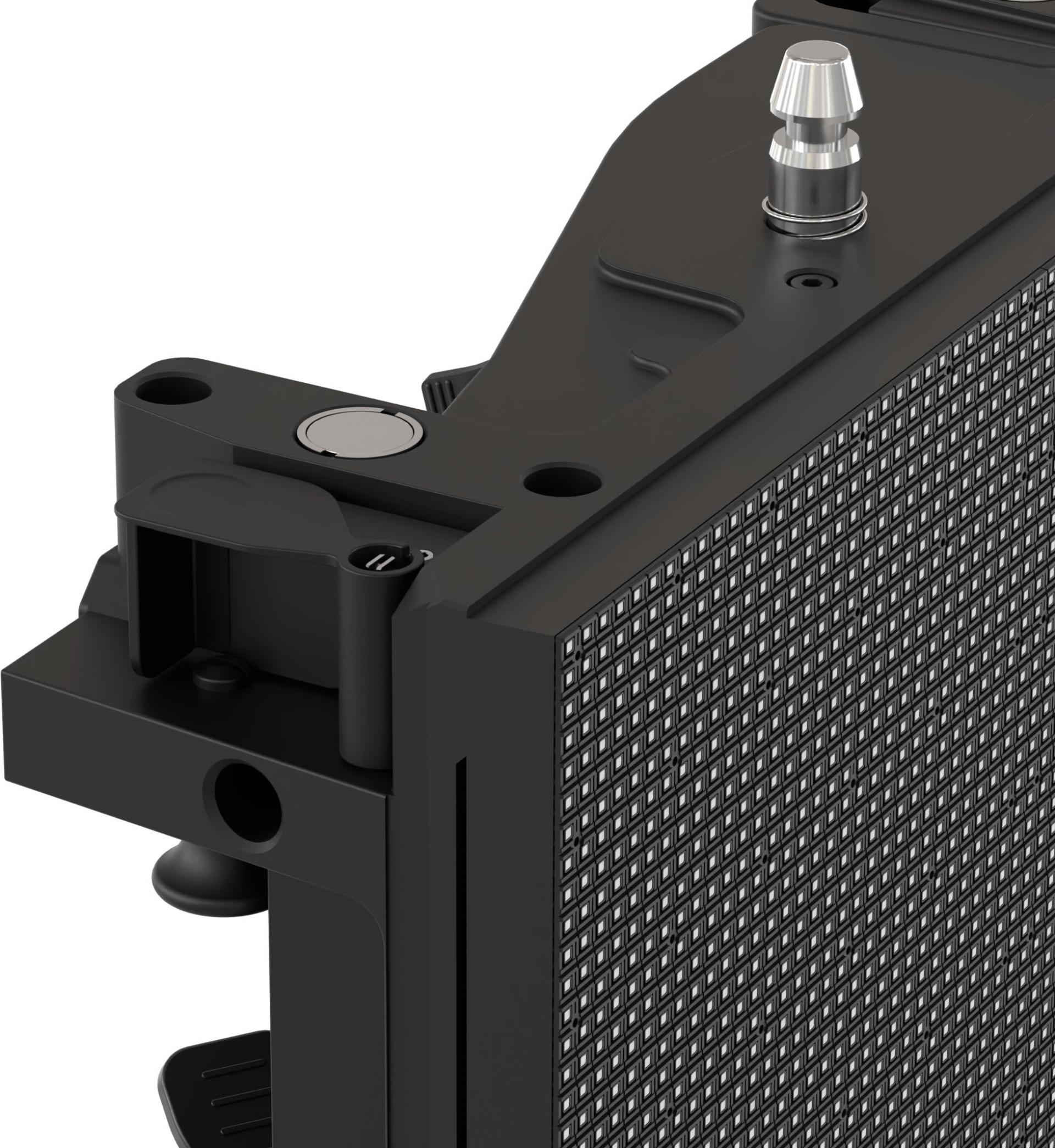

The mechanical design of the tiles has been conceived to allow fast single-person installation with an automatic lock design and extra safety & handling features such as flip corner shield and bottom protection. Panel maintenance has been furtherly enhanced allowing quick replacement of LED modules and the PSU unit.

SigmaPix 39T tiles have on-board curve mechanics allowing both concave and convex precise installation of  +10° / -10° each tile and the weight has been reduced down to 8.6 kg (50×50) / 14.6 kg (50×100)  per panels (34.4 /29.2 kg per sqm).

The SigmaPix 39T is truly creative and it is enriched by the special  C tiles, a special 90° cut edge panel on every side allowing to create 90° seamless corner on every edge.

The on-board electronics include the latest generation of Novastar A8s receiver card and refresh rate up to 3.840 Hz.

  • LED source: Nationstar SMD1921 black frame and white face

    Single person installation, auto lock design, scratch protection and flip corner shield

    Special C (90° corner) cabinet for unprecedented design

    LED source: Nationstar SMD1921 full black

    Pixel pitch: 3.9mm / 0.15”

    Module resolution: 64x64pixels

    Luminous flux: 4.500nit

    Vertical viewing angle: 120°

    Horizontal viewing angle: 140°

    LED density: 65.536LED/sqm

    LED avg life span: 100.000

    IP rating: IP65 (front and rear)
