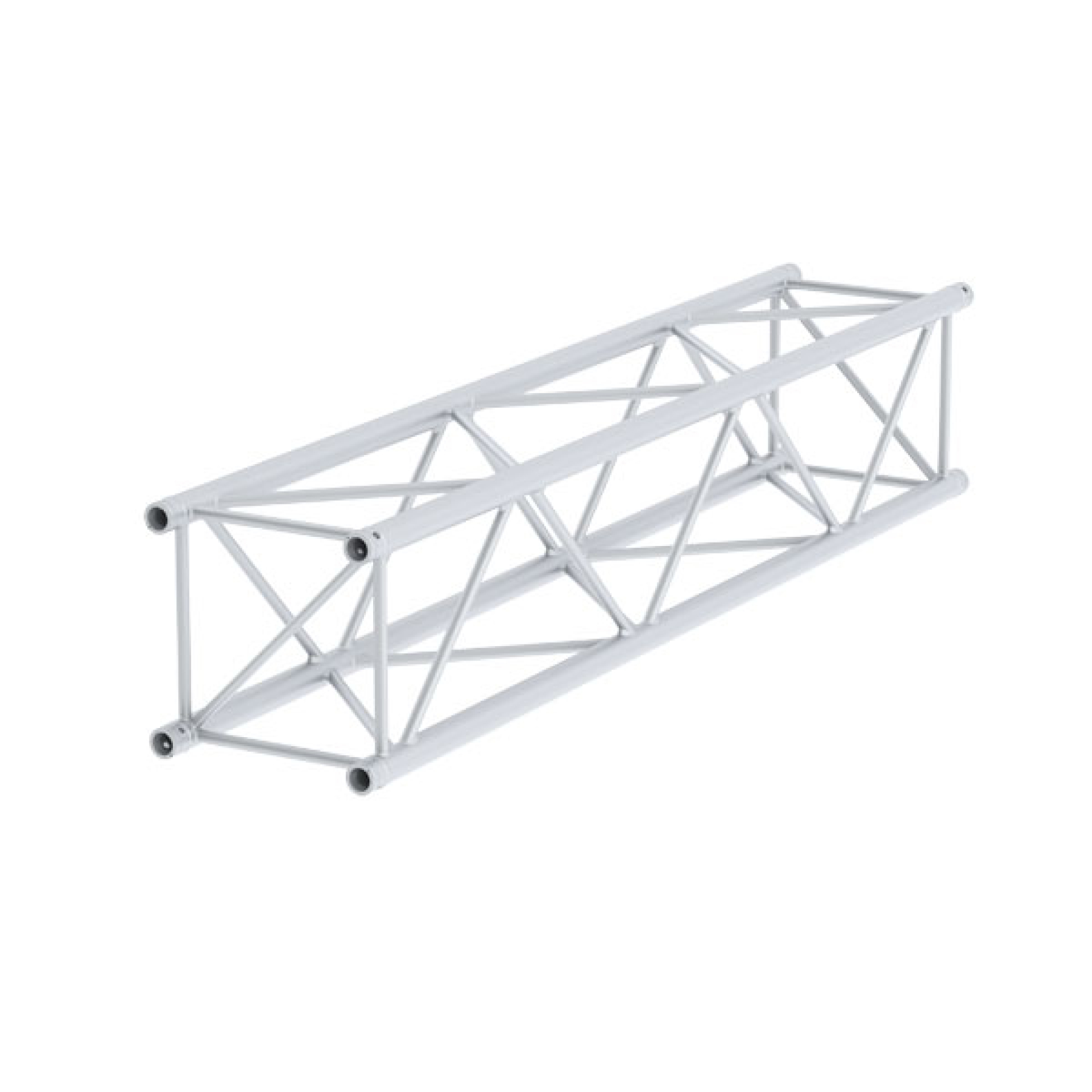

Sixty82 M39 Square Length 200cm

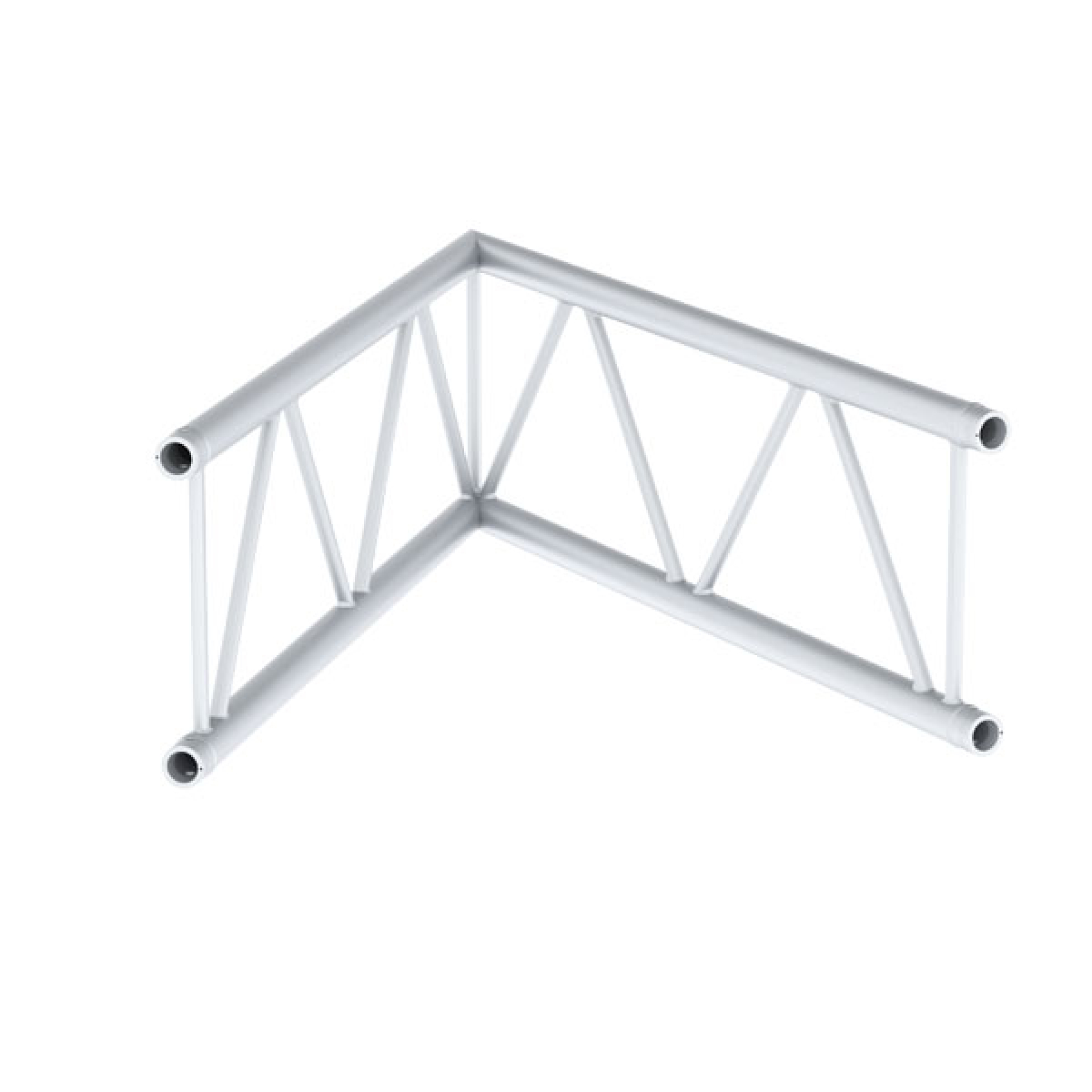

Sixty82 M39 Ladder Corner 2-Way 45deg

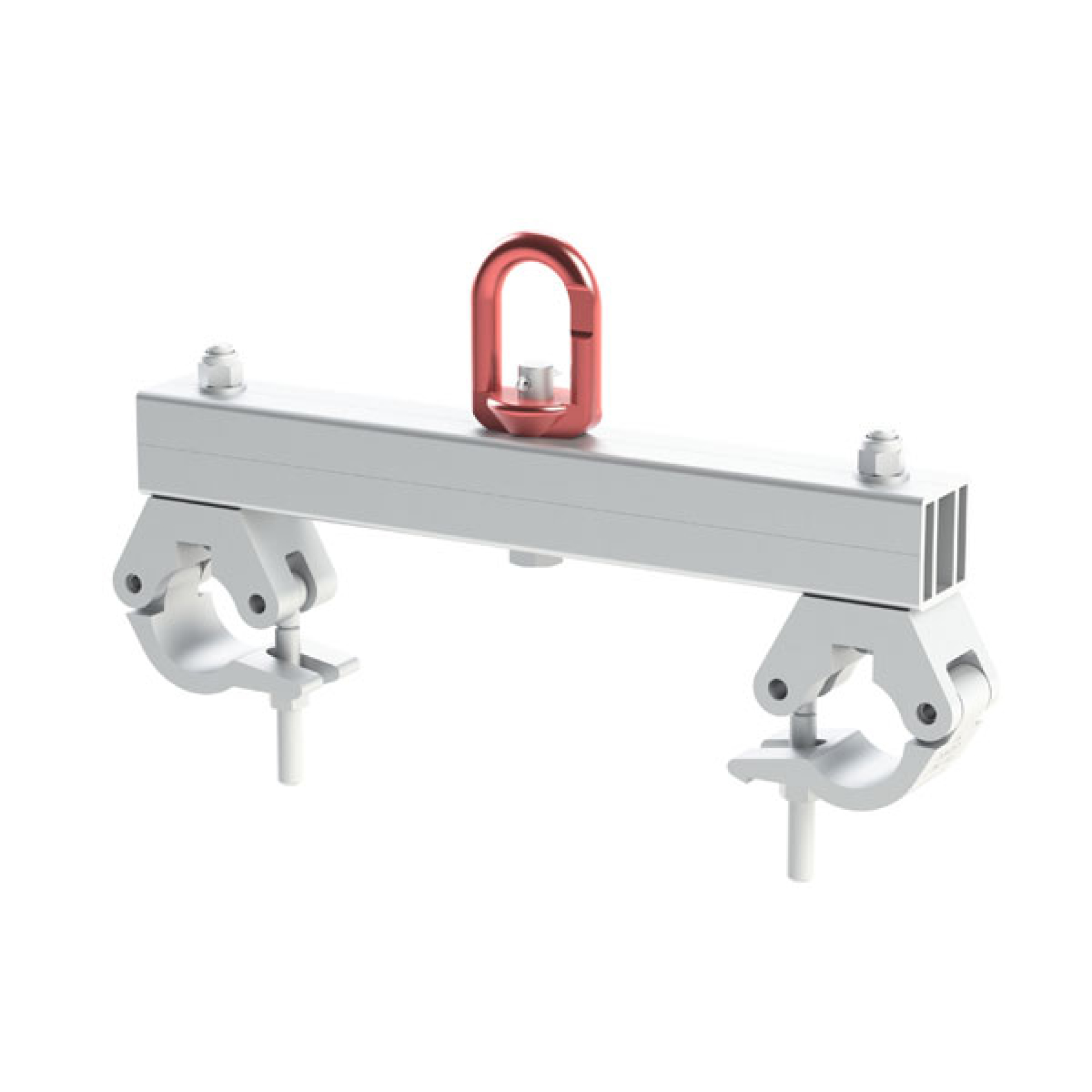

Sixty82 M39 Lifting Bracket

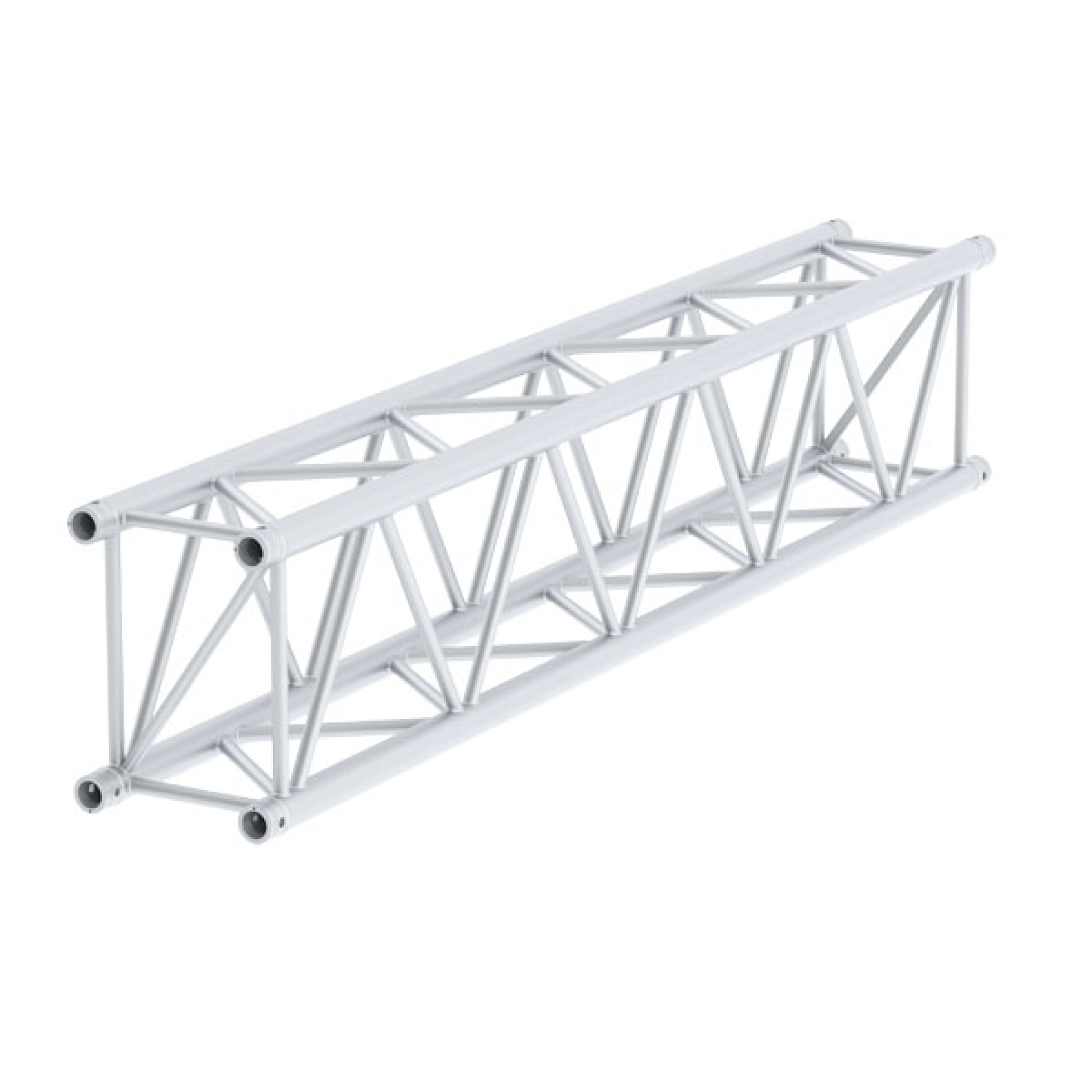

Sixty82 M39 Rectangle Length 200cm

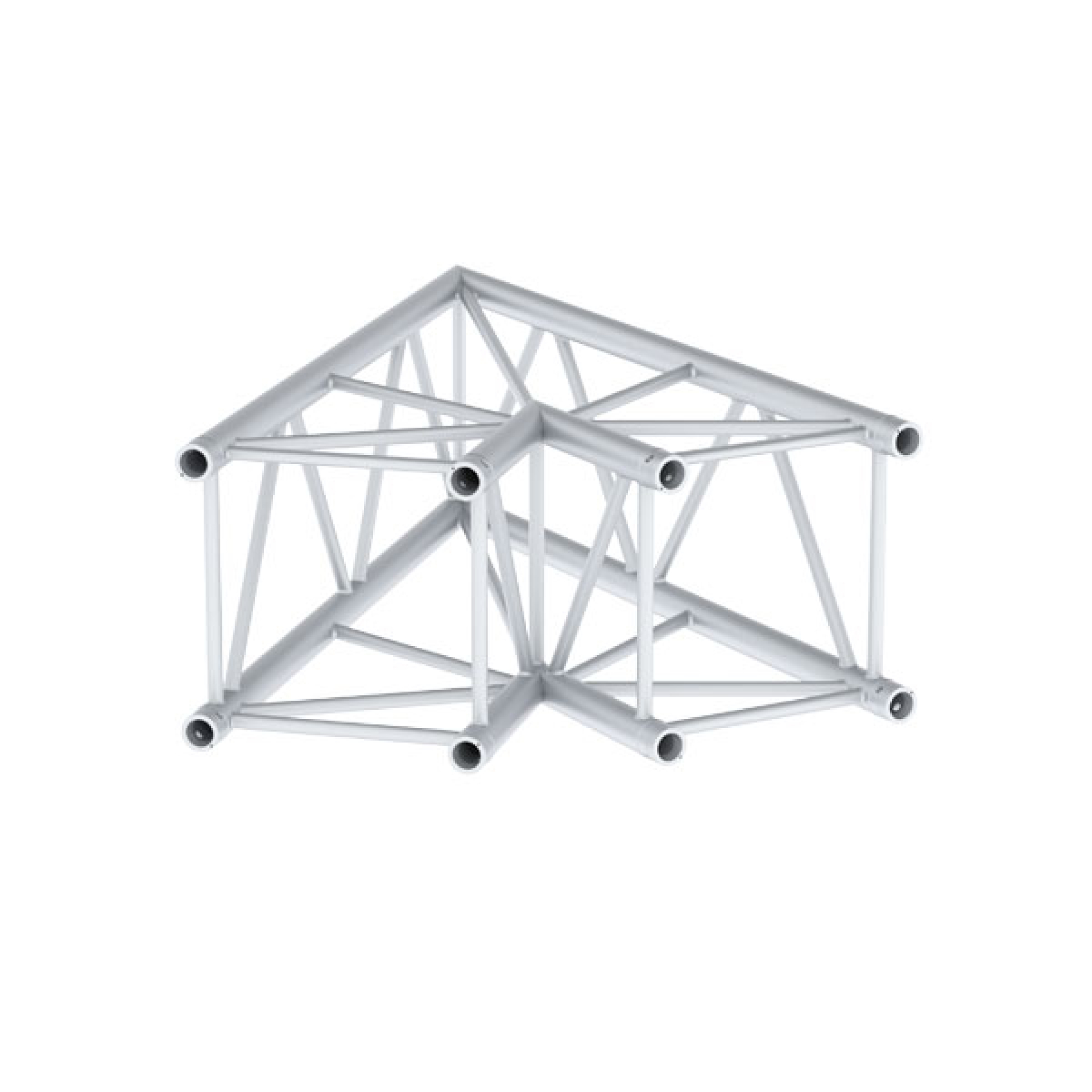

Sixty82 M39 Square Corner 2-Way
Sixty82 M39 Ladder Corner 2-Way 45deg
Sixty82 M39 Lifting Bracket
Sixty82 M39 Rectangle Length 200cm
Sixty82 M39 Square Corner 2-Way

M39 General Purpose Truss

Key Features:

  • RFID tracked - integrated SIXTYTag, enabling RFID product tracking and traceability
  • All corners standard with 48.3x3 mm main chords
  • Innovative industry leaders in the design and manufacture of trussing and staging systems
Enquire

Enquiry Form

Call us today on

+44 (0)113 255 7666

M39 General Purpose Truss


SIXTY82 M39 general purpose truss is a selection of 39cm ladder, triangular, square and rectangular truss with 48.3x3mm aluminium main cords.

They are ideal for touring and rental stocks combined, for when you need better loading capacities than M29 trusses.

This range includes: Lengths, Corners, Circles & Accessories. Please see below for further detail.

  • Ladder 21, 0.5, 0.81, 1, 2, 3 & 4m

    Triangle 25, 0.5, 0.81, 1, 2, 3 & 4m

    Square 25, 0.5, 0.81, 1, 2, 3 & 4m

    Rectangle 81, 1, 2, 2.5, 3 & 4m

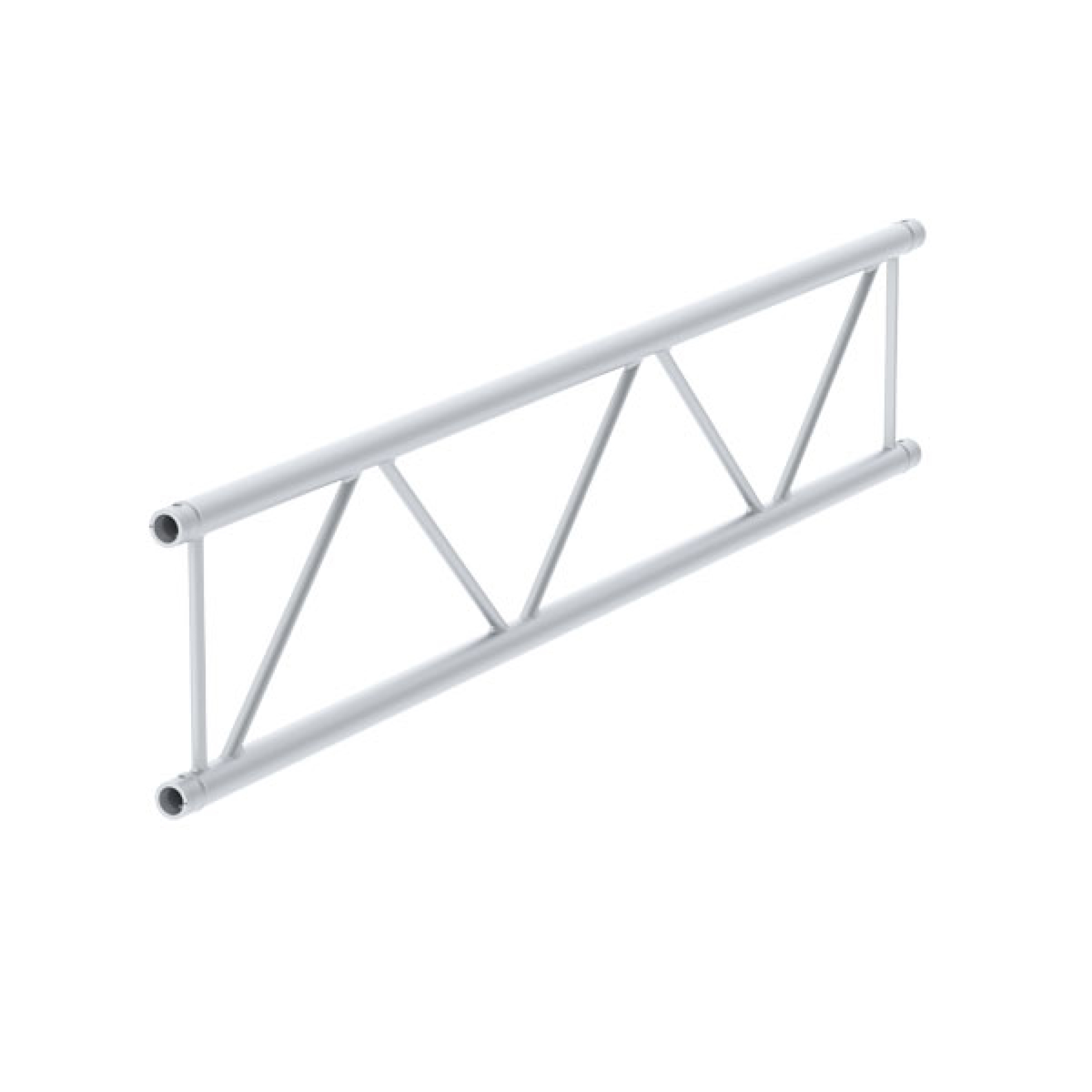

  • Ladder

    - 2 way 45, 60, 90, 120 & 135 degree UP

    - 2 way 45, 60, 90, 120 & 135 degree FLAT

    - 3 way T joint UP & FLAT

    - 4 way 90 degree cross UP & FLAT

    Triangle

    - 2 way 45, 60, 90, 120 & 135 degree apex down

    - 2 way 90 degree apex in

    - 3 way 90 degree apex down R & L

    - 3 way 90 degree T joint apex down & apex in

    - 4 way 90 degree corner apex down R & L

    - 4 way 90 degree cross apex down

    - 4 & 5 way T joint apex down

    - 5 way cross apex down

    Square

    - 2 way 45, 60, 90, 120 & 135 degree

    - 3 way 90 degree corner

    - 3 way 90 degree T joint

    - 4 way 90 degree cross

    - 4 way 90 degree T joint corner

    - 5 way 90 degree

  • Triangle 2m, 3m, 4m & 5m @ 90 degree, 6m, 8m & 10m @ 45 degree, 10m @ 30 degree

    Square 2m, 3m, 4m & 5m @ 90 degree, 6m, 8m & 10m @ 45 degree, 10m @ 30 degree

  • Base plates for both triangle and square 429mm x 429mm x 6mm

    Lifting bracket 1t capacity to suit square and rectangular truss

    Book corner to suit both triangle and square

    Box corner to suit ladder, square and rectangle truss

    Full range of couplers, hinges and connection sets

M39 General Purpose Truss - Downloads
Sixty 82 Range Brochure
