DisplayPort to Quad SDI

DisplayPort to Quad SDI

Key Features:

  • Bridge between your 4K sources and Full-HD displays
  • Up to 8 channels, 24 bit, 48 kHz, embedded audio support
  • 4 fully independent DP to Quad SDI with sync
Enquire

Enquiry Form

Call us today on

+44 (0)113 255 7666

DisplayPort to Quad SDI

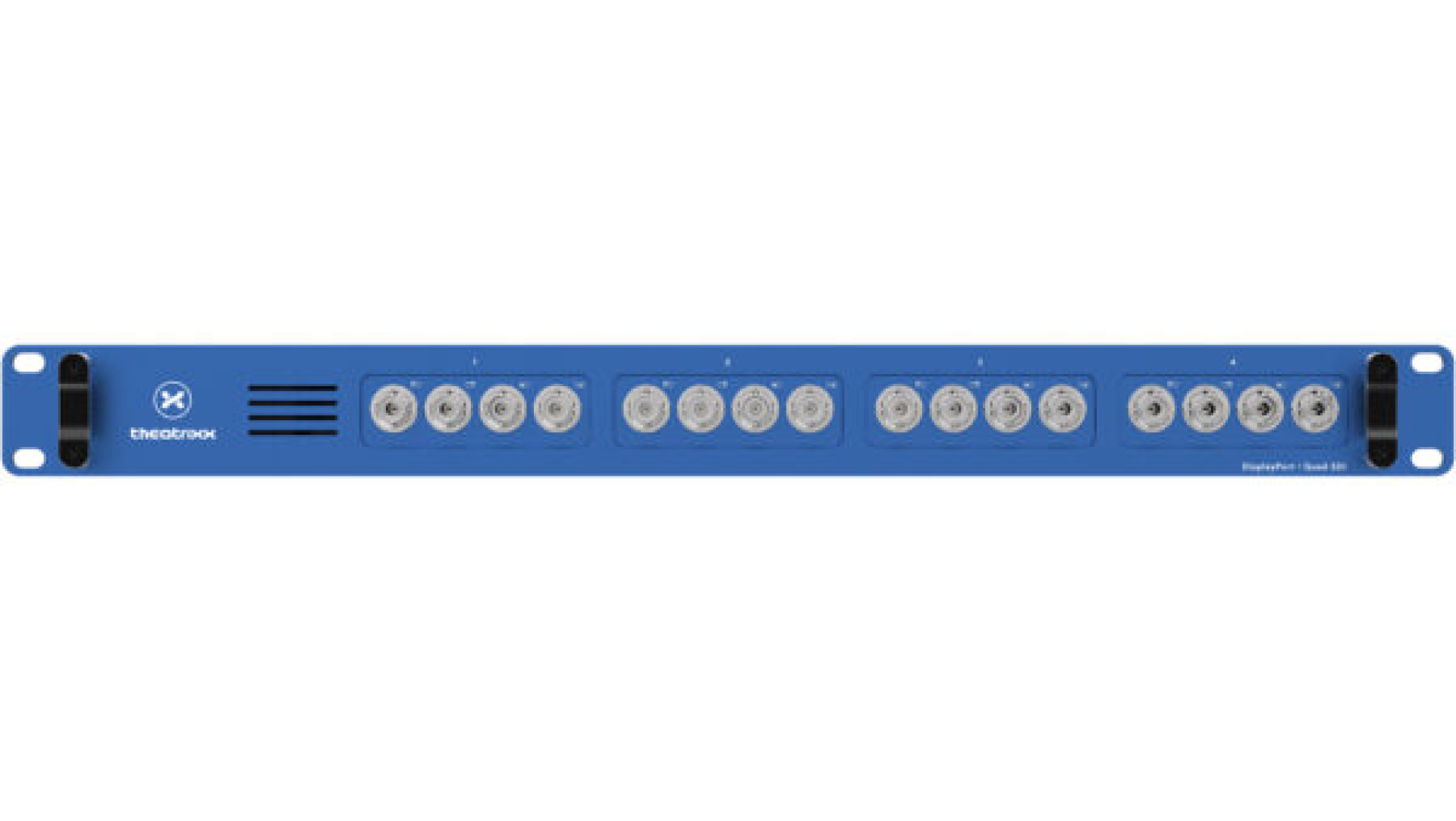

Theatrixx DisplayPort to Quad-SDI converter – the ideal bridge between your 4K sources and Full-HD displays.

It has been designed with a single function in mind: take a 4K50/60, DisplayPort 1.2 input signal, and slice it into four 1080p60 quadrants on 3G-SDI connectors.

While 4K video sources are well on their way to becoming commonplace in professional and consumer electronics, and 8K is right around the corner, there is still a fair amount of signal transport and display solutions utilizing Full-HD infrastructure. 3G-SDI is a proven, reliable transport medium and trusted by millions of users worldwide, and a staggering amount of displays and projectors are still being shipped with native Full-HD support. Meanwhile, 4K sources such as computers and media servers are readily available, and this often creates a case of wastage when the displays can’t use the full pixel output of a source.

Featuring 4 processing channels in a compact 1U enclosure, the device is capable of taking 4x 4K60 DisplayPort inputs and delivering 16 Full-HD, 1080p60 outputs simultaneously with zero configuration. Latency is kept to a minimum thanks to a simplified yet robust processing architecture.

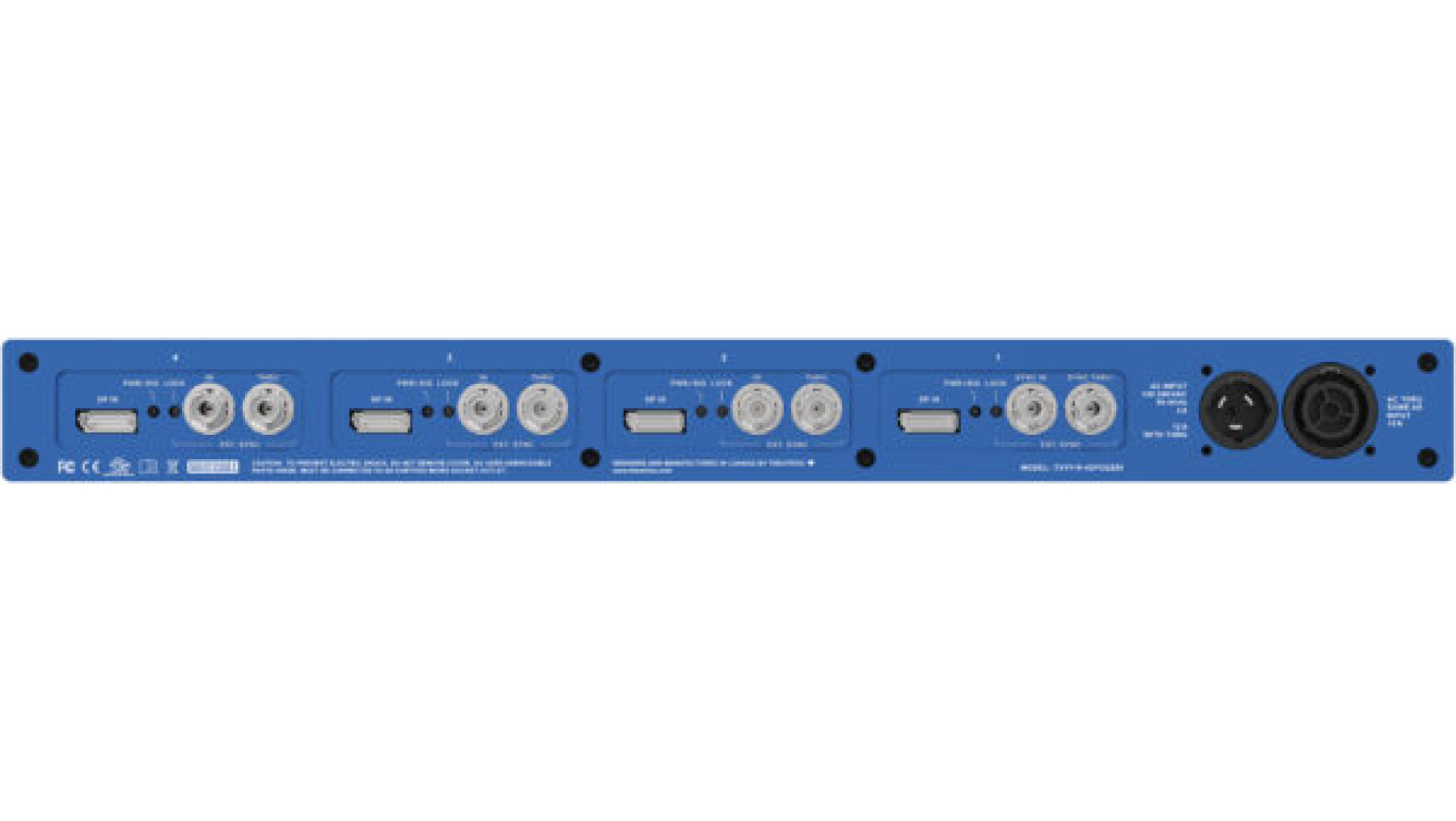

Each processing channel features a Gen-Lock input and loop thru for external synchronization, and the device is capable of generating a test pattern when no signal is applied to its input. The DisplayPort to Quad-SDI converter is future-proof, enabling multiple channels to be synchronized together to handle combined resolutions of 8K, 16K, and more.

  • Internal or external (tri-level) sync source with automatic detection

    Less than 2 frames latency

    Built-in test pattern automatically enabled when no signal present (or black field, user-selectable)

    Pre-configured EDIDs for both 60Hz and 50Hz (user-selectable)

    Also available as a single-channel module in stage box or reversible module format

DisplayPort to Quad SDI - Downloads
Theatrixx-DisplayPort-to-Quad-SDI.pdf
Download
