X400

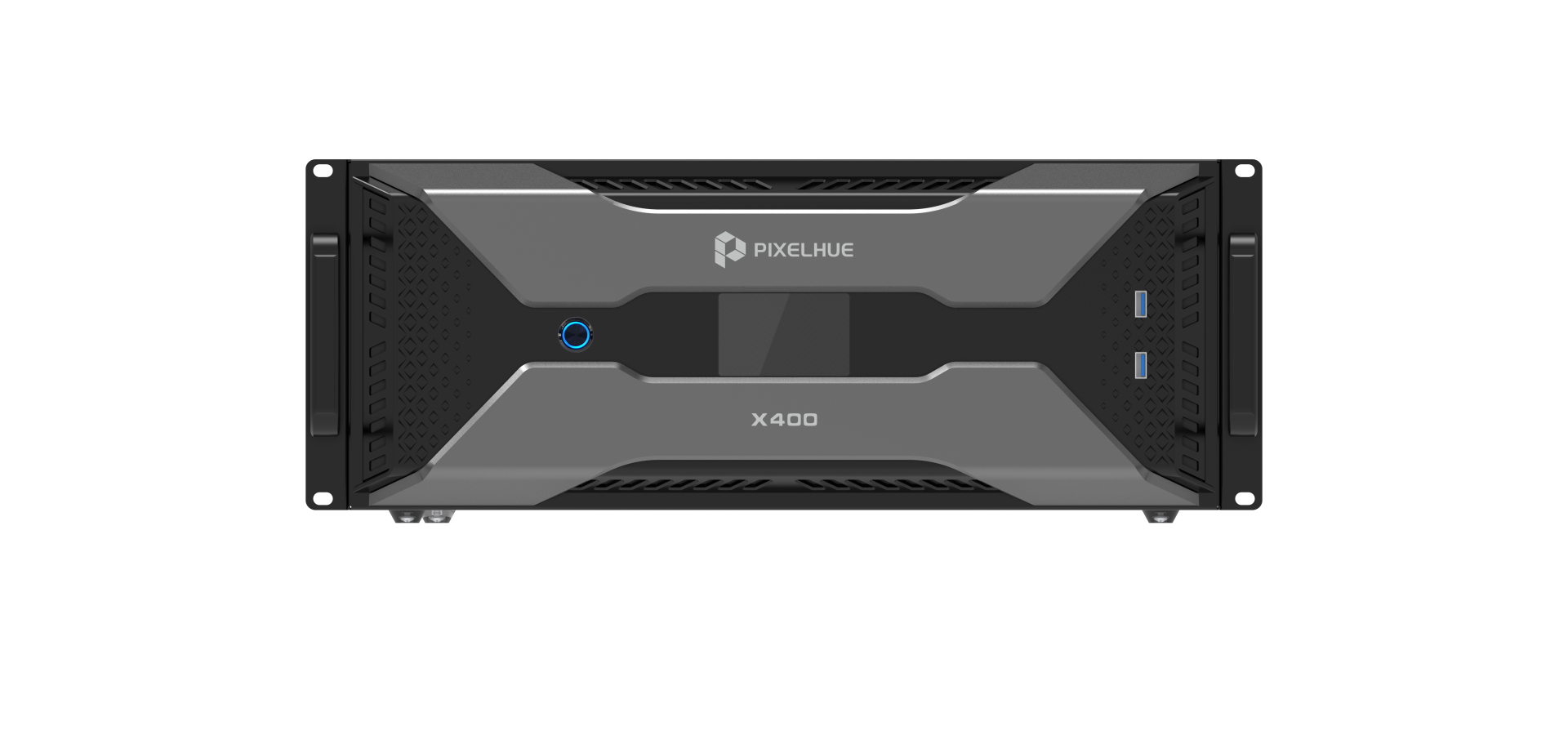

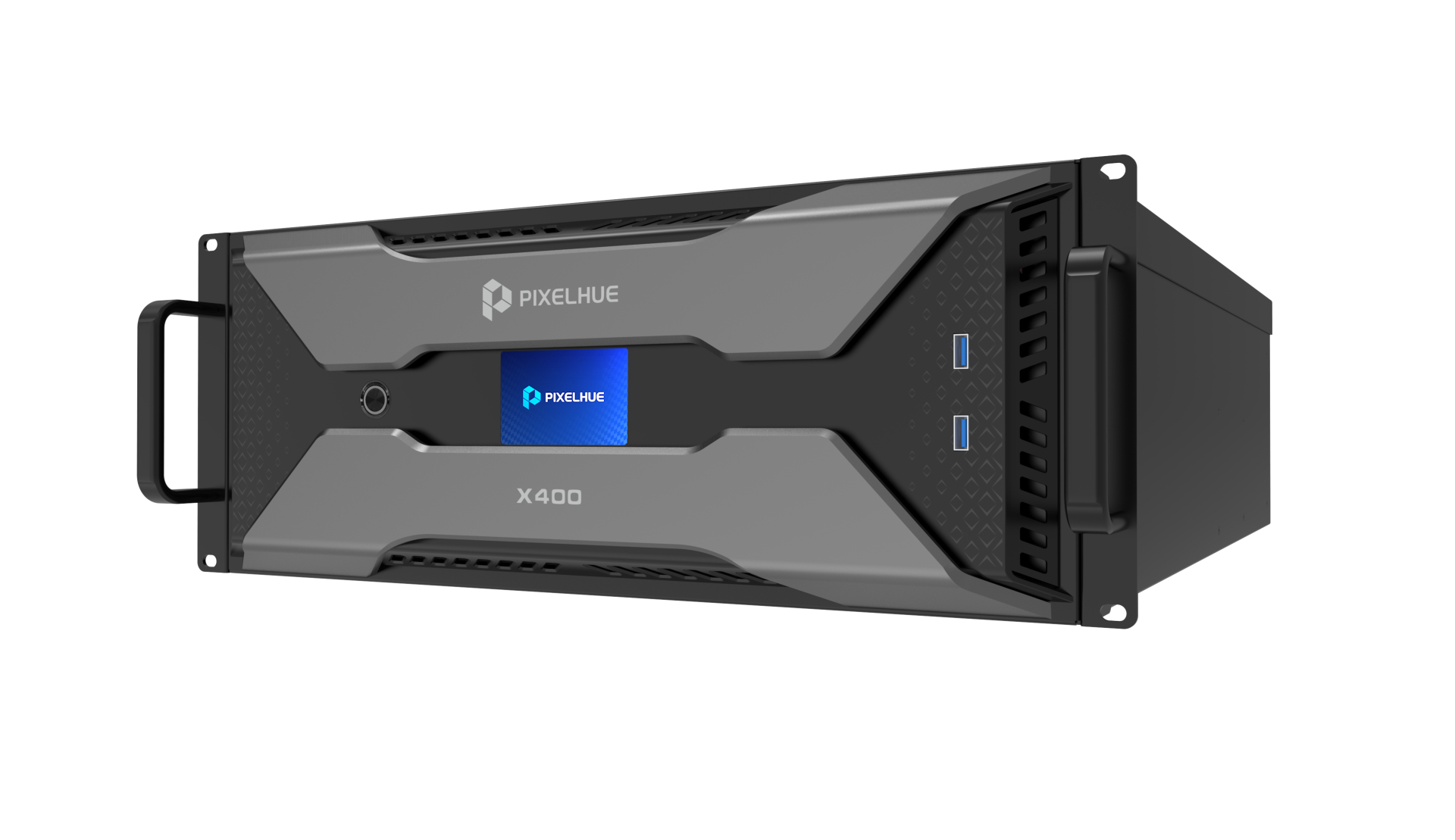

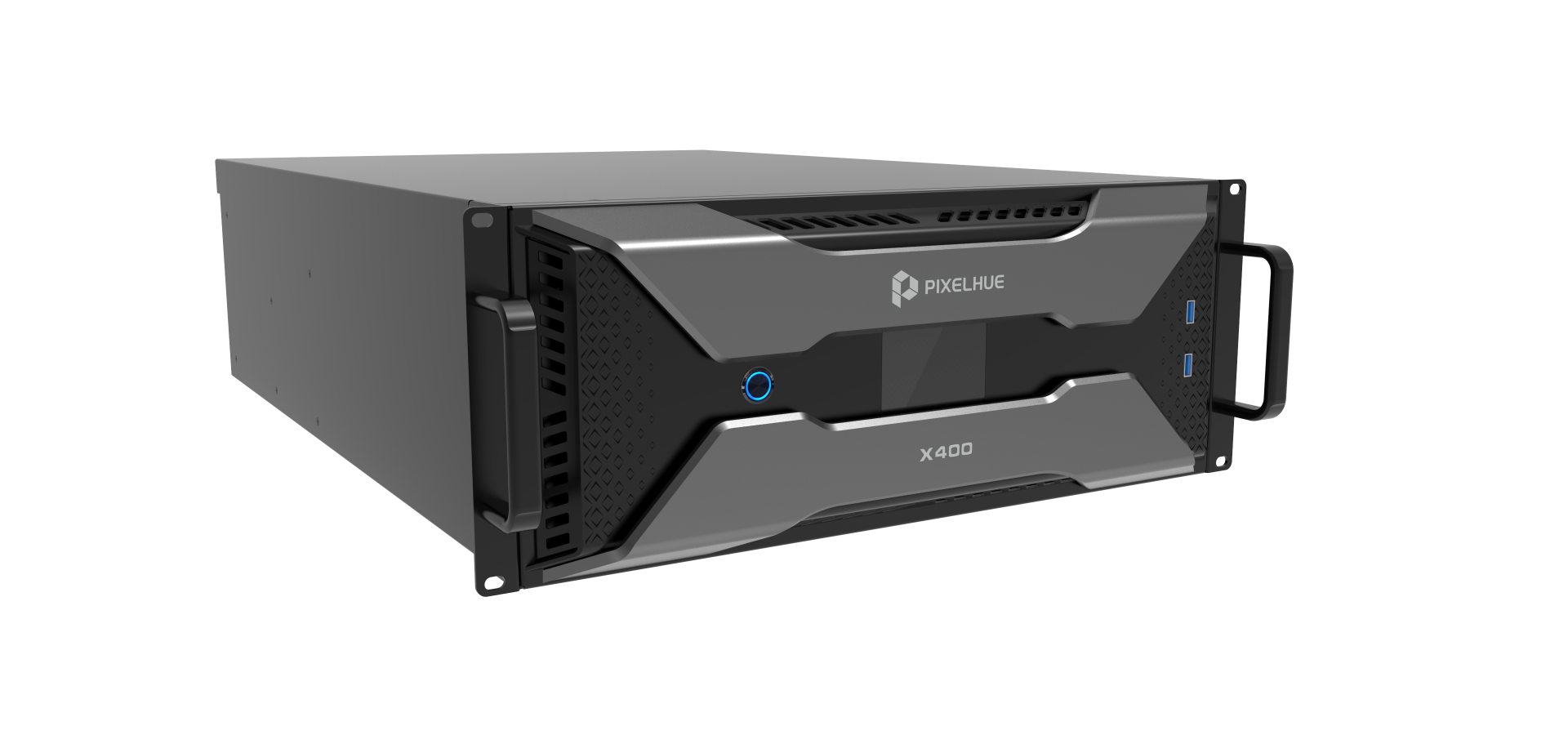

Front view of the PIXELHUE X400 media server

X400

Key Features:

  • Modular input and output cards
  • Unlimited layers
  • 8K or multiple 4K hardware decoding
Enquire

Enquiry Form

Call us today on

+44 (0)113 255 7666

X400

The X400 is a professional media server engineered by PIXELHUE that can drive up to 6x 4K or 24x 2K outputs from a single server unit, delivering high performance to your various large-scale events.

Built on an advanced graphics card to offer remarkable hardware decoding and rendering capabilities, the X400 easily handles 8K@60fps UHD videos and simultaneous smooth playback of multiple 4K@60fps videos. With the support for various video decoding formats, the X400 media server is great for video playback and processing solutions for stage performances, large-scale conferences, immersive exhibitions and more creative display applications.

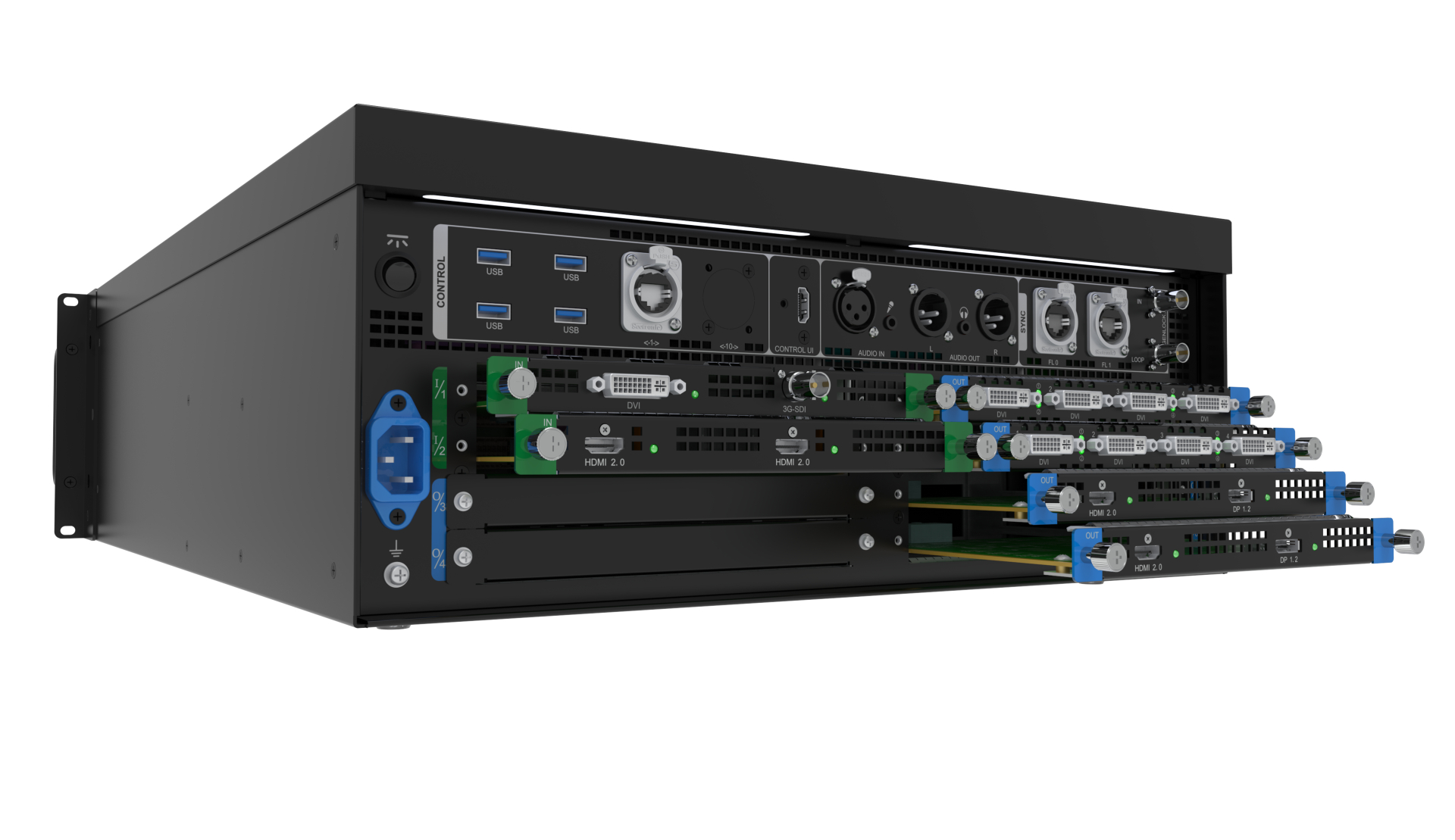

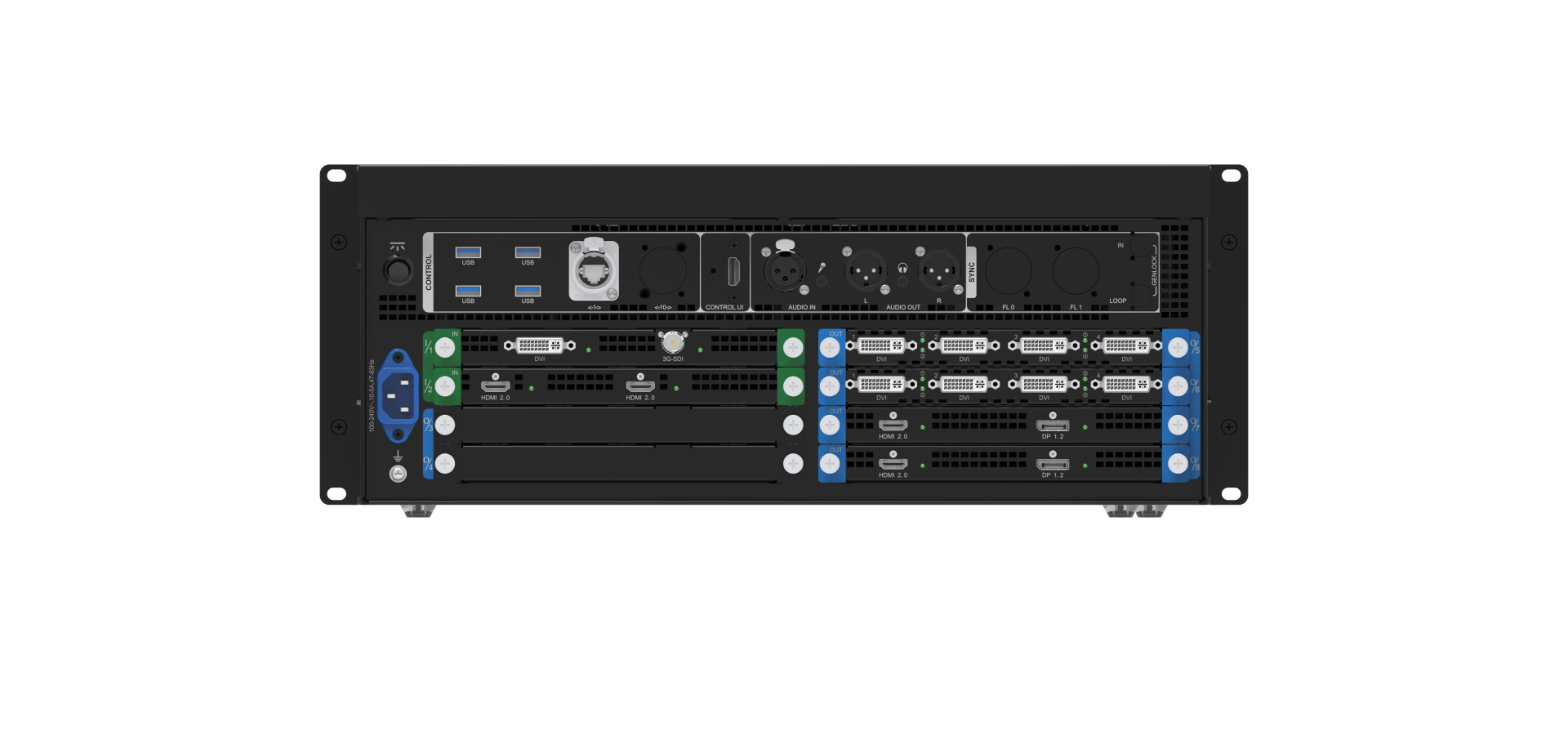

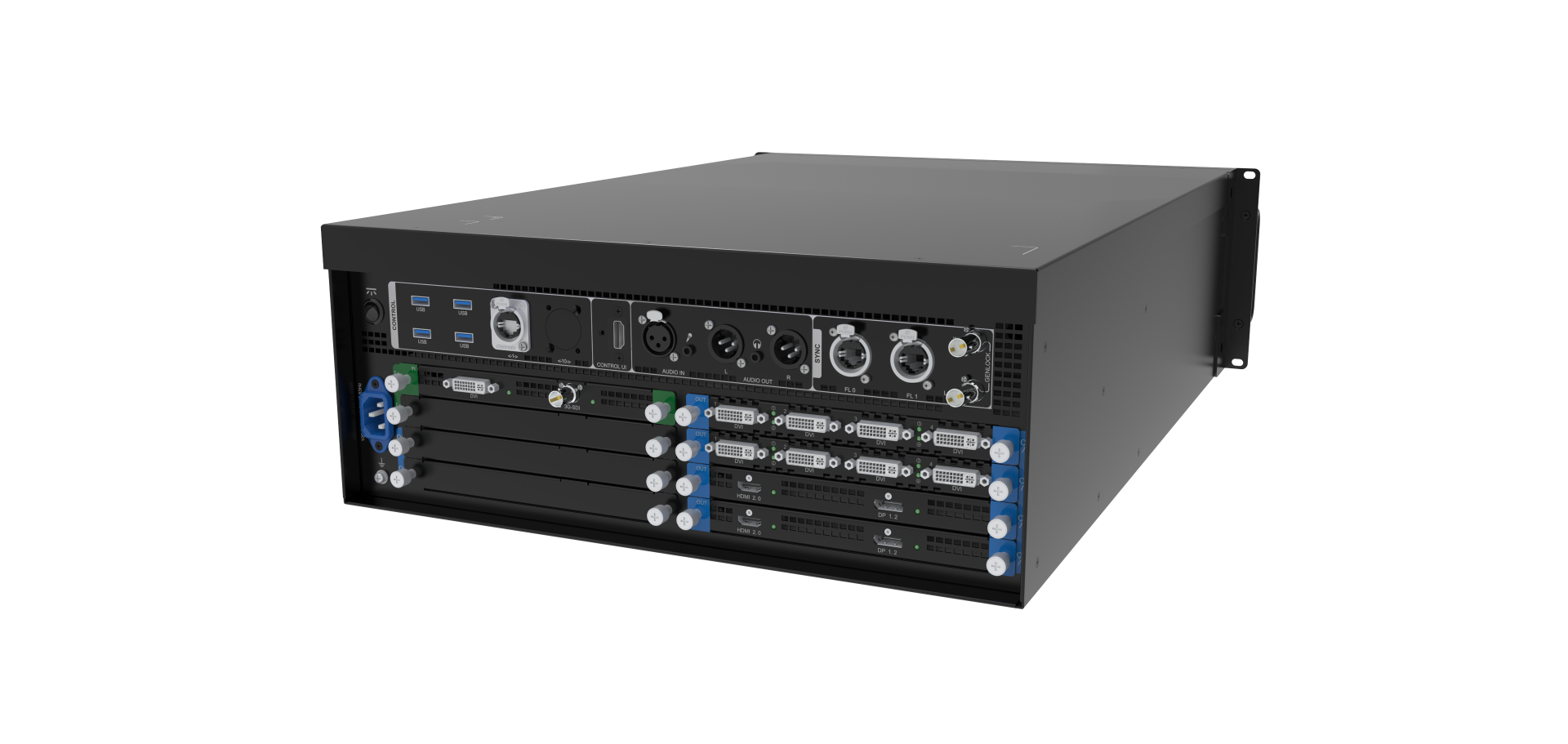

Designed with 2 input card slots and 6 output card slots, it can support up to 2x 4K input cards and 4x 4K output cards simultaneously, allowing you to easily select the desired I/O modules with various input and output connectors to satisfy your requirements. The modular and plugin design also facilitates easy deployment and upgrade in the field, bringing more convenience and ease to on-site applications.

Employing dual high-speed SSD with dual OS, dual authorization mechanism and modular design, the X400 is a robust and heavy-duty solution for mission-critical applications. Additionally, on-site playback and control are always stable thanks to dual redundant configuration and seamless switching guaranteed by the frame sync technology. Extra alarm and diagnostics functionalities further help to safeguard your live events.

  • 8K or multiple 4K hardware decoding and rendering for smooth playback and flawless output

    Plug-in and modular design for higher system stability

    Frame sync technology for synchronized and smooth display

    Seamless primary and backup device switching safeguards your on-site operation

    Infinite device cascading, synchronized by Genlock

    EDID lock, ensuring no jump of connector resolution and display sequence

    Intelligent thermal solution

    Running status indication and fault alarm on front panel display

    High quality XLR audio inputs and outputs

    Central control via TCP/UDP protocol

    4U rack mountable chassis

    HDMI 1.4 monitoring connector dedicated for software UI

    Dual SSD built-in with dual OS

    Dual authorization: dongle + license

    Fully-visualized and friendly graphical UI, what you see is what you get

    Customizable graphical UI layout

    UI lock for safer unattended operation

X400 - Downloads
Download
