EclPanel IPHard

Hard Source IP65 rated LED Panel, in a 1x1 or 2x1 format with 20° beam angle.

Product Variants

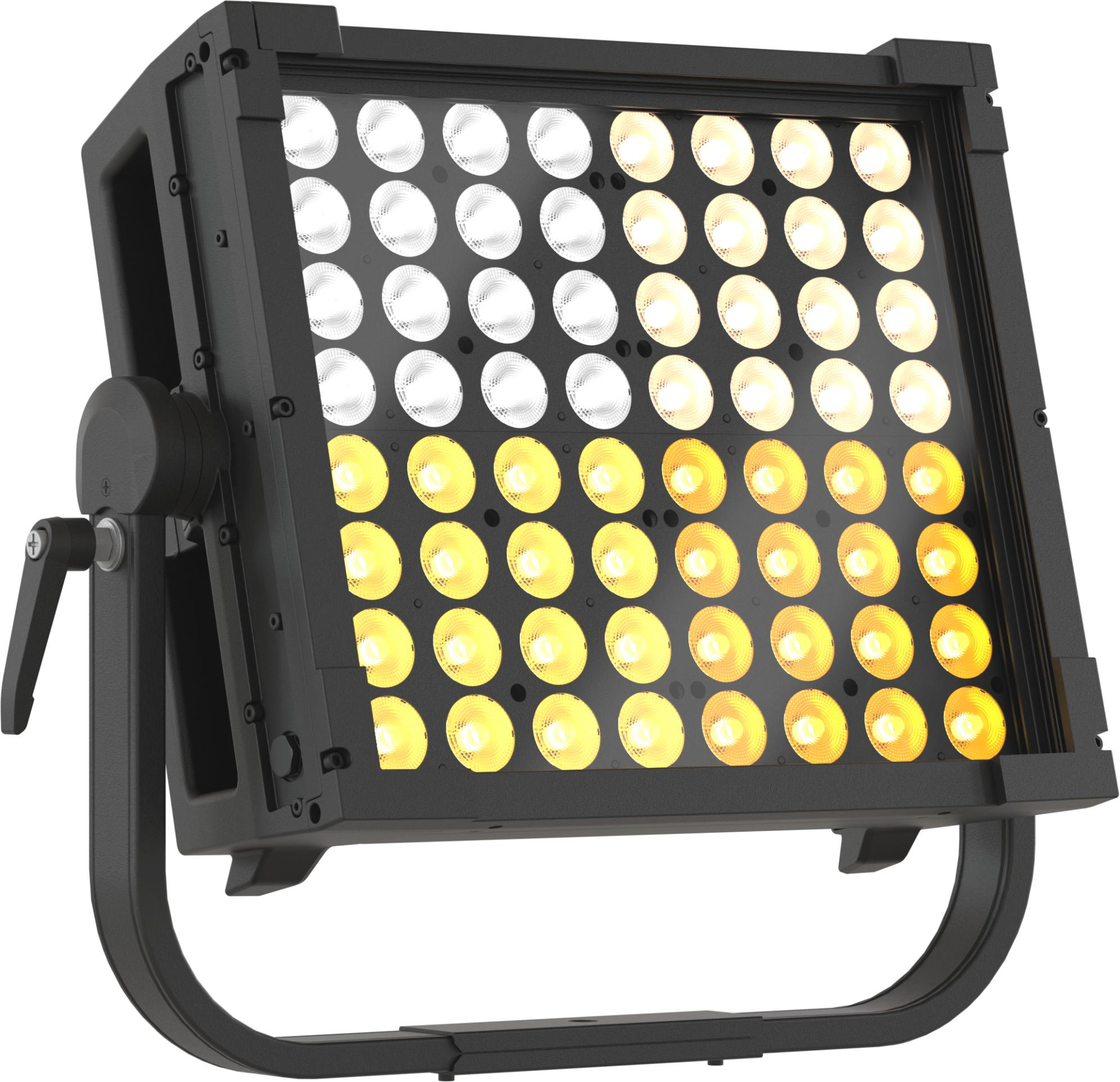

EclPanel IPHard1x1
  • 1x1 Hard Source LED Panel
  • 300W power and 6 colours source
  • 4 section pixel control and built-in lighting effects for film applications

Enquiry Form

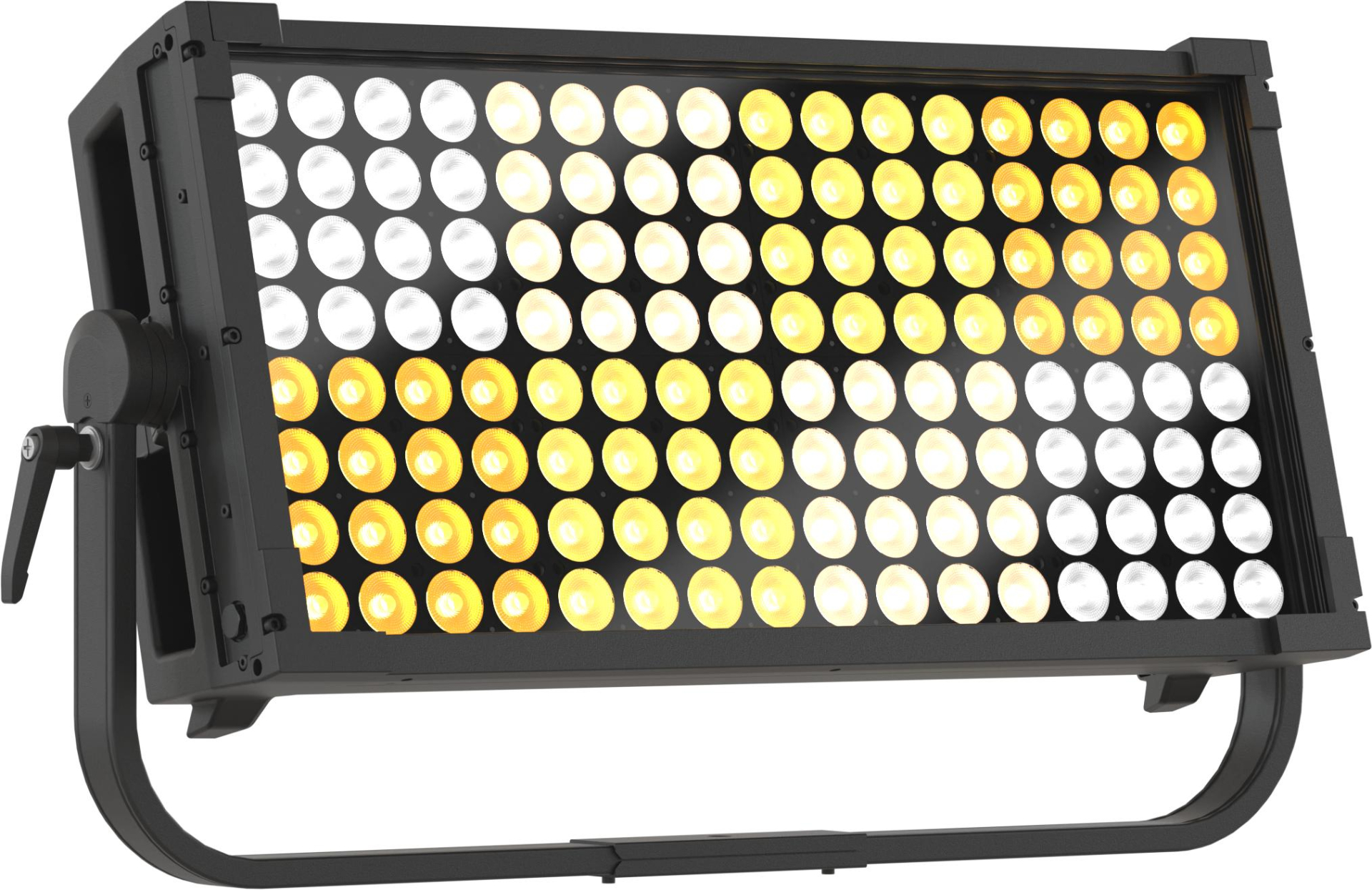

EclPanel IPHard2x1
  • 2x1 Hard Source LED Panel
  • 550W power and 6 colours source
  • 8 section pixel control and built-in lighting effects for film applications

Enquiry Form

The EclPanel IPHard is a format IP65 Hard Light, featuring an LED source optimized for long throw film applications. This unit is designed to deliver quality lighting in all weather conditions. Its optical system, equipped with a 6-colour LED array and collimator lenses, producing a 20° native beam angle. This configuration enhances lux intensity for long throw uses and broadens the light spectrum, resulting in superior light quality. The EclPanel IPHard can be transformed into a soft light source by attaching optical modifiers to its accessory points.

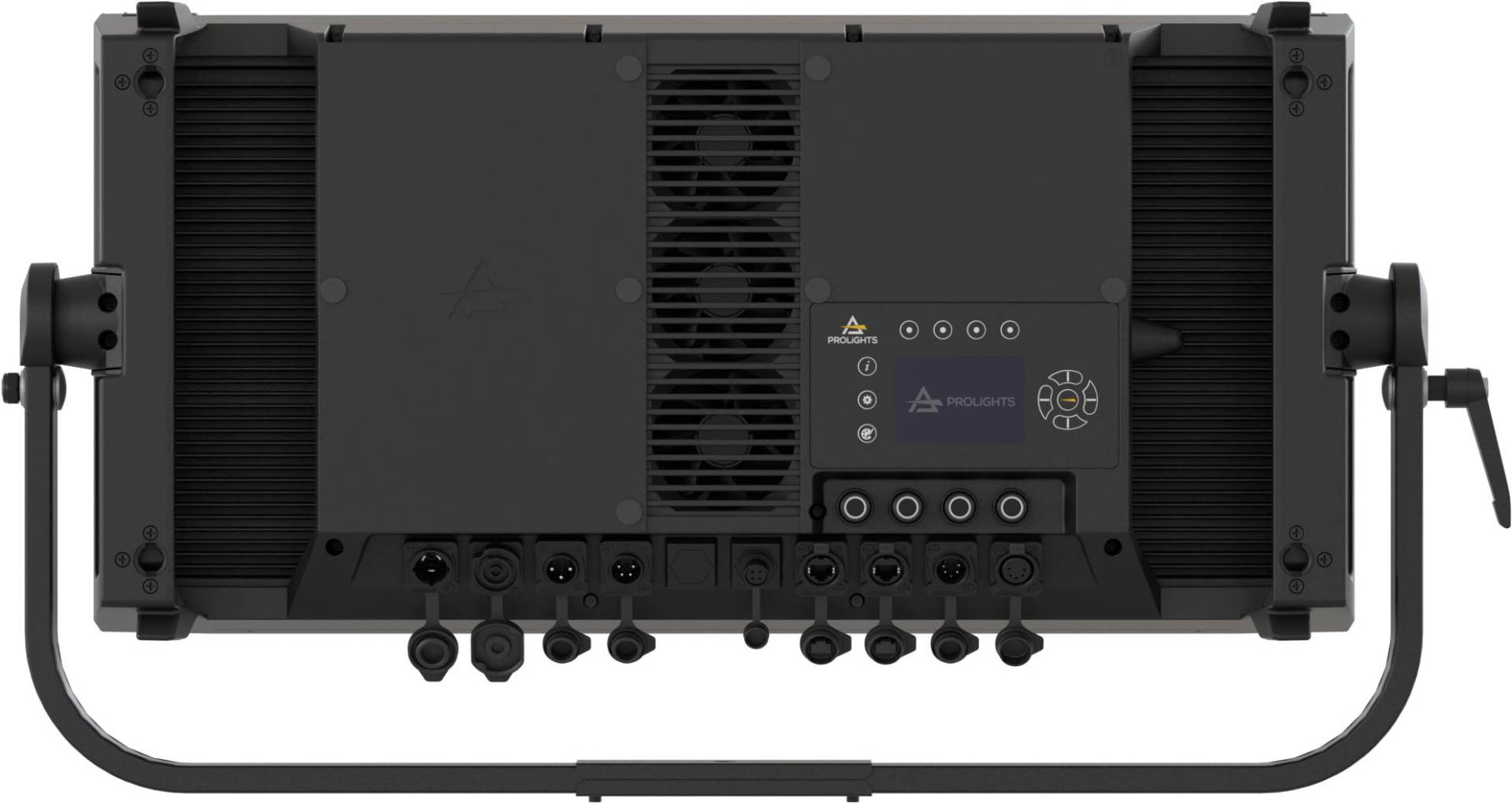

Constructed with durable die-cast magnesium alloy, the IP65 rating of the housing makes the unit water and dust resistant, suitable for challenging environments and sets. The fixture incorporates an onboard power supply and processing unit, facilitating easy setup and operation. It features a 3.5'' large display, a user-friendly interface, and comprehensive connectivity options, including both wired and wireless capabilities.

Further enhancing its versatility, the unit supports per-section control for custom or desk-created effects. For added portability, the EclPanel IPHard accepts power via 24-36V batteries and a 48V DC input. Its flexibility extends to control options, compatible with DMX & RDM, Ethernet protocols, remote operation via ControlGo, and wireless CRMX.

  • > 50.000h Source life expectancy

    20° Beam angle

    Colour control XY, CCT, Gel, HSI, Source Emulation

    CCT control range from 1.850K to 20.000K, + / - green correction, tungsten emulation

    White presets 1.850 K - 20.000K

    Virtual colour wheel with macros

EclPanel IPHard - Variant Downloads
EclPanel IPHard1x1
1x1 Hard Source LED Panel
Download
EclPanel IPHard2x1
2x1 Hard Source LED Panel
Download

You might like...
Product - LIGHTING

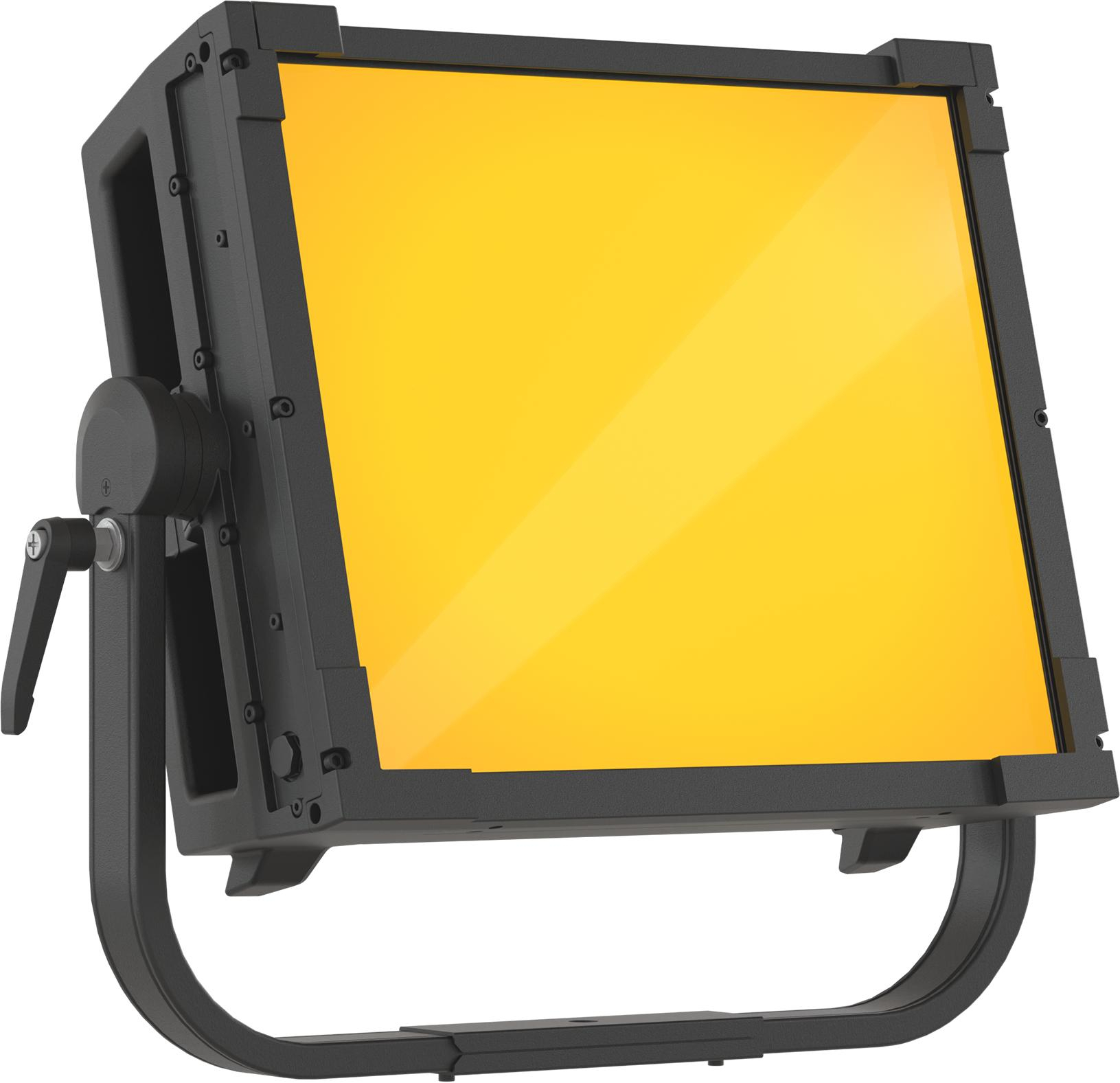

EclPanel IPSoft
    • IP65 water and dust resistant
    • Built-in lighting effects for film applications
    • Silent operation with multiple fan modes
Find out more

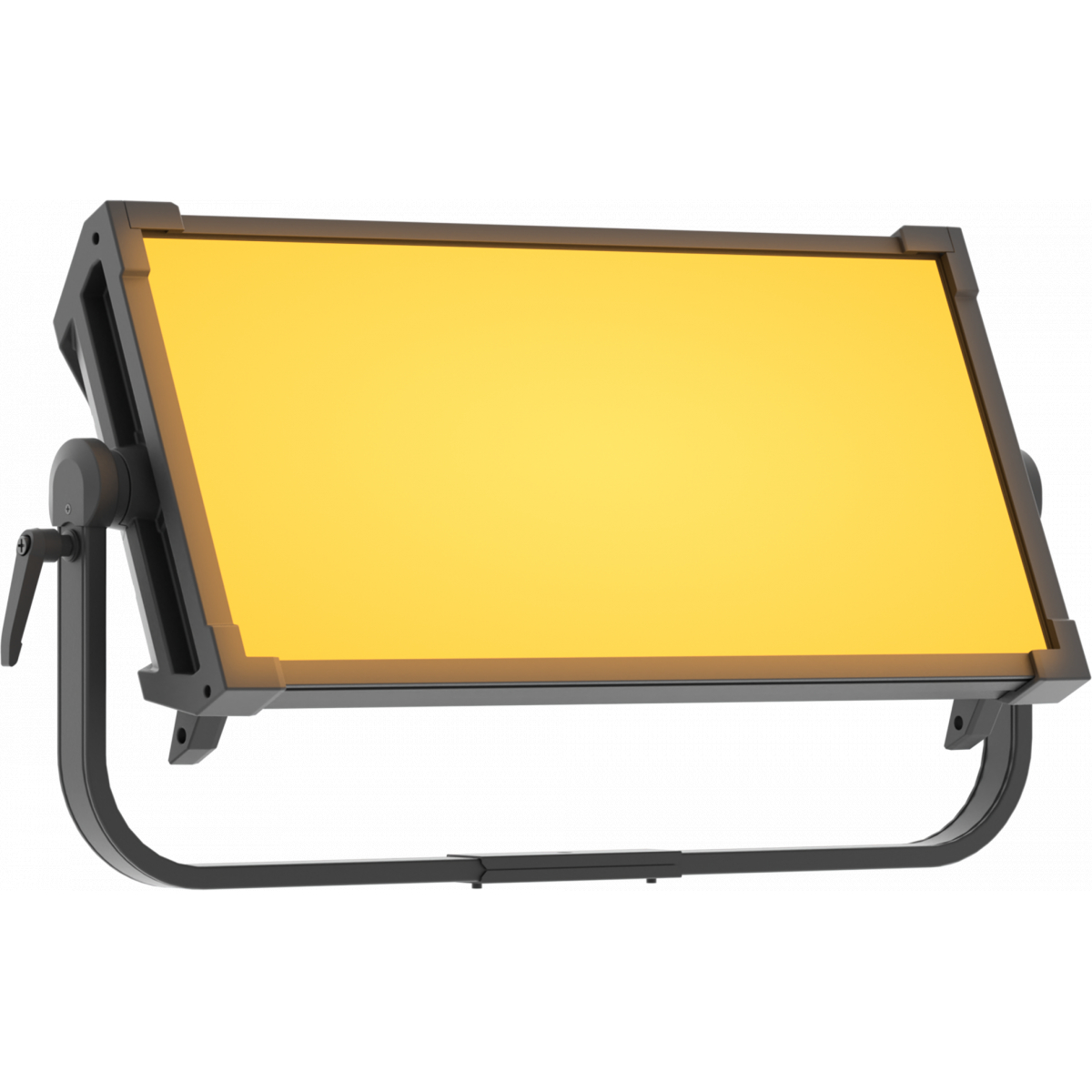

PROLIGHTS EclPanel TWC
Product - LIGHTING
EclPanel TWC
    • 740W RGB + Warm White Led source (driven @430W)
    • 8 section pixel control and built-in lighting effects for Cinema applications
    • Battery connection (4pXLR 24-36V): compatible with industry standard external batteries (optional)
Find out more

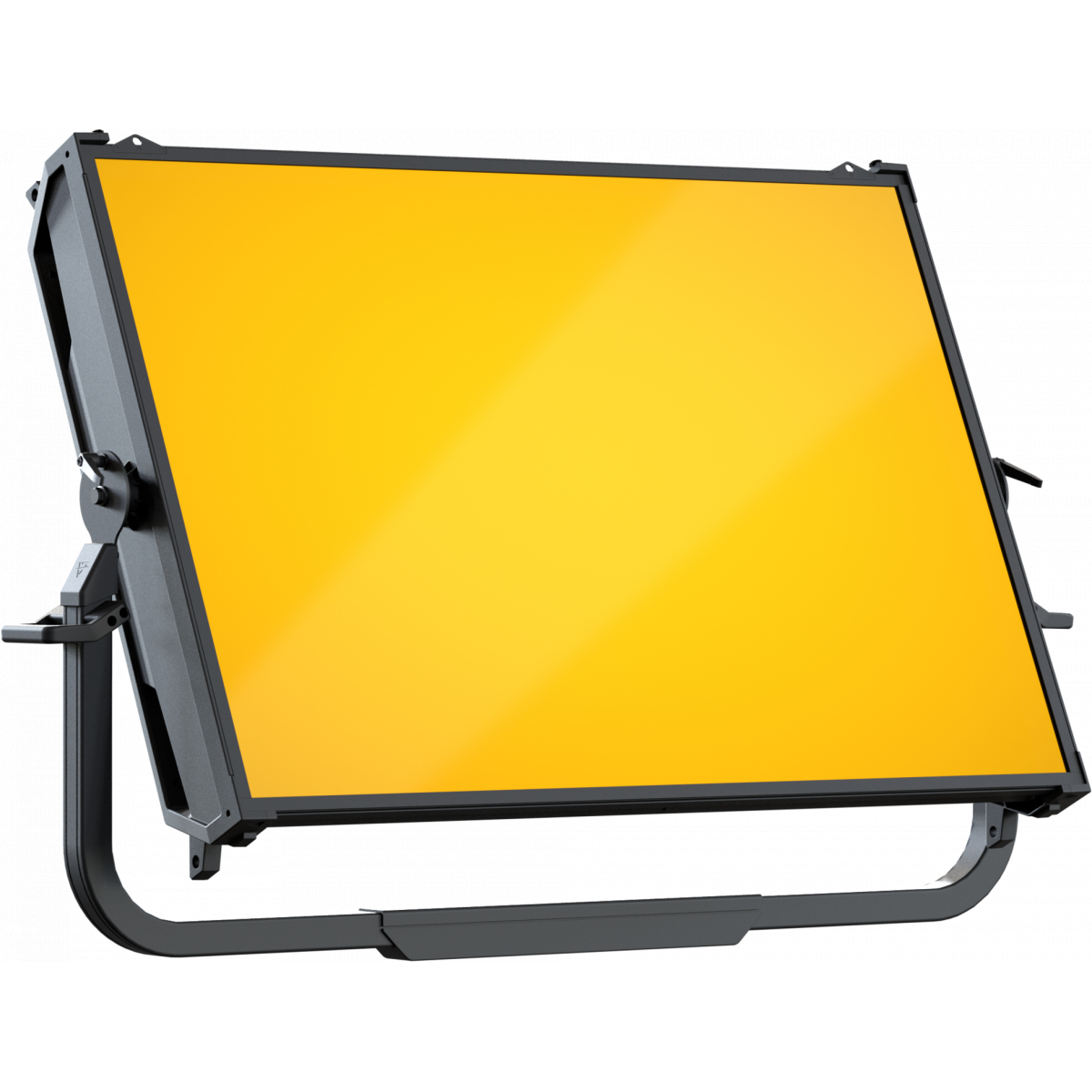

PROLIGHTS EclPanel TWCXL - front
