EclPanel IPSoft

EclPanel IPSoft

Key Features:

  • IP65 water and dust resistant
  • Built-in lighting effects for film applications
  • Silent operation with multiple fan modes
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

EclPanel IPSoft

The EclPanel IPSoft series is an IP65 Soft Light, featuring high quality light for all weather conditions.

Product Variants

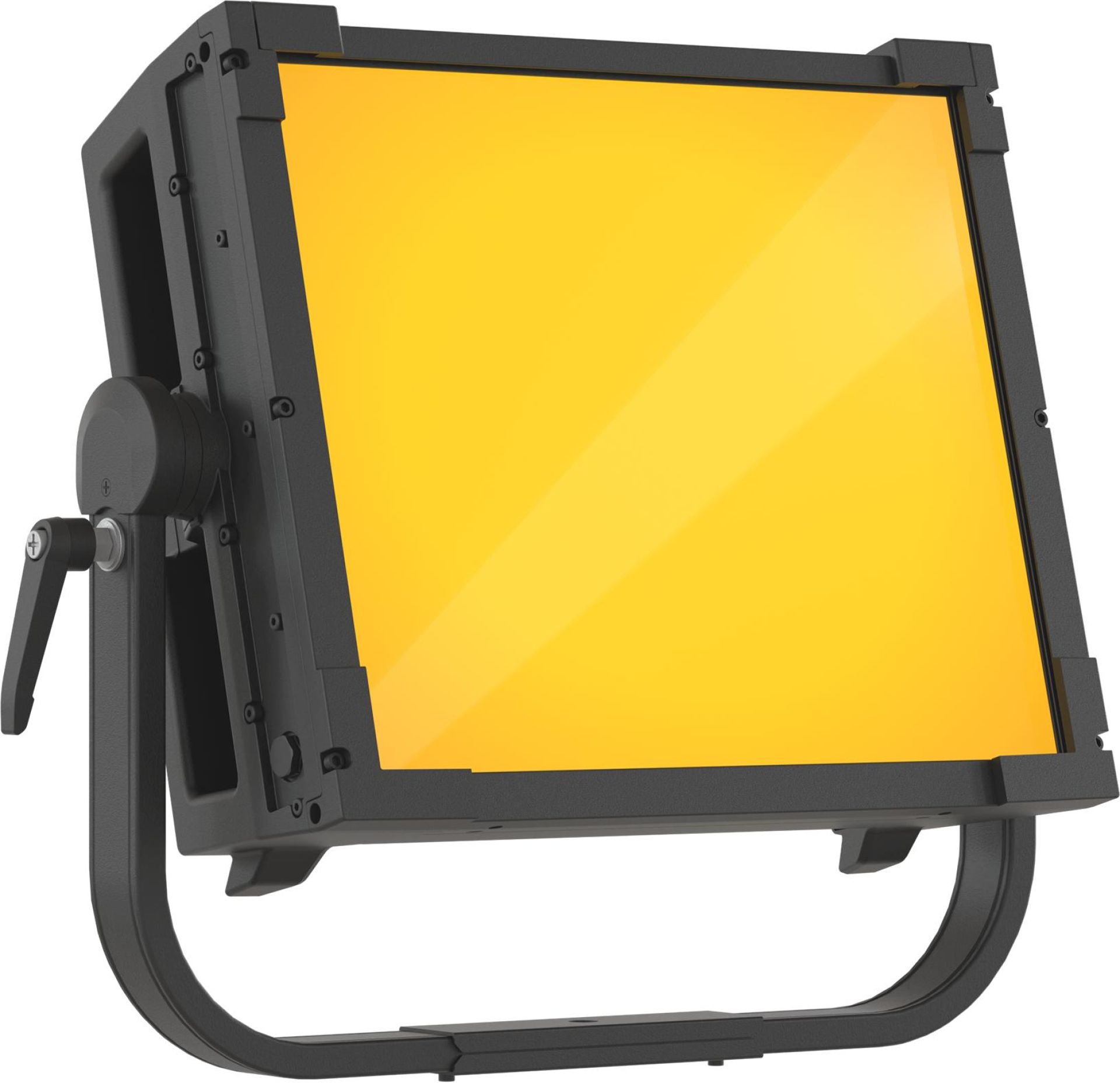

EclPanel IPSoft1x1
  • 1x1 Soft Source LED Panel
  • 300W power and 6 colours source
  • 4 section pixel control and built-in lighting effects for film applications

Enquiry Form

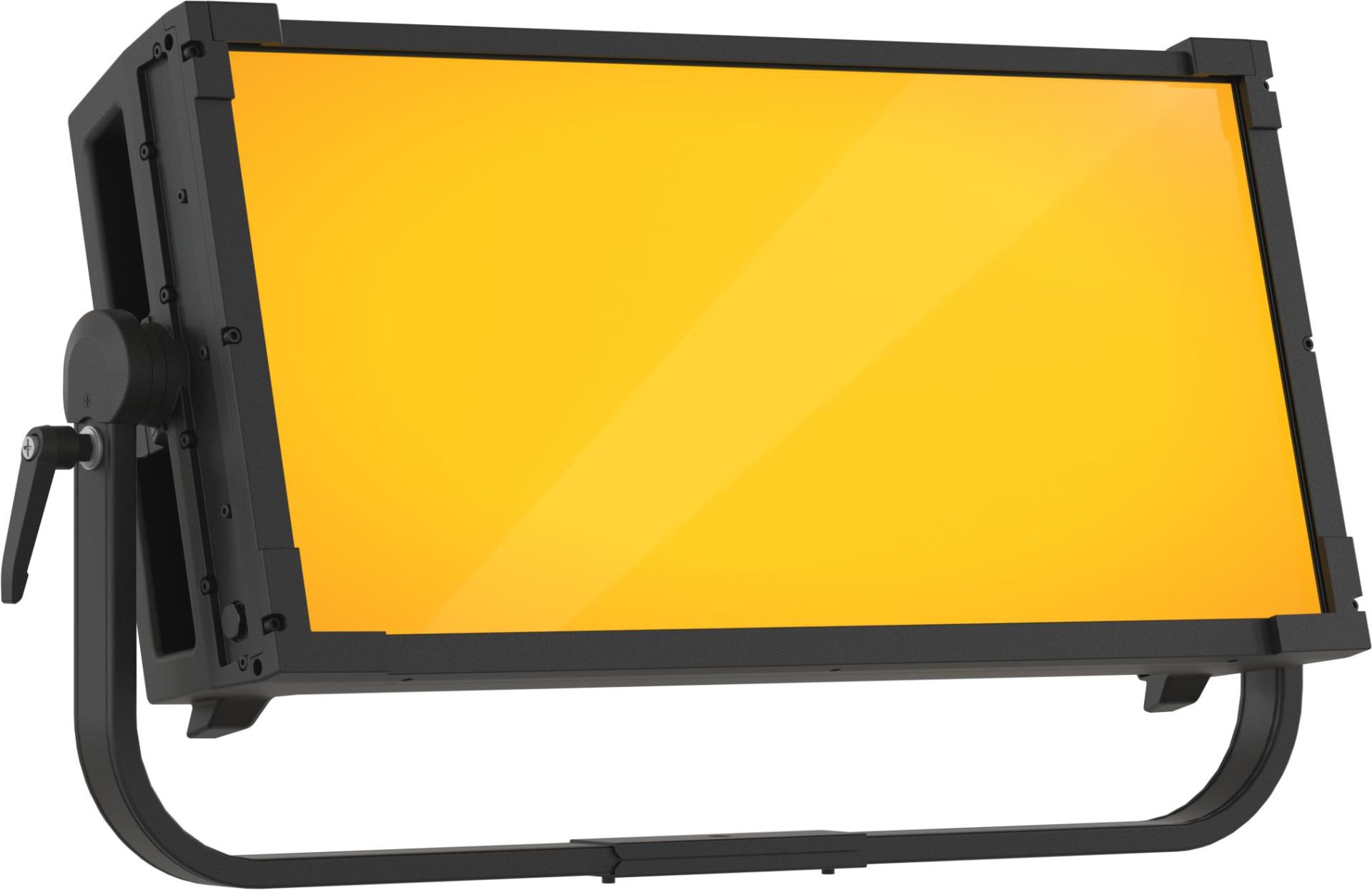

EclPanel IPSoft2x1
  • 2x1 Soft Source LED Panel
  • 550W power and 6 colours source
  • 8 section pixel control and built-in lighting effects for film applications

Enquiry Form

EclPanel IPSoft range is engineered with a 6-color LED light source controllable in 4 section, maximizing the light flux and delivering a beautiful soft projection with outstanding quality and rich colour spectrum.

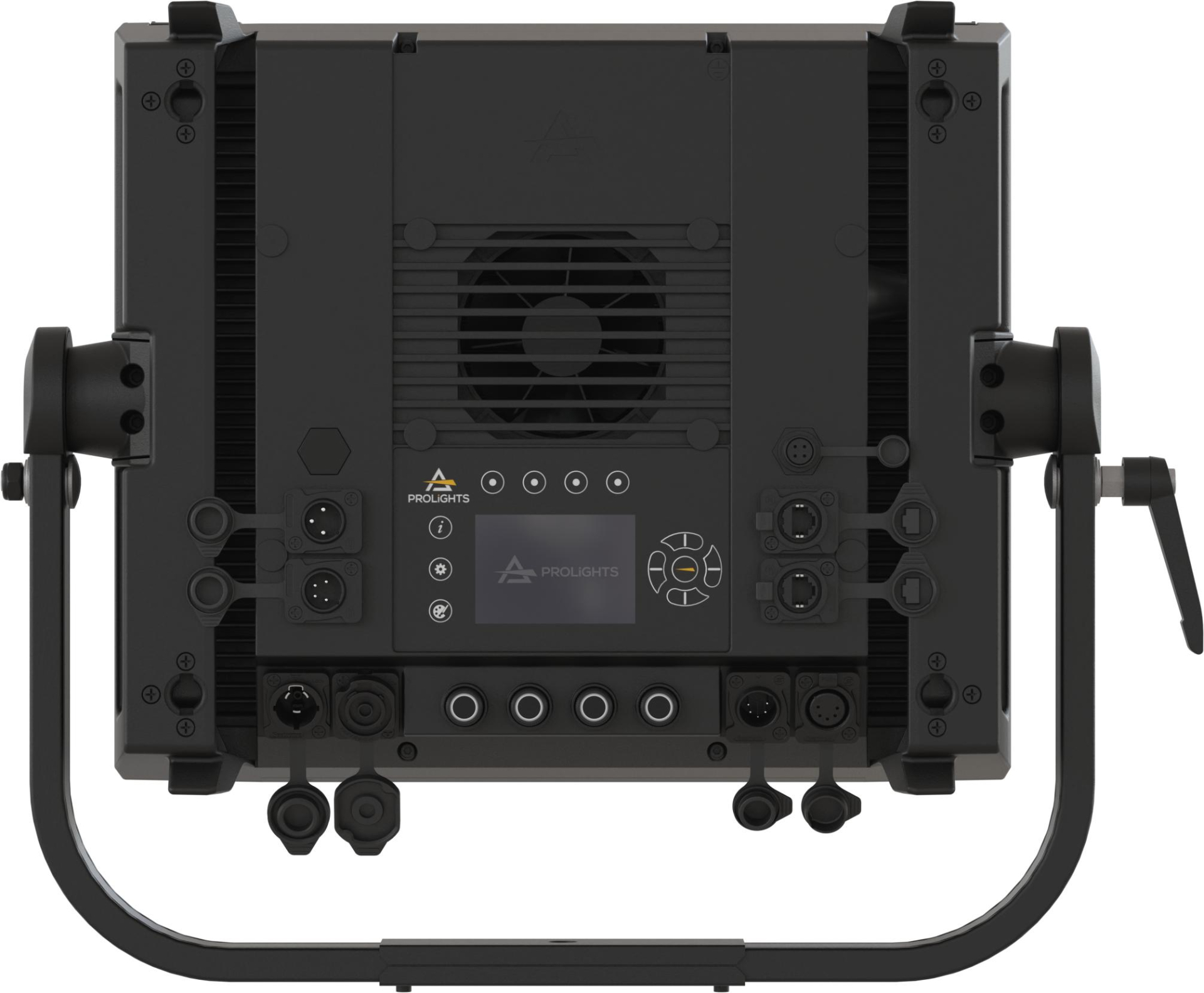

Constructed with durable die-cast magnesium alloy, the IP65 rating of the housing makes the unit water and dust resistant, suitable for challenging environments and sets. The fixture incorporates an onboard power supply and processing unit, facilitating easy setup and operation. It features a 3.5'' large display, a user-friendly interface, and comprehensive connectivity options, including both wired and wireless capabilities.

Further enhancing its versatility, the unit supports per-section control for custom or desk-created effects. For added portability, the EclPanel IPHard accepts power via 24-36V batteries and a 48V DC input. Its flexibility extends to control options, compatible with DMX & RDM, Ethernet protocols, remote operation via ControlGo, and wireless CRMX.

  • > 50.000h Source life expectancy

    Colour control XY, CCT, Gel, HSI, Source Emulation

    CCT control range from 1.850K to 20.000K, + / - green correction, tungsten emulation

    White presets 1.850 K - 20.000K

    Virtual colour wheel with macros

EclPanel IPSoft - Variant Downloads
EclPanel IPSoft1x1
1x1 Soft Source LED Panel
Download
EclPanel IPSoft2x1
2x1 Soft Source LED Panel
Download
