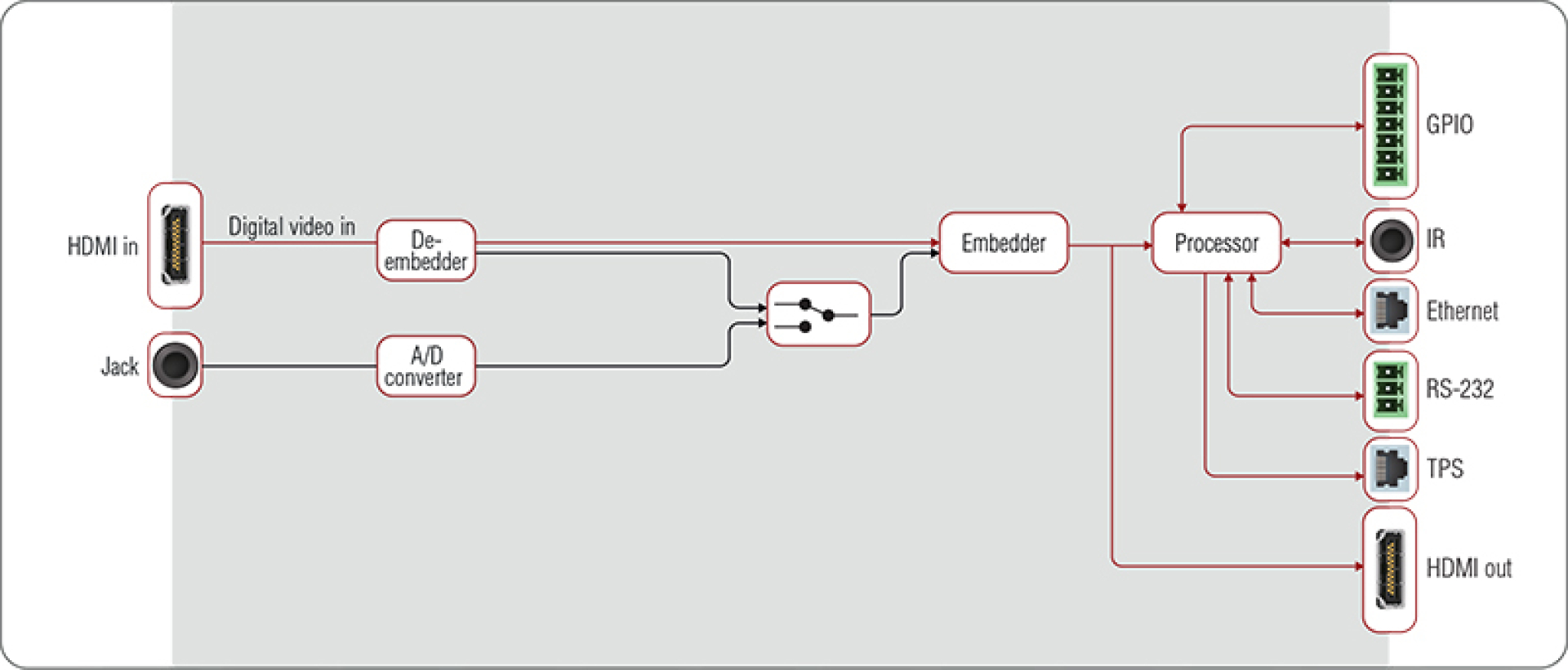

HDMI TPS HDBaseT Extender Port diagram
Lightware HDMI TPS HDBaseT Extender
Lightware HDMI TPS HDBaseT Extender
HDMI TPS HDBaseT Extender Port diagram

HDMI TPS HDBaseT Extender

Key Features:

Enquire

Enquiry Form

Call us today on

+44 (0)113 255 7666

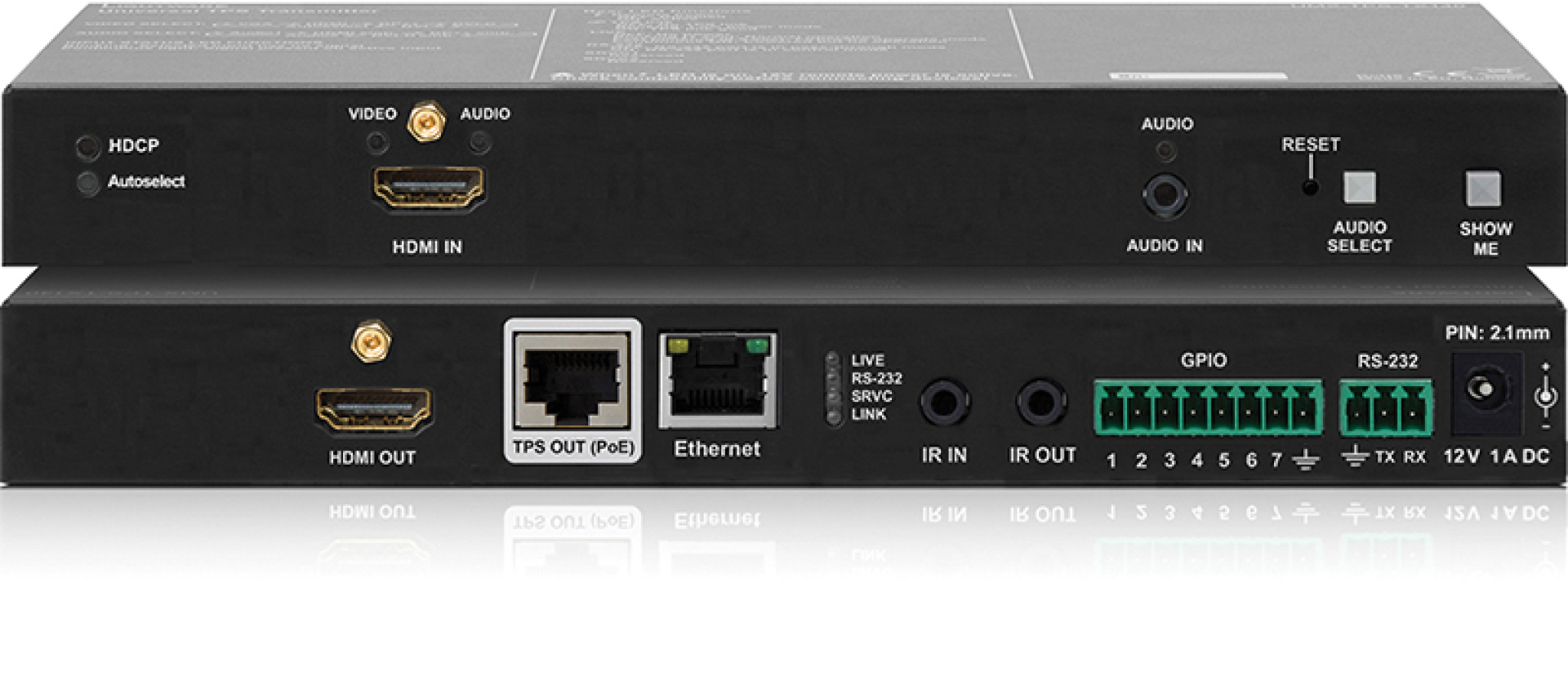

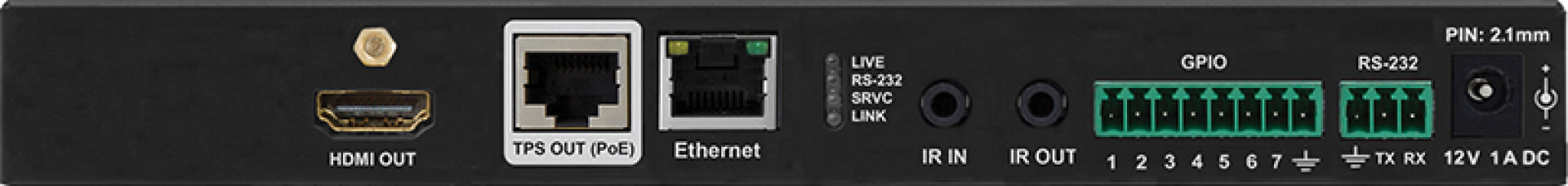

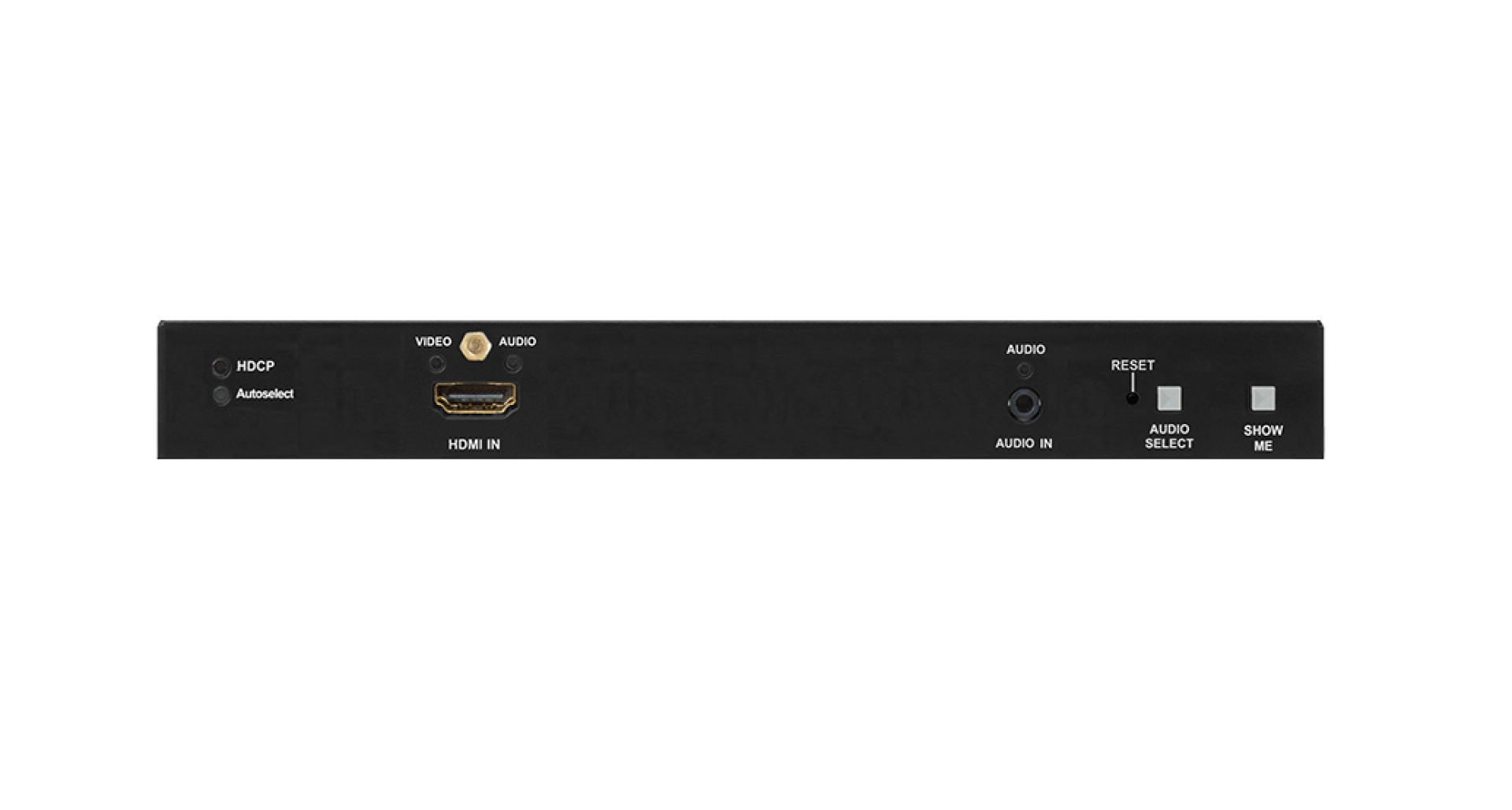

HDMI TPS HDBaseT Extender

The Lightware Visual Engineering HDMI TPS HDBaseT Extender can transmit universal video, audio and control up to a 170 meter distance over a single CAT.

The extender is designed to handle HDMI 1.4 digital video signals and analog stereo audio from local inputs or HDMI Embedded Audio up to 8 Channel PCM or HBR audio. It also handles HDCP encryption. All devices can be mounted on a rack shelf or used standalone. HDMI-TPS-TX220 is compatible with both HDBaseT extenders and matrix switchers.

  • Built-in Event Manager control automation feature

    1920×1080@120Hz/4:4:4, 4096×2160@30Hz/4:4:4 or 60Hz/4:2:0 maximum resolutions (300MHz)

    Audio embedding (or replace original audio)

    Ethernet extension (100 Mbps)

    Command injection on RS-232 and IR ports

    GPIO control ports

    Bi-directional RS-232 and IR extension (pass-through and control)

    Extends DVI or HDMI 1.4 + Audio + Ethernet + RS-232 + IR over one CAT5/6/7 cable
