REDBACK Wallmount

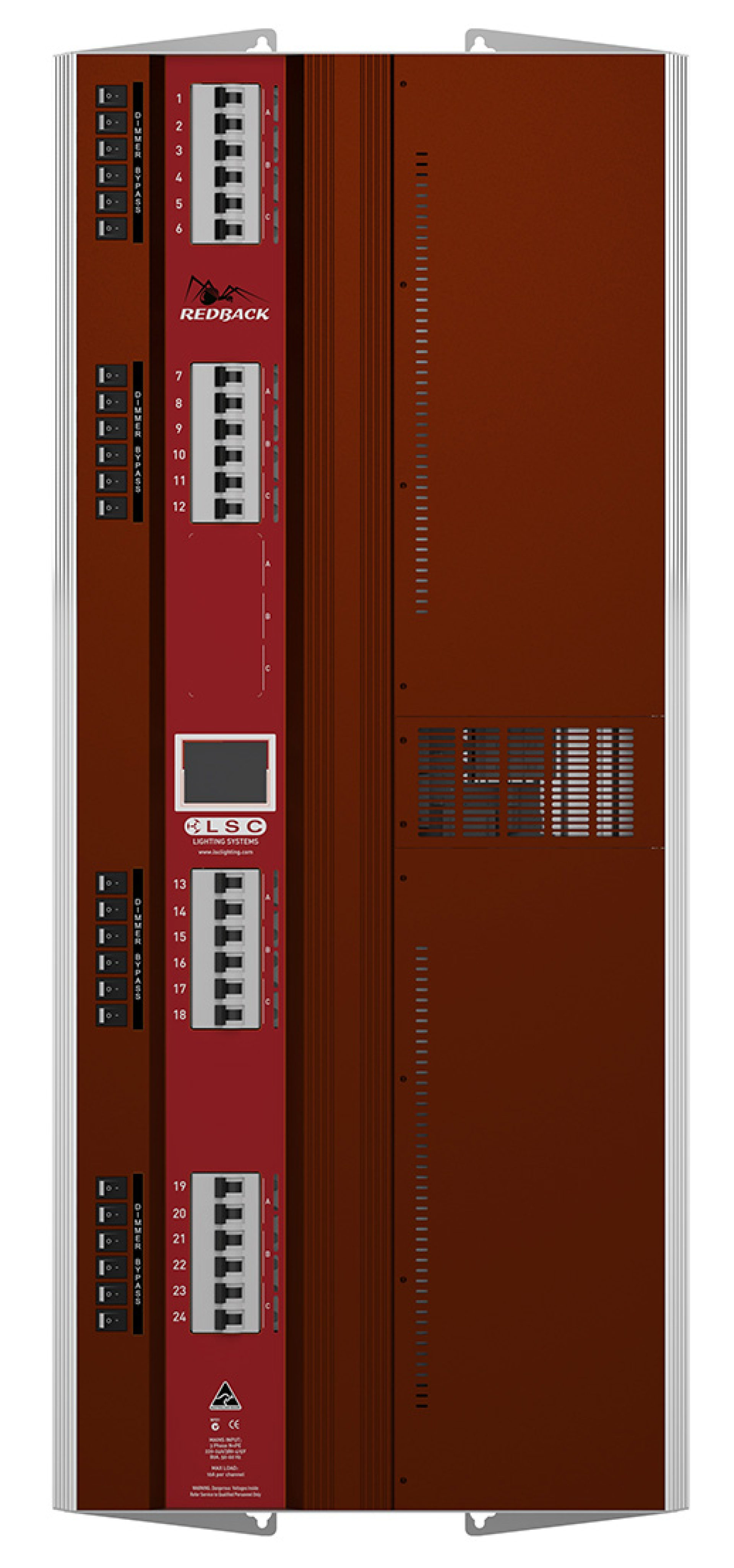

LSC Control Systems REDBACK Wallmount

REDBACK Wallmount

Key Features:

  • Modular construction
  • Selectively power non-dimmable fixtures
  • Available in 6-channel, 12-channel and 24-channel housings
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

REDBACK Wallmount

Simple Power and Dimming

A compact, slimline, economic dimmer range, the REDBACK Wallmount provides an unprecedented level of build-quality and features designed to make your life easier, particularly in today’s more complex world.

Modular

Flexibility is the question and modularity is the answer. To cover most applications, LSC has designed an innovative modular construction of the REDBACK Wallmount. Although available in 6-channel, 12-channel and 24-channel housings, the outputs have a choice of 6-channel dimmer modules or 6-channel relay output modules with either front-panel output connectors or internally wired terminal blocks.

Dimmer Bypass

Each output channel is fitted with a mechanical bypass switch that enables the user to manually switch any channel(s) to bypass the internal dimming circuitry and be permanently powered with direct 240V supply. This allows the REDBACK Wallmount range to selectively power non-dimmable fixtures such as DMX-controlled LED fixtures, moving lights, audio equipment, video screens and smoke machines.

  • DMX512 1990), DMX512-A (E1-21) with RDM (E1-20) compatibility via internal terminal blocks. Option for bottom panel XLR 5-pin connector module available for plug-in DMX/RDM

    Remote monitoring, configuration and control via RDM

    Easy-to-read 2.8″ full-colour TFT touchscreen complete with on-board context sensitive Help

    Graphical user interface for simple configuration and control of the dimmer

    Two dimmer curves per output channel

    Full 512 channel Softpatch that allows patching of any DMX channel to any number of dimmer channels

    Six programmable scenes with individual fade times

    Rigger’s control for local control of outputs, complete with multiple inbuilt chase options with speed control

    Easy software update via internally located SD card slot

    User-selectable minimum (bottom set) level per channel to allow preheating of lamps

    User-selectable maximum (top set) level per channel to reduce output and increase lamp life

    Architectural control via push-button wall plates (ordered separately) – a maximum of four plates can be connected up to 200m away from dimmer and can remotely activate six stored static scenes

  • 24 channel x 10A RCBO breakers with 30ma trip per channel

    Multilevel user interface lock to prevent accidental changes to settings

    Programmable DMX512 backup scene with delay time, that can be automatically activated with loss of main DMX512 signal

    Visual alarms for phase fail, over temperature and loss of input signal

    Panic (fire) input connection (dry contact closure activates an emergency scene)

  • 24-channel dimmer module to dim conventional tungsten loads

    24-channel relay module to power any type of loads

    18-channel dimmer module + 6-channel relay module

    100% duty cycle rated at 25°C ambient with all channels fully loaded

    Choice of front panel mounted 3-pin Australian output connectors, or internal hardwired screw terminals

    Manual bypass switch per output channel to provide direct 240V power for non-dim loads
