UNITY

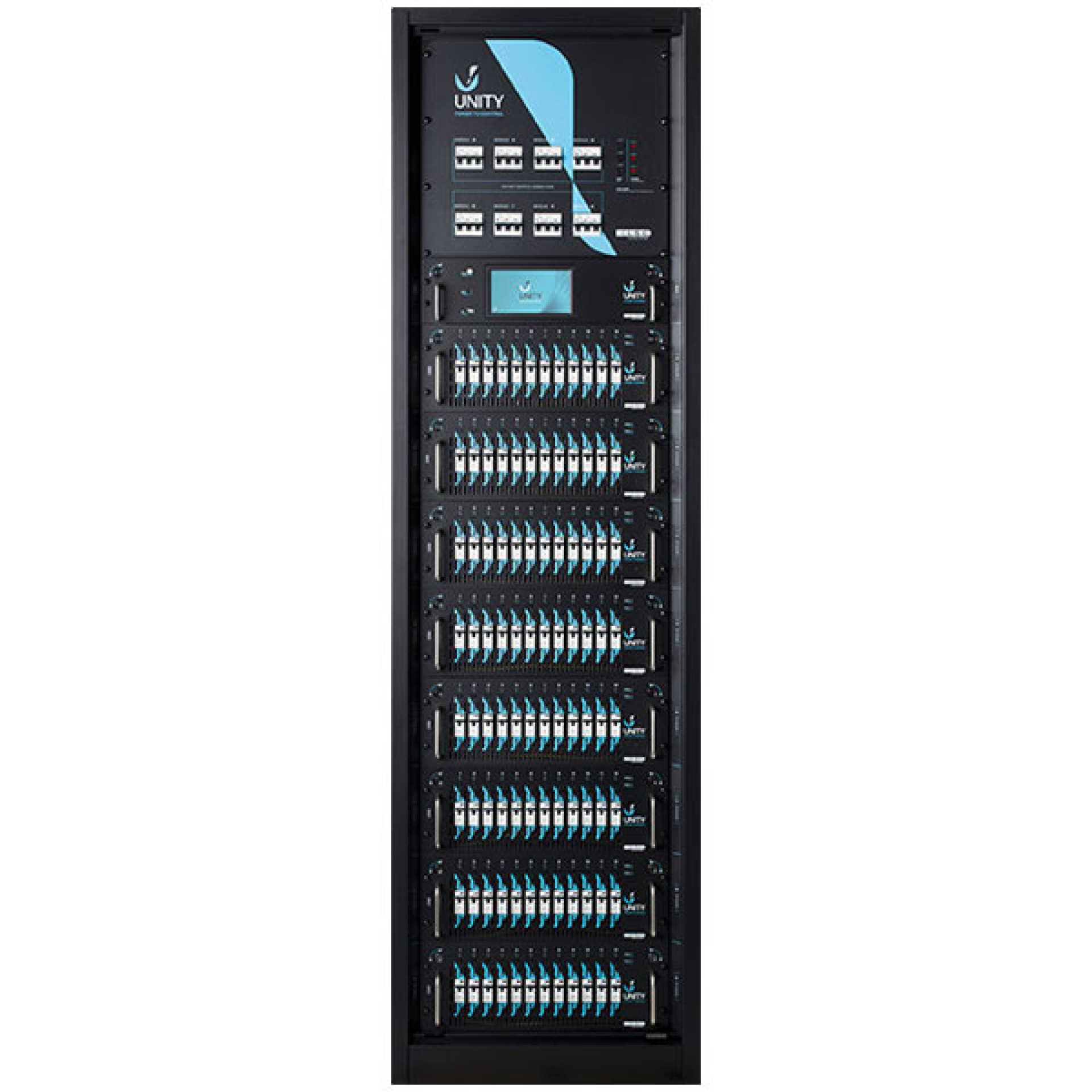

LSC UNITY Installation Dimmer System

UNITY

Key Features:

  • Modular interchangeable blocks
  • Pulse Transformer Fired Dimming (PTFD)
  • HOUSTEN X Software
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

UNITY

Designed for the next generation of lighting and power control, the LSC Control Systems UNITY installation dimmer system is a hybrid dimming/power cabinet system that combines traditional dimming with the latest technologies of LED control and direct power relays.

UNITY provides the perfect solution for new installations or as a retrofit for an outdated system. With the ability to control any load including LEDs, incandescent, neon and fluorescent fixtures, UNITY also allows you to set any channel to become a TruPower relay – perfect for powering moving lights, AV equipment and special FX.

  • Cabinet enclosure available in either a 48-way or 96-way format

    Prewired to accept any of the three 12-channel output modules – dimmer module (UDM), switching module (USM) and the LED module (ULM)

    6-channel output modules are permanently installed in the UIR and cannot be interchanged into other positions

    Medium to high-density installation, each with a UNITY Control Module (UCM) installed and provision for up to four (48-way) or eight (96-way) output modules

  • Large colour touchscreen and simple user interface

    Configures and controls the output modules

    Displays the current system status

    Reports any fault conditions and acts as a control and reporting proxy to the outside world

  • 12-channel x 10/16A or a 6-channel x 25A 4RU dimmer output module

    Incorporates LSC’s revolutionary and highly successful GenVI dimmer core

    TruPower and PTFD (Pulse Transformer Fired Dimming) technology

    Each channel can be configured for direct power control or for dimming traditional fixtures

  • 12-channel x 6A 4RU LED dimmer and relay output module

    Controls power for all the key features and capabilities of the USM plus more

  • 12-channel x 10/16A or a 6-channel x 25A 4RU relay only output module for direct power control

    Zero-cross switching ensures that switched power circuits are turned on at the zero-cross point to minimise nuisance tripping when circuits are relay controlled
