GigaCore 10

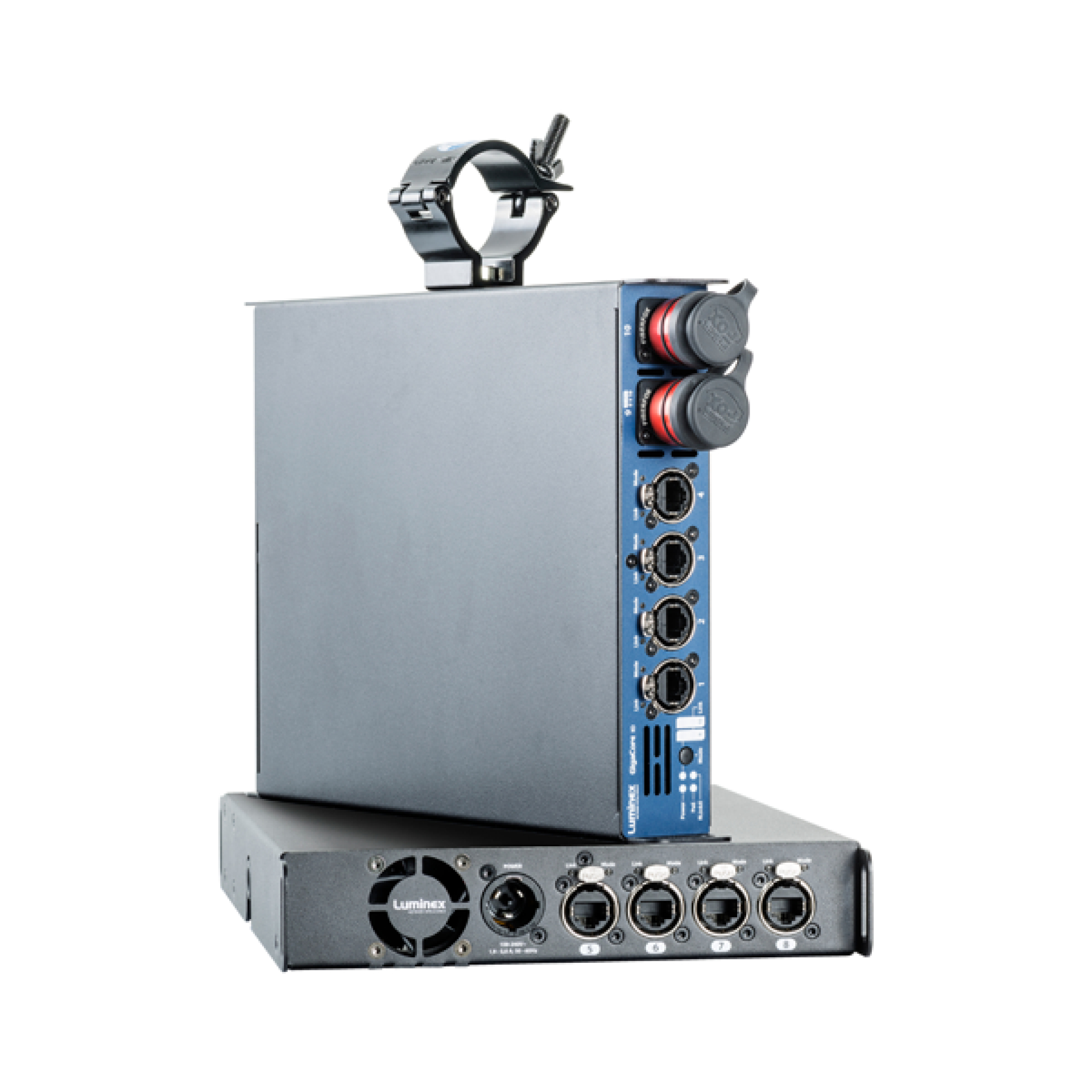

Luminex GigaCore 10 truss mount

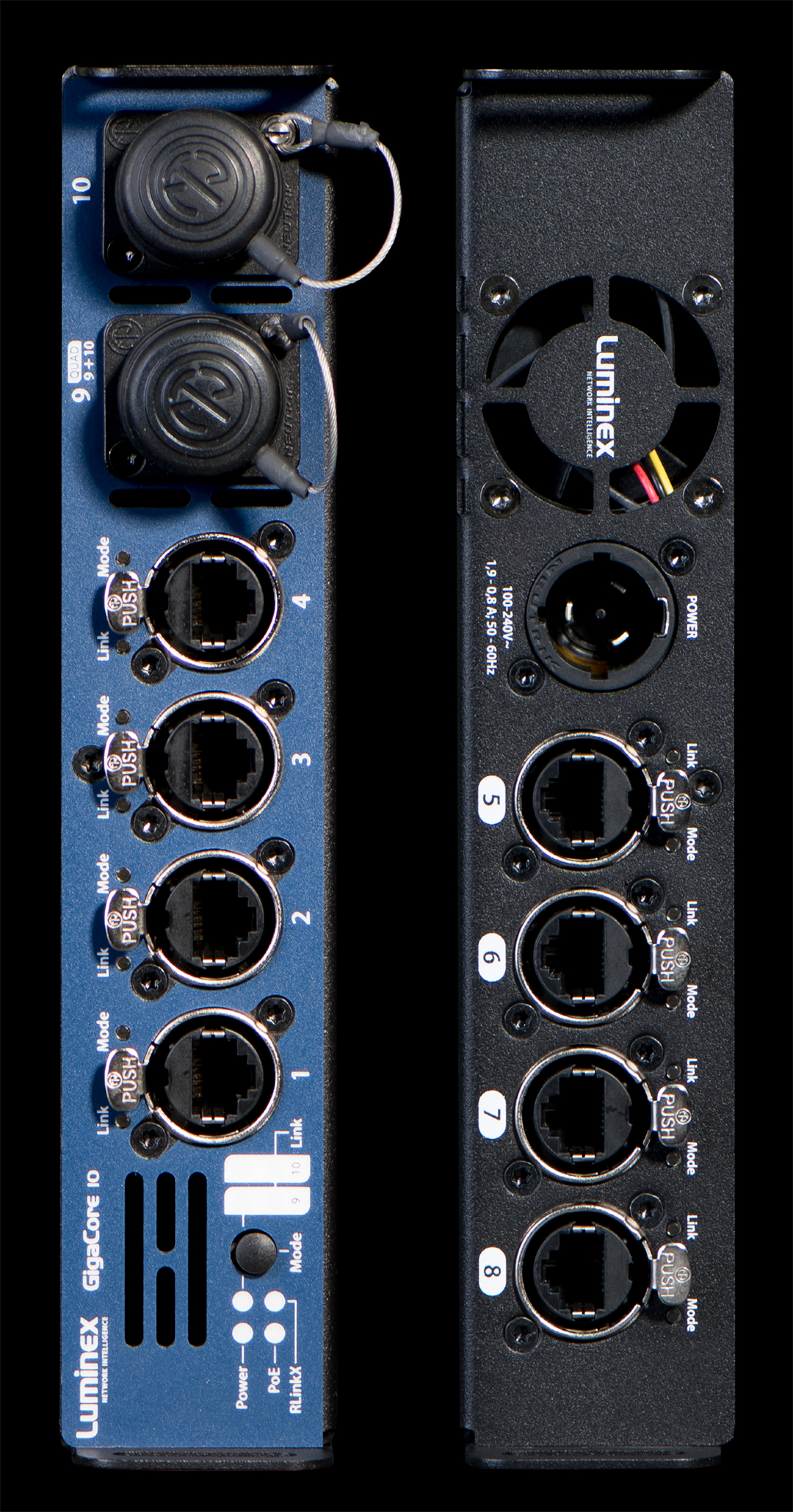

Luminex Gigacore 10
Luminex Gigacore 10

GigaCore 10

Key Features:

  • Specifically designed for live touring applications with compact, durable housing.
  • Redundant backup links for seamless transfer in case of cable fault.
  • Ruggedized Ethernet and fibre ports with variety of configuration options.
Enquire

Enquiry Form

Or call us today on

+44 (0)1494 446000

GigaCore 10


By far the most versatile Luminex Gigabit switch to be built to date, the plug-and-play GigaCore 10 has been designed specifically for the challenges and rigours of the live events and touring industry, where effortless set up, flexible use options, compact size and rugged reliability are key.

Product Variants

GigaCore 10
LU0100058
  • Ethernet
Enquire
GigaCore 10
LU0100058-F2M
  • Fibre
  • Fiberfox 2 Ch
  • Multi Mode
Enquire
GigaCore 10
LU0100058-F2S
  • Fibre
  • Fiberfox 2 Ch
  • Single Mode
Enquire
GigaCore 10
LU0100058-F4M
  • Fibre
  • Fiberfox 4 Ch
  • Multi Mode
Enquire
GigaCore 10
LU0100058-F4S
  • Fibre
  • Fiberfox 4 Ch
  • Single Mode
Enquire
GigaCore 10
LU0100058-NDM
  • Fibre
  • Neutrik opticalCON DUO
  • Multi Mode
Enquire
GigaCore 10
LU0100058-NDS
  • Fibre
  • Neutrik opticalCON DUO
  • Single Mode
Enquire
GigaCore 10
LU0100058-NQM
  • Fibre
  • Neutrik opticalCON QUAD
  • Multi Mode
Enquire
GigaCore 10
LU0100058-NQS
  • Fibre
  • Neutrik opticalCON QUAD
  • Single Mode
Enquire
GigaCore 10
LU0100058-POE
  • Ethernet
  • POE
Enquire
GigaCore 10
LU0100058-POE-F2M
  • POE
  • Fibre
  • Fiberfox 2 Ch
  • Multi Mode
Enquire
GigaCore 10
LU0100058-POE-F2S
  • POE
  • Fibre
  • Fiberfox 2 Ch
  • Single Mode
Enquire
GigaCore 10
LU0100058-POE-F4S
  • POE
  • Fibre
  • Fiberfox 4 Ch
  • Single Mode
Enquire
GigaCore 10
LU0100058-POE-F4M
  • POE
  • Fibre
  • Fiberfox 4 Ch
  • Multi Mode
Enquire
GigaCore 10
LU0100058-POE-NDM
  • POE
  • Fibre
  • Neutrik opticalCON DUO
  • Multi Mode
Enquire
GigaCore 10
LU0100058-POE-NDS
  • POE
  • Fibre
  • Neutrik opticalCON DUO
  • Single Mode
Enquire
GigaCore 10
LU0100058-POE-NQM
  • POE
  • Fibre
  • Neutrik opticalCON QUAD
  • Multi Mode
Enquire
GigaCore 10
LU0100058-POE-NQS
  • POE
  • Fibre
  • Neutrik opticalCON QUAD
  • Single Mode
Enquire

Discover network flexibility in its true nature. The unit can be mounted in a truss, on a wall or in a rack, which makes it suitable for many applications. And with the easy group function, it’s a piece of cake to modify groups, change port settings or add devices to the network, without having to reprogram the entire system.

  • The GigaCore’s plug-and-play technology is a real-time-saver for all AV professionals. The fully pre-configured Ethernet switch has an easy group function with RGB LED indicators, that is easily configured through an intuitive web interface. You can set up one solid converged network for lighting, audio and video in just minutes without bandwidth issues.

    With its robust housing and rugged connectors, the GigaCore 10 is sure to become the all-time favourite switch for touring and live events. The software is validated against all common protocols in the AV industry and will flawlessly work with almost every fixture you connect to the network. For ultimate reliability, two units can be combined in a 1U rack space and operate in a primary/secondary mode.

    Focus on being creative again, stop wasting time on programming your network or spending money on IT consultants to do it for you. With Luminex GigaCore switches and only some basic AV knowledge, you can do it all by yourself in just the blink of an eye. Now you can finally focus on your core business as an AV technician or designer: “being creative”!

    Pre-configured settings that are common in the AV industry, such as QoS and IGMP snooping.

    Easy group function with pre-configured VLAN’s for a quick set-up (without IT knowledge).

    Quickly identify groups, PoE+ status and redundancy settings through the front panel’s coloured LEDs.

    Aggregate several Inter-Switch Links (ISL) into one virtual link to increase bandwidth between switches.

    RlinkX redundancy protocol automatically takes over signal in milliseconds in case of a link failure.

    Deliver up to 130W over Ethernet to power up fixtures, nodes, cameras, intercom systems and other devices.

    The GigaCore 10 has two slots for rugged fibre connectors (option between Neutrik of Fiberfox) for long-distance coverage. So when harsh environments such as tours and live events are your daily life, the GigaCore 10 is likely to become your best friend you can always rely on.

    The GigaCore 10 is by far the most versatile Luminex Gigabit switch ever built. The half 19” unit with front and rear connectivity is designed to be mounted in a truss, in a rack or even on a wall. The robust metal enclosure and rugged Ethercon and (optional) fibre connectors make this unit excel in truss-mounted applications with Ethernet enabled devices, such as moving lights, PA systems, microphones, cameras or general stage connectivity. But also to ensure ultimate redundancy the GigaCore 10 is an excellent choice. Just by coupling two units, AV professionals can create a full 19” rack combination with a primary and secondary unit.

  • Most suitable applications: Touring and live events

    RLinkX (Link redundancy): Yes

    Groups (VLAN segmentation): Yes

    MultiLinkX (Link aggregation): Yes

    Profile manager: Yes

    Memory: 4Mb

    MAC address table:

    Address learning / Aging: Self learning, Auto aging

    Switching throughput: 22Gbps

    IGMP support: Yes (V1/V2/V3)

    IGMP snooping: Yes, enabled by default

    Port sensing: Auto negotiation

    Auto crossover: MDI / MDIX

    Auto sensing: Full or Half Duplex (Gigabit is Full Duplex)

  • Ethernet connectivity: 8 x Shielded Neutrik Ethercon connectors

    Fiber connectivity: 2 x rugged fiber connectors (Optional)

    Ethernet port speed: 1Gbps

    Serial: None

  • Power connectivity: 1x Neutrik powerCON TRUE1

    Power input: 100-240VAC, 50-60Hz

    Power consumption: Maximum 20W Maximum 150W with PoE

    Fuse: None

    Backup power input: None

    Backup PoE power input: None

    PoE: Optional on all ports (up to 130W in total)

  • Supported protocols: Avnu AVB/MILAN, Dante©, RAVENNA/AES67©, Ethersound©, Q-SYS/Q-LAN, REAC©, sACN, ArtNet, MANet2, HogNet, RTTrPL (BlackTraX), IEEE 802.1p CoS (Class of Service), DiffServ (DSCP), PoE (802.3af) (optional), PoE+ (optional), IEEE 1588 PTP V2

    Sound protocol compliance: Yes (low jitter)

    Ethernet compliance: IEEE 802.3, IEEE 802.3u, IEEE 802.3x Flow Control, IEEE 802.3ab Gigabit Ethernet

  • Display and jog: None

    Configuration: Through the built-in web server

    Status LEDs:

    Global status LEDs: Power, PoE power, RLinkX and mode

    Port status LEDs: PoE, MultiLinkX, RLinkX, groups, link/activity and port speed

    Dark mode available

    Coloured RGB LEDs: Yes
