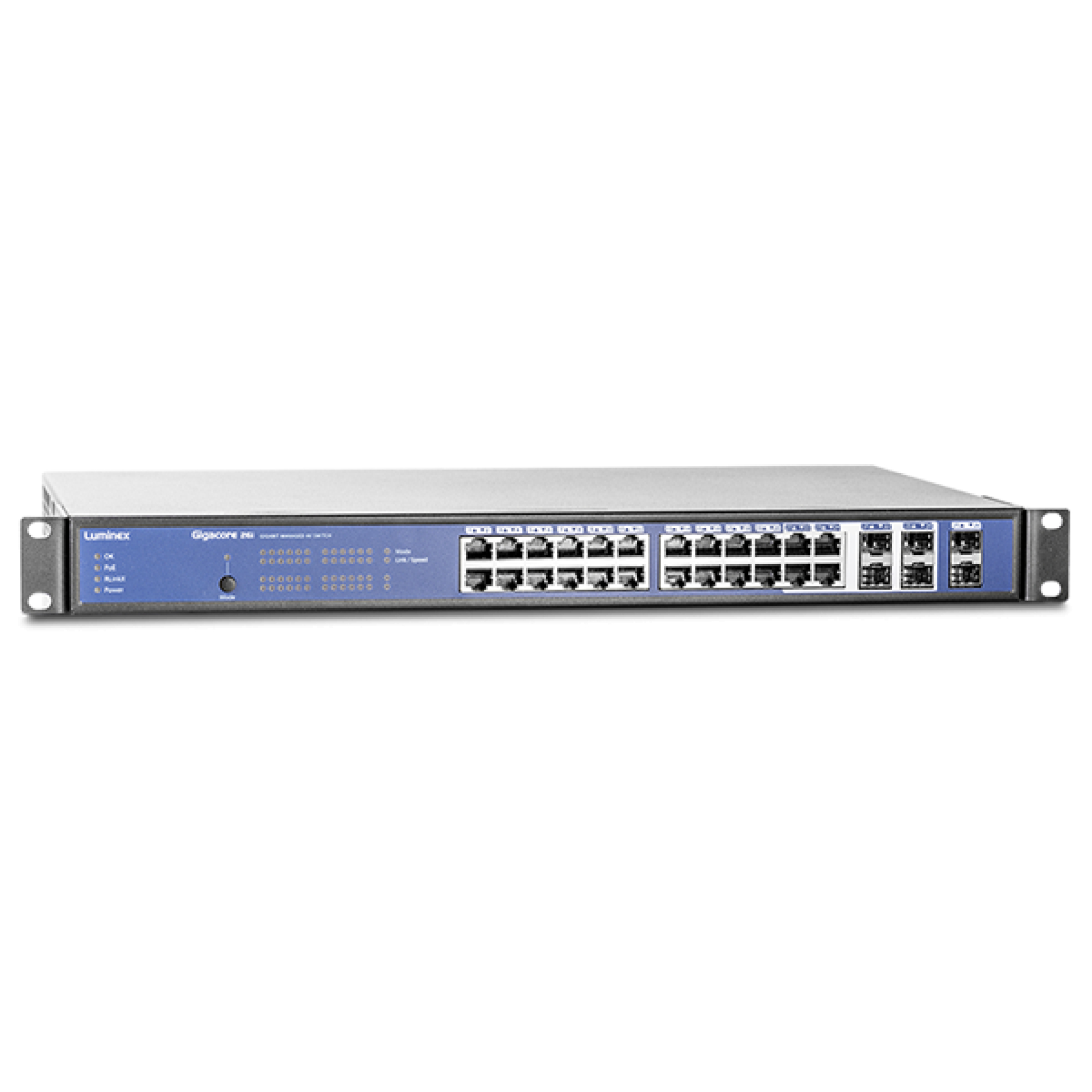

Luminex GigaCore 26i

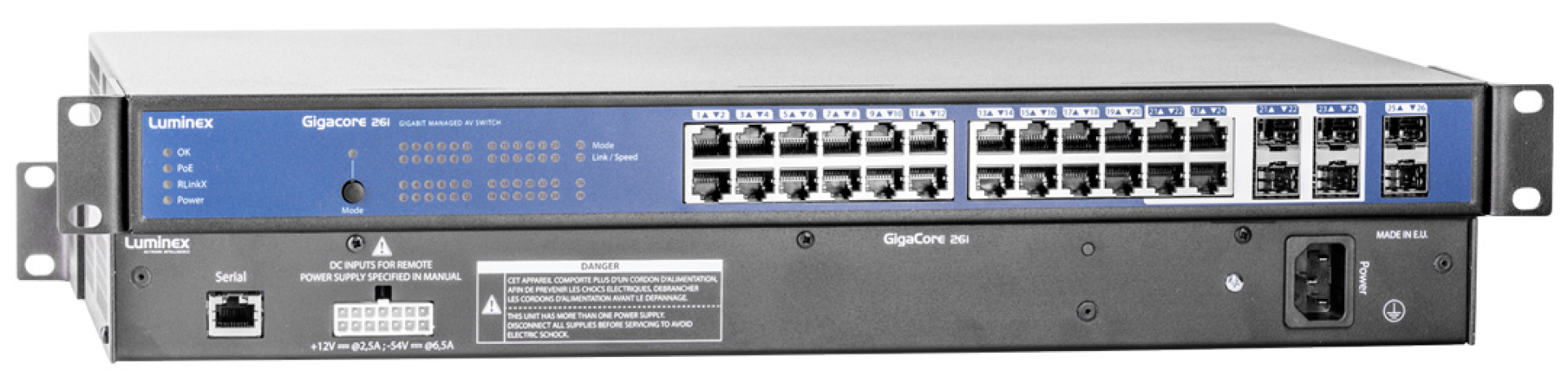

Luminex GigaCore 26i front and back

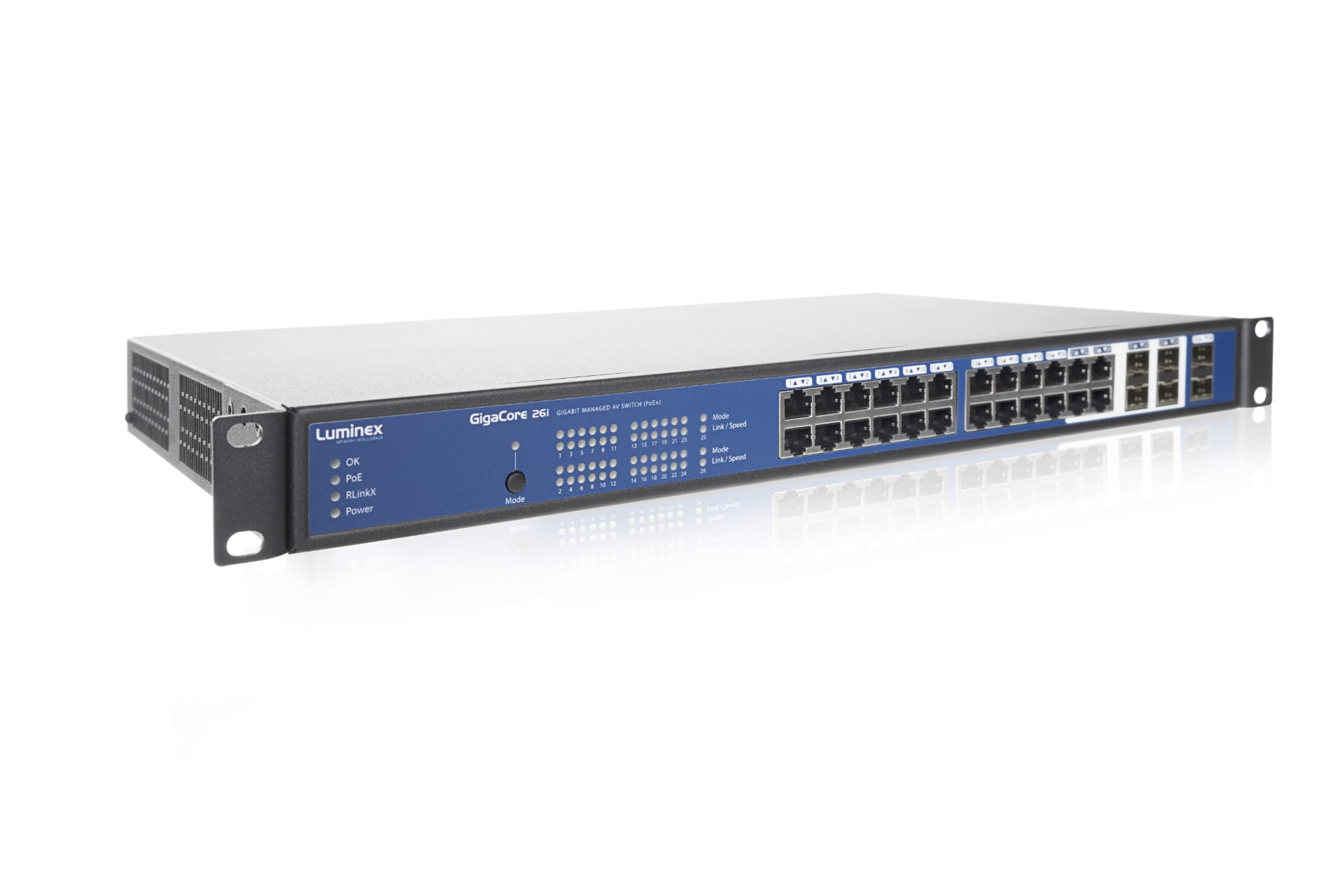

Luminex GigaCore 26i angled

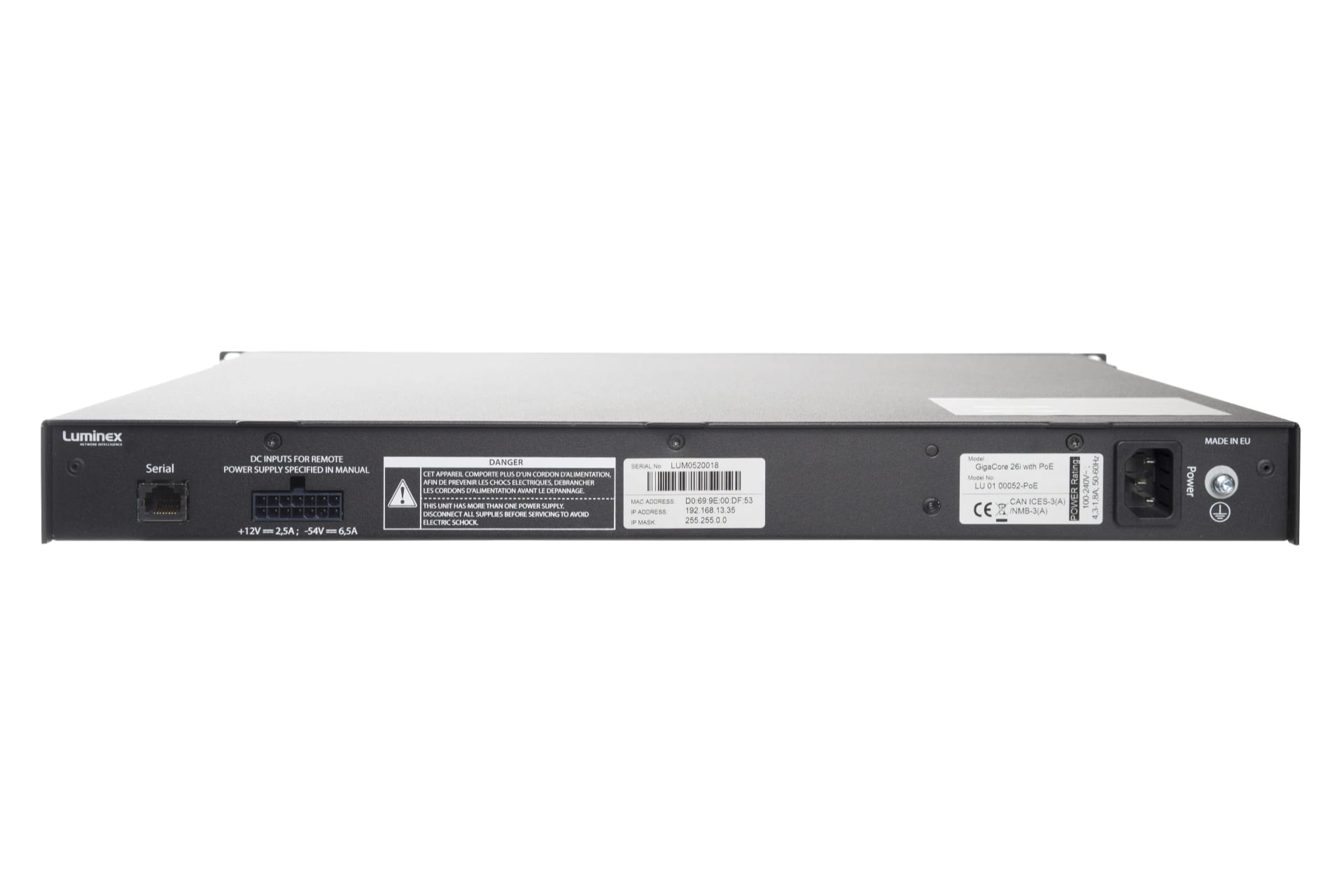

Luminex GigaCore 26i back
Luminex GigaCore 26i front and back
Luminex GigaCore 26i angled
Luminex GigaCore 26i back

GigaCore 26i

Key Features:

  • Specifically designed for professional AV installations
  • Redundant links for seamless transfer in case of cable fault
  • Ethernet and fibre ports with port aggregation
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

GigaCore 26i

The Luminex GigaCore 26i network switch range are a pre-configured Ethernet switch designed for AV system integrations, perfect for fixed installations.

Product Variants

GigaCore 26i
LU0100052
  • Fibre & Ethernet

Enquiry Form

GigaCore 26i POE
LU0100052POE
  • POE
  • Fibre & Ethernet

Enquiry Form

The GigaCore 26i is a Gigabit Ethernet switch providing a budget friendly solution when port density matters. The unit comes with all the advanced functionalities of the GigaCore Ethernet switches range, in a fully AV-installation oriented package. The unit offers 26 Gigabit ports that are all connected on the front panel. Each port on the switch will have coloured mode led indications which will indicate different properties of the port such as: PoE, redundancy and group membership.

  • The GigaCore 26i has considerably more ports then all its predecessors in the GigaCore range. This high port density switch (24x RJ45 and 6x SFP) is designed to offer more capacity for large system integrations such as theaters, concert halls, convention centers, sports arenas, studios, cruise ships, theme parks, hotels, houses of worship and other fixed installations.

    The GigaCore 26i provides users with six SFP cages for fibre connectivity. Just connect a multimode or single mode fibre transceiver to each cage and it will enable you to cover greater distances with a total link immunity up to 10km!

    Stop wasting time on programming your network or spending money on IT consultants to do it for you. With Luminex GigaCore switches and only some basic AV knowledge, you can do it all by yourself in just the blink of an eye. Now you can finally focus on your core business as an AV technician or designer: “being creative”!

  • Most suitable applications: Fixed installations

    RLinkX (Link redundancy): Yes

    Groups (VLAN segmentation): Yes

    MultiLinkX (Link aggregation): Yes

    Profile manager: Yes

    Memory: 4Mb

    MAC address table:

    Address learning / Aging: Self learning, Auto aging

    Switching throughput: 52Gbps

    IGMP support: Yes (V1/V2/V3)

    IGMP snooping: Yes, enabled by default

    Port sensing: Auto negotiation

    Auto crossover: MDI / MDIX

    Auto sensing: Full or Half Duplex (Gigabit is Full Duplex)

  • Ethernet connectivity: 24 x RJ45 connectors (incl. 4x dual media on ports 21-24)

    Fiber connectivity: 6 x SFP cages (incl. 4x dual media on ports 21-24)

    Ethernet port speed: 1Gbps

    Serial: 1 x serial RJ45 console port

  • Power connectivity:

    1 x IEC (14C) inlet

    1 x redundant power input on Molex Mini-Fit Junior 14 pin connector

    Power input: 100-240VAC, 50-60Hz

    Power consumption: Maximum 30W Maximum 430W with PoE

    Fuse: None

    Backup power input: 12VDC / 2,5A

    Backup PoE power input: -54VDC / 6,5A

    PoE: Optional (up to 370W - up to 330W for Rev A)

  • Supported protocols: Avnu AVB/MILAN, Dante©, RAVENNA/AES67©, Ethersound©, Q-SYS/Q-LAN, REAC©, sACN, ArtNet, MANet2, HogNet, RTTrPL (BlackTraX), IEEE 802.1p CoS (Class of Service), DiffServ (DSCP), PoE (802.3af) (optional), PoE+ (optional), IEEE 1588 PTP V2

    Sound protocol compliance: Yes (low jitter)

    Ethernet compliance: IEEE 802.3, IEEE 802.3u, IEEE 802.3x Flow Control, IEEE 802.3ab Gigabit Ethernet

  • Display and jog: None

    Configuration: Through the built-in web server

    Status LEDs:

    Global status LEDs: Device, power, PoE power, RLinkX and mode

    Port status LEDs: PoE, MultiLinkX, RLinkX, groups, link/activity and port speed

    Dark mode available

    Coloured RGB LEDs: Yes

GigaCore 26i - Variant Downloads
