Nexo GEO M Series Speakers

Key Features:

  • Acoustic Coupling of Cabinets Up To 20kHz Without Interference.
  • Reduced Mid-Band Distortion.
  • Variable Directivity Options.
Enquire

Enquiry Form

Call us today on

+44 (0)113 255 7666

Nexo GEO M Series Speakers

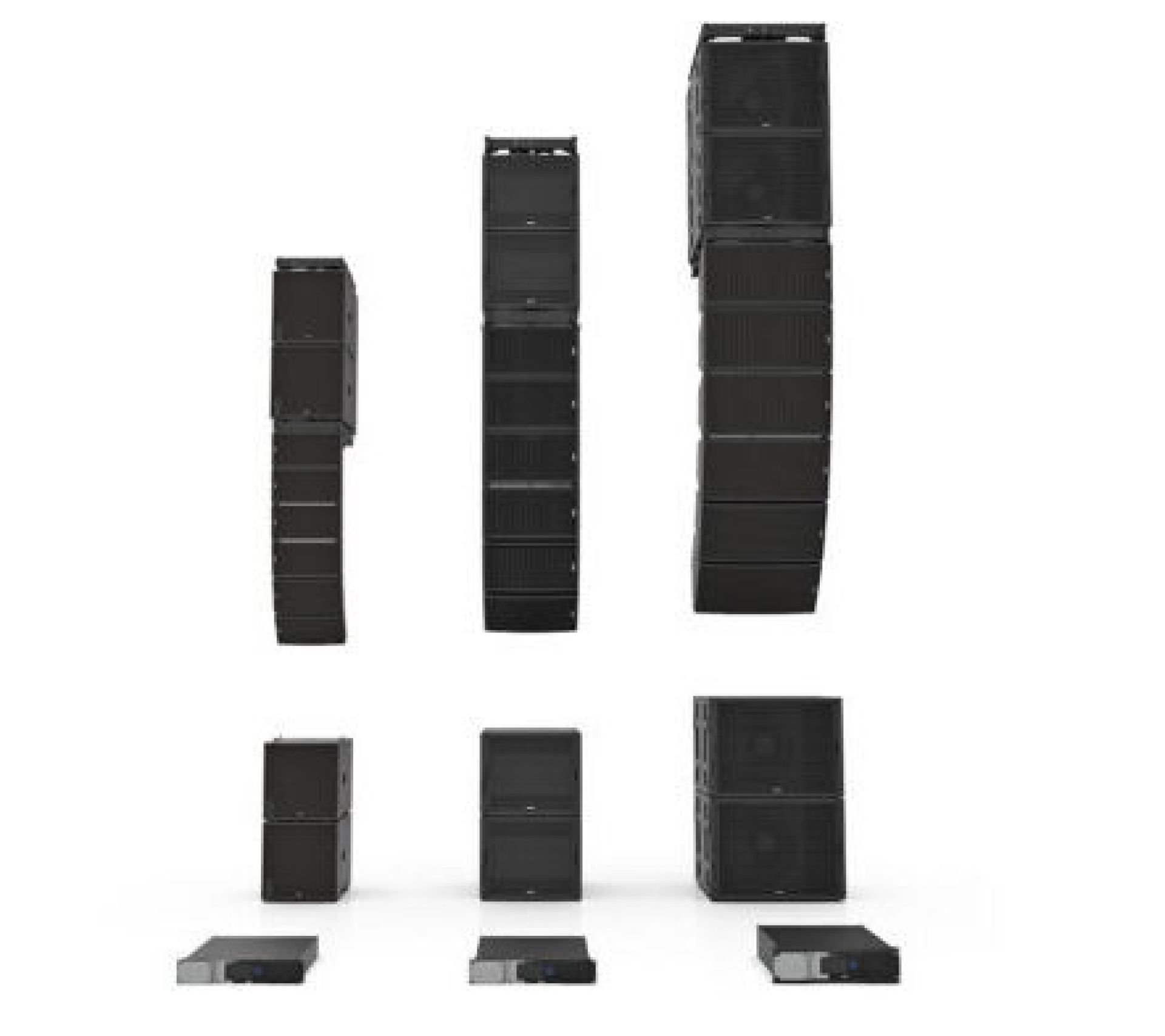

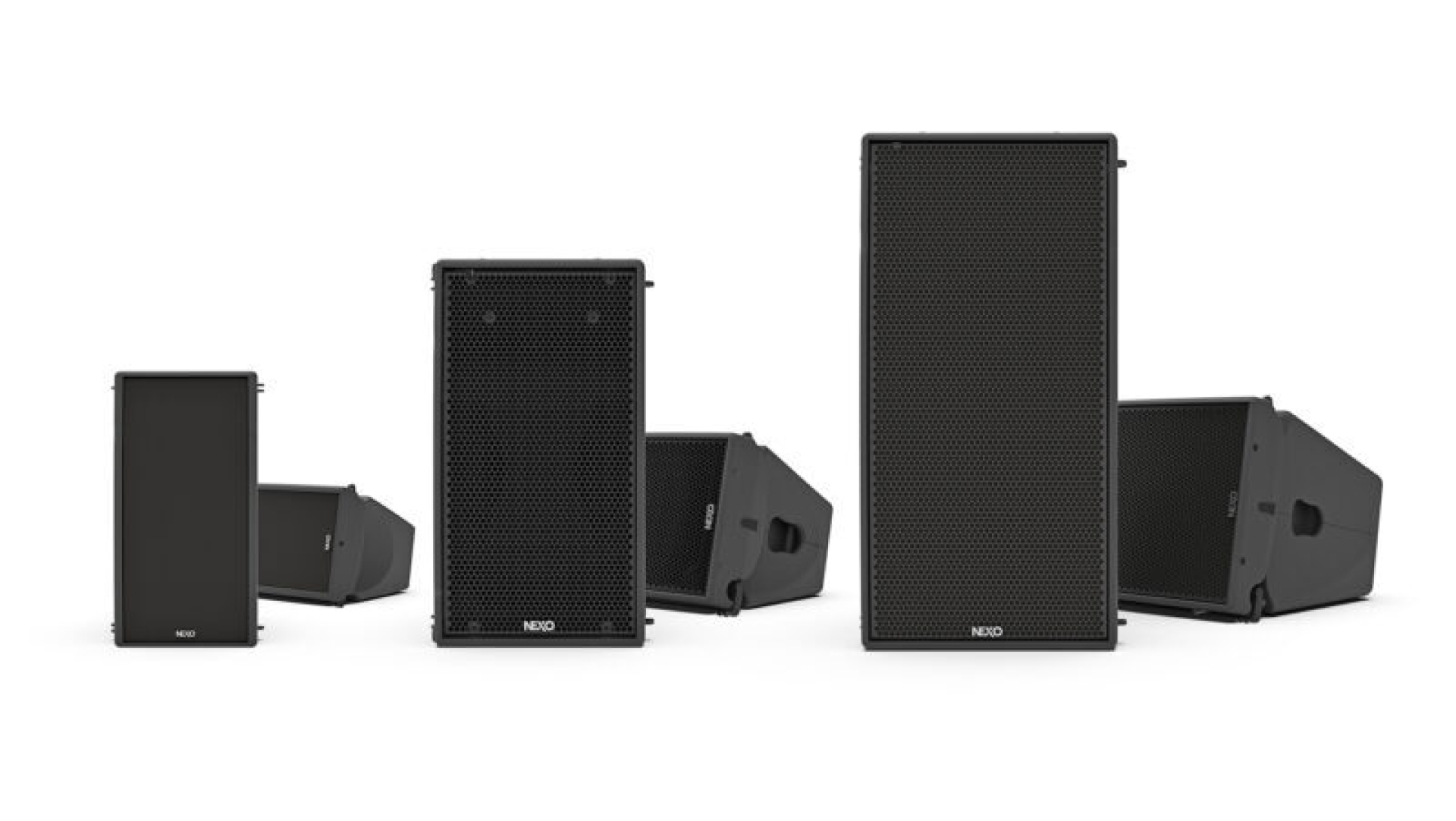

The NEXO GEO M Series comprises three systems: GEO M6, M10 and M12 – each with variable horizontal dispersion and each with a dedicated and proportionally-sized sub bass cabinet.

Product Variants

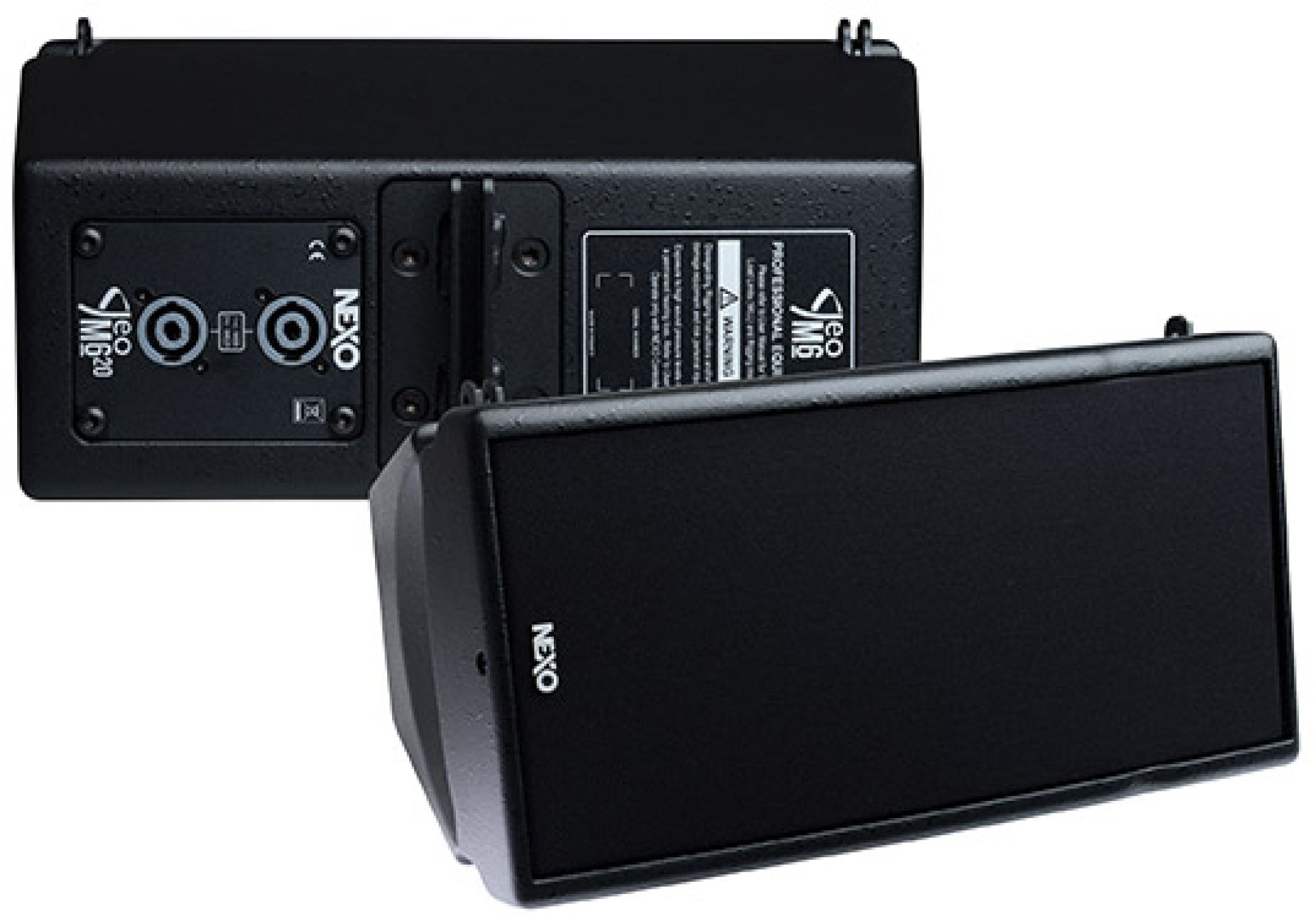

NEXO GEO M620
GEO M620
  • Frequency Response, 80Hz – 19kHz ±3dB
  • Usable Range @-6dB, 75Hz – 20kHz
  • Sensitivity 1W @ 1m, 95dB SPL Nominal
  • Nominal Peak SPL @ 1m, 127dB
  • HF Dispersion 80˚or 120˚Horizontal (CCD)
  • Crossover Frequencies, LF-HF: 2kHz Passive
  • Nominal Impedance 8Ω
  • 6.5" Driver
  • Available in black, white and custom RAL colours
  • Recommended Amplifiers 450W per box (3 boxes max in parallel on one channel amplifier)

Enquiry Form

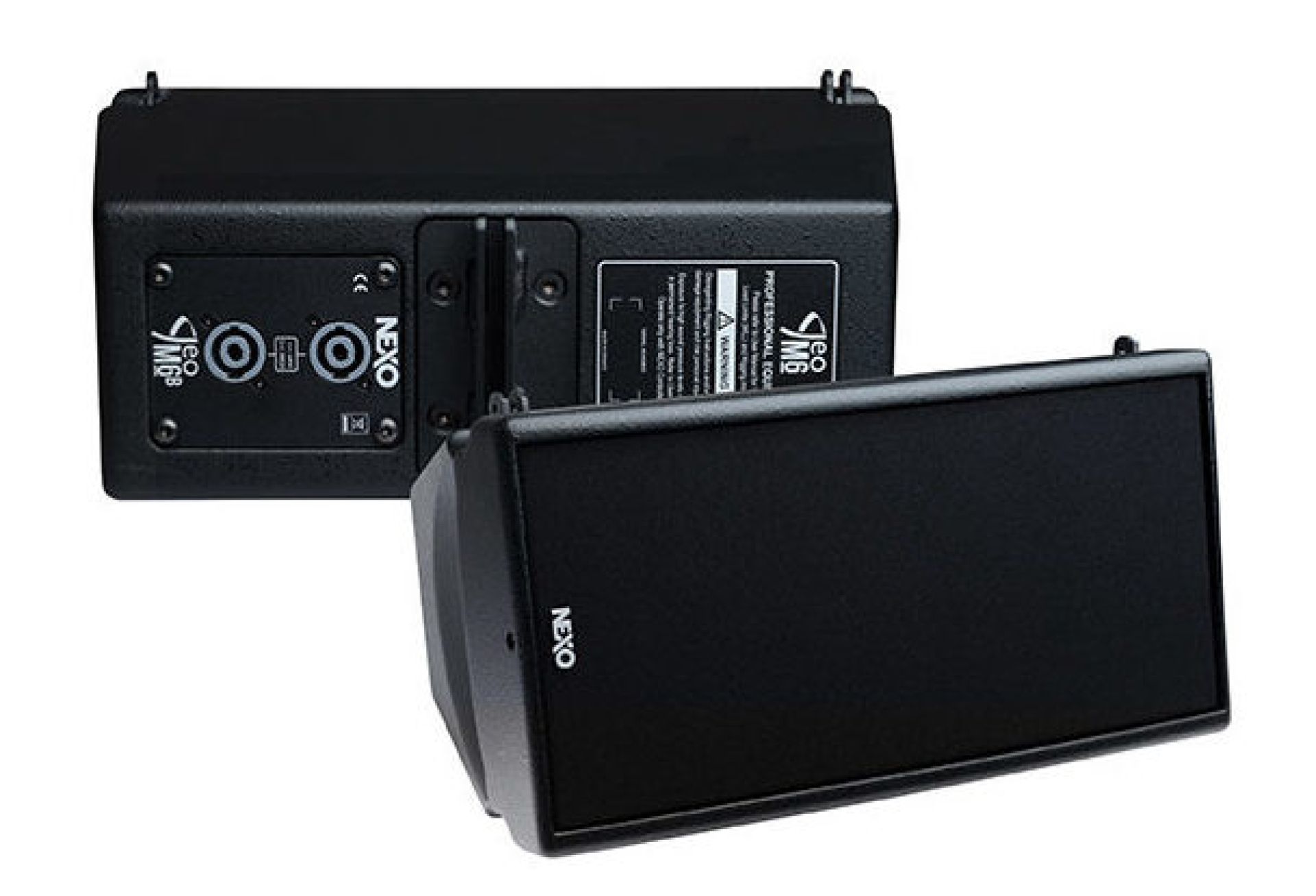

NEXO GEO M6B
GEO M6B
  • Frequency Response 75Hz – 120Hz ±3dB (preset-dependent)
  • Usable Range @-6dB, 70Hz – 1kHz
  • Sensitivity 1W @ 1m 94dB SPL Nominal
  • Nominal Peak SPL @ 1m 125dB
  • Nominal Impedance 8Ω
  • 6.5" Driver
  • Available in black, white and custom RAL colours
  • Low & mid-frequency partner to the GEO M620
  • Recommended Amplifiers 450W per box (3 boxes max in parallel on one channel amplifier)

Enquiry Form

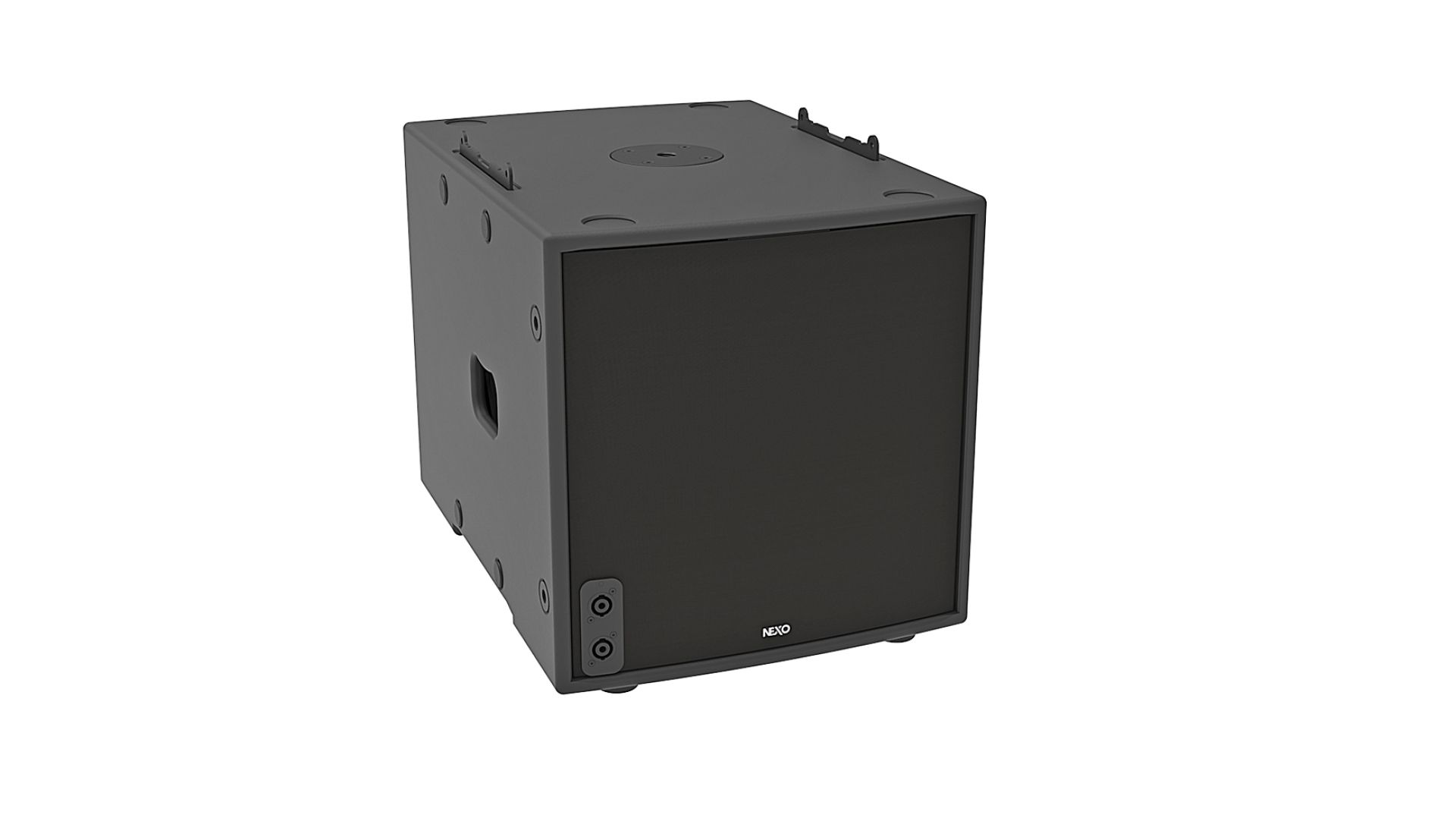

NEXO MSUB12
MSUB12
  • Bass module companion to the GEO M6
  • 1 x 12" Neodymium Driver
  • Available in black, white and custom RAL colours
  • Very high power, arrayable sub that can be stacked or flown, with or without its companion main element the GEO M6
  • Front and rear connectivity for cardioid (front to back) implementation
  • Comprehensive range of versatile, multifunction accessories for deploying the MSUB12 in a wide variety of applications
  • Touring and Installation versions available

Enquiry Form

NEXO GEO M1025
GEO M1025
  • 1 x 10" Neodymium Driver
  • Available in black, white and custom RAL colours
  • Touring / 25° vertical dispersion version of the GEO M10 line array element
  • Compact line array element that can be stacked or flown, with or without its companion sub the MSUB15
  • Integrated rigging hardware with no loose parts and AutoRigTM feature
  • Incorporates latest NEXO patented technology from the flagship STM series
  • Comprehensive range of versatile, multifunction accessories for deploying the GEO M10 in a wide variety of applications

Enquiry Form

Nexo GEO M1025-I
GEO M1025-I
  • Integrated rigging hardware
  • Incorporates latest NEXO patented technology from the flagship STM series
  • Comprehensive range of versatile, multifunction accessories for deploying the GEO M10 in a wide variety of applications
  • 1 x 10" Neodymium Driver
  • Available in black, white and custom RAL colours
  • Compact line array element that can be stacked or flown, with or without its companion sub the MSUB15
  • Installation / 25° vertical dispersion version of the GEO M10 line array element

Enquiry Form

NEXO GEO M1012
GEO M1012
  • Touring / 12° vertical dispersion version of the GEO M10 line array element
  • 1 x 10" Neodymium Driver
  • Available in black, white and custom RAL colours
  • Compact line array element that can be stacked or flown, with or without its companion sub the MSUB15
  • Integrated rigging hardware with no loose parts and AutoRigTM feature
  • Incorporates latest NEXO patented technology from the flagship STM series
  • Comprehensive range of versatile, multifunction accessories for deploying the GEO M10 in a wide variety of applications

Enquiry Form

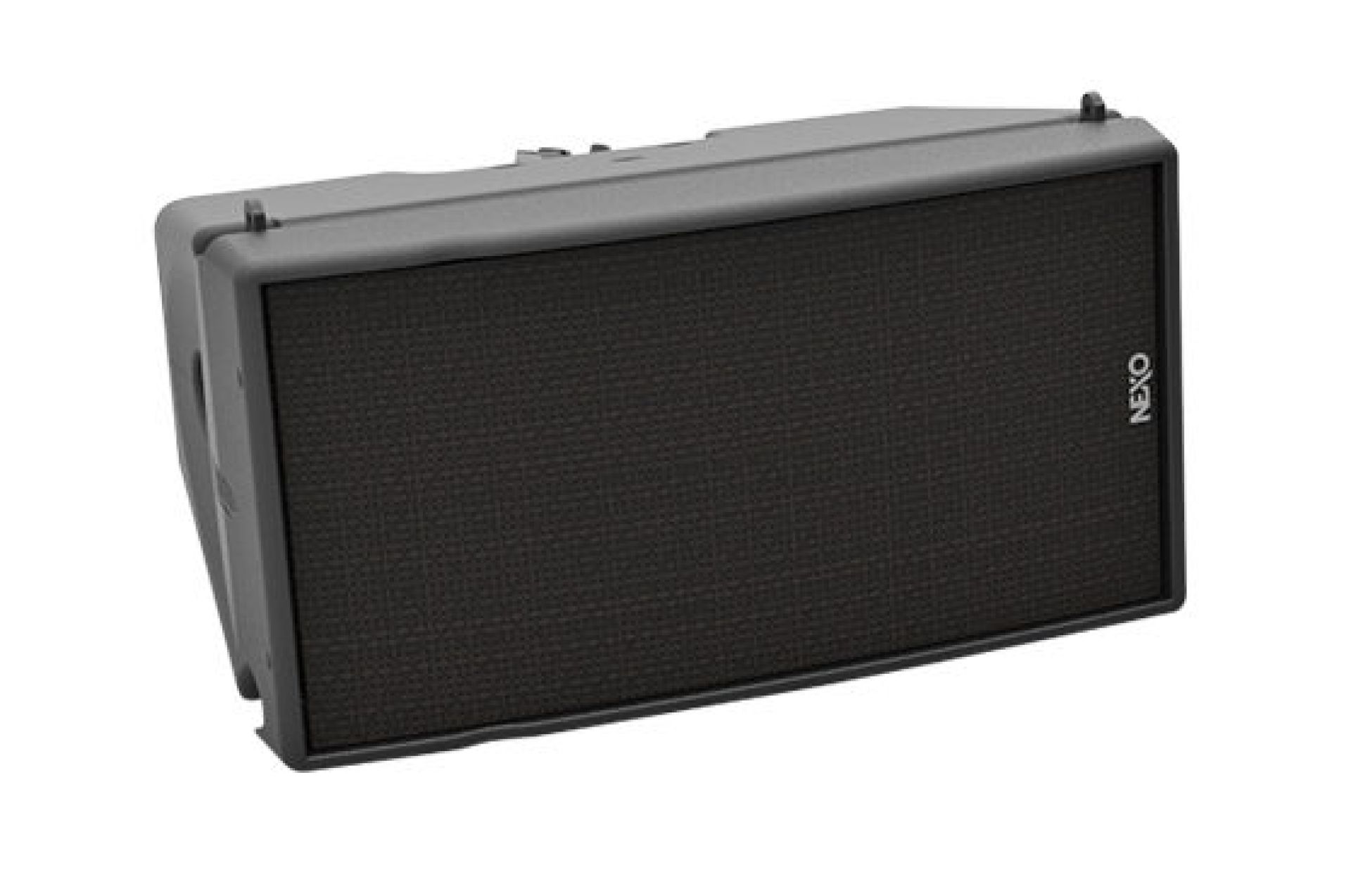

NEXO M1012-I
GEO M1012-I
  • Compact line array element that can be stacked or flown, with or without its companion sub the MSUB15
  • Integrated rigging hardware
  • Incorporates latest NEXO patented technology from the flagship STM series
  • Comprehensive range of versatile, multifunction accessories for deploying the GEO M10 in a wide variety of applications
  • Installation version with 12° vertical dispersion
  • 1 x 10" Neodymium Driver
  • Available in black, white and custom RAL colours

Enquiry Form

Nexo GEO M1220
GEO M1220
  • Touring version of the GEOM12 with 20° vertical dispersion
  • 2 Way, 12" Line Array Element
  • Available in black, white and custom RAL colours
  • Powerful line array element that can be stacked or flown, with or without its companion sub the MSUB18
  • Integrated rigging hardware with no loose part and AutoRigTM feature
  • Incorporates latest NEXO patented technology from the flagship STM series
  • Comprehensive range of versatile, multifunction accessories for deploying the GEO M12 in a wide variety of applications

Enquiry Form

NEXO GEO M1220-I
GEO M1220-I
  • Installation version of the GEOM12 with 20° vertical dispersion
  • 2 Way, 12" Line Array Element
  • Available in black, white and custom RAL colours
  • Powerful line array element that can be stacked or flown, with or without its companion sub the MSUB18
  • Integrated rigging hardware with no loose part and AutoRigTM feature
  • Incorporates latest NEXO patented technology from the flagship STM series
  • Comprehensive range of versatile, multifunction accessories for deploying the GEO M12 in a wide variety of applications

Enquiry Form

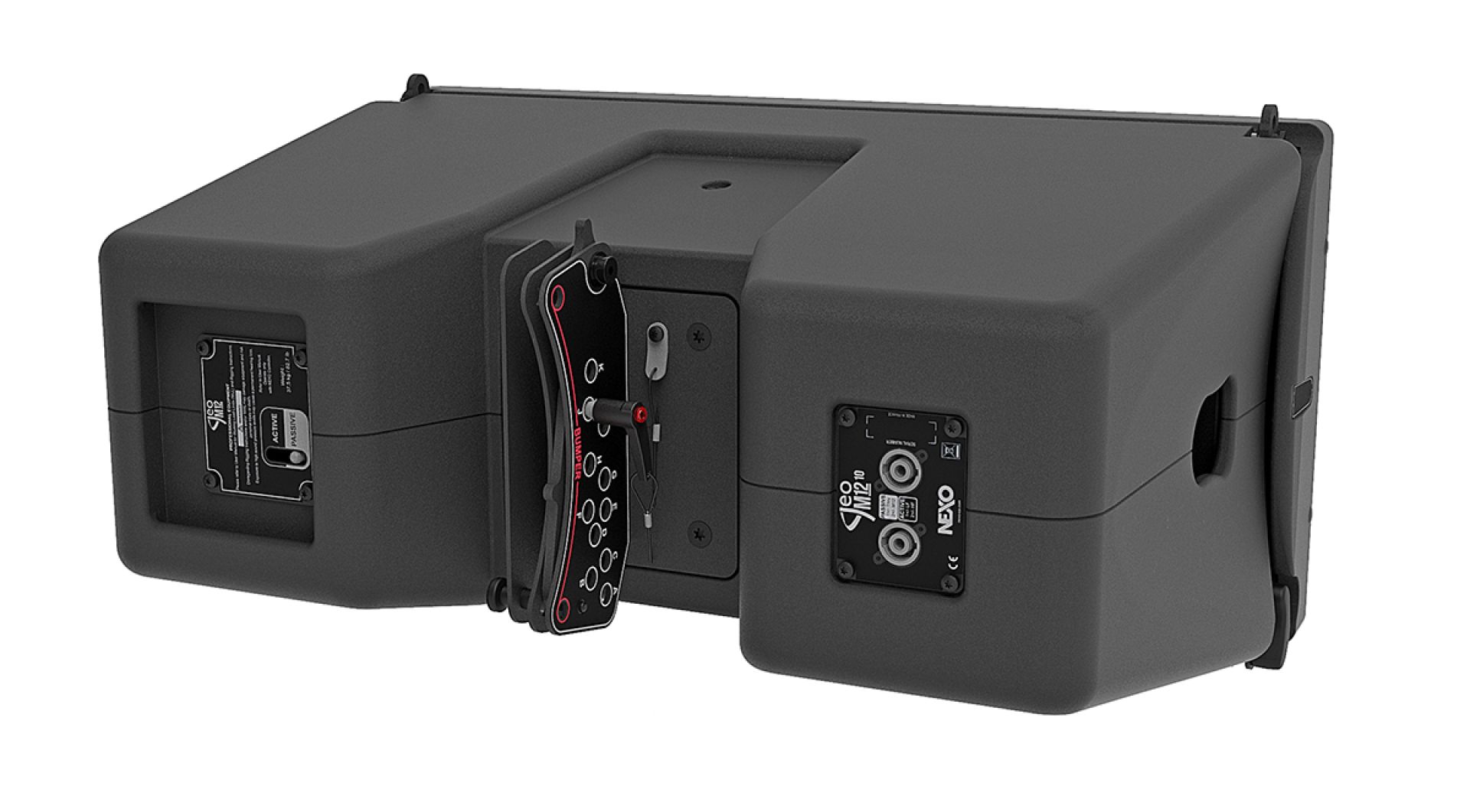

NEXO GEO M1210
GEO M1210
  • Touring version of the GEOM12 with 10° vertical dispersion
  • 2 Way, 12" Line Array Element
  • Available in black, white and custom RAL colours
  • Powerful line array element that can be stacked or flown, with or without its companion sub the MSUB18
  • Integrated rigging hardware with no loose part and AutoRigTM feature
  • Incorporates latest NEXO patented technology from the flagship STM series
  • Comprehensive range of versatile, multifunction accessories for deploying the GEO M12 in a wide variety of applications

Enquiry Form

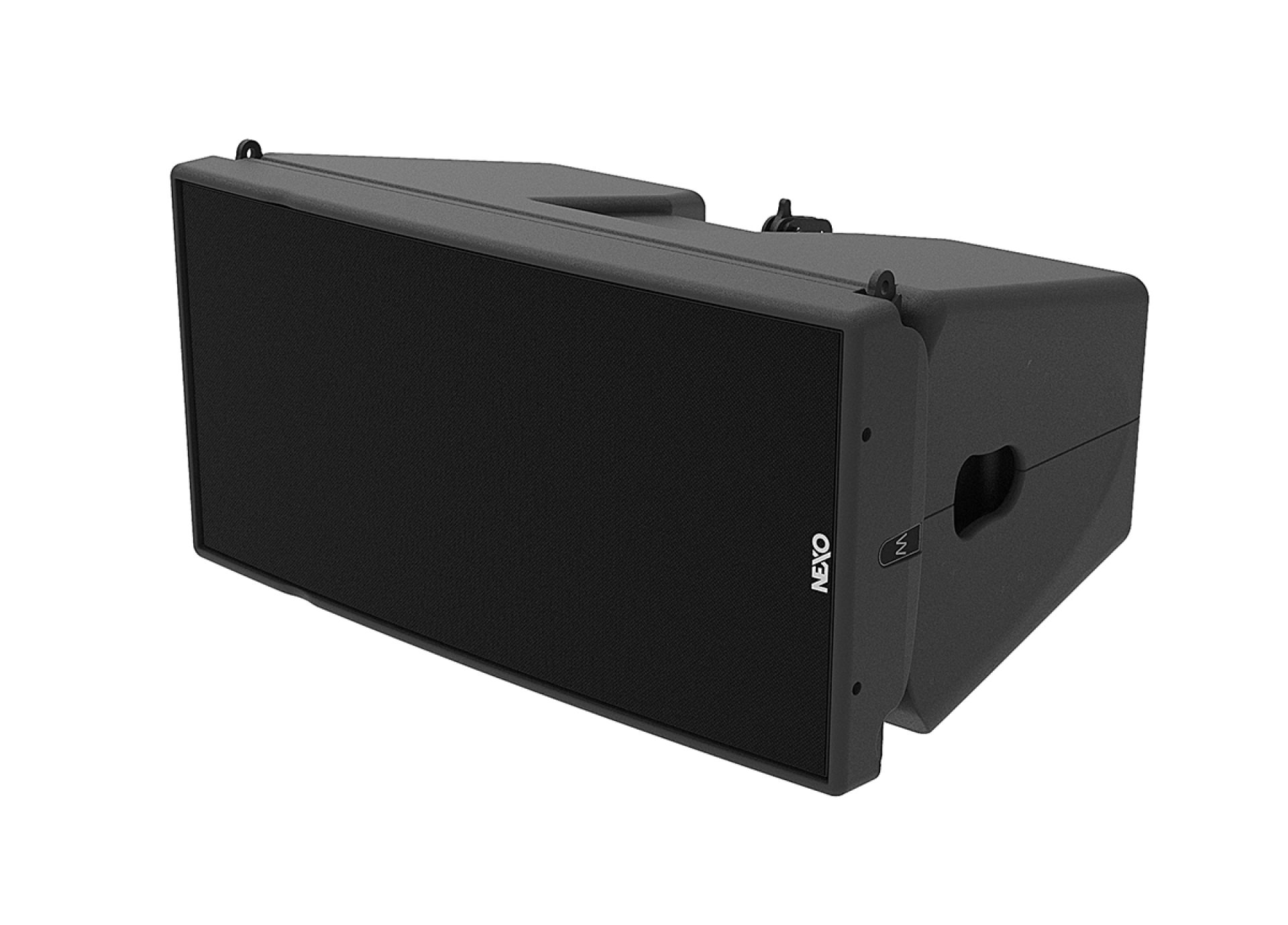

NEXO M1210-I
GEO M1210-I
  • Installation version of the GEOM12 with 10° vertical dispersion
  • 2 Way, 12" Line Array Element
  • Available in black, white and custom RAL colours
  • Powerful line array element that can be stacked or flown, with or without its companion sub the MSUB18
  • Integrated rigging hardware with no loose part and AutoRigTM feature
  • Incorporates latest NEXO patented technology from the flagship STM series
  • Comprehensive range of versatile, multifunction accessories for deploying the GEO M12 in a wide variety of applications

Enquiry Form

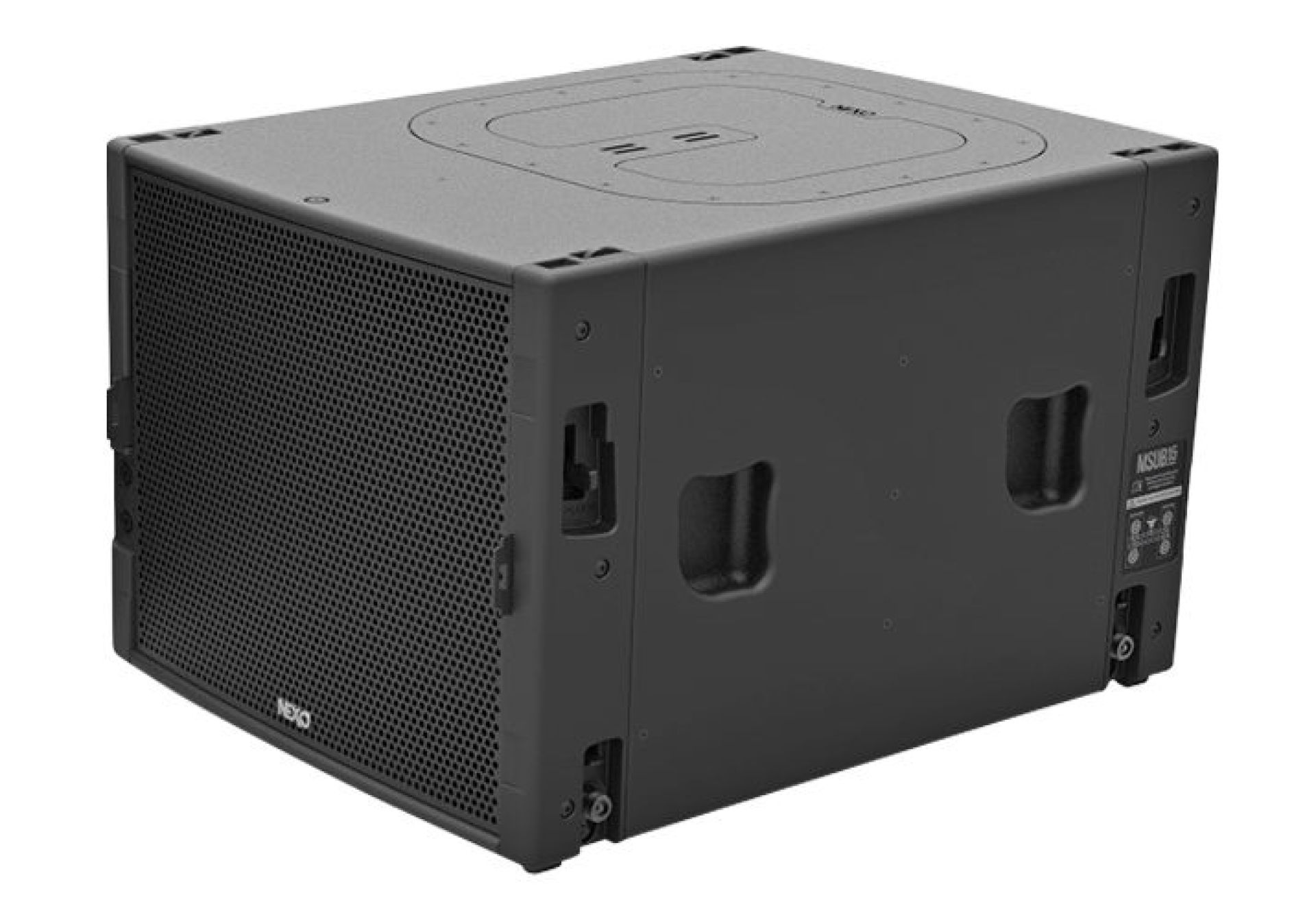

NEXO MSUB15
MSUB15
  • Omni or Cardioid modes, GEO M10 companion
  • 1 x 15" Neodymium Driver
  • Available in black, white and custom RAL colours
  • Compact arrayable sub that can be stacked or flown, with or without its companion main element the GEO M10
  • Integrated rigging hardware with no loose parts
  • Front and rear connectivity for cardioid (front to back) implementation
  • Comprehensive range of versatile, multifunction accessories for deploying the MSUB15 in a wide variety of applications
  • Touring version with steel grille and Speakon connectors

Enquiry Form

NEXO MSUB15-I
MSUB15-I
  • 1 x 15" Neodymium Driver
  • Compact arrayable sub that can be stacked or flown, with or without its companion main element the GEO M10
  • Integrated rigging hardware with no loose parts
  • Front and rear connectivity for cardioid (front to back) implementation
  • Comprehensive range of versatile, multifunction accessories for deploying the MSUB15 in a wide variety of applications
  • Installation version features acoustic fabric grille and cable connectors

Enquiry Form

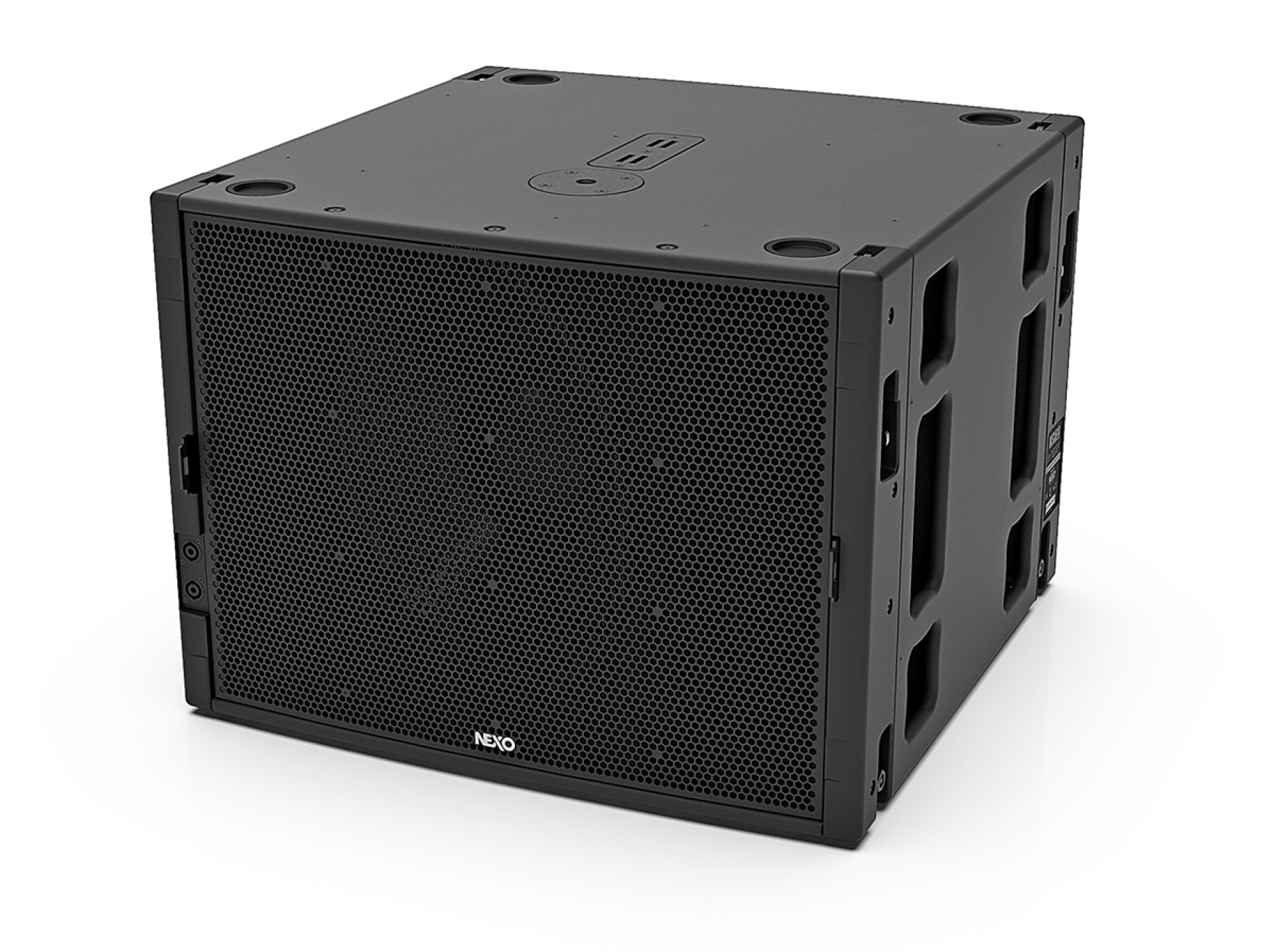

NEXO MSUB18
MSUB18
  • 1 x 18" Neodymiuim Driver
  • Omni or Cardioid modes, GEO M12 companion
  • Integrated rigging hardware with no loose parts
  • Front and rear connectivity for cardioid (front to back) implementation
  • Comprehensive range of versatile, multifunction accessories for deploying the MSUB18 in a wide variety of applications
  • Available in black, white and custom RAL colours
  • Very high power, arrayable sub that can be stacked or flown, with or without its companion main element the GEO M12

Enquiry Form

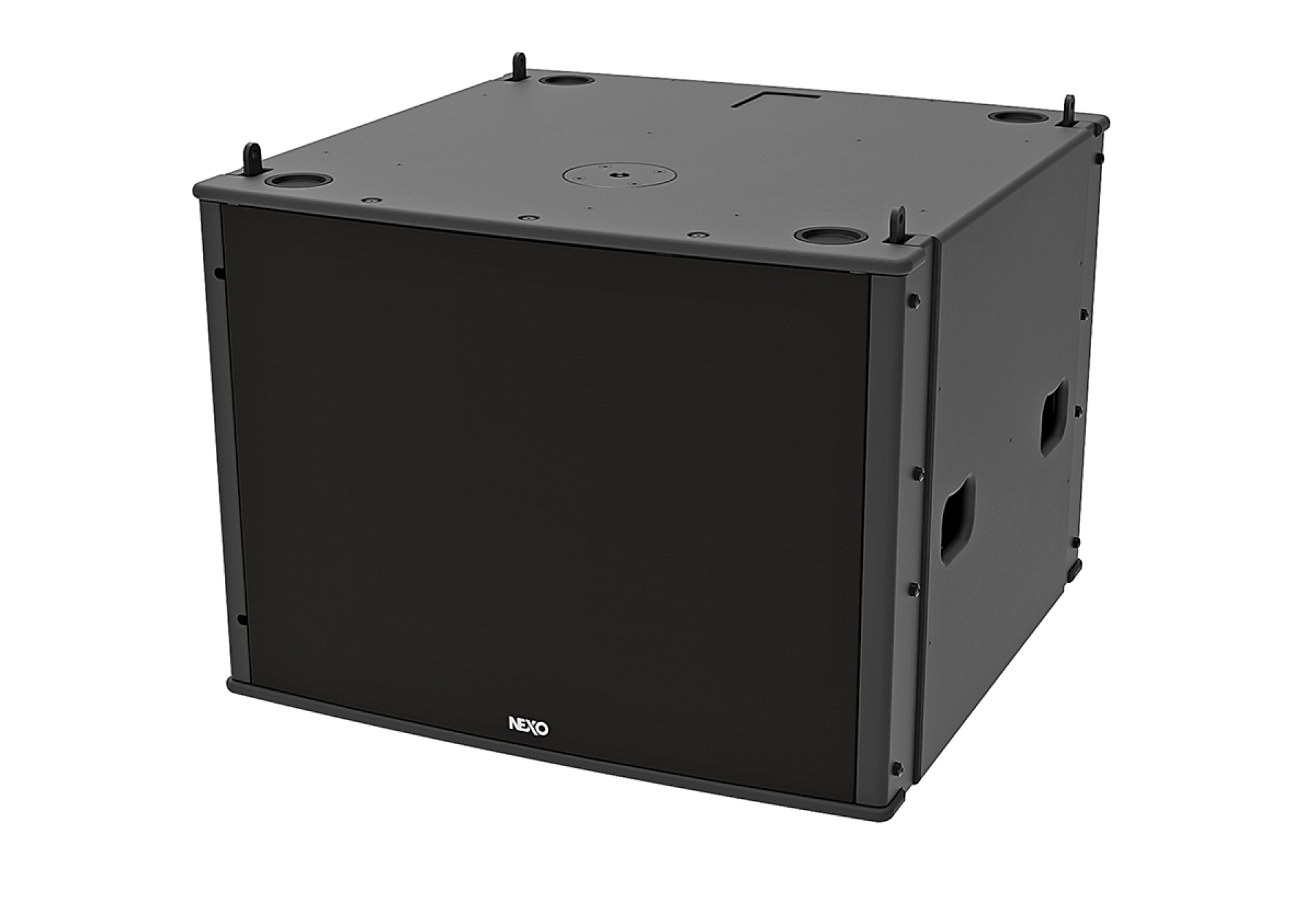

NEXO MSUB18-I
MSUB18-I
  • Installation version of MSUB18
  • 1 x 18" Neodymiuim Driver
  • Very high power, arrayable sub that can be stacked or flown, with or without its companion main element the GEO M12
  • Integrated rigging hardware with no loose parts
  • Front and rear connectivity for cardioid (front to back) implementation
  • Comprehensive range of versatile, multifunction accessories for deploying the MSUB18 in a wide variety of applications
  • Available in black, white and custom RAL colours

Enquiry Form

  • Because all three systems share the same sonic signature and ‘plug & play’ amplification and processing solution, it’s easy to mix and match GEO M systems in a single application, for instance GEO M12 for the main PA and GEO M10 for the delays.

    Dedicated MSUB12, MSUB15 and MSUB18 sub-bass cabinets extend system response down to 45Hz, 40Hz and 32Hz respectively. Easy to deploy in Omni mode, the MSUB sub bass modules also accommodate cardioid implementation either in stacked or flown configurations.

    The front and back rigging systems are compatible so the subs can be implemented ‘front to back’. Connectivity is repeated on each side, making it easy to remove cables from audience view. With a variety of networking options, NEXO NXAMPMK2 powered TD controllers provide a flexible and cost-effective power and processing solution. A single 4 channel amplifier can power up to 16 boxes and presets are instantly available for all NEXO cabinets, making it easy to mix and match GEO M systems in a single application.

    GEO M10 and M12 modules are available in touring and installation versions. The Touring versions use a magnetically fixed front steel grill with a back mesh and the connection plate features NL4 connectors. The Installation versions keeps the same acoustic design but come with a fixed front steel grid covered by an acoustic cloth. IP54 rated connectivity is made through cable gland and captive four core cables (IP Cover used on GEO M6).

    The combination of high power and low visual impact makes GEO M6 + MSUB12 the perfect choice for use in corporate events. A comprehensive range of mobile rigging accessories makes it easy for contractors and rental companies to achieve exceptional sonic performance without impinging upon the production design.

    GEO M10 groundstacks are the perfect sound reinforcement solution for live events. Quick and easy to deploy, this system uses the Touring Bumper to configure stacks of 2 x MSUB15s with 3 x GEO M1012 cabinets on top. And just one NXAMP4x4 is all it takes to power and control a highly-capable stereo system that’s equally suitable for speech and music.

    The MSUB18 + GEOM12 combination is a high-power yet low visual impact solution perfect for large theatres and live venues. The high efficiency of the MSUB18 enables subs to be flown together with the main cabinets, delivering perfect sub coverage with less or no room taken on stage.

Nexo GEO M Series Speakers - Variant Downloads

You might like...

NEXO Amplifiers & Processing-stack
Product - AUDIO
Nexo Amplifiers & Processing
    • Ideal for a wide variety of demanding applications.
    • Solutions for single or mixed cabinet systems.
    • Among the industries most powerful amplifiers.
Find out more
NEXO EPS Series Speakers
Product - AUDIO
Nexo EPS Series Speakers
    • Variable HF Directivity for Perfect Venue Coverage.
    • Easy for the user to rotate, it ensures optimum directivity for any fixed installation.
Find out more

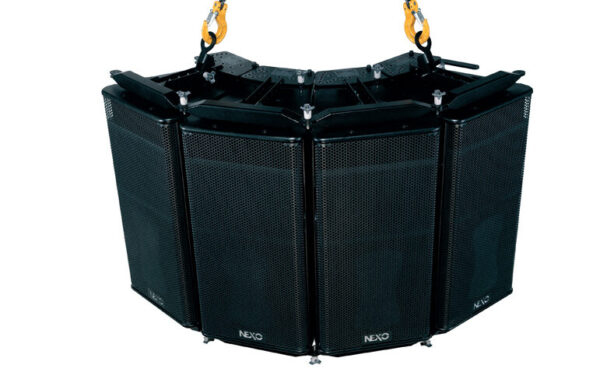

NEXO GEO S12 Series Speakers -Array
