MSV2 4K Multiviewer

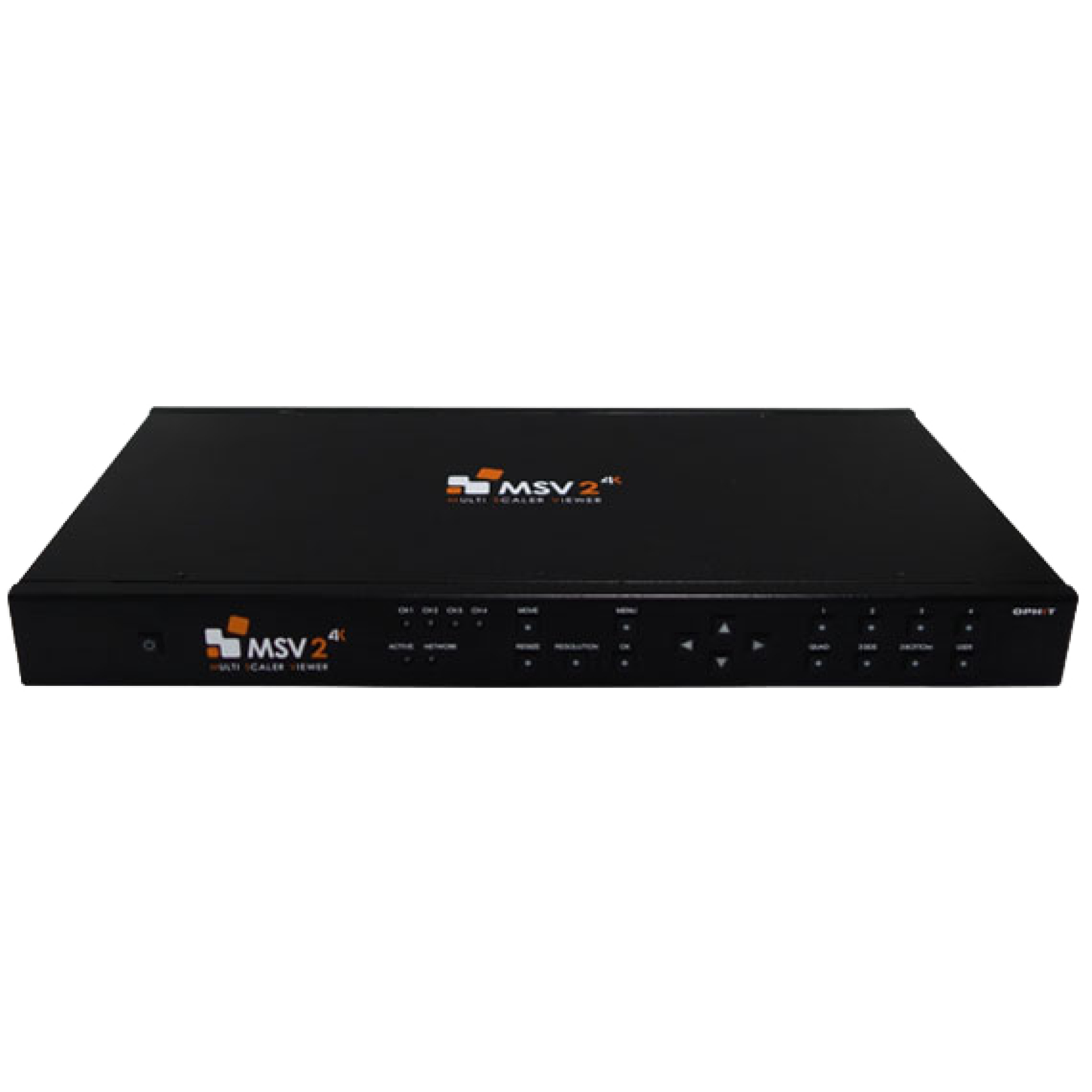

Ophit MSV2 Multiviewer

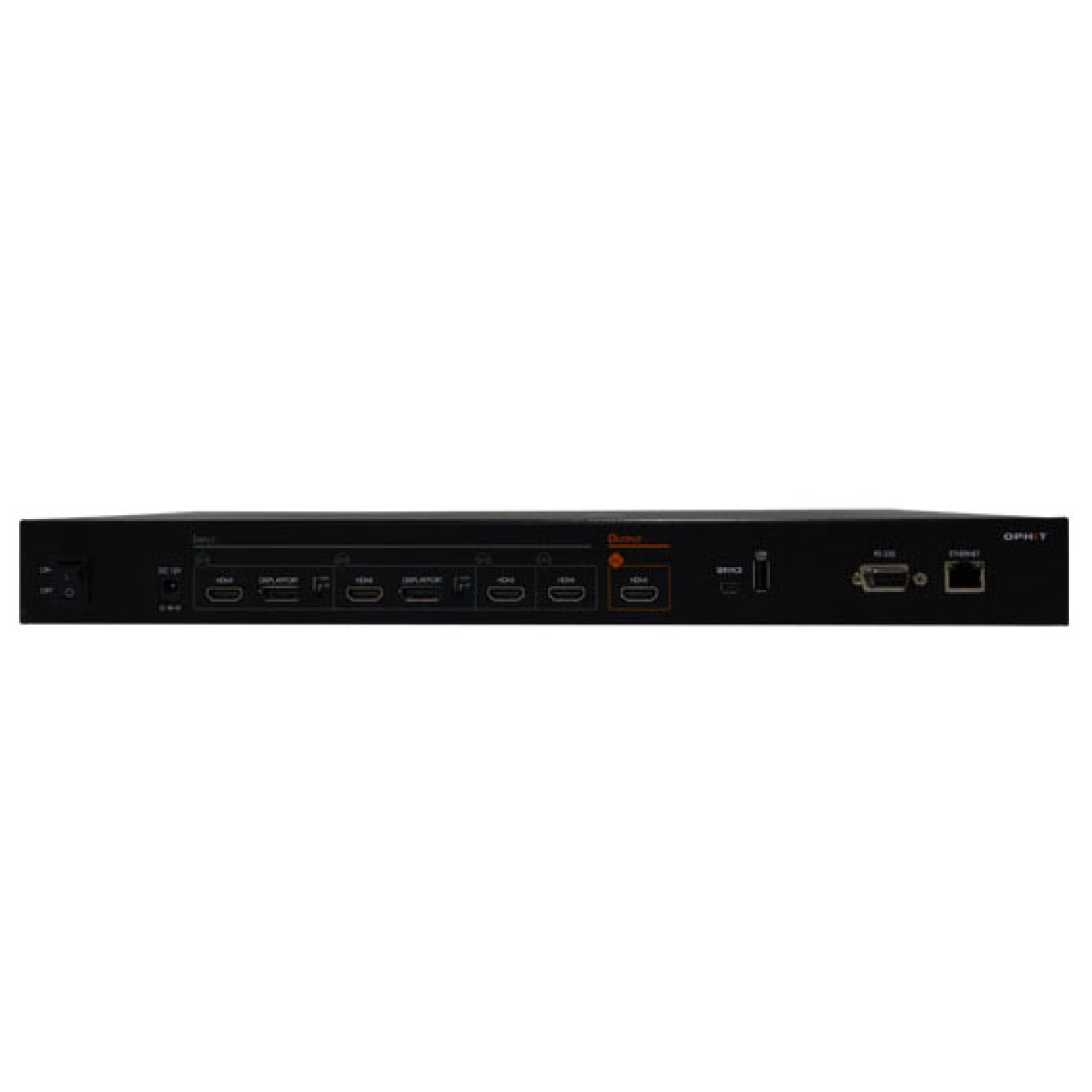

Ophit MSV2 Multiviewer Rear
Ophit MSV2 Multiviewer Rear

MSV2 4K Multiviewer

Key Features:

  • Full range of input and output format (Up to 4K@60Hz)
  • 4 preset modes and 5 user modes
  • 1U Rack type
Enquire

Enquiry Form

Call us today on

+44 (0)113 255 7666

MSV2 4K Multiviewer

The Ophit MSV2 4K Multiviewer is an advanced video processor for multimedia presentations.

This video signal processer can take 4 input video signals and output them onto one display device. Displaying multiple 4K images on one screen, its advanced processing capabilities are ideal for multimedia presentations.

Video input options include 2 dedicated HDMI channels, and 2 channels that can be switched to either HDMI or DisplayPort. Multiple video signals can be combined into one destination layout, such as quad screen, 1 large/3 small, or a user customized layout. Channel switching on MSV2 is fast and seamless.

It can be controlled by the buttons on the unit's front face, or by a web-based PC interface offering live preview.

  • HDMI 2.0, DisplayPort 1.2a Compliant

    Supports DisplayPort 1, 2, 4 lanes

    Supports HDMI 1.4 / 2.0

    Compliant with HDMI 2.0, data rate up to 6Gbps

    HDCP 1.4 / 2.2 Compliant

    User control : Web, OSD, RS232
