ArcPod 27Q

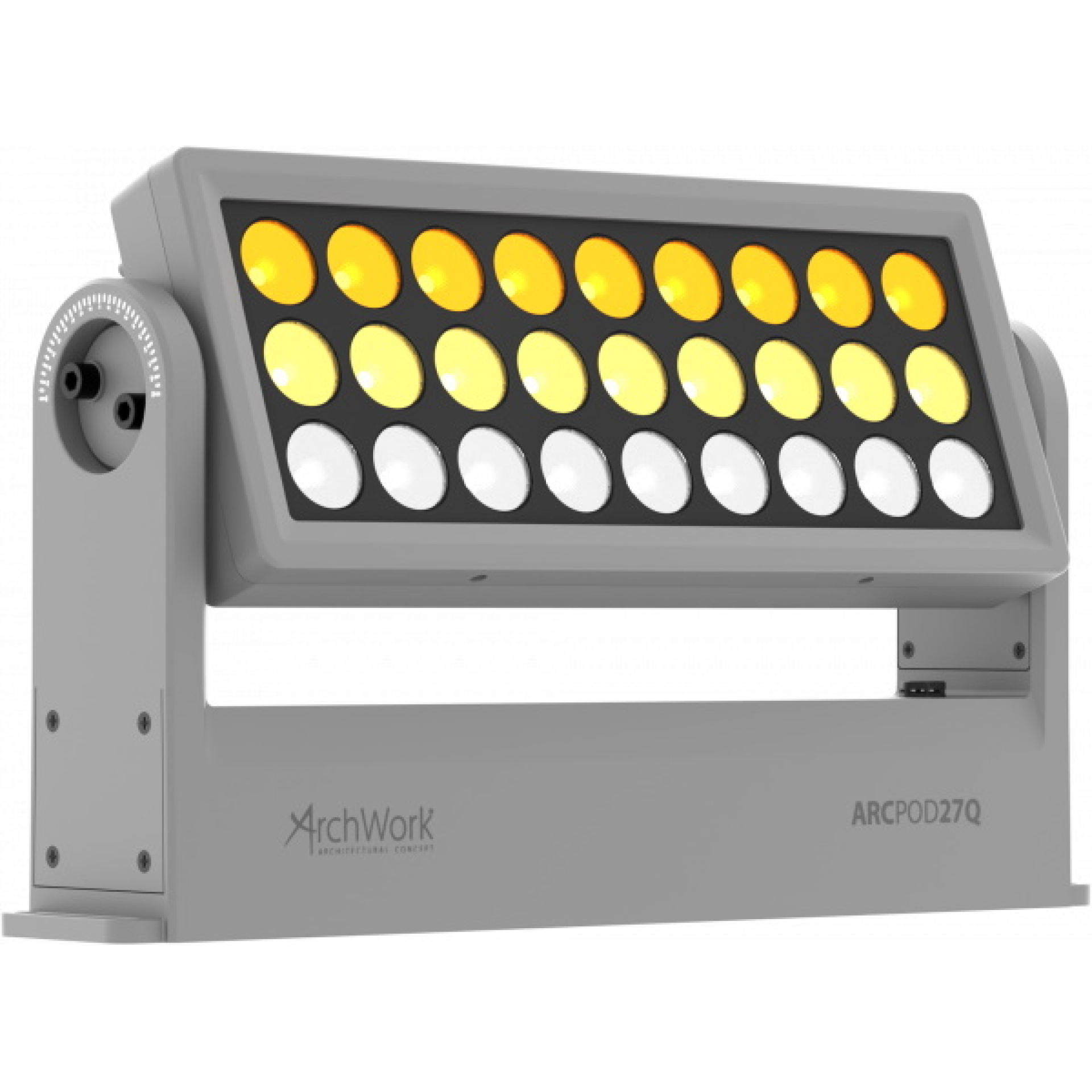

PROLIGHTS Arcpod 27Q

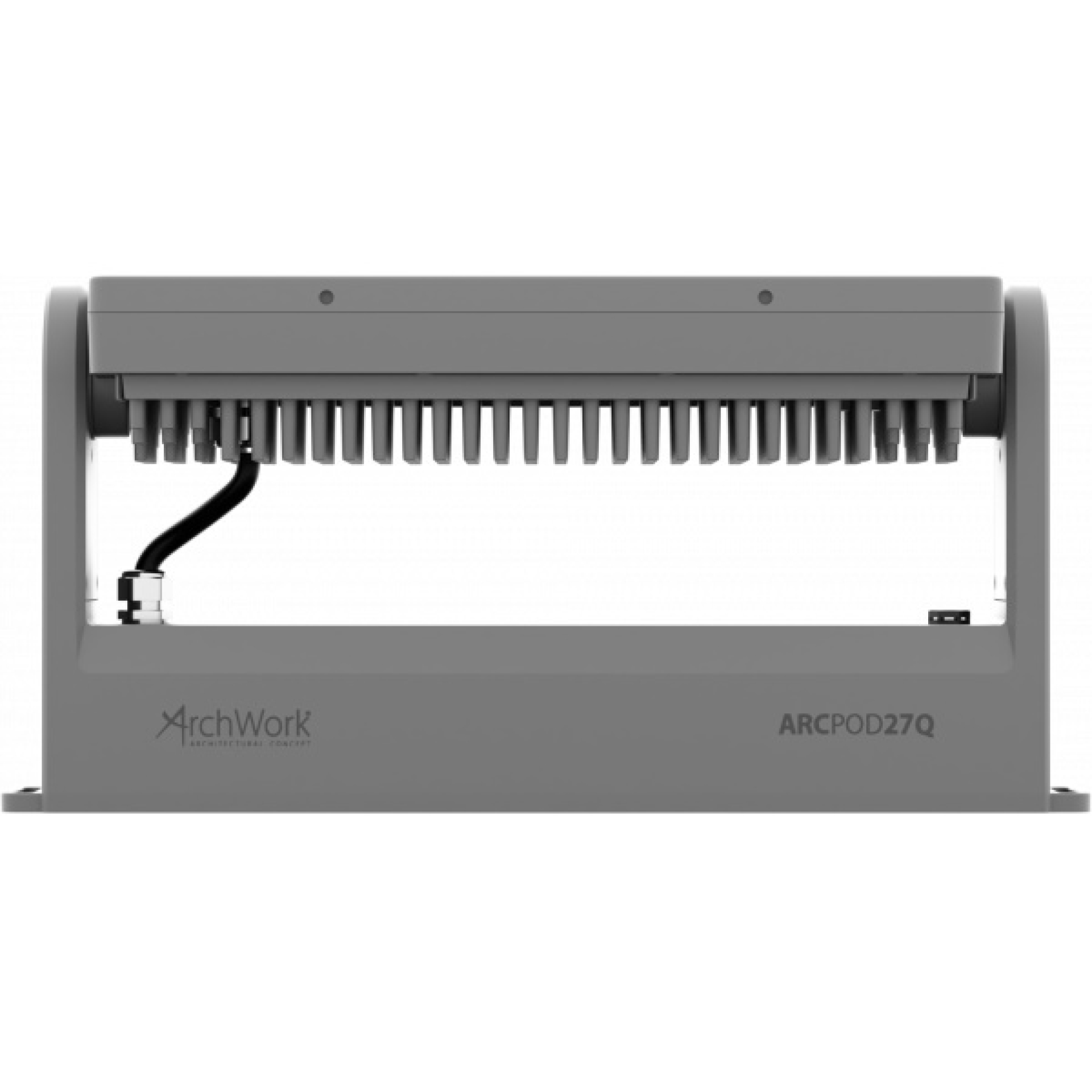

PROLIGHTS Arcpod 27Q - rear view

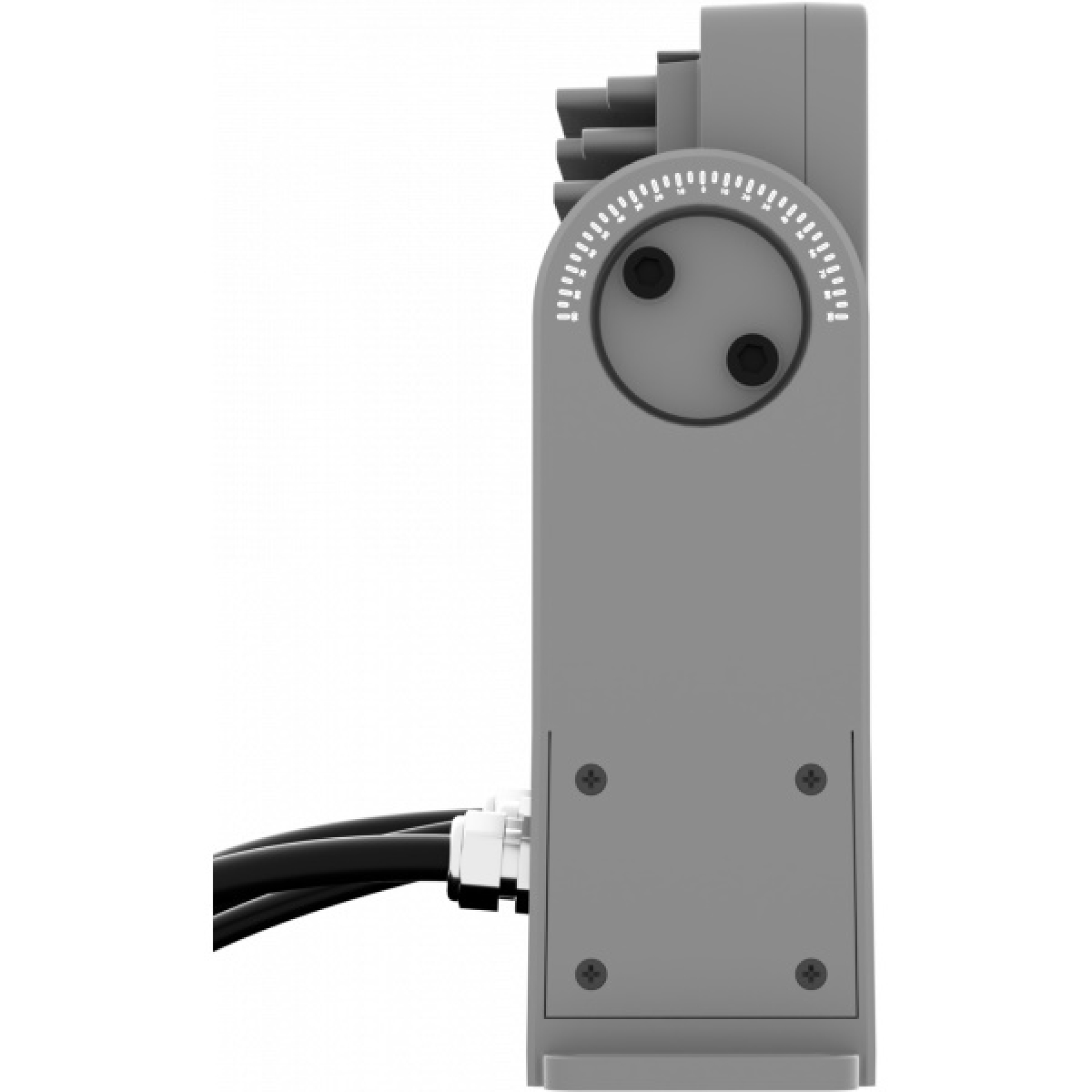

PROLIGHTS Arcpod 27Q - side view
PROLIGHTS Arcpod 27Q - rear view
PROLIGHTS Arcpod 27Q - side view

ArcPod 27Q

PROARCPOD27Q

Key Features:

  • 27x10W RGBW / FC LEDs delivering 11,500 lumens
  • LED emitters controllable in 3 linear sections
  • Compact form factor and fanless
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

ArcPod 27Q

The PROLIGHTS ArcPod 27Q is a compact high-power exterior wash light featuring an outstanding brightness of 11,500 lumens. It is equipped with 27x10 W RGBW / FC LEDs, delivering a limitless reproduction of colours and whites.

ArcPod 27Q is a compact high-power exterior wash light featuring an outstanding brightness of 11'200 lumens. It is equipped with 27x10W RGBW/FC LEDs, delivering a limitless reproduction of colours and whites. ArcPod 27Q is designed slim and fanless, and it's completed by a wide selection of available optics, making it an incredibly flexible and versatile device for any outdoor install.

  • Source: 27x10W RGBW / FC LEDs

    Luminous flux: (10°) 9'437 lm; (15°) 11'179 lm; (25°) 10'757; (45°) 9'816lm @full

    Lux: (10°) 17'953 lx; (15°) 14'017 lx; (25°) 6'340 lx; (45°) 1'454lx @3 m full

    Lux: (10°) 6'463 lx; (15°) 5'046 lx; (25°) 2'282 lx; (45°) 523lx @5 m full

    Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)

    Beam angle: 15°

    Field angle: 28°

  • Colour mixing: RGBW / FC

    CCT: CCT control through dedicated DMX channel

    Colour wheel: virtual colour wheel with presets

    Macros: several pre-built macros with adjustable speed

    FX generator: up to 3 linear controllable sections

    Static mode: selection of static colour

  • Protocols: DMX512, RDM

    DMX channels: 5 / 7 / 10 / 13 / 17channel

    Pixel control: up to 3 linear controllable sections

    RDM: RDM for remote monitoring and settings

    Display: user interface through DATAMASTER external coder (not included)

    Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included

    Master/Slave: for synchronised operation of more units linked in a chain
