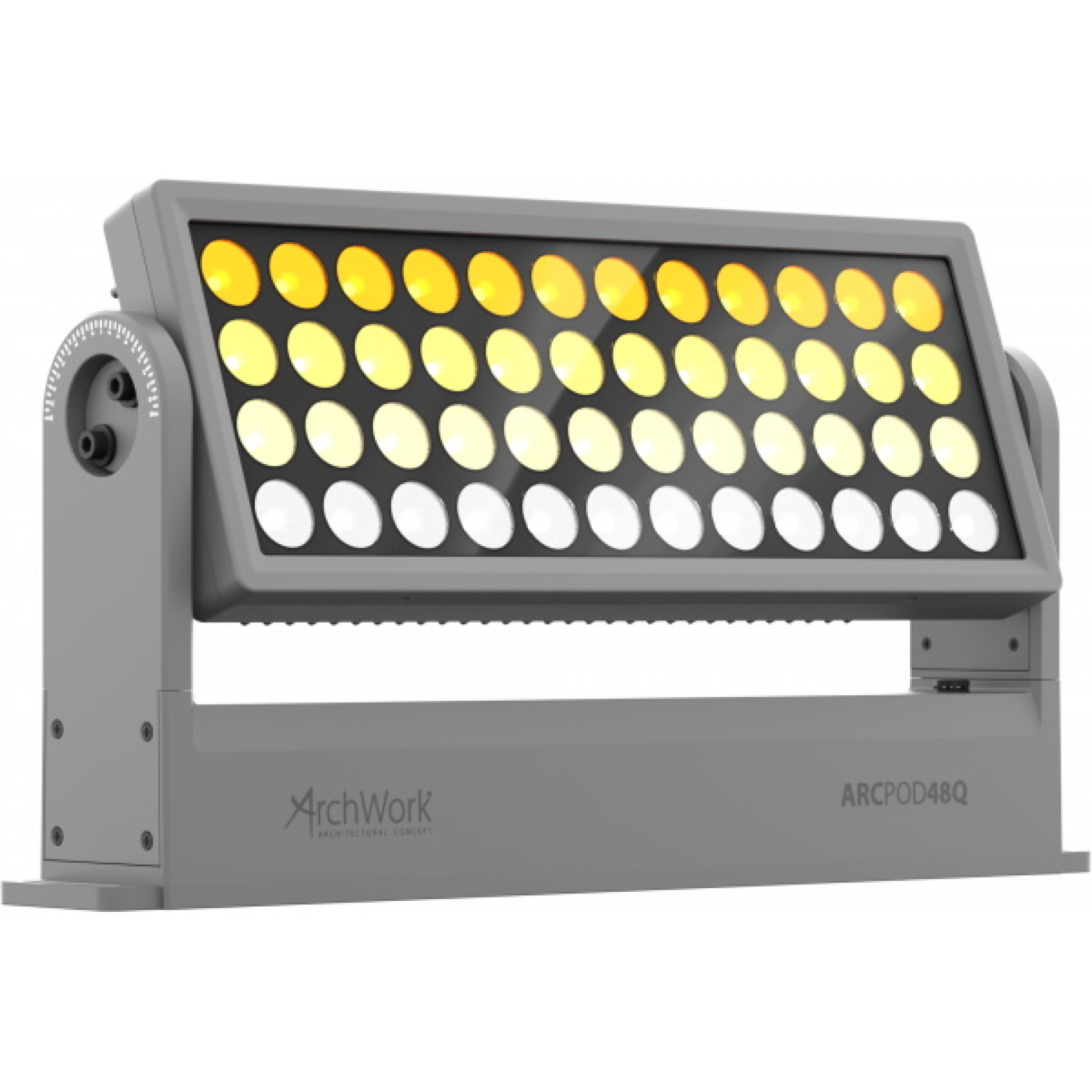

PROLIGHTS Arcpod 48Q

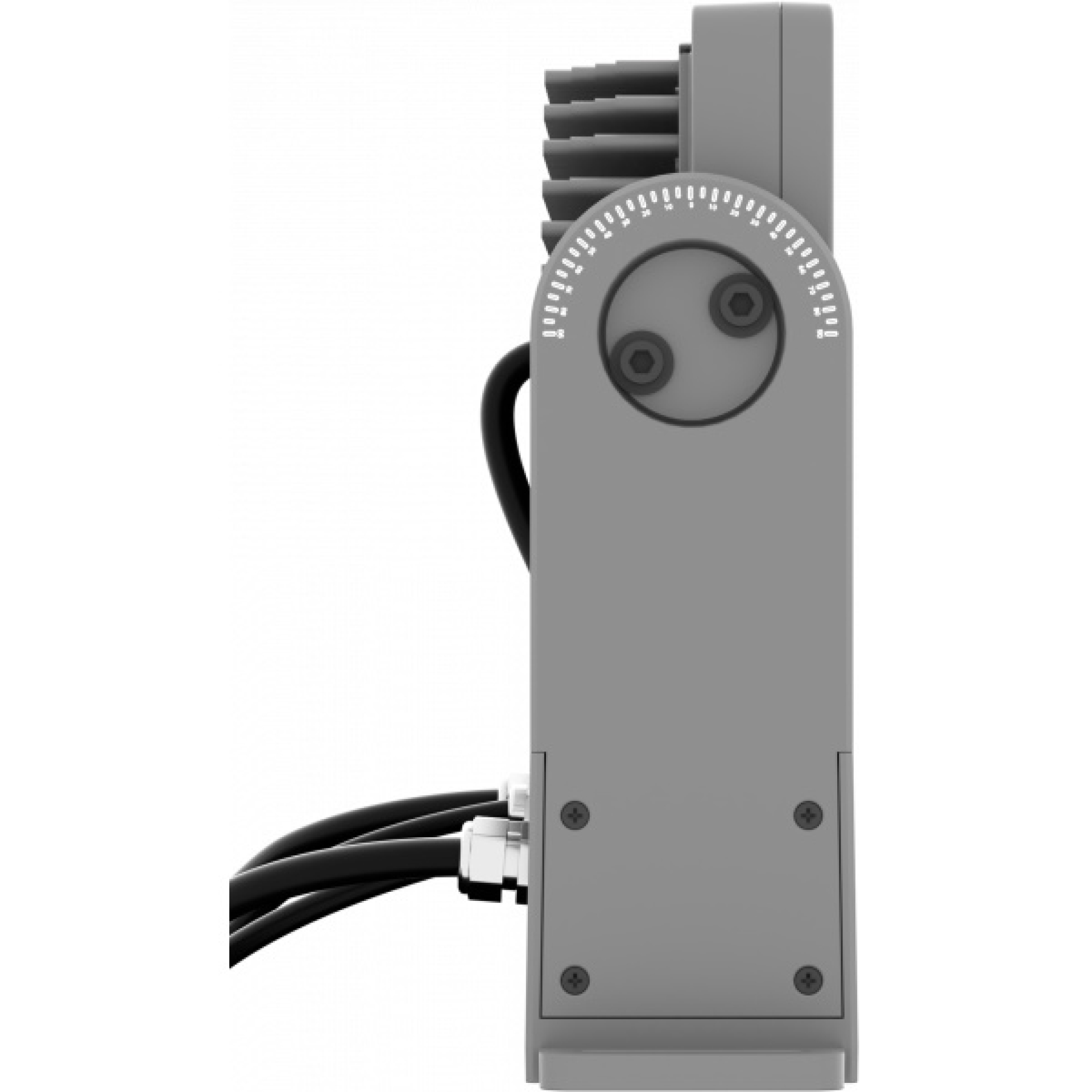

PROLIGHTS Arcpod 48Q - side view

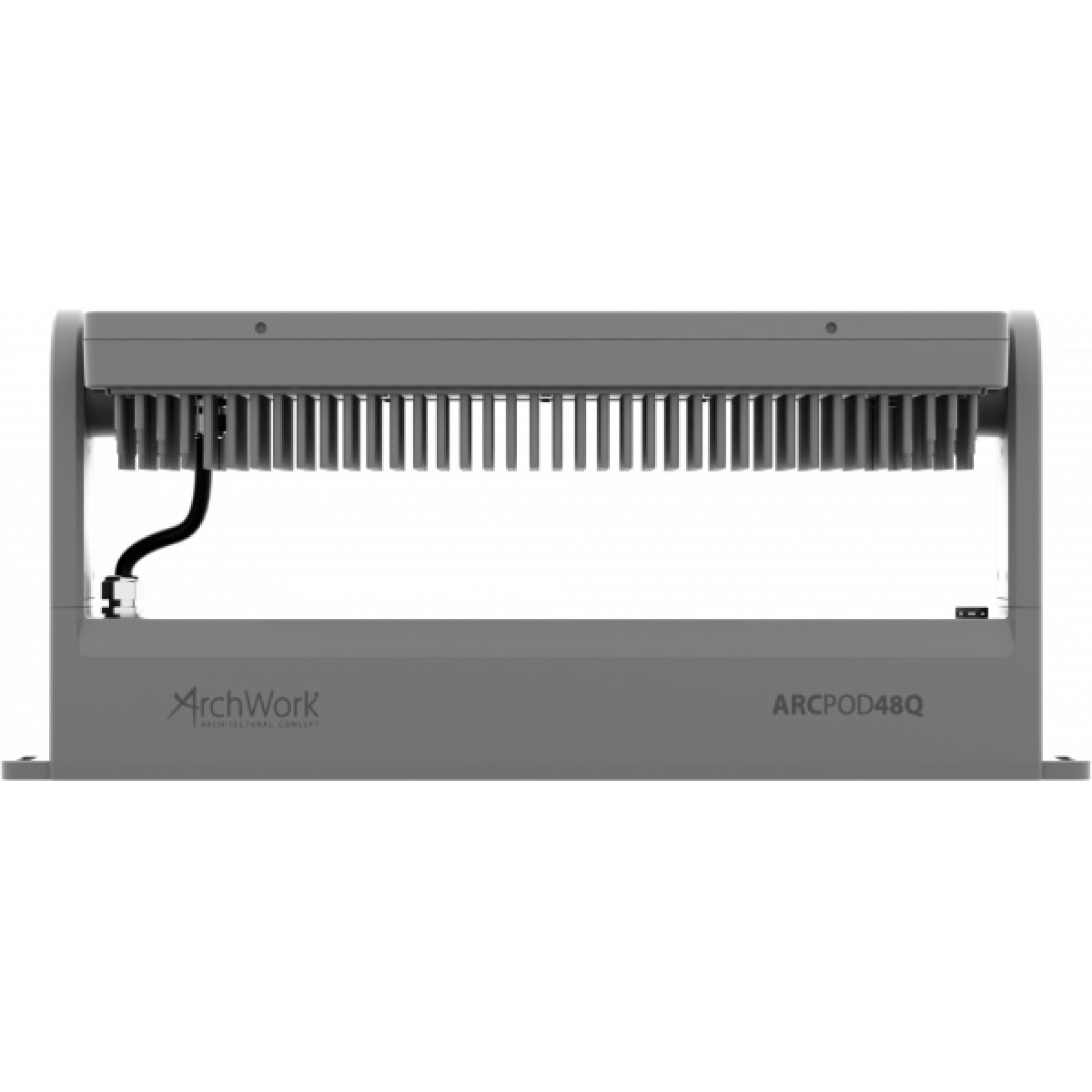

PROLIGHTS Arcpod 48Q - rear view
PROLIGHTS Arcpod 48Q - side view
PROLIGHTS Arcpod 48Q - rear view

ArcPod 48Q

PROARCPOD48Q

Key Features:

  • 48x10W RGBW / FC LEDs delivering 28,000 lumen
  • LED emitters controllable in 4 sections
  • Compact form factor and fanless
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

ArcPod 48Q

The PROLIGHTS ArcPod 48Q is a compact high-power exterior wash light featuring a brightness of 28,000 lumens. It is equipped with 48 x 10W RGBW / FC LEDs, delivering a limitless reproduction of colours and whites.

ArcPod 48Q is a compact high-power exterior wash light featuring an outstanding brightness of 23'000 lumens. It is equipped with 48x10W RGBW / FC LEDs, delivering a limitless reproduction of colours and whites. ArcPod 48Q is designed slim and fanless, and it's completed by a wide selection of available optics, making it an incredibly flexible and versatile device for any outdoor install.

  • Source: 48x10W RGBW / FC LEDs

    Luminous flux: (10°) 18'421 lm; (15°) 22'977 lm; (25°) 20'741 lm; (45°) 16'408lm @full

    Lux: (10°) 37'370 lx; (15°) 30'888 lx; (25°) 12'884 lx; (45°) 2'739lx @3 m full

    Lux: (10°) 13'453 lx; (15°) 11'120 lx; (25°) 4'638 lx; (45°) 986lx @5 m full

    Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)

    Beam angle: 15°

    Field angle: 27°

  • Colour mixing: RGBW / FC

    CCT: CCT control through dedicated DMX channel

    White presets: 2.800 K ~ 10.000K

    Colour wheel: virtual colour wheel with macros

    Macros: several pre-built macros with adjustable speed

    FX generator: up to 4 linear controllable sections

    Static mode: selection of static colour

  • Protocols: DMX512, RDM

    DMX channels: 5 / 7 / 10 / 17 / 22channel

    Pixel control: up to 4 linear controllable sections

    RDM: RDM for remote monitoring and settings

    Display: user interface through DATAMASTER external coder (not included)

    Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included

    Master/Slave: for synchronised operation of more units linked in a chain
